20% off

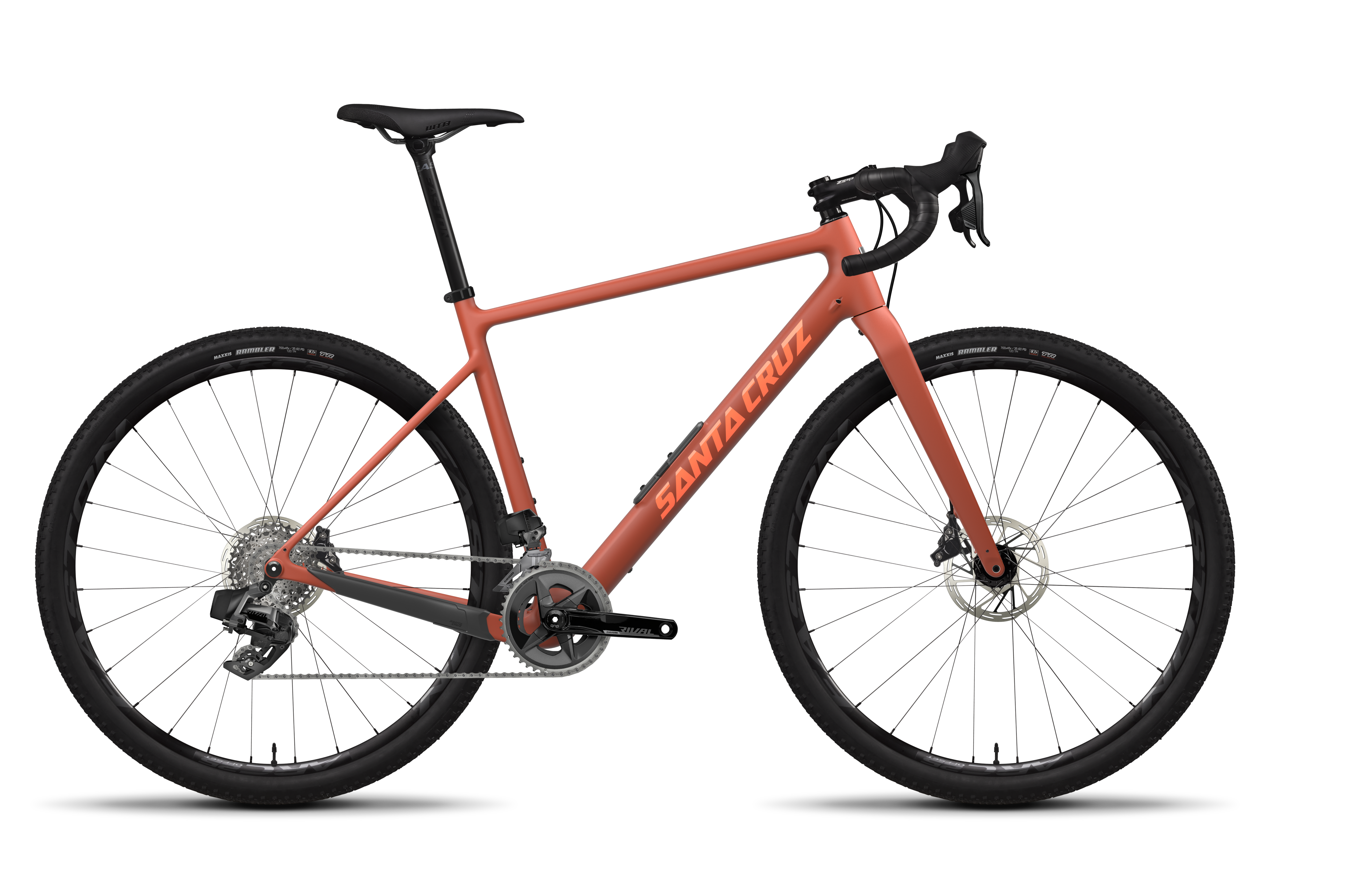

Santa Cruz Stigmata Rival 2x AXS 2024

By Santa Cruz
$3,999.00 $4,999.00
View details

The Santa Cruz Stigmata Rival 2x AXS 2024 RSV is a gravel bike built for those who crave variety — big races, winding backroads, or the thrill of technical singletrack. With its lightweight Carbon CC frame, precise SRAM Rival AXS 2x electronic shifting, and rugged Maxxis tires, this Stigmata is always geared to go wherever the adventure leads. It’s sharp, stable, and endlessly capable ready for those ‘why not?’ rides.

Standout Features

  • CC Carbon Frame — light, tough, and adventure-ready
  • SRAM Rival AXS 2x12 Electronic Shifting for seamless control
  • Maxxis Rambler 700x45c Tires for fast, grippy mixed-terrain riding
  • Easton ARC Offset 25 700c Rims — durable, wide, tubeless-ready
  • Progressive Gravel Geometry for nimble handling on and off-road

Frame

  • Material: Carbon CC
  • Weight: 20.62 lbs / 9.35 kg
  • Wheel Size: 700C

Suspension

  • Fork: Carbon

Drivetrain

  • Bottom Bracket: SRAM DUB 68mm Road Wide BB
  • Cassette: SRAM XG-1250, 10-36t
  • Chain: SRAM Rival, 12spd

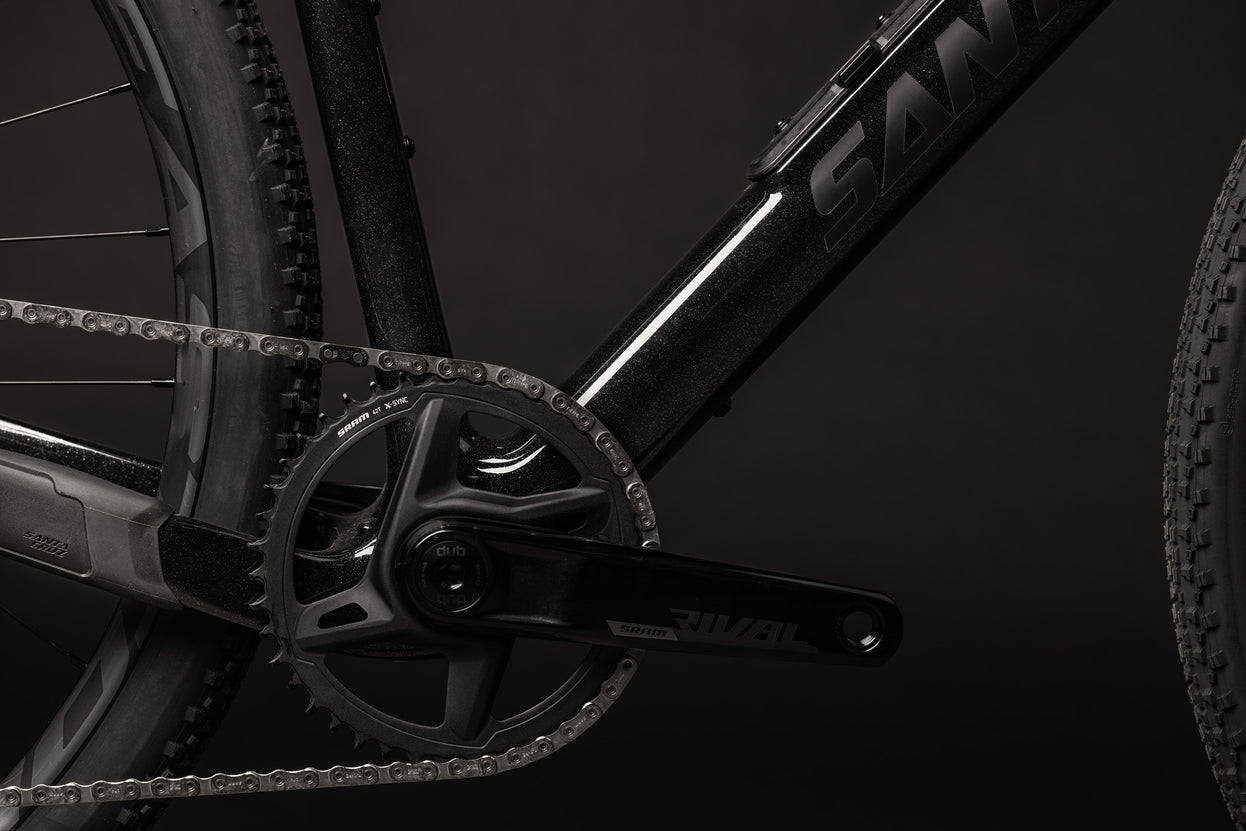

  • Crankset: SRAM Rival DUB Wide, 43/30
  • Front Derailleur: SRAM Rival AXS Wide
  • Rear Derailleur: SRAM Rival AXS, 12spd
  • Right Shifter: SRAM Rival AXS

Brakes

  • Front Rotor: SRAM Paceline 160mm, Centerlock
  • Rear Rotor: SRAM Paceline 160mm, Centerlock

Cockpit

  • Grips / Bar Tape: Velo Bar Tape
  • Handlebars: Zipp Service Course 70 XPLR AL Bar
  • Headset: Cane Creek 40 IS Integrated
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: Easton EC70, 27.2, Zero Offset, 350mm
  • Stem: Zipp Service Course Stem, 70mm

Wheels & Tires

  • Front Rim: Easton ARC Offset 25 700c
  • Front Hub: DT Swiss 370, 12x100, Centerlock, 28h
  • Front Tire: Maxxis Rambler, 700x45c, DC, EXO, TR
  • Rear Rim: Easton ARC Offset 25 700c
  • Rear Hub: DT Swiss 370, 12x142, XDr, Centerlock, 28h
  • Rear Tire: Maxxis Rambler, 700x45c, DC, EXO, TR

Specifications

Spec Details
Rear Brake Mount Flatmount 160mm Direct
Fork Axle to Crown 430mm
Fork Offset 45mm
Headset IS 41 / IS52
Max Chainring Size 46t
Max Rotor Size 180mm
Max Tire Clearance 50mm
Rear Spacing 142mm
UDH Compatible Yes

Size Guide

Size Rider Height Reach
XS 4'10" – 5'1" (147–155 cm) 430 mm
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
