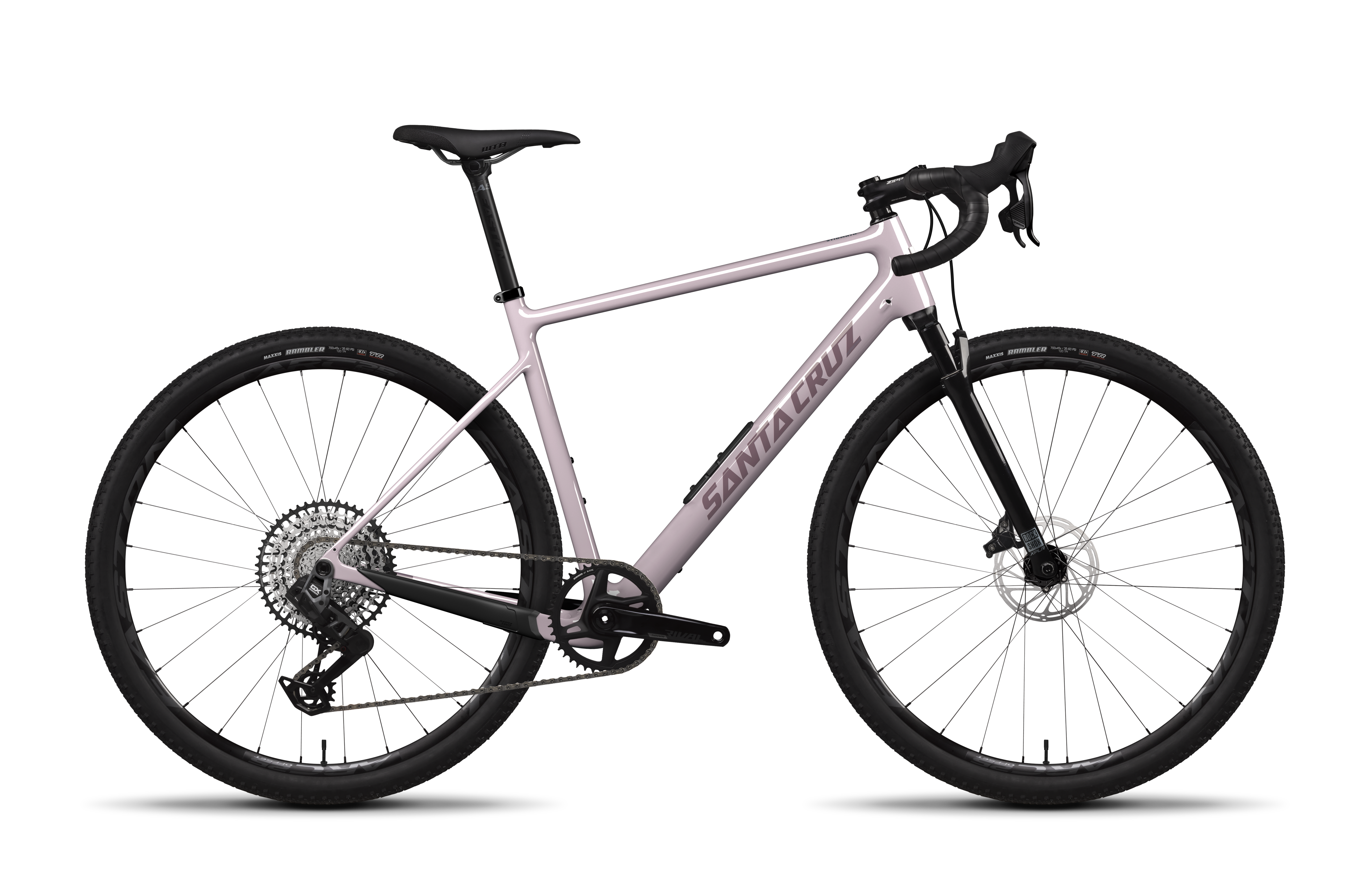

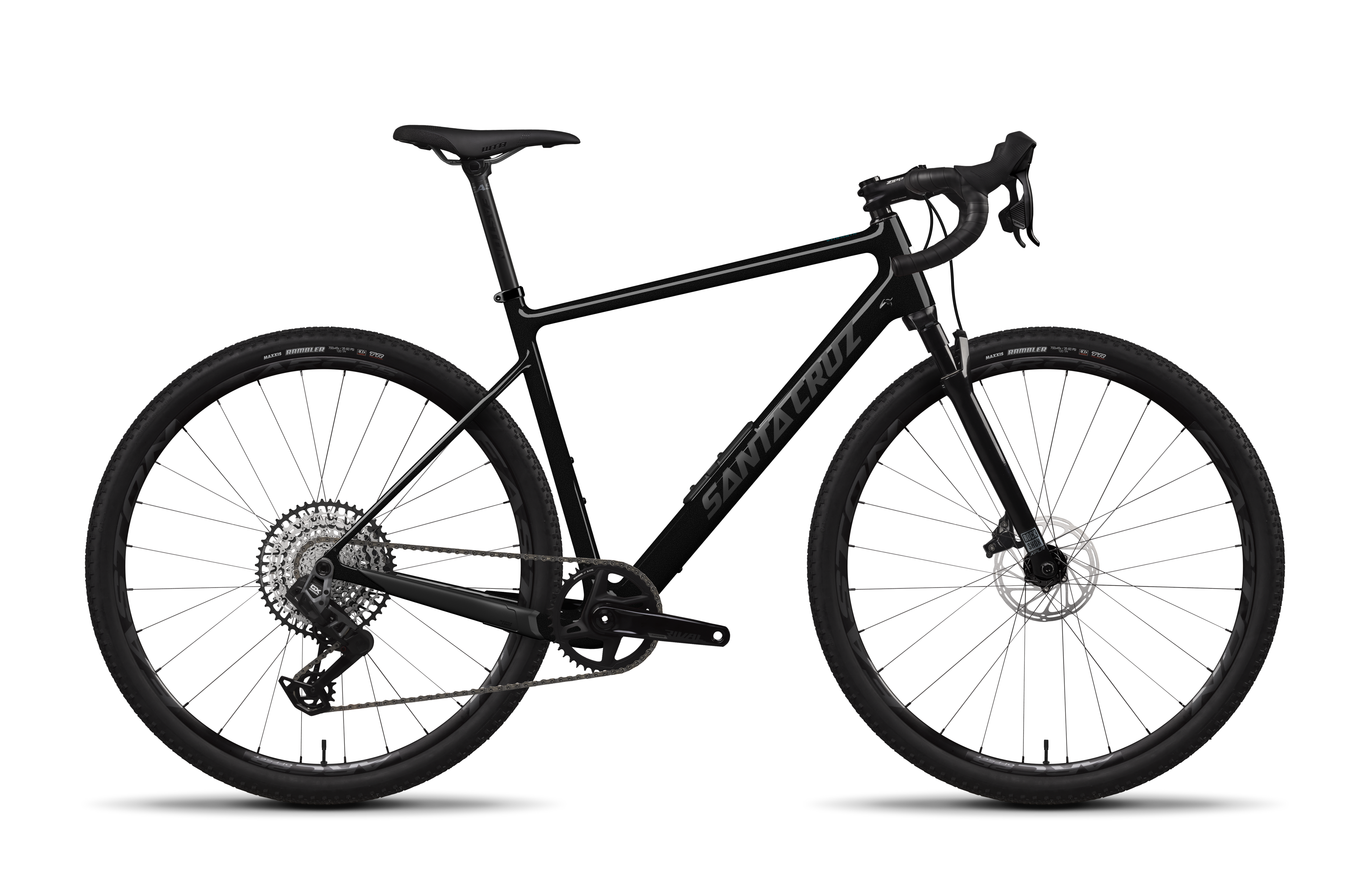

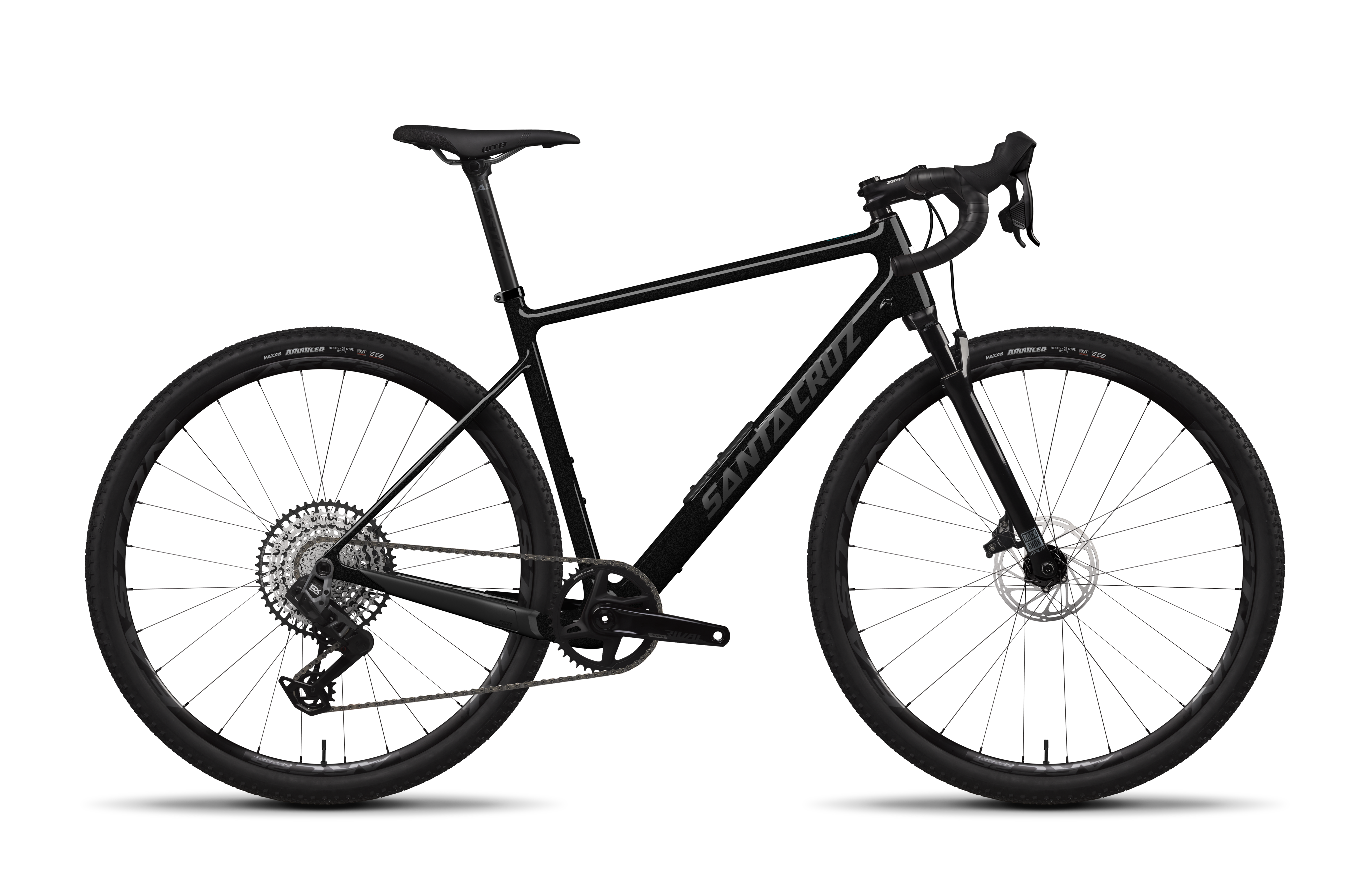

Santa Cruz Stigmata Rival 1x Rudy AXS

By Santa Cruz
$4,899.00
View details

The Santa Cruz Stigmata Rival 1x Rudy AXS is the ultimate gravel weapon for riders who demand high performance in the toughest conditions. With a Carbon CC frame, SRAM GX Eagle T-Type drivetrain, and RockShox Rudy Base fork, it’s built to take on anything — from backcountry gravel roads to rough singletrack. Whether you’re racing or adventuring, the Stigmata is the versatile machine that’ll rise to every challenge.

Standout Features

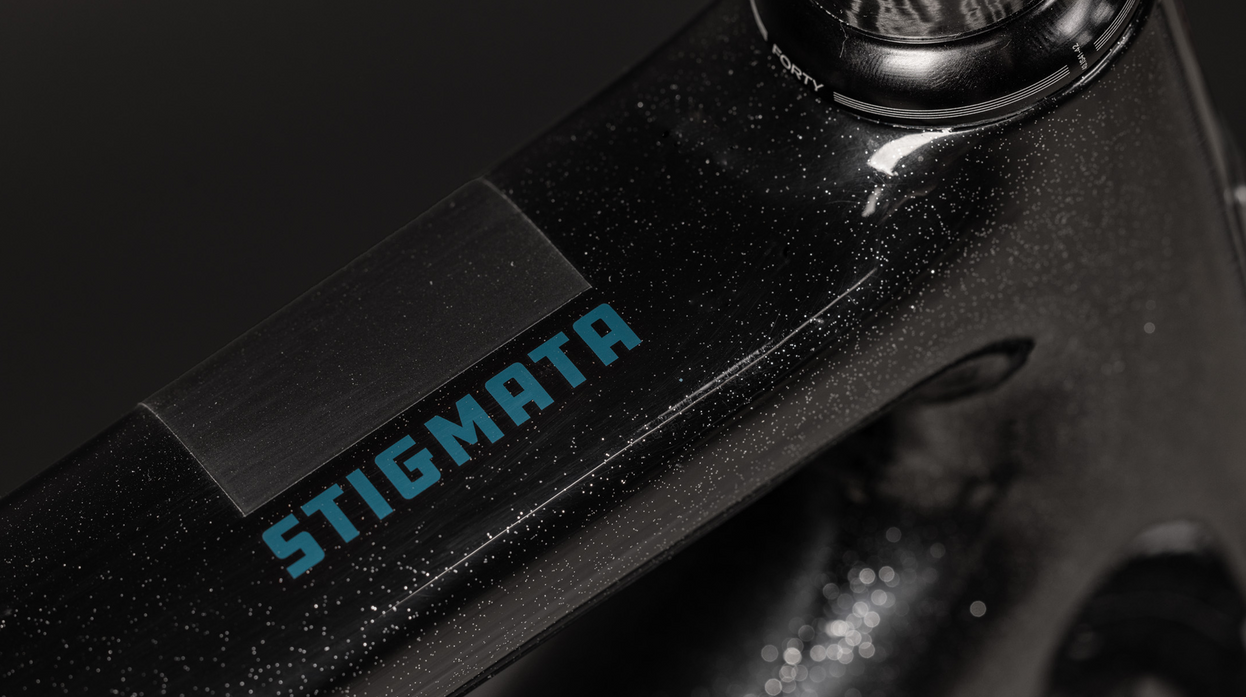

  • CC Carbon Frame — lightweight, stiff, and strong for high performance
  • RockShox Rudy Base Fork with 40mm travel for comfort on rough terrain
  • SRAM GX Eagle T-Type 12spd Drivetrain for smooth, reliable shifting
  • Maxxis Rambler 700x45c Tires for fast and rugged mixed-surface traction

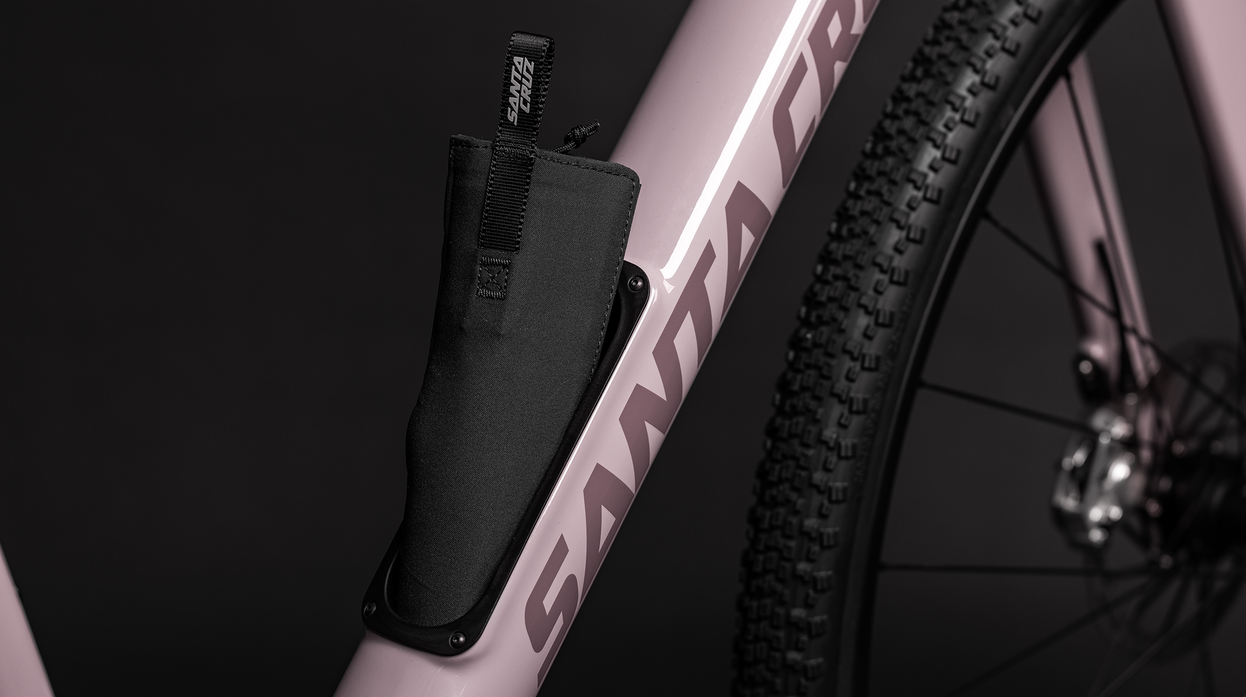

  • Glovebox Storage for added convenience
  • Low Profile Fender Mounts for rainy rides

Frame

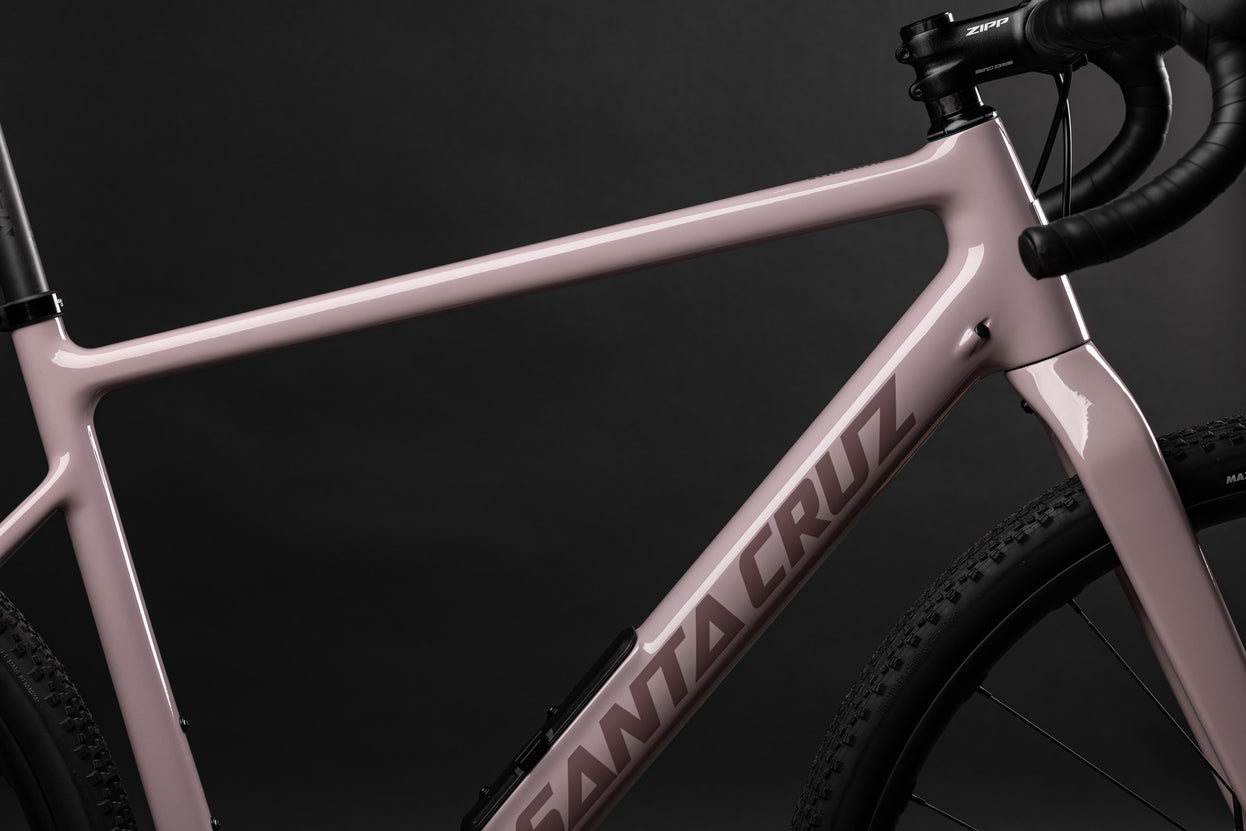

  • Material: Carbon CC
  • Weight: 23.37 lbs / 10.6 kg
  • Wheel Size: 700C

Suspension

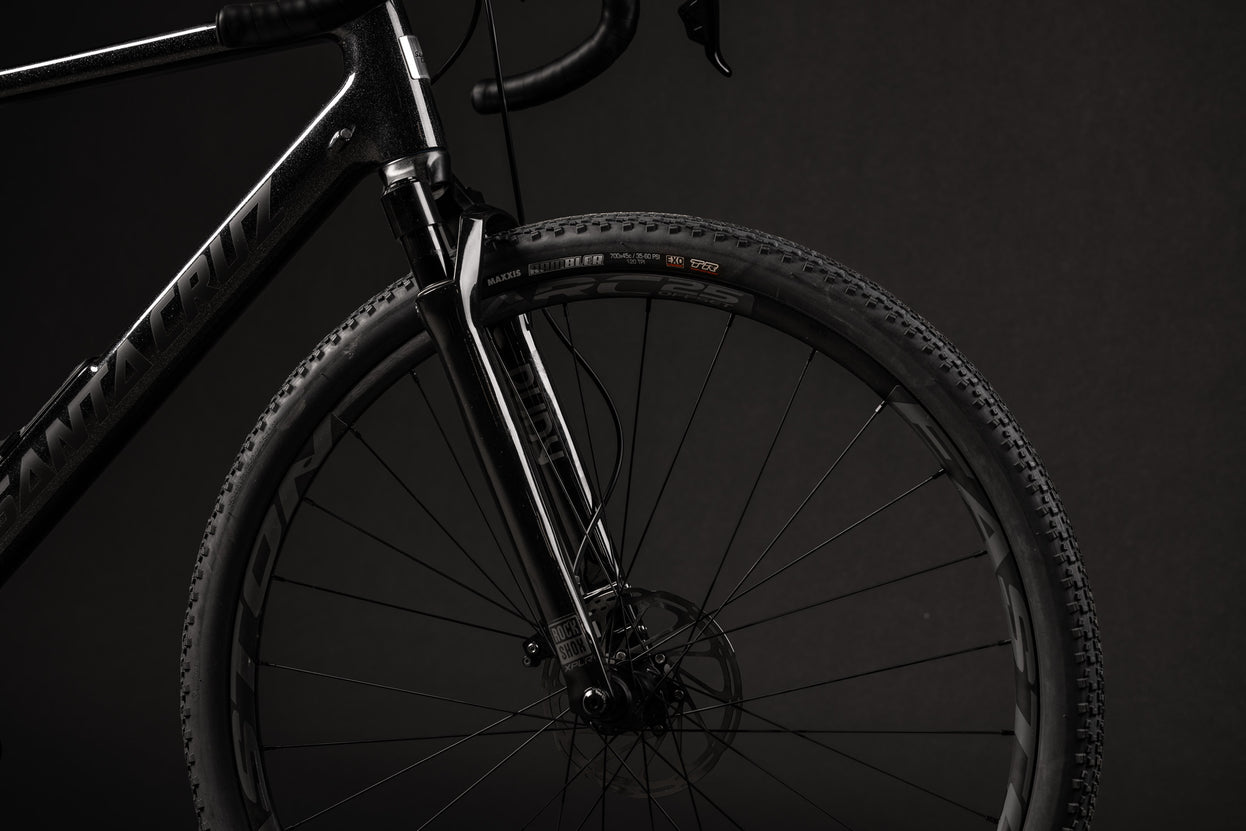

  • Fork: RockShox Rudy Base XPLR, 40mm

Drivetrain

  • Bottom Bracket: SRAM DUB 68mm Road Wide BB

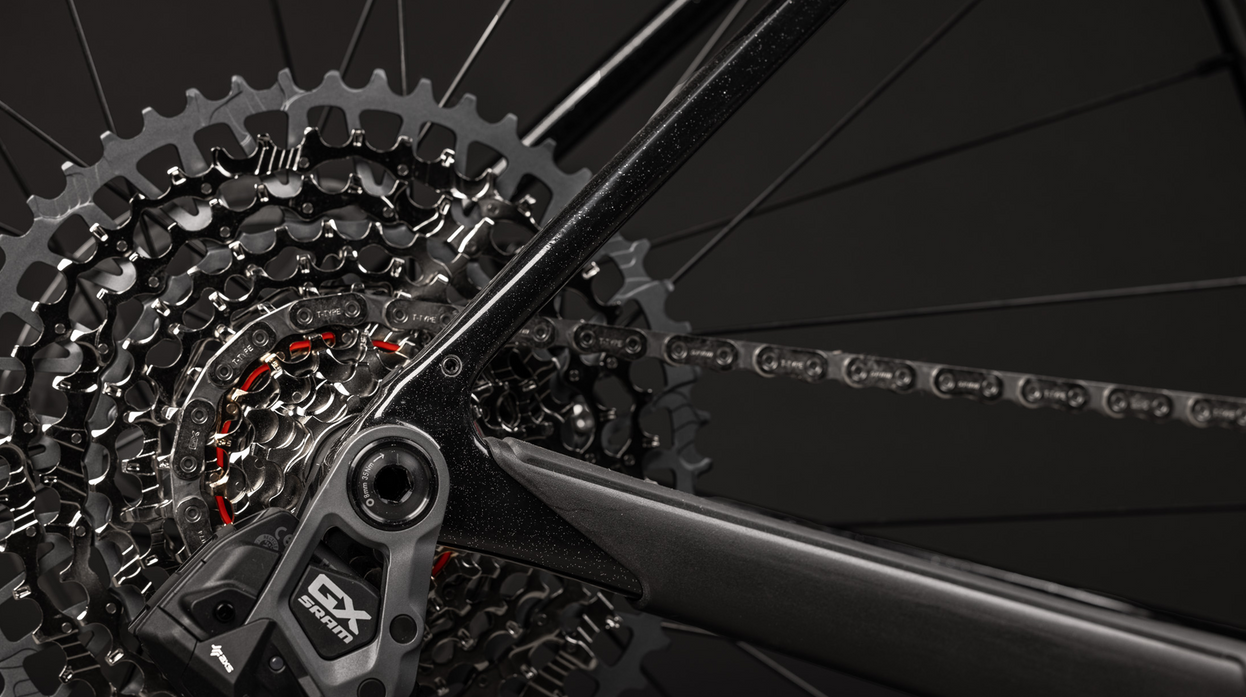

  • Cassette: SRAM GX Eagle T-Type, 10-52t
  • Chain: SRAM GX Eagle T-Type, Flattop, 12spd

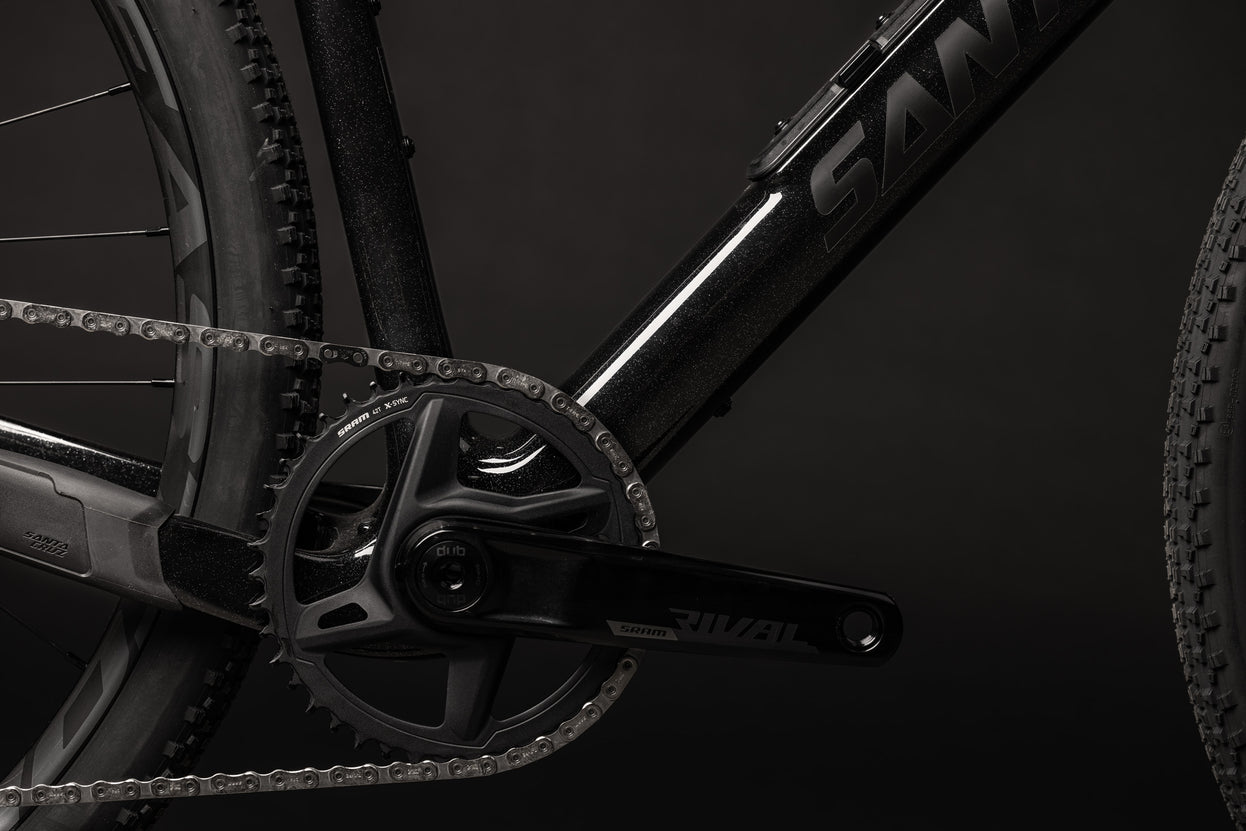

  • Crankset: SRAM Rival 1 DUB Wide, 42t
  • Rear Derailleur: SRAM GX Eagle AXS T-Type, 12spd
  • Right Shifter: SRAM Rival eTap AXS

Brakes

  • Front Rotor: Avid Centerline, Centerlock, 160mm
  • Rear Rotor: Avid Centerline, Centerlock, 160mm

Cockpit

  • Grips / Bar Tape: Velo Bar Tape
  • Handlebars: Zipp Service Course 70 XPLR AL Bar

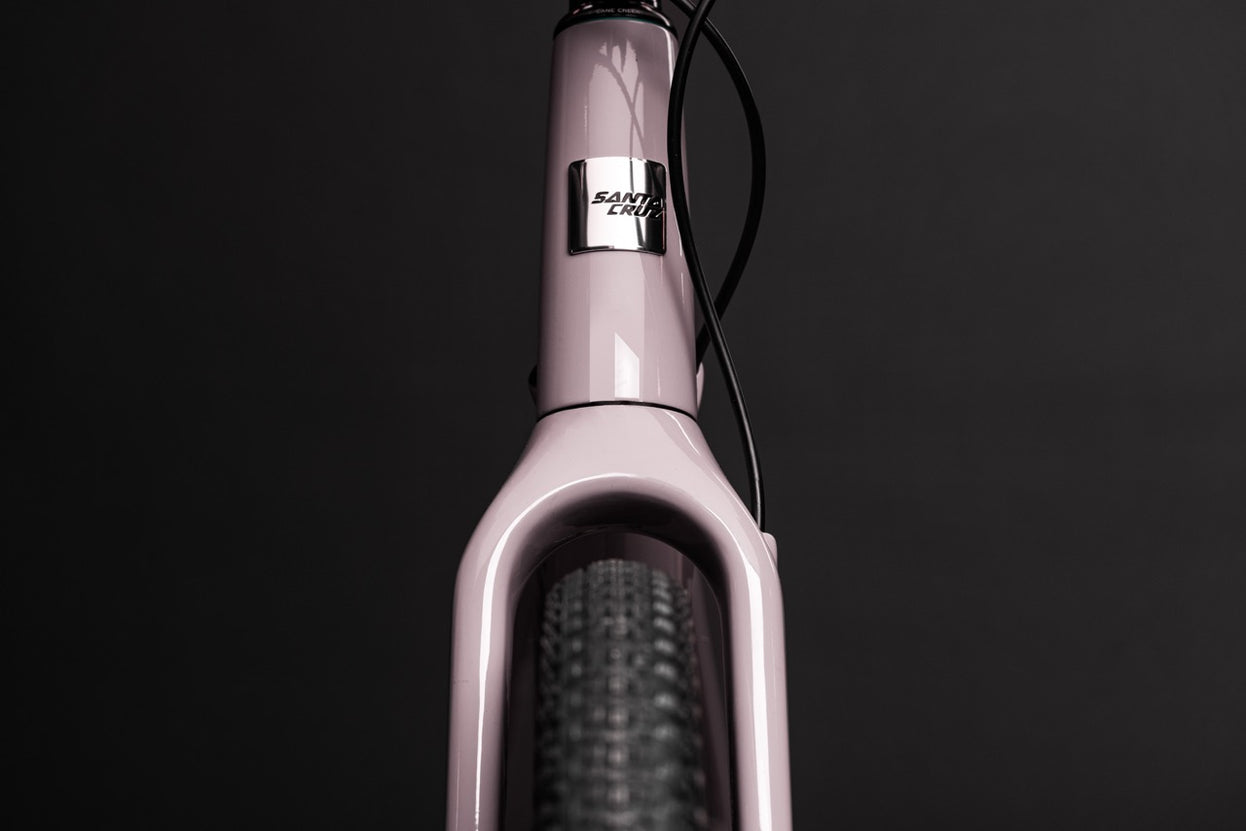

  • Headset: Cane Creek 40 IS Integrated
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: Easton EC70, 27.2, Zero Offset, 350mm
  • Stem: Zipp Service Course Stem, 70mm

Wheels & Tires

  • Front Rim: Easton ARC Offset 25 700c
  • Front Hub: DT Swiss 370, 12x100, Centerlock, 28h
  • Front Tire: Maxxis Rambler, 700x45c, DC, EXO
  • Rear Rim: Easton ARC Offset 25 700c
  • Rear Hub: DT Swiss 370, 12x142, XDr, Centerlock, 28h
  • Rear Tire: Maxxis Rambler, 700x45c, DC, EXO

Specifications

Spec Details
Bottom Bracket Shell BSA Threaded 68
Rear Brake Mount Flatmount 160mm Direct
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Braze-on w/included clamp adapter
Headset IS 41 / IS52
Max Chainring Size 42t (1x), 50/36t (2x)
Max Tire Clearance 50mm (1x), 45mm (2x)
Rear Spacing 142mm
UDH Compatible Yes

Size Guide

Size Rider Height Reach
XS 4'10" – 5'1" (147–155 cm) 430 mm
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
