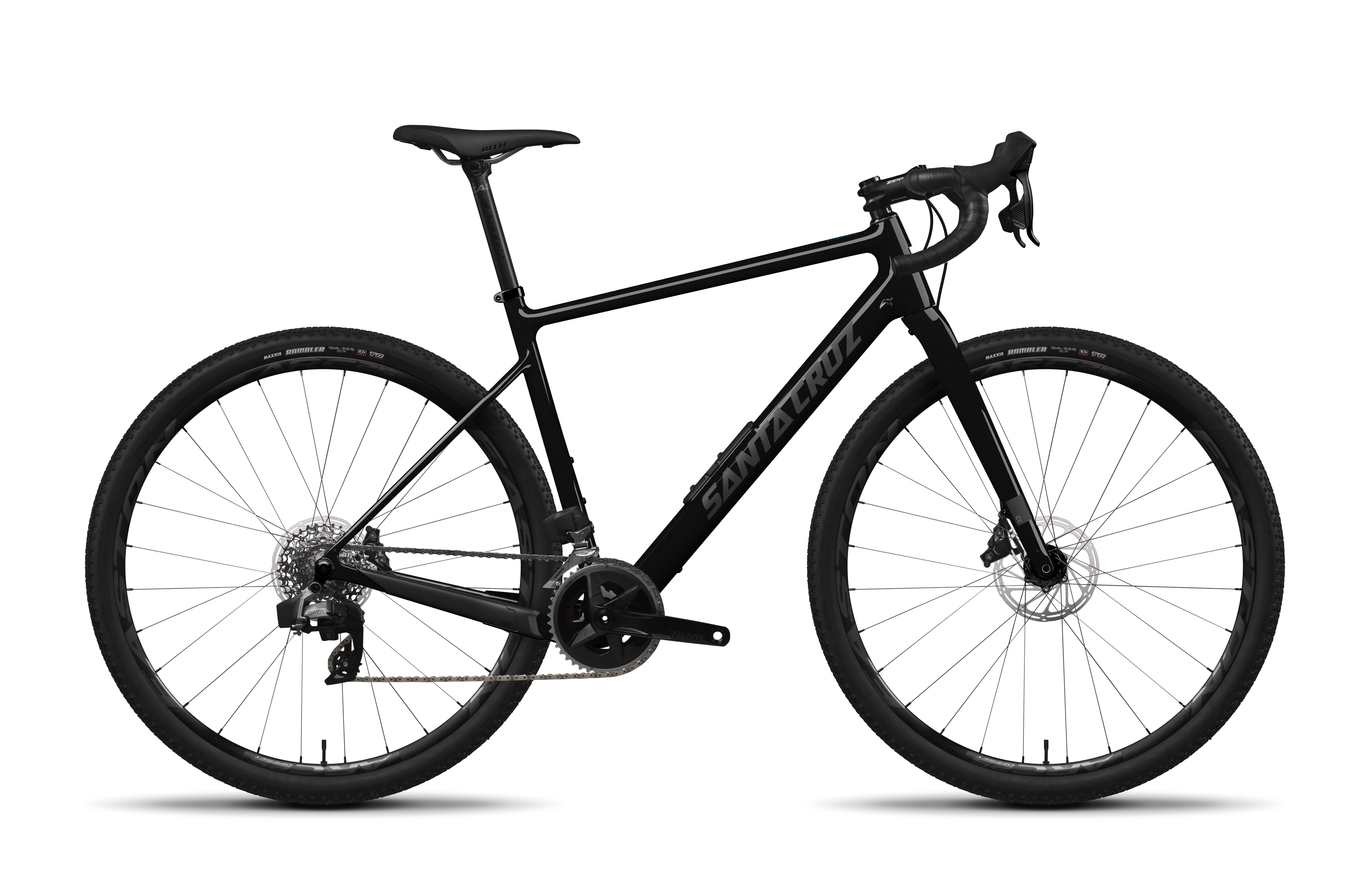

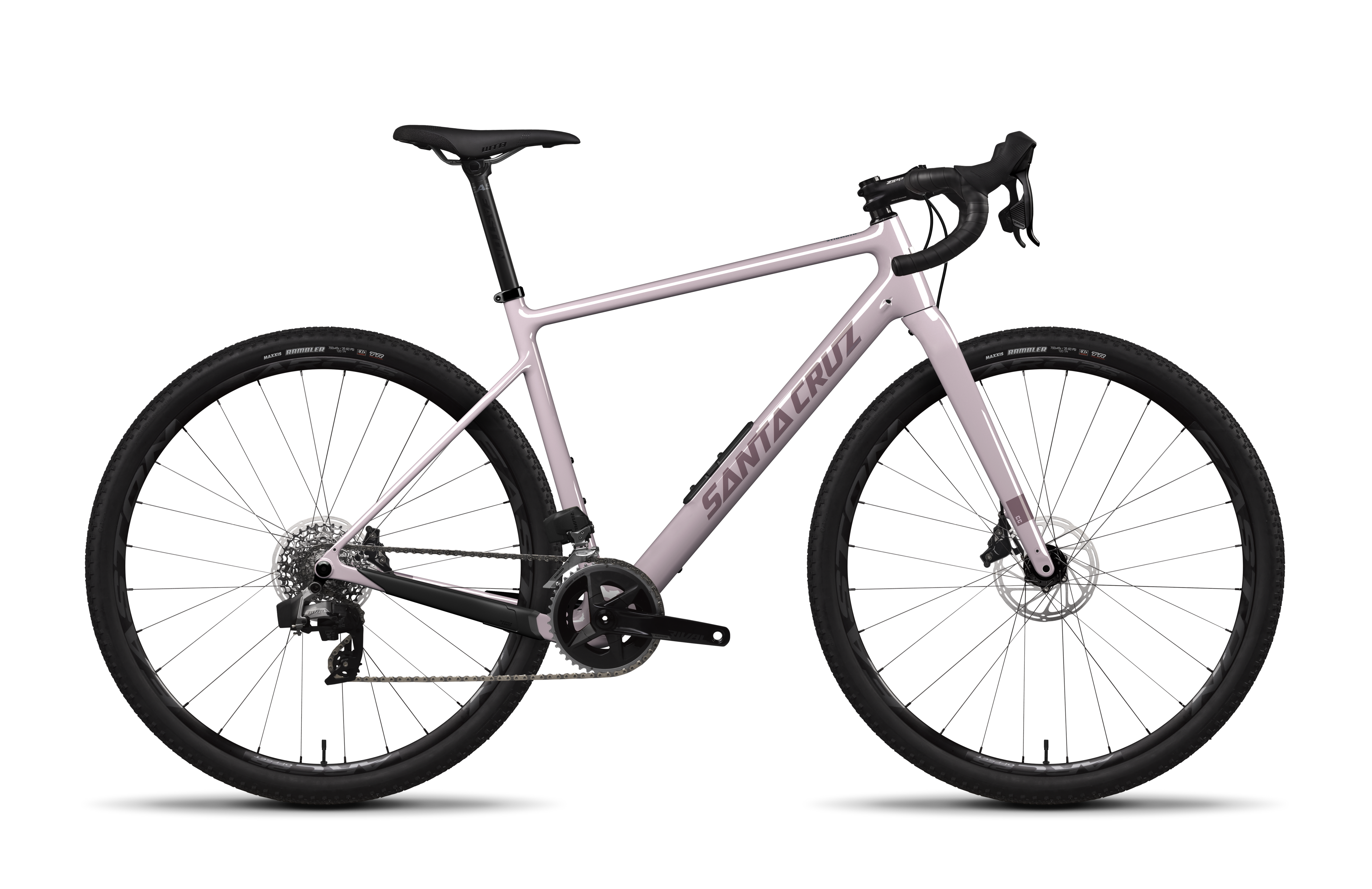

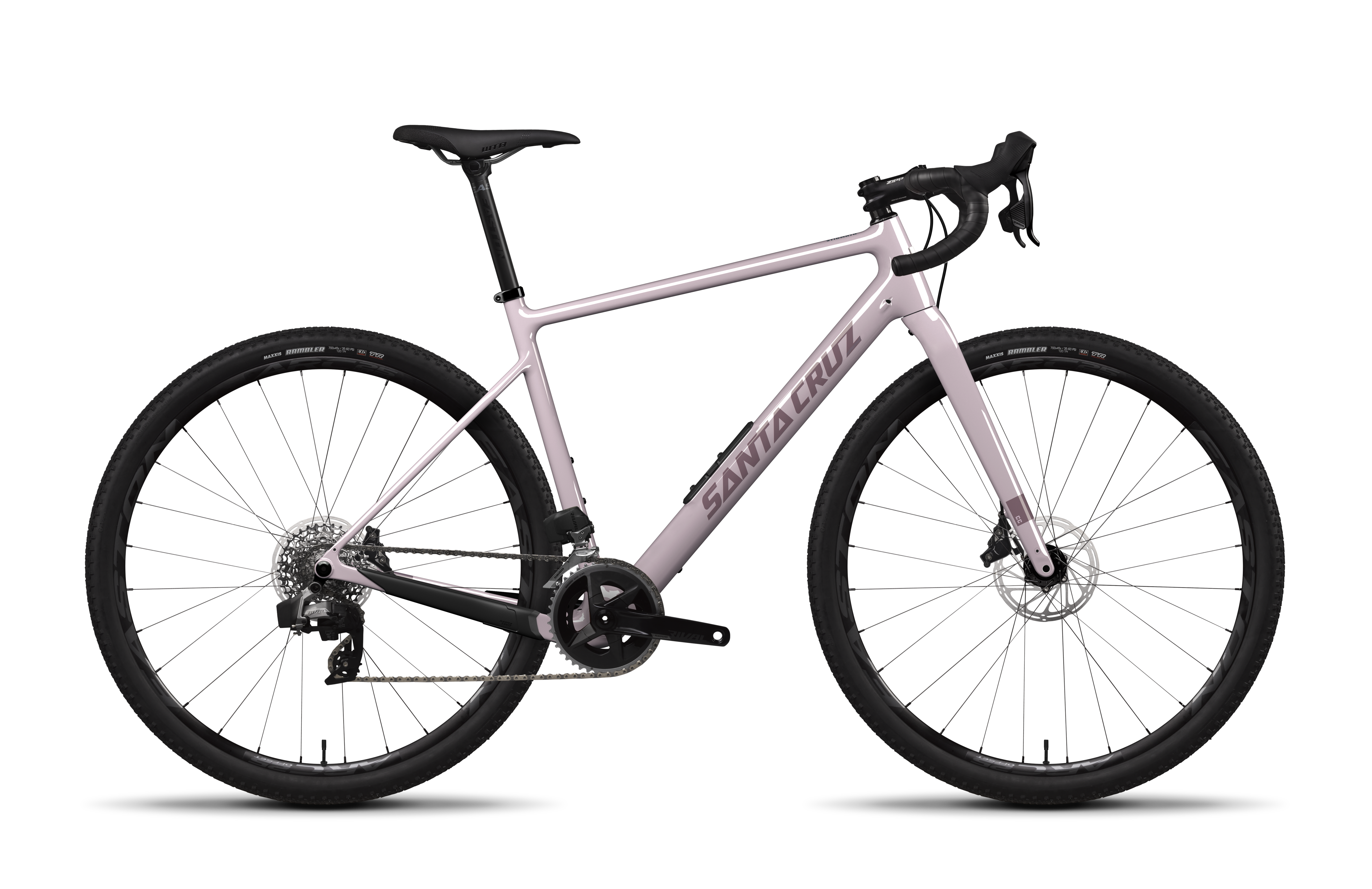

Santa Cruz Stigmata Rival 2x AXS 2025

By Santa Cruz
$4,999.00
View details

The Santa Cruz Stigmata Rival eTap AXS RSV is a fast, versatile gravel machine made for those who blur the lines between race-day precision and wild trail exploration. With its lightweight Carbon CC frame, progressive geometry, and SRAM Rival eTap AXS electronic shifting, it’s the perfect tool for adventure-minded riders, race chasers, and backroad adventurers alike. Built to go hard, wherever your legs and curiosity take you.

Standout Features

  • CC Carbon Frame — featherlight, stiff, and adventure-hardened
  • Progressive Geometry for nimble handling and confident control
  • SRAM Rival eTap AXS 2x12 Wireless Shifting — smooth, accurate, and cable-free
  • Maxxis Rambler 700x45c Tires for fast, rugged mixed-surface riding
  • Integrated Glovebox Storage inside the downtube
  • Low Profile Fender Mounts for wet and wild conditions

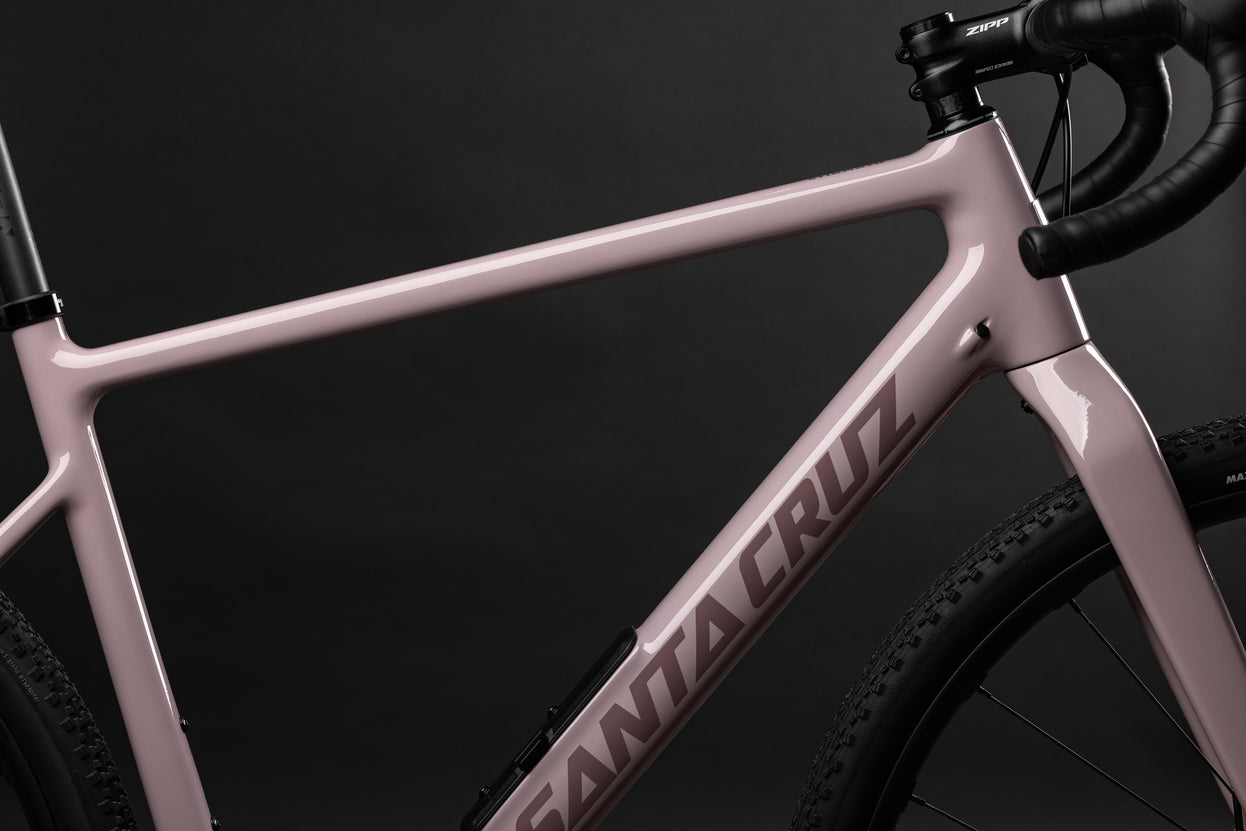

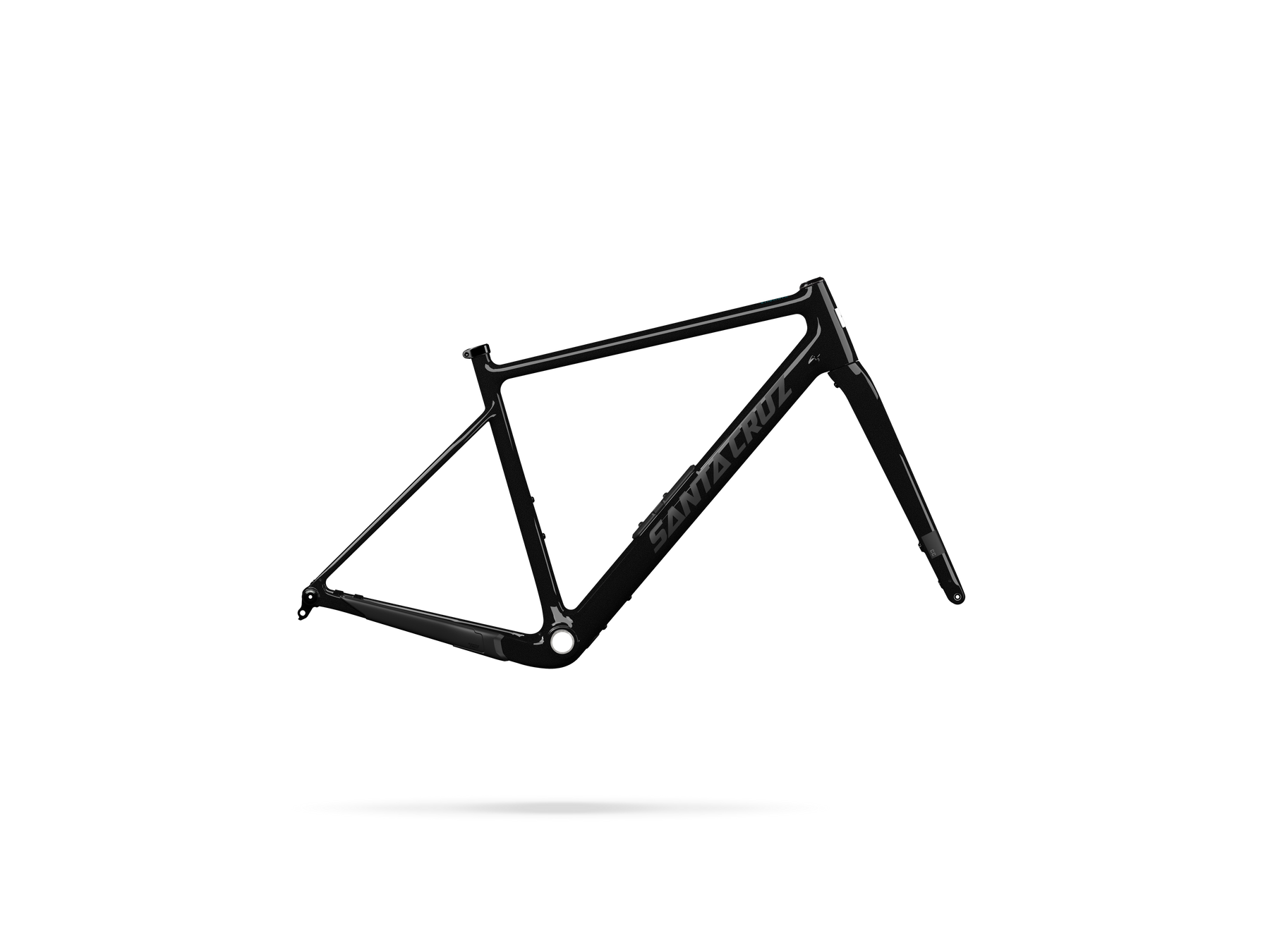

Frame

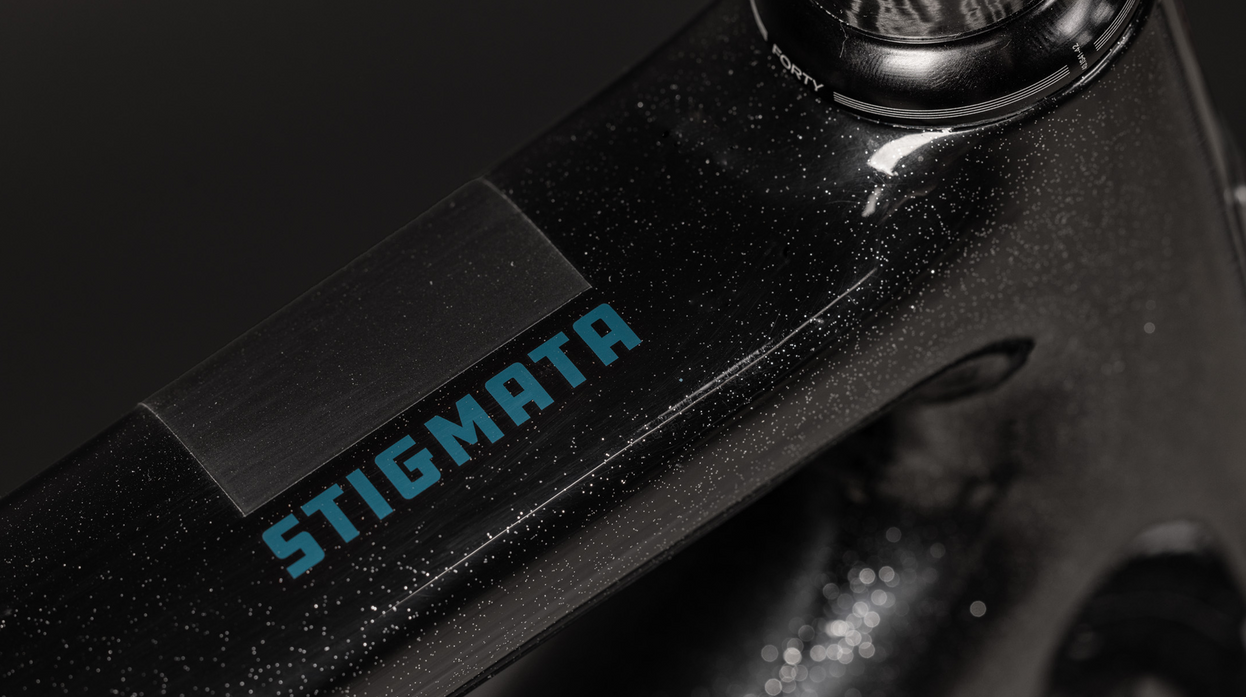

  • Material: Carbon CC
  • Weight: 20.67 lbs / 9.38 kg
  • Wheel Size: 700C

Suspension

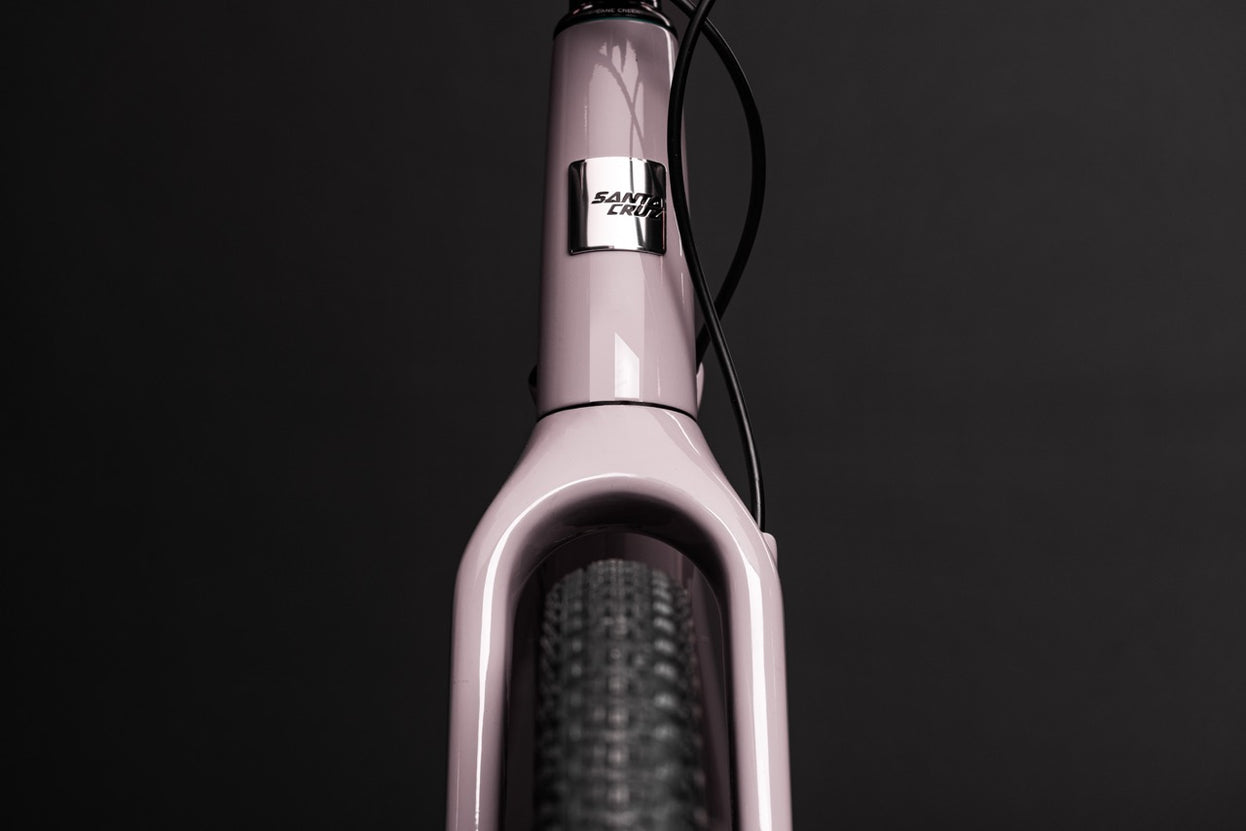

  • Fork: Carbon

Drivetrain

  • Bottom Bracket: SRAM DUB 68mm Road Wide BB
  • Cassette: SRAM XG-1250, 10-36t
  • Chain: SRAM Rival, 12spd

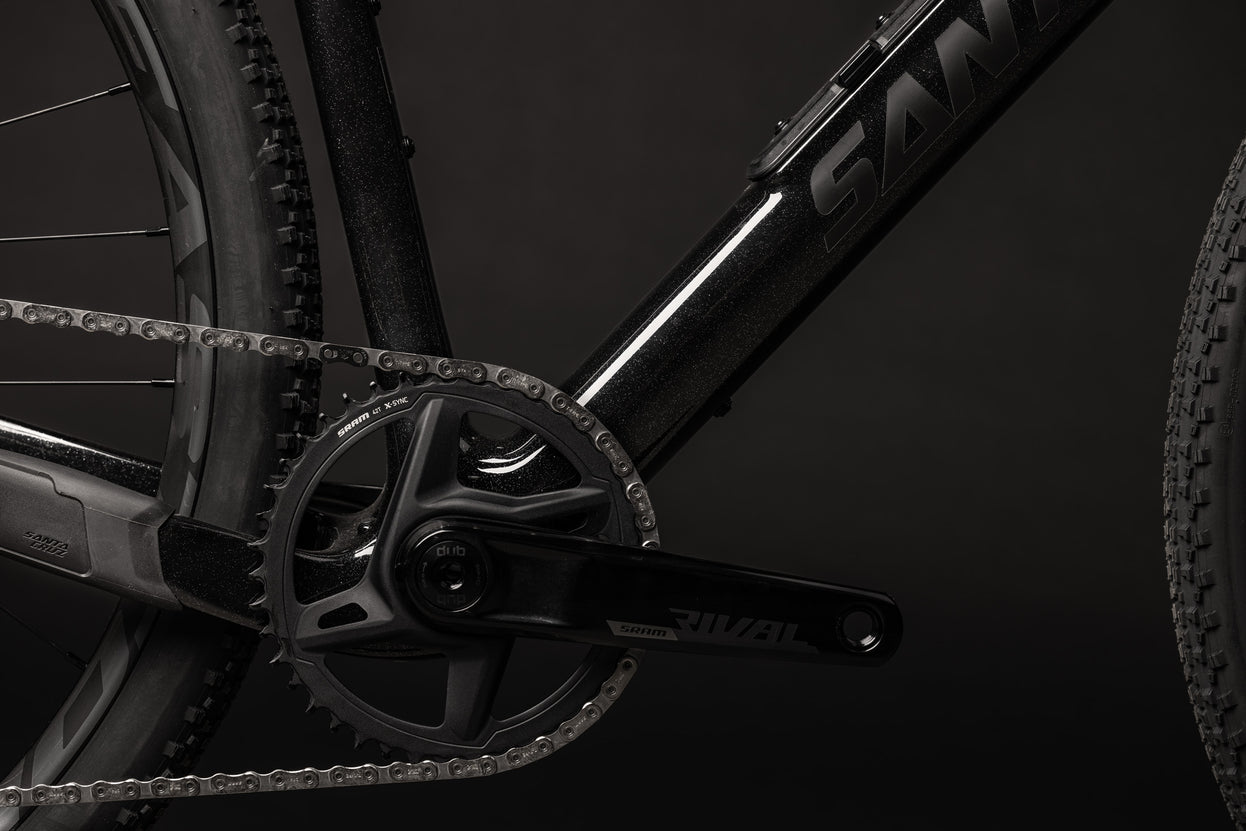

  • Crankset: SRAM Rival DUB Wide, 43/30
  • Front Derailleur: SRAM Rival eTap AXS Wide
  • Rear Derailleur: SRAM Rival eTap AXS, 12spd
  • Right Shifter: SRAM Rival eTap AXS

Brakes

  • Front Rotor: Avid Centerline, Centerlock, 160mm
  • Rear Rotor: Avid Centerline, Centerlock, 160mm

Cockpit

  • Grips / Bar Tape: Velo Bar Tape
  • Handlebars: Zipp Service Course 70 XPLR AL Bar
  • Headset: Cane Creek 40 IS Integrated
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: Easton EC70, 27.2, Zero Offset, 350mm
  • Stem: Zipp Service Course Stem, 70mm

Wheels & Tires

  • Front Rim: Easton ARC Offset 25 700c
  • Front Hub: DT Swiss 370, 12x100, Centerlock, 28h

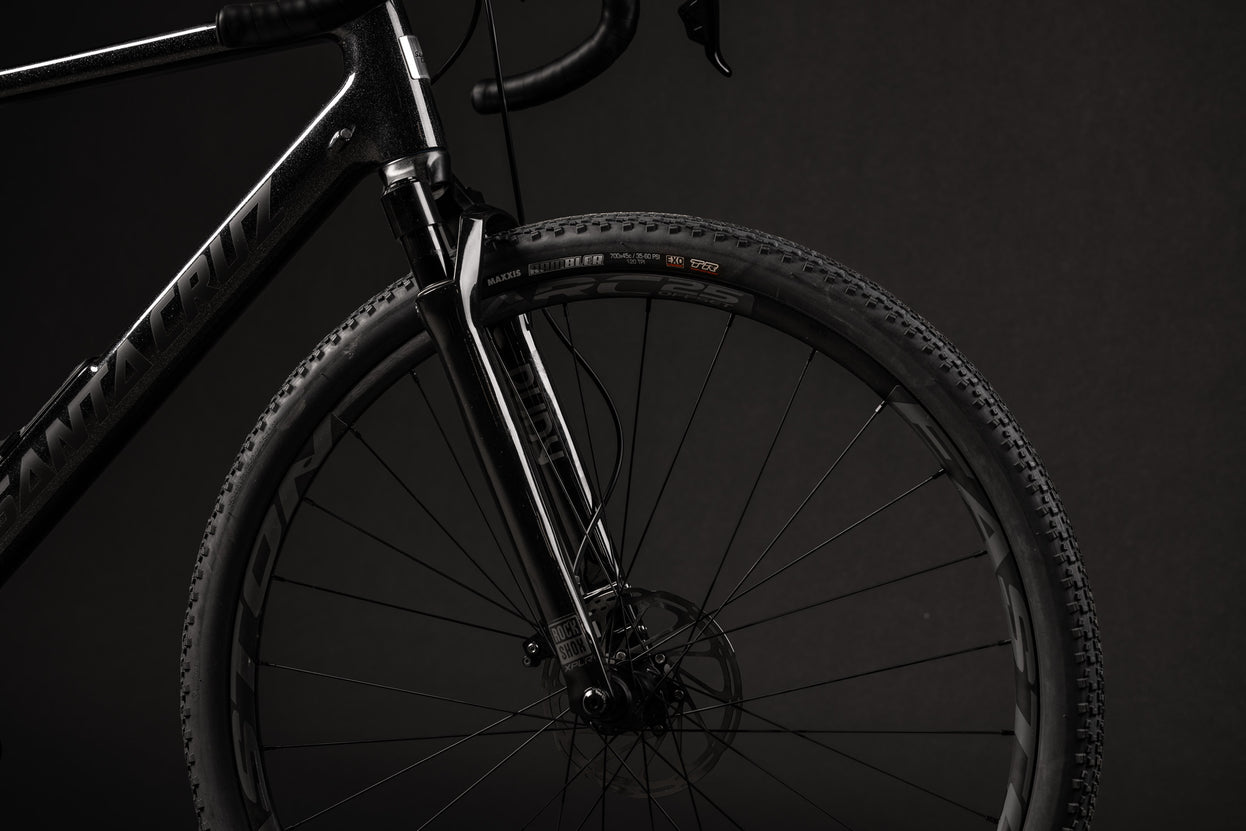

  • Front Tire: Maxxis Rambler, 700x45c, DC, EXO
  • Rear Rim: Easton ARC Offset 25 700c
  • Rear Hub: DT Swiss 370, 12x142, XDr, Centerlock, 28h
  • Rear Tire: Maxxis Rambler, 700x45c, DC, EXO

Specifications

Spec Details
Bottom Bracket Shell BSA Threaded 68
Rear Brake Mount Flatmount 160mm Direct
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Braze-on w/included clamp adapter
Headset IS 41 / IS52
Max Chainring Size 42t (1x), 50/36t (2x)
Max Tire Clearance 50mm (1x), 45mm (2x)
Rear Spacing 142mm
UDH Compatible Yes

Size Guide

Size Rider Height Reach
XS 4'10" – 5'1" (147–155 cm) 430 mm
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
