Dialed-in to go all day
A slightly shorter reach and taller stack put you in a more upright, balanced position for smooth power and all-day rideability.
Light on weight. Big on performance.
Designed with 400 Series OCLV, the lightweight carbon frame keeps things fast and responsive, so you can accelerate quicker and handle with confidence.

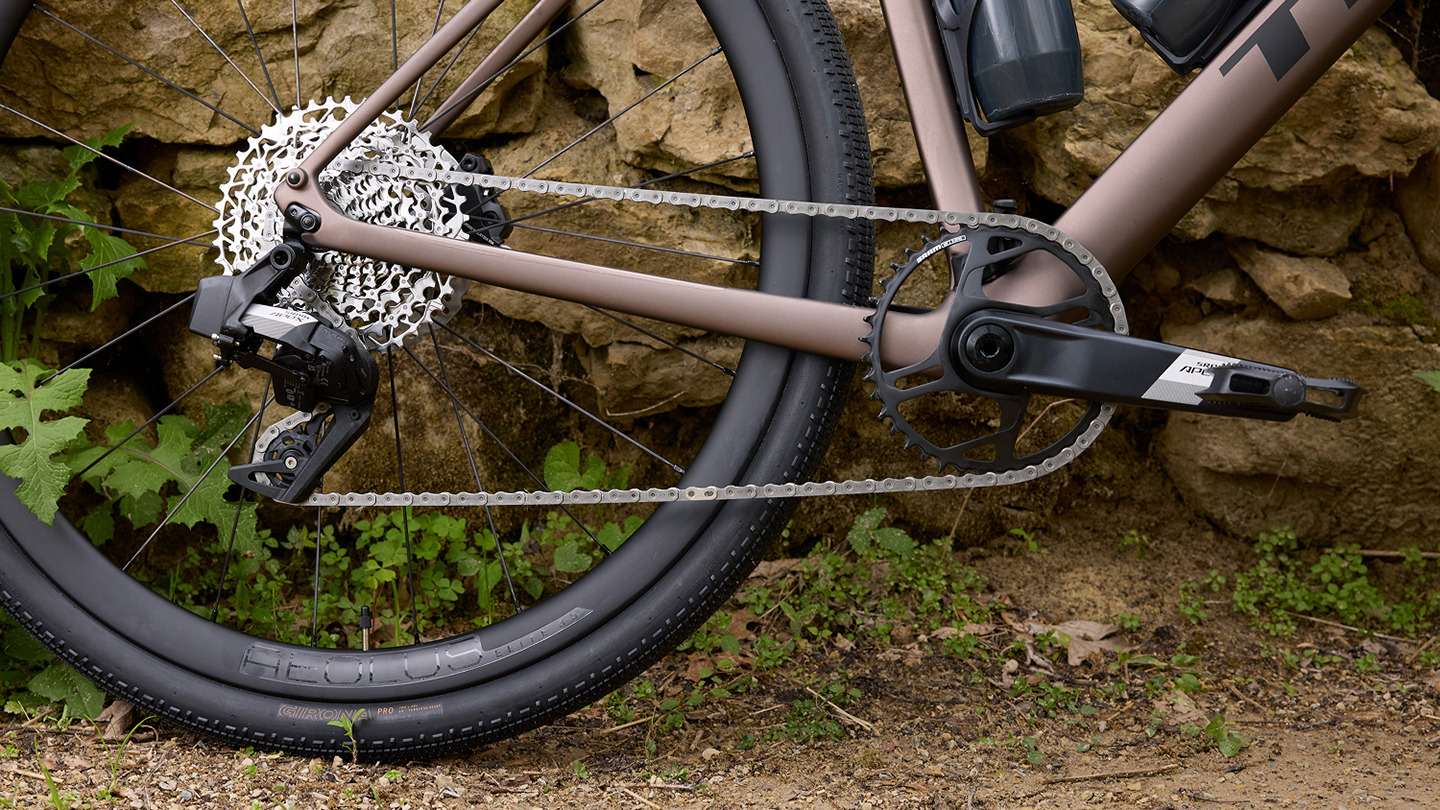

1x drivetrain
A 1x drivetrain means more versatility, simpler shifting and less things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.

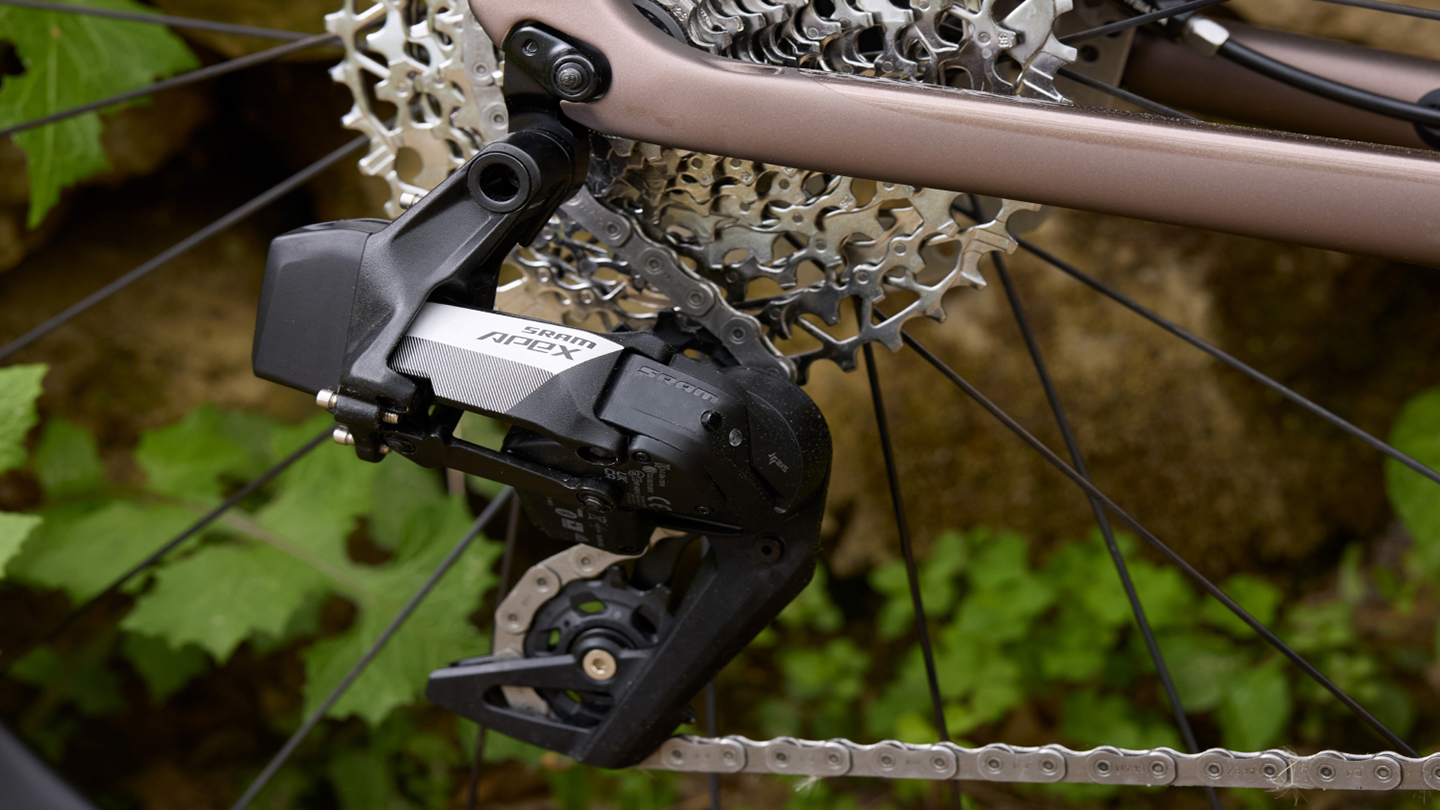

Fast, smooth, reliable
With SRAM Apex, you get precise shifting and confident braking for a ride that feels quick, fun, and in control.

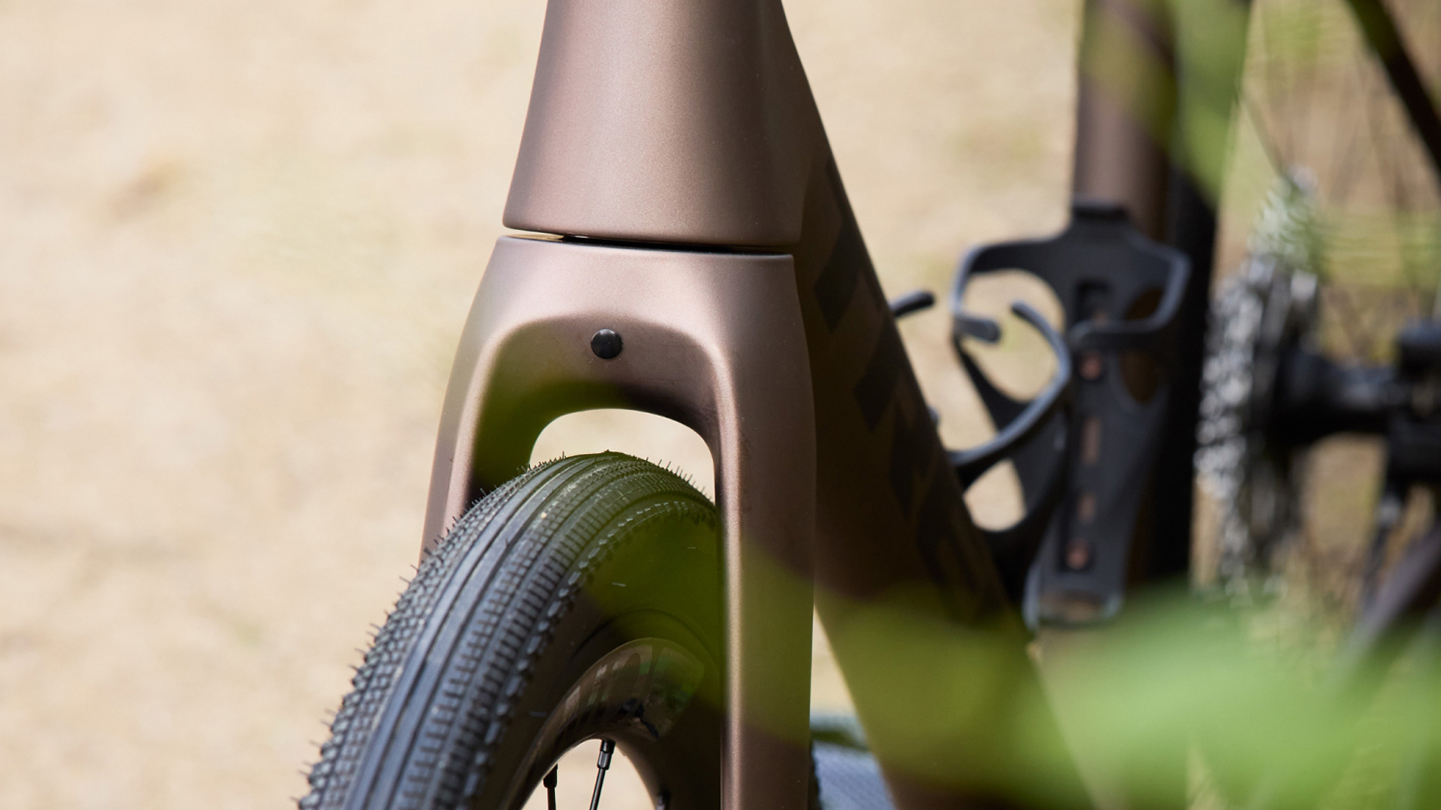

Ready for any path
Wide gravel tires keep you rolling fast with added traction and control, while increased clearance lets you take on rougher terrain with ease.

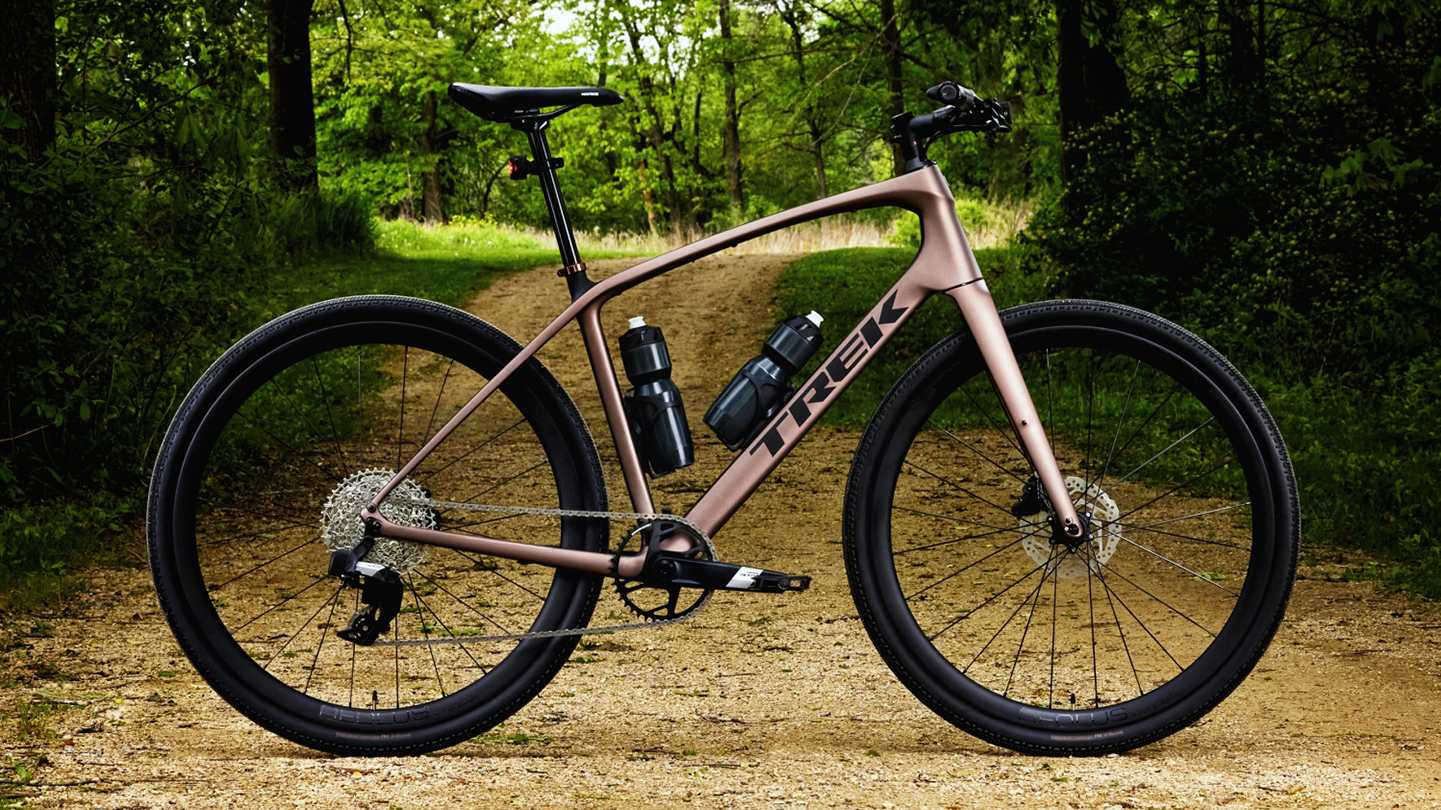

Pack it up, pack it in
Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
| Frame | 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew |
| Fork | Carbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew |
| Tire | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Hub Front | Formula CL-51 alloy, 100x5mm |
| Hub Rear | Formula CL-52 alloy, 135x5mm |
| Rim | Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve |
| Spokes | 14g stainless steel, black |
| Skewer Front | 135x5mm bolt-on |
| Skewer Rear | 169x5mm bolt-on |
| Shifter | SRAM Apex, 11 speed |
| Rear Derailleur | SRAM Apex 1, long cage, 42T max cog |
| Crank | Prowheel alloy, 42T narrow-wide ring, 175mm length |
| Cassette | microSHIFT XLE, 11-42, 11 speed |
| Chain | KMC X11 |
| Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper // Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake Rotor | Shimano RT10, centerlock, 160mm |
| Pedal | Bontrager City pedals |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
| Stem | Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length |
| Grips | Trek Ergonomic Pro, lock-on |
Geometry Chart
| B B Drop | 6.5 |
| B B Height | 28.5 |
| Chainstay Length | 44.2 |
| Eff Top Tube | 61.3 |
| Frame Reach | 41 |
| Frame Size Letter | XL |
| Frame Stack | 64.8 |
| Head Angle | 72.5° |
| Head Tube Length | 21.5 |
| Offset | 5 |
| Seat Tube | 55.9 |
| Seat Tube Angle | 72.5° |
| Standover | 84.8 |
| Trail | 5.8 |
| Wheelbase | 108.2 |
| Wheel Size | 700c |
| Color | BUFF BEIGE |
