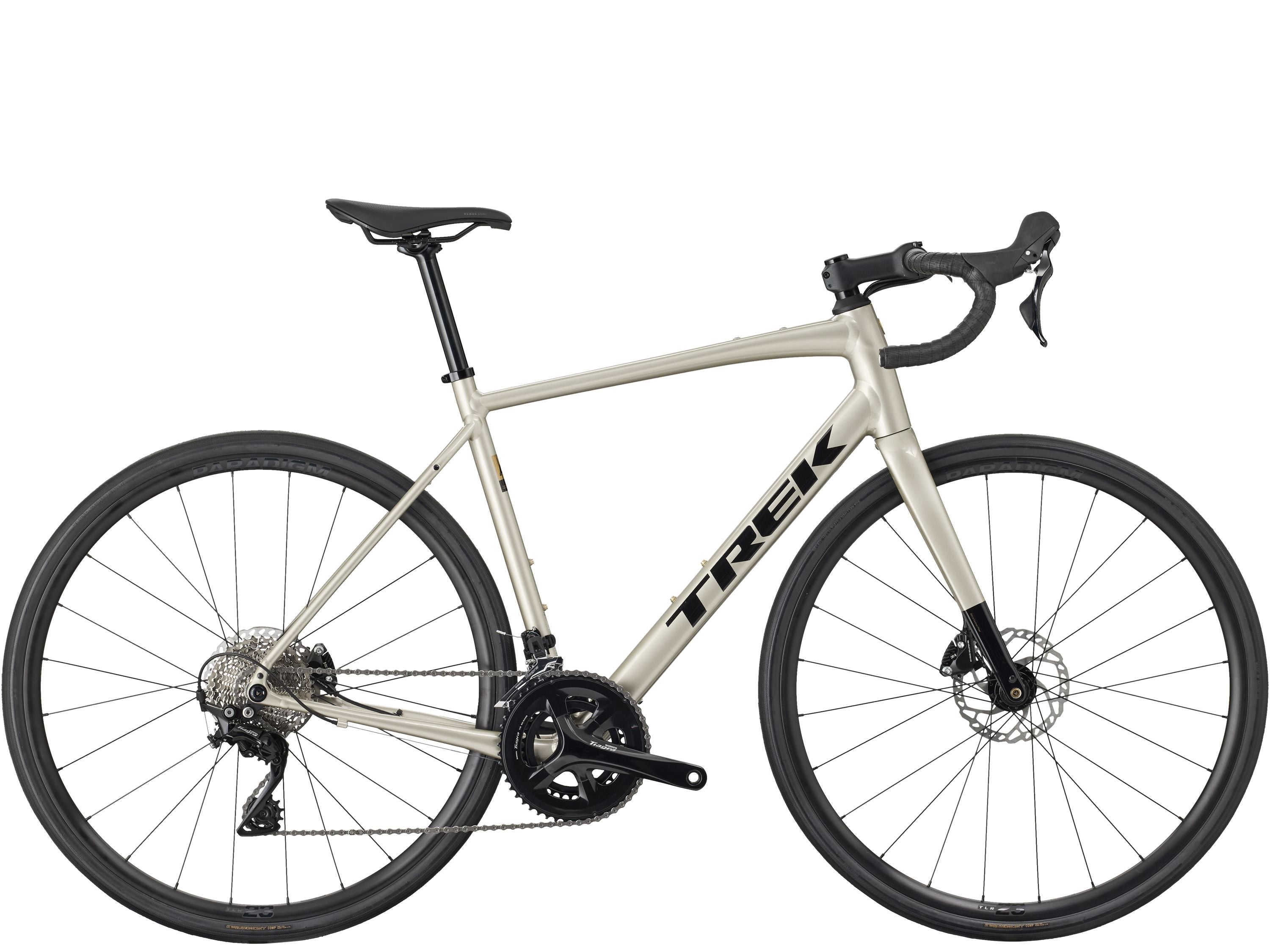

Domane AL 4 61 Gloss Supernova

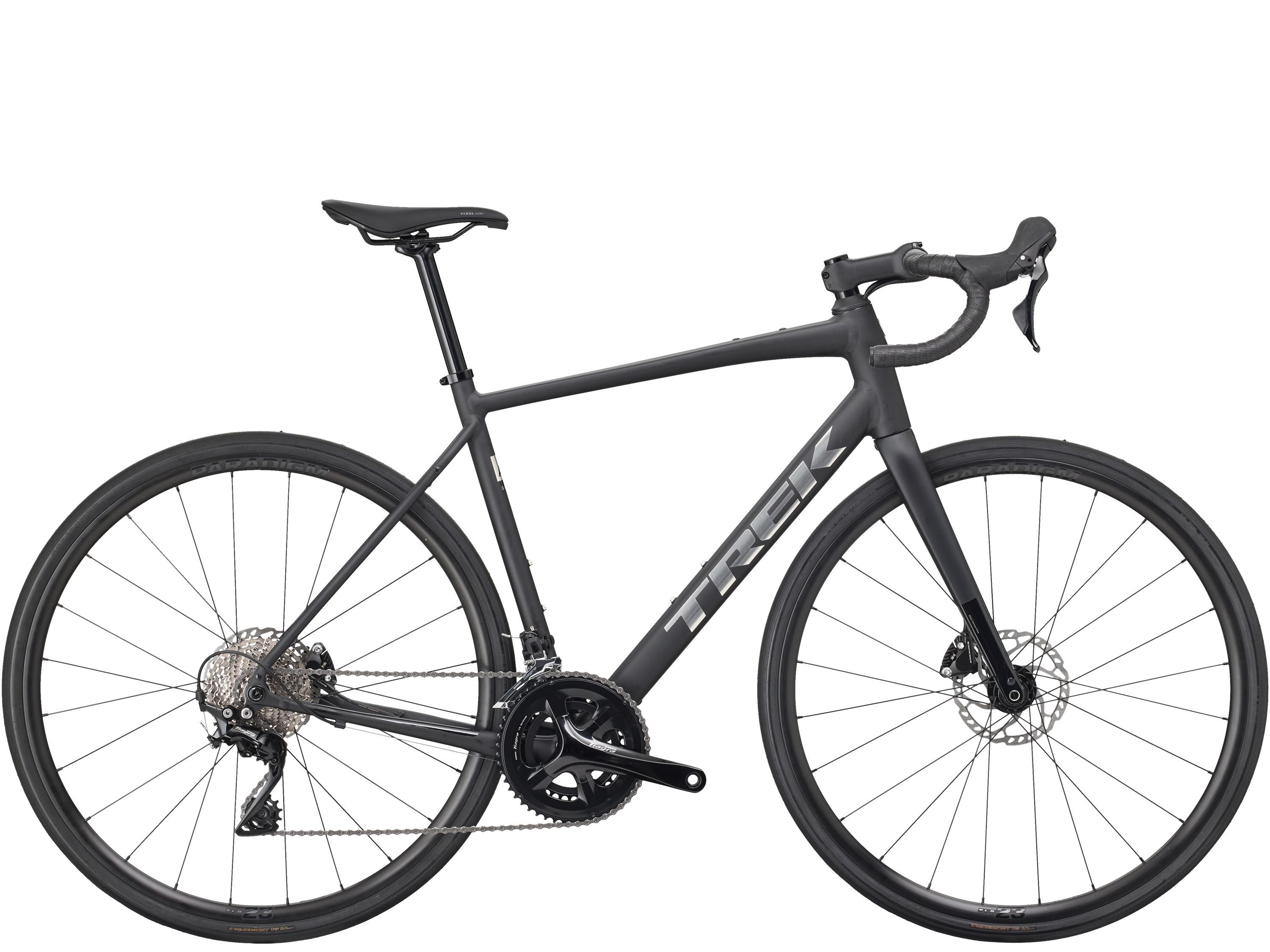

Domane AL 4 49 Matte Dark Star Black
New arrival

Trek Domane AL 4 Gen 4

By Trek
$1,799.99
SKU: 5345587 // Barcode: 197216437321
Expected Ship Date: Mon Jul 27
Ready To Ride Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, and ship your bike to ensure a safe delivery and easy setup.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

1 in stock locally
View details
Domane AL 4 is a versatile road bike that’s ideal for riders looking to go faster and farther on every ride. Its Alpha Aluminum frame and all-day comfort geometry pair with an 11-speed Shimano Tiagra drivetrain for smoother shifting and better range than entry-level builds. With top tube mounts, larger tire clearance, and confident handling, it’s ready for everything from long group rides to adventurous gravel detours.

Lightweight design

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

Right for any road

Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

Long-haul comfort

A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

Pack it up, pack it in

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

Modern ergonomics, premium integration

A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

High-value performance

Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.


Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Tire Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Hub Front Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Hub Rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rim Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Skewer Front Bontrager Switch chamfered thru axle
Skewer Rear Bontrager Switch chamfered thru axle, removable lever
Shifter Shimano Tiagra R4020 // Shimano Tiagra R4020
Front Derailleur Shimano Tiagra R4000, down swing
Rear Derailleur Shimano Tiagra R4000
Crank Shimano Tiagra R4000, 50/34, 170mm length
Bottom Bracket Shimano RS501 BSA
Cassette Shimano RS400, 11-36, 11 speed
Chain Shimano LG500, 9/10/11 speed
Brake Rotor Shimano RT66, 6-bolt, 160mm
Saddle Verse Short Comp, steel rails, 145mm width
Seatpost Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Handlebar Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Stem Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length

Geometry Chart

B B Drop 7.5
Chainstay Length 42.5
Eff Top Tube 58.6
Frame Reach 38.5
Frame Size Number 61cm
Frame Stack 64.6
Head Angle 72.1°
Head Tube Length 23.5
Offset 4.8
Seat Tube 57.6
Seat Tube Angle 72.7°
Standover 84.2
Trail 6.3
Wheelbase 103.8
Wheel Size 700c
