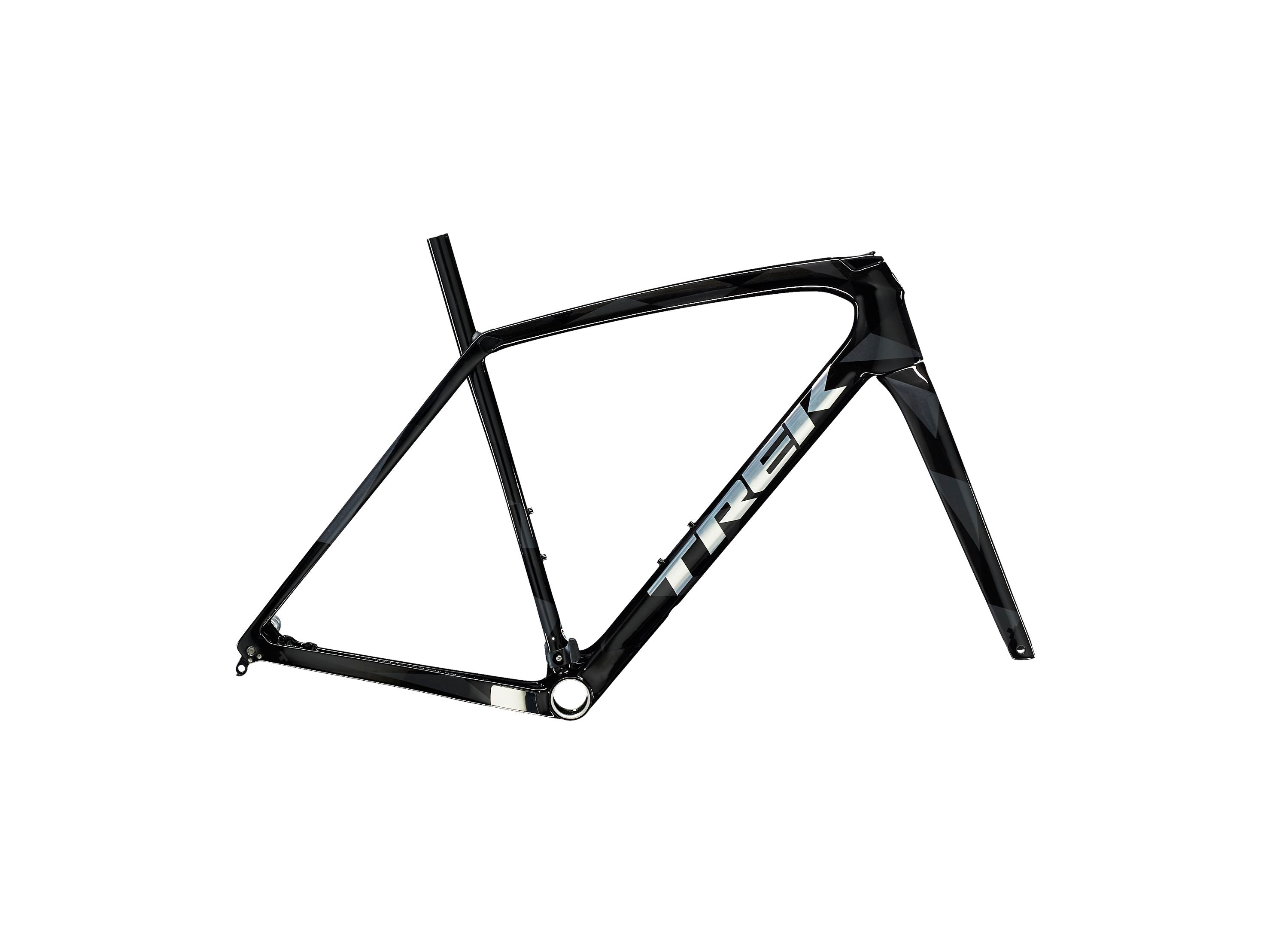

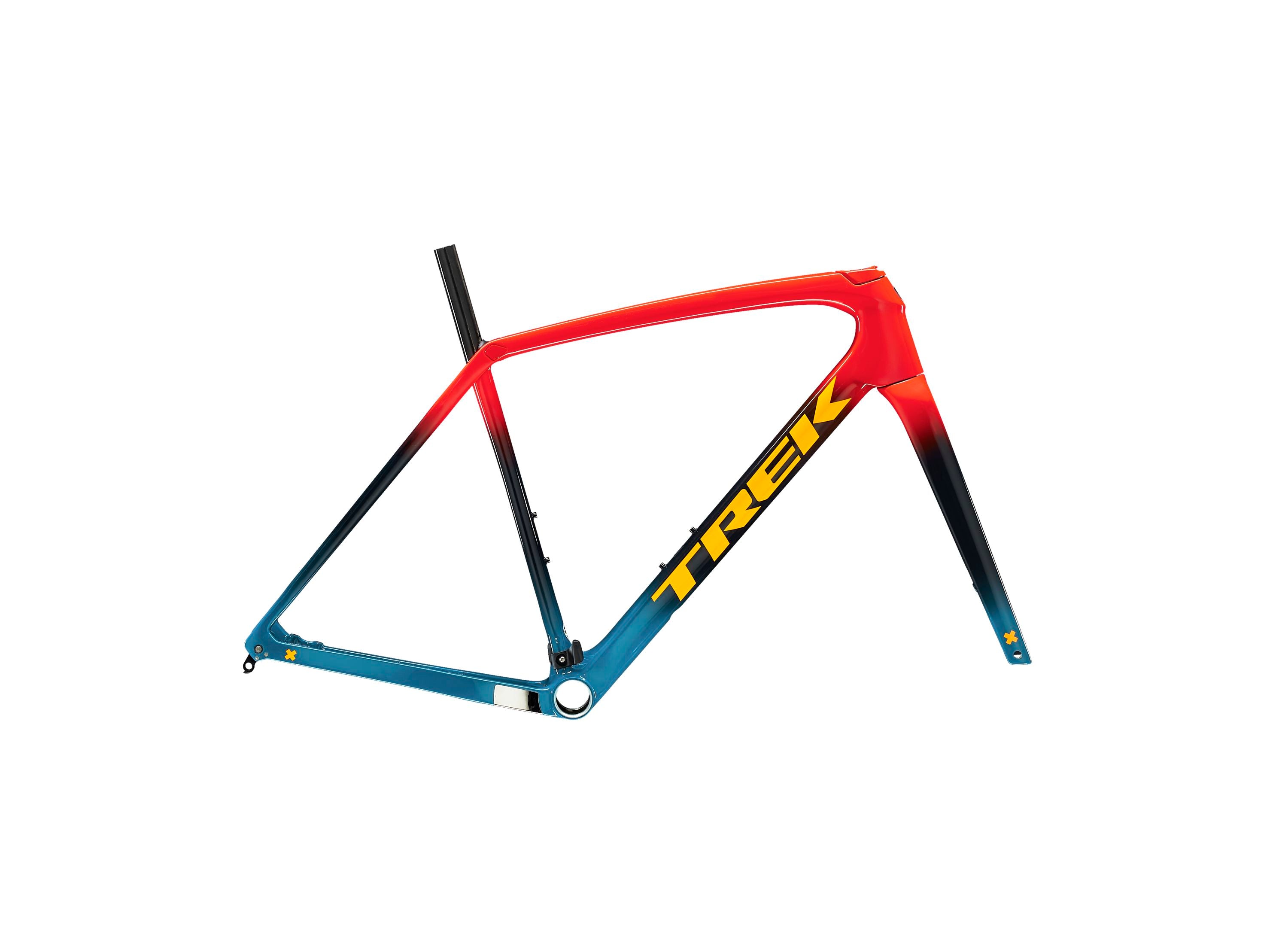

Trek Boone Disc Frameset
$2,799.99
Unit price
/
Unavailable
By Trek
SKU: 5265949 // Barcode:
Couldn't load pickup availability
Ready to build your dream cross bike? Boone Disc frameset is built with ultralight 600 Series OCLV Carbon. It features a cyclocross-specific geometry, Rear IsoSpeed to smooth rough courses, and front and rear 12mm thru axle dropouts for better stiffness and handling.
![]()
![]()
- This bike was designed with input from cyclocross royalty, so you can trust it to handle everything from hurdles to sand pits
- Carbon rules on the cross course — its lighter, more forgiving, and more efficient than aluminum
- Rear IsoSpeed cuts down on the fatiguing impacts of rough courses and increases compliance, helping you ride stronger for longer
- Boones cross-specific geometry and tube shapes make shouldering easy so you can dominate all aspects of a race, including run-ups
- Seat mast cap (available in two lengths/two offsets) sold separately
Smooth is fast
IsoSpeed takes the edge off body-beating course bumps and gravel chatter so you can stay stronger longer, without giving up any pedaling efficiency.
Cross racing tech
Our exclusive technologies give you and our pro racers the race-ready details will keep you out front: Ultra stable and compliant IsoSpeed fork. Smarter cable routing. Better shoulderability. Rugged 3S chain keeper.
| Frame | 600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seatmast, 3S chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
| Fork | Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle |
| Skewer Front | Bontrager Switch thru axle, removable lever |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
Geometry Chart
| B B Drop | 7 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 51.8 |
| Frame Reach | 37.5 |
| Frame Size Number | 49 cm |
| Frame Stack | 53.4 |
| Head Angle | 71.0° |
| Head Tube Length | 11 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 64.5 |
| Saddle Rail Height Max Tall | 67.5 |
| Saddle Rail Height Min Short | 58.5 |
| Saddle Rail Height Min Tall | 61.5 |
| Seat Tube | 47.6 |
| Seat Tube Angle | 75.0° |
| Standover | 74.7 |
| Trail | 7.4 |
| Wheelbase | 100.1 |
| Wheel Size | 700c |
| B B Drop | 7 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 53.1 |
| Frame Reach | 37.9 |
| Frame Size Number | 52 cm |
| Frame Stack | 54.7 |
| Head Angle | 71.5° |
| Head Tube Length | 12.3 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 67.5 |
| Saddle Rail Height Max Tall | 70.5 |
| Saddle Rail Height Min Short | 61.5 |
| Saddle Rail Height Min Tall | 64.5 |
| Seat Tube | 49.3 |
| Seat Tube Angle | 74.5° |
| Standover | 76.1 |
| Trail | 7.1 |
| Wheelbase | 100.5 |
| Wheel Size | 700c |
| B B Drop | 6.8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 54.4 |
| Frame Reach | 38.3 |
| Frame Size Number | 54 cm |
| Frame Stack | 56.2 |
| Head Angle | 72.0° |
| Head Tube Length | 13.8 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 70 |
| Saddle Rail Height Max Tall | 73 |
| Saddle Rail Height Min Short | 64 |
| Saddle Rail Height Min Tall | 67 |
| Seat Tube | 51.3 |
| Seat Tube Angle | 74.0° |
| Standover | 77.9 |
| Trail | 6.7 |
| Wheelbase | 101 |
| Wheel Size | 700c |
| B B Drop | 6.8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 55.8 |
| Frame Reach | 38.7 |
| Frame Size Number | 56 cm |
| Frame Stack | 58 |
| Head Angle | 72.0° |
| Head Tube Length | 15.7 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 73 |
| Saddle Rail Height Max Tall | 76 |
| Saddle Rail Height Min Short | 67 |
| Saddle Rail Height Min Tall | 70 |
| Seat Tube | 53.3 |
| Seat Tube Angle | 73.6° |
| Standover | 79.6 |
| Trail | 6.7 |
| Wheelbase | 102 |
| Wheel Size | 700c |
| B B Drop | 6.5 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 57 |
| Frame Reach | 39.1 |
| Frame Size Number | 58 cm |
| Frame Stack | 59.7 |
| Head Angle | 72.3° |
| Head Tube Length | 17.6 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 75 |
| Saddle Rail Height Max Tall | 78 |
| Saddle Rail Height Min Short | 69 |
| Saddle Rail Height Min Tall | 72 |
| Seat Tube | 55.3 |
| Seat Tube Angle | 73.3° |
| Standover | 81.6 |
| Trail | 6.6 |
| Wheelbase | 102.8 |
| Wheel Size | 700c |
| B B Drop | 6.5 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 58.8 |
| Frame Reach | 39.7 |
| Frame Size Number | 61 cm |
| Frame Stack | 62.4 |
| Head Angle | 72.3° |
| Head Tube Length | 20.5 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 78 |
| Saddle Rail Height Max Tall | 81 |
| Saddle Rail Height Min Short | 72 |
| Saddle Rail Height Min Tall | 75 |
| Seat Tube | 58.3 |
| Seat Tube Angle | 73.0° |
| Standover | 84.3 |
| Trail | 6.6 |
| Wheelbase | 104.3 |
| Wheel Size | 700c |
Trek Boone Disc Frameset
