20% off

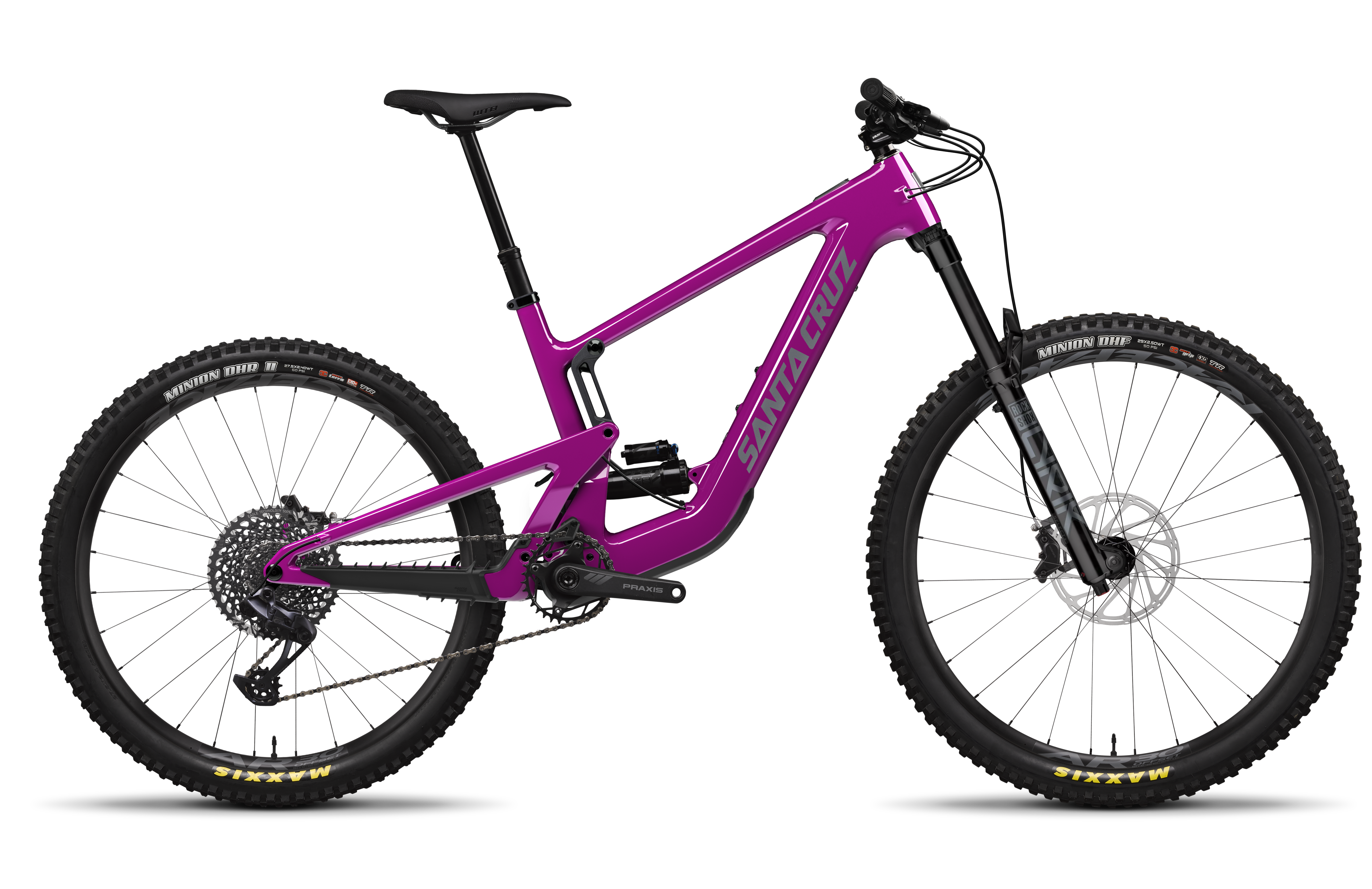

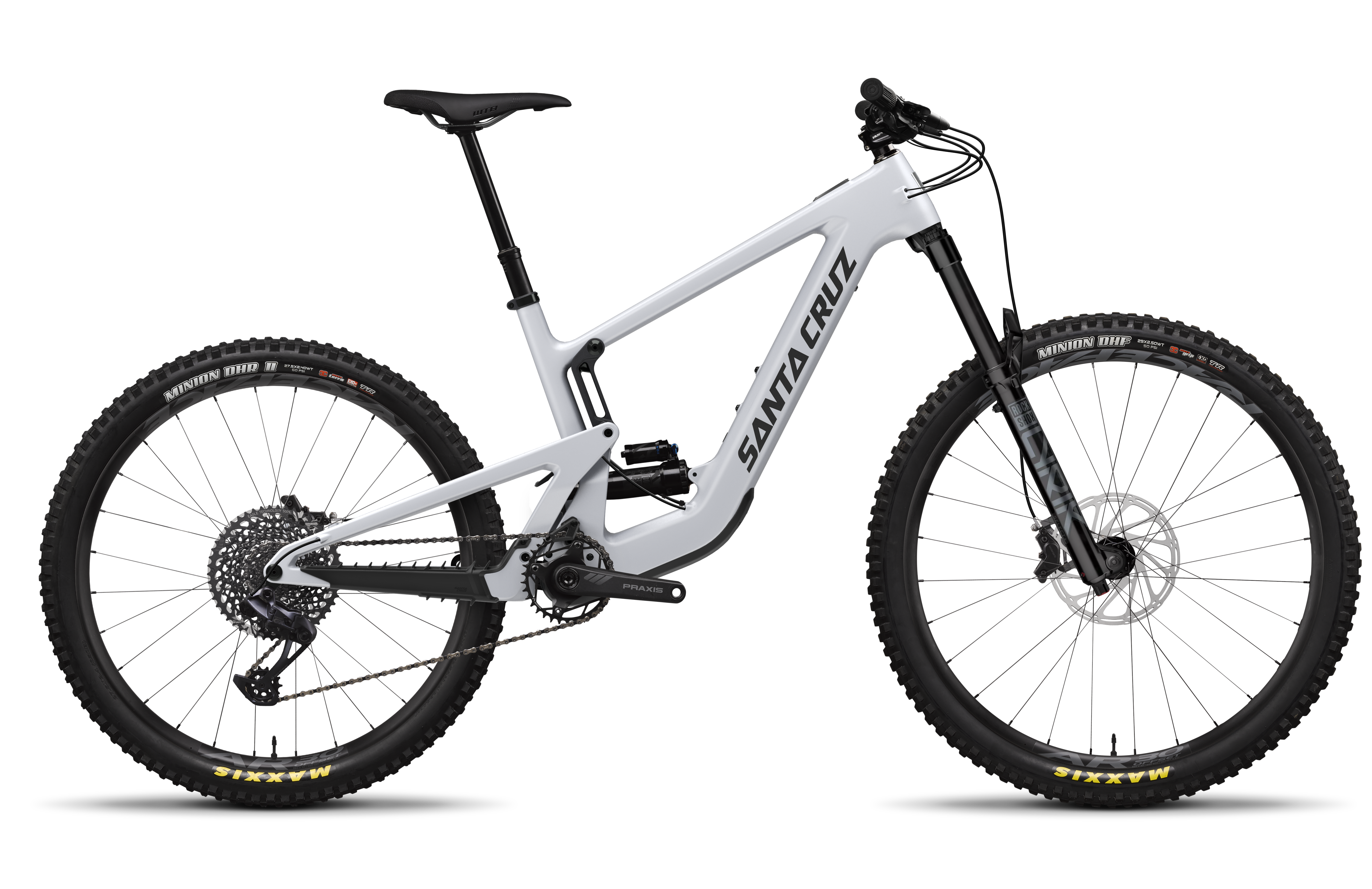

Santa Cruz Heckler SL S 2024

By Santa Cruz
$6,949.00 $8,699.00
View details

The Santa Cruz Heckler SL S 2024 is a nimble, playful e-bike built for serious trail fun. Featuring a lightweight Carbon C frame with 150mm VPP™ suspension, this machine combines agile geometry with the FAZUA RIDE 60 drive unit and 430Wh battery. The Heckler SL S offers a confident ride with RockShox suspension, Maxxis tires, and a DT Swiss 370 wheelset. Its reliable SRAM GX Eagle drivetrain ensures precision shifting while modern mixed wheels and premium cockpit components guarantee unmatched trail confidence — with just the right boost of e-power.

Standout Features

  • SRAM GX Eagle 12-Speed Drivetrain — Smooth, trail-ready shifting
  • FAZUA RIDE 60 Drive Unit — Lightweight, natural pedal assist
  • 430Wh Integrated Battery — Surprising range in a sleek package
  • VPP™ 150mm Rear Suspension — Proven all-terrain performance
  • RockShox Lyrik Select+ Fork — 160mm front travel for technical descents
  • Maxxis Minion DHF / DHR II Tires — Confident grip and durability
  • Lightweight Carbon C Frame — Stiff, responsive, and tough

Frame

  • Material: Carbon C
  • Rear Travel: 150mm (VPP™)
  • Wheel Size: MX (29” front / 27.5” rear)
  • Weight: 43.11 lbs / 19.55 kg

Suspension

  • Fork: RockShox Lyrik Select+, 160mm
  • Shock: RockShox Super Deluxe Select+, 210x55mm

Drivetrain

  • Cassette: SRAM XG1275 Eagle, 12-speed, 10-50t or 10-52t
  • Chain: SRAM GX Eagle or SRAM X01 Eagle, 12-speed
  • Crankset: Praxis eTor AL, 104BCD, 165mm
  • Rear Derailleur: SRAM GX Eagle, 12-speed
  • Shifter: SRAM GX Eagle Single Click or SRAM X01 Eagle Single Click, 12-speed
  • Chainguide: OneUp Chainguide

Brakes

  • Brakes: SRAM Code R
  • Front Rotor: Avid Centerline, 200mm
  • Rear Rotor: Avid Centerline, 200mm

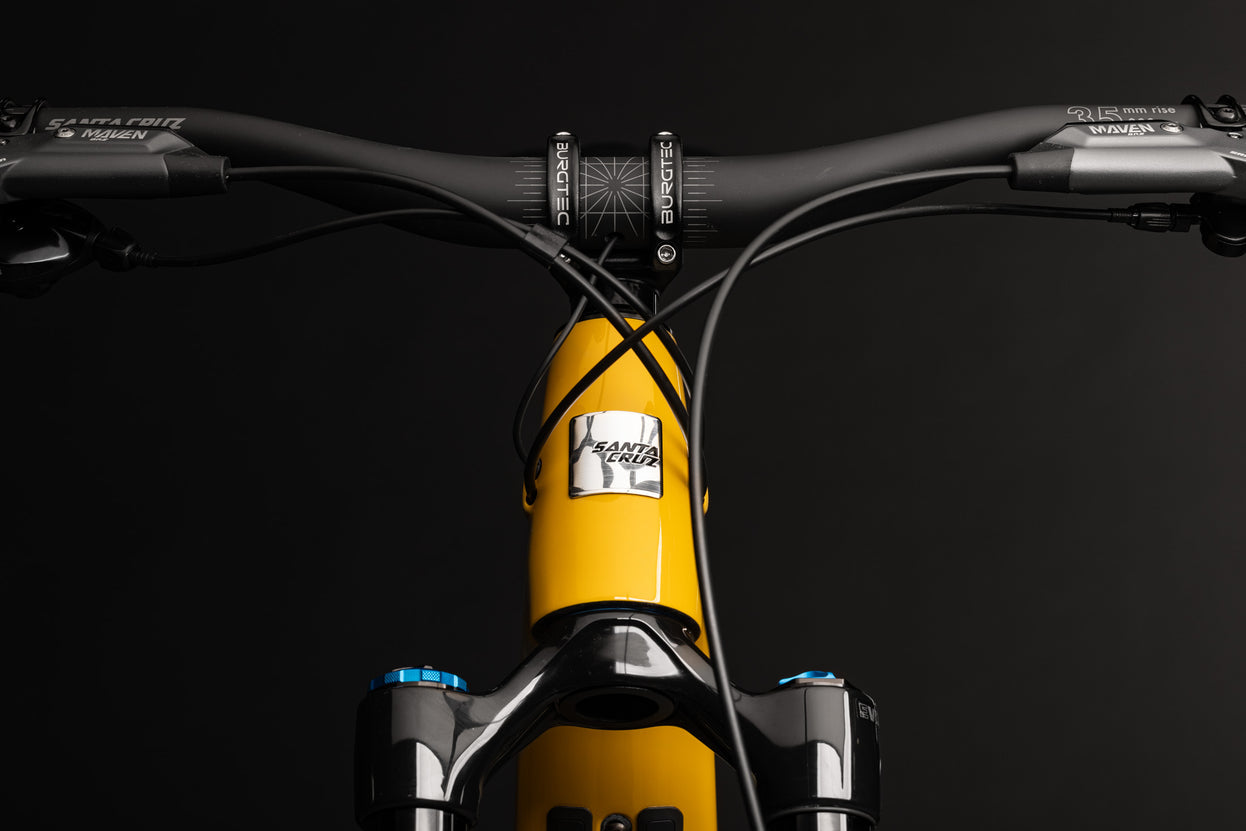

Cockpit

  • Grips: Santa Cruz House Grips or Burgtec Bartender Pro Minnar
  • Handlebars: Burgtec Alloy Bar
  • Stem: Burgtec Enduro MK3, 42mm
  • Headset: Cane Creek 40 IS Integrated
  • Seatpost: OneUp V2 Dropper Post 31.6 or RockShox Reverb 31.6
  • Saddle: WTB Silverado Medium, CroMo

Wheels & Tires

  • Front Rim: RaceFace AR Offset 30, 29”
  • Front Hub: DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
  • Front Tire: Maxxis Minion DHF 29x2.5” WT, 3C MaxxGrip, EXO
  • Rear Rim: RaceFace AR Offset 30, 27.5”
  • Rear Hub: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
  • Rear Tire: Maxxis Minion DHR II 27.5x2.4”, 3C MaxxTerra, EXO+

E-Bike System

  • Drive Unit: FAZUA RIDE 60
  • Battery: FAZUA 430Wh Integrated
  • Charger: FAZUA Charger

Specifications

Spec Detail
Rear Travel 150mm
Fork Travel 160mm
Fork Offset 44mm
Shock Size 210x55mm
Bottom Bracket Fazua DU with E-TOR spindle
Rear Brake Mount PM 200mm
Max Rotor Size 220mm
Max Tire Clearance 2.6”
Rear Spacing 148mm
Rear Shock Bushing Size 30x8 (front & rear)
Shock Stroke 55mm
UDH Compatible Yes
Headset IS41 / IS52
Max Chainring Size 36t
Fork Axle to Crown 571mm
Front Derailleur Mount No

Size Guide

Size Rider Height Bar Width Dropper Length Crank Length
Small 5'1" – 5'5" 760–800mm 100–125mm (approx) 165mm
Medium 5'5" – 5'9" 760–800mm 125–150mm (approx) 165mm
Large 5'9" – 6'1" 760–800mm 150–170mm (approx) 165mm
X-Large 6'0" – 6'4" 760–800mm 170–200mm (approx) 165mm
XX-Large 6'4" – 6'7" 760–800mm 170–200mm (approx) 165mm
