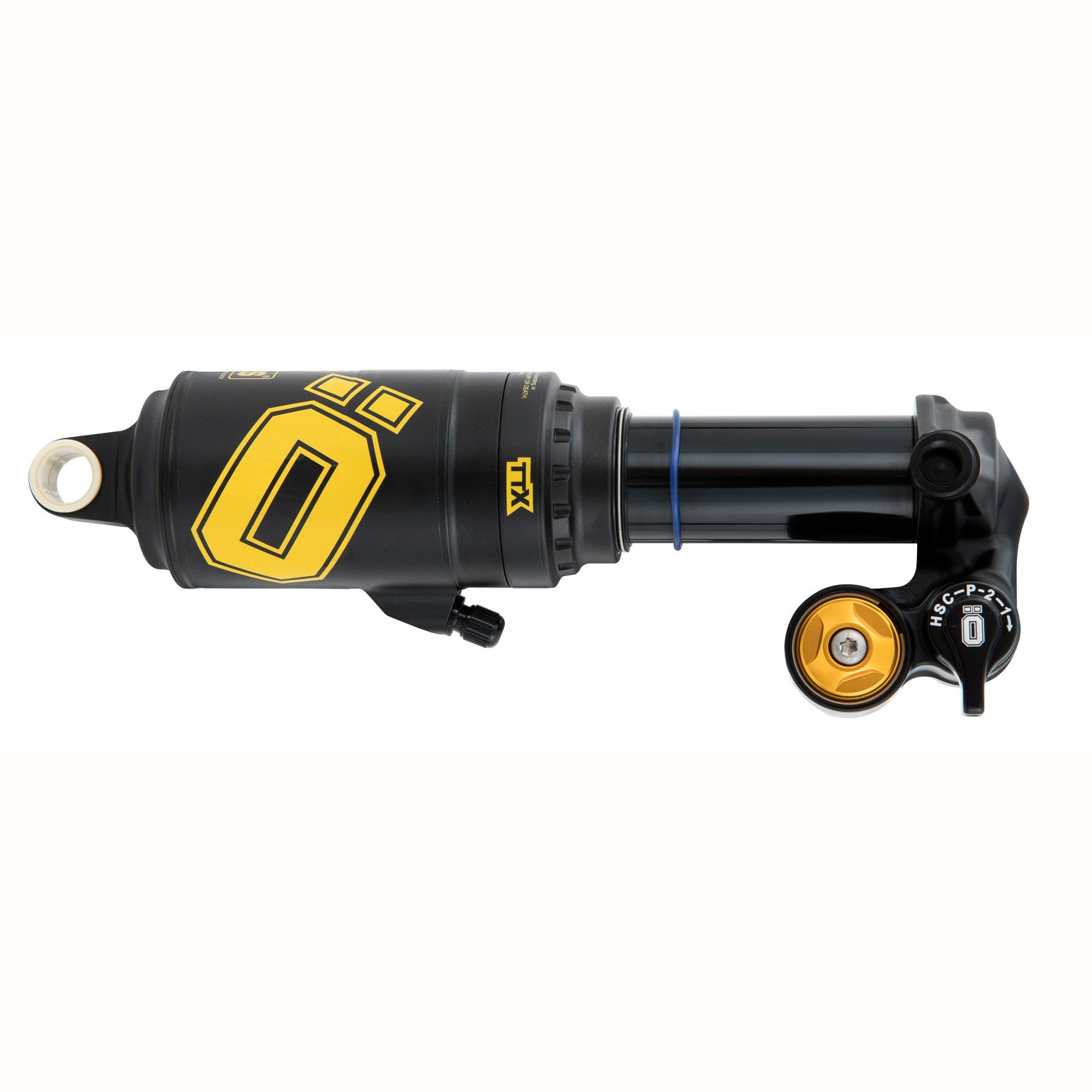

Ohlins TTX2Air Trunnion Shock 40/42.5/45 x 165mm

By Ohlins
$799.99
SKU: B-OH2456 // Barcode: B-OH2456
View details
  • TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate
  • Trunnion mount: the linkage bolts directly to the sides of the cylinder head
  • TTX Twin tube design for consistent damping performance on all types of terrain
  • Extra bushing overlap for improved side load management
  • Specific wiper seal and air sleeve lubrication reduce friction
  • External rebound, low-speed and high-speed compression adjustment
  • Climb mode to reduce suspension movements during climbs
  • Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
  • Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)
    • TECH SPECS
    model TTX2 Air
    stroke 40/42.5/45mm
    eye-eye 165mm (trunnion)
