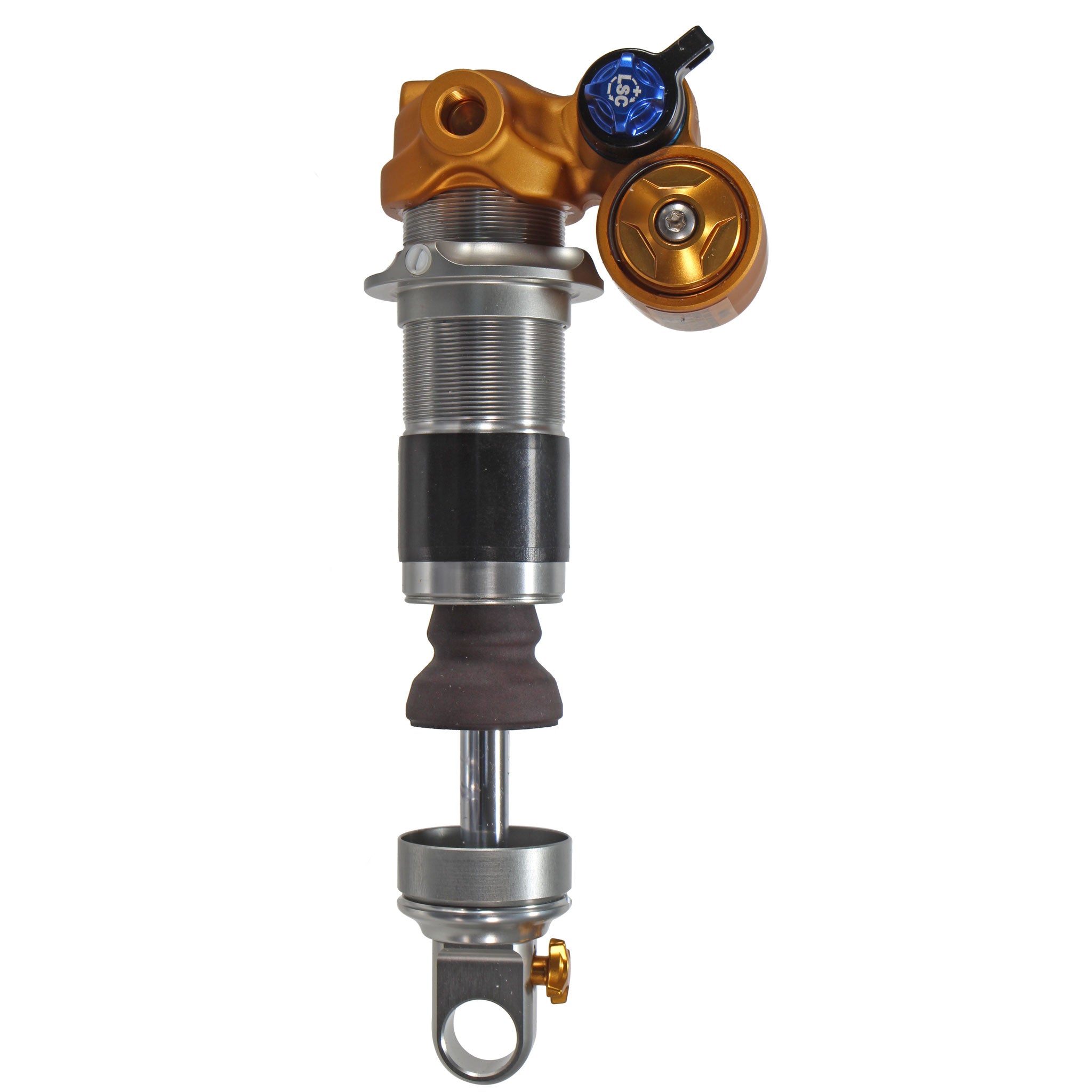

Ohlins TTX22M.2 Coil Trunnion Shock 47.5/50/52.5/55 x185mm

By Ohlins
$929.50
SKU: B-OH2290 // Barcode: 840153624216
View details
  • World Cup proven, specifically designed for the DH and Trail segments with better end stroke control and improved adjustment range
  • Trunnion mount: the linkage bolts directly to the sides of the cylinder head
  • Improved bottom out performance, courtesy of a newly designed bump rubber
  • Possible to simply adjust stroke with the three 2.5 mm spacers included in the box
  • External 3 level high-speed compression adjustment
  • External 16 click low-speed compression adjustment
  • External 7 click rebound adjustment
  • Stability mode to reduce suspension movement during less technical climbs
  • Suitable for the lightweight springs
  • Mounting hardware sold separately, end eyes are 15mm
  • 486g
    • TECH SPECS
    model TTX22M.2 Coil
    stroke 47.5/50/52.5/55mm
    eye-eye 185mm (trunnion)
