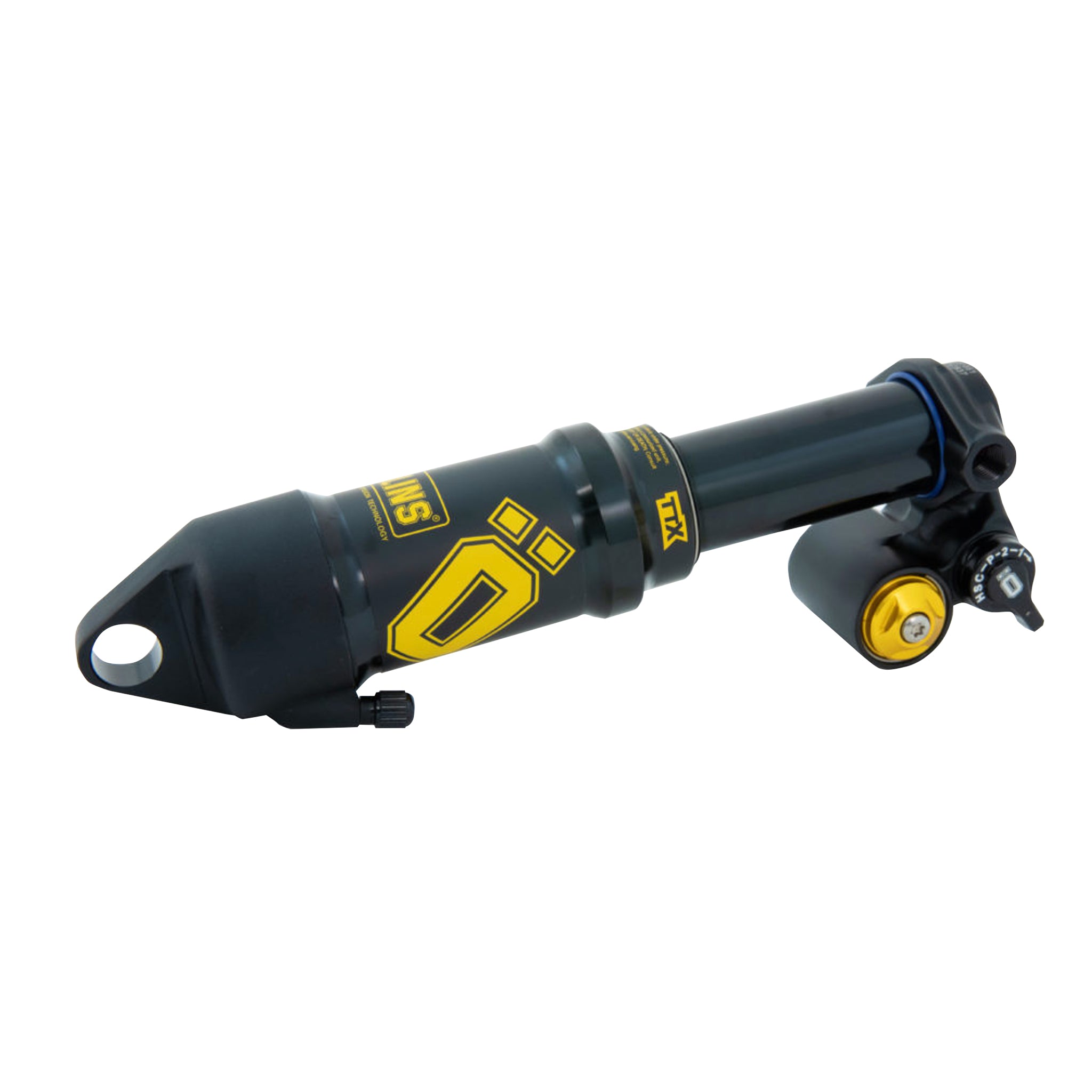

Ohlins TTX1Air Trunnion Shock 65 x 205mm

By Ohlins
$725.00
SKU: B-OH2438 // Barcode: B-OH2438
View details
  • TTX1 refers to a single air chamber for less air volume. Offers a more progressive spring rate
  • Trunnion mount: the linkage bolts directly to the sides of the cylinder head
  • TTX Twin tube design for consistent damping performance on all types of terrain
  • Extra bushing overlap for improved side load management
  • Specific wiper seal and air sleeve lubrication reduce friction
  • External rebound, low-speed, and high-speed compression adjustment
  • Climb mode to reduce suspension movements during climbs
  • Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
  • Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)
    • TECH SPECS
    model TTX1 Air
    stroke 65mm
    eye-eye 205mm (trunnion)
