SOLiX is based on the principles refined from years of experience in the off-road world, yet fine-tuned for mechanical efficiency, competitive weight, and enhanced longevity. A continuously-phased five pawl freehub offers 605 points of contact translating to an ultra-fine .59° engagement. Reduced pawl rotation, decreased pawl spring pressure, optimized drive ring diameter, and updated contact seal layout bring resistance and freewheeling noise to a minimum. Optimized for j-bend spokes Scalloped flange design distributes stress more effectively than a simple round shape more effectively Optimized flange width for enhanced bracing angles
TECH SPECS
Axle Type
12mm TA
Primary Color
Red
Hub Spoke Type
J-bend
Hub Weight
223g
Rotor Mount
Center Lock
Hub Spacing
142mm
Freehub Body
SRAM XD-R
Hub Drilling
24H
Position
Rear

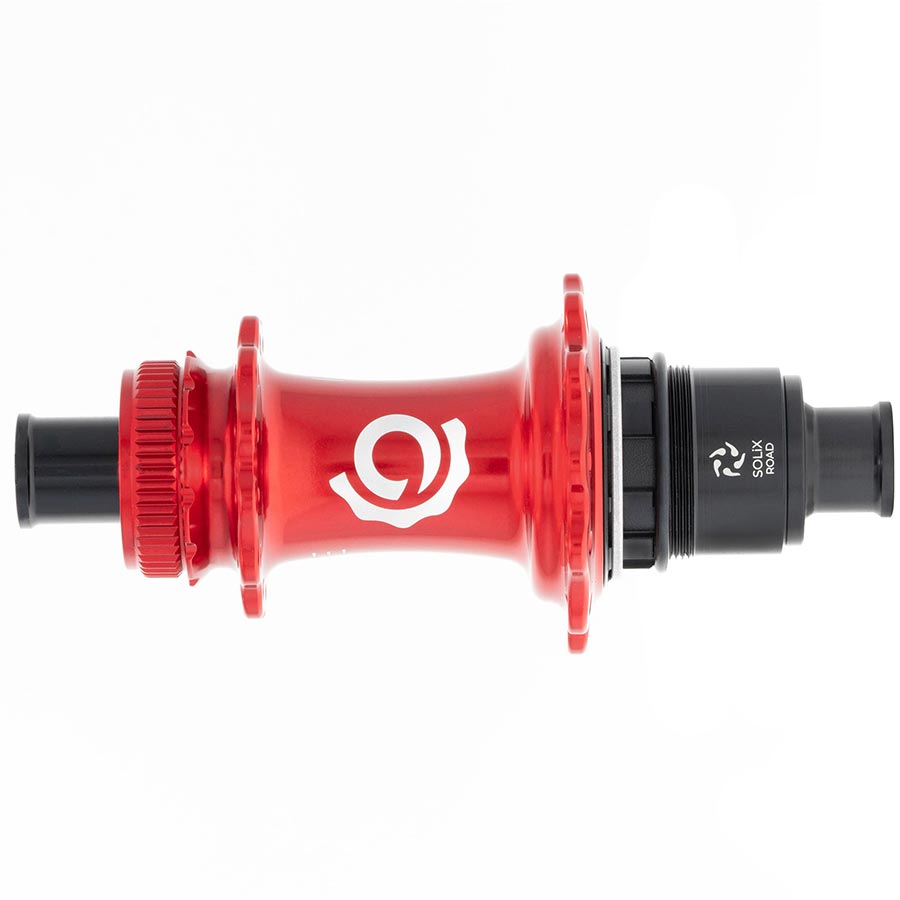

Industry Nine Solix G Classic Rear XD-R Disc Hub Rear 24H 12mm TA 142mm SRAM XD-R Red
