SOLiX is based on the principles refined from years of experience in the off-road world, yet fine-tuned for mechanical efficiency, competitive weight, and enhanced longevity. A continuously-phased five pawl freehub offers 605 points of contact translating to an ultra-fine .59° engagement. Reduced pawl rotation, decreased pawl spring pressure, optimized drive ring diameter, and updated contact seal layout bring resistance and freewheeling noise to a minimum. Optimized for j-bend spokes Scalloped flange design distributes stress more effectively than a simple round shape more effectively Optimized flange width for enhanced bracing angles
TECH SPECS
Hub Drilling
24H
Freehub Body
Shimano HG 11
Rotor Mount
Center Lock
Hub Spacing
142mm
Position
Rear
Axle Type
12mm TA
Hub Spoke Type
J-bend
Hub Weight
223g
Primary Color
Red

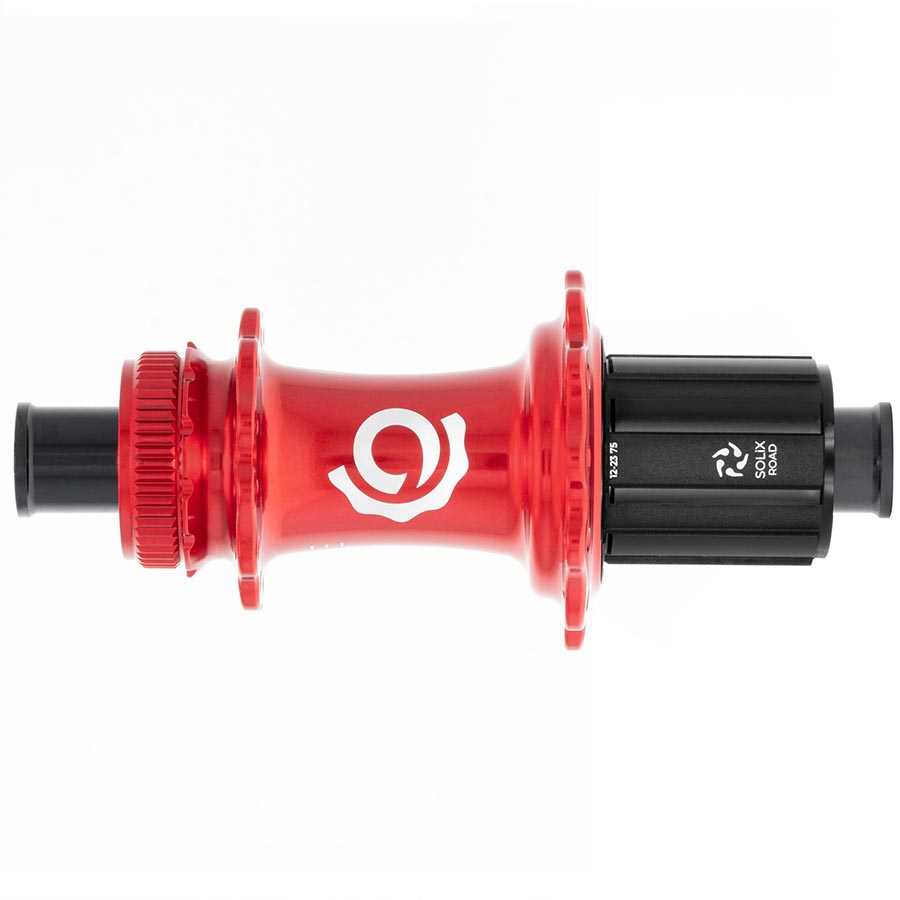

Industry Nine Solix G Classic Rear HG11 Disc Hub Rear 24H 12mm TA 142mm Shimano HG 11 Red
