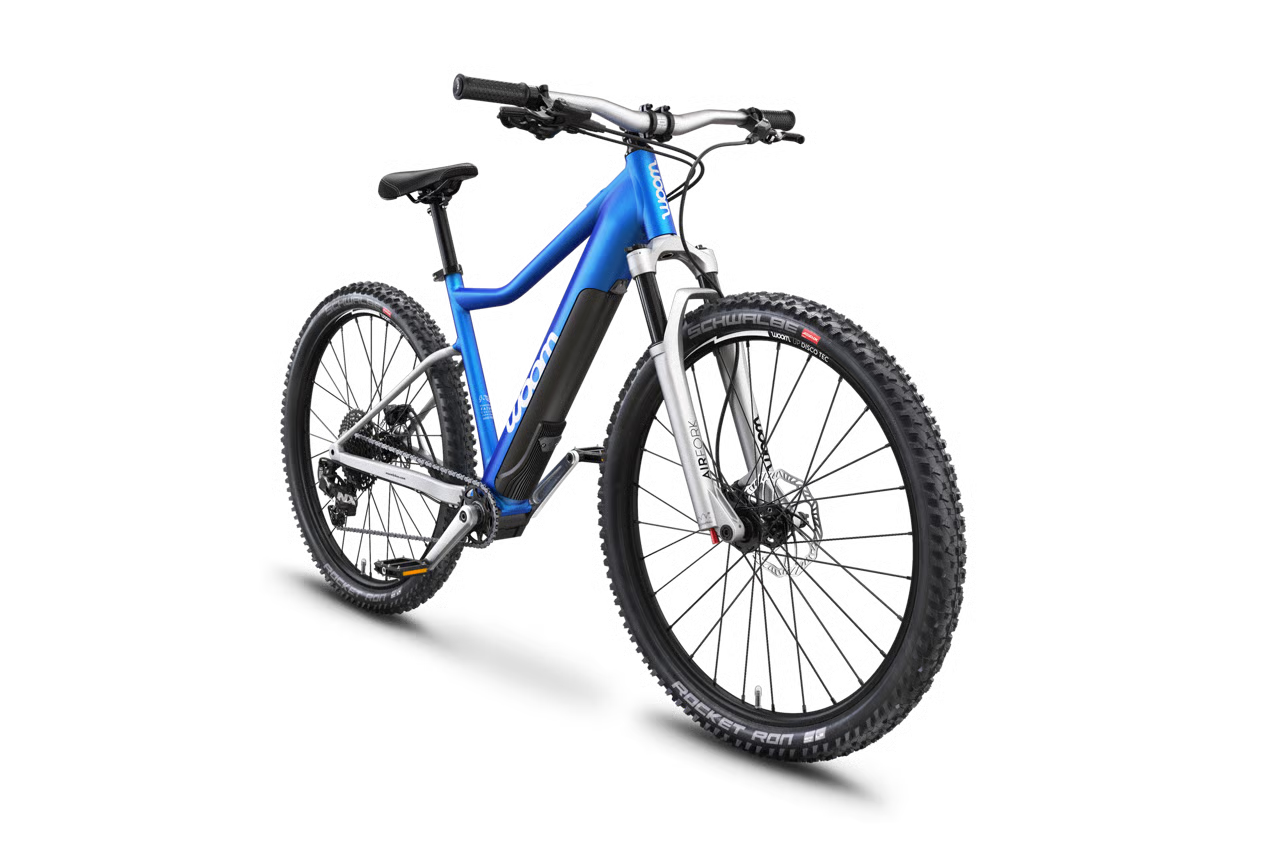

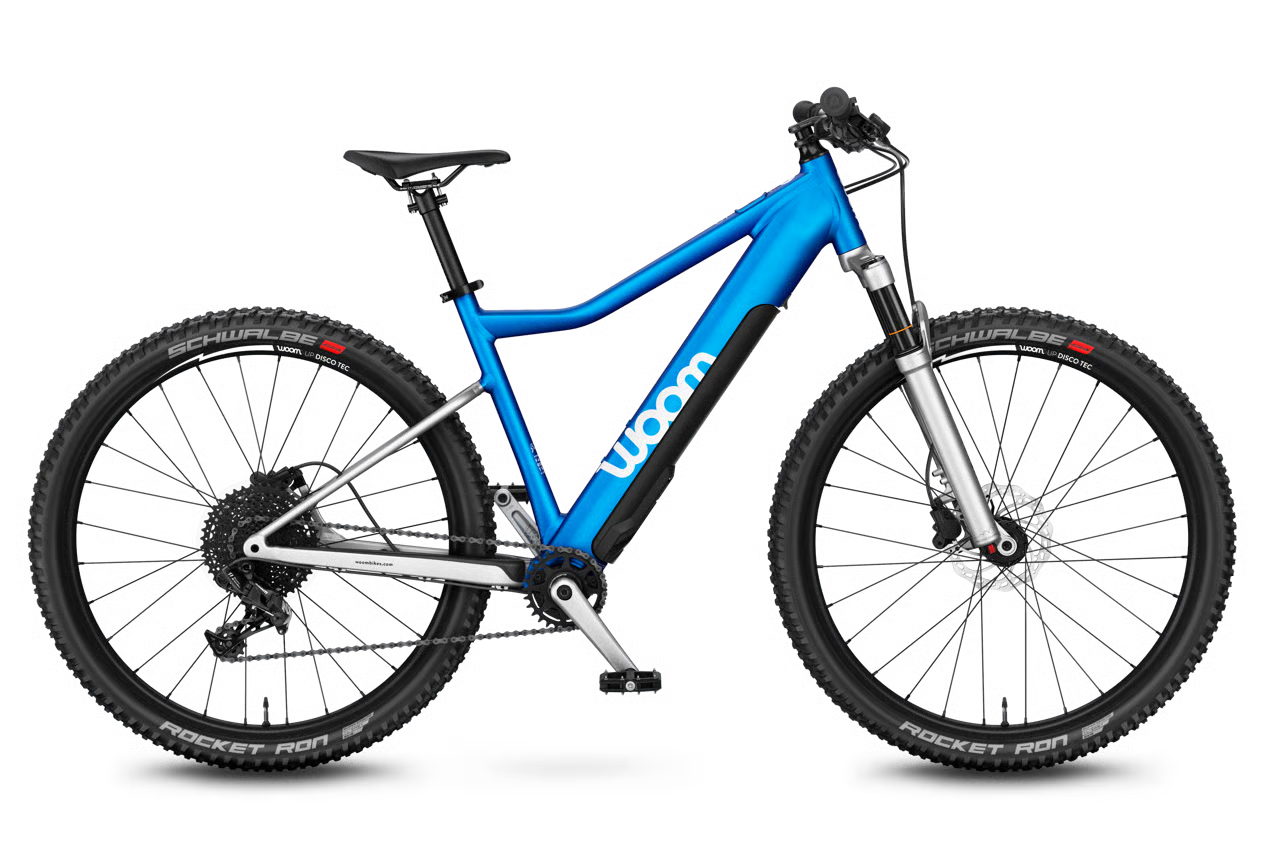

woom UP 6 - Kids 26" E-Bike

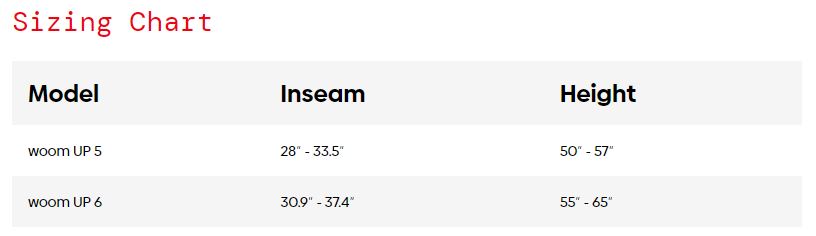

An ultralight 26" electric mountain bike with a suspension fork, updated Fazua drive and disc brakes designed for children aged 10 years and over. Designed to fit riders from 4' 7" to 5' 5".
Whether tackling gravel, commuting to school, shredding the trails, or reaching far-flung peaks, the woom UP turns every ride into an adventure.
The woom UP 6 is a well-rounded, dynamic electric mountain bike intended for kids aged 10 and up. With cadence and torque sensors built into the motor, the woom UP 6 provides for a smooth, natural ride, while enabling your Rider to go further.
Created with children in mind, the bike features kid-specific geometry and enhanced safety features. For instance, at speeds upwards of 15.5 mph, the motor-assist automatically switches off and allows the Rider to use their own pedal power to go faster.
With great power comes great responsibility. As a new e-bike owner, woom has a few recommendations prior to your first ride. We advise checking your state and local laws on e-bikes, always wearing a helmet, wearing high-vis clothing and having bike lights, and being mindful when mounting and dismounting since e-bikes are heavier than traditional bikes.
E-Motor
- FAZUA Ride 50 Trail Drivepack
- 250 watt max power output/350 Watt short-term in boost function
- 250 watt battery capacity
- 58Nm torque
- Up to 15.5 mph pedal-assist
- Three support modes
- Removable motor and battery unit (7.2 lbs)
- Frame-integrated bottom bracket houses dual-sided torque and cadence sensors for natural-feeling engagement of drive system
- Pairs with FAZUA Rider app to view bike data including speed, mileage, battery charge, navigation, and more.
Frame
- Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes
- 26″ wheels
- Easy-access low top tube to assist dismounting
- Long wheelbase and low center of gravity to aid balancing
- New, dropper seatpost-ready frame design
- Featuring woom-specific molded chainstay protector

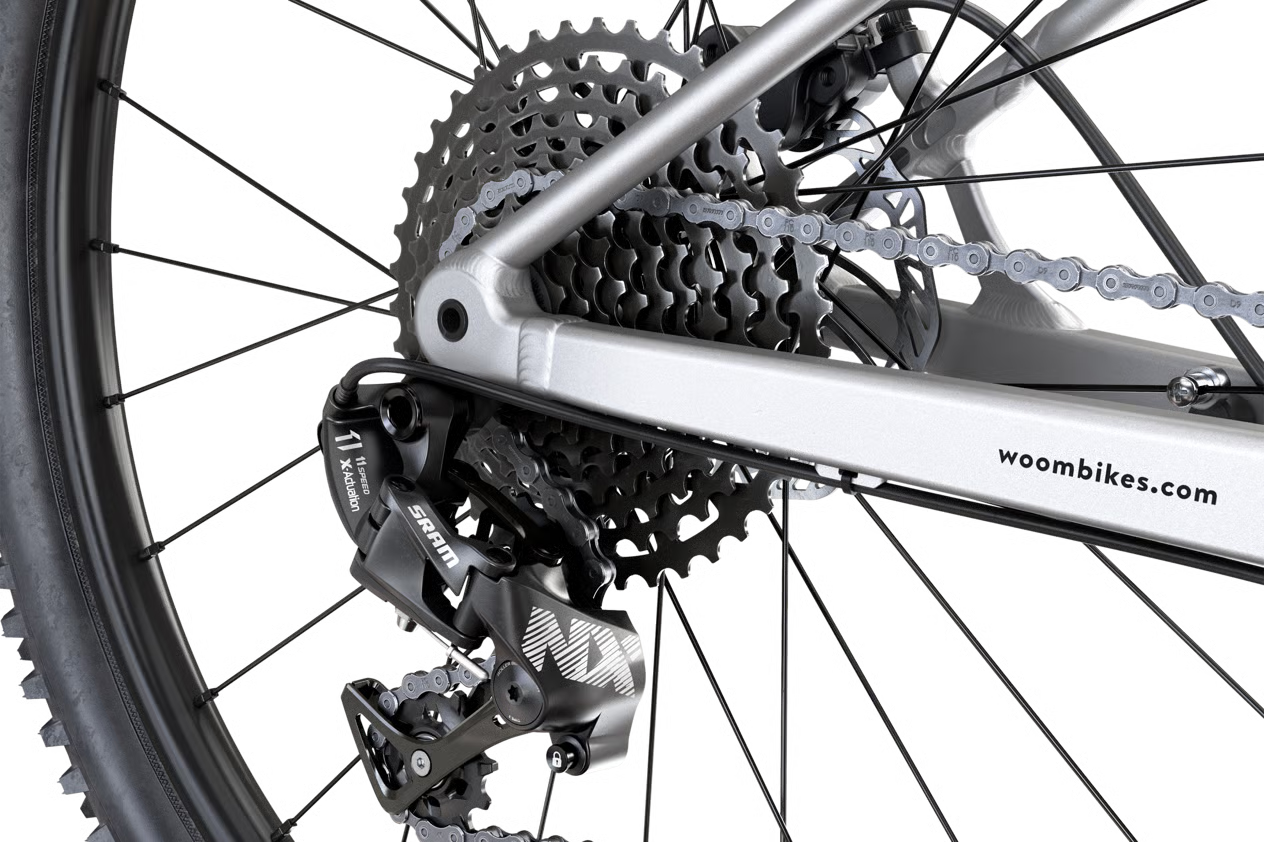

Gears
- 11 speeds

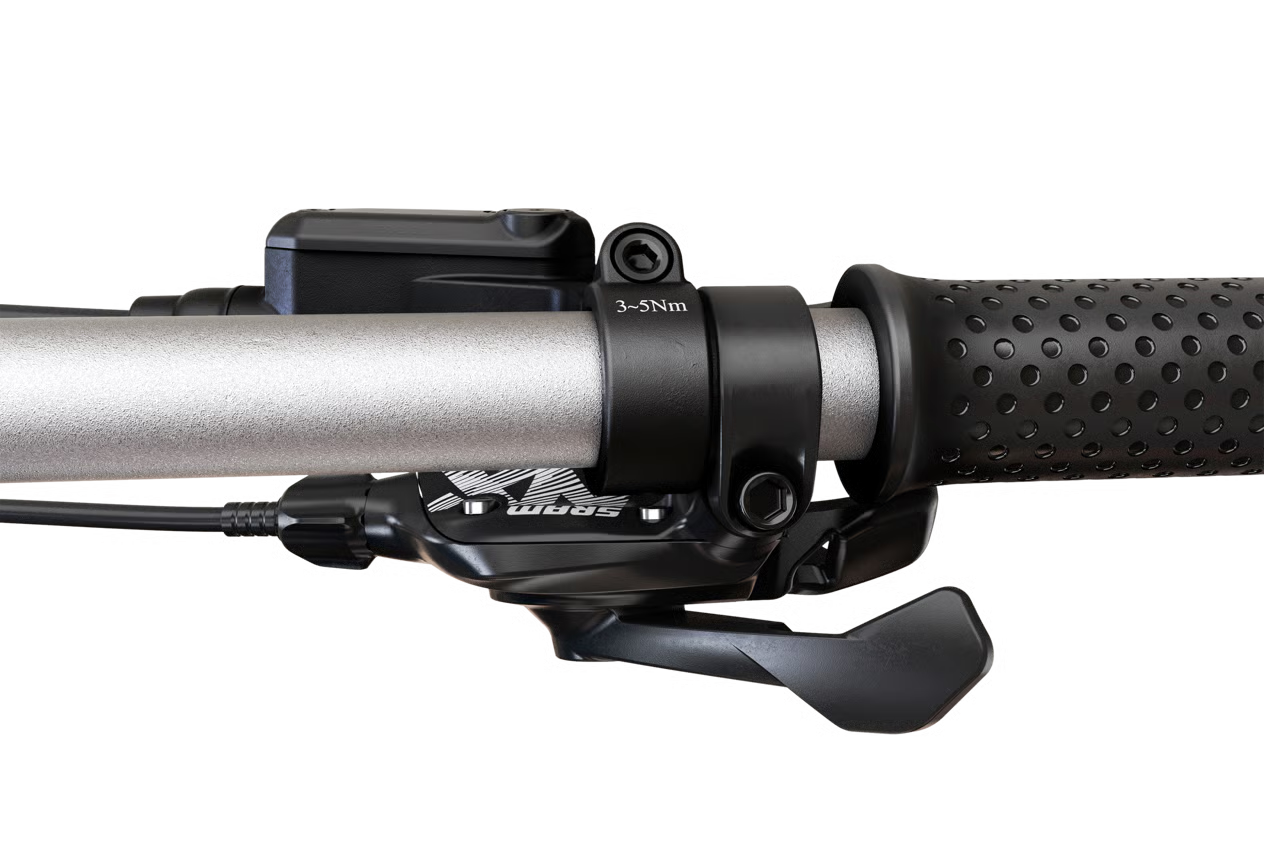

- SRAM NX trigger shifter
- SRAM NX rear derailleur

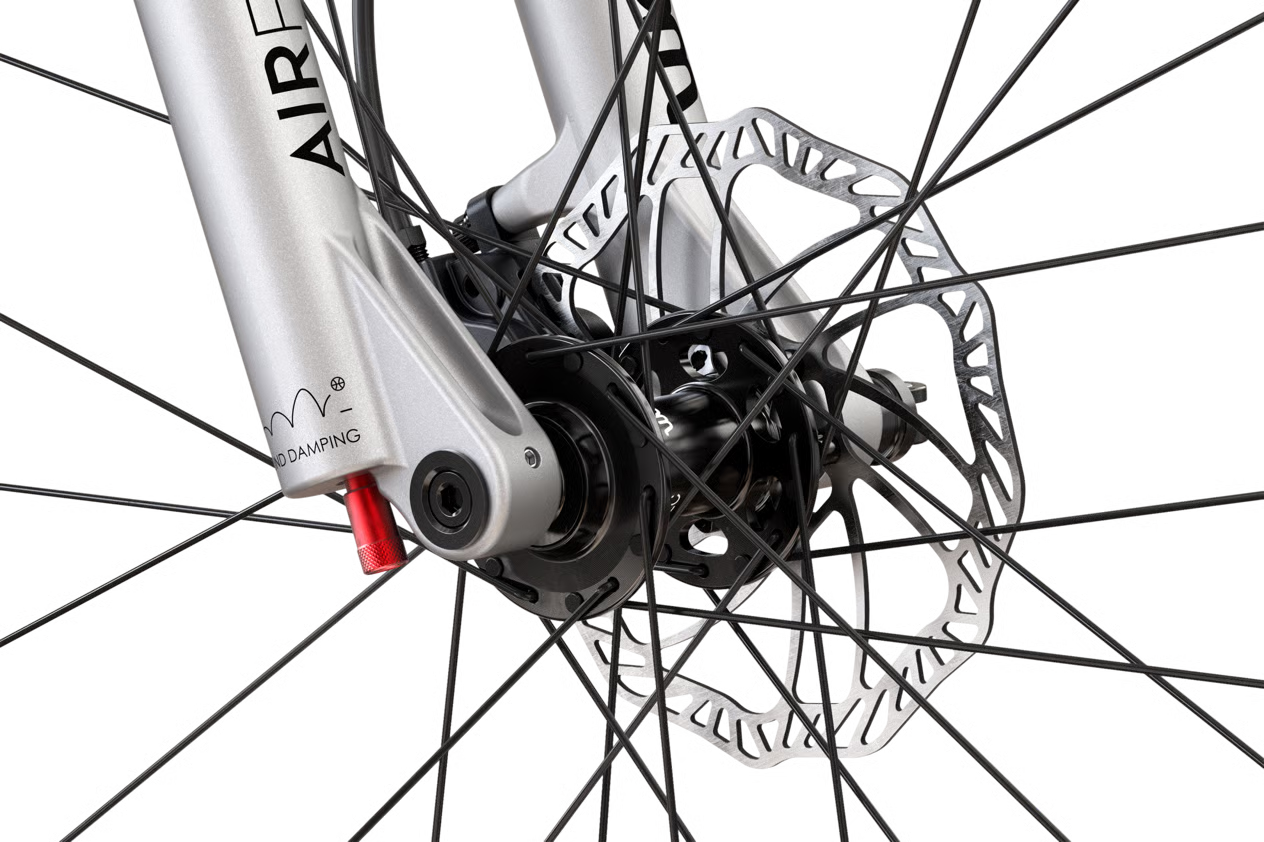

Suspension Fork
- F1RST hydraulic air suspension fork with 90 mm travel, adjustable compression and rebound damping, plus lock-out
- 1 – 1 ⅛″ tapered steerer tube
- 100 x 15 mm thru axle
- Post mount for disc brake
Wheels
- Tubeless-compatible Alexrims wheelset
- Aluminum hubs with sealed industrial bearings
- Thru axles for maximum torsional strength (100 x 15 mm front and 135 x 12 mm rear)
- 28 spokes, triple-crossed spoking
- Aluminum nipples
Headset
- Fully integrated 1 – 1 ⅛″ headset
- Sealed industrial bearings
Tires
- 26 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
- Quality mountain bike tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
- Presta valves, tubeless conversion ready
Stem
- Forged aluminum
- CNC-machined
- Handlebars attached via two clamps
- Rise/drop: +/-15° with flip-flop design to adjust handlebar height
- Length: 50 mm

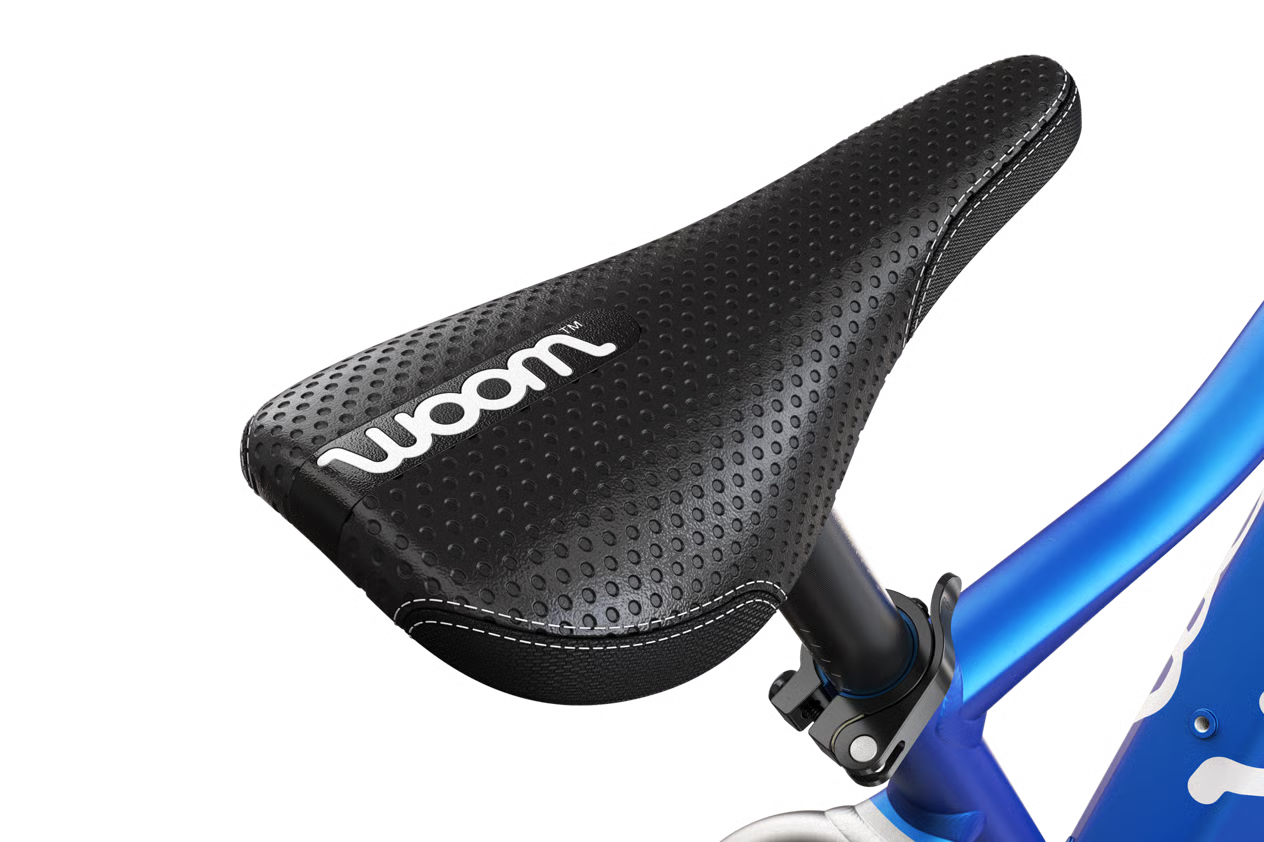

Seat
- Size specific, ergonomically designed to fit children's anatomy
- Streamlined mountain-bike specific saddle design
- Side protection to lean against walls
Handlebars
- Wide, ergonomically adapted and lightweight aluminum bars for more control
- Tapered end to fit child’s hand
- Sandblasted and silver anodized
- Width: 665 mm
- Rise: 20 mm
Seatpost
- 27.2 x 300 mm
- Anodized aluminum seatpost with insertion marks that indicate the minimum insertion depth
Grips
- Child-friendly thanks to small diameter
- Single-clamp grip to prevent twisting
- Safety zone: extra rubber on palm-facing portion of grip for added comfort
- 100% silicone for maximum grip
Seatpost Clamp
- Quick-release seatpost clamp for easy adjustments
- Made from aluminum
Drive
- Lightweight, forged aluminum 5.9" (150 mm) kid-specific cranks with narrow tread (Q-factor)
- Narrow-wide chainring with 28 teeth in the front
- Cassette with 11-42 teeth in the back
- Flat pedals made from fiber-reinforced nylon
- Chromoly axle and sealed industrial ball bearings
Brakes
- Hydraulic disc brakes by Promax
- Rotor diameter front/back: 160/160 mm
- Ergonomic brake levers designed for children's hands
Weights
- Bike weight 37 lbs 12 oz
- Max weight: 175 lbs combined weight of Rider + cargo
