Woom UP 5 - Kids 24" E-Bike

By woom
$1,999.00
SKU: WOO23820406E // Barcode: 9120083727296
Expected Ship Date: Mon Dec 01
1 in stock
View details

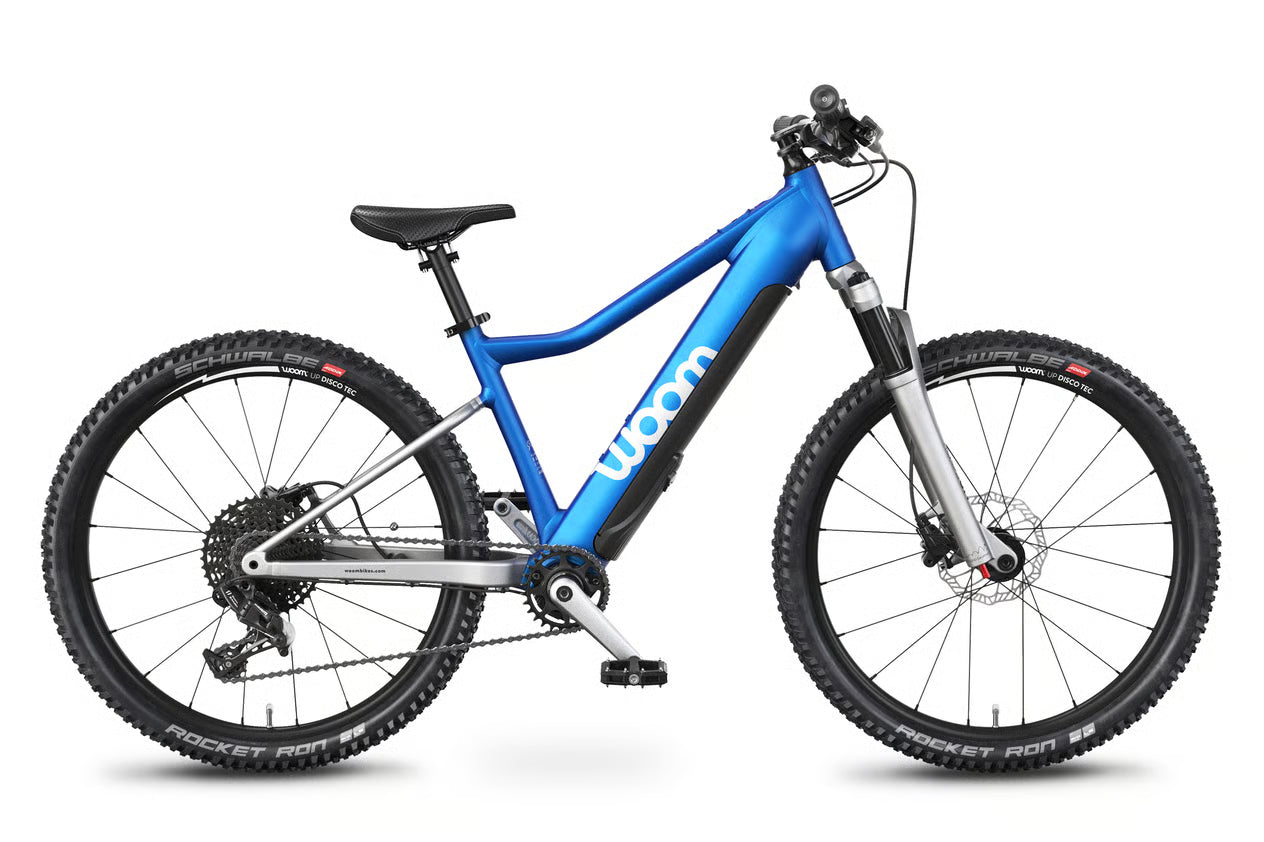

An ultralight 24" electric mountain bike with a suspension fork, updated Fazua drive and disc brakes designed for children aged 7 years and over. Designed to fit riders from 4' 2" to 4' 9".

Whether tackling gravel, commuting to school, shredding the trails, or reaching far-flung peaks, the woom UP turns every ride into an adventure.

The woom UP 5 is a well-rounded, dynamic electric mountain bike intended for kids aged 7 and up. With cadence and torque sensors built into the motor, the woom UP 5 provides for a smooth, natural ride, while enabling your Rider to go further.

Created with children in mind, the bike features kid-specific geometry and enhanced safety features. For instance, at speeds upwards of 15.5mph, the motor-assist automatically switches off and allows the Rider to use their own pedal power to go faster.

With great power comes great responsibility. As a new e-bike owner, woom has a few recommendations before your kid's first ride. We advise checking your state and local laws on e-bikes, always wearing a helmet, high-vis clothing and having bike lights, and being mindful when mounting and dismounting since e-bikes are heavier than traditional bikes.


E-Motor

  • FAZUA Ride 50 Trail Drivepack
  • 250 watt max power output/350 Watt short-term in boost function
  • Energy 250X battery with 250 watt capacity
  • 58Nm torque
  • Up to 15.5 mph pedal-assist
  • Three support modes
  • Removable motor and battery unit (7.2 lbs)
  • Frame-integrated bottom bracket houses dual-sided torque and cadence sensors for natural-feeling engagement of drive system
  • Pairs with FAZUA Rider app to view bike data including speed, mileage, battery charge, navigation, and more.

Frame

  • Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes
  • 24″ wheels
  • Easy-access low top tube to assist dismounting
  • Long wheelbase and low center of gravity to aid balancing
  • New, dropper seatpost-ready frame design
  • Featuring woom-specific molded chainstay protector

Suspension Fork

  • F1RST hydraulic air suspension fork with 80 mm travel, adjustable compression and rebound damping, plus lock-out
  • 1 – 1 ⅛″ tapered steerer tube
  • 100 x 15 mm thru axle
  • Post mount for disc brake

Wheels

  • Tubeless-compatible Alexrims wheelset
  • Aluminum hubs with sealed industrial bearings
  • Thru axles for maximum torsional strength (100 x 15 mm front and 135 x 12 mm rear)
  • 20 spokes, double-crossed spoking
  • Aluminum nipples

Headset

  • Fully integrated 1 – 1 ⅛″ headset
  • Sealed industrial bearings

Tires

  • 24 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
  • Quality mountain bike tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
  • Presta valves, tubeless conversion ready

Stem

  • Forged aluminum
  • CNC-machined
  • Handlebars attached via two clamps
  • Rise/drop: +/-15° with flip-flop design to adjust handlebar height
  • Length: 50 mm

    Seat

    • Size specific, ergonomically designed to fit children's anatomy
    • Streamlined mountain-bike specific saddle design
    • Side protection to lean against walls

    Handlebars

    • Wide, ergonomically adapted and lightweight aluminum bars for more control
    • Tapered end to fit child’s hand
    • Sandblasted and silver anodized
    • Width: 585 mm
    • Rise: 20 mm

    Seatpost

    • 27.2 x 250 mm
    • Anodized aluminum seatpost with insertion marks that indicate the minimum insertion depth

    Grips

    • Child-friendly thanks to small diameter
    • Single-clamp grip to prevent twisting
    • Safety zone: extra rubber on palm-facing portion of grip for added comfort
    • 100% silicone for maximum grip


    Seatpost Clamp

    • Quick-release seatpost clamp for easy adjustments
    • Made from aluminum

    Drive

    • Lightweight, forged aluminum 5.1" (130 mm) kid-specific cranks with narrow tread (Q-factor)
    • Narrow-wide chainring with 28 teeth in the front
    • Cassette with 11-42 teeth in the back
    • Flat pedals made from fiber-reinforced nylon
    • Chromoly axle and sealed industrial ball bearings

    Brakes

    • Hydraulic disc brakes by Promax
    • Rotor diameter front/back: 160/160 mm
    • Ergonomic brake levers designed for children's hands

    Weights

    • Bike weight: 36 lbs 3 oz
    • Max weight: 175 lbs combined weight of Rider + cargo
