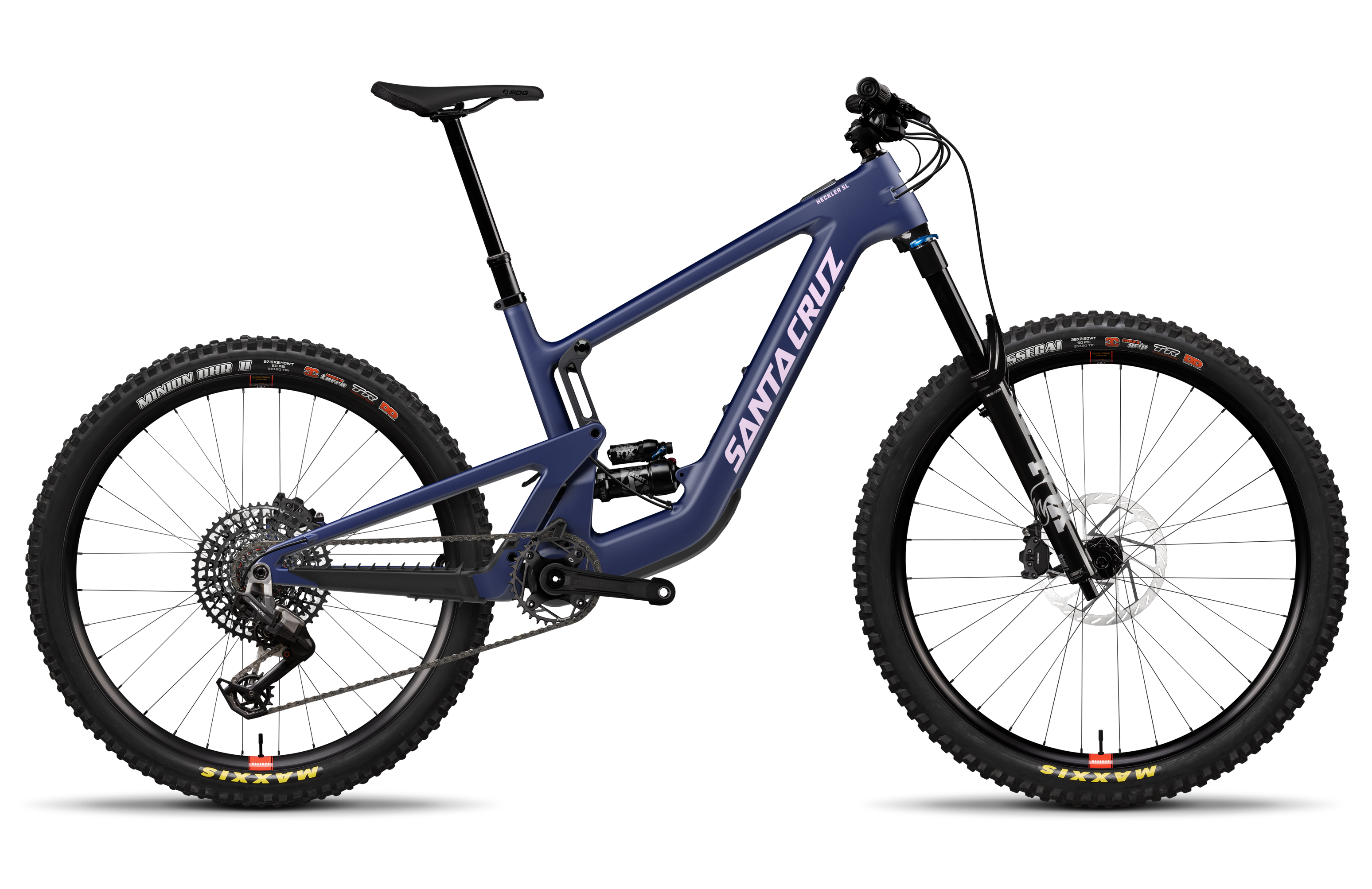

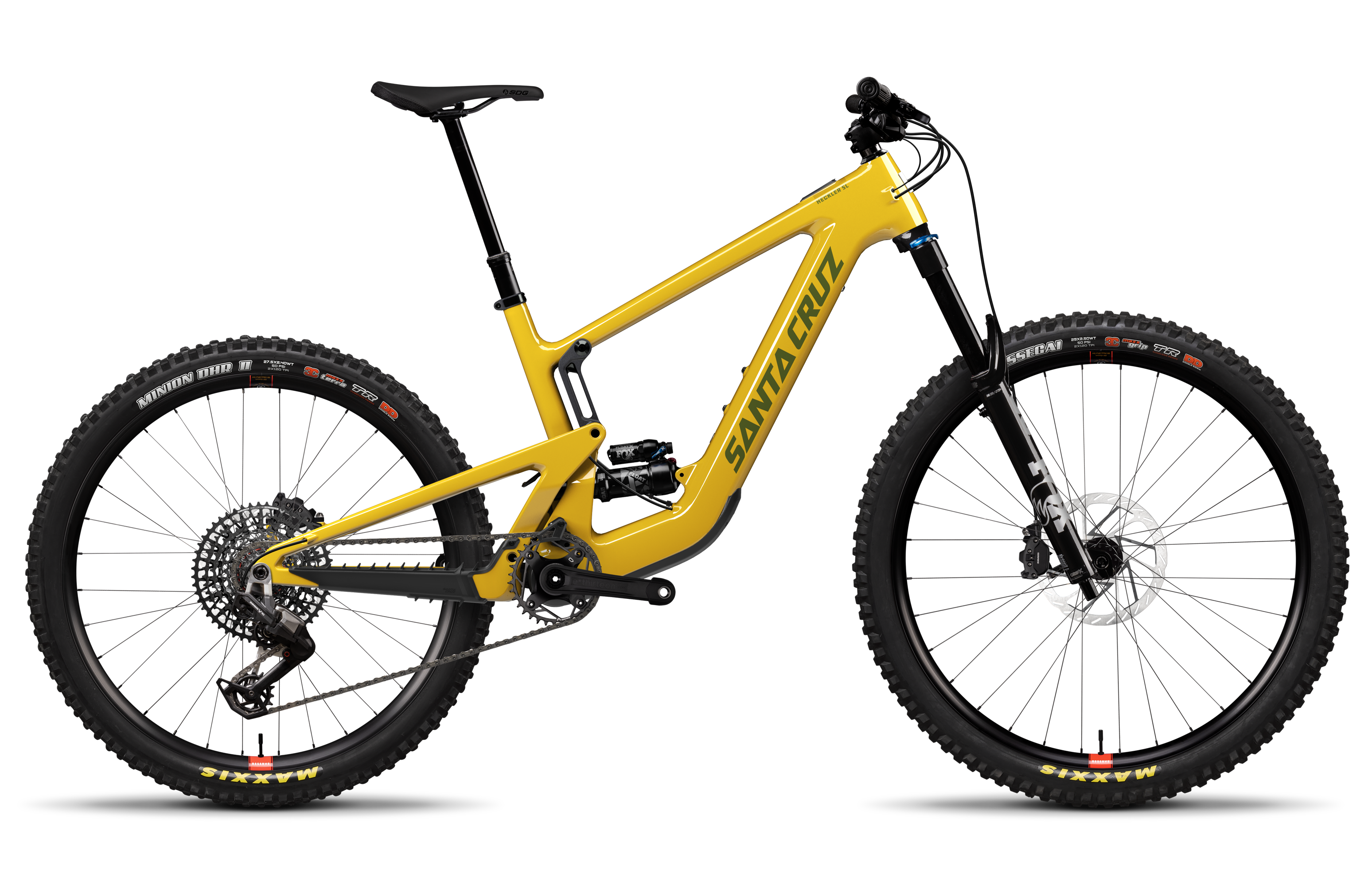

The Santa Cruz Heckler SL 90 takes trail taming power to the next level with a perfect blend of lightweight agility and stealthy e-bike performance. Built around a Carbon C frame and VPP™ suspension, this trail-ready machine pairs the compact FAZUA RIDE 60 drive unit with a powerful 480Wh integrated battery for an impressive range and balanced handling. Featuring 150mm rear and 160mm front travel, mixed wheels, and SRAM’s latest T-Type Eagle drivetrain, the Heckler SL 90 is designed for precision control and all-mountain versatility.
Standout Features
- SRAM T-Type 90 Drivetrain — Flattop 12-speed, e-MTB optimized
- FAZUA RIDE 60 Drive Unit — Lightweight, efficient, and smooth

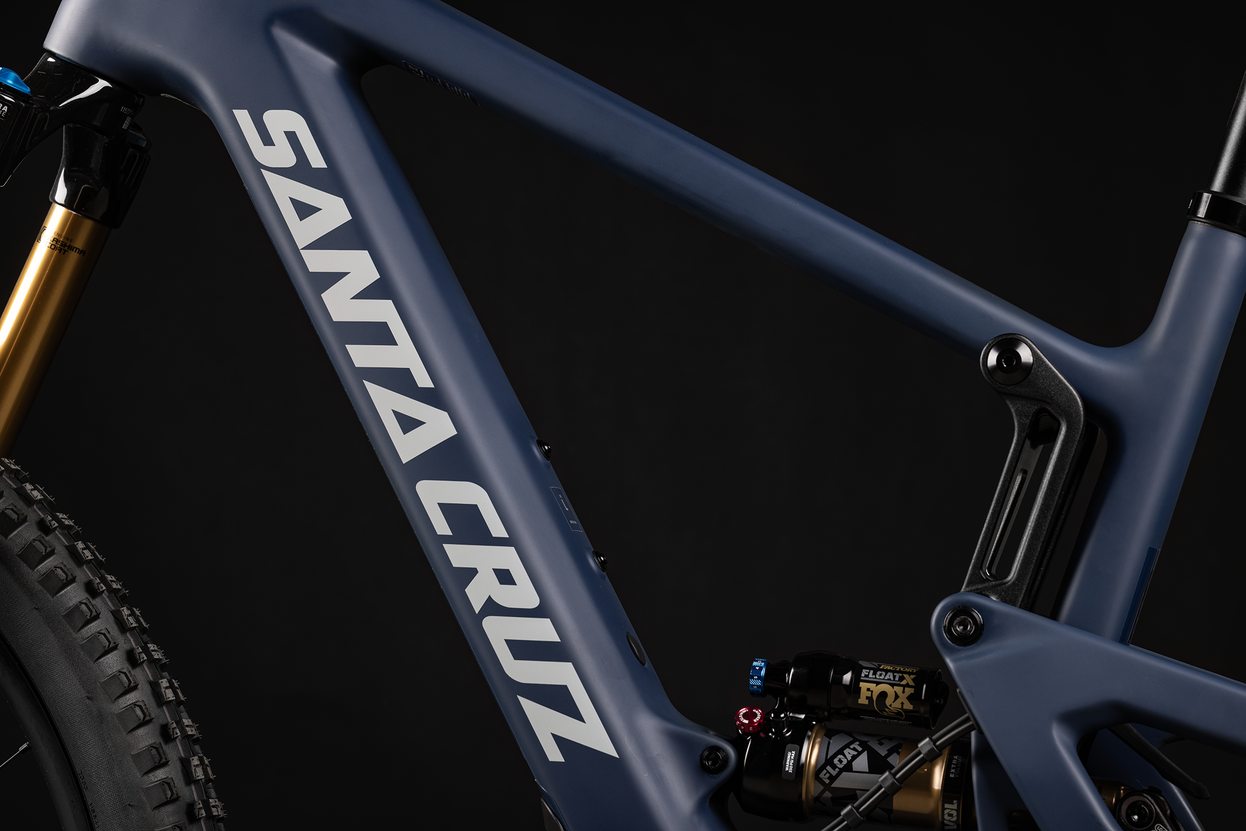

- 480Wh Integrated Battery — Long-range power with low weight

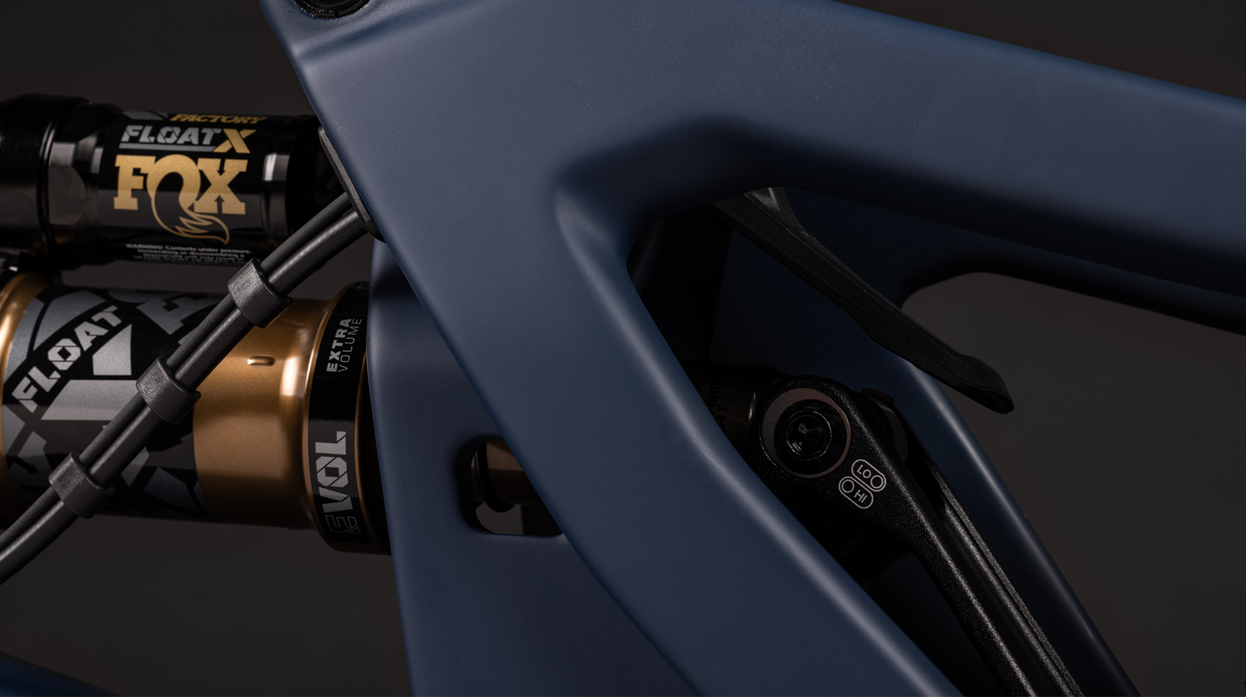

- Flip Chip Geometry Adjust — Customize handling on the fly

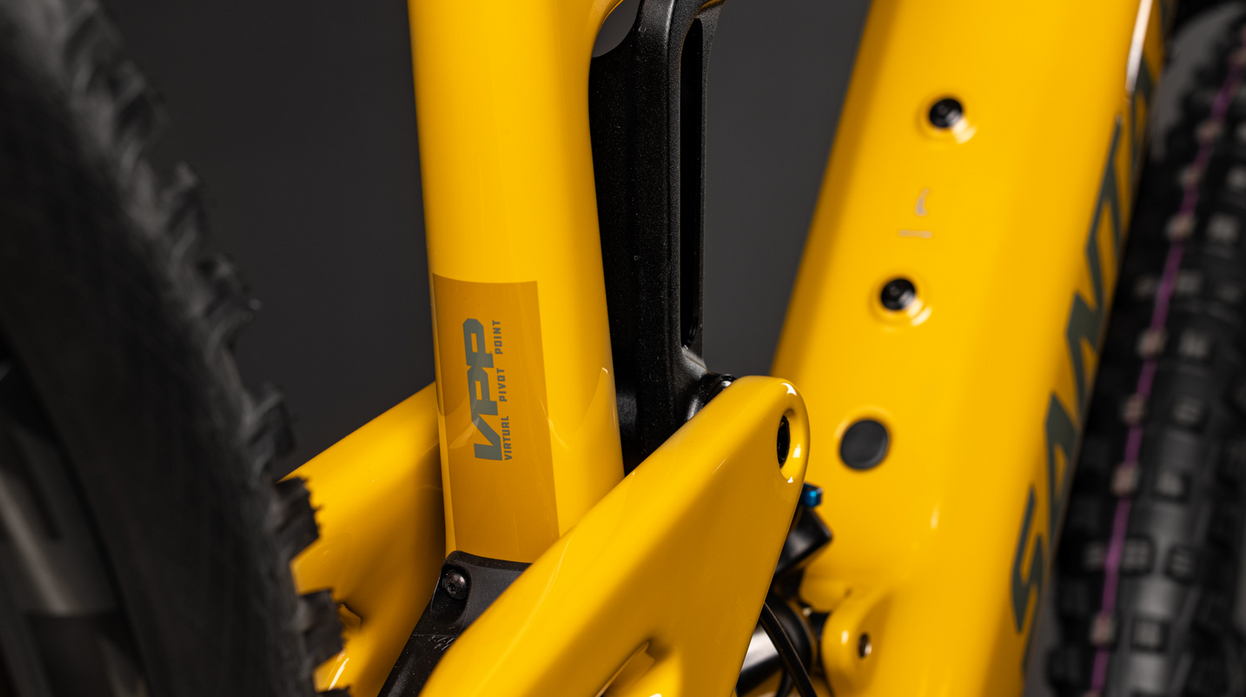

- VPP™ Suspension — Santa Cruz’s proven 150mm rear suspension

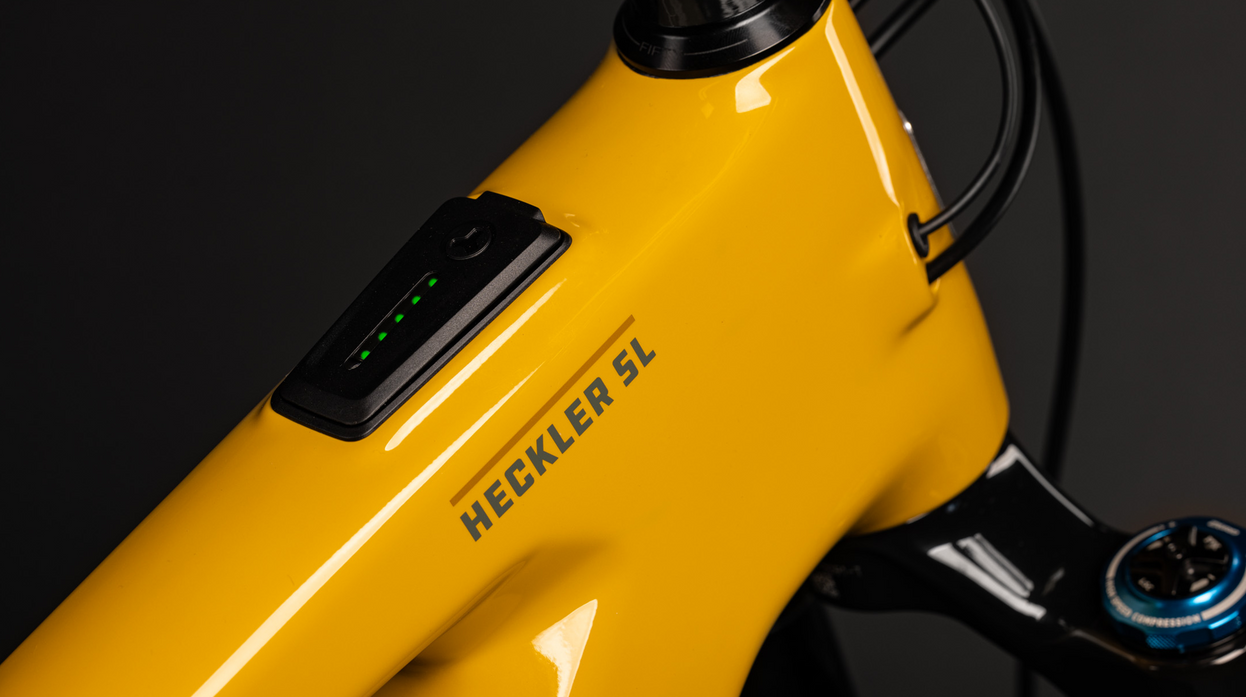

- C Carbon Frame — Stiff, lightweight, trail-tuned
Frame
- Material: Carbon C
- Rear Travel: 150mm (VPP™)
- Wheel Size: MX (29” front / 27.5” rear)
Suspension
- Fork: Fox 36 Float Performance, Grip, 160mm

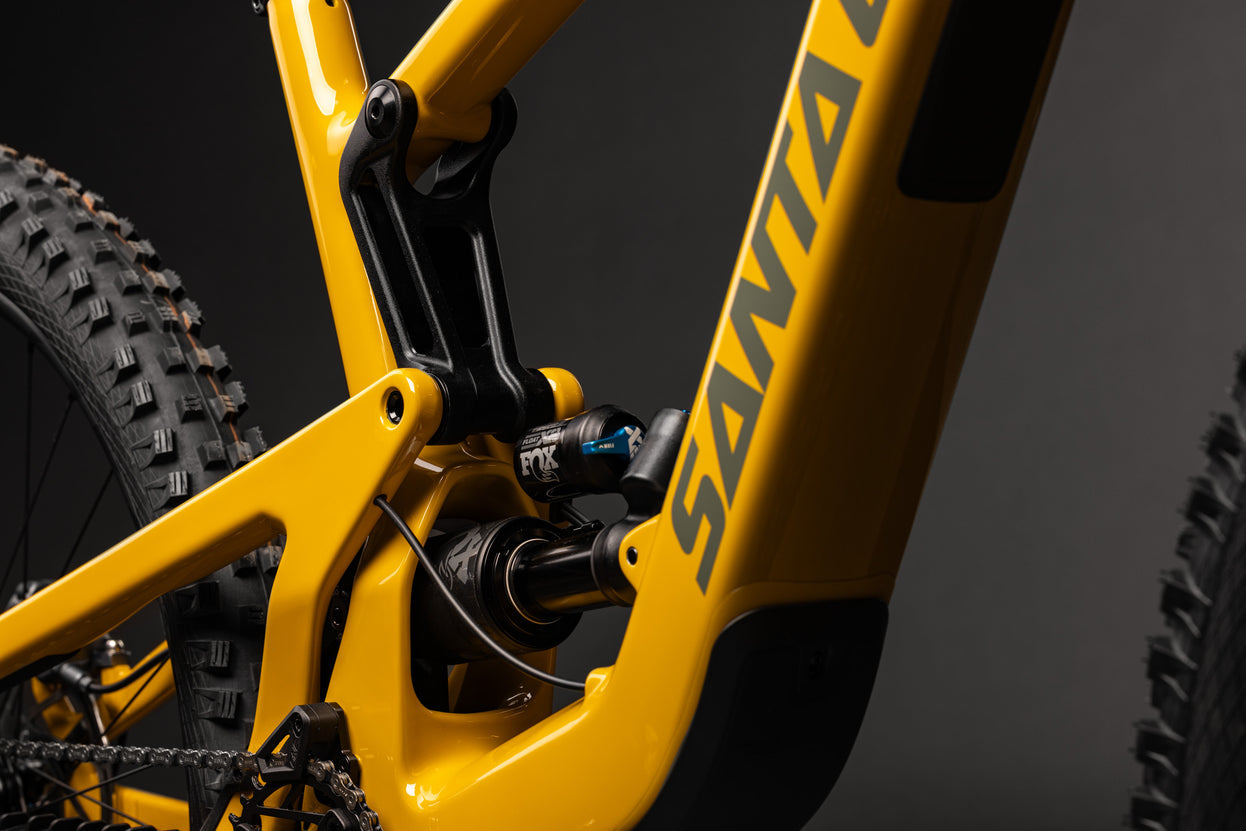

- Shock: Fox Float X Performance, 210x55mm
Drivetrain
- Cassette: SRAM XS 1275 Eagle T-Type, 12-speed, 10-52t
- Chain: SRAM GX Eagle T-Type, Flattop, 12-speed
- Crankset: E13 Helix eSpec, 165mm

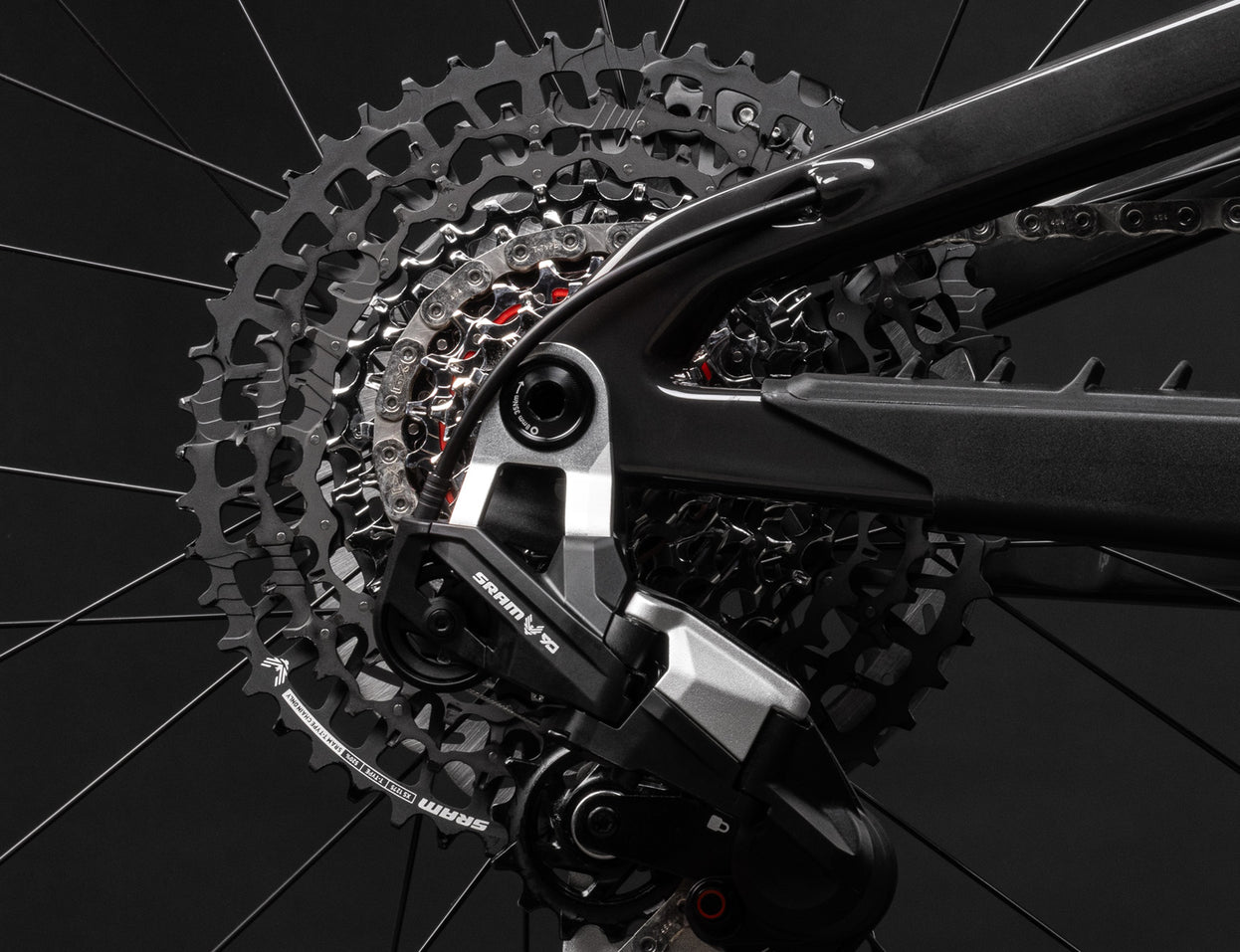

- Rear Derailleur: SRAM 90 Eagle T-Type, 12-speed
- Shifter: SRAM 90 Eagle T-Type Single Click, 12-speed
- Chainguide: OneUp Chainguide
Brakes

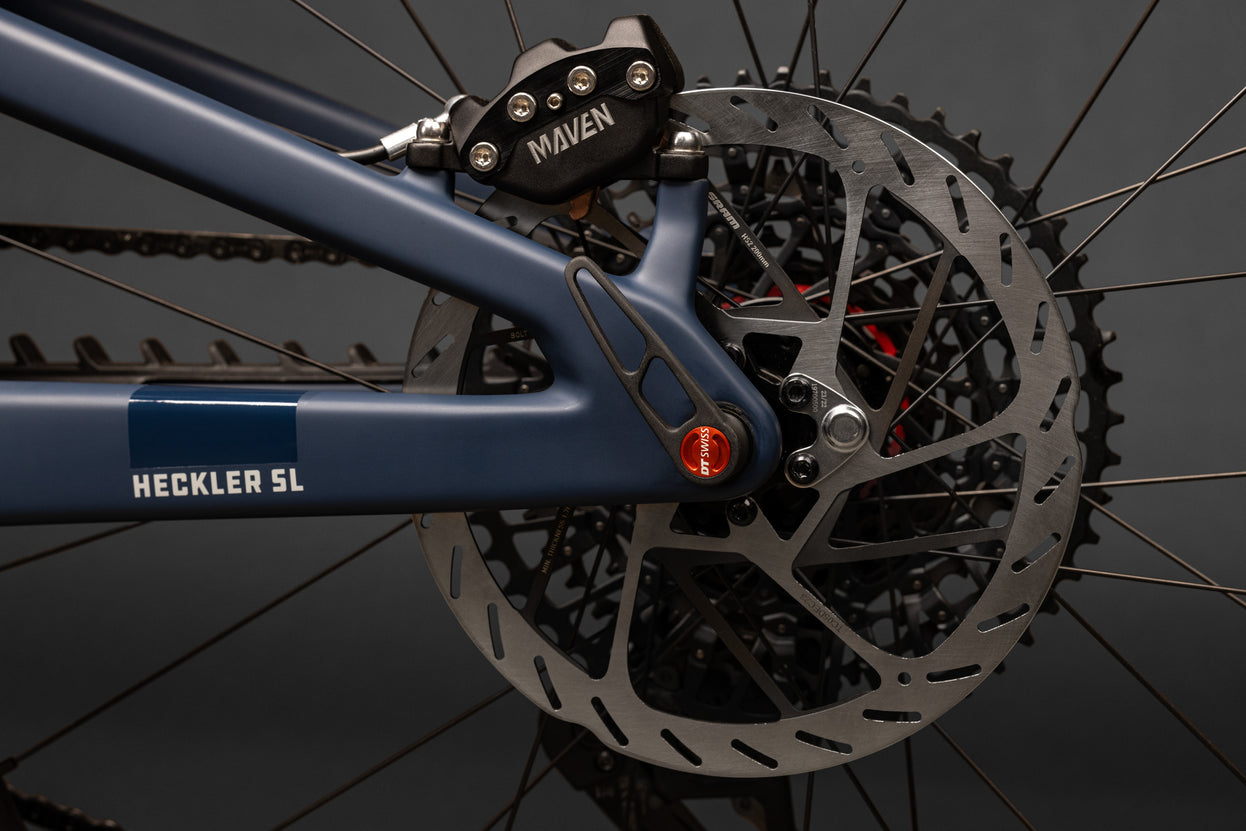

- Front Brake: SRAM Maven Base
- Rear Brake: SRAM Maven Base
- Front Rotor: SRAM HS2 200mm
- Rear Rotor: SRAM HS2 200mm

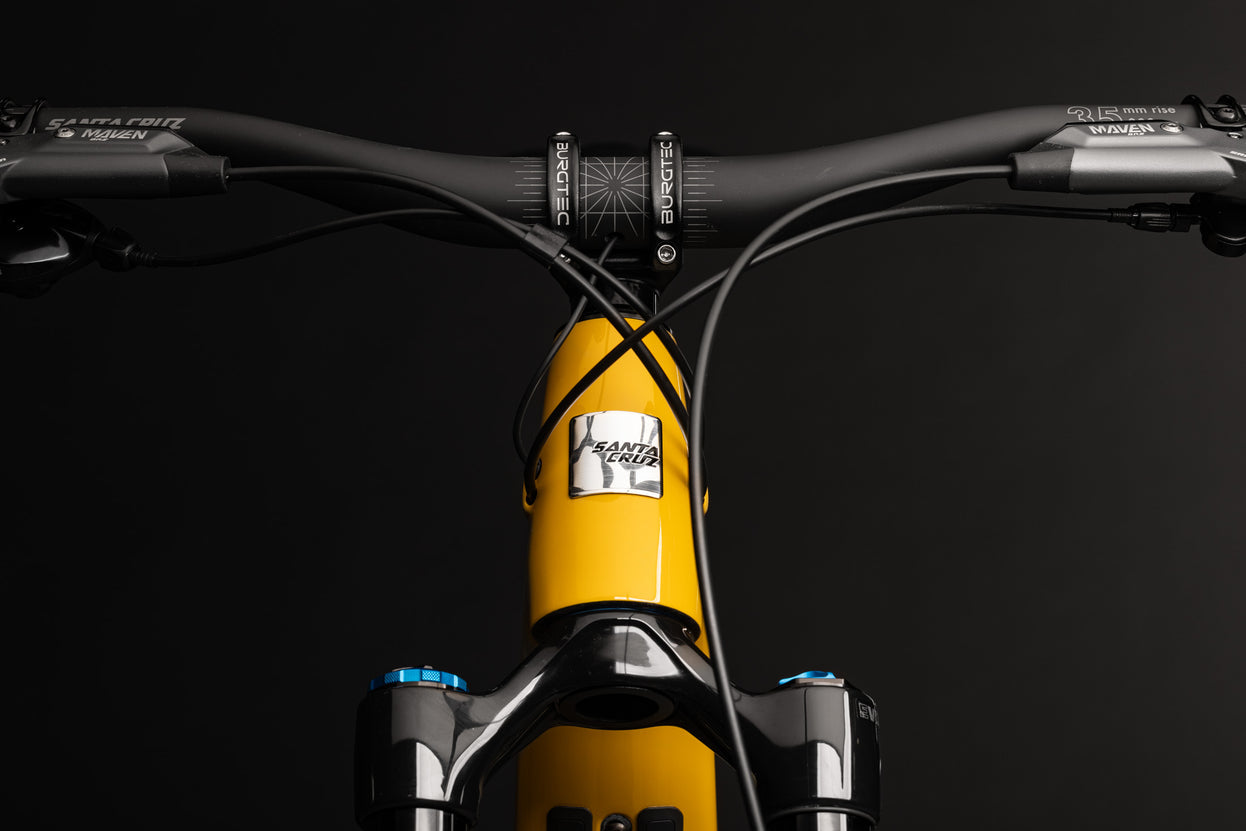

Cockpit
- Grips: Santa Cruz Bicycles House Grips
- Handlebars: OneUp Aluminum Bar
- Stem: OneUp Enduro Stem, 42mm
- Headset: Cane Creek 10 IS Integrated
- Seatpost: OneUp Dropper Post, 31.6
- Saddle: SDG Bel-Air V3, Max Lux-Alloy
Wheels & Tires
- Front Rim: Reserve 30|HD AL
- Front Hub: E13 SL, 15x110, 6-Bolt, 32h
- Front Tire: Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
- Rear Rim: Reserve 30|HD AL
- Rear Hub: E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
- Rear Tire: Schwalbe Albert, 27.5x2.5, Trail Radial Soft
E-Bike System

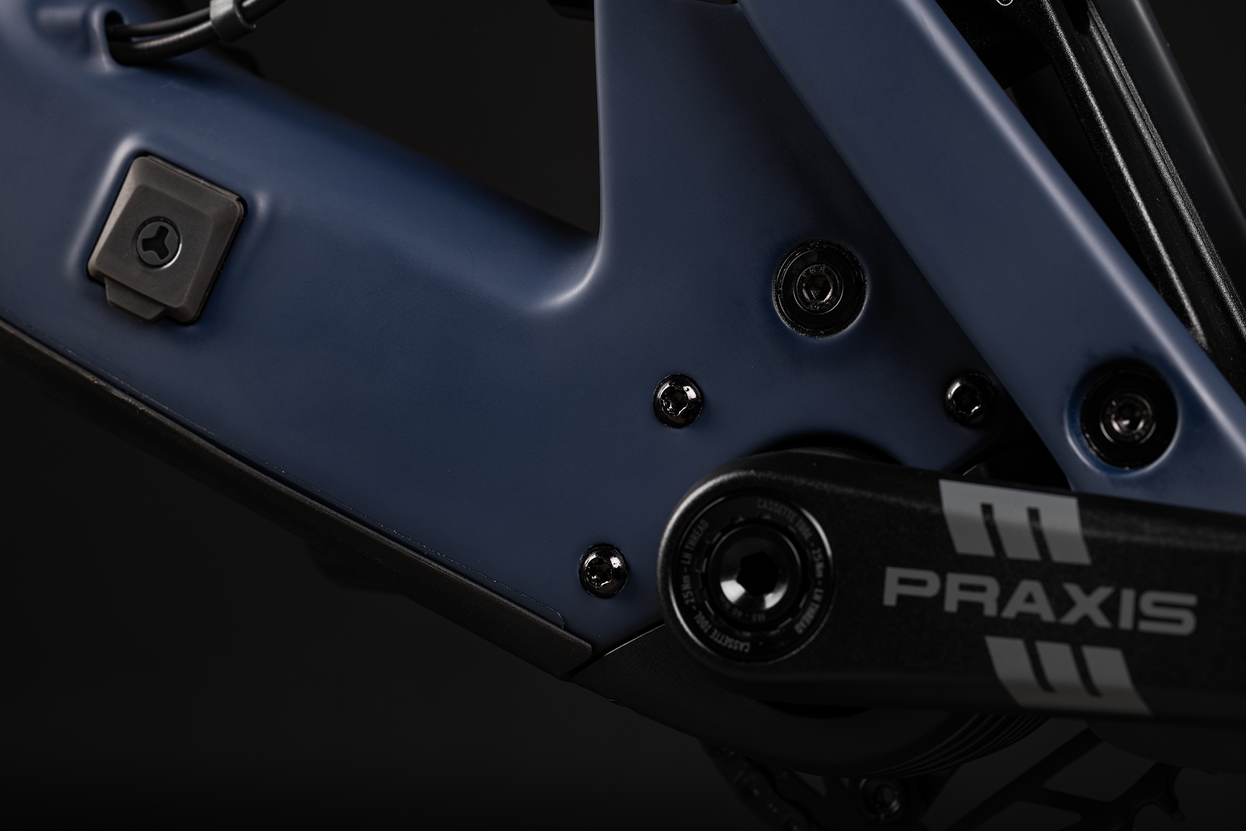

- Drive Unit: FAZUA RIDE 60

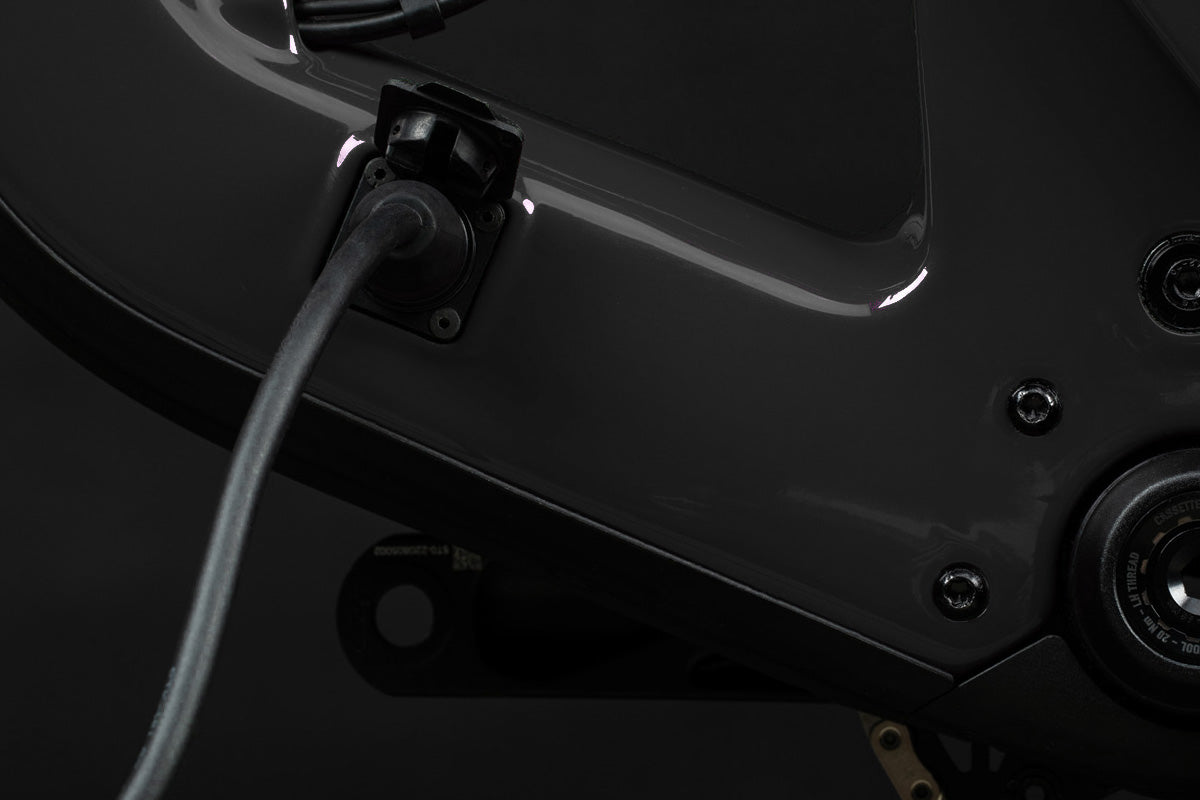

- Battery: FAZUA 480Wh Integrated
Specifications
| Spec | Detail |
|---|---|
| Rear Travel | 150mm |
| Fork Travel | 160mm |
| Fork Offset | 44mm |
| Shock Size | 210x55mm |
| Bottom Bracket | Fazua DU with E-TOR spindle |
| Rear Brake Mount | PM 200mm |
| Max Rotor Size | 220mm |
| Max Tire Clearance | 2.6” |
| Rear Spacing | 148mm |
| Rear Shock Bushing Size | 30x8 (front & rear) |
| Shock Stroke | 55mm |
| UDH Compatible | Yes |
| Headset | IS41 / IS52 |
| Max Chainring Size | 36t |
| Fork Axle to Crown | 571mm |
| Front Derailleur Mount | No |
Size Guide
| Size | Rider Height | Bar Width | Dropper Length | Crank Length |
|---|---|---|---|---|
| Small | 5'1" – 5'5" | 760–800mm | 100–125mm (approx) | 165mm |
| Medium | 5'5" – 5'9" | 760–800mm | 125–150mm (approx) | 165mm |
| Large | 5'9" – 6'1" | 760–800mm | 150–170mm (approx) | 165mm |
| X-Large | 6'0" – 6'4" | 760–800mm | 170–200mm (approx) | 165mm |
| XX-Large | 6'4" – 6'7" | 760–800mm | 170–200mm (approx) | 165mm |
Santa Cruz Heckler SL 90
