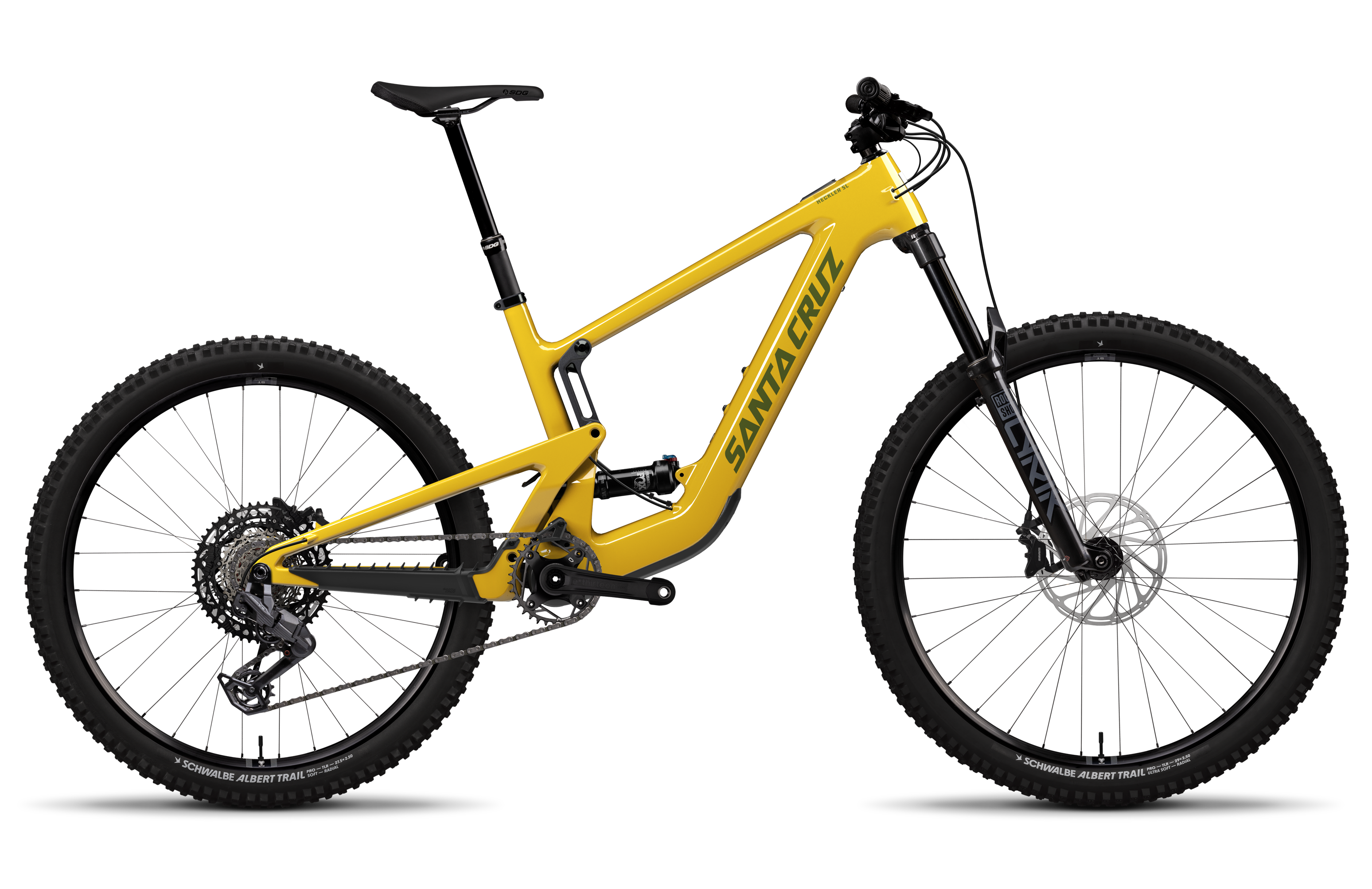

The Santa Cruz Heckler SL 70 is your go-to trail slayer with the perfect balance of lightweight construction, agility, and e-bike power. Built on a Carbon C frame with VPP™ suspension, this versatile machine delivers 150mm rear travel and 160mm front travel paired with the refined FAZUA RIDE 60 drive unit and 430Wh integrated battery. The SRAM T-Type Eagle drivetrain ensures crisp, reliable shifting, while mixed wheels, a Flip Chip geometry adjust, and a premium cockpit round out this all-terrain e-bike for riders seeking fast, playful, and natural-feeling trail performance
Standout Features
- SRAM T-Type 70 Drivetrain — Smooth, durable 12-speed system

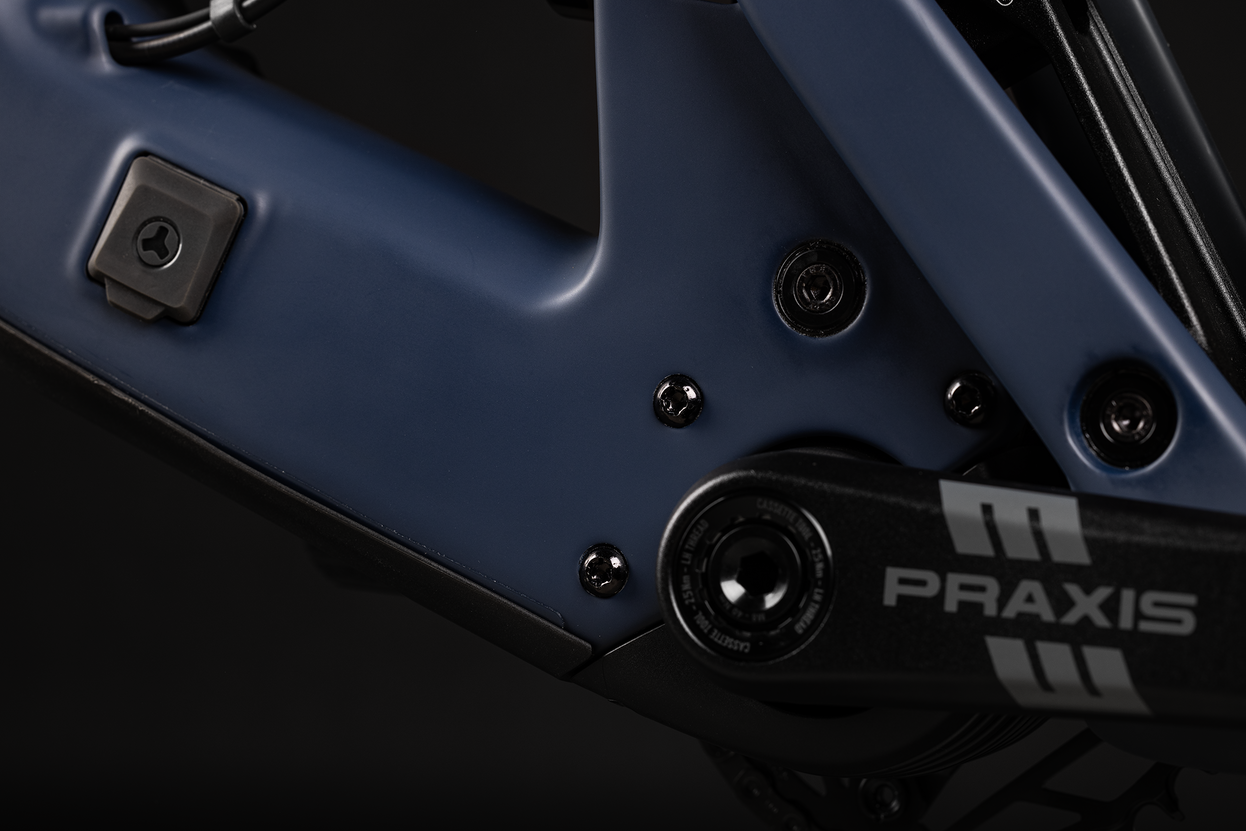

- FAZUA RIDE 60 Drive Unit — Quiet, responsive, and efficient
- 430Wh Integrated Battery — Trail-long range, low weight

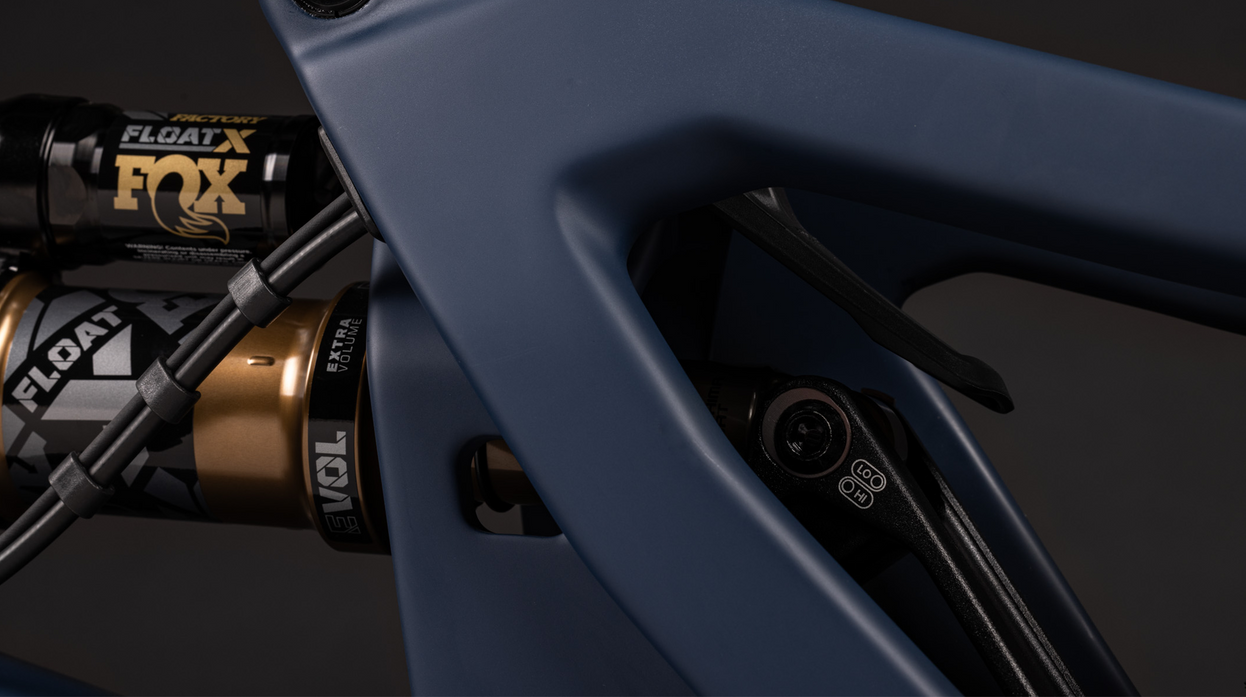

- Flip Chip Geometry Adjust — Dial in handling on demand

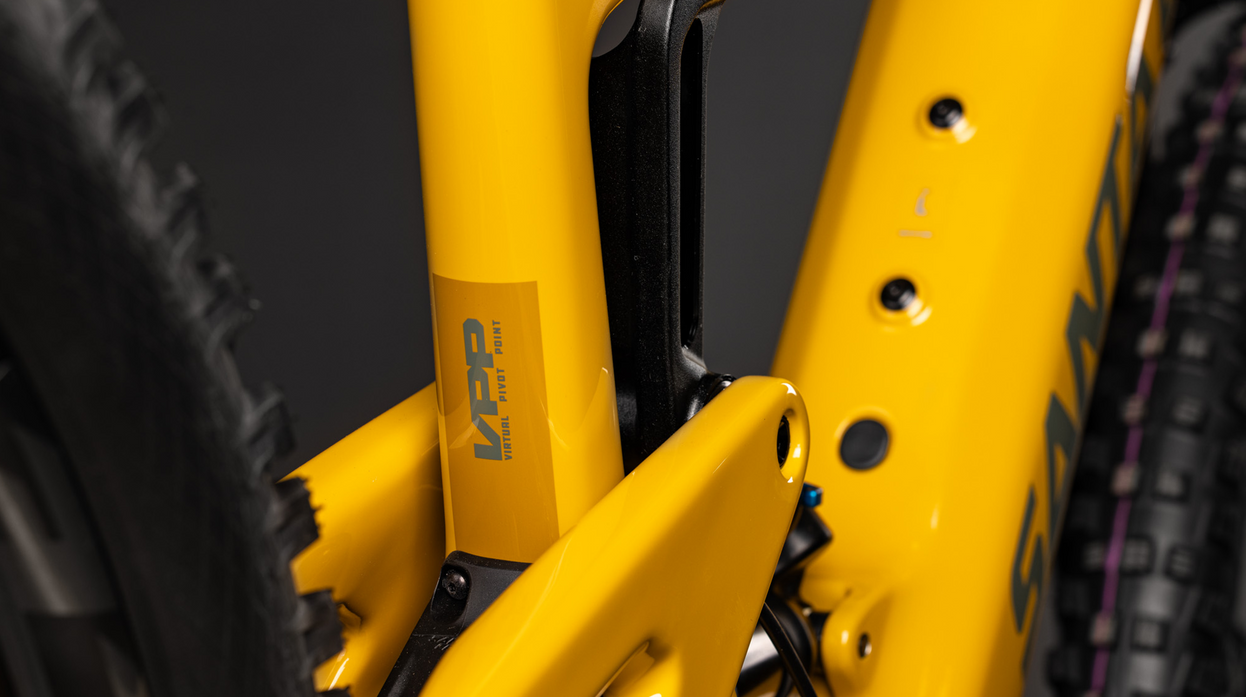

- VPP™ Suspension — Legendary 150mm rear suspension

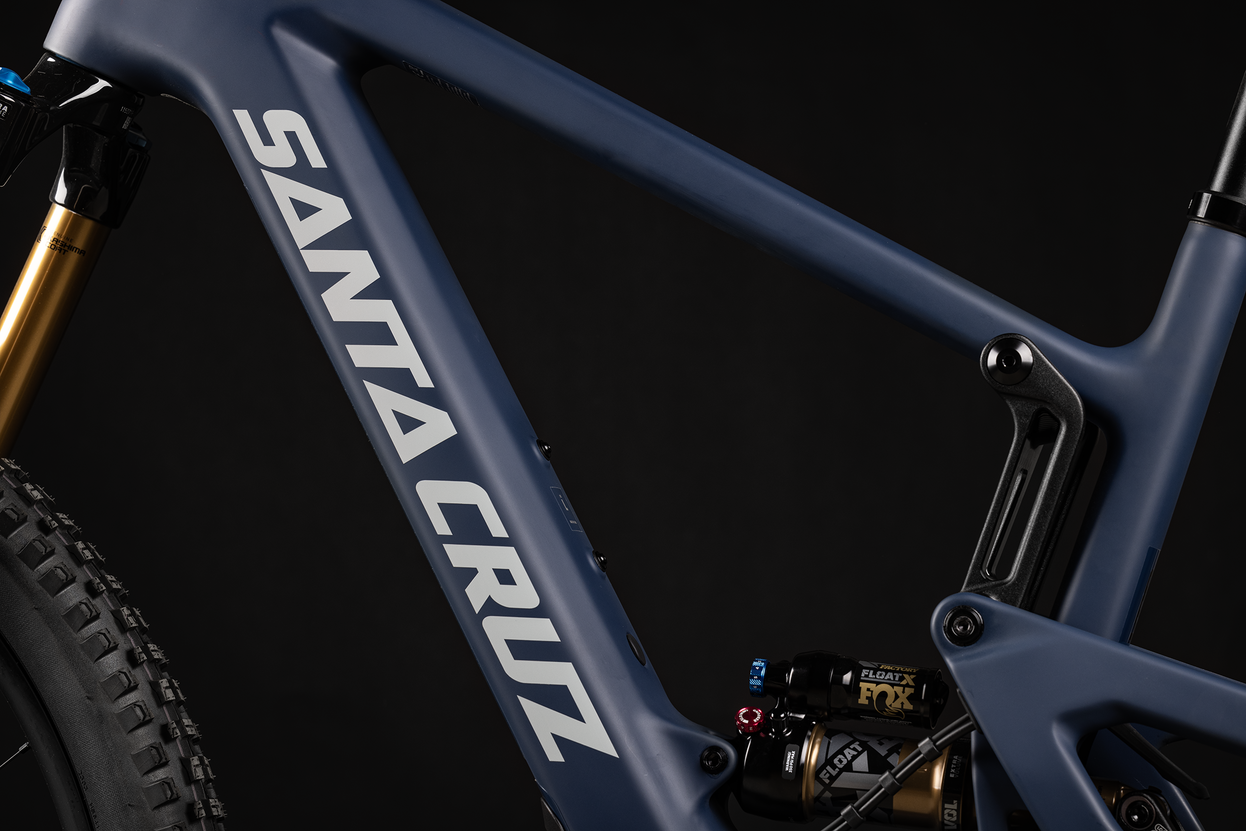

- C Carbon Frame — Lightweight, stiff, and trail-tough
Frame
- Material: Carbon C
- Rear Travel: 150mm (VPP™)
- Wheel Size: MX (29” front / 27.5” rear)
Suspension
- Fork: RockShox Lyrik Base, 160mm

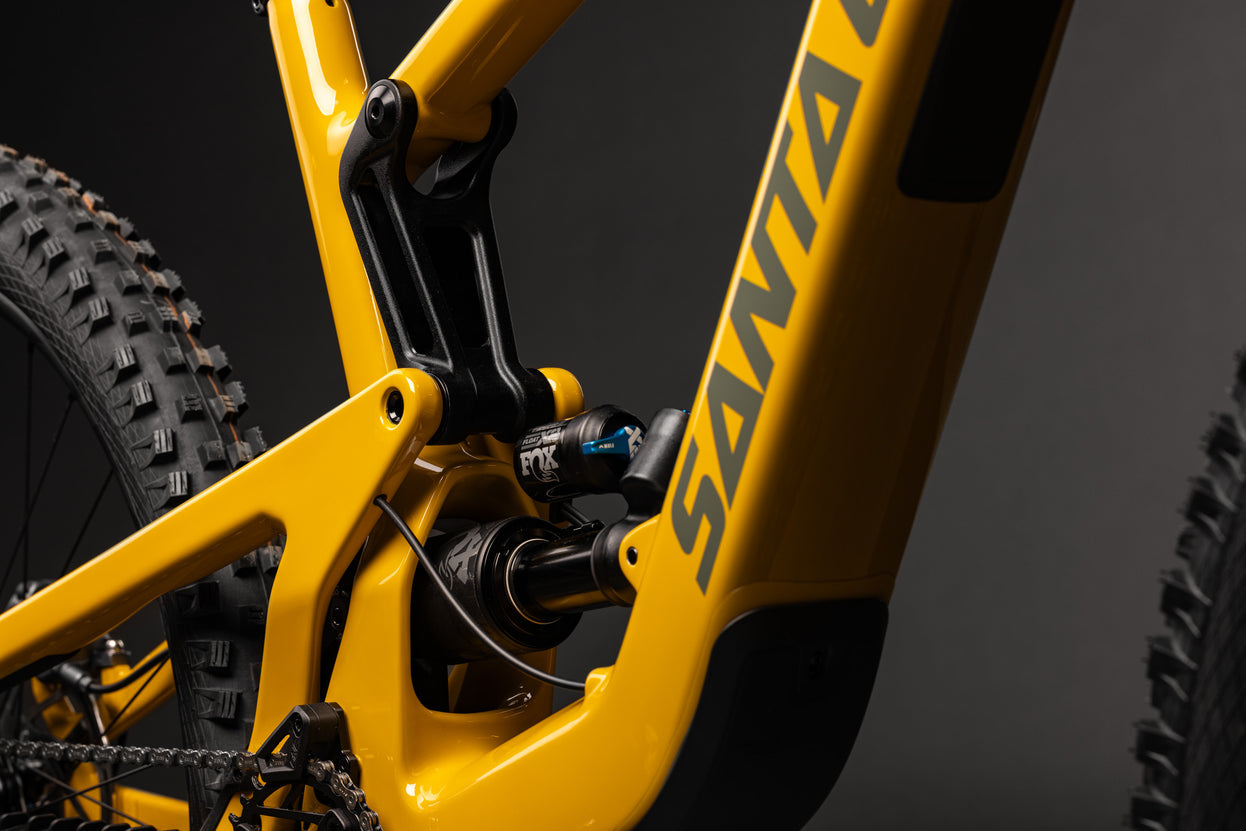

- Shock: Fox Float Performance, 210x55mm
Drivetrain
- Cassette: SRAM XS 1270 Eagle T-Type, 12-speed, 10-52t
- Chain: SRAM 70 Eagle T-Type, Flattop, 12-speed
- Crankset: E13 Helix eSpec, 165mm

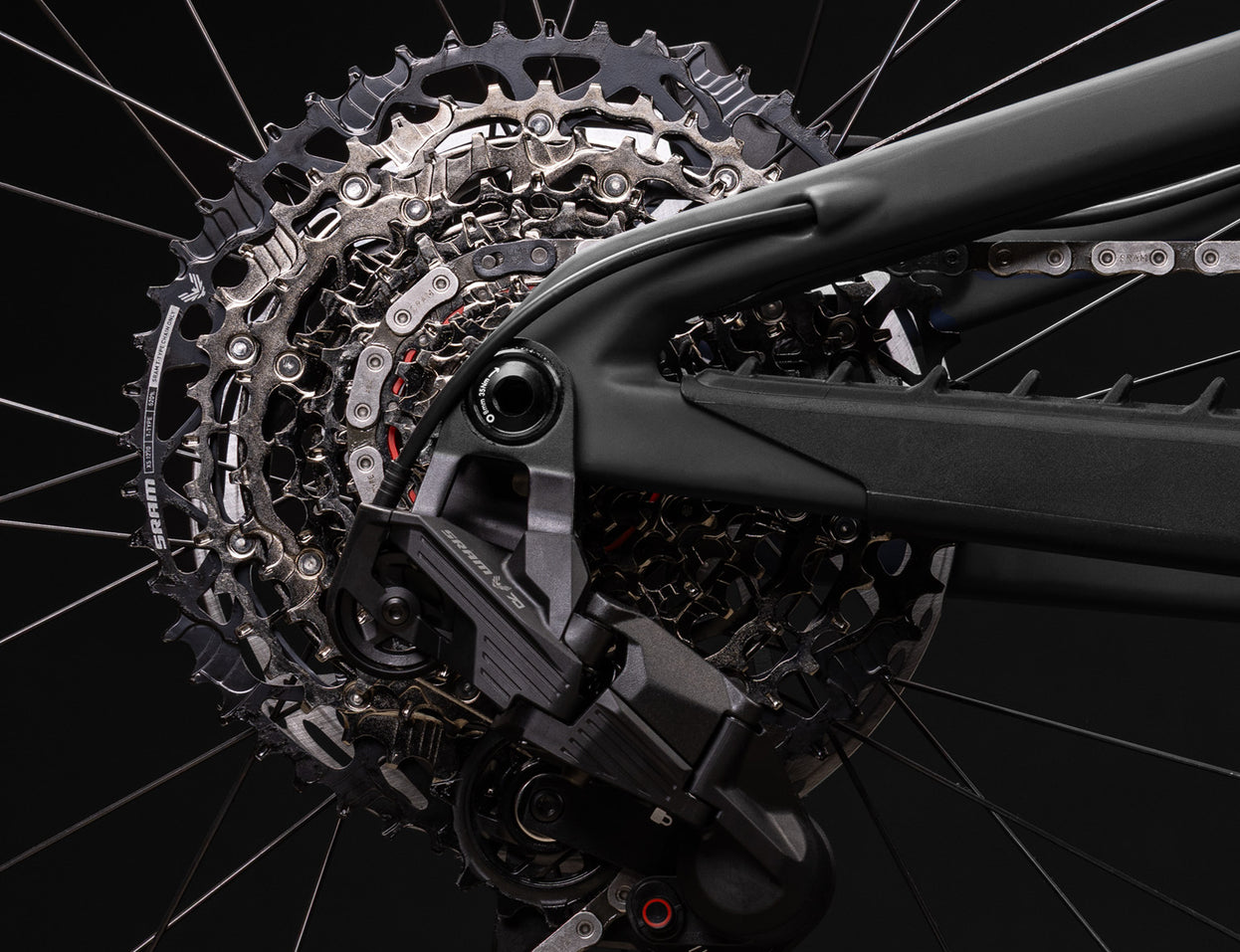

- Rear Derailleur: SRAM 70 Eagle T-Type, 12-speed
- Shifter: SRAM 90 Eagle T-Type Single Click, 12-speed
- Chainguide: OneUp Chainguide
Brakes
- Front Brake: SRAM DB8
- Rear Brake: SRAM DB8
- Front Rotor: SRAM Centerline, 200mm
- Rear Rotor: SRAM Centerline, 200mm
Cockpit
- Grips: Santa Cruz Bicycles House Grips

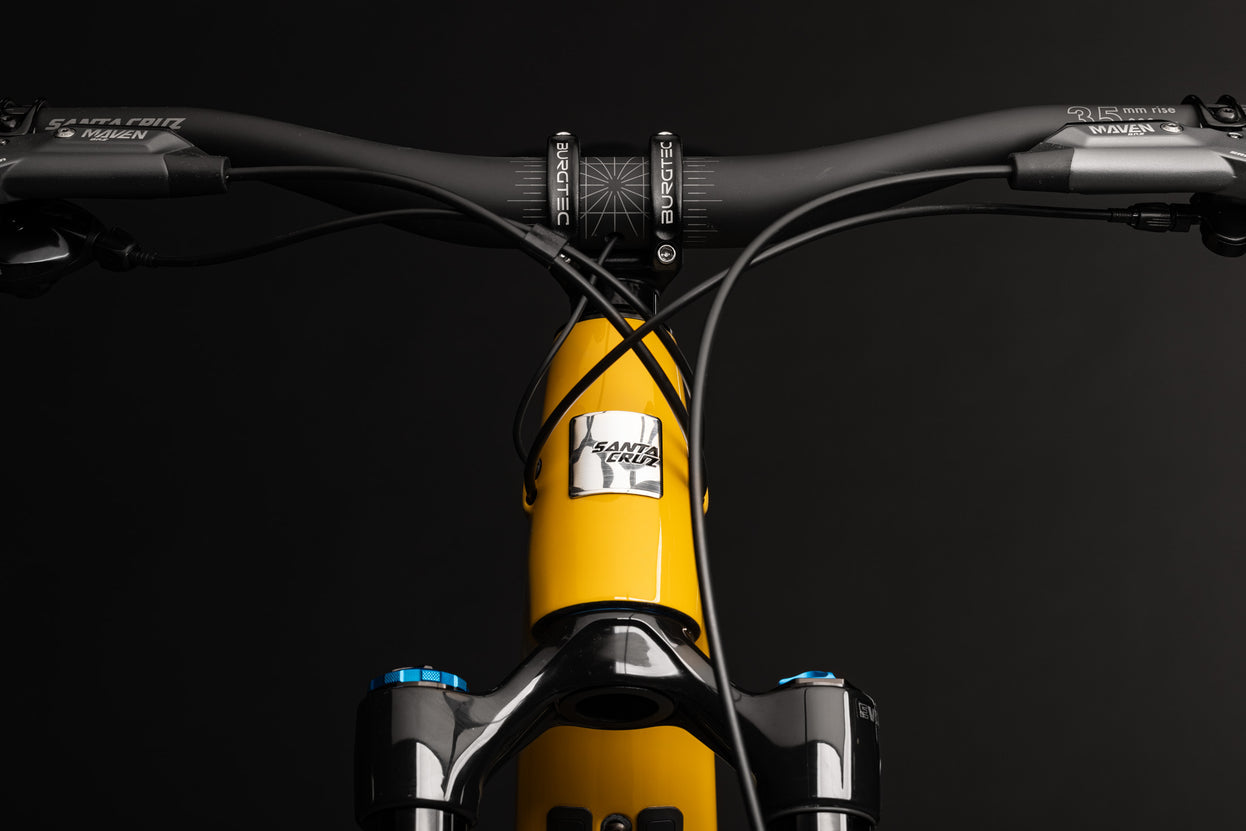

- Handlebars: Burgtec Alloy Bar or e13 TRS Base Bar
- Stem: OneUp Enduro Stem 42mm or e13 TRS Base Stem 40mm
- Headset: Cane Creek 10 IS Integrated
- Seatpost: SDG Tellis Dropper, 31.6
- Saddle: SDG Bel-Air V3 Max
Wheels & Tires
- Front Rim: WTB ST Tough 30
- Front Hub: SRAM MTH 716, 15x110, 6-Bolt, 32h
- Front Tire: Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
- Rear Rim: WTB ST Tough 30
- Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
- Rear Tire: Schwalbe Albert, 27.5x2.5, Trail Radial Soft
E-Bike System
- Drive Unit: FAZUA RIDE 60

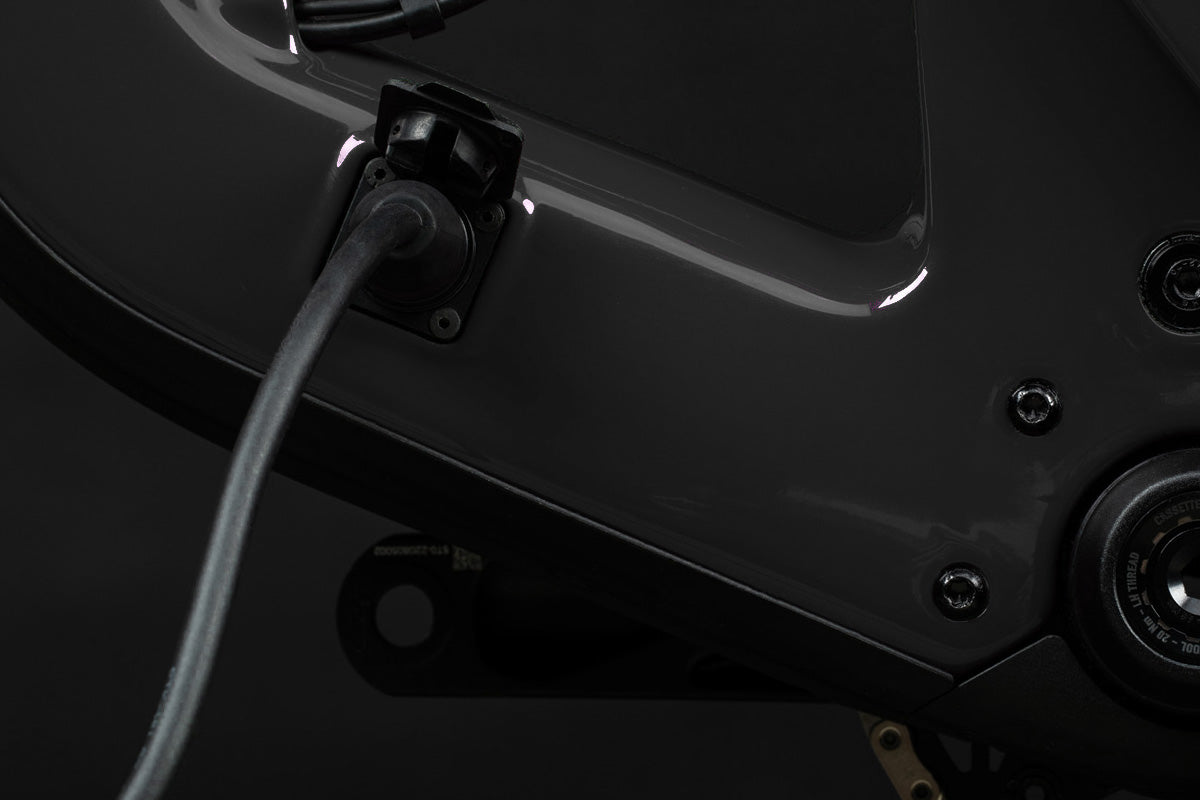

- Battery: Fazua Energy 430Wh Integrated
Specifications
| Spec | Detail |
|---|---|
| Rear Travel | 150mm |
| Fork Travel | 160mm |
| Fork Offset | 44mm |
| Shock Size | 210x55mm |
| Bottom Bracket | Fazua DU with E-TOR spindle |
| Rear Brake Mount | PM 200mm |
| Max Rotor Size | 220mm |
| Max Tire Clearance | 2.6” |
| Rear Spacing | 148mm |
| Rear Shock Bushing Size | 30x8 (front & rear) |
| Shock Stroke | 55mm |
| UDH Compatible | Yes |
| Headset | IS41 / IS52 |
| Max Chainring Size | 36t |
| Fork Axle to Crown | 571mm |
| Front Derailleur Mount | No |
Size Guide
| Size | Rider Height | Bar Width | Dropper Length | Crank Length |
|---|---|---|---|---|
| Small | 5'1" – 5'5" | 760–800mm | 100–125mm (approx) | 165mm |
| Medium | 5'5" – 5'9" | 760–800mm | 125–150mm (approx) | 165mm |
| Large | 5'9" – 6'1" | 760–800mm | 150–170mm (approx) | 165mm |
| X-Large | 6'0" – 6'4" | 760–800mm | 170–200mm (approx) | 165mm |
| XX-Large | 6'4" – 6'7" | 760–800mm | 170–200mm (approx) | 165mm |
