New arrival

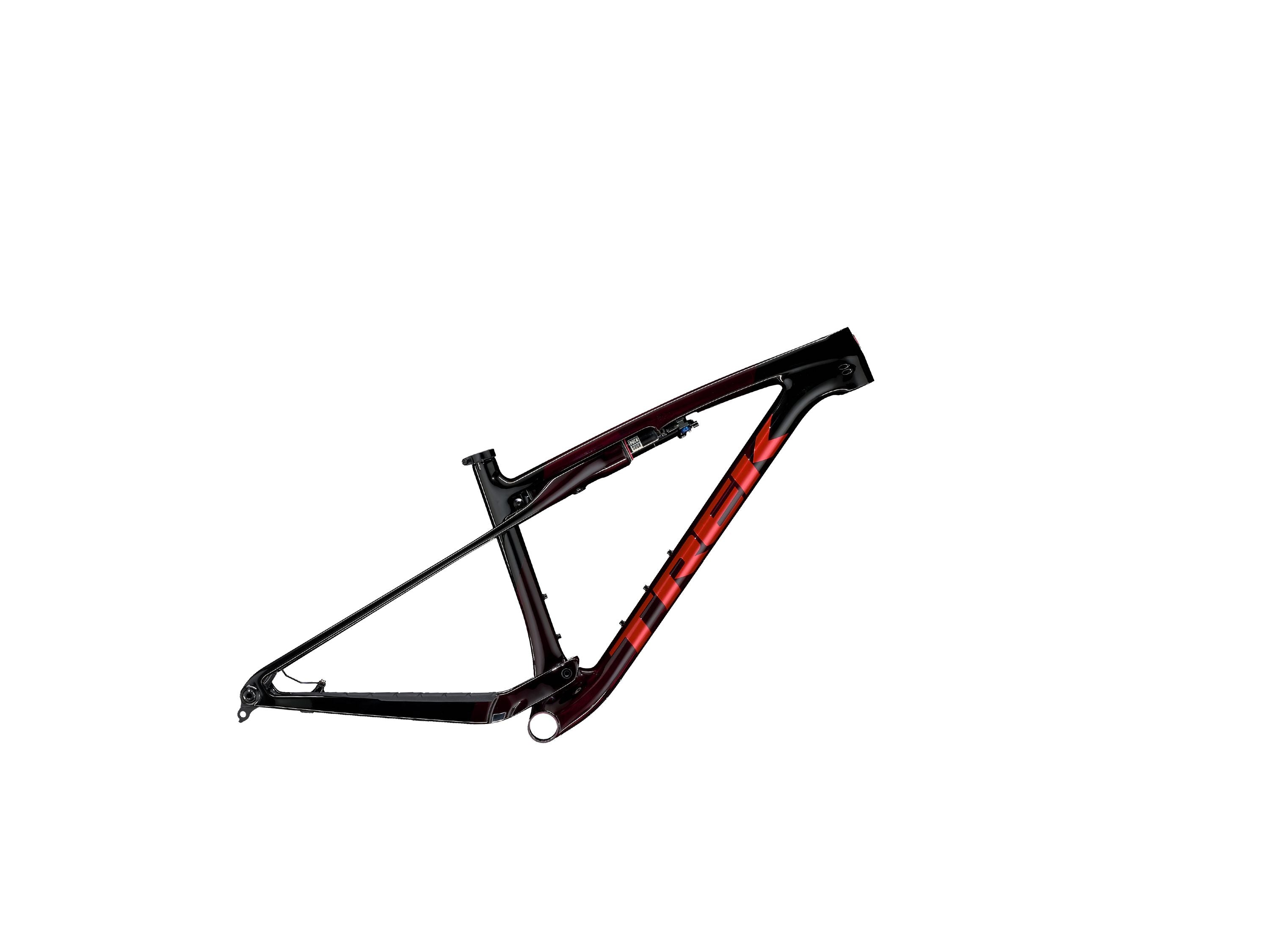

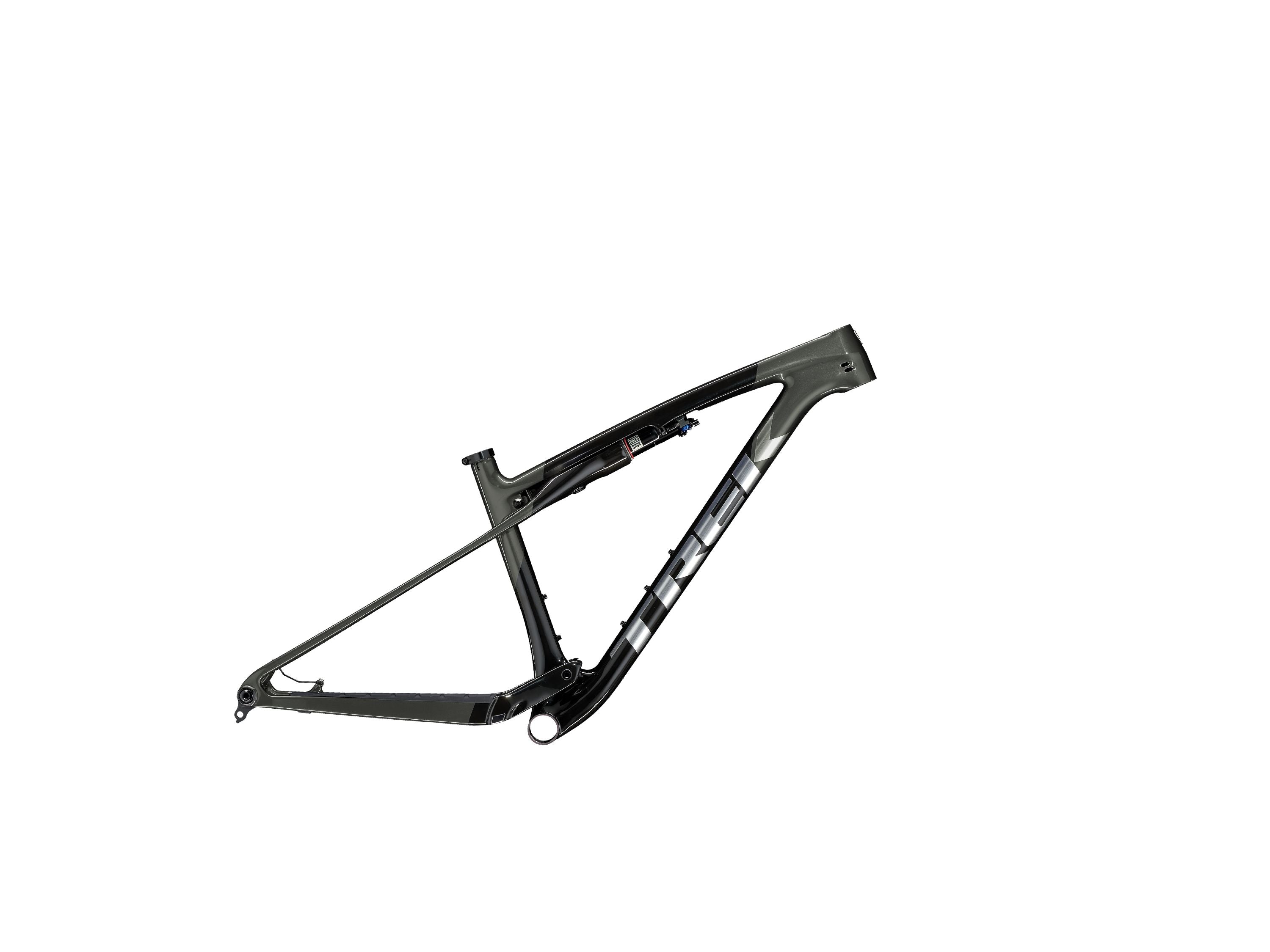

Trek supercaliber slr gen 2 frameset

$3,999.99
By Trek
SKU: 5310308 // Barcode: 745889485196
Pickup Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, test ride, pack, and ship your bike to ensure a safe delivery and easy setup. Professional reassembly is encouraged.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

View details

Nothing else like it

Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

IsoStrut

IsoStrut integrated suspension gives you just enough travel to stay in control. Its fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

SLR OCLV Mountain Carbon

Supercaliber SLR is the World Cup lightweight frame. It drops grams by using a higher modulous carbon fiber layup that allows us to use less material, plus we skip internal guide tubes for cable routing, minimizing material and maximizing weight savings.


Frame SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Shock Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Skewer Rear Bontrager Switch thru axle, removable lever
Headset FSA IS-2, 1-1/8 top, 1.5 bottom

Geometry Chart

SMMLLXL
B B Drop 4.6
B B Height 32.7
Chainstay Length 43.5
Eff Seat Tube Angle 74.5°
Eff Top Tube 57.1
Frame Reach 41
Frame Size Letter S
Frame Stack 59
Head Angle 67.5°
Head Tube Length 9
Offset 4.3
Seat Tube 39.5
Seat Tube Angle 70.5°
Standover 76
Trail 10.9
Wheelbase 111.3
Wheel Size 29"
B B Drop 4.6
B B Height 32.7
Chainstay Length 43.5
Eff Seat Tube Angle 74.5°
Eff Top Tube 59.2
Frame Reach 43.5
Frame Size Letter M
Frame Stack 59
Head Angle 67.5°
Head Tube Length 9
Offset 4.3
Seat Tube 42
Seat Tube Angle 71.0°
Standover 77.2
Trail 10.9
Wheelbase 113.8
Wheel Size 29"
B B Drop 4.6
B B Height 32.7
Chainstay Length 43.5
Eff Seat Tube Angle 74.5°
Eff Top Tube 60.5
Frame Reach 45
Frame Size Letter ML
Frame Stack 59
Head Angle 67.5°
Head Tube Length 9
Offset 4.3
Seat Tube 44
Seat Tube Angle 71.0°
Standover 77.2
Trail 10.9
Wheelbase 115.3
Wheel Size 29"
B B Drop 4.6
B B Height 32.7
Chainstay Length 43.5
Eff Seat Tube Angle 74.5°
Eff Top Tube 62.2
Frame Reach 46.5
Frame Size Letter L
Frame Stack 59.9
Head Angle 67.5°
Head Tube Length 10
Offset 4.3
Seat Tube 46
Seat Tube Angle 71.5°
Standover 77.2
Trail 10.9
Wheelbase 117.2
Wheel Size 29"
B B Drop 4.6
B B Height 32.7
Chainstay Length 43.5
Eff Seat Tube Angle 74.5°
Eff Top Tube 66.3
Frame Reach 50
Frame Size Letter XL
Frame Stack 62.2
Head Angle 67.5°
Head Tube Length 12.5
Offset 4.3
Seat Tube 52.5
Seat Tube Angle 71.5°
Standover 77.2
Trail 10.9
Wheelbase 121.7
Wheel Size 29"
