35% off

Trek fx 3 disc gen 3

$679.93 $1,049.99
By Trek
SKU: 5258681 // Barcode: 601842575086
Pickup Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, test ride, pack, and ship your bike to ensure a safe delivery and easy setup. Professional reassembly is encouraged.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

View details

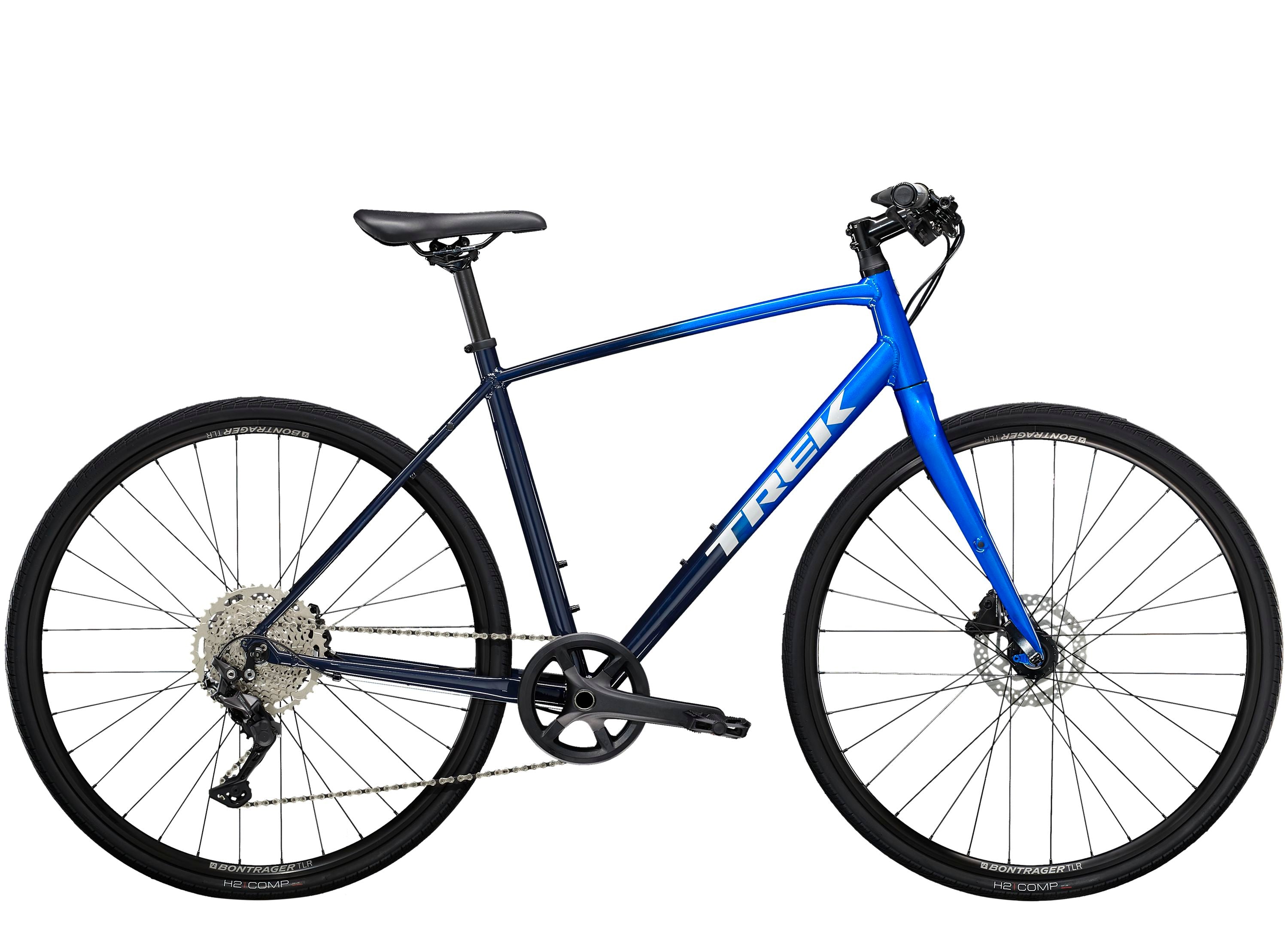

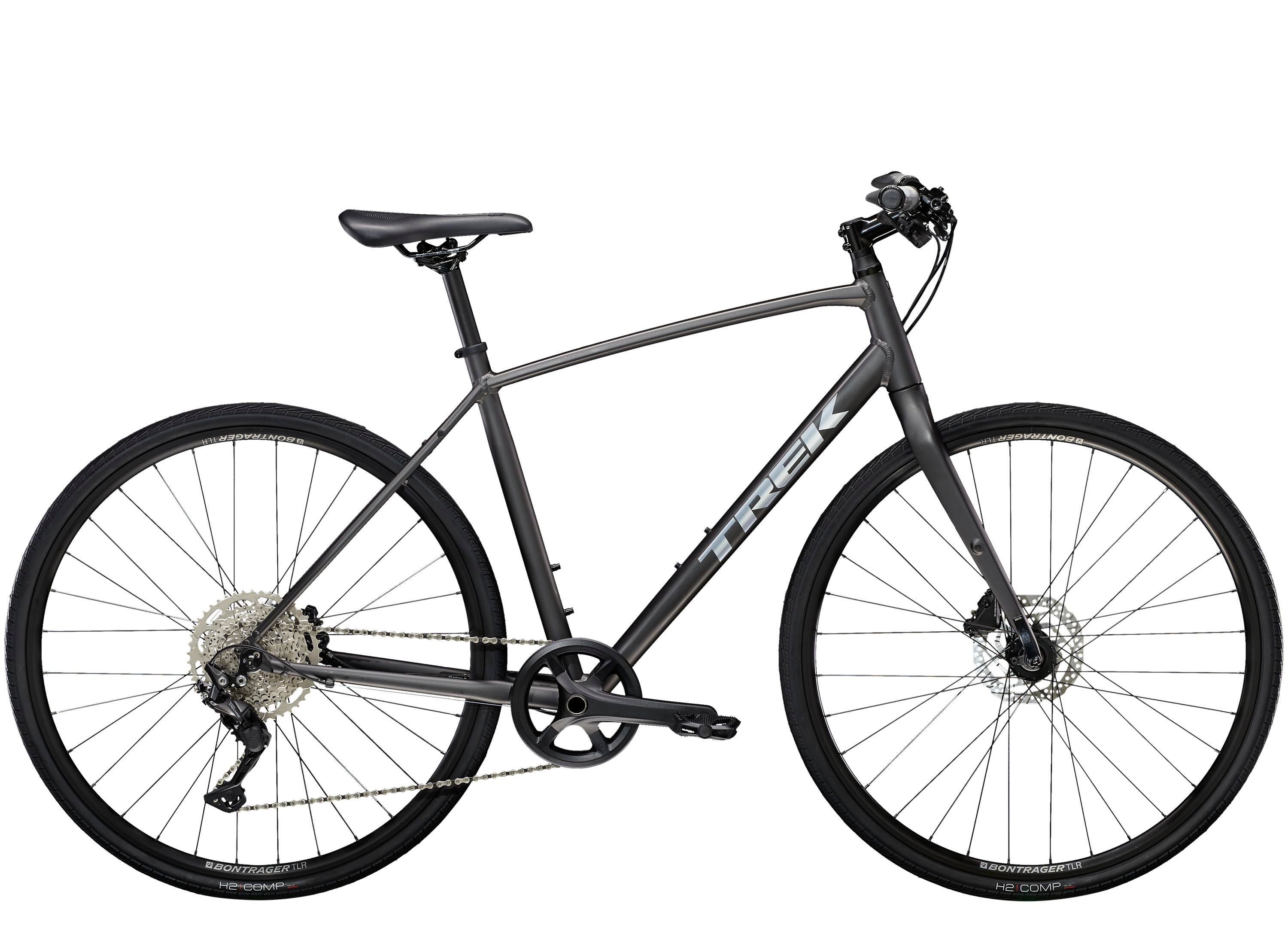

FX 3 Disc is a versatile hybrid bike thats primed for performance, comfort, and utility. It has features like a lightweight aluminum frame, a carbon fork, a 1x drivetrain, and powerful disc brakes that stop in any weather. Its a commuting pro if you want it to be, or the perfect fitness companion on pavement and rail trails.
  • The 1x drivetrain gives you all the gears you need and none you don’t
  • Its easy to accessorize with a MIK rear rack, a kickstand, fenders, lights, and more!
  • Its versatile and does whatever you want it to do, whether thats riding for fitness, commuting, or cruising to the farmers market to pick up groceries
  • The cables are routed internally, which protects them from the elements and adds to the bikes sleek look
  • You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S

Make it your own

Customize your bike with fenders, racks, bottle cages, and more to make it your own.

1x drivetrain

A 1x10 drivetrain means more versatility, simpler shifting and less things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.


Frame Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Fork FX Carbon, rack and fender mounts, flat mount disc, 405mm axle-to-crown, ThruSkew 5mm QR
Wheel Front /
Tire Bontrager H2 Comp, wire bead, 30tpi, 700x32mm
Hub Front Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub Rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Skewer Front 130x5mm QR, ThruSkew
Skewer Rear 152x5mm QR
Shifter Shimano Deore M4100, 10 speed
Rear Derailleur Shimano Deore M5120, long cage
Crank Prowheel alloy, 40T narrow-wide ring, 170mm length
Cassette Shimano Deore M4100, 11-46, 10 speed
Chain KMC X10, 10 speed
Brake Shimano hydraulic disc, MT201 lever, UR300 caliper // Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake Rotor Shimano RT26, 6-bolt,160mm
Pedal Bontrager City pedals
Saddle Bontrager H1
Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Stem Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset 1 1/8 steel threadless
Grips Bontrager Satellite IsoZone Plus, lock-on, ergonomic //

Geometry Chart

XSSMLXLXXL
B B Drop 6.5
B B Height 29.6
Chainstay Length 45
Eff Top Tube 52.7
Frame Reach 38.3
Frame Size Letter XS
Frame Stack 53.7
Head Angle 70.0°
Head Tube Length 11.5
Offset 5
Seat Tube 33
Seat Tube Angle 75.0°
Standover 67.3
Trail 7.8
Wheelbase 105.3
Wheel Size 700c
B B Drop 6.5
B B Height 29.6
Chainstay Length 45
Eff Top Tube 54.2
Frame Reach 39.3
Frame Size Letter S
Frame Stack 53.9
Head Angle 70.5°
Head Tube Length 11.5
Offset 5
Seat Tube 38.1
Seat Tube Angle 74.5°
Standover 70.4
Trail 7.5
Wheelbase 105.9
Wheel Size 700c
B B Drop 6.5
B B Height 29.6
Chainstay Length 45
Eff Top Tube 55.7
Frame Reach 39.7
Frame Size Letter M
Frame Stack 55.7
Head Angle 71.5°
Head Tube Length 13
Offset 5
Seat Tube 44.5
Seat Tube Angle 74.0°
Standover 73.8
Trail 6.8
Wheelbase 106
Wheel Size 700c
B B Drop 6.5
B B Height 29.6
Chainstay Length 45
Eff Top Tube 57.1
Frame Reach 39.8
Frame Size Letter L
Frame Stack 58.6
Head Angle 71.5°
Head Tube Length 16
Offset 5
Seat Tube 50.8
Seat Tube Angle 73.5°
Standover 79.9
Trail 6.8
Wheelbase 107
Wheel Size 700c
B B Drop 6.5
B B Height 29.6
Chainstay Length 45
Eff Top Tube 58.7
Frame Reach 39.8
Frame Size Letter XL
Frame Stack 61.8
Head Angle 72.5°
Head Tube Length 19
Offset 5
Seat Tube 57.2
Seat Tube Angle 73.0°
Standover 84.8
Trail 6.2
Wheelbase 107
Wheel Size 700c
B B Drop 6.5
B B Height 29.6
Chainstay Length 45
Eff Top Tube 60.1
Frame Reach 39.2
Frame Size Letter XXL
Frame Stack 64.7
Head Angle 72.5°
Head Tube Length 22
Offset 5
Seat Tube 63.5
Seat Tube Angle 72.0°
Standover 88.5
Trail 6.2
Wheelbase 107.2
Wheel Size 700c
