Trek domane al 4 gen 4

By Trek
$1,799.99
SKU: 5301517 // Barcode: 768682475362
Pickup Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, test ride, pack, and ship your bike to ensure a safe delivery and easy setup. Professional reassembly is encouraged.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

2 in stock
View details

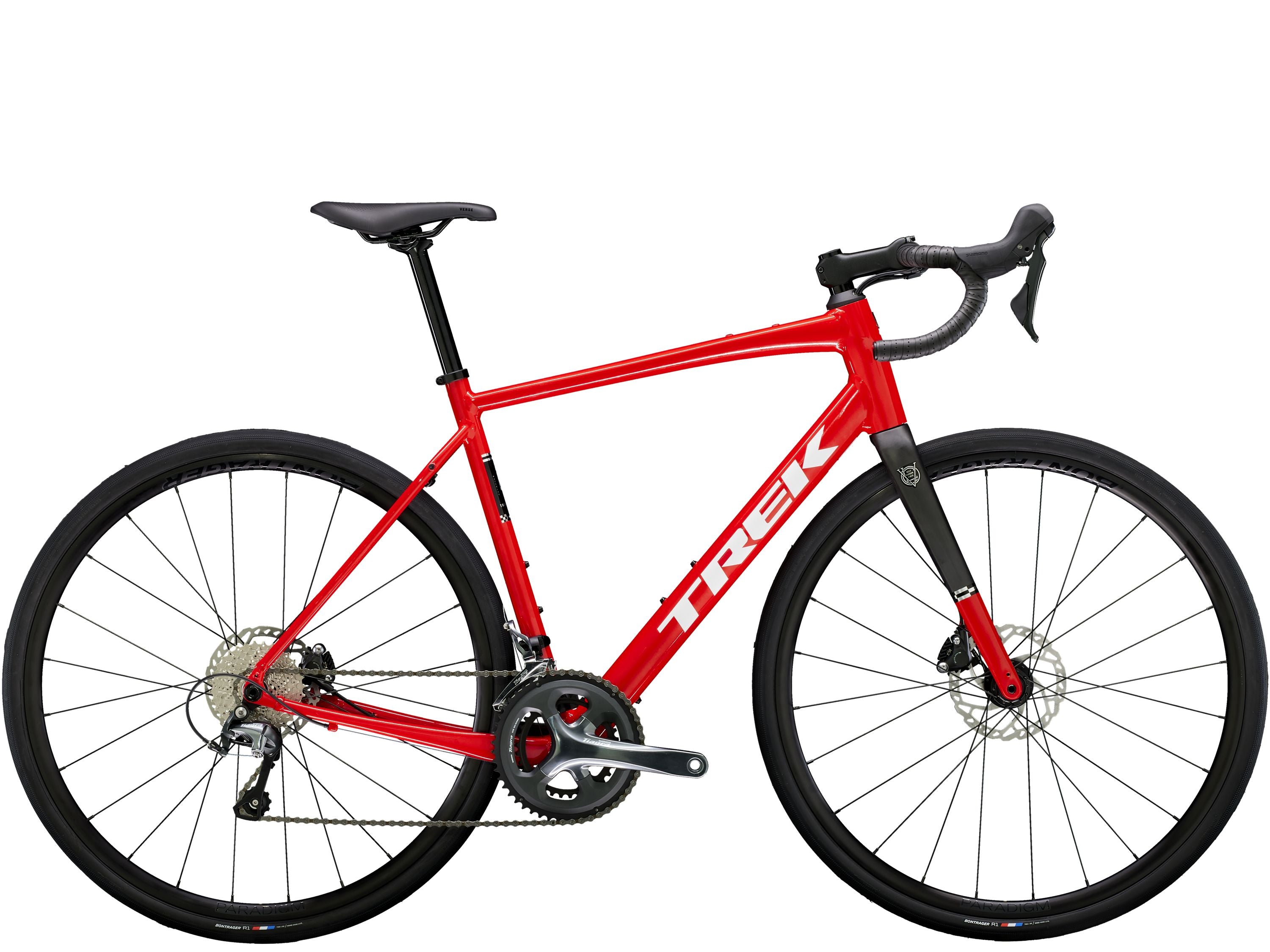

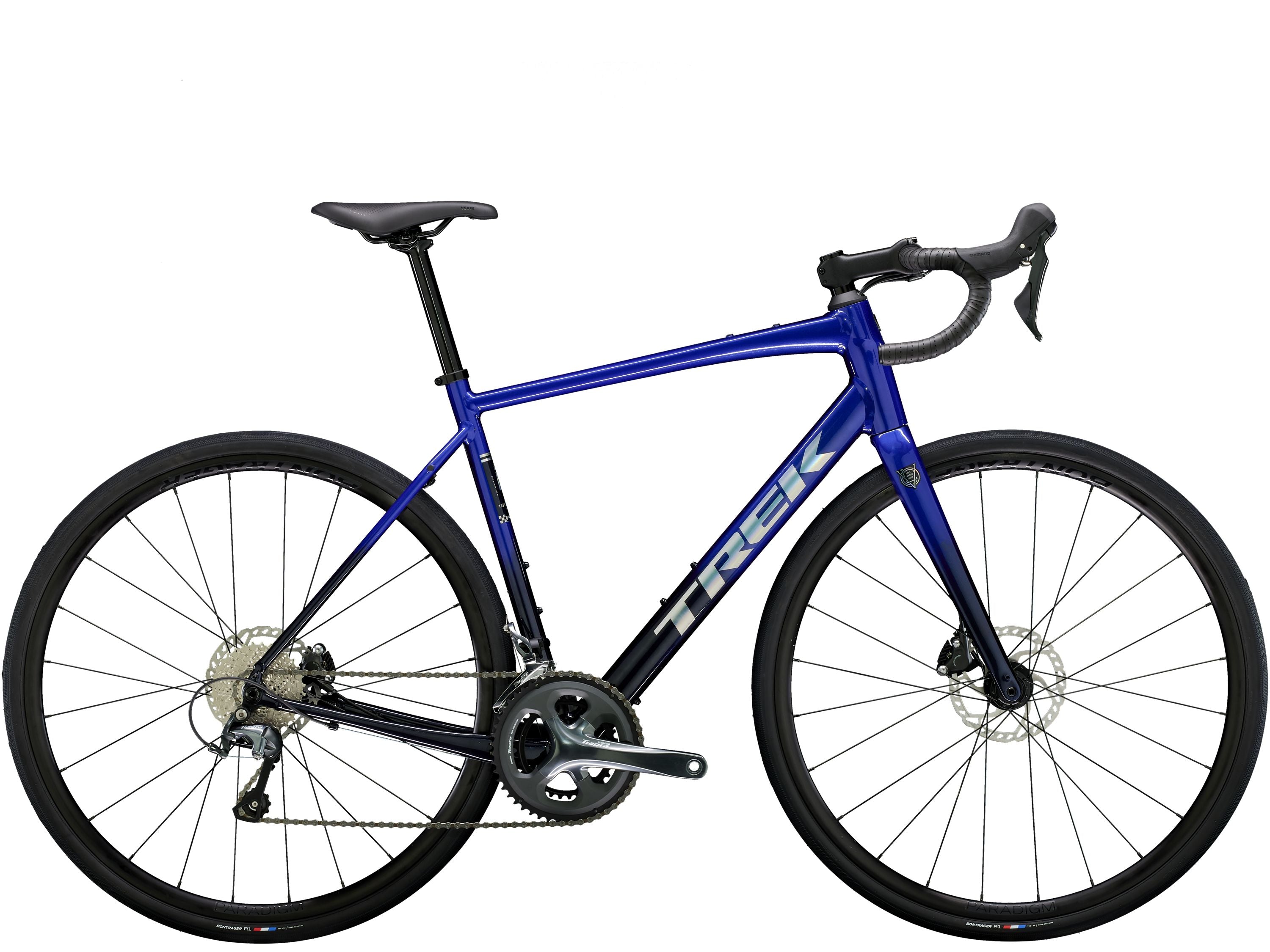

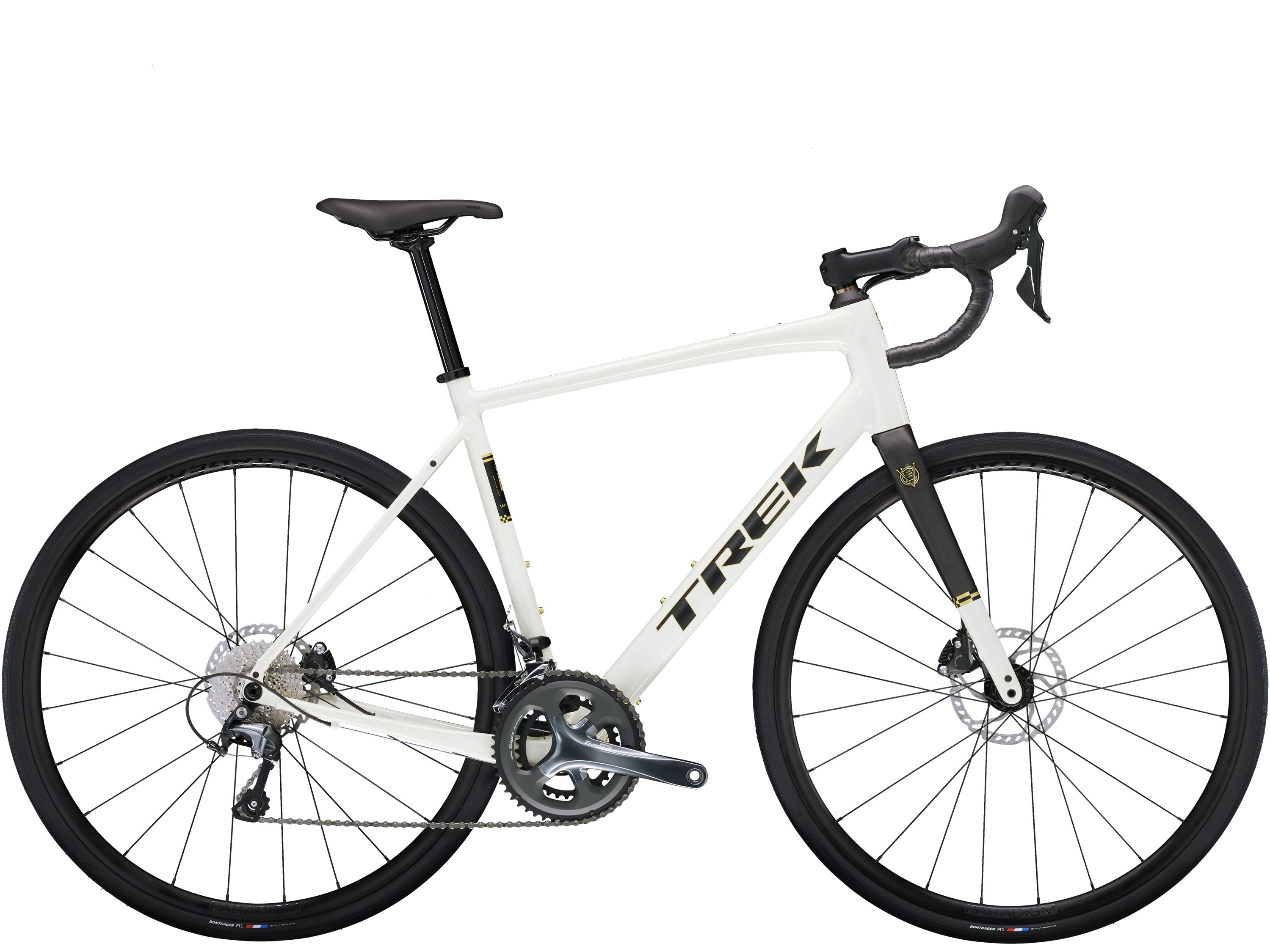

Domane AL 4 is a speedy and versatile road bike thats a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 10-speed Shimano Tiagra drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 4 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.
  • A totally versatile and smooth ride thats a perfect choice for your first performance road bike
  • Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort
  • Internal cable routing and an integrated cockpit provides premium looks and a clean aesthetic
  • Rack, fender, and top tube mounts make it easy to carry all the gear youll need
  • Powerful disc brakes allow for super fast stopping power in all conditions

Lightweight design

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

Right for any road

Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

Long-haul comfort

A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

Pack it up, pack it in

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

Modern ergonomics, premium integration

A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

High-value performance

Domane AL Disc is built in Treks road race heritage, which means its a road bike you wont outgrow as your rides get longer and faster.


Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front /
Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Hub Front Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Hub Rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes 14g stainless steel, black
Skewer Front Bontrager Switch chamfered thru axle, removable lever
Skewer Rear Bontrager Switch chamfered thru axle, removable lever
Shifter Shimano Tiagra R4720, 10 speed // Shimano Tiagra R4720, 10 speed
Front Derailleur Shimano Tiagra 4700, 31.8mm clamp
Rear Derailleur Shimano Tiagra 4700, long cage, 34T max cog
Crank Shimano Tiagra 4700, 50/34, 165mm length
Bottom Bracket Shimano RS501 BSA
Cassette Shimano HG500, 11-32, 10 speed
Chain Shimano Tiagra HG54, 10 speed
Brake Shimano Tiagra hydraulic disc, flat mount
Brake Rotor Shimano RT66, 6-bolt, 160mm
Saddle Verse Short, steel rails, 145mm width
Seatpost Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Handlebar Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width // Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Geometry Chart

44495254565861
B B Drop 8
Chainstay Length 42
Eff Top Tube 50.7
Frame Reach 36
Frame Size Number 44cm
Frame Stack 51
Head Angle 70.3°
Head Tube Length 9.5
Offset 5.3
Seat Tube 39
Seat Tube Angle 74.6°
Standover 65.7
Trail 6.6
Wheelbase 98.3
Wheel Size 700c
B B Drop 8
Chainstay Length 42.5
Eff Top Tube 51.6
Frame Reach 36.8
Frame Size Number 49cm
Frame Stack 54
Head Angle 70.8°
Head Tube Length 12.3
Offset 5.3
Seat Tube 44
Seat Tube Angle 74.6°
Standover 71.7
Trail 6.6
Wheelbase 100.1
Wheel Size 700c
B B Drop 8
Chainstay Length 42
Eff Top Tube 53
Frame Reach 37.1
Frame Size Number 52cm
Frame Stack 56.1
Head Angle 71.3°
Head Tube Length 14.5
Offset 5.3
Seat Tube 47.5
Seat Tube Angle 74.2°
Standover 73.5
Trail 5.9
Wheelbase 100.3
Wheel Size 700c
B B Drop 8
Chainstay Length 42
Eff Top Tube 54.2
Frame Reach 37.4
Frame Size Number 54cm
Frame Stack 57.5
Head Angle 71.3°
Head Tube Length 16
Offset 5.3
Seat Tube 50
Seat Tube Angle 73.7°
Standover 75.4
Trail 5.9
Wheelbase 101
Wheel Size 700c
B B Drop 7.8
Chainstay Length 42
Eff Top Tube 55.4
Frame Reach 37.7
Frame Size Number 56cm
Frame Stack 59.1
Head Angle 71.9°
Head Tube Length 17.5
Offset 4.8
Seat Tube 52.5
Seat Tube Angle 73.3°
Standover 77.6
Trail 6.1
Wheelbase 101.8
Wheel Size 700c
B B Drop 7.8
Chainstay Length 42.5
Eff Top Tube 56.7
Frame Reach 38
Frame Size Number 58cm
Frame Stack 61.1
Head Angle 72.0°
Head Tube Length 19.5
Offset 4.8
Seat Tube 54.8
Seat Tube Angle 73.0°
Standover 79.6
Trail 6
Wheelbase 102.2
Wheel Size 700c
B B Drop 7.5
Chainstay Length 42.5
Eff Top Tube 58.6
Frame Reach 38.5
Frame Size Number 61cm
Frame Stack 64.6
Head Angle 72.1°
Head Tube Length 23.5
Offset 4.8
Seat Tube 57.6
Seat Tube Angle 72.7°
Standover 84.2
Trail 6.3
Wheelbase 103.8
Wheel Size 700c
