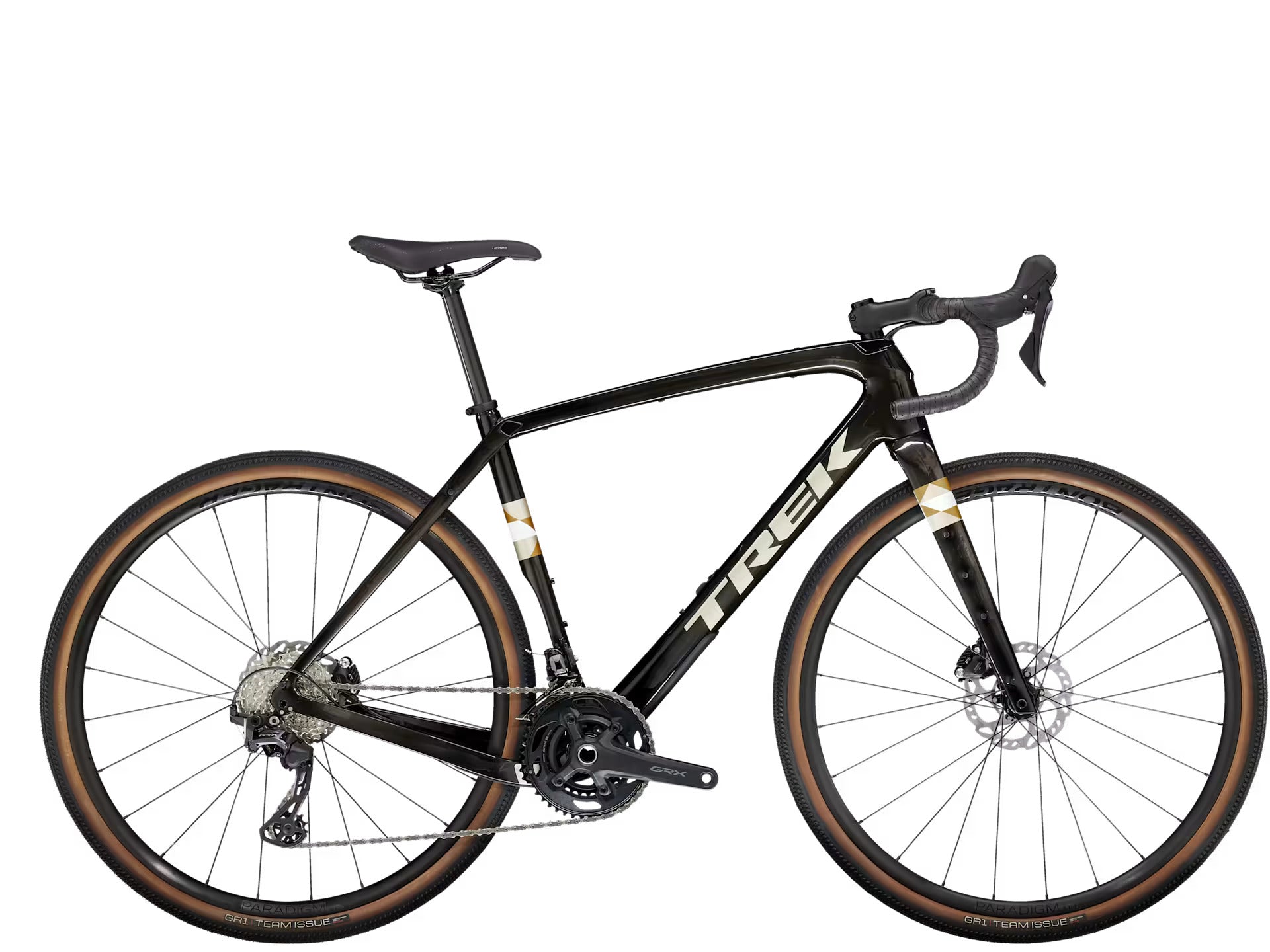

Trek Checkpoint SL 5 Gen 2 - Size 56

Description

Checkpoint SL 5 Gen 2 is a carbon gravel bike made for epic adventures. It's built with lightweight OCLV Carbon, a 2x12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage, and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

Frameset

• Frame: 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage, T47 BB, rack/fender/frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle
• Fork: Trek Checkpoint full carbon, tapered steerer, rack/fender mounts, flat mount disc, 12x100mm thru axle

Weight

• 56cm: 9.76 kg / 21.52 lbs (with TLR sealant, no tubes)
• Weight limit: 275 lbs (125 kg) total weight including bike, rider, and cargo

Drivetrain

• Shifter: Shimano GRX RX610, 12 speed
• Front Derailleur: Shimano GRX RX820, braze-on, down swing
• Rear Derailleur: Shimano GRX RX820, 36T max cog
• Crank:
  49cm: Shimano GRX RX610, 46/30, 165mm
  52cm: Shimano GRX RX610, 46/30, 170mm
  54–56cm: Shimano GRX RX610, 46/30, 172.5mm
  58–61cm: Shimano GRX RX610, 46/30, 175mm
• Bottom Bracket: Praxis T47 threaded, internal bearing
• Cassette: Shimano 105 7100, 11-36, 12 speed
• Chain: Shimano SLX M7100, 12 speed
• Max Chainring Size: 1x: 46T, 2x: 50/37

Wheels

• Front Hub: Bontrager alloy, sealed bearing, centerlock, 100x12mm
• Rear Hub: Bontrager alloy, sealed bearing, centerlock, Shimano 11-speed freehub, 142x12mm
• Skewers: Bontrager Switch thru axle, removable lever (front and rear)
• Rims: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width
• Tires: Bontrager GR1 Team Issue, TLR, Inner Strength casing, 700x40mm, 120 tpi
• Sealant: Bontrager TLR sealant, 6oz
• Rim Strip: Bontrager TLR
• Max Tire Size: See service manual

Components

• Saddle:
  49–52cm: Bontrager Verse Comp, 155mm width
  54–61cm: Bontrager Verse Comp, 145mm width
• Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
• Handlebar:
  49cm: Bontrager Elite Gravel, 38cm
  52cm: Bontrager Elite Gravel, 40cm
  54–56cm: Bontrager Elite Gravel, 42cm
  58–61cm: Bontrager Elite Gravel, 44cm
• Handlebar Tape: Bontrager Supertack Perf tape
• Stem:
  49cm: 70mm
  52–54cm: 80mm
  56–58cm: 90mm
  61cm: 100mm
  All: Bontrager Elite, 31.8mm, Blendr compatible, 7-degree
• Brake Rotors: Shimano RT70, centerlock, 160mm
• Max Rotor Size: 160mm front & rear

Accessories

• Bag: Bontrager BITS Internal Frame Storage Bag
