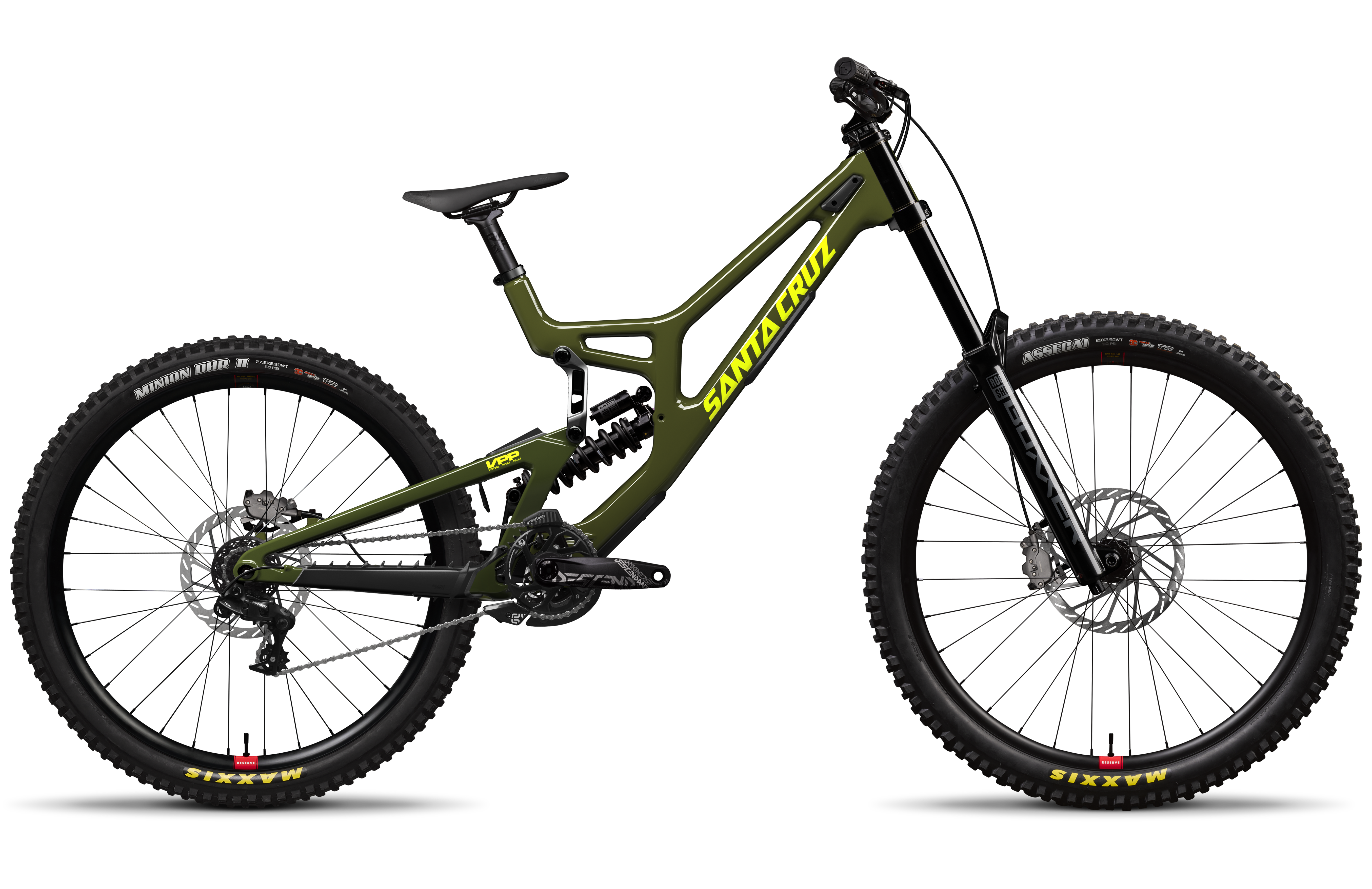

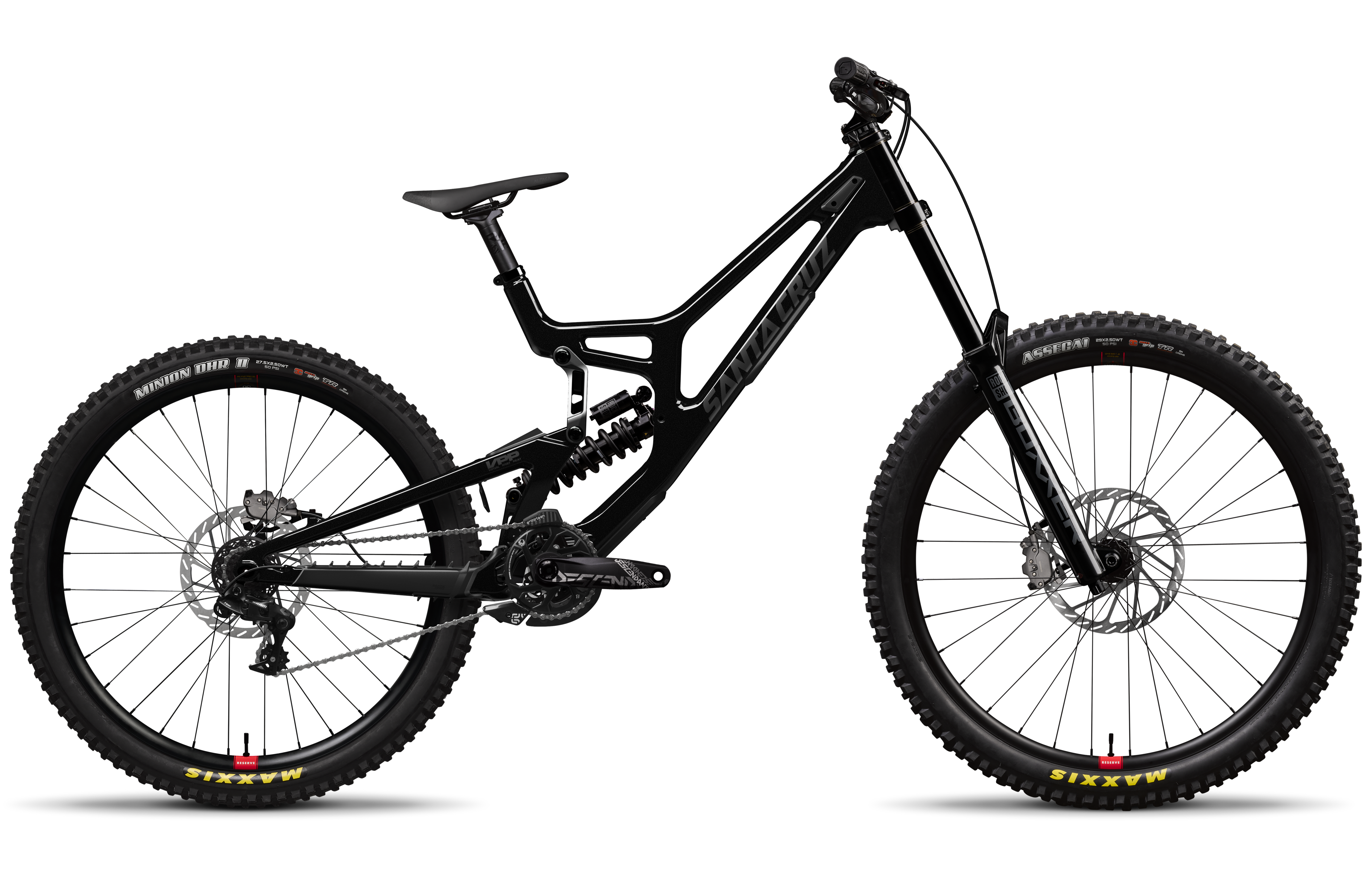

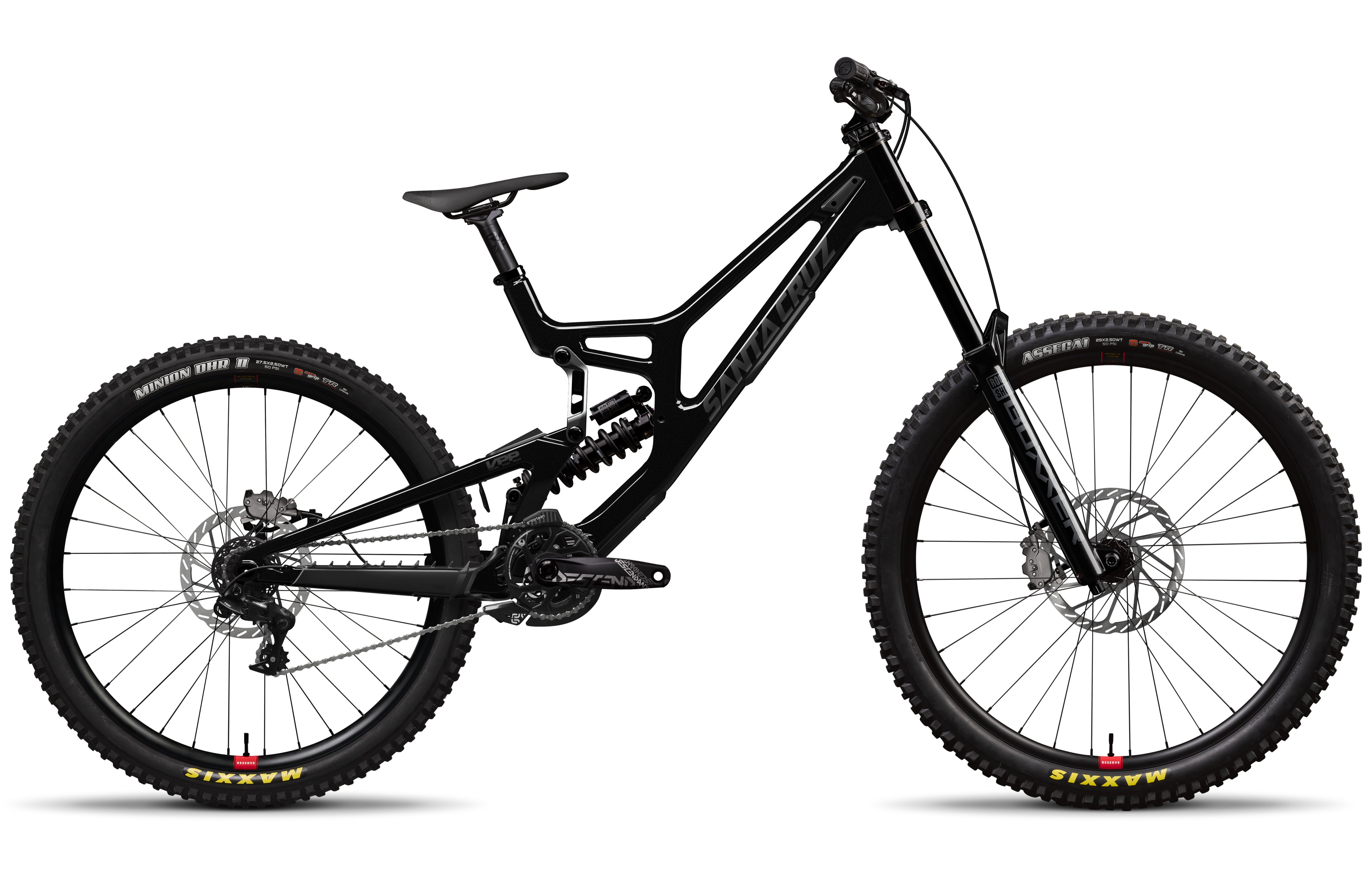

The Santa Cruz V10 DH S is a rugged, gravity-fed machine built for downhill enthusiasts who crave pure speed, control, and confidence on the world’s toughest tracks. With a Carbon CC frame, proven VPP™ suspension, and dependable RockShox BoXXer Base fork, this bike delivers 208mm of plush rear travel and 200mm up front. Matched with a SRAM GX DH 7-speed drivetrain, Reserve alloy wheels, and Maxxis Minion rubber, the V10 S is tuned for bike park laps, gnarly descents, and endless thrills. Built tough, refined for racing, and backed by Santa Cruz heritage.
Standout Features
- Carbon CC Frame — World Cup-grade stiffness and durability

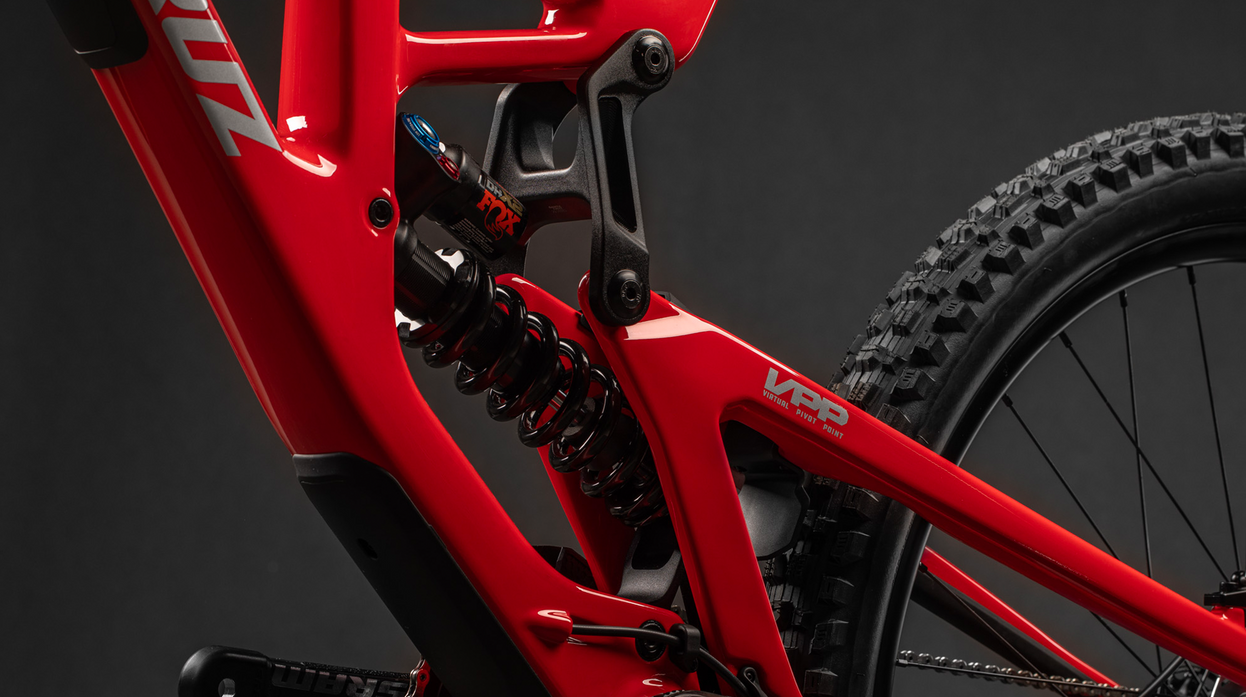

- VPP™ Suspension — 208mm rear travel for maximum traction and control
- RockShox BoXXer Base Fork — 200mm travel to handle the steepest, roughest runs
- SRAM GX DH 7-Speed Drivetrain — Reliable, precise shifting under pressure
- Reserve 30|HD AL Wheels — Tough, downhill-ready alloy rims

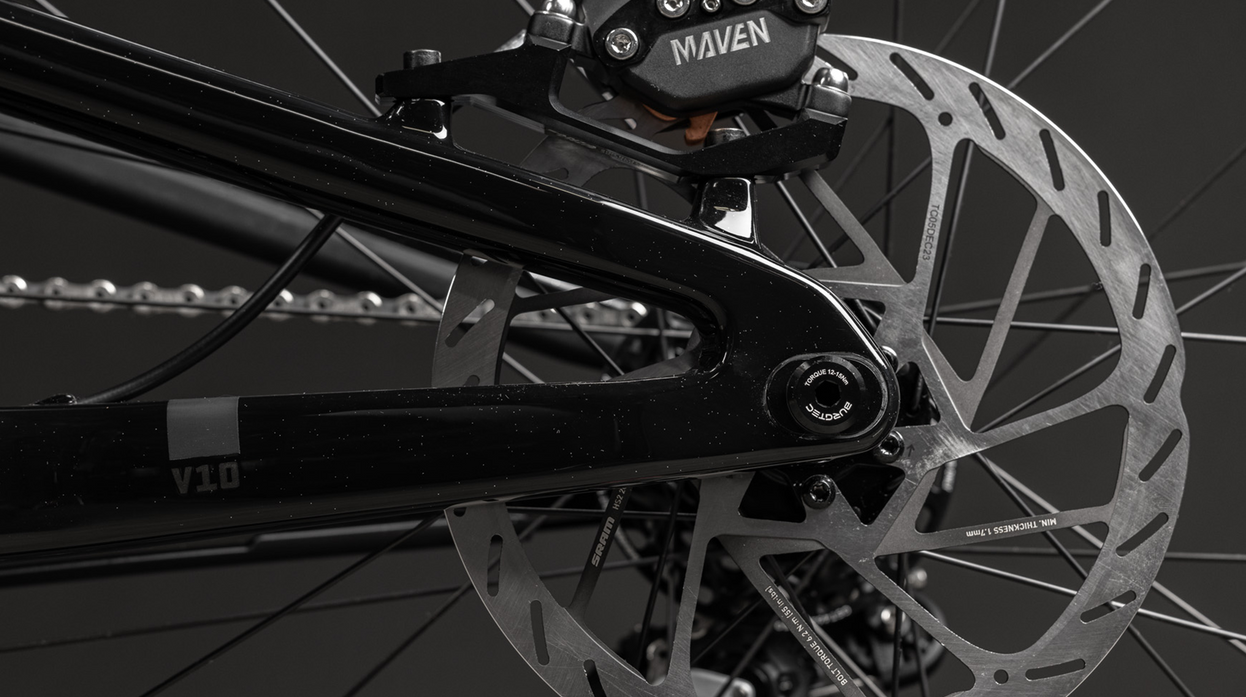

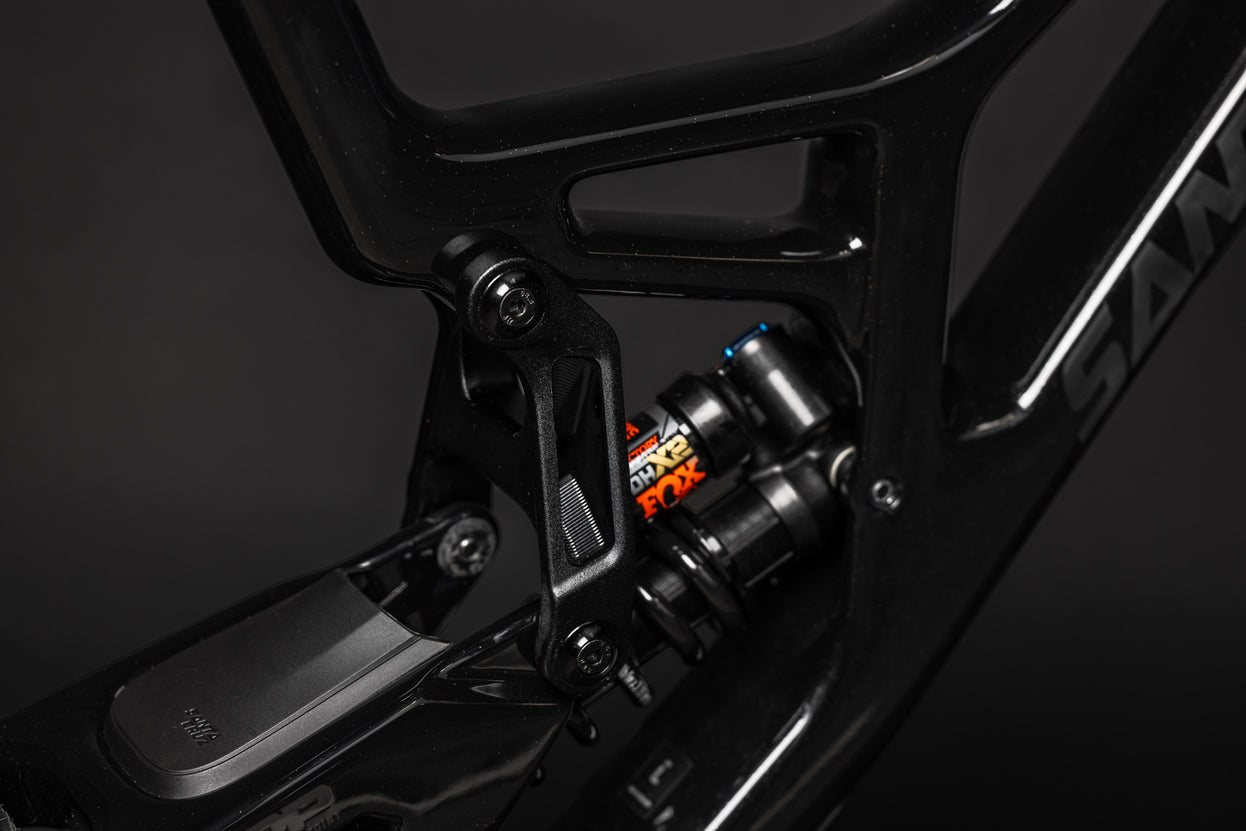

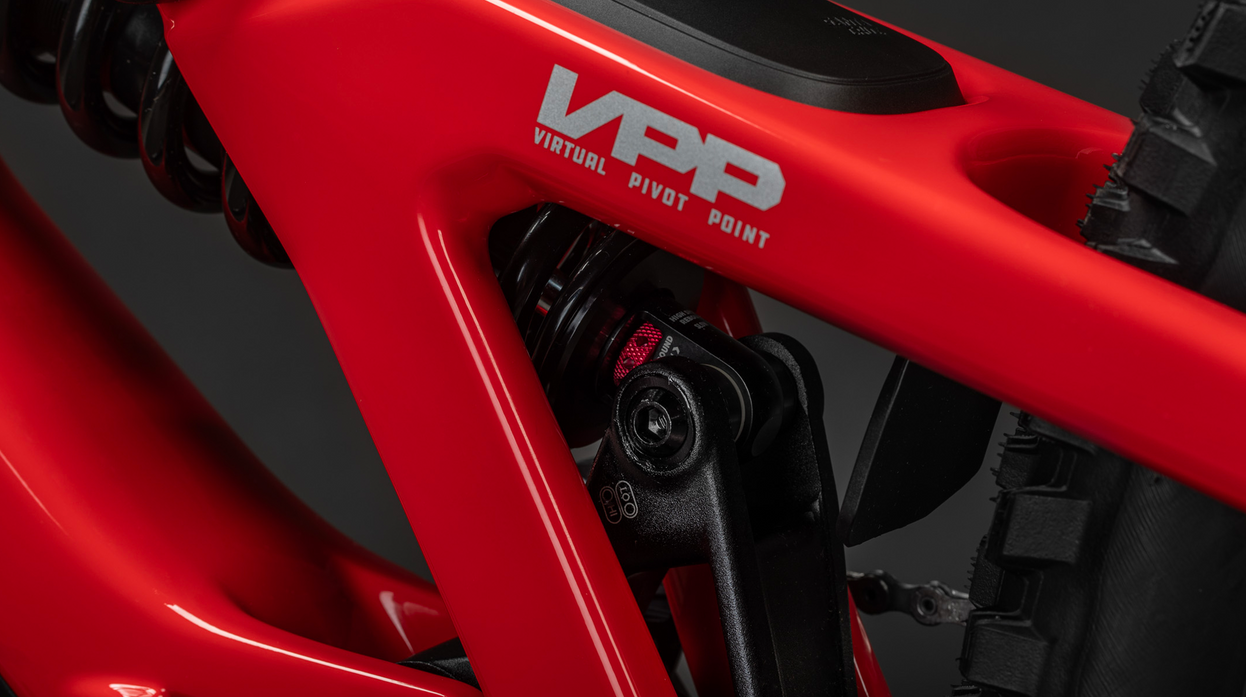

- Rear Axle & Lower Link Flip Chips — Customize your geometry and ride feel

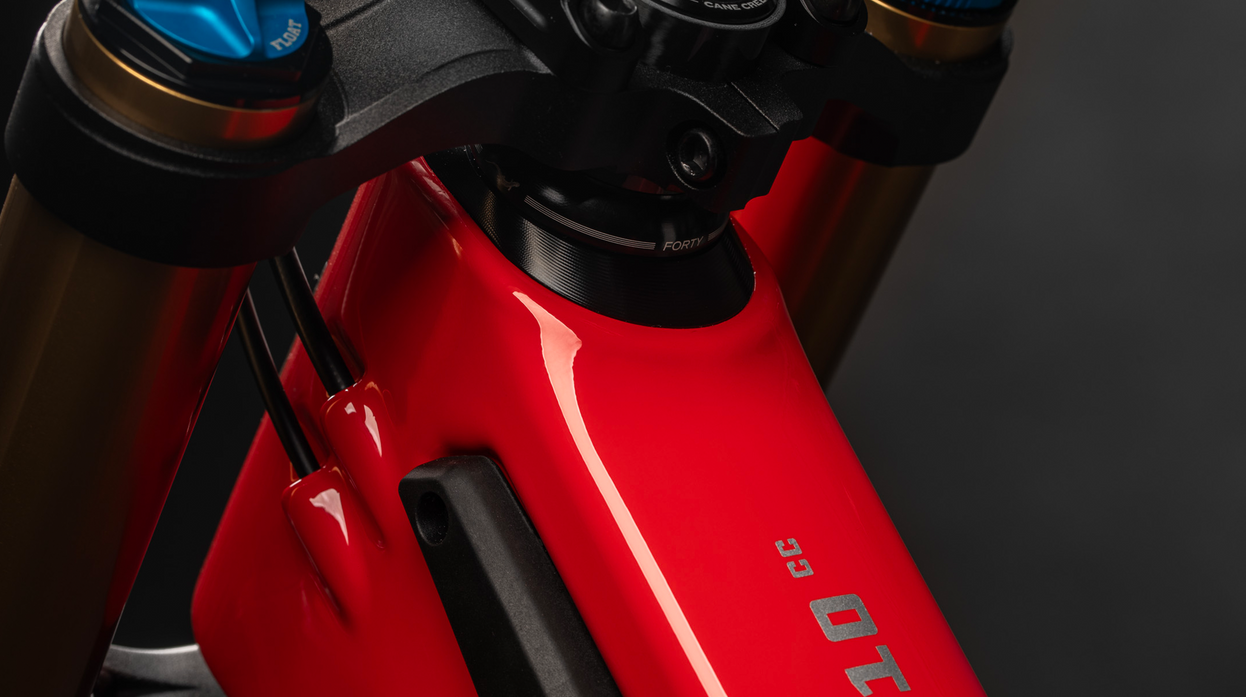

- Reach Adjust Headset Cups — Personalized cockpit fit

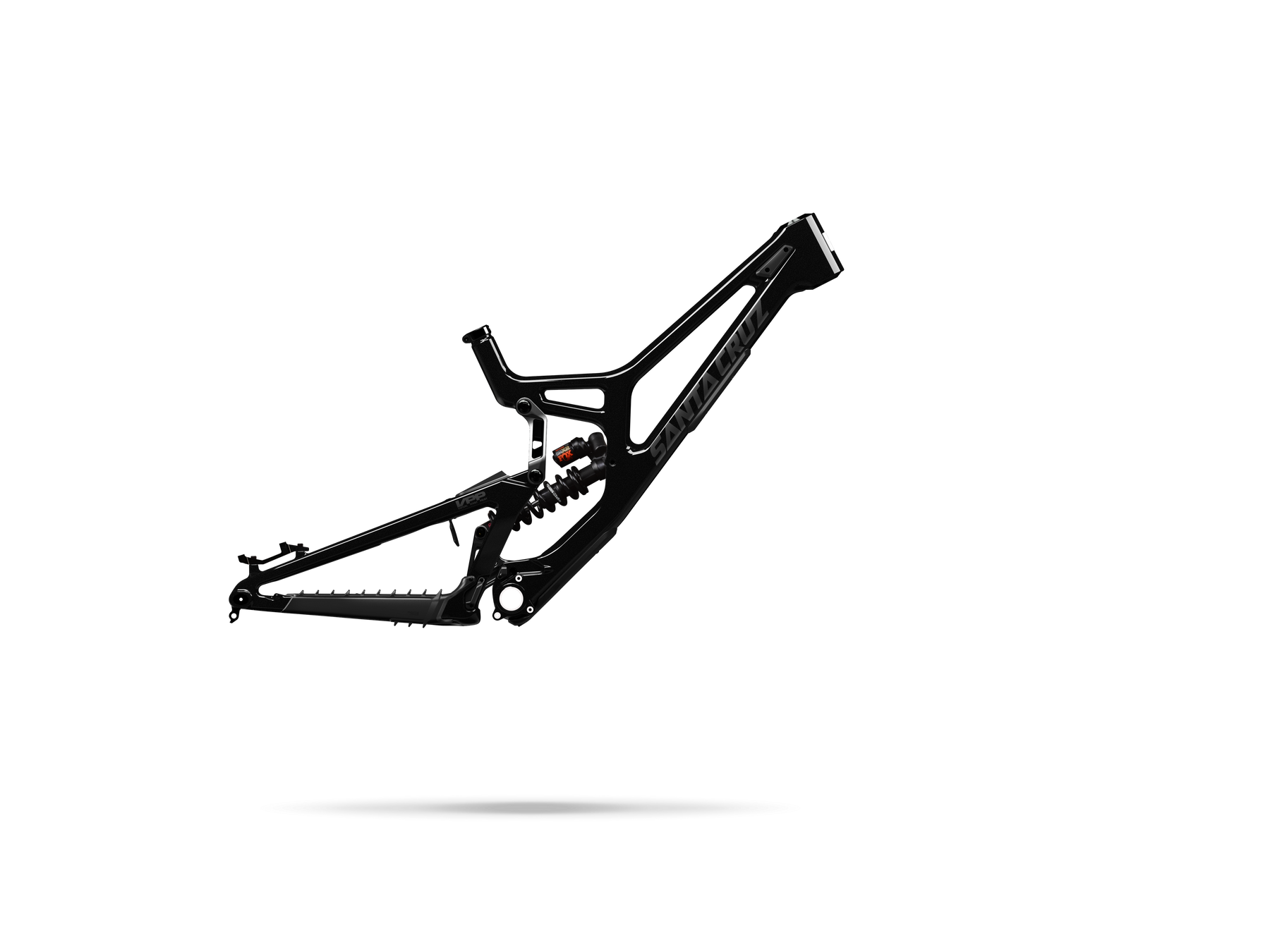

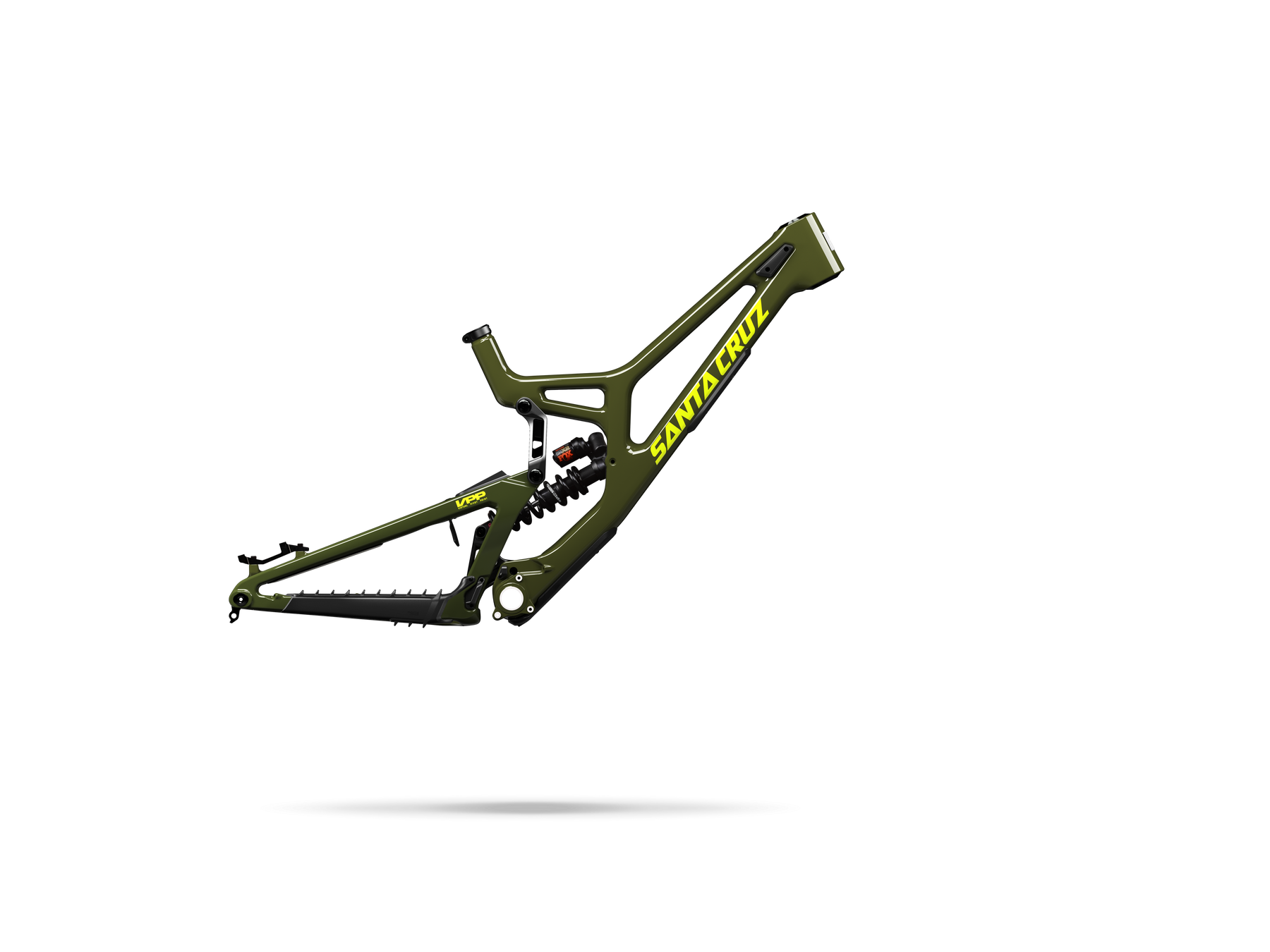

Frame

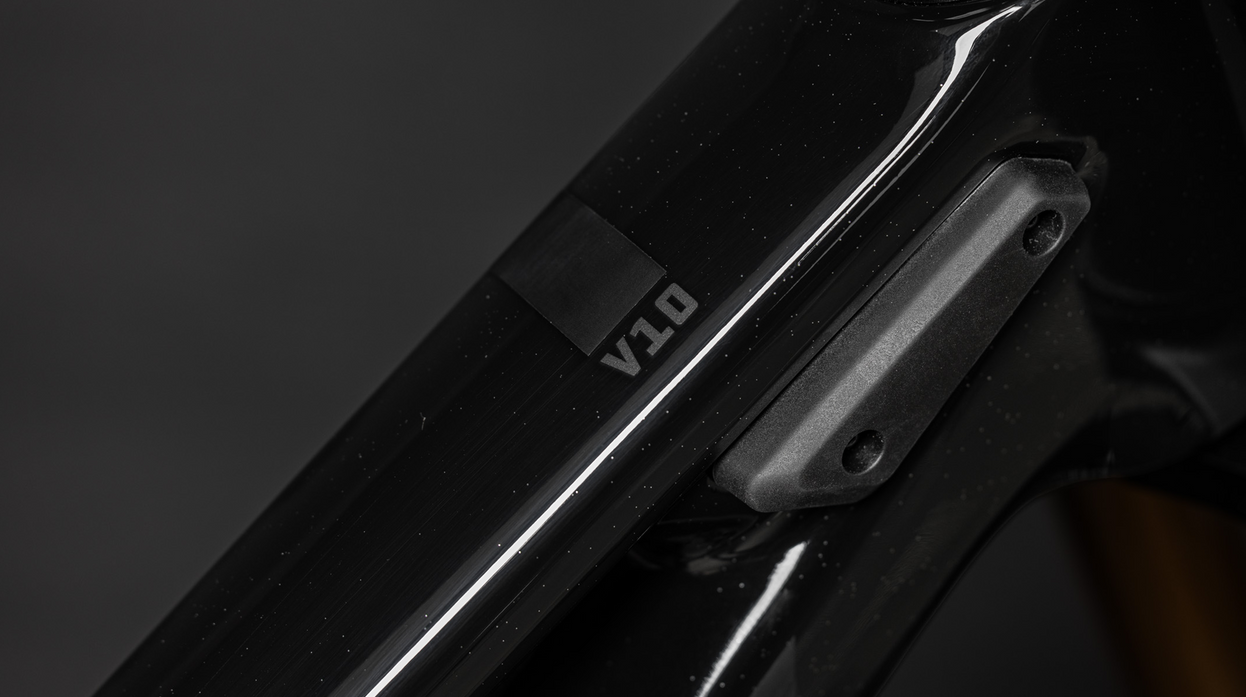

- Material: Carbon CC
- Rear Travel: 208mm (VPP™)
- Wheel Size: MX (29” front / 27.5” rear)
Suspension
- Fork: RockShox BoXXer Base, 200mm travel
- Shock: RockShox Vivid Select+ Coil, 250mm x 75mm

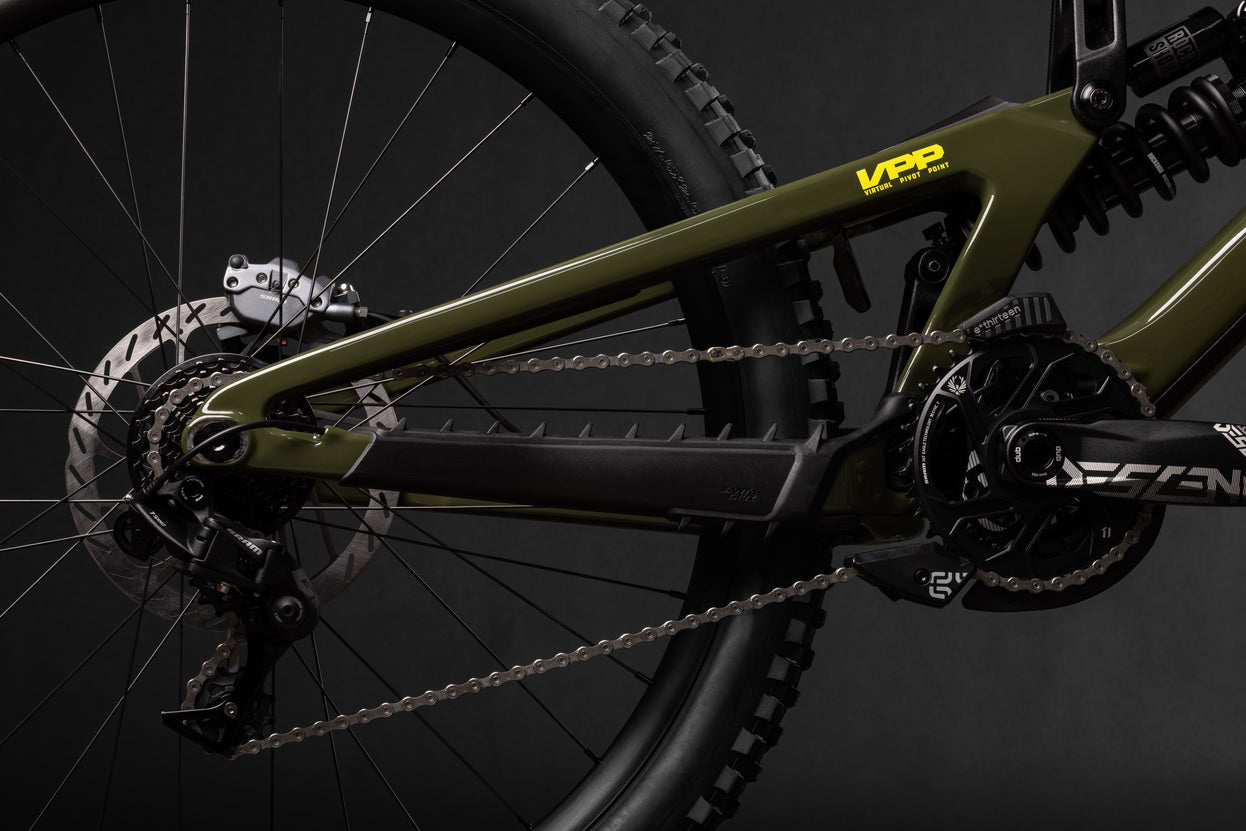

Drivetrain
- Crankset: SRAM Descendant DH, 165mm, 36t
- Cassette: SRAM PG720 DH, 11-25t
- Chain: SRAM PC1110, 11-speed
- Rear Derailleur: SRAM GX DH, 7-speed
- Shifter: SRAM GX DH, 7-speed
- Chainguide: E13 LG1+
Brakes
- Brakes: SRAM Maven Bronze
- Front Rotor: 220mm
- Rear Rotor: 200mm
Cockpit
- Handlebars: OneUp Aluminum Bar
- Stem: OneUp Direct Mount
- Grips: Burgtec Bartender Pro Grip

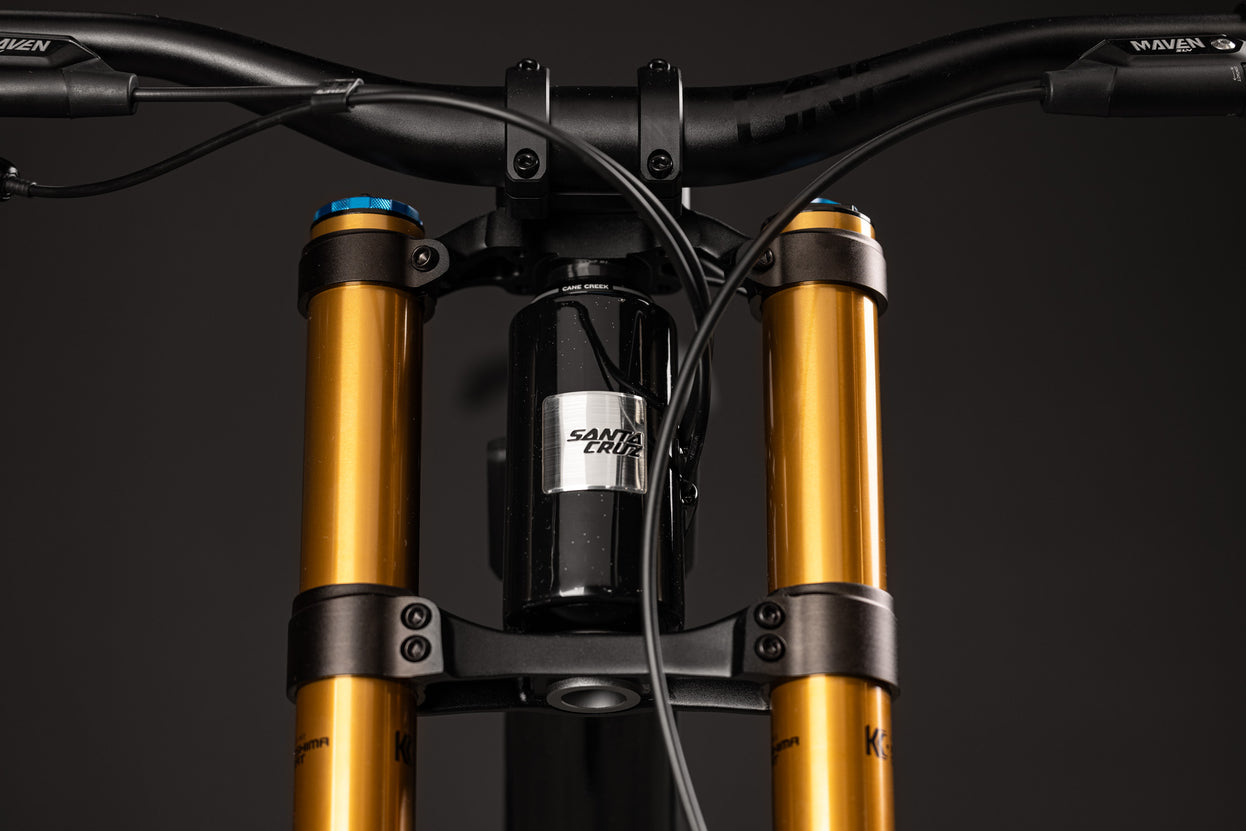

- Headset: Cane Creek 50 IS41 (Reach Adjust)
- Saddle: Fizik Alpaca Gravita X5
- Seatpost: RaceFace Chester, 31.6mm
Wheels & Tires
- Front Rim: Reserve 30|HD AL 6069
- Front Hub: Industry Nine 1/1, 20x110 Boost, 32h
- Front Tire: Maxxis Minion DHR II 29"x2.5" (3C MaxxGrip, DH) or Maxxis Assegai 29"x2.5" (3C MaxxGrip, DH)
- Rear Rim: Reserve 30|HD AL 6069
- Rear Hub: Industry Nine 1/1, 12x157, HG, 32h
- Rear Tire: Maxxis Minion DHR II 27.5"x2.5" (3C MaxxGrip, DH)
Specifications
| Spec | Detail |
|---|---|
| Suspension System | VPP™ |
| Rear Travel | 208mm |
| Fork Travel | 200mm |
| Fork Offset | 52mm |
| Shock Size | 250mm x 75mm |
| Rear Brake Mount | 200mm or 220mm Post Mount |
| Max Rotor Size | 220mm |
| Max Chainring Size | 36t |
| Max Tire Clearance | 2.5” |
| Bottom Bracket Shell | 83mm Threaded |
| Rear Spacing | 12x157mm (Boost DH) |
| Seat Post Diameter | 31.6mm |
| Seat Clamp Diameter | 36.4mm |
| Shock Bushing Size (Front) | 30x8mm |
| Shock Bushing Size (Rear) | 30x8mm |
Size Guide
| Size | Rider Height | Reach |
|---|---|---|
| Small | 5'1" – 5'5" | 435 mm |
| Medium | 5'5" – 5'9" | 460 mm |
| Large | 5'9" – 6'1" | 480 mm |
| X-Large | 6'0" – 6'4" | 500 mm |
