20% off

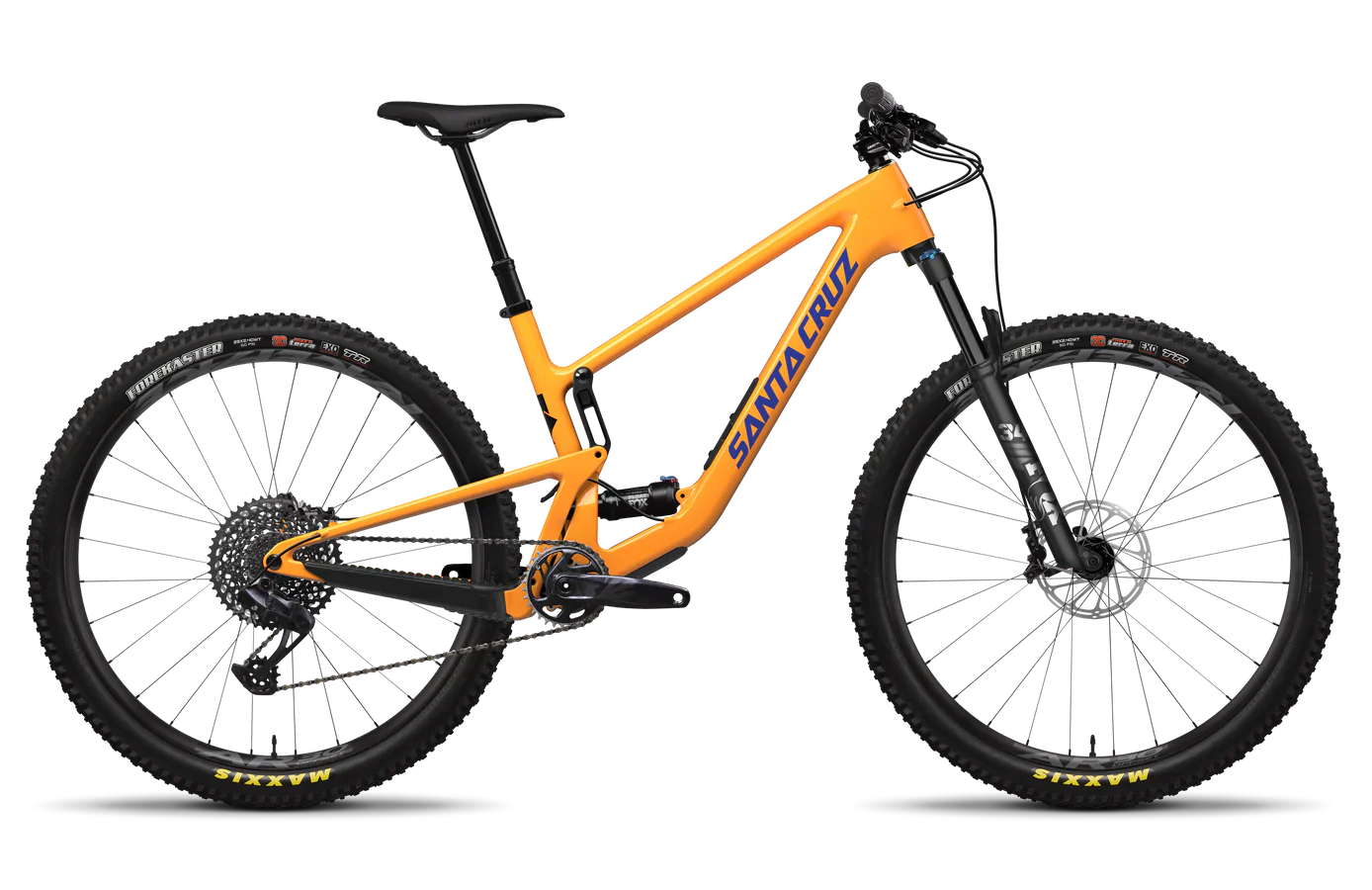

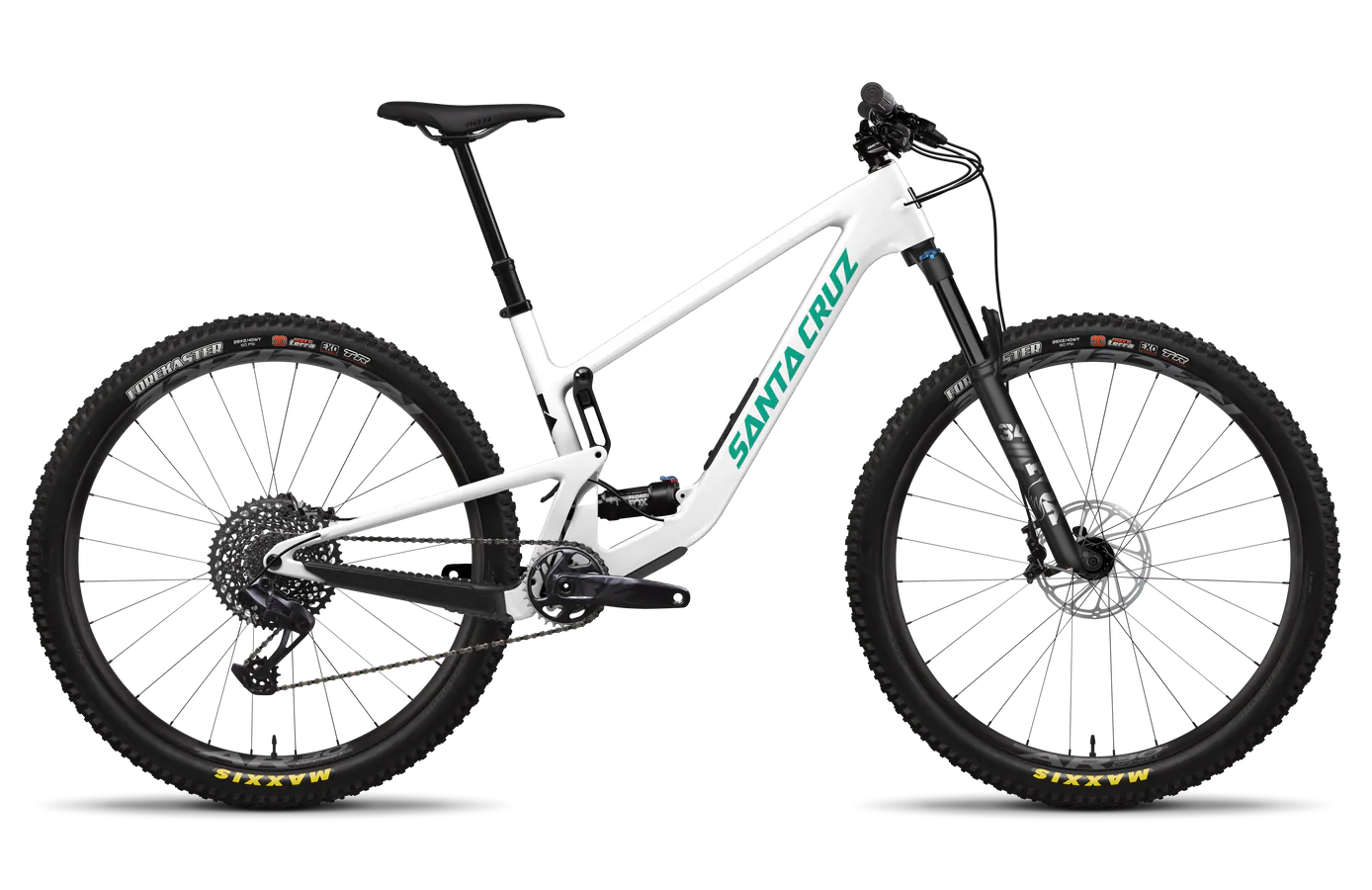

Santa Cruz Tallboy S 2024

By Santa Cruz
$4,399.00 $5,499.00
View details

The Tallboy S 2024 has gained a devoted following for its ability to tackle everything from fast power rides to epic all-day adventures. With the highly refined VPP™ suspension, the Tallboy provides excellent pedaling efficiency while offering fantastic bump-absorbing performance. It’s the XC bike that’s built for gravity riders—ready to deliver on both speed and capability.

Standout Features

  • Carbon C Frame
  • FOX 34 Float Performance Fork
  • FOX Float Performance Shock
  • SRAM GX Eagle 12-speed Drivetrain
  • VPP™ Suspension System
  • 29-inch Wheels for stability and control
  • 120mm Rear Travel
  • 130mm Front Travel

Frame

  • Material: Carbon C
  • Travel: 120mm rear
  • Suspension System: VPP™
  • Water Bottle Mounts: 1

Suspension

  • Fork: FOX 34 Float Performance, 130mm travel

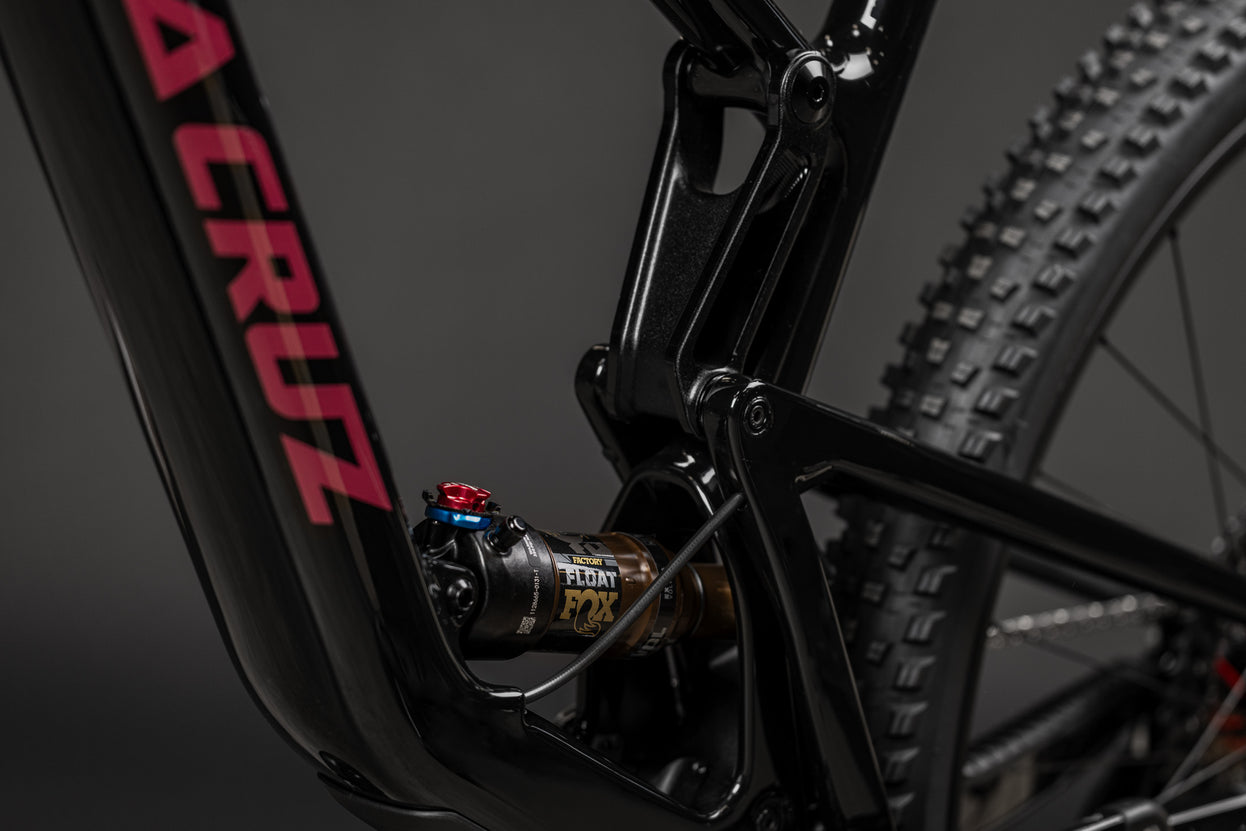

  • Shock: FOX Float Performance, 190x45mm
  • Shock Stroke: 45mm
  • Shock Bushing Size (Front/Rear): 30x8mm

Drivetrain

  • Crankset: SRAM GX Eagle 148 DUB, 32t
  • Bottom Bracket: SRAM DUB 68/73mm Threaded BB
  • Cassette: SRAM XG1275 Eagle, 12spd, 10-50t
  • Chain: SRAM GX Eagle, 12spd
  • Rear Derailleur: SRAM GX Eagle, 12spd
  • Shifter: SRAM GX Eagle, 12spd

Brakes

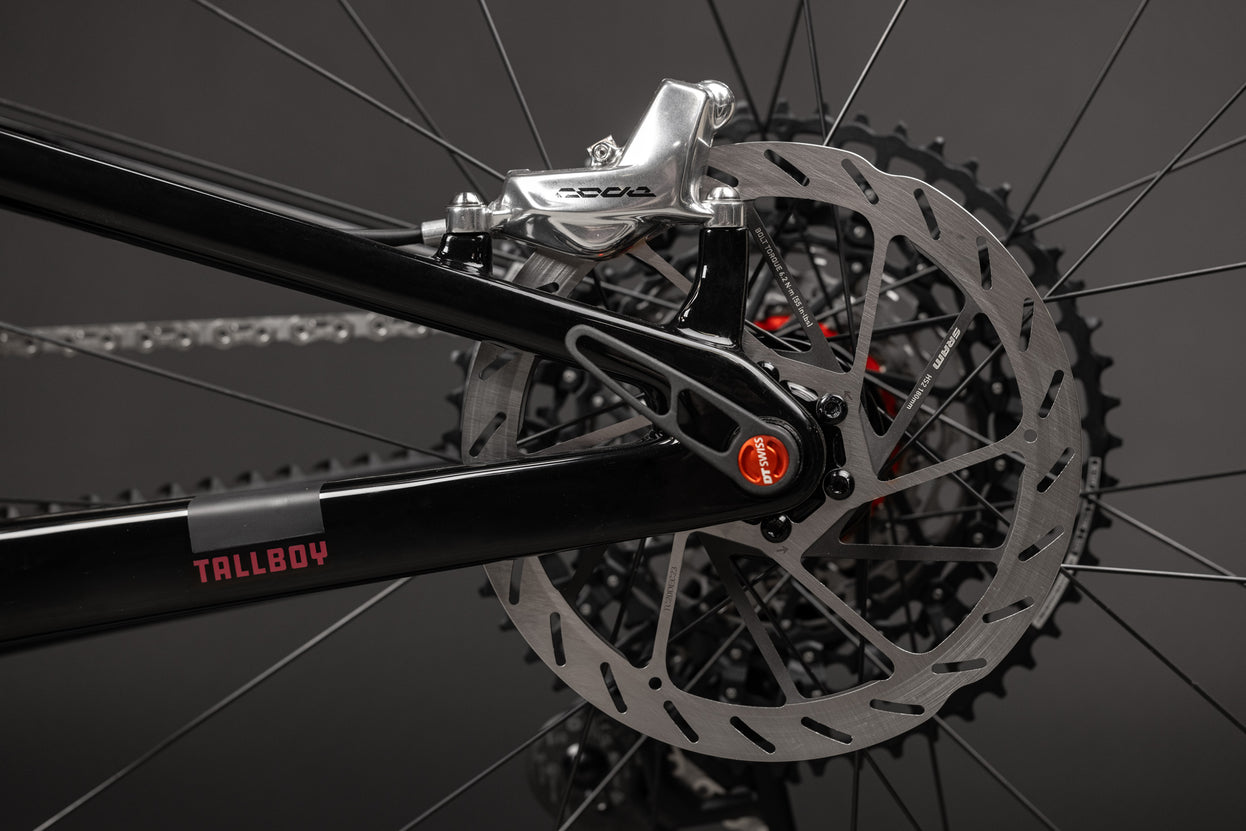

  • Brakes: SRAM G2 R
  • Rotors: Avid Centerline 180mm (front and rear)

Cockpit

  • Handlebar: Burgtec RideWide Alloy
  • Stem: Burgtec Enduro MK3, 42mm
  • Headset: Cane Creek 40 IS Integrated
  • Grips: Santa Cruz Bicycles House Grips
  • Seatpost: OneUp V2 Dropper Post, 31.6mm or RockShox Reverb, 31.6mm
  • Saddle: WTB Silverado, CroMo SL

Wheels & Tires

  • Rims: RaceFace AR Offset 30, 29" (front & rear)
  • Hubs: DT Swiss 370 (Front: 15x110, Rear: 12x148, XD, 6-Bolt)
  • Tires: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO (front & rear)

Specification

Specification Detail
Fork Compatibility 130mm
Fork Offset 44mm
Headset Integrated (IS41/52)
Bottom Bracket Shell 73mm threaded
Rear Brake Mount PM 180mm
Max Chainring Size 36t
Max Tire Clearance 2.5"
Seat Clamp Diameter 36.4mm
Seat Post Diameter 31.6mm

Geometry & Sizing

Size Rider Height Reach (Hi/Lo) Stack (Hi/Lo) Head Tube Angle Seat Tube Angle Wheelbase (Hi/Lo)
XS 4'8" - 5'1" 405 / 403 601 / 603 65.7° / 65.5° 76° / 75.7° 1138 / 1138
S 5'1" - 5'5" 430 / 428 610 / 612 65.7° / 65.5° 76.3° / 76° 1167 / 1167
M 5'5" - 5'9" 455 / 453 619 / 621 65.7° / 65.5° 76.7° / 76.4° 1199 / 1199
L 5'9" - 6'1" 475 / 473 628 / 630 65.7° / 65.5° 76.8° / 76.6° 1227 / 1227
XL 6'1" - 6'4" 495 / 493 646 / 648 65.7° / 65.5° 77° / 76.8° 1257 / 1258
XXL 6'4" - 6'7" 520 / 518 656 / 658 65.7° / 65.5° 77.1° / 76.8° 1290 / 1291
