New arrival

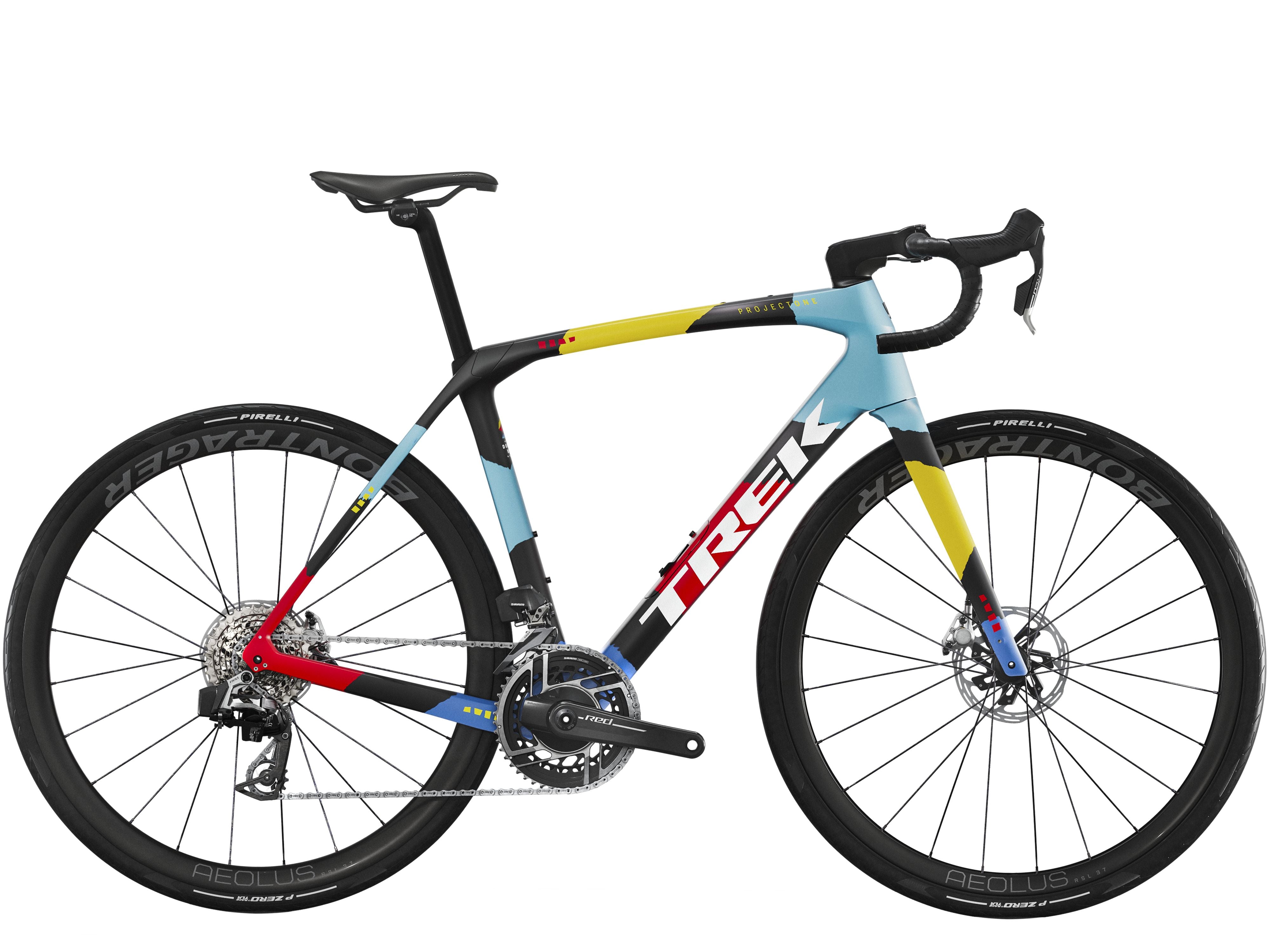

Domane SLR 9 AXS 62 Classics Team Replica

$13,999.99
By Trek
SKU: 5327107 // Barcode: 197216081449
View details
Domane SLR 9 AXS is our top-of-the-line, ultralight carbon endurance road bike decked out with the best parts for a fast, high-performance ride. You get our highest-level OCLV Carbon frame with rear IsoSpeed, SRAMs new RED AXS electronic drivetrain, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.
  • Domane SLR Gen 4’s rear IsoSpeed, integrated cable routing, aero Kammtail tube shapes, and our high performance 800 Series OCLV Carbon come together for an ultra-lightweight, fast, and road-smoothing ride
  • SRAMs top-tier RED AXS drivetrain offers fully wireless shifting thats supremely light, precise, ergonomic, and allows for one-finger braking
  • Road-smoothing IsoSpeed and clearance for up to 38mm tires absorbs fatiguing bumps in the road for a smoother, more comfortable ride
  • A convenient internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
  • Included power meter crankset allows you to easily monitor power metrics

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Lighter than ever

Our best and lightest 800 Series OCLV Carbon and a new gram-saving design make this our lightest Domane SLR disc ever.

Versatile tire clearance

Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

Internal storage

Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

Refined integration

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.


Frame 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Wheel Front Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle /
Wheel Rear Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tire Part Bontrager TLR sealant, 6oz
Rim Strip Bontrager TLR
Skewer Front Bontrager Switch thru axle, removable lever
Skewer Rear Bontrager Switch thru axle, removable lever
Shifter SRAM RED AXS E1 // SRAM RED AXS E1
Front Derailleur SRAM RED AXS E1, braze-on
Rear Derailleur SRAM RED AXS E1, 36T max cog
Crank SRAM RED AXS E1, power meter, 46/33, DUB, 175mm length
Bottom Bracket SRAM DUB, T47 threaded, internal bearing
Cassette SRAM RED XG-1290 E1, 10-36, 12 speed
Chain SRAM RED E1, 12 speed
Brake Rotor SRAM Paceline X, rounded, centerlock, 160mm
Saddle Verse Short Pro, carbon rails, 145mm width
Seatpost KVF aero carbon seatpost, 20mm offset, 320mm length
Handlebar Bontrager Pro IsoCore VR-SF, 44cm
Stem Trek RCS Pro, -7 degree, 110mm length
Battery SRAM eTap battery pack (with charger)

Geometry Chart

B B Drop 7.5
Chainstay Length 42.5
Eff Top Tube 59.3
Frame Reach 38.6
Frame Size Number 62cm
Frame Stack 65.6
Head Angle 72.1°
Head Tube Length 24.5
Offset 4.8
Saddle Rail Height Max Short 79.5
Saddle Rail Height Max Tall 82.5
Saddle Rail Height Min Short 73
Saddle Rail Height Min Tall 76
Seat Tube 58.6
Seat Tube Angle 72.5°
Standover 83.5
Trail 5.9
Wheelbase 104.2
Wheel Size 700c
