The Tallboy is the go-to for riders who crave a fast and efficient trail bike that punches way above its travel class. It blends XC speed with gravity capability thanks to its VPP™ suspension and progressive geometry—perfect for all-day trail smashing or aggressive power hour laps.
Features

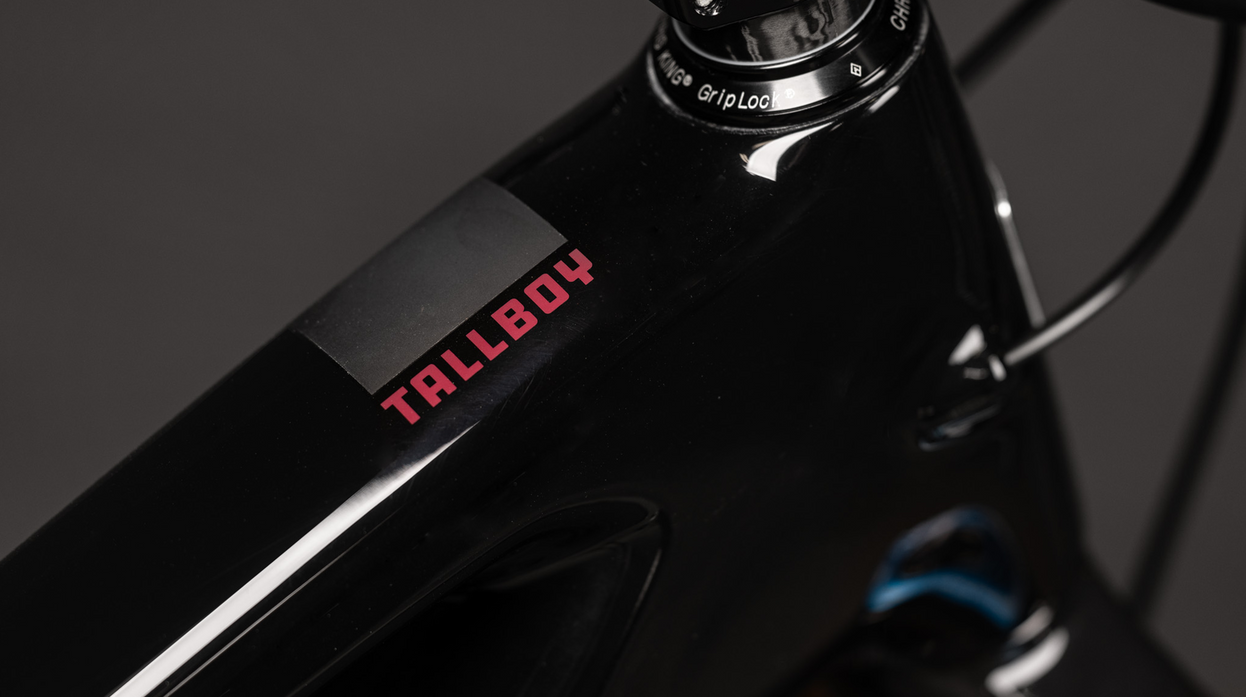

- CC Carbon Frame

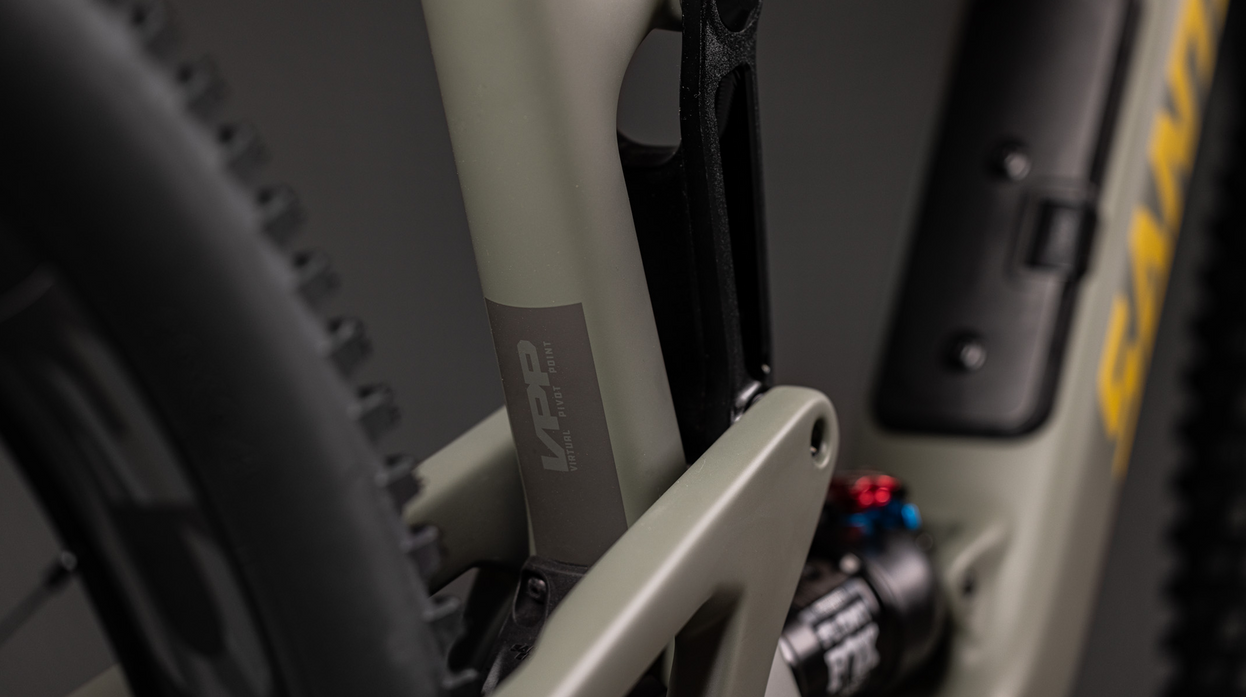

- VPP™ Suspension

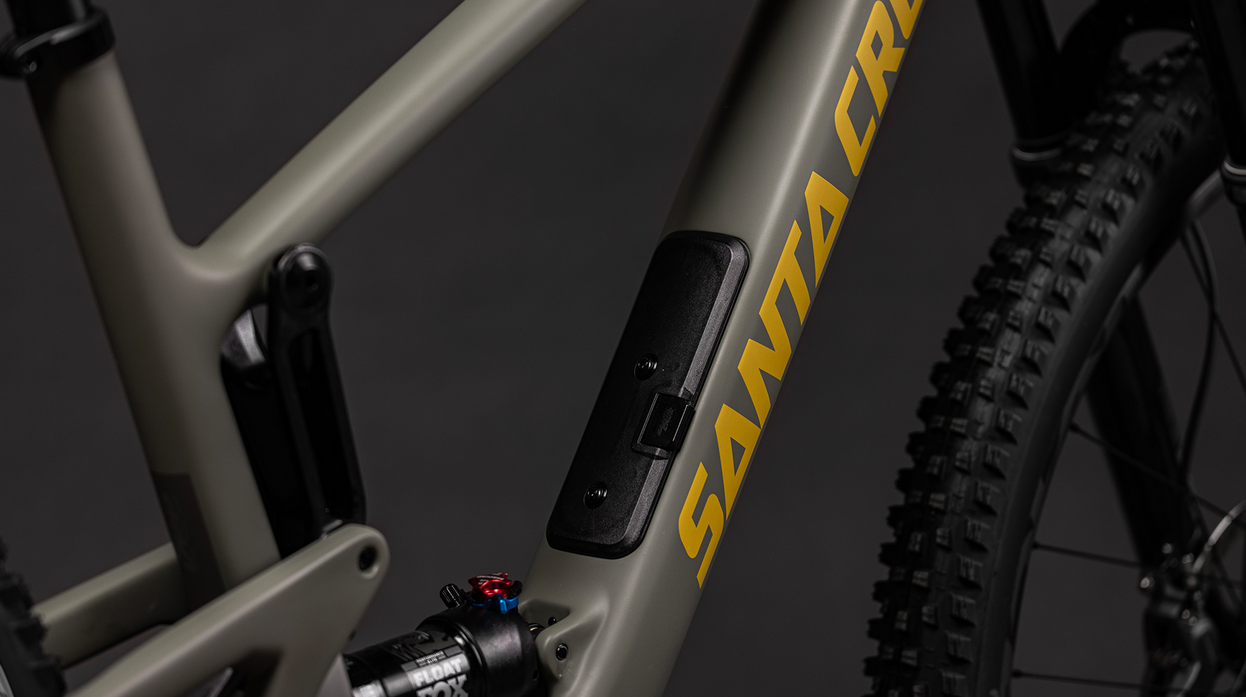

- Glovebox Storage Compartment
- SRAM X0 Eagle AXS T-Type Drivetrain
Suspension
- Fork: FOX 34 Float Factory, Grip X, 130mm

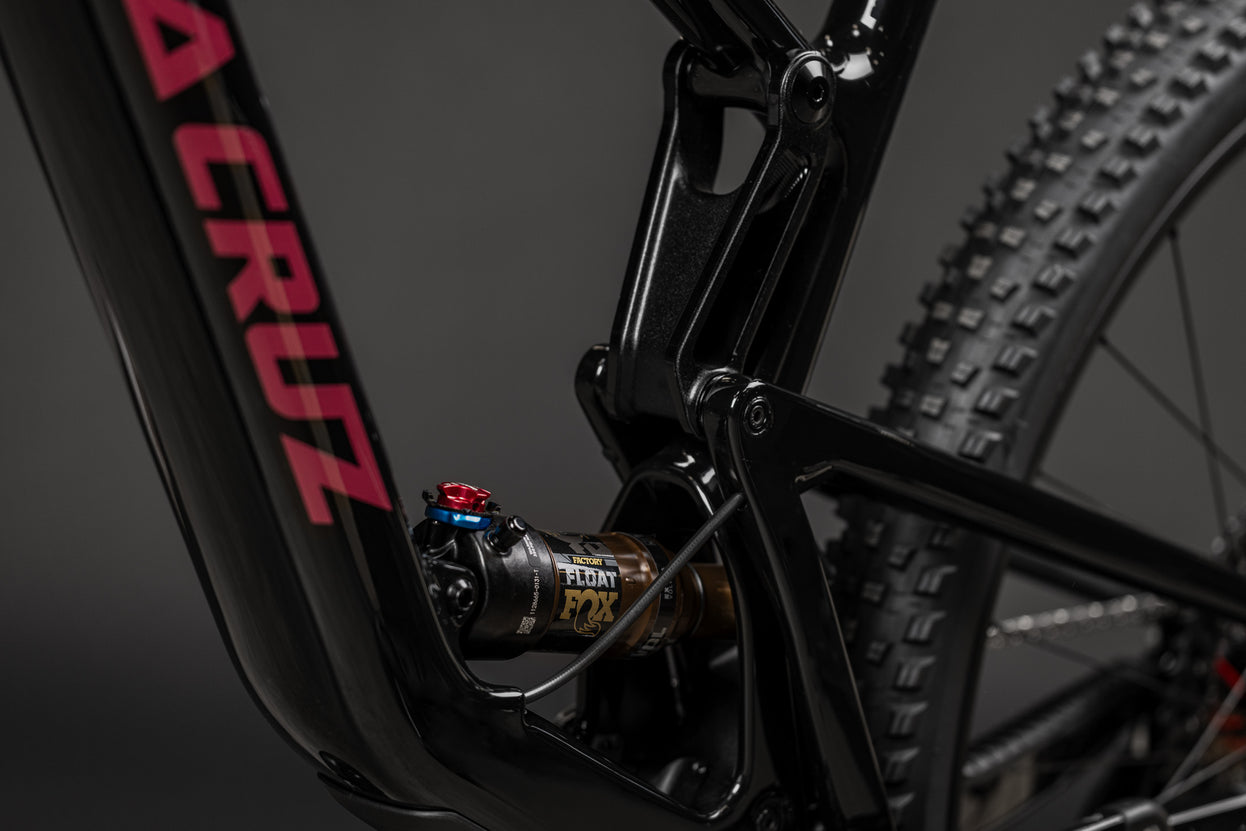

- Shock: FOX Float Factory, 190x45
Drivetrain
- Bottom Bracket: SRAM DUB 73mm MTB Wide
- Crankset: SRAM X0 Eagle DUB T-Type, 32t
- Chain: SRAM X0 Eagle T-Type, Flattop, 12-speed
- Cassette: SRAM X0 Eagle T-Type, 10-52t
- Rear Derailleur: SRAM X0 Eagle AXS T-Type
- Shifter: SRAM AXS Pod Controller Rocker Paddle
Brakes

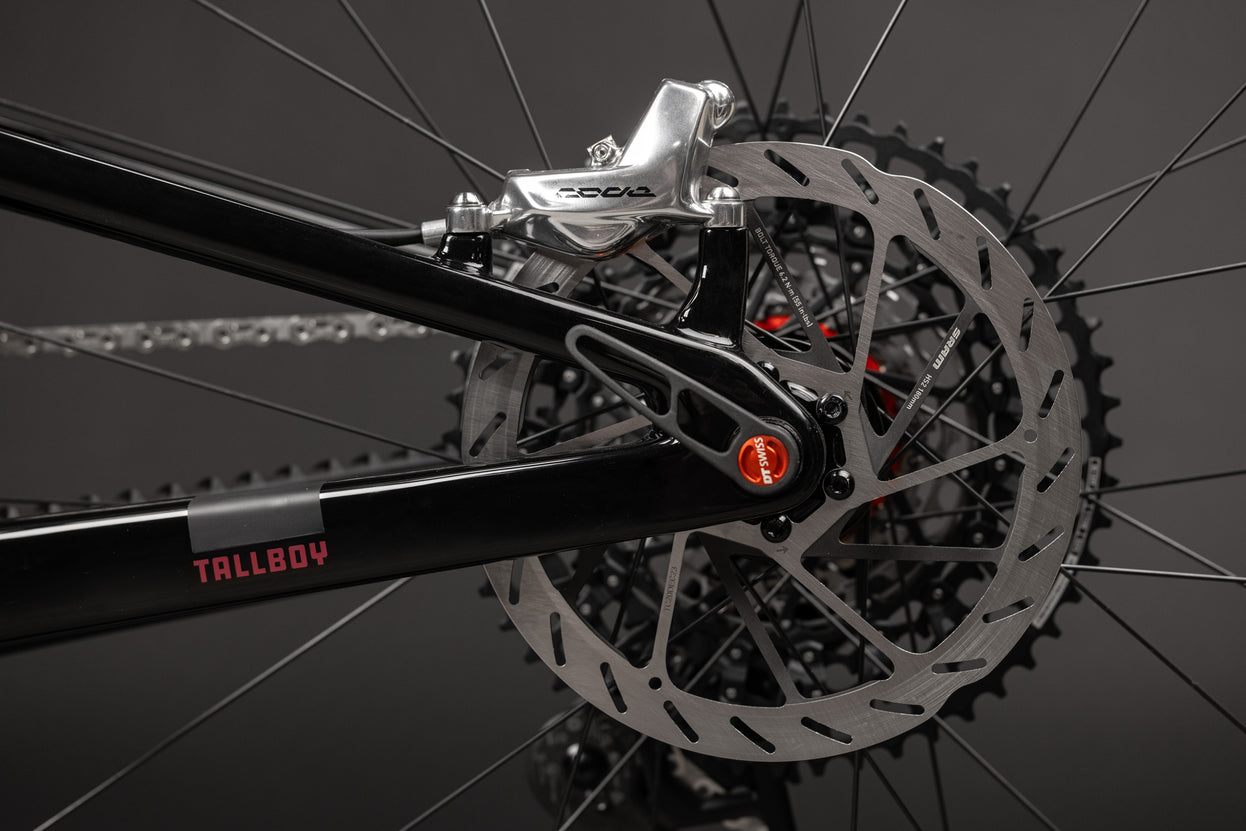

- Brakes: SRAM Code Silver Stealth
- Rotors: SRAM HS2 180mm (Front & Rear)
Cockpit
- Grips: Santa Cruz House Grips
- Handlebars: Santa Cruz 20 Carbon, 760mm
- Stem: Burgtec Enduro MK3, 42mm

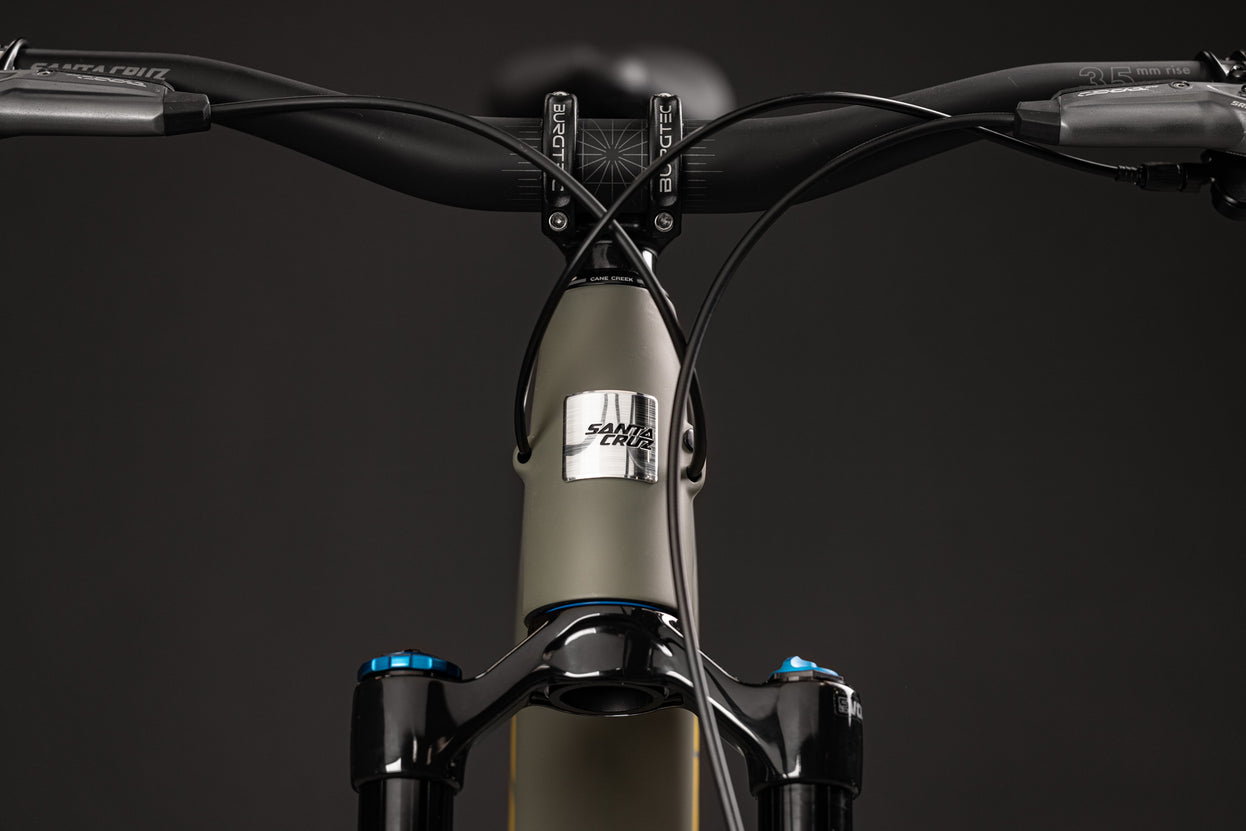

- Headset: Cane Creek 40 IS Integrated
- Saddle: WTB Silverado Medium Fusion, CroMo SL
- Seatpost: OneUp Dropper Post, 31.6mm
Wheels & Tires
- Rims: Reserve 30|SL AL 6069 or RaceFace ARC 30
- Hubs: DT Swiss 350 (Front: 15x110, Rear: 12x148, DEG 90T)
- Tires: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Specification
| Category | Component / Detail |
|---|---|
| Frame | Carbon CC, VPP™, 120mm rear travel |
| Fork | FOX 34 Float Factory, Grip X, 130mm travel |
| Shock | FOX Float Factory, 190x45 |
| Drivetrain | SRAM X0 Eagle AXS T-Type, 12-speed |
| Crankset | SRAM X0 Eagle DUB T-Type, 32t |
| Cassette | SRAM X0 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12-speed |
| Shifter | SRAM AXS Pod Controller Rocker Paddle |
| Bottom Bracket | SRAM DUB 73mm MTB Wide |
| Brakes | SRAM Code Silver Stealth |
| Rotors | SRAM HS2 180mm (Front & Rear) |
| Handlebars | Santa Cruz 20 Carbon Bar, 760mm |
| Stem | Burgtec Enduro MK3, 42mm |
| Grips | Santa Cruz Bicycles House Grips |
| Seatpost | OneUp Dropper Post, 31.6mm |
| Saddle | WTB Silverado Medium Fusion, CroMo SL |
| Headset | Cane Creek 40 IS Integrated |
| Wheel Size | 29” |
| Rims | Reserve 30 |
| Hubs | DT Swiss 350 (F: 15x110 / R: 12x148, DEG 90T) |
| Tires | Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO |
| Weight | 29.84 lbs / 13.53 kg |
| Water Bottle Mounts | 1 |
| Shock Stroke | 45mm |
| Max Tire Clearance | 2.5” |
| Rear Brake Mount | PM 180mm |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Max Chainring Size | 36t |
Geometry & Sizing
| Size | Rider Height | Reach (Hi/Lo) | Stack (Hi/Lo) | Head Angle | Seat Angle (Hi/Lo) | Top Tube (Hi/Lo) | Wheelbase (Hi/Lo) |
|---|---|---|---|---|---|---|---|
| X-Small | 4'8" – 5'1" | 405 / 403 mm | 601 / 603 mm | 65.7° / 65.5° | 76.0° / 75.7° | 555 / 556 mm | 1138 / 1138 mm |
| Small | 5'1" – 5'5" | 430 / 428 mm | 610 / 612 mm | 65.7° / 65.5° | 76.3° / 76.0° | 579 / 580 mm | 1167 / 1167 mm |
| Medium | 5'5" – 5'9" | 455 / 453 mm | 619 / 621 mm | 65.7° / 65.5° | 76.7° / 76.4° | 602 / 603 mm | 1199 / 1199 mm |
| Large | 5'9" – 6'1" | 475 / 473 mm | 628 / 630 mm | 65.7° / 65.5° | 76.8° / 76.6° | 622 / 623 mm | 1227 / 1227 mm |
| X-Large | 6'1" – 6'4" | 495 / 493 mm | 646 / 648 mm | 65.7° / 65.5° | 77.0° / 76.8° | 644 / 645 mm | 1257 / 1258 mm |
| XX-Large | 6'4" – 6'7" | 520 / 518 mm | 656 / 658 mm | 65.7° / 65.5° | 77.1° / 76.8° | 671 / 671 mm | 1290 / 1291 mm |

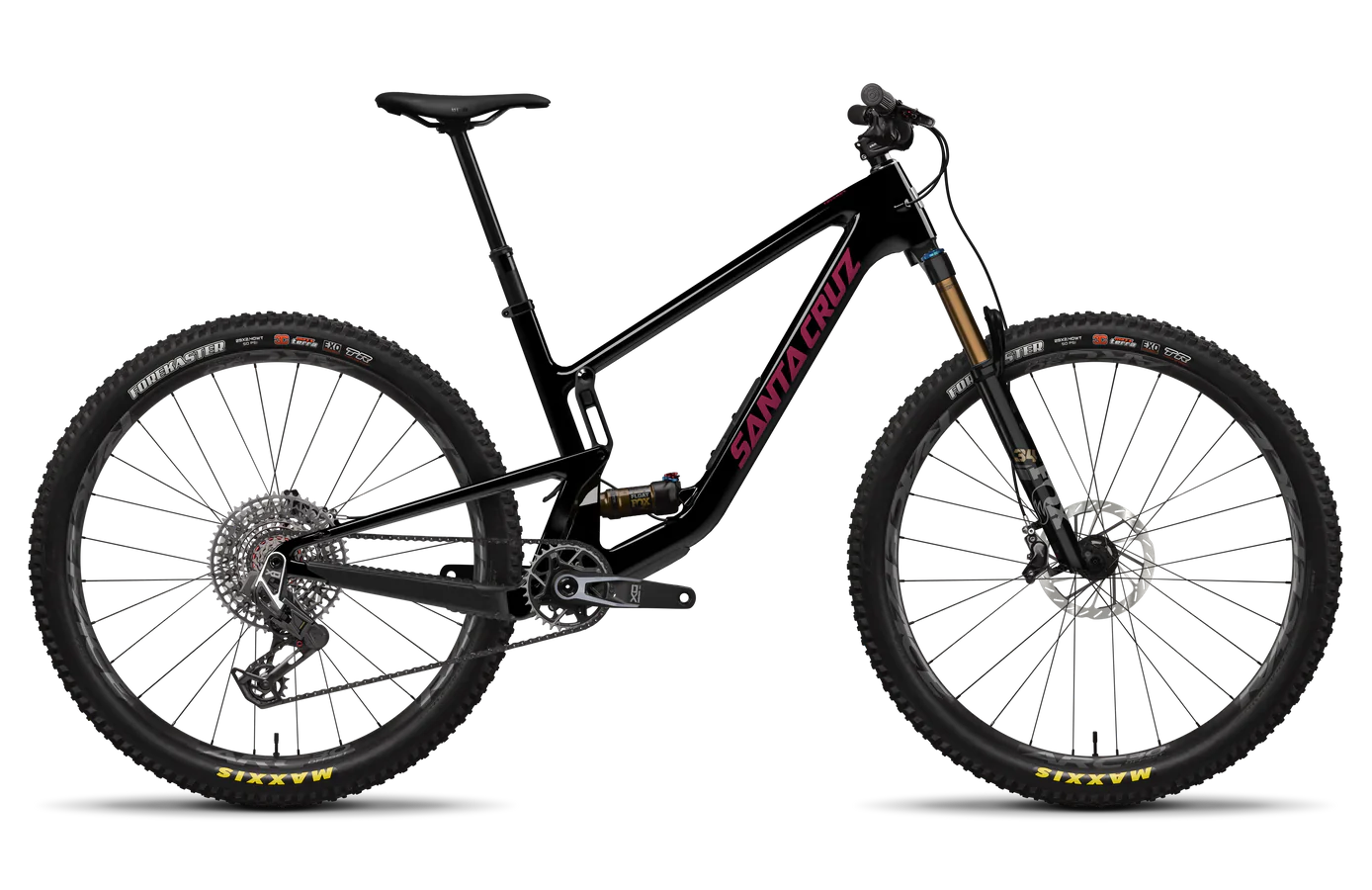

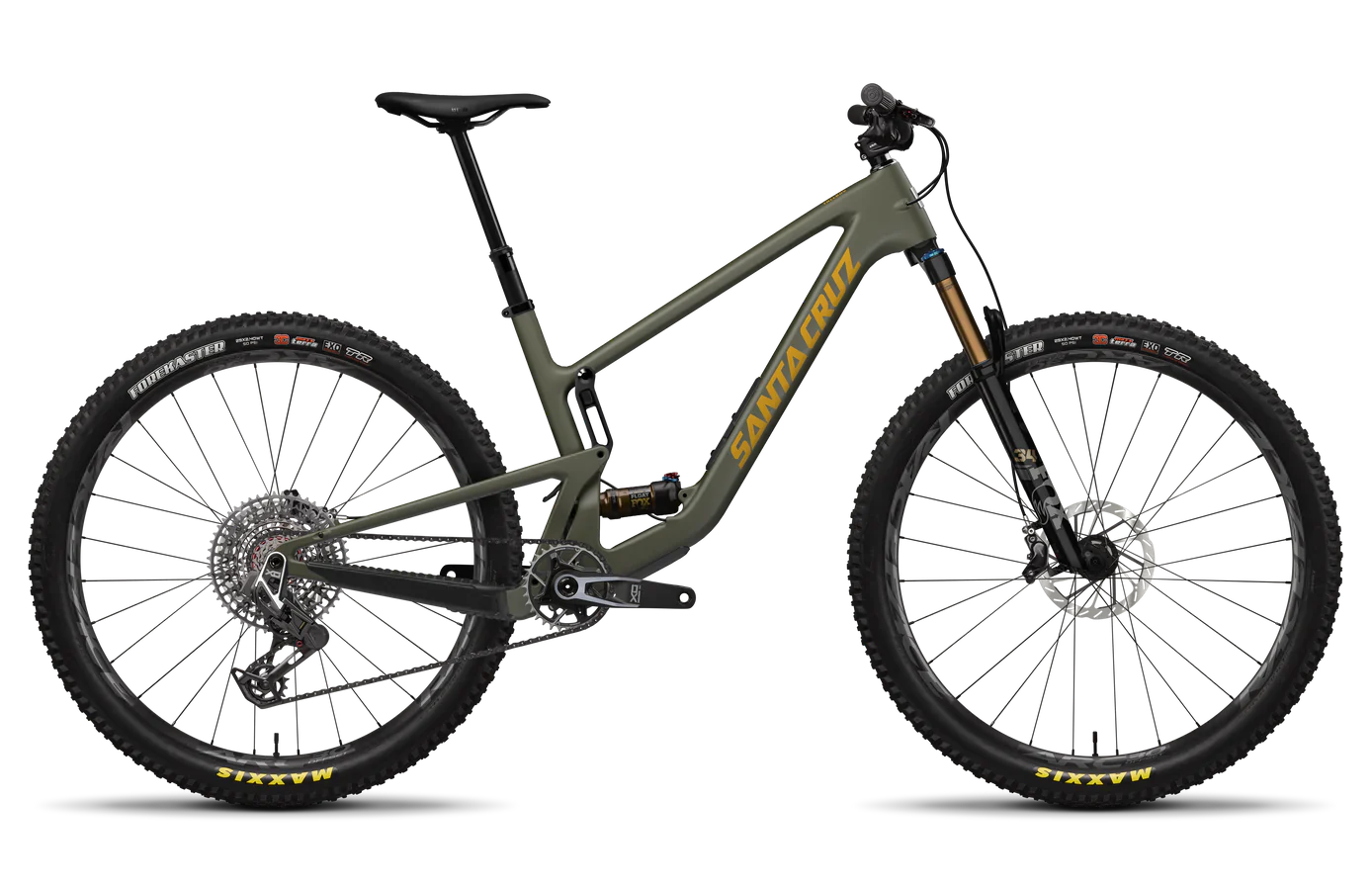

Santa Cruz Tallboy X0 AXS
