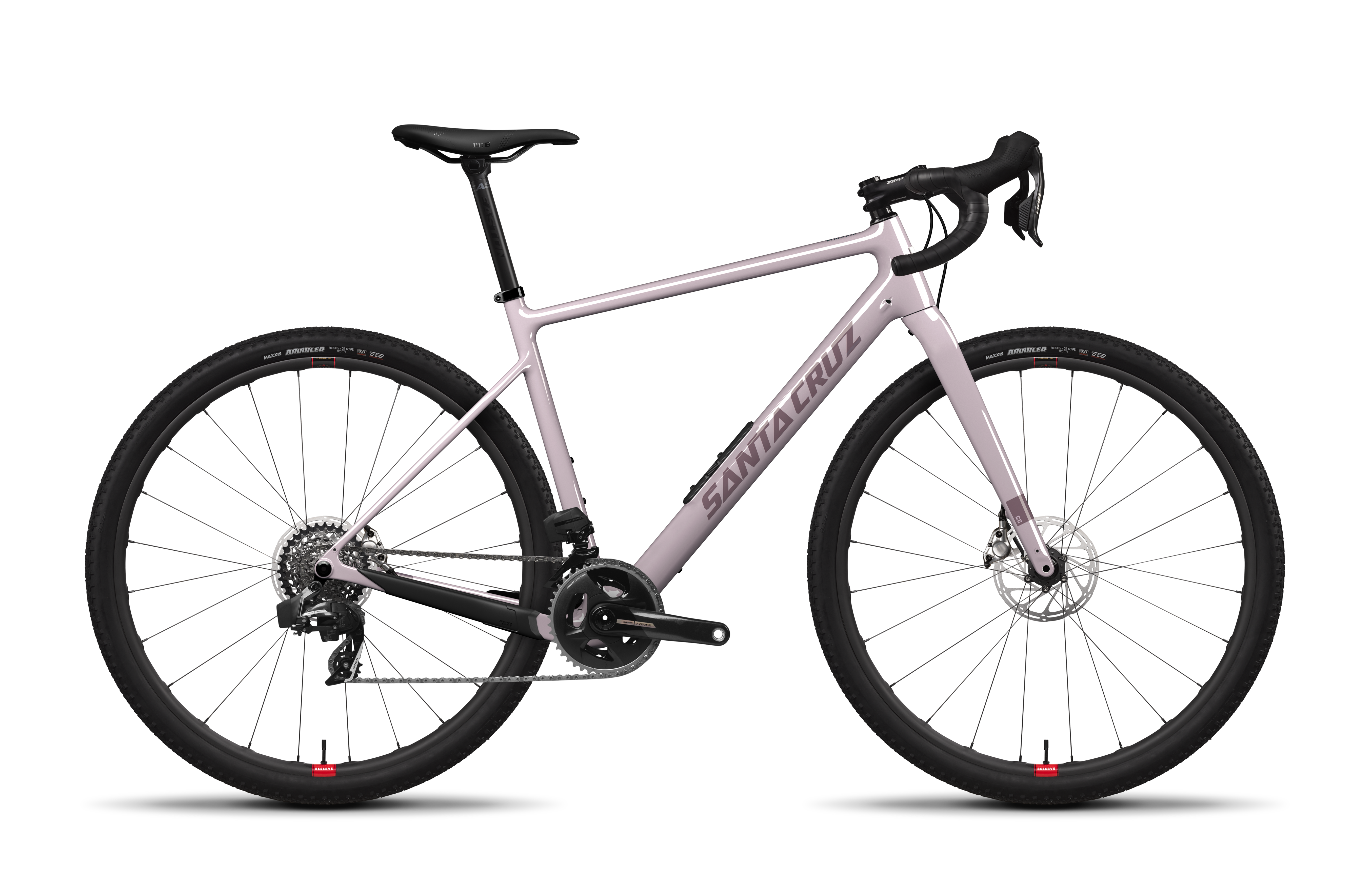

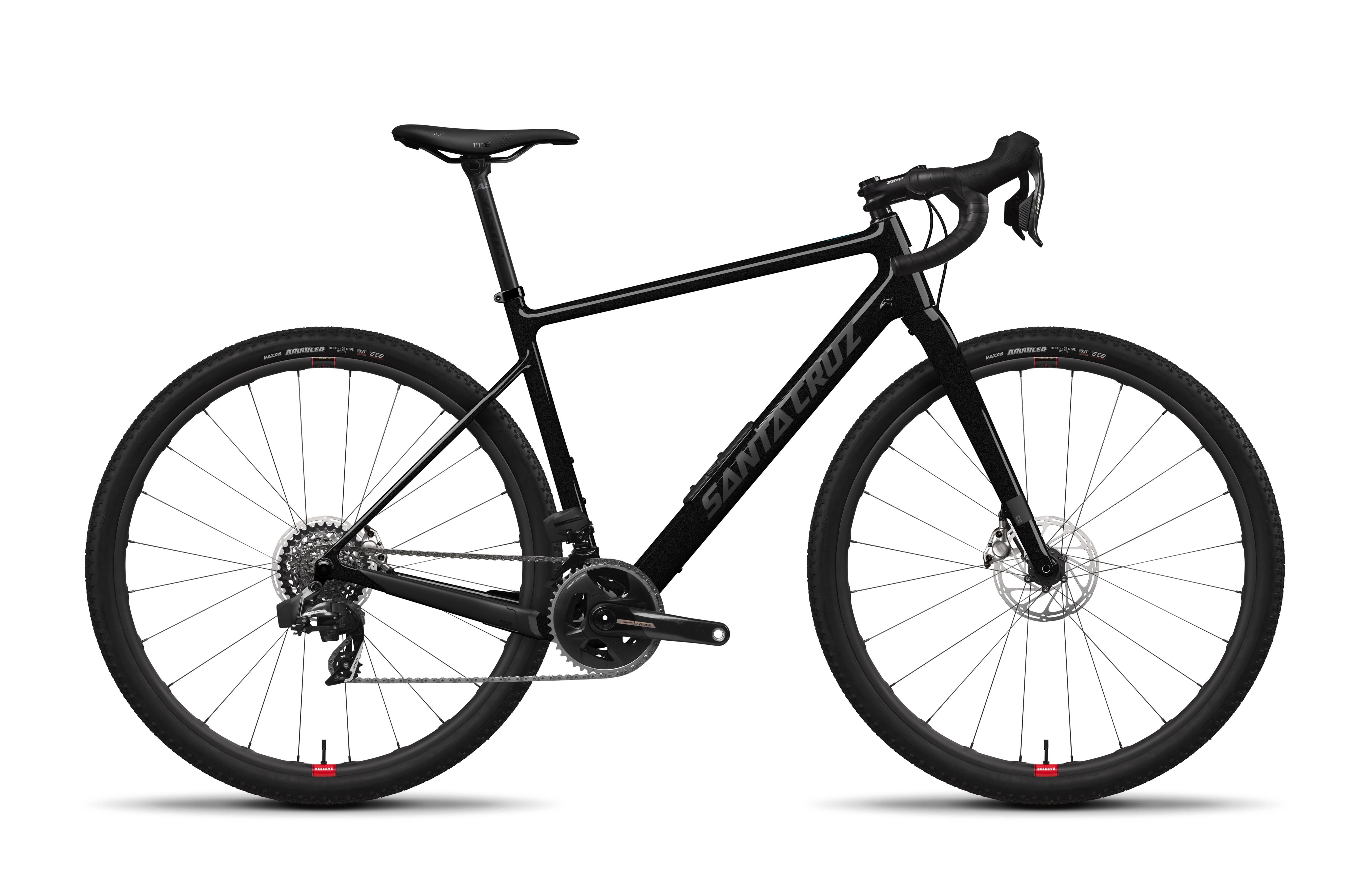

Santa Cruz Stigmata RF 2x RSV

By Santa Cruz
$6,999.00
View details

The Santa Cruz Stigmata RF 2x RSV blurs the lines between fast gravel race bike and free-roaming, drop-bar trail machine. Built on a lightweight Carbon CC frame with progressive geometry, it’s made for riders who chase gravel events, escape on backcountry fire roads, or carve up singletrack. With the precision of a SRAM Force AXS 2x12-speed drivetrain, Reserve 25|GR Carbon wheels, and Maxxis Rambler 700x45c tires, this bike is dialed for speed, traction, and versatility. Practical features like fender mounts and the clever Glovebox™ storage make it a ready-to-roll partner for any adventure.

Standout Features

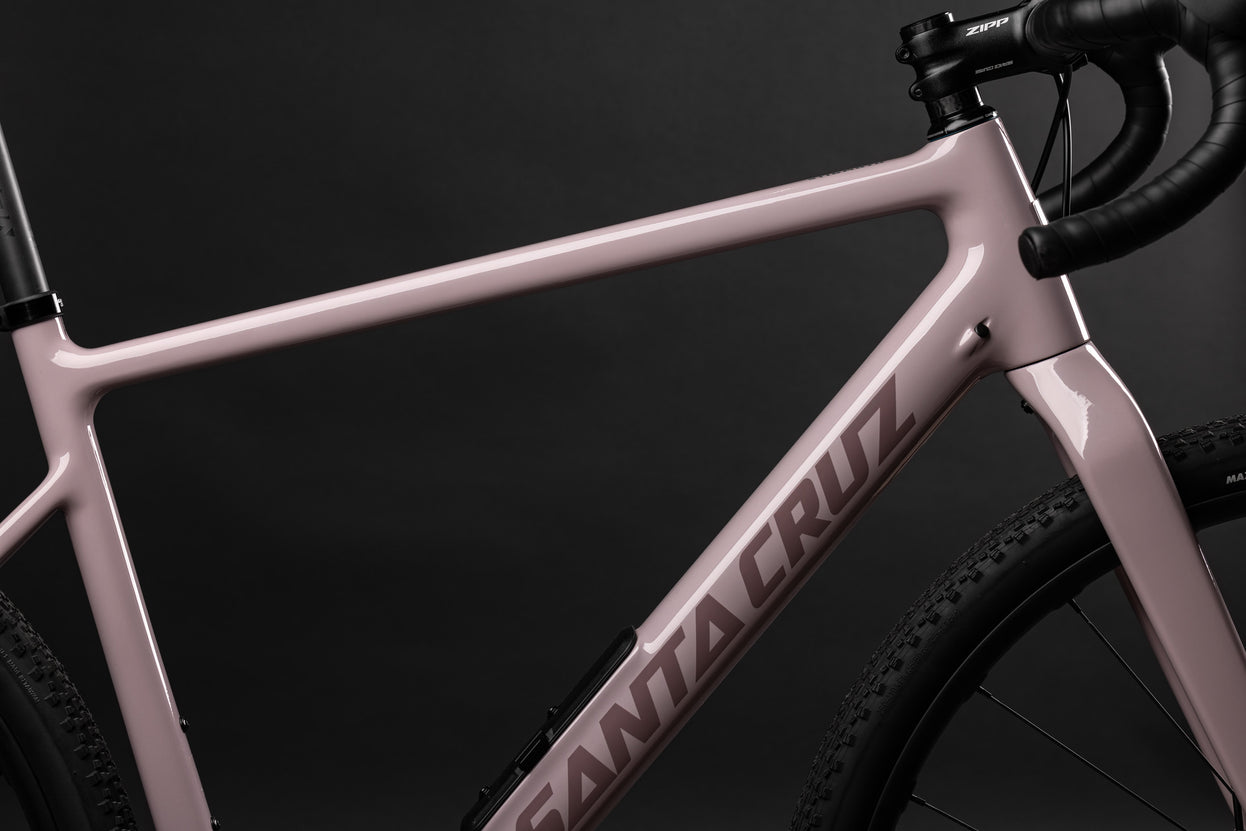

  • Carbon CC Frame with progressive geometry
  • SRAM Force AXS 2x12-speed drivetrain
  • SRAM Force Wide Crankset, 43/30t
  • Zipp Service Course SL-70 XPLR Handlebar
  • Reserve 25|GR 700c Carbon Wheels
  • Maxxis Rambler 700x45c Tires for all-terrain grip
  • Avid Centerline 160mm rotors with SRAM Force brakes
  • Easton EC70 Seatpost, 27.2mm, Zero Offset
  • WTB Silverado Fusion saddle

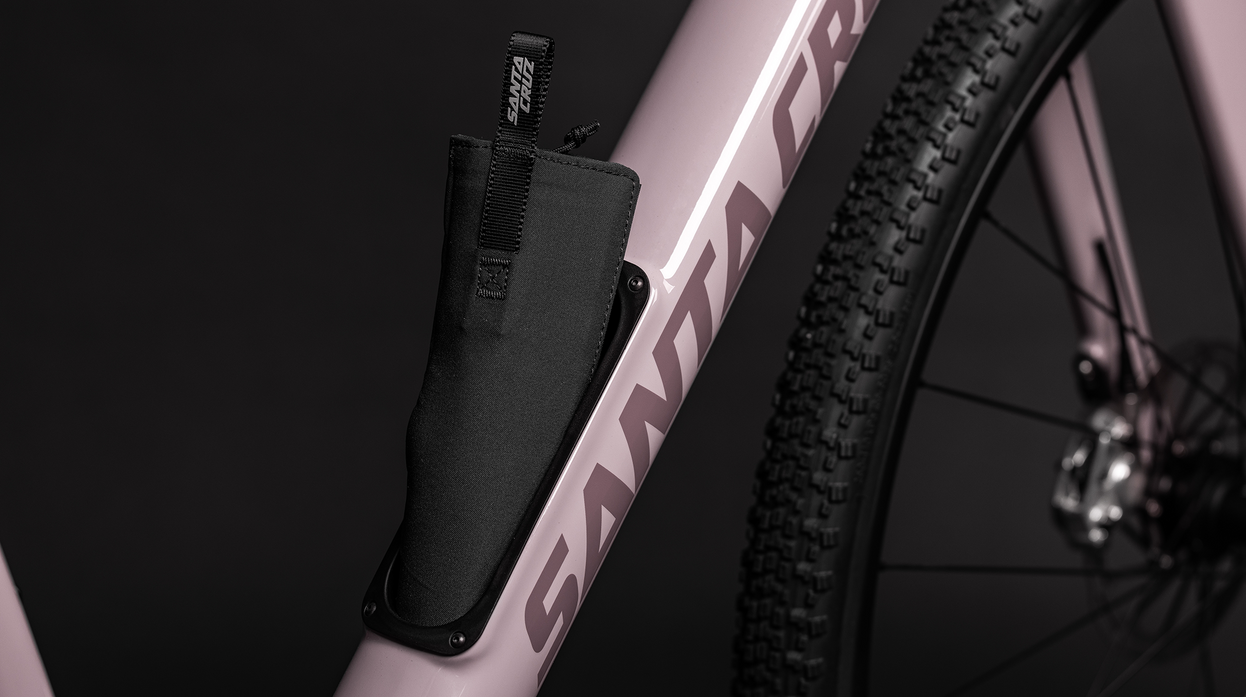

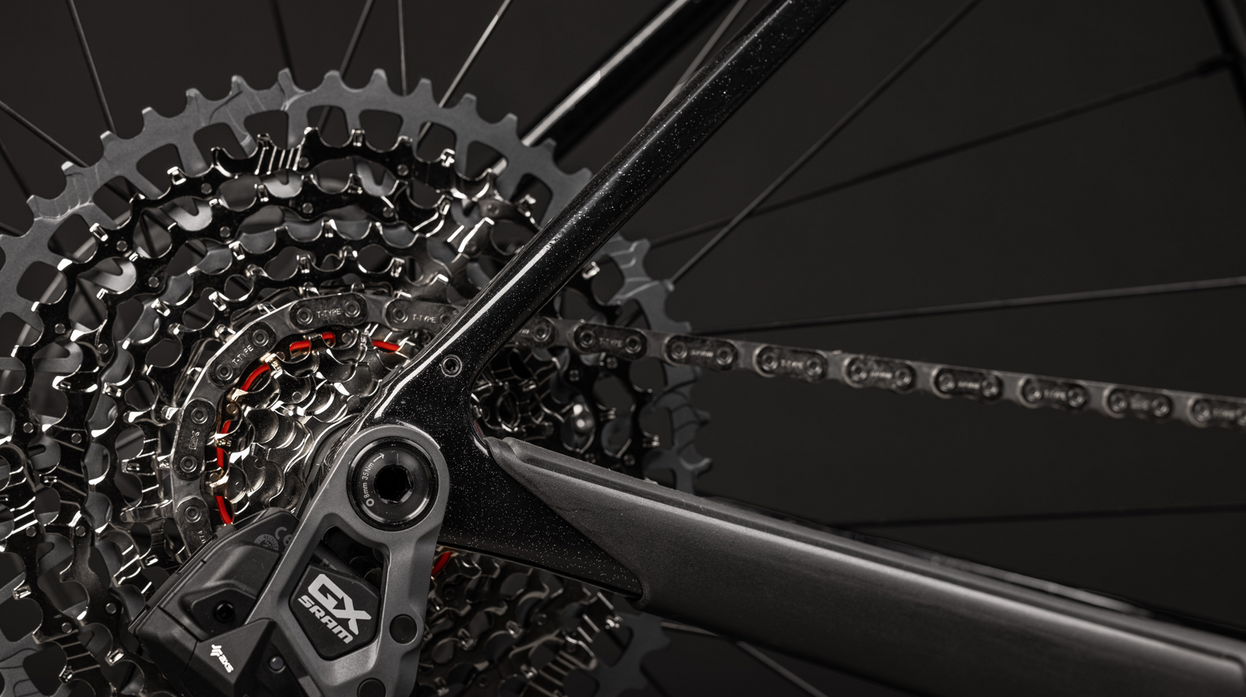

  • Low Profile Fender Mounts and Glovebox™ Storage

Frame

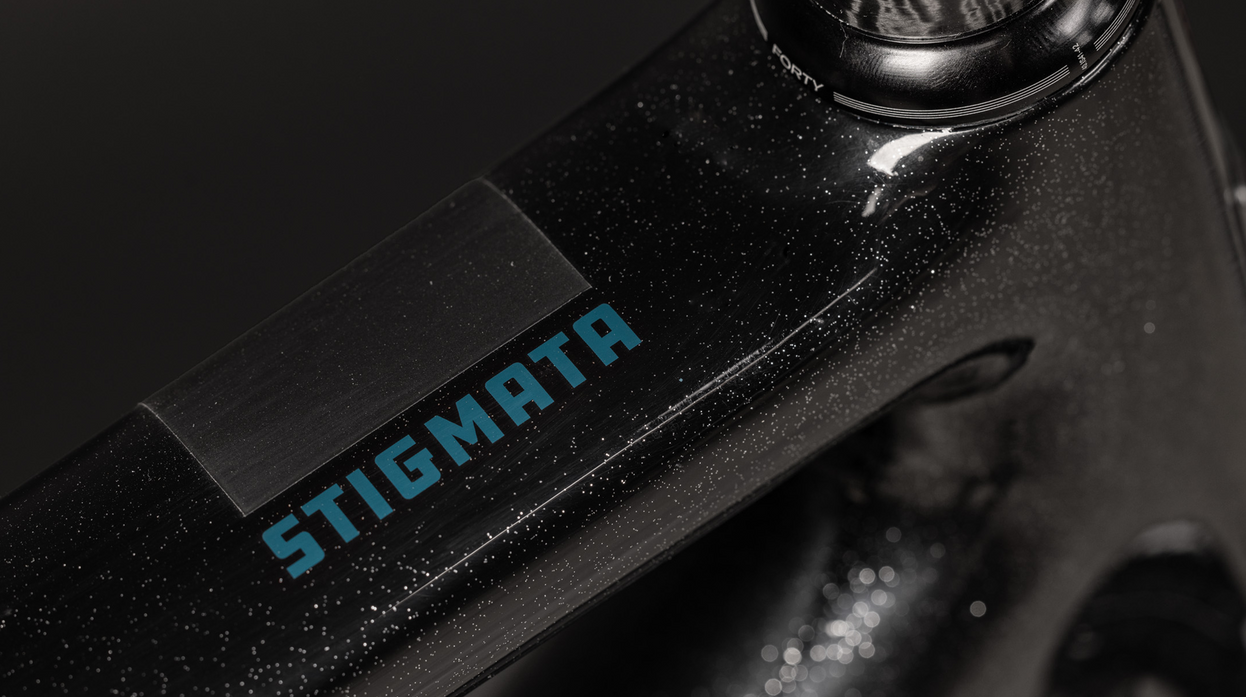

  • Material: Carbon CC
  • Weight: 18.71 lbs / 8.48 kg
  • Wheel Size: 700C

Suspension

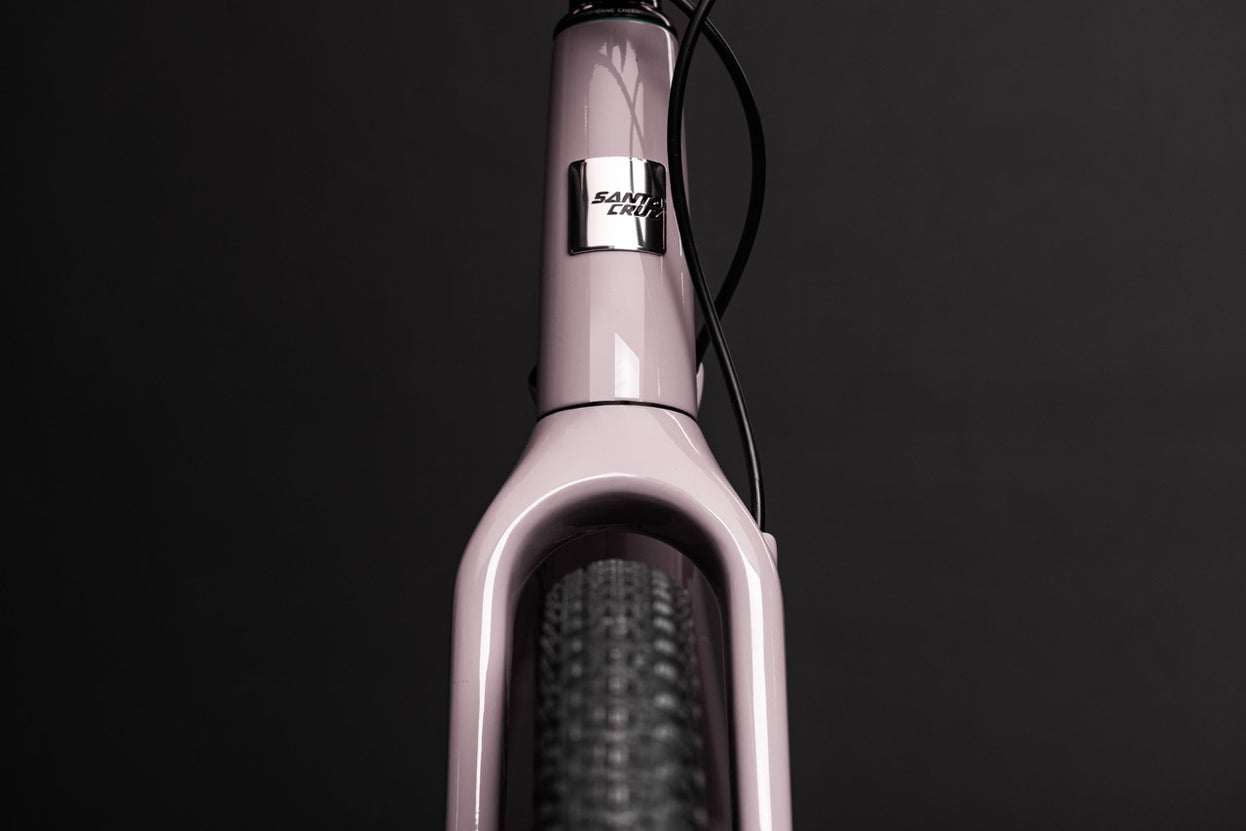

  • Fork: Carbon

Drivetrain

  • Bottom Bracket: SRAM DUB 68mm Road Wide BB
  • Cassette: SRAM XG1270, 10-36t
  • Chain: SRAM Force, 12spd

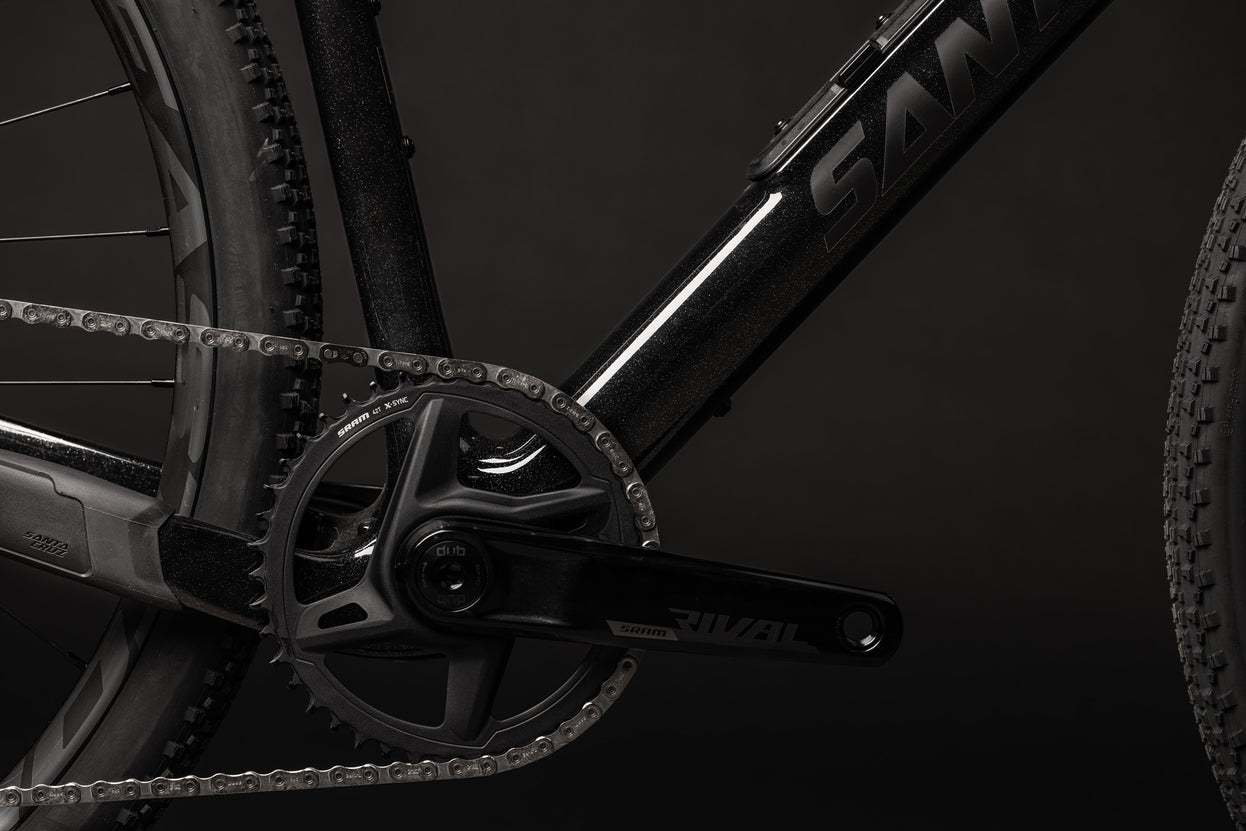

  • Crankset: SRAM Force Wide, 43/30t
  • Front Derailleur: SRAM Force Wide eTap AXS, 12spd
  • Rear Derailleur: SRAM Force AXS
  • Right Shifter: SRAM Red AXS

Brakes

  • Front Rotor: Avid Centerline, Centerlock, 160mm

  • Rear Rotor: Avid Centerline, Centerlock, 160mm

Cockpit

  • Grips / Bar Tape: Velo Bar Tape
  • Handlebars: Zipp Service Course SL-70 XPLR
  • Headset: Cane Creek 40 IS Integrated
  • Saddle: WTB Silverado Fusion, CroMo SL
  • Seatpost: Easton EC70, 27.2, Zero Offset, 350mm
  • Stem: Zipp Service Course, 70mm

Wheels & Tires

  • Front Rim: Reserve 25|GR 700c Carbon
  • Front Hub: DT Swiss 350, 12x100, Centerlock, 24h

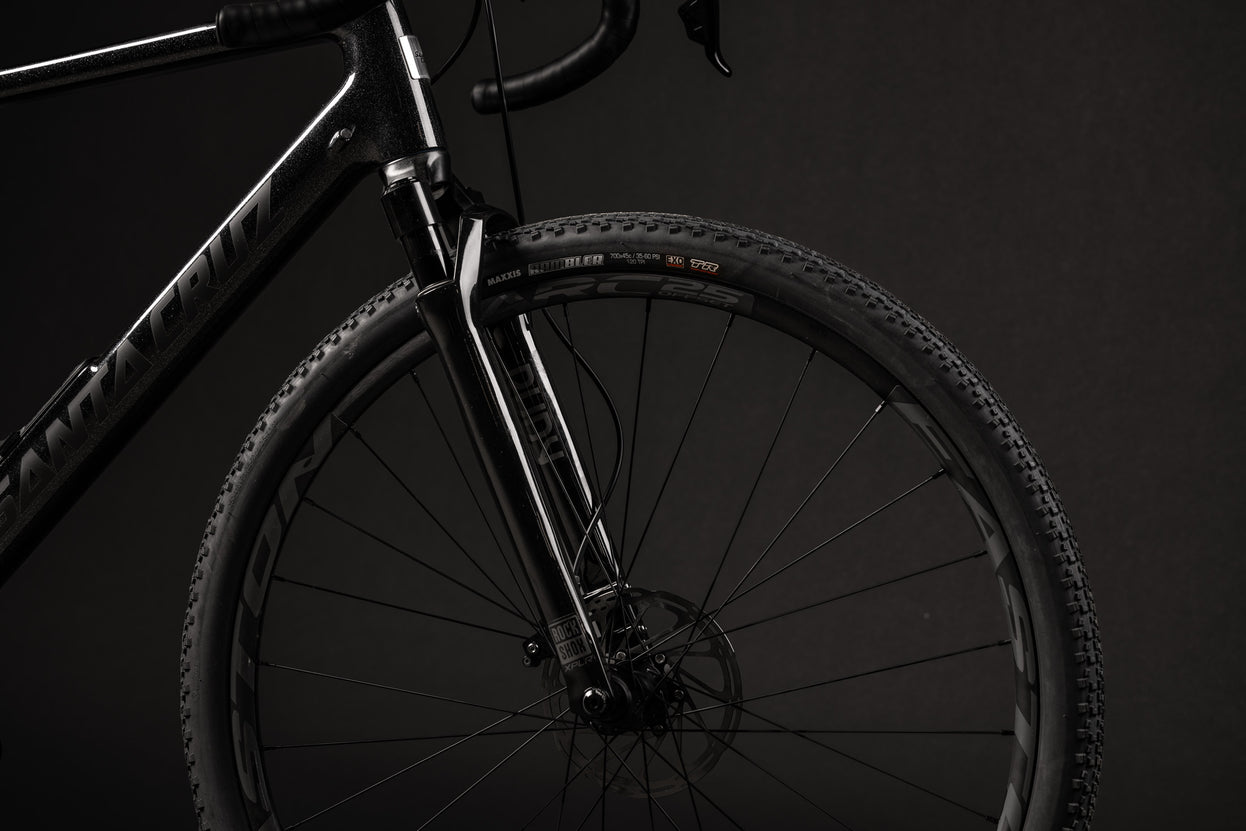

  • Front Tire: Maxxis Rambler, 700x45c, DC, EXO
  • Rear Rim: Reserve 25|GR 700c Carbon
  • Rear Hub: DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
  • Rear Tire: Maxxis Rambler, 700x45c, DC, EXO

Specifications

Item Details
Bottom Bracket Shell BSA Threaded 68
Rear Brake Mount Flatmount 160mm Direct
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Braze-on w/ included clamp adapter
Headset IS41 / IS52
Max Chainring Size 42t (1x), 50/36t (2x)
Max Tire Clearance 50mm (1x), 45mm (2x)
Rear Spacing 142mm
UDH Compatible Yes
Weight 18.71 lbs / 8.48 kg
Wheel Size 700C

Size Guide

Size Rider Height Reach
XS 4'10" – 5'1" (147–155 cm) 430 mm
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
