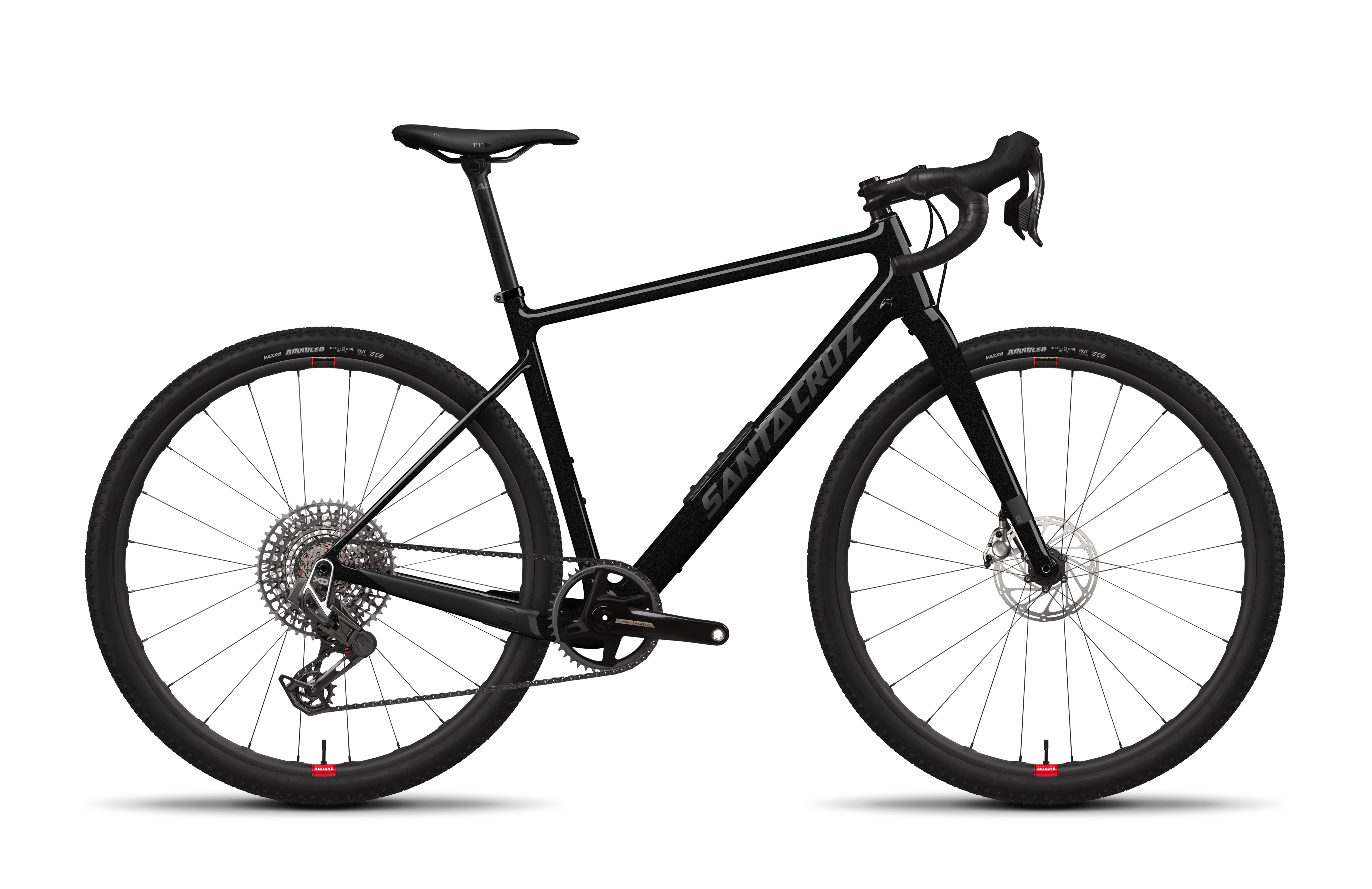

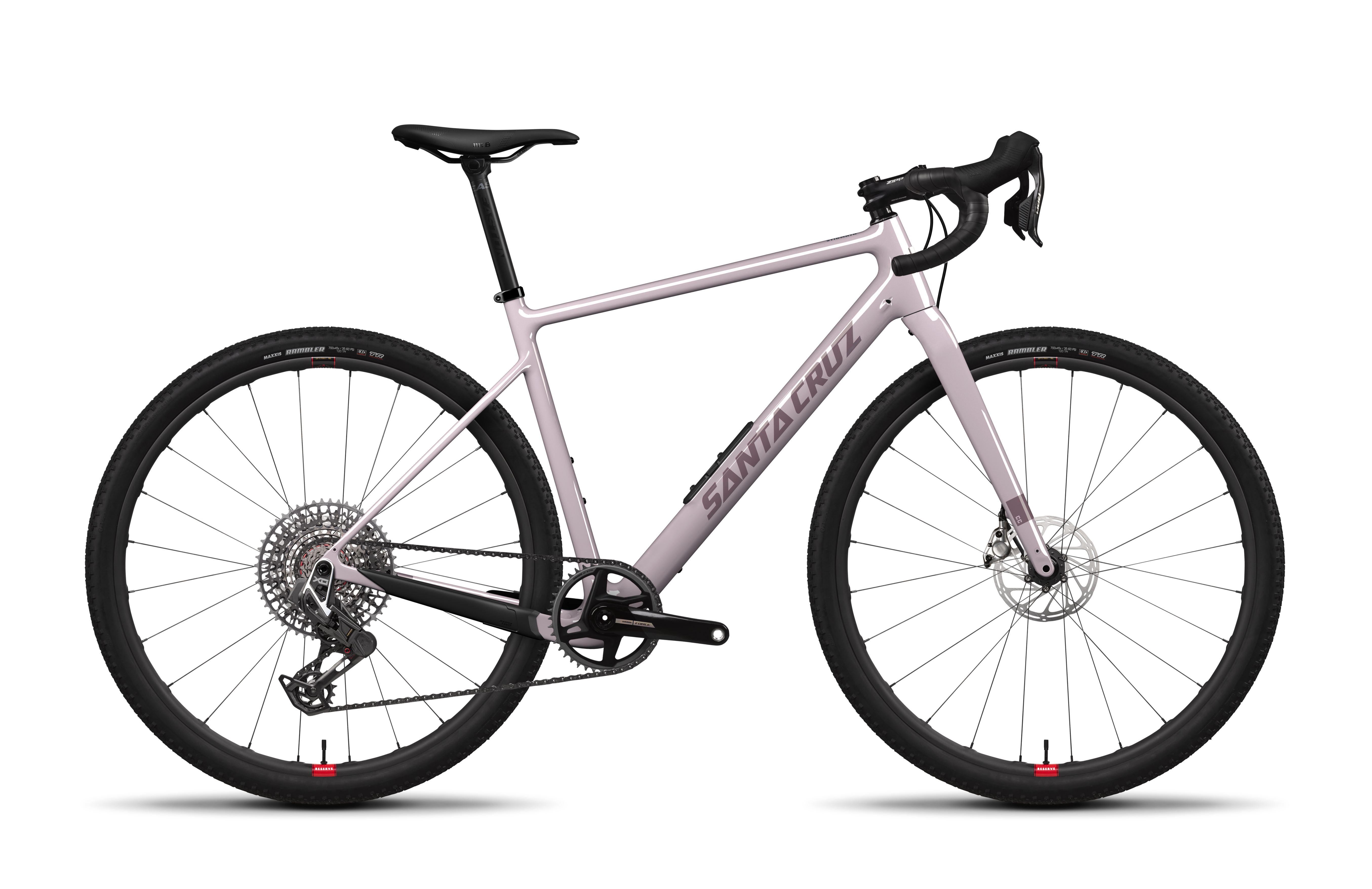

Santa Cruz Stigmata RF 1x RSV

By Santa Cruz
$6,999.00
View details

Built for gravel connoisseurs and adventure seekers alike, the Santa Cruz Stigmata RF 1x RSV balances pure racing performance with fearless off-road capabilities. Lightweight, fast, and ready to roam, it’s the perfect partner for tackling big gravel events, remote routes, or turning your daily ride into an off-the-map detour. Equipped with a Carbon CC frame, SRAM’s wireless Eagle AXS drivetrain, and Reserve carbon wheels — this machine means serious business on any surface.

Standout Features

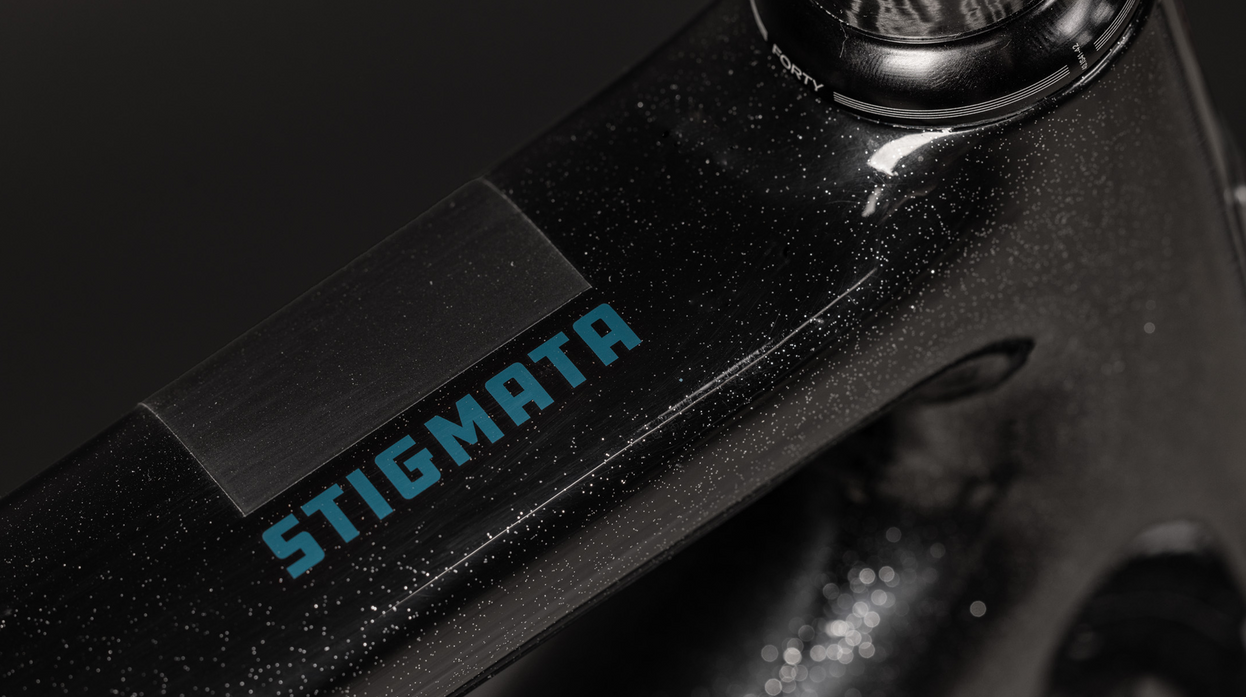

  • CC Carbon Frame — light, stiff, and adventure-ready
  • Progressive Gravel Geometry for speed and control

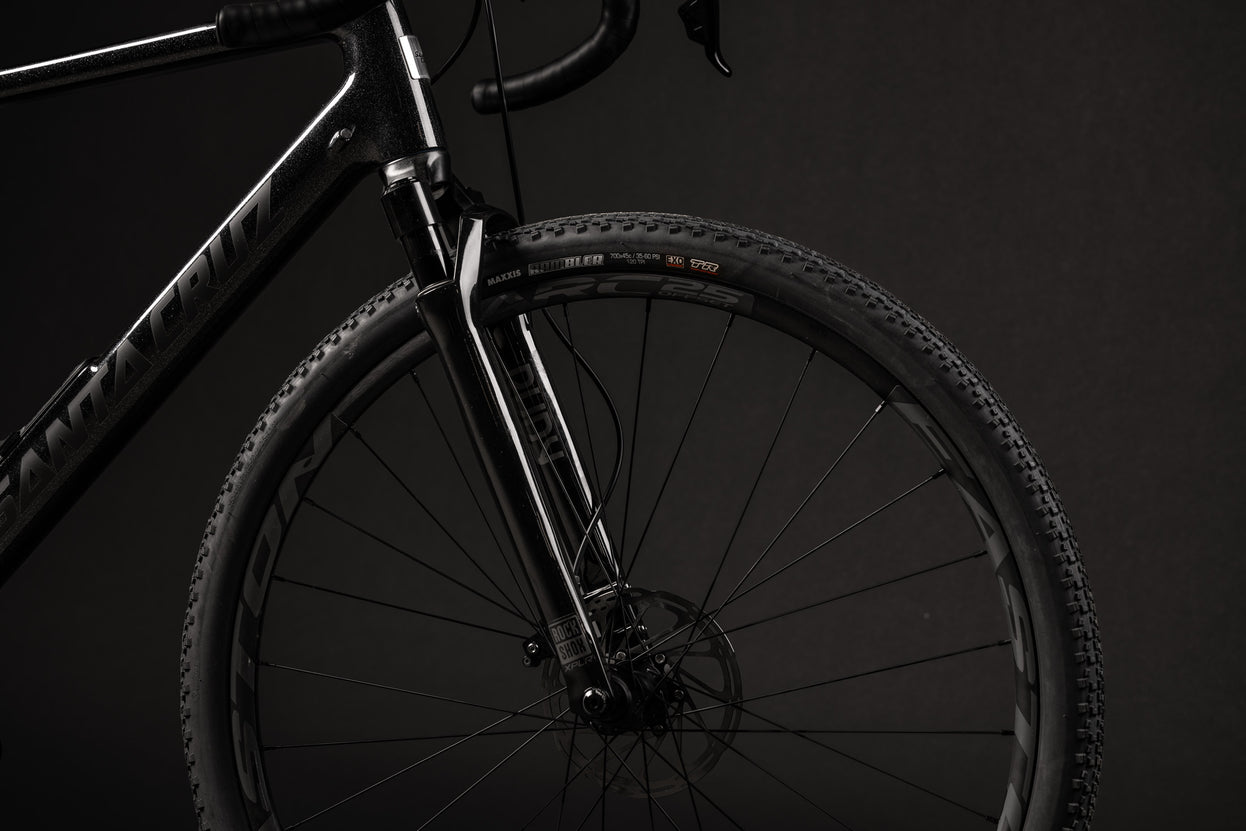

  • Reserve 25|GR 700c Carbon Wheels with Maxxis Rambler 700x45c tires
  • SRAM X0 Eagle AXS T-Type 12spd drivetrain — wireless, rugged, precise
  • Avid Centerline 160mm Rotors for reliable stopping power

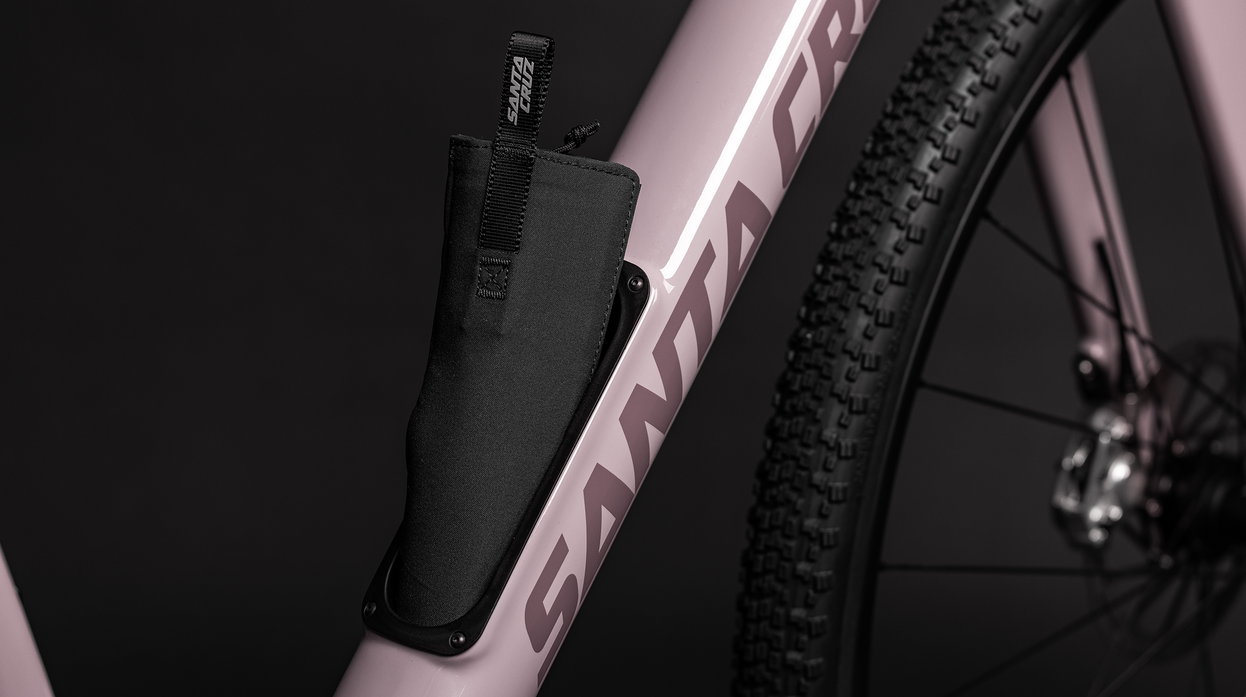

  • Low Profile Fender Mounts and Glovebox Storage for on-the-go practicality

Frame

  • Material: Carbon CC
  • Weight: 19.06 lbs / 8.65 kg
  • Wheel Size: 700C

Suspension

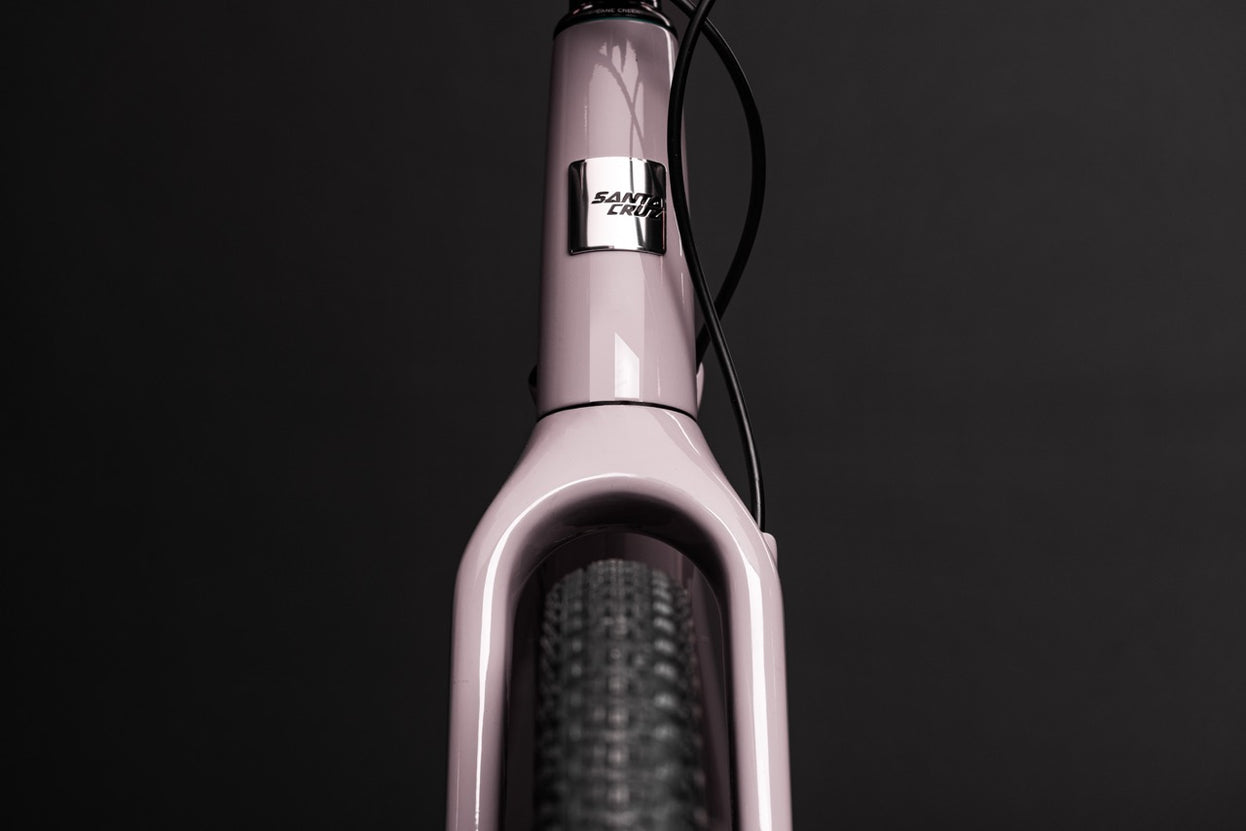

  • Fork: Carbon

Drivetrain

  • Bottom Bracket: SRAM DUB 68mm Road Wide BB

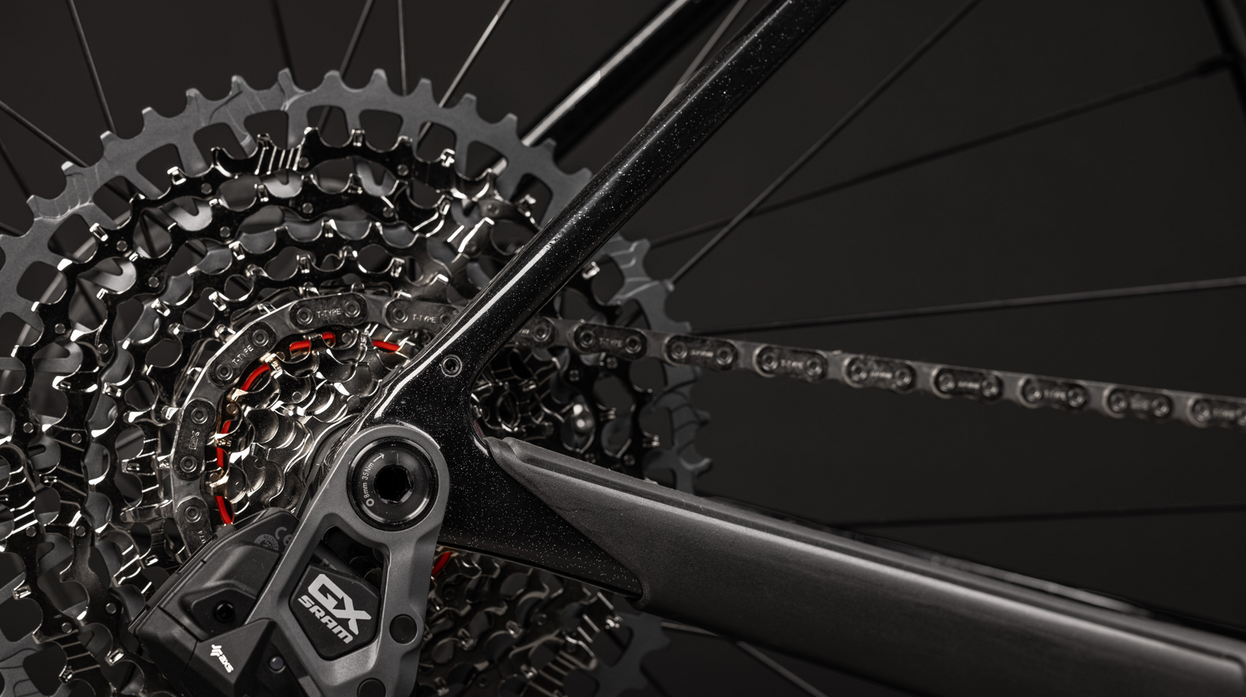

  • Cassette: SRAM X0 Eagle T-Type, 10-52t
  • Chain: SRAM X0 Eagle T-Type, Flattop, 12spd

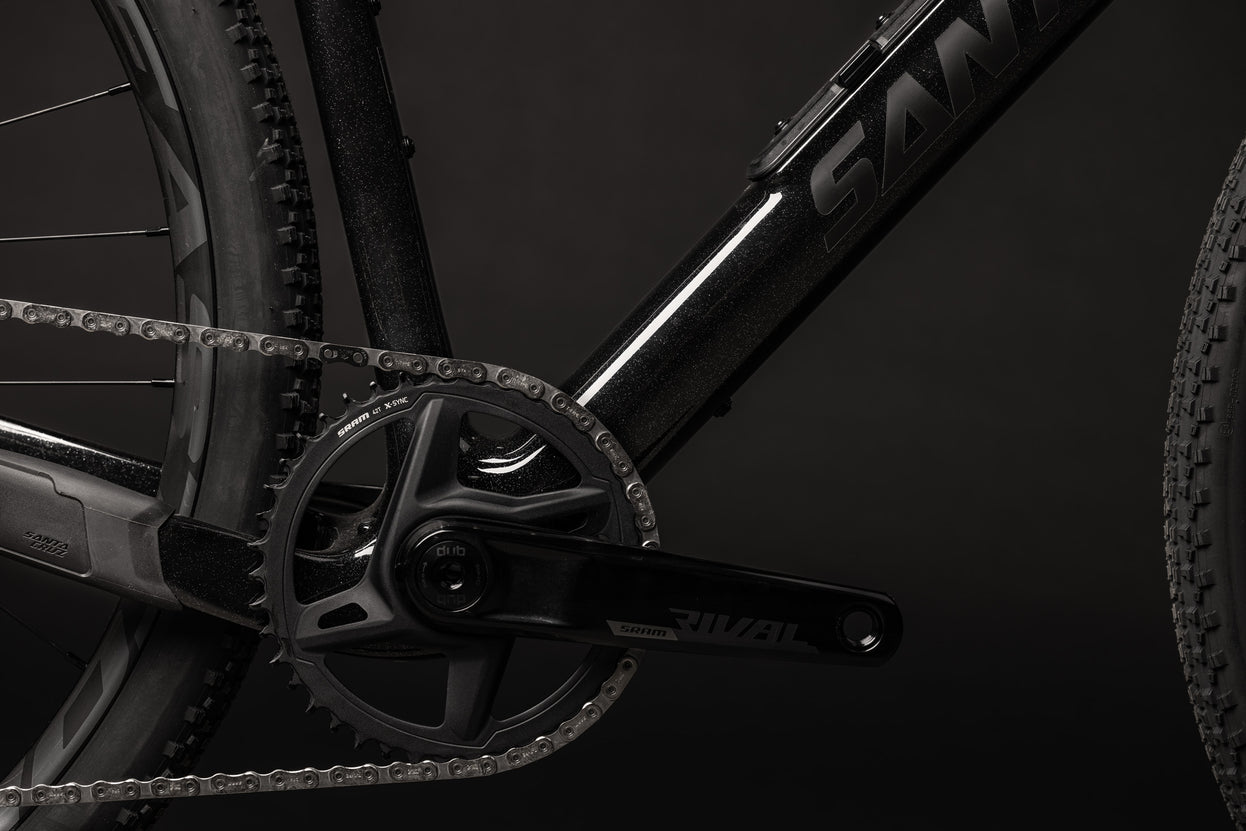

  • Crankset: SRAM Force AXS, 42t
  • Front Derailleur: SRAM Red AXS
  • Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12spd
  • Right Shifter: SRAM Red AXS

Brakes

  • Front Rotor: Avid Centerline, Centerlock, 160mm
  • Rear Rotor: Avid Centerline, Centerlock, 160mm

Cockpit

  • Grips / Bar Tape: Velo Bar Tape
  • Handlebars: Zipp Service Course SL-70 XPLR Bar
  • Headset: Cane Creek 40 IS Integrated
  • Saddle: WTB Silverado Fusion, CroMo SL
  • Seatpost: Easton EC70, 27.2, Zero Offset, 350mm
  • Stem: Zipp Service Course Stem, 70mm

Wheels & Tires

  • Front Rim: Reserve 25|GR 700c Carbon
  • Front Hub: DT Swiss 350, 12x100, Centerlock, 24h
  • Front Tire: Maxxis Rambler, 700x45c, DC, EXO
  • Rear Rim: Reserve 25|GR 700c Carbon
  • Rear Hub: DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
  • Rear Tire: Maxxis Rambler, 700x45c, DC, EXO

Specifications

Spec Details
Bottom Bracket Shell BSA Threaded 68
Rear Brake Mount Flatmount 160mm Direct
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Braze-on w/included clamp adapter
Headset IS 41 / IS52
Max Chainring Size 42t (1x), 50/36t (2x)
Max Tire Clearance 50mm (1x), 45mm (2x)
Rear Spacing 142mm
UDH Compatible Yes

Size Guide

Size Rider Height Reach
XS 4'10" – 5'1" (147–155 cm) 430 mm
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
