20% off

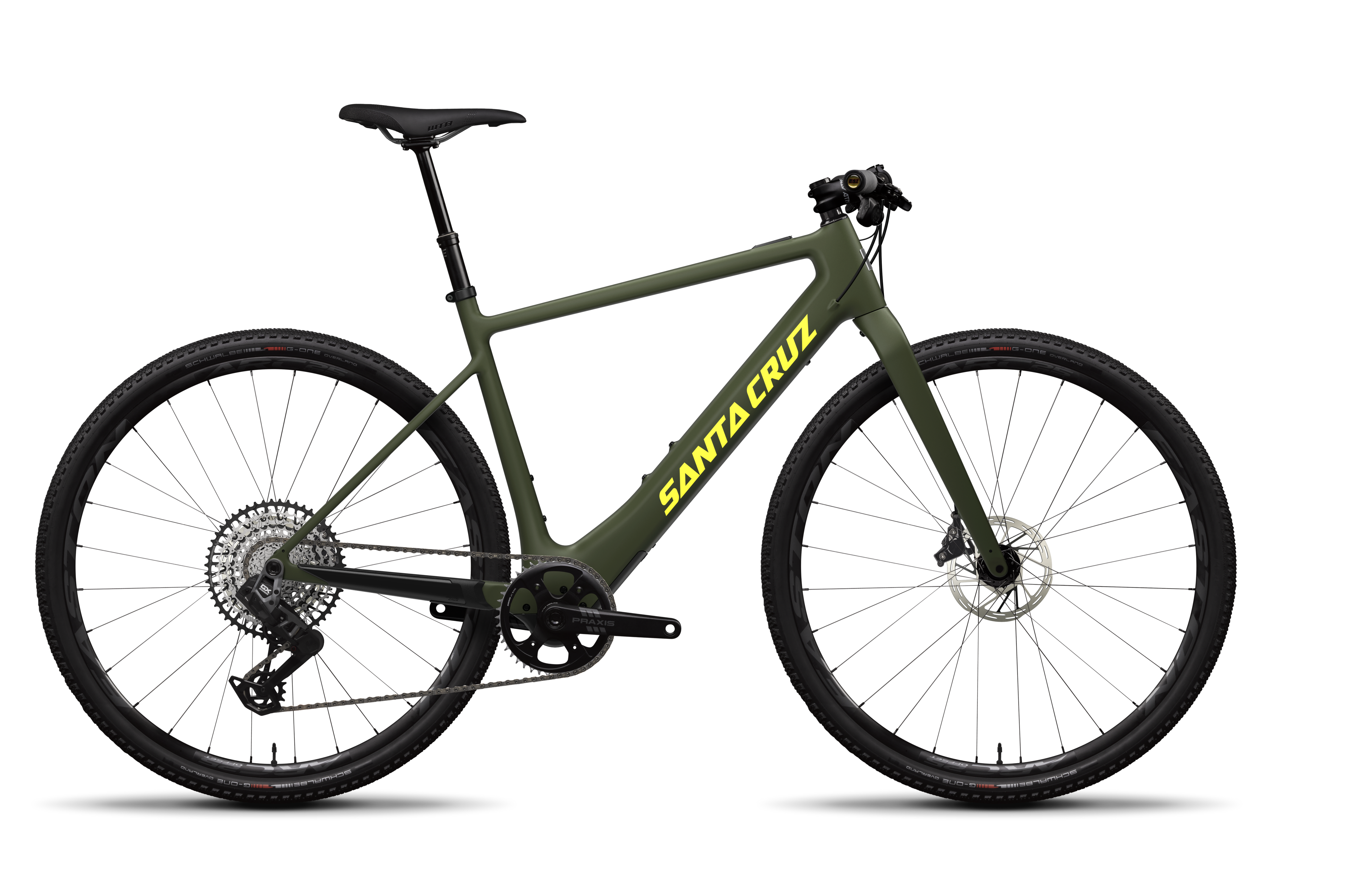

Santa Cruz Skitch GX AXS Flat Bar 2024

By Santa Cruz
$5,849.00 $7,299.00
View details

The Santa Cruz Skitch GX AXS Flat Bar E-Bike is designed for riders who want to navigate urban landscapes with speed and efficiency. Featuring a lightweight Carbon CC frame and the powerful Fazua Ride60 motor, this e-bike turns city commutes into exciting, effortless rides. Equipped with a SRAM GX Eagle AXS T-Type drivetrain, 430 Wh integrated battery, and durable Schwalbe G-One Overland Evo tires, the Skitch offers smooth, precise control across any urban terrain. Whether you're dodging traffic or cruising along the city streets, the Skitch is your go-to e-bike for making commuting feel like an adventure.

Standout Features

  • Carbon CC Frame — Lightweight, responsive, and durable
  • Fazua Ride60 Drive Unit — Smooth, lightweight motor for city commuting
  • 430 Wh Integrated Battery — Long-lasting power for efficient commutes
  • SRAM GX Eagle AXS T-Type Drivetrain — Accurate and smooth shifting
  • Schwalbe G-One Overland Evo Tires — Versatile tires for urban and light trail rides
  • Dropper Post — Adjustable saddle height for comfort and control

Frame

  • Material: Carbon CC
  • Weight: 30.13 lbs / 13.67 kg
  • Wheel Size: 700C

Suspension

  • Fork: Carbon

Drivetrain

  • Crankset: Praxis eTor AL
  • Cassette: SRAM GX Eagle T-Type, 10-52t
  • Chain: SRAM GX Eagle T-Type, 12-speed
  • Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-speed
  • Shifter: SRAM AXS Pod Bridge

Brakes

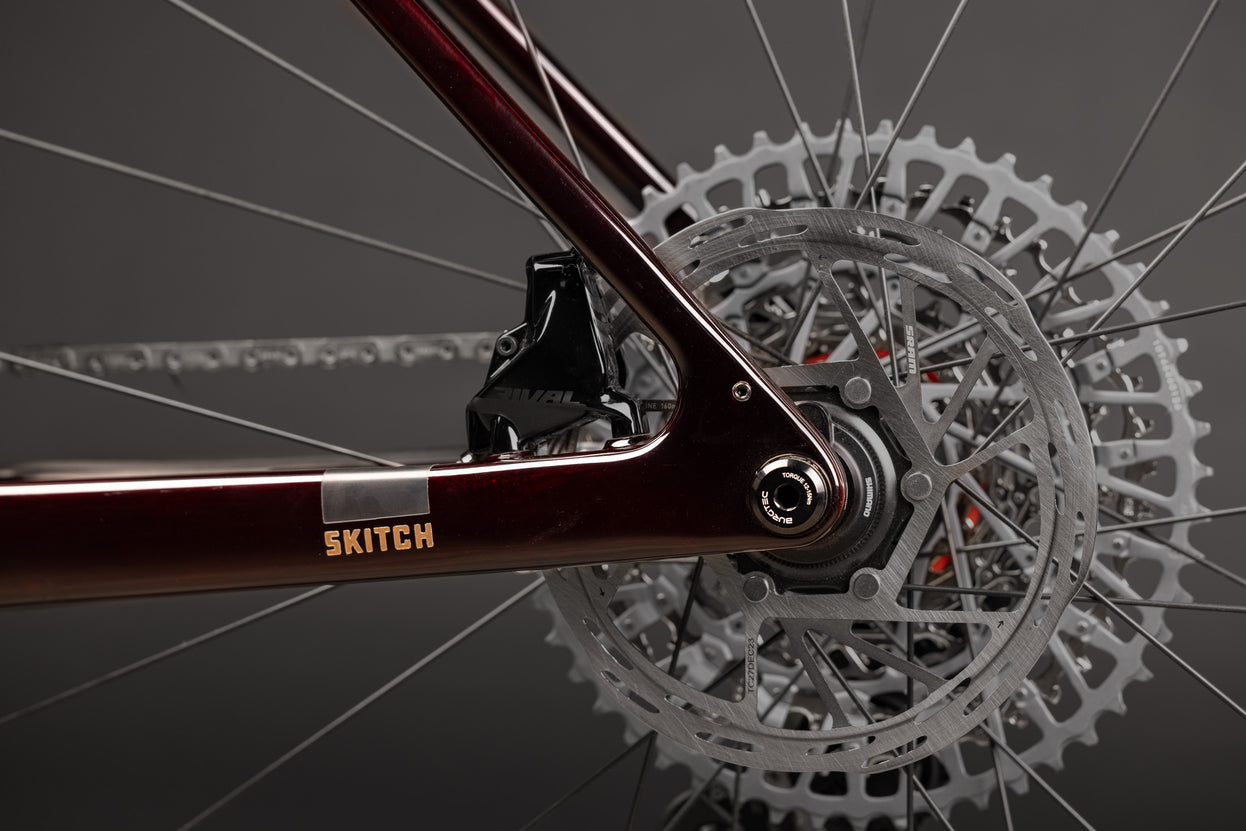

  • Brakes: SRAM Level Silver Stealth 2-Piston
  • Front Rotor: SRAM Paceline 160mm, Centerlock
  • Rear Rotor: SRAM Paceline 160mm, Centerlock

Cockpit

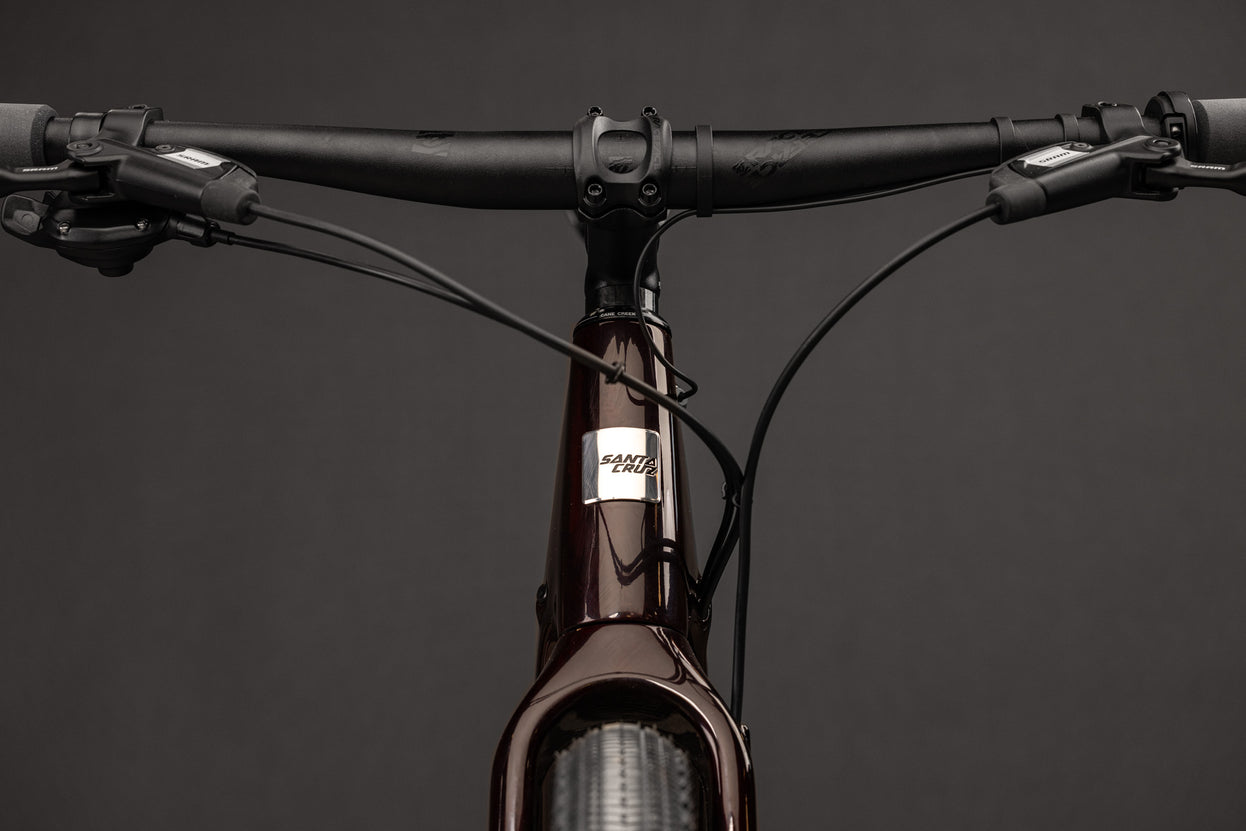

  • Handlebars: SRAM Atmos Flat Bar, 31.8x760mm
  • Stem: SRAM Atmos Stem, 80mm
  • Grips: ESI Chunky Grips
  • Headset: Cane Creek 40 IS Integrated Headset
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: OneUp V2 Dropper Post, 27.2mm

Wheels & Tires

  • Front Rim: Easton ARC Offset 25 700c
  • Front Hub: DT Swiss 370, 12x100, Centerlock, 28h
  • Front Tire: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
  • Rear Rim: Easton ARC Offset 25 700c
  • Rear Hub: DT Swiss 370, 12x148, XD, Centerlock, 28h
  • Rear Tire: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip

E-Bike System

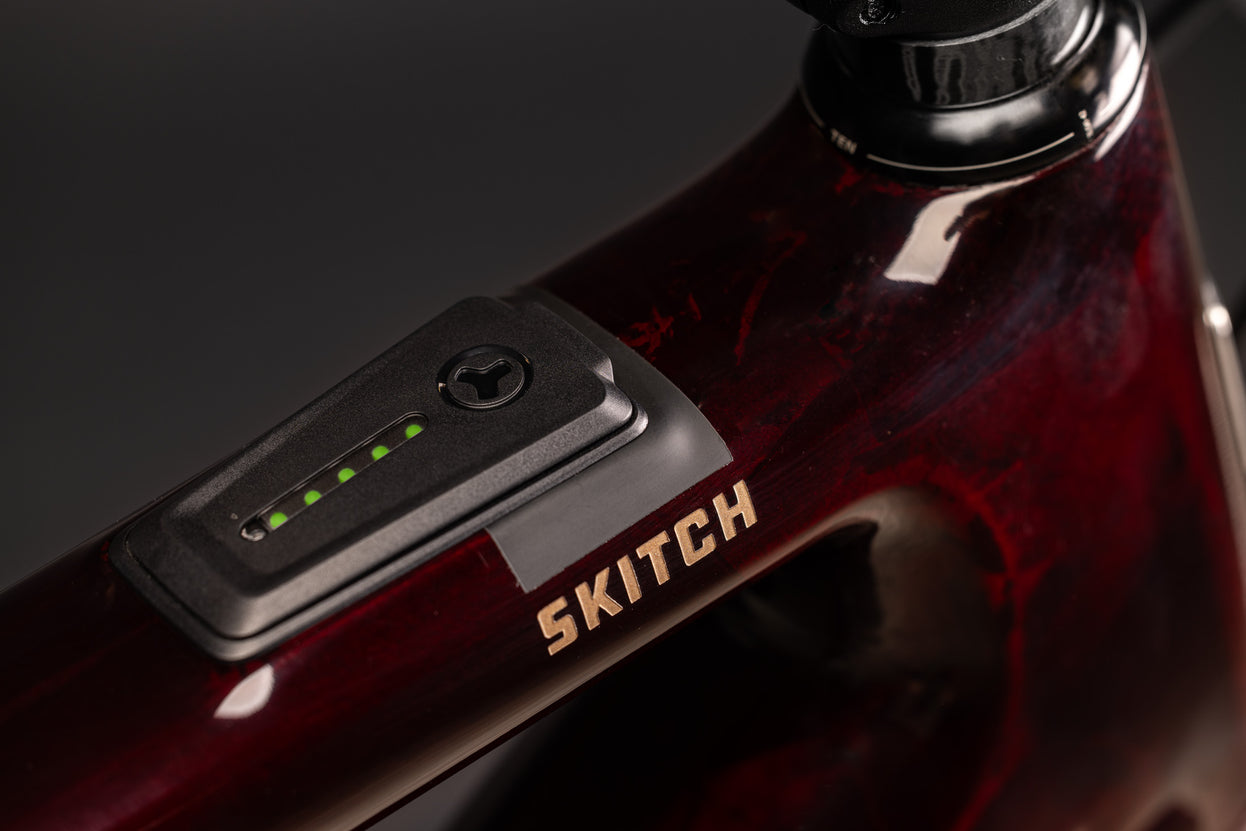

  • Battery: Fazua 430 Wh Integrated Battery
  • Drive Unit: Fazua Ride60
  • Battery Charger: Fazua Charger

Specifications

Spec Detail
Frame Material Carbon CC
Weight 30.13 lbs / 13.67 kg
Wheel Size 700C
Fork Travel 0mm (Carbon Fork)
Fork Axle to Crown 430mm
Fork Offset 45mm
Max Chainring Size 46t
Max Rotor Size 180mm
Max Tire Clearance 50mm
Rear Spacing 148mm (Boost)
Rear Brake Mount Flatmount 160mm Direct
UDH Compatible Yes
Headset Compatibility IS41 / IS52

Size Guide

Size Rider Height
S 5'1" – 5'5" (155 – 165 cm)
M 5'5" – 5'9" (165 – 175 cm)
L 5'9" – 6'1" (175 – 185 cm)
XL 6'1" – 6'6" (185 – 198 cm)
XXL 6'6" – 6'9" (198 – 206 cm)
