20% off

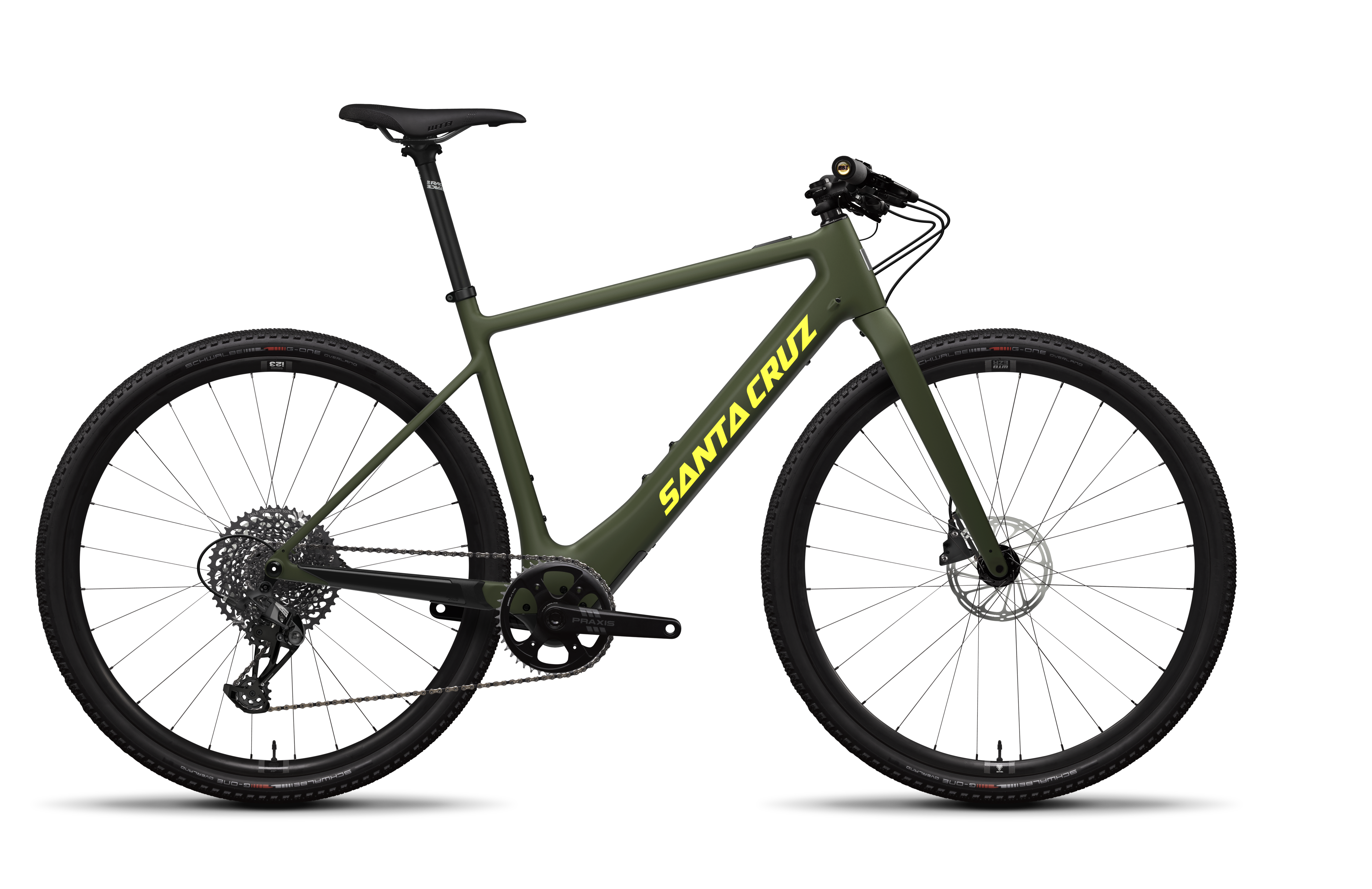

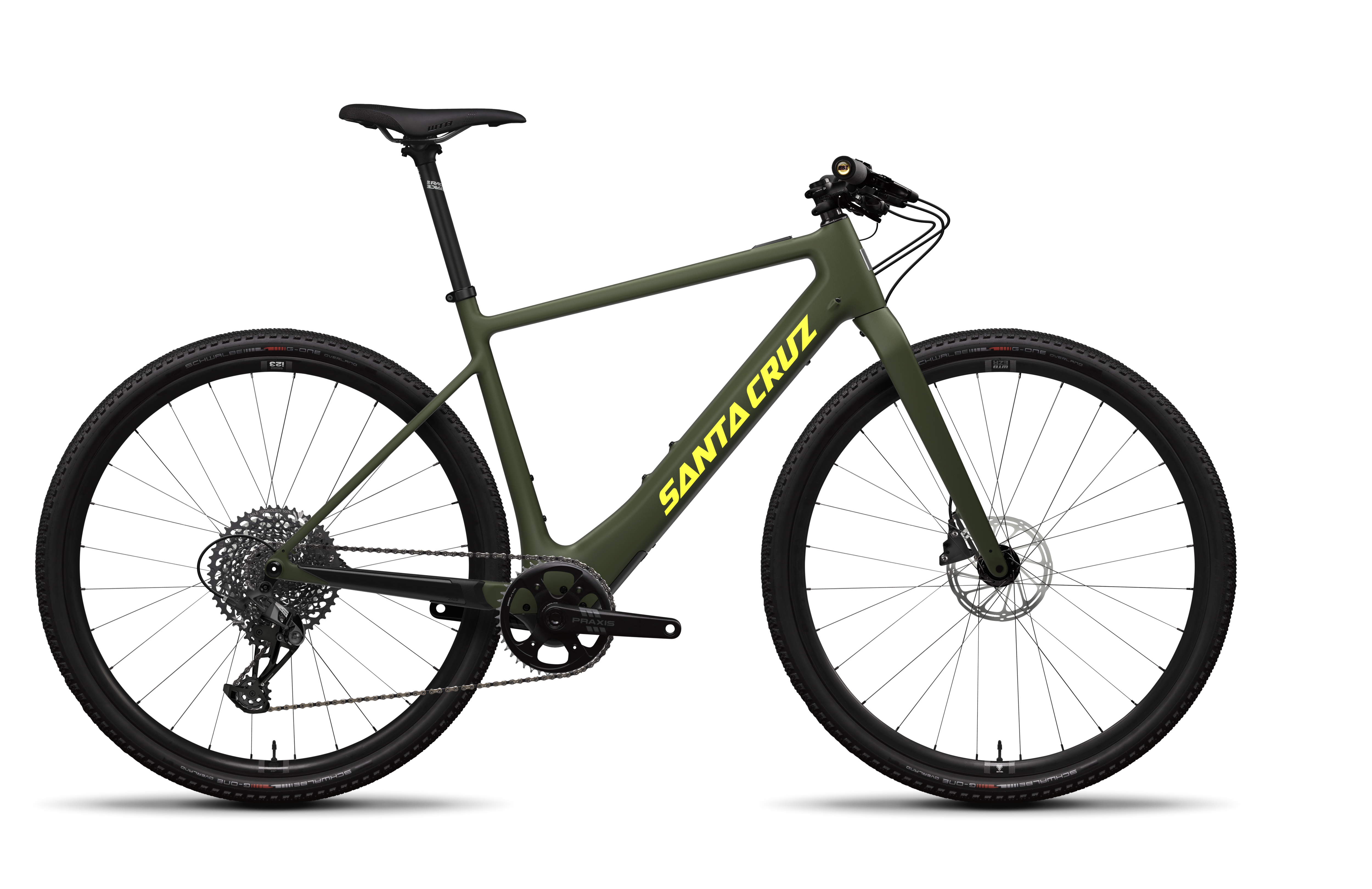

Santa Cruz Skitch Apex Flat Bar 2024

By Santa Cruz
$4,799.00 $5,999.00
View details

The Skitch Apex Flat Bar E-Bike is built for city slickers, alleycat racers, and anyone itching to ditch traffic for fresh air. With a nimble CC Carbon frame and the punchy Fazua Ride60 system, it turns your daily commute into a thrill ride. The SRAM Apex Eagle 12-speed drivetrain and SRAM S-300 brakes deliver smooth, reliable control, while Schwalbe G-One Overland Evo tires keep you planted on any urban shortcut. Light, powerful, and endlessly fun — it’s commuting, redefined.

Standout Features

  • CC Carbon Frame
  • Progressive Geometry
  • Fazua Ride60 Drive Unit
  • 430 Wh Integrated Battery
  • SRAM Apex Eagle 12-Speed Drivetrain
  • Schwalbe G-One Overland Evo 700x45c Tires
  • SRAM S-300 Hydraulic Brakes

Frame

  • Material: Carbon CC

Suspension

  • Fork: Carbon

Drivetrain

  • Cassette: SRAM XG1275 Eagle, 12spd, 10-50t
  • Chain: SRAM SX Eagle, 12spd
  • Crankset: Praxis eTor AL
  • Rear Derailleur: SRAM Apex Eagle, 12spd
  • Right Shifter: SRAM NX Eagle, 12spd

Brakes

  • Brakes: SRAM S-300
  • Front Rotor: Avid Centerline, 160mm, Centerlock
  • Rear Rotor: Avid Centerline, 160mm, Centerlock

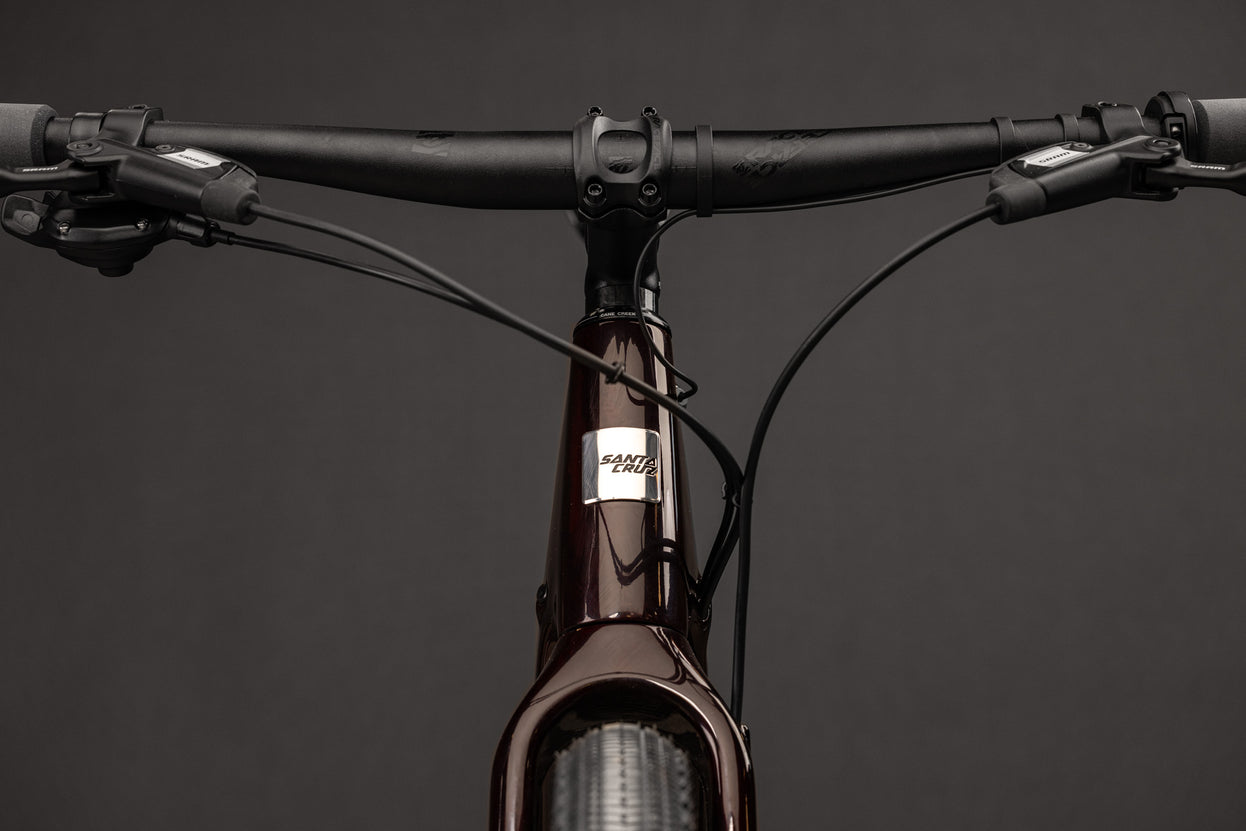

Cockpit

  • Grips / Bar Tape: ESI Chunky Grips
  • Handlebars: RaceFace Ride
  • Headset: Cane Creek 40 IS Integrated Headset
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: RaceFace Ride, 27.2
  • Stem: RaceFace Ride, 80mm

Wheels & Tires

  • Front Rim: WTB EZR i23p 700c
  • Front Hub: DT Swiss 370, 12x100, Centerlock, 28h
  • Front Tire: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
  • Rear Rim: WTB EZR i23p 700c
  • Rear Hub: DT Swiss 370, 12x148, XD, Centerlock, 28h
  • Rear Tire: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip

E-Bike System

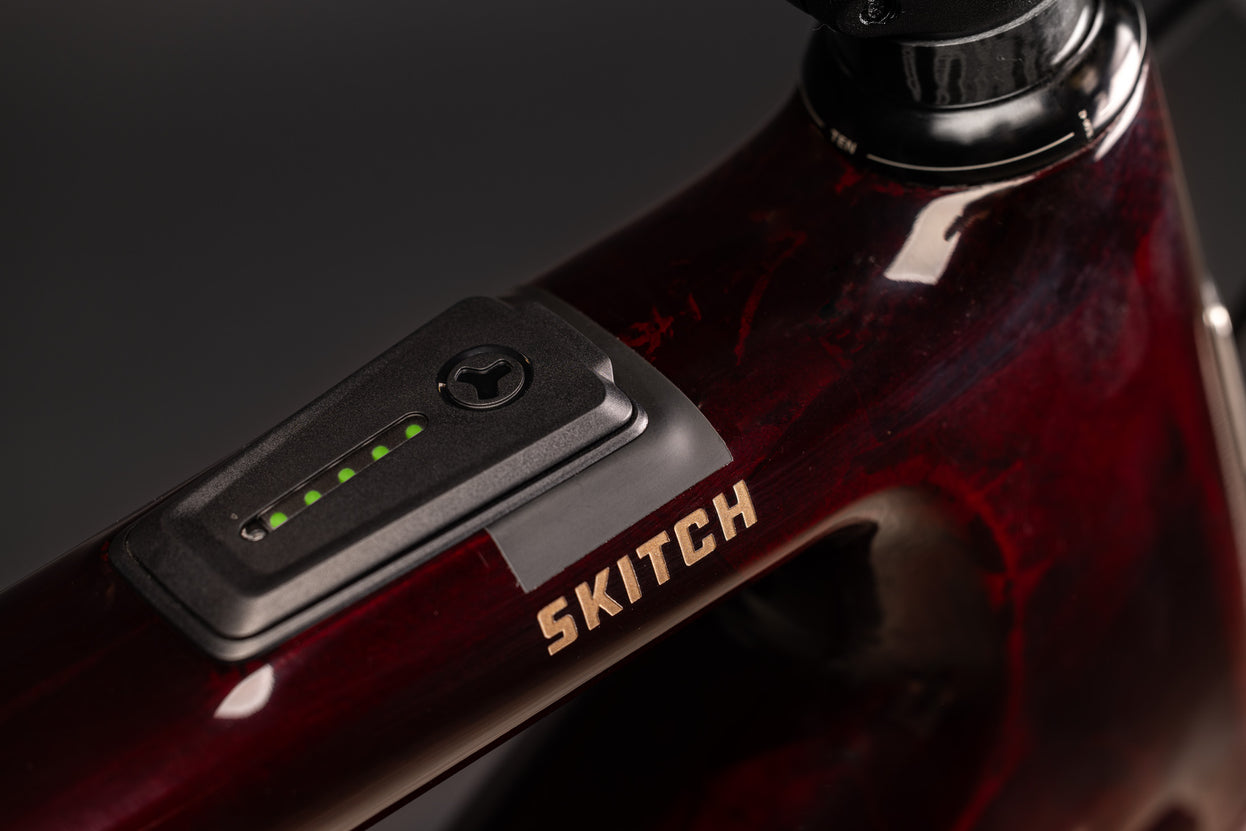

  • Battery: Fazua 430 Wh Integrated Battery
  • Drive Unit: Fazua Ride60
  • Battery Charger: Fazua Charger

Specifications

Item Details
Weight 29.83 lbs / 13.53 kg
Wheel Size 700C
Fork Axle to Crown 430mm
Fork Offset 45mm
Rear Brake Mount Flatmount 160mm Direct
Headset IS 41 / IS52
Max Chainring Size 46t
Max Rotor Size 180mm
Max Tire Clearance 50mm
Rear Spacing 148mm
UDH Compatible Yes

Size Guide

Size Rider Height Reach
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
