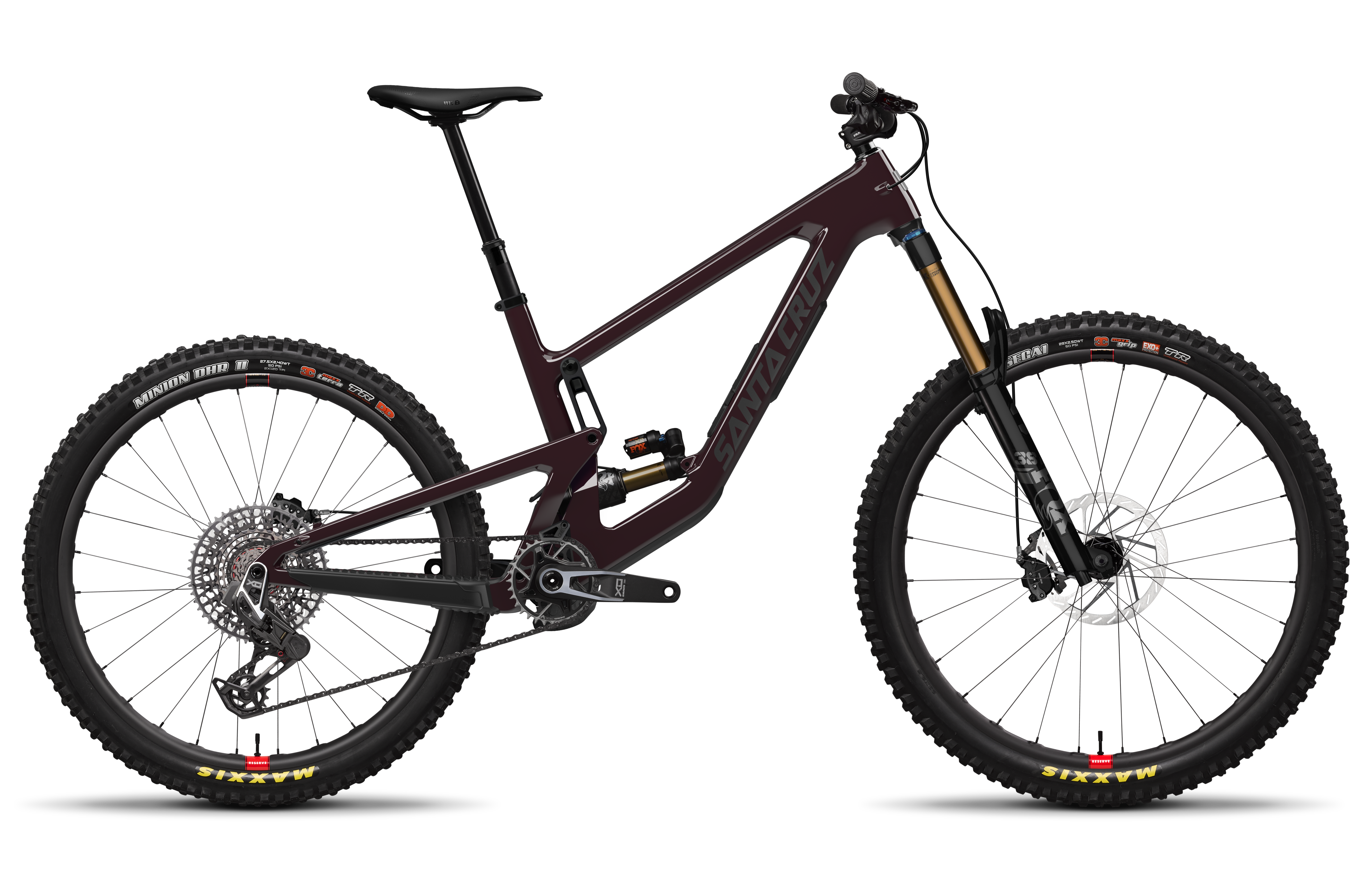

Santa Cruz Nomad X0 AXS RSV E-Bike

By Santa Cruz
$9,399.00
View details

The Santa Cruz Nomad X0 AXS RSV E-Bike is built for the ultimate mountain biking experience. Whether you're conquering steep climbs, navigating technical descents, or hitting the bike park, this e-bike is up for any challenge. Featuring a CC Carbon frame, 170mm of VPP™ suspension, and Reserve Carbon Wheels, the Nomad offers unmatched strength, responsiveness, and performance. Equipped with SRAM X0 Eagle AXS T-Type components and Fox Float X2 Factory shock, this e-bike is ready to take on whatever trails you throw at it.

Standout Features

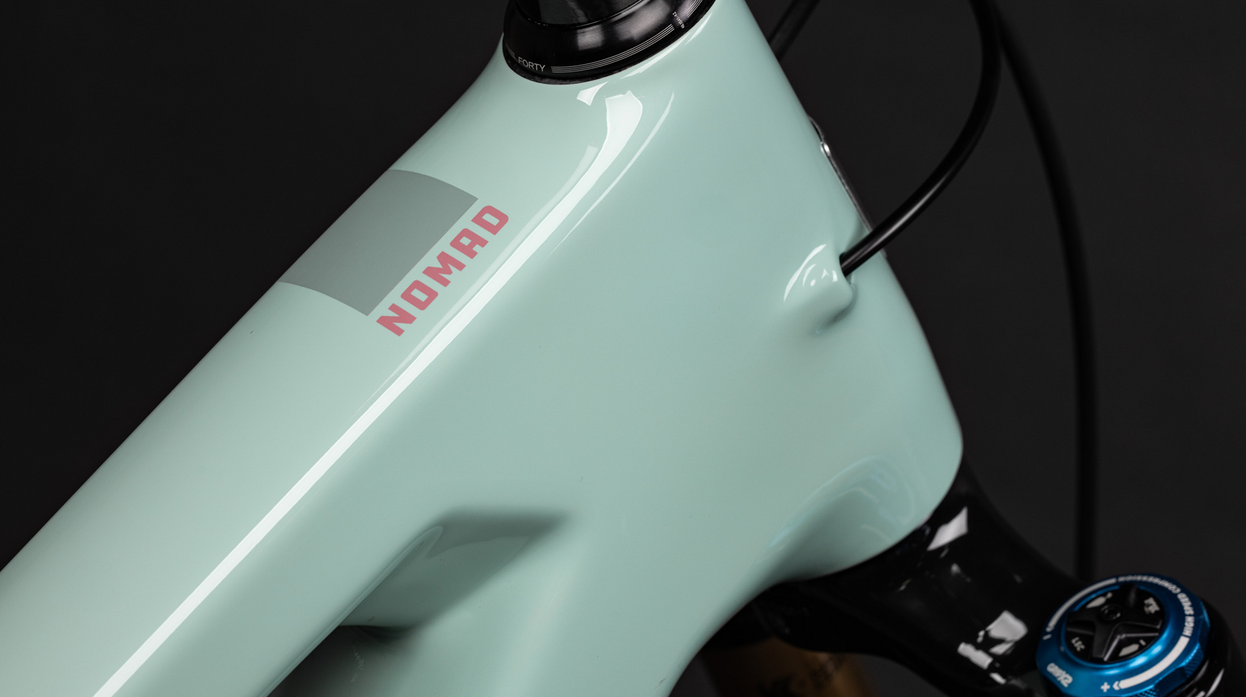

  • CC Carbon Frame
  • Reserve Carbon Wheels

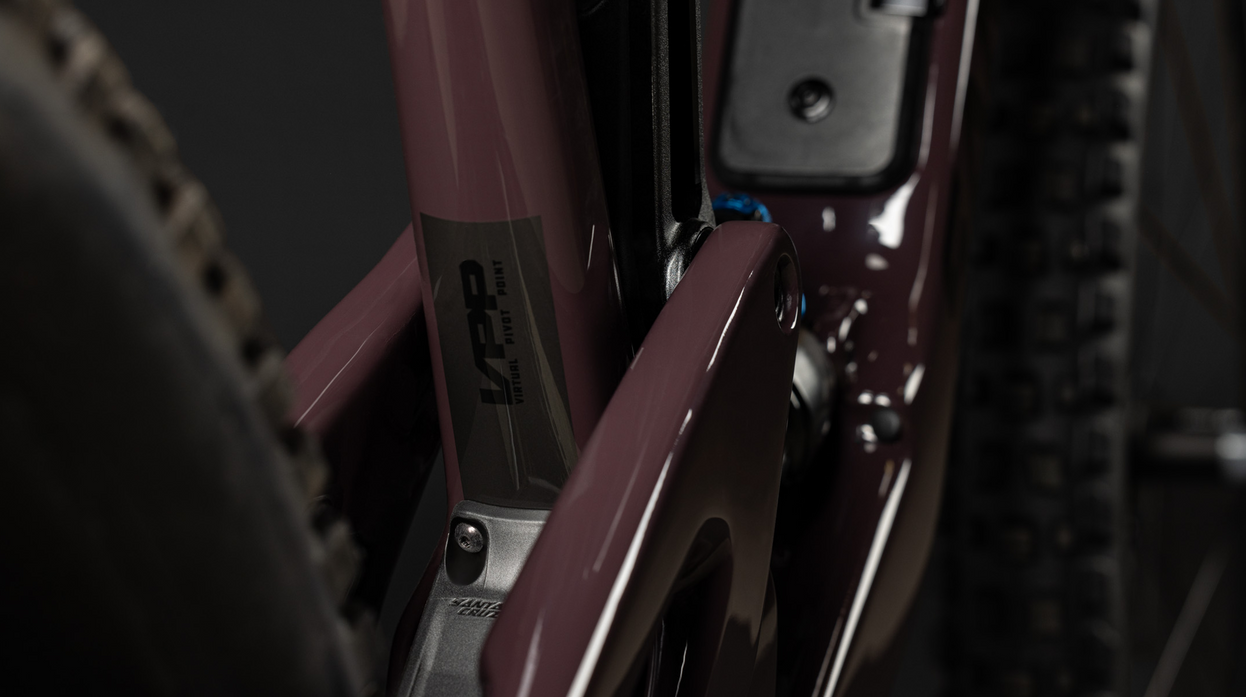

  • VPP™ Suspension

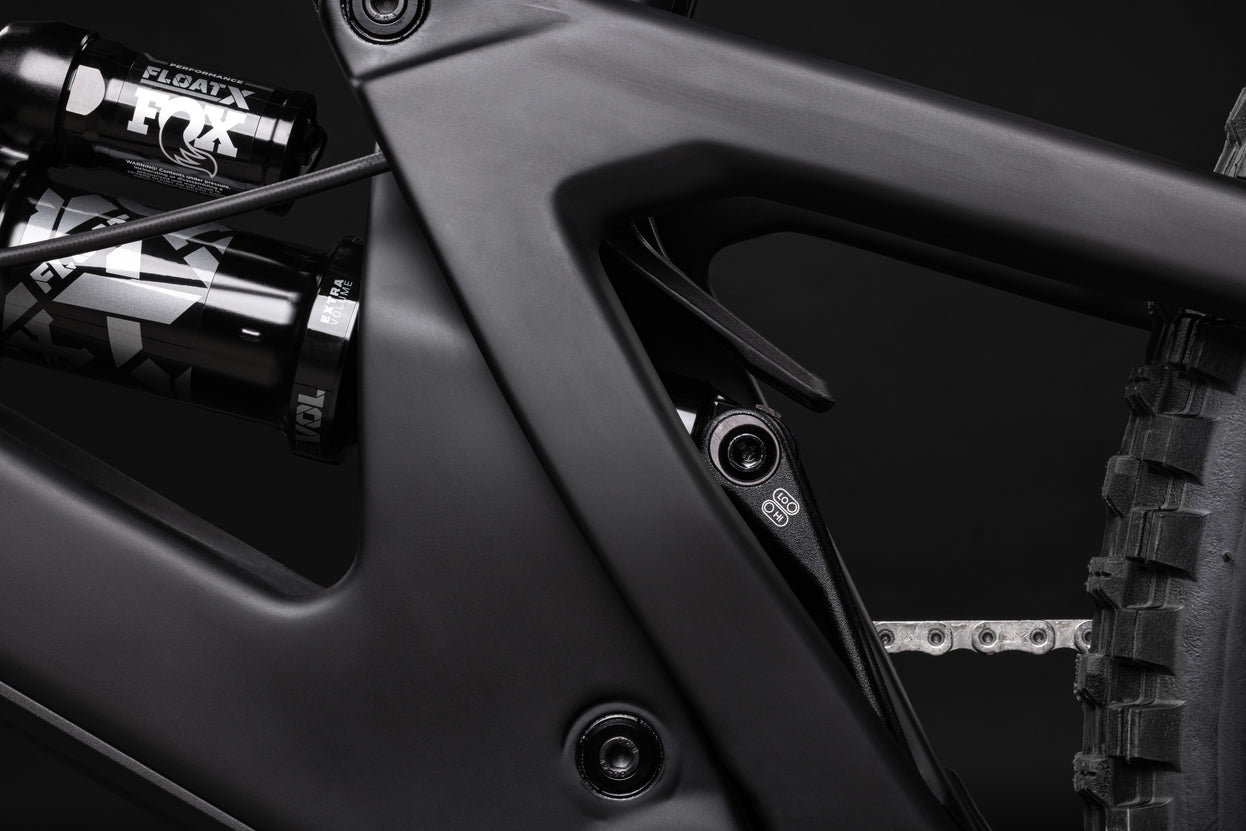

  • Flip Chip

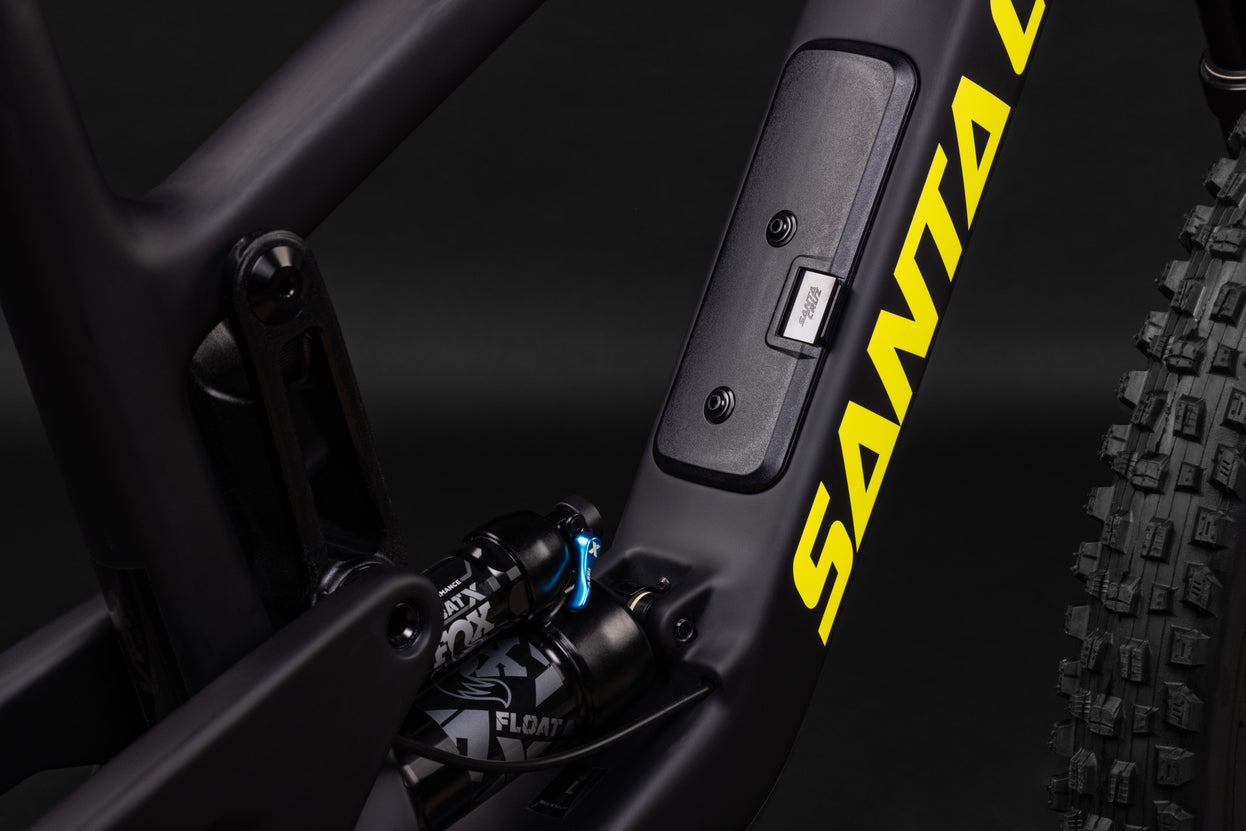

  • Glovebox

Frame

  • Material: Carbon CC
  • Travel: 170mm

Suspension

  • Fork: FOX 38 Float Factory Elite, Grip X2, 170mm -or- RockShox Zeb Ultimate, 170mm

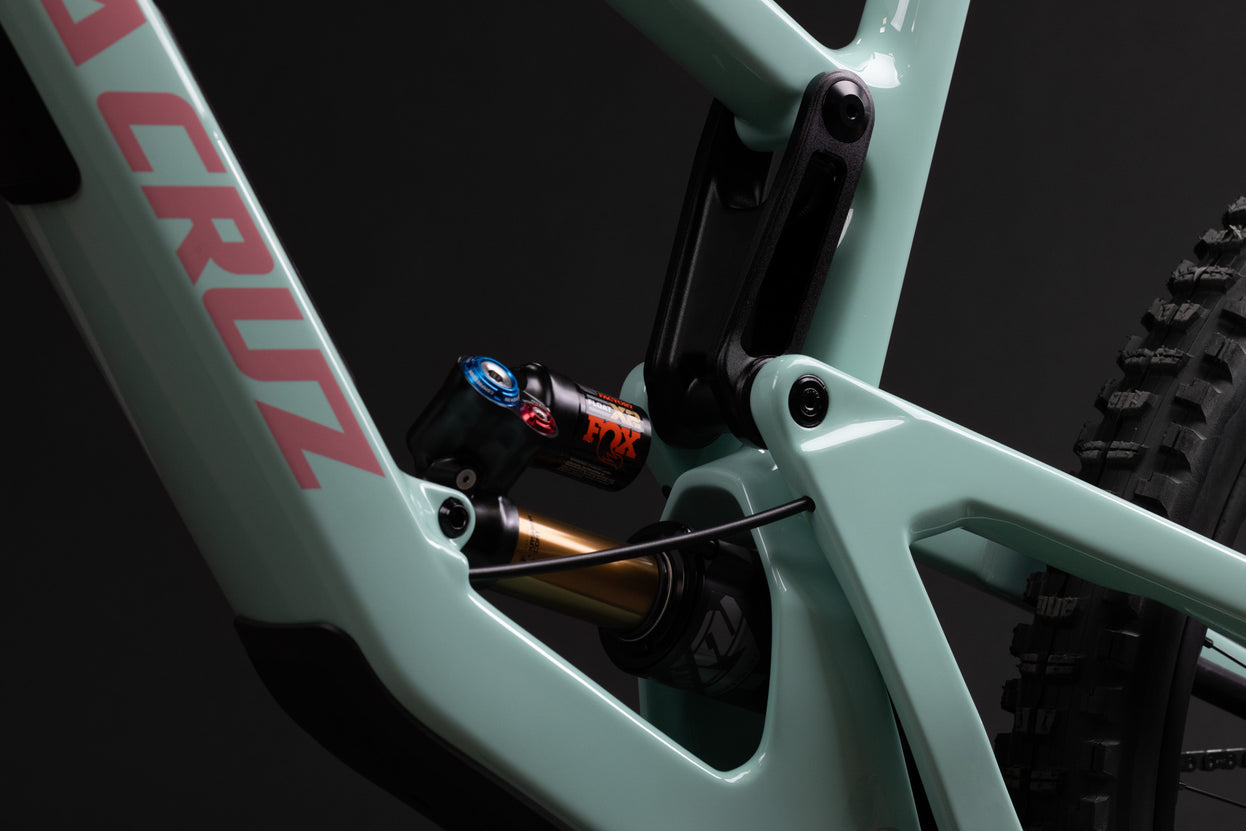

  • Shock: Fox Float X2 Factory, 230x65

Drivetrain

  • Bottom Bracket: SRAM DUB 73mm MTB Wide BB
  • Cassette: SRAM X0 Eagle T-Type, 10-52t
  • Chain: SRAM X0 Eagle T-Type, Flattop, 12spd
  • Chainguide: OneUp Bash Guide
  • Crankset: SRAM X0 Eagle DUB T-Type Crankset, 32t
  • Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12spd
  • Right Shifter: SRAM AXS Pod Controller Rocker Paddle

Brakes

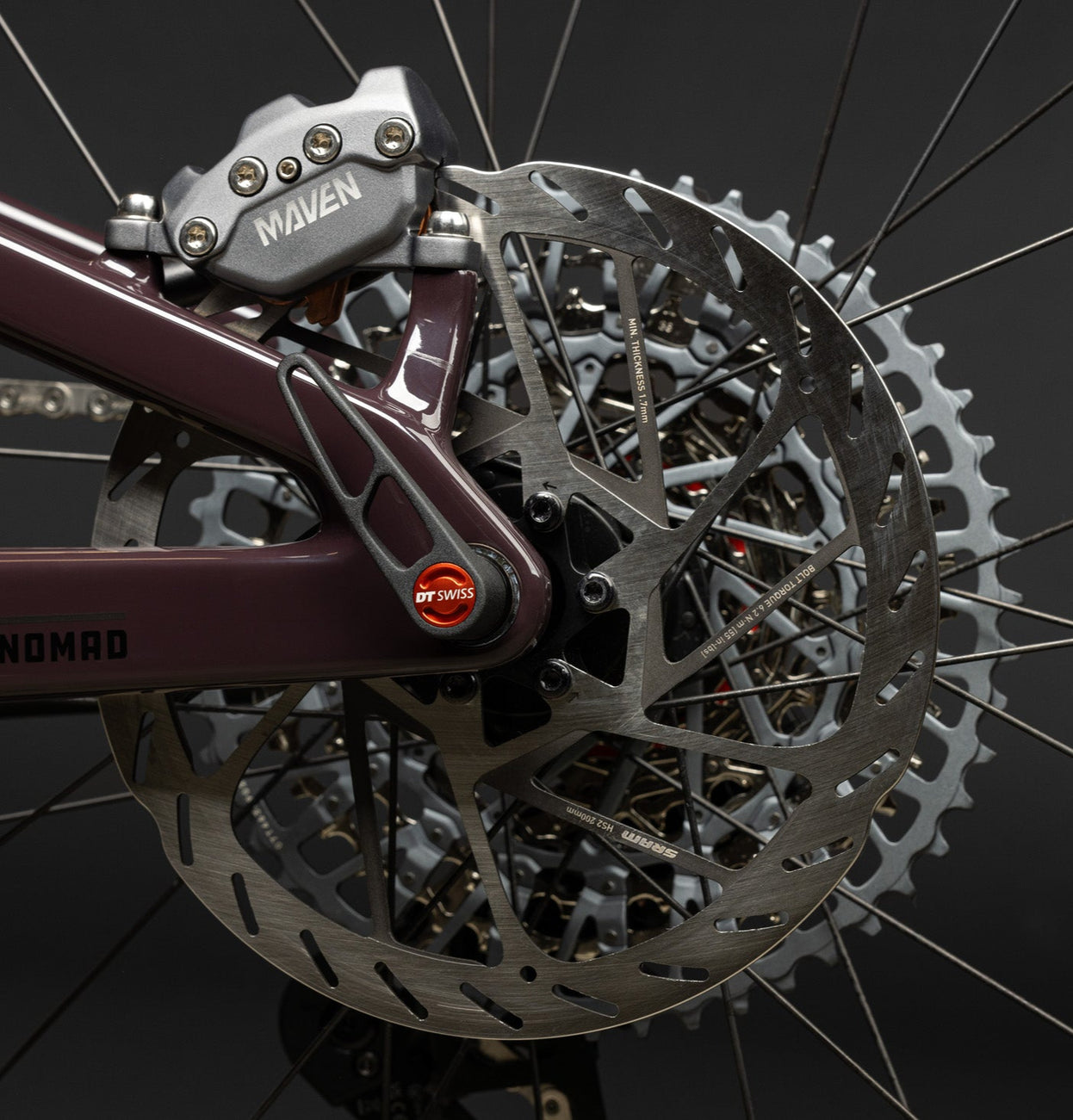

  • Brakes: SRAM Maven Silver Stealth
  • Front Rotor: SRAM HS2 200mm
  • Rear Rotor: SRAM HS2 200mm

Cockpit

  • Grips / Bar Tape: Santa Cruz Bicycles House Grips
  • Handlebars: Santa Cruz 35 Carbon Bar, 800mm
  • Headset: Cane Creek 40 IS Integrated Headset
  • Saddle: WTB Silverado Medium Fusion, CroMo SL
  • Seatpost: OneUp Dropper Post, 31.6

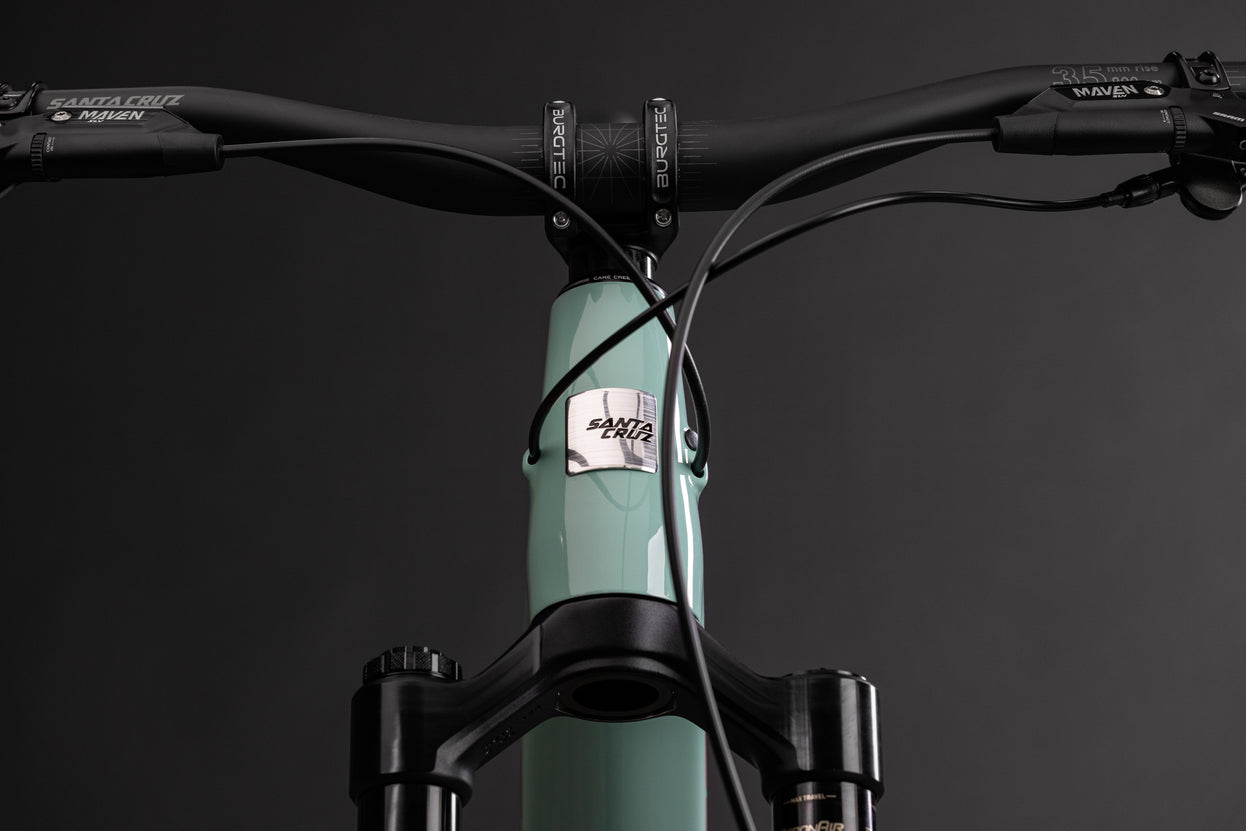

  • Stem: Burgtec Enduro MK3, 42mm

Wheels & Tires

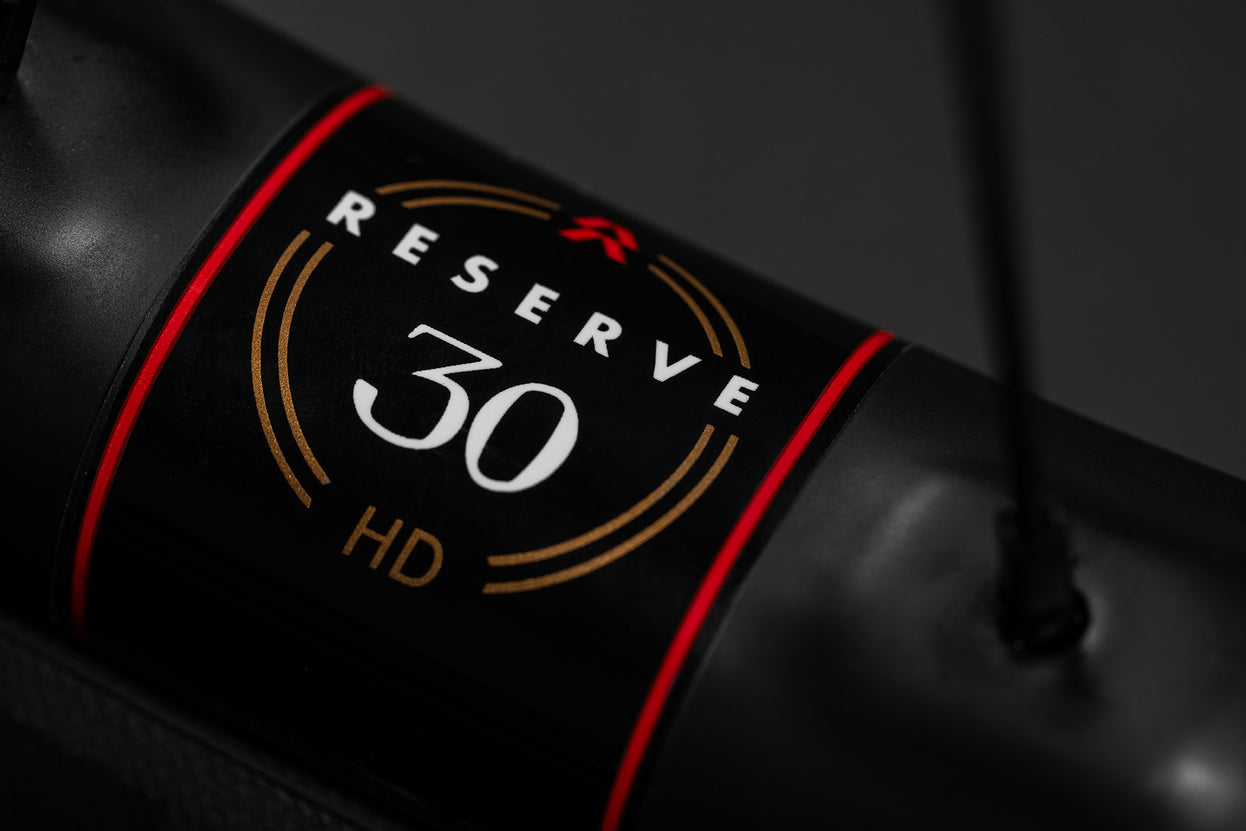

  • Front Rim: Reserve 30|HD Carbon
  • Front Hub: Industry Nine 1/1, 15x110, 6-Bolt, 28h
  • Front Tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
  • Rear Rim: Reserve 30|HD Carbon
  • Rear Hub: Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h
  • Rear Tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down

Specifications

Item Details
Weight 34.45 lbs / 15.62 kg
Wheel Size MX
Front Travel 170mm
Rear Travel 170mm
Bottom Bracket Shell 73mm Threaded
Rear Brake Mount 200 PM
Fork Compatibility 170-180mm
Fork Offset 44mm
Front Derailleur Mount No compatibility
Headset Integrated (IS41/52)
Max Tire Clearance 2.5"
Seat Clamp Diameter 36.4mm
Seat Post Diameter 31.6mm
Shock Bushing Size Front: 30x8, Rear: 30x8
Shock Stroke 65mm
Suspension System VPP™
Water Bottle Mounts 1

Size Guide

Size Rider Height Reach
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
XX-Large 6'4" – 6'7" (193–200 cm) 525 mm
