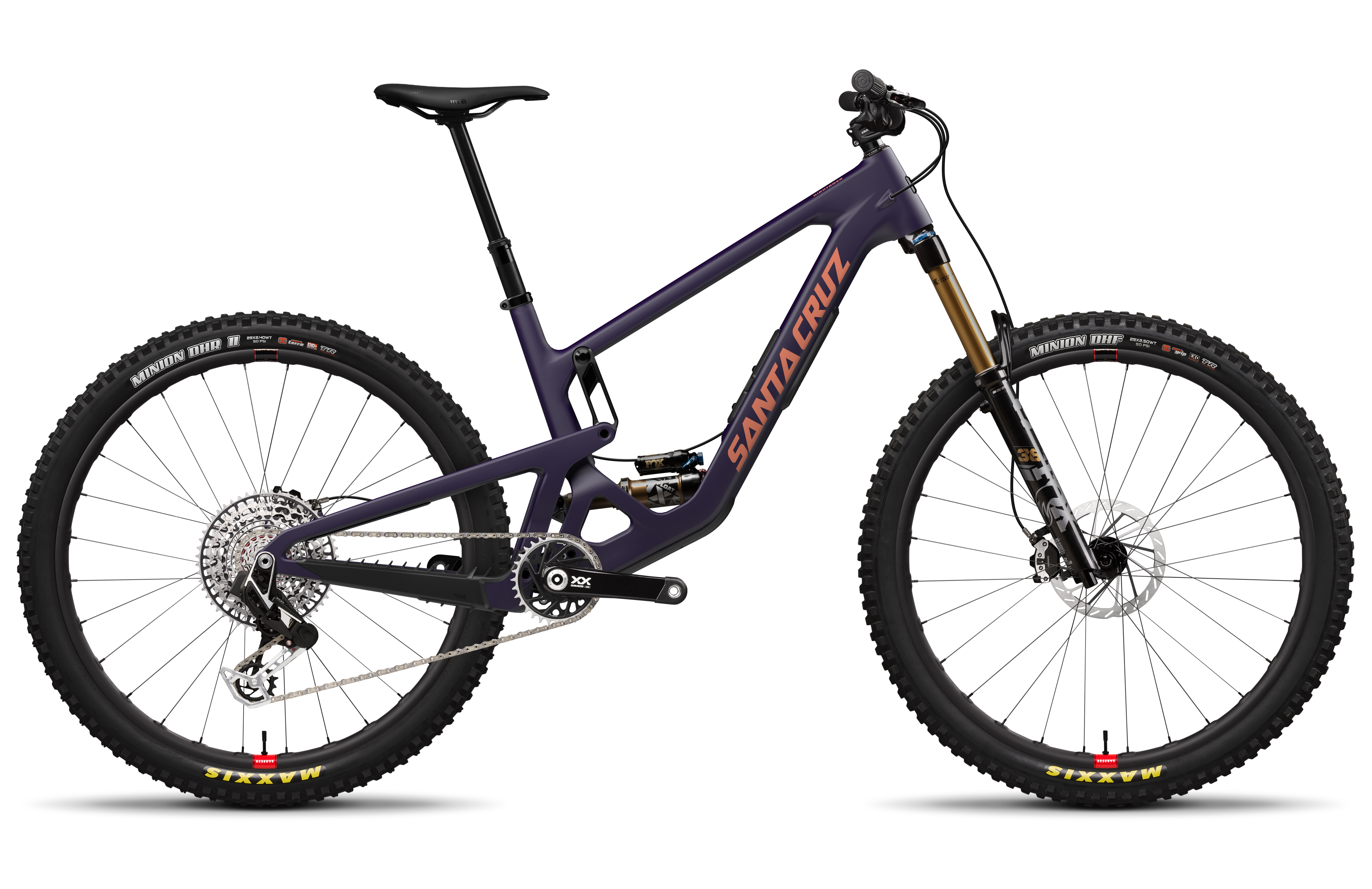

The Santa Cruz Hightower XX AXS RSV is built for riders who demand trail versatility and premium performance. Its Carbon CC frame, paired with a balanced 160mm front / 150mm rear travel VPP™ suspension, makes this a modern all-mountain master. Equipped with Reserve 30|HD Carbon wheels, Industry Nine Hydra hubs, and a cutting-edge SRAM XX Eagle AXS T-Type drivetrain, the Hightower delivers a lively, agile, and confidence-inspiring ride whether you’re conquering alpine trails or hammering your favorite local loops.
Standout Features

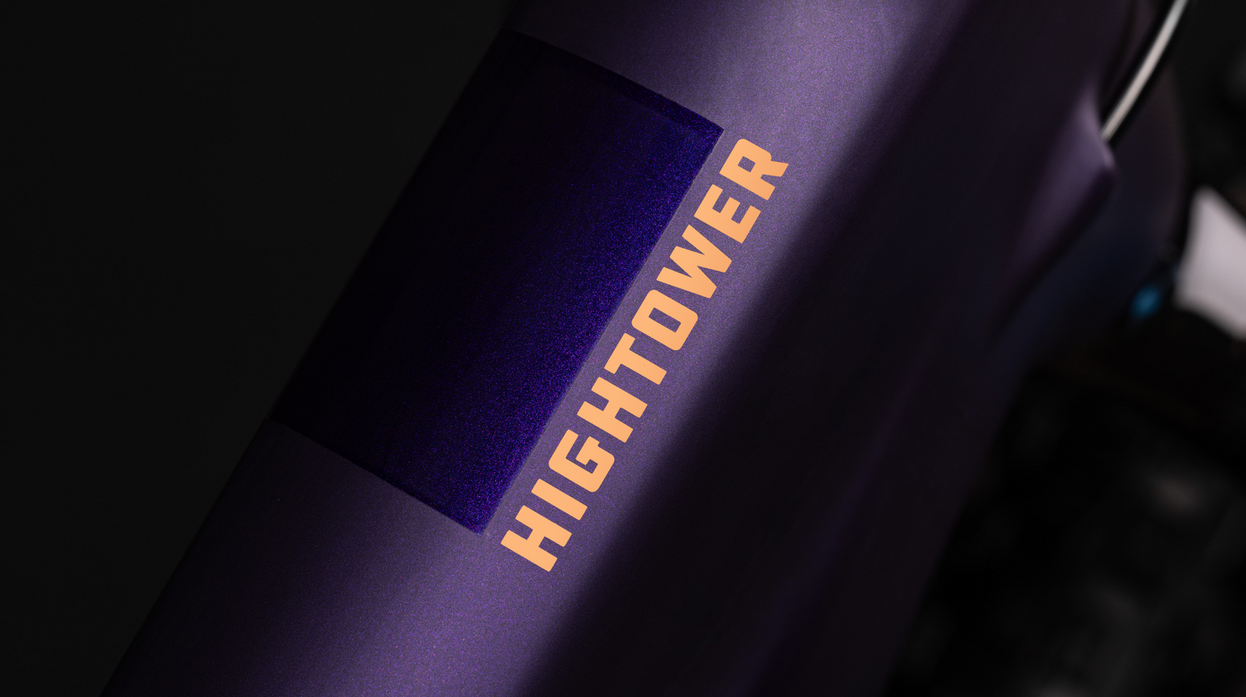

- CC Carbon Frame
- Reserve 30|HD Carbon Wheels
- SRAM XX Eagle AXS T-Type 12-Speed Drivetrain

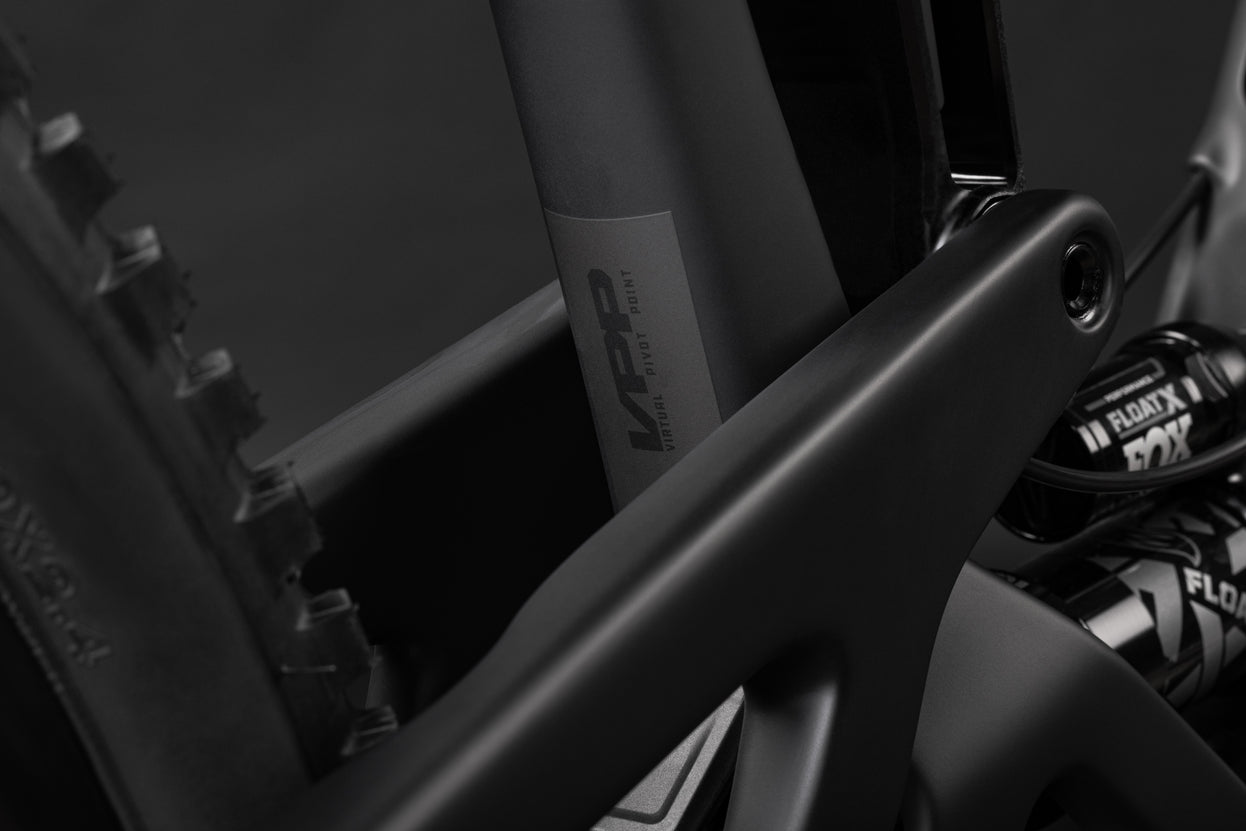

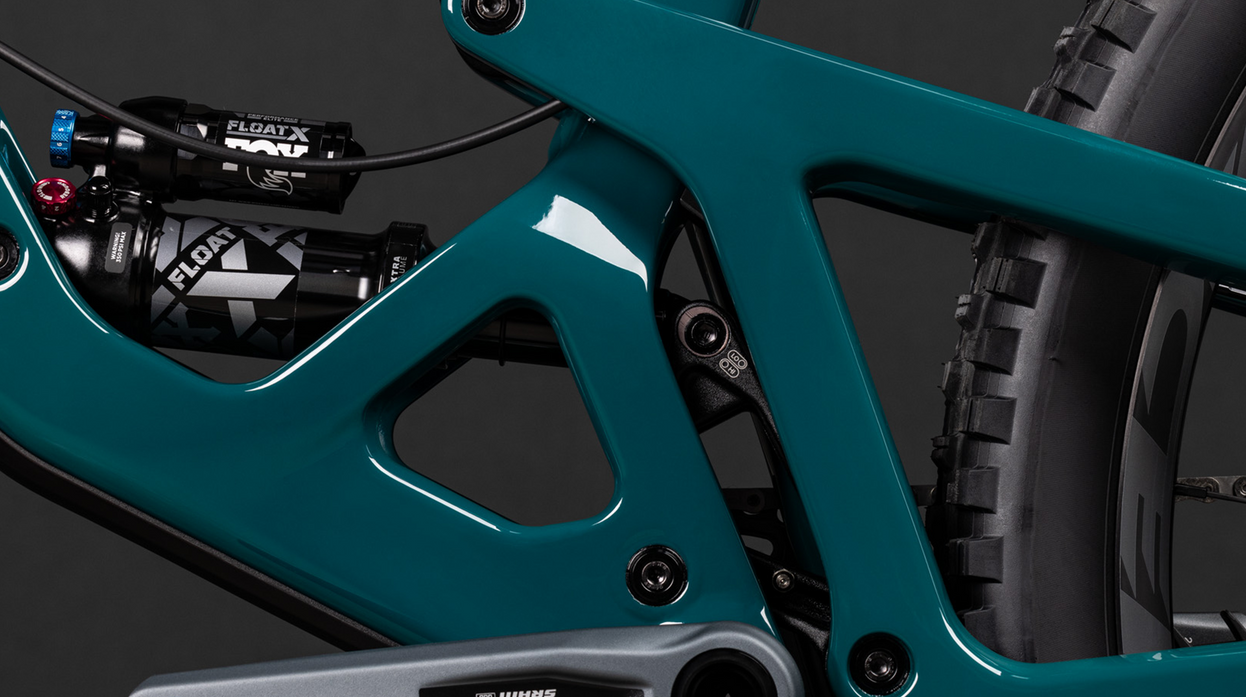

- VPP™ Suspension with Flip Chip

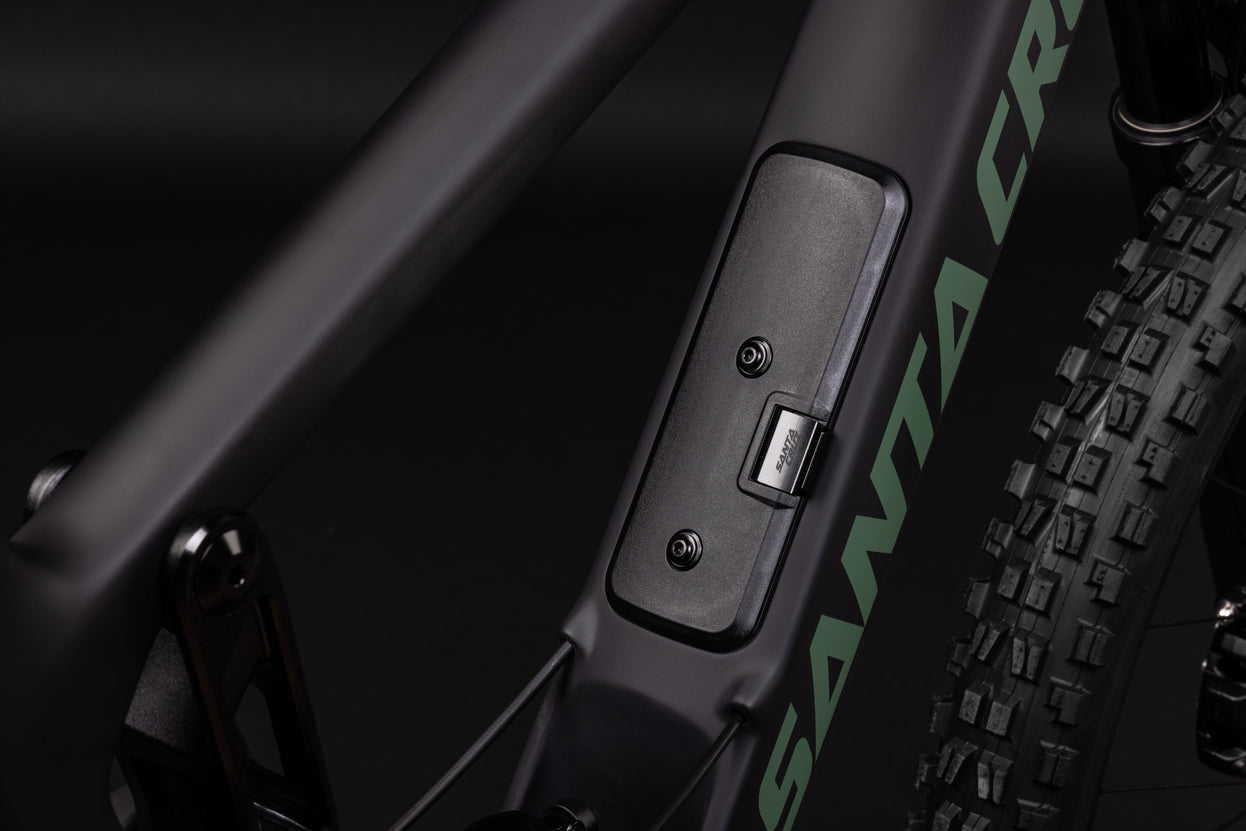

- Glovebox Integrated Storage System
- Chris King DropSet 3 Integrated Headset
Frame
- Material: Carbon CC
- Travel: Front 160mm / Rear 150mm
Suspension
- Fork: Fox 36 Float Factory, Grip X2, 160mm

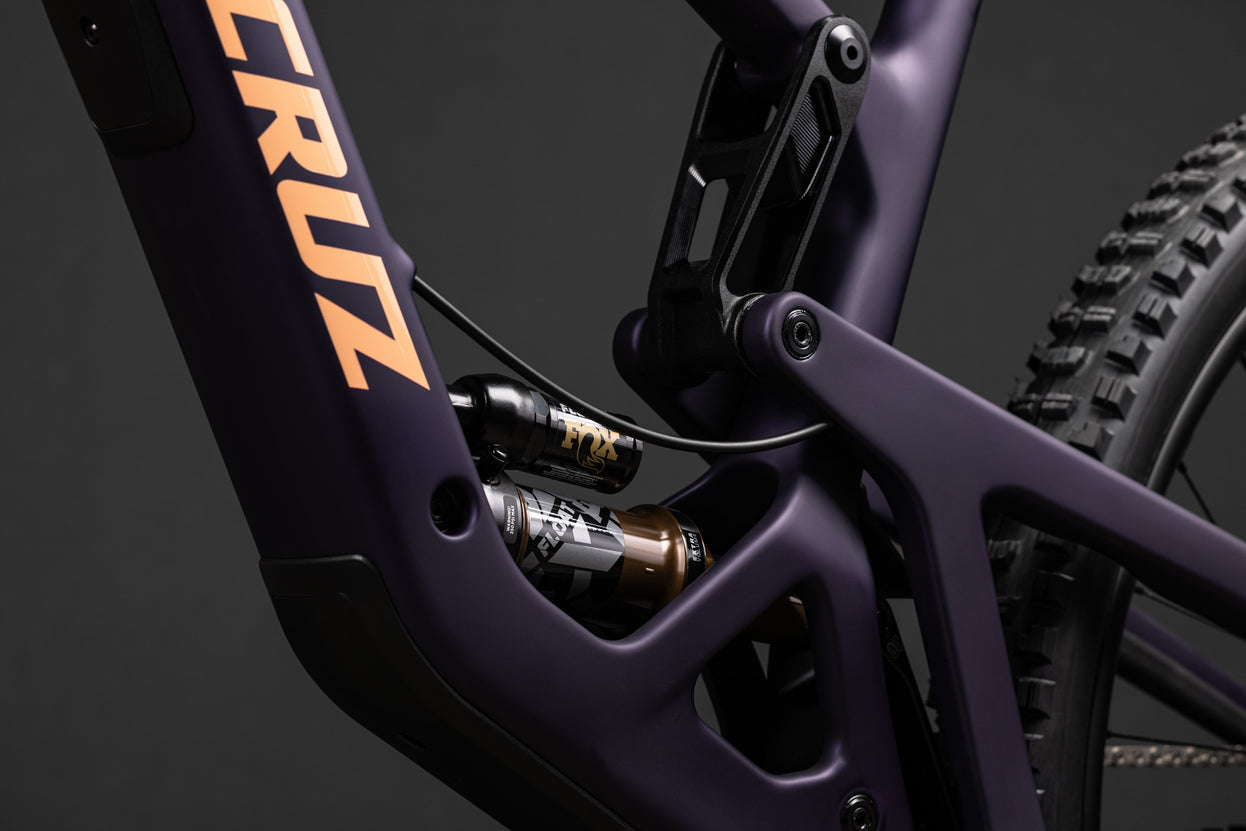

- Shock: FOX Float X Factory, 230x57.5
Drivetrain
- Bottom Bracket: SRAM DUB 73mm MTB Wide BB
- Cassette: SRAM XX Eagle T-Type, 10-52t
- Chain: SRAM XX SL Eagle T-Type, Flattop, 12spd
- Crankset: SRAM XX Eagle DUB T-Type, 32t
- Rear Derailleur: SRAM XX Eagle AXS T-Type, 12spd
- Right Shifter: SRAM AXS Pod Controller Rocker Paddle
Brakes

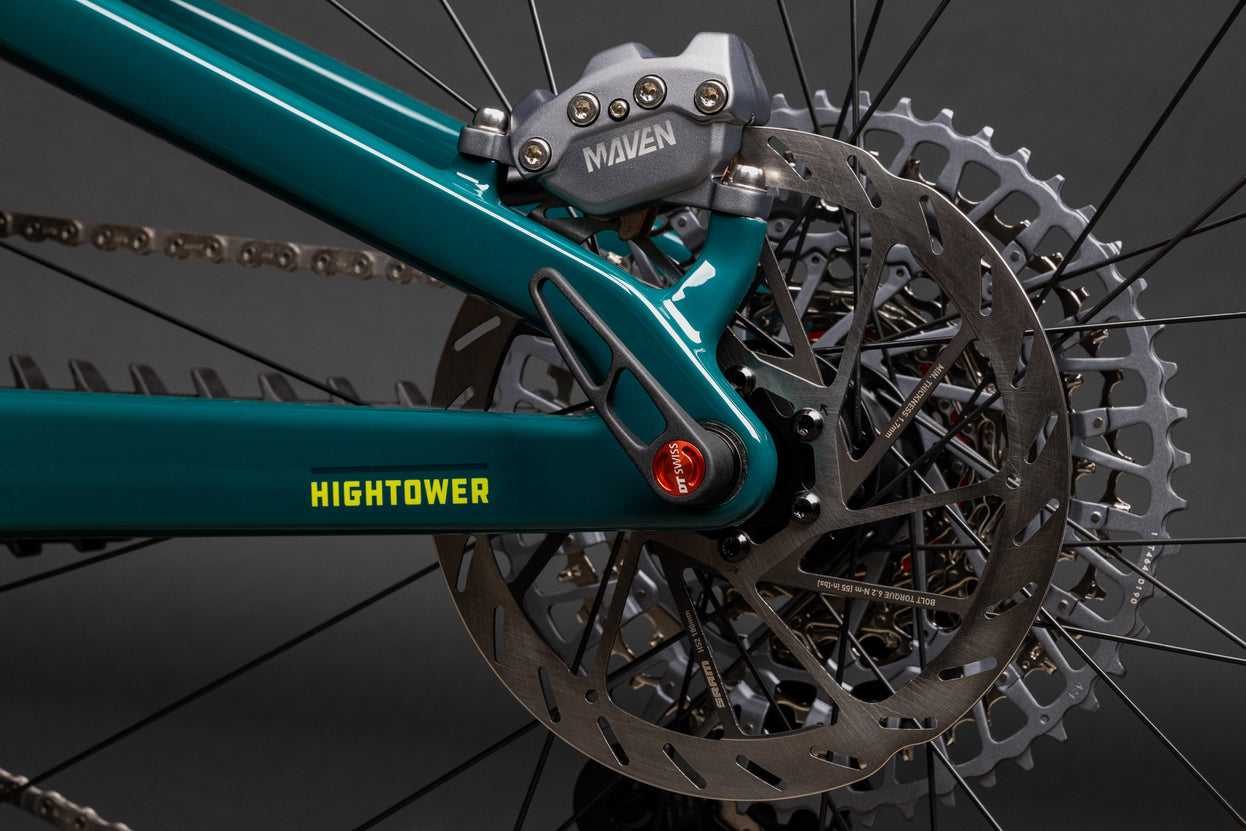

- Front Brake: SRAM Maven Ultimate Stealth
- Front Rotor: SRAM HS2 180mm
- Rear Rotor: SRAM HS2 180mm

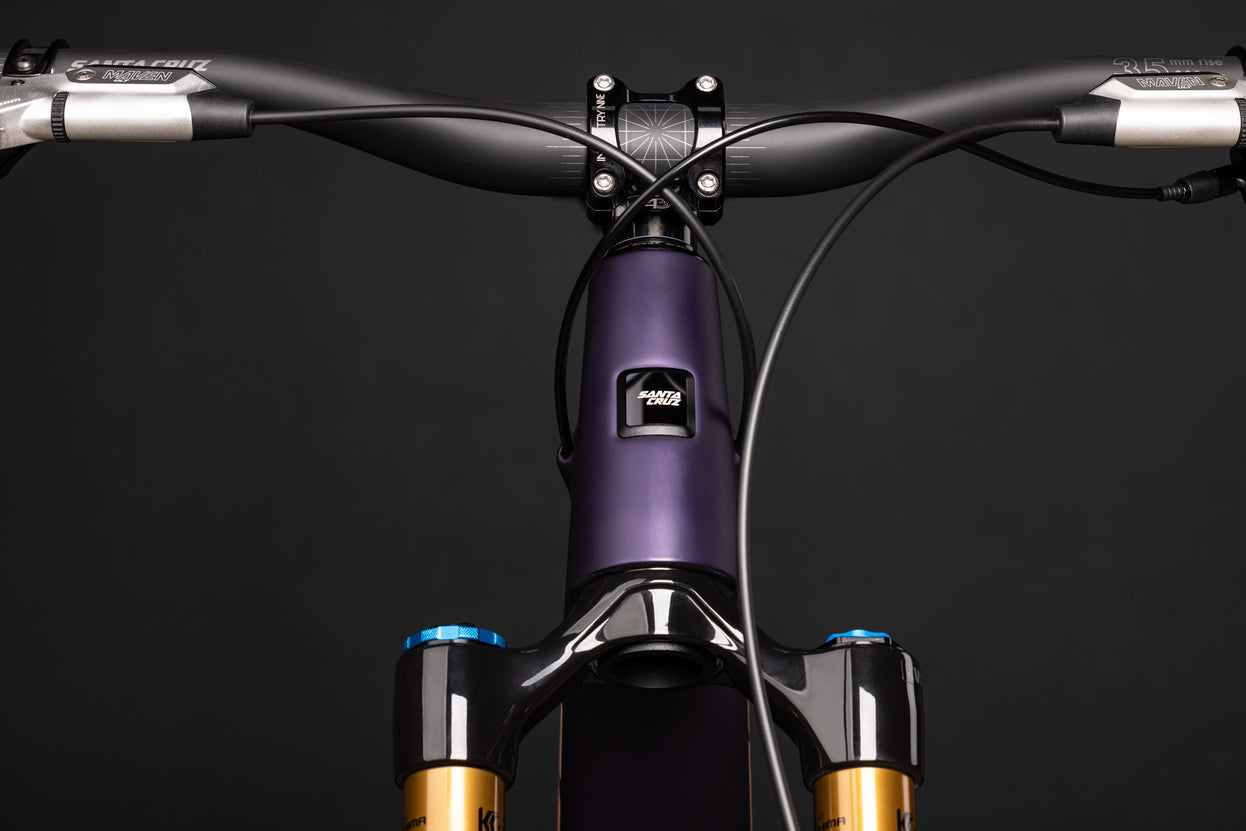

Cockpit
- Dropper Length: S - 120mm, M - 150mm, L - 180mm, XL - 210mm, XXL - 210mm
- Grips / Bar Tape: Santa Cruz Bicycles House Grips
- Handlebars: Santa Cruz 35 Carbon Bar, 800mm
- Headset: Chris King DropSet 3 Integrated Headset
- Saddle: WTB Silverado Medium Fusion, Stainless
- Seatpost: OneUp Dropper Post, 31.6
- Stem: Industry Nine A35, 40mm
Wheels & Tires

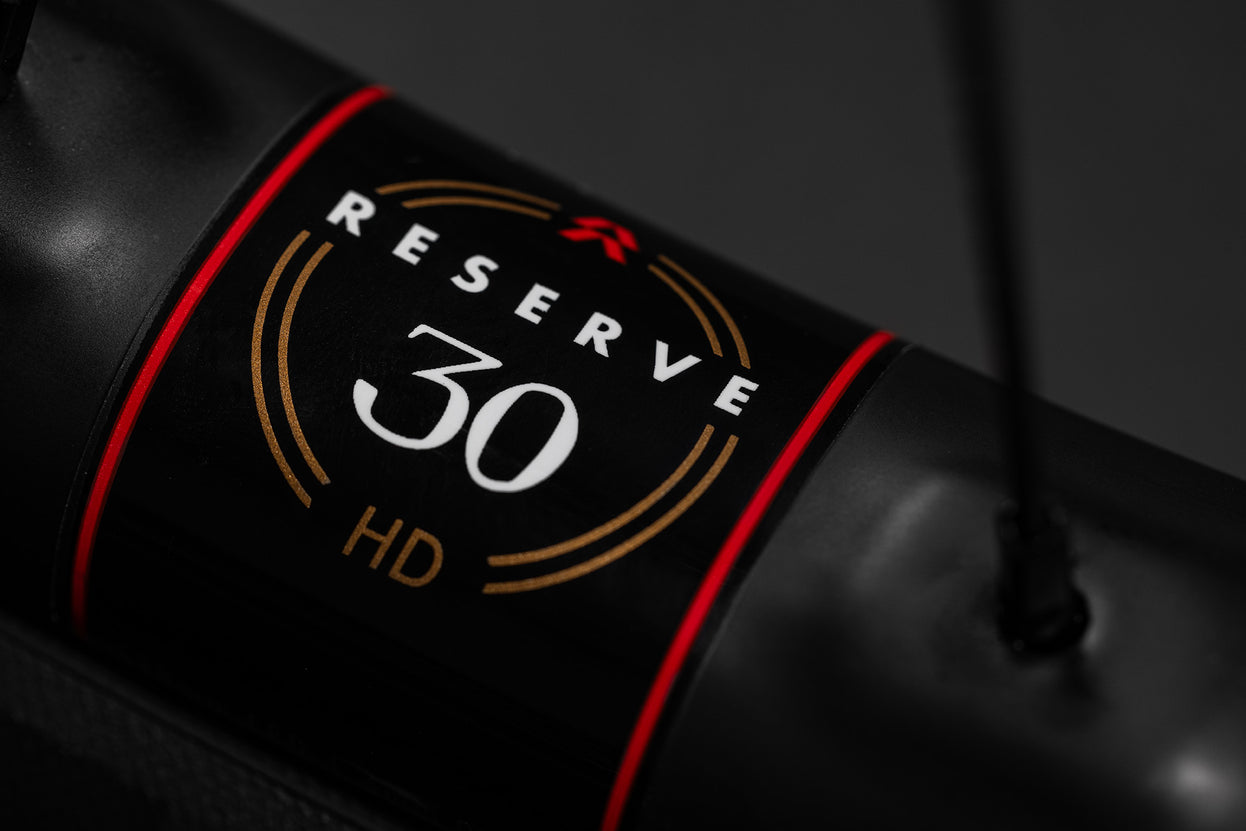

- Front Rim: Reserve 30|HD Carbon
- Front Hub: Industry Nine Hydra, 15x110, 6-Bolt, 28h
- Front Tire: Maxxis Minion DHF 29"x2.5" WT, 3C MaxxGrip, EXO
- Rear Rim: Reserve 30|HD Carbon
- Rear Hub: Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h
- Rear Tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+
- Valves: Reserve Fillmore Valves
Specifications
| Item | Details |
|---|---|
| Wheel Size | 29" |
| Front Travel | 160mm |
| Rear Travel | 150mm |
| Weight | 31.7 lbs / 14.38 kg |
| Bottom Bracket Shell | 73mm Threaded |
| Rear Brake Mount | 180mm PM |
| Shock Length | 230mm |
| Fork Offset | 44mm |
| Front Derailleur Mount | No compatibility |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 36t |
| Max Rotor Size | 223mm |
| Max Tire Clearance | 2.5" |
| Recommended Sag | 30% (17.25mm) |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size | Front: 40x10 (standard bushing), Rear: 30x8 (roller bearing) |
| Shock Stroke | 57.5mm |
| Suspension System | VPP™ |
| Water Bottle Mounts | 1 |
Size Guide
| Size | Rider Height | Reach |
|---|---|---|
| Small | 5'1" – 5'5" (155–165 cm) | 435 mm |
| Medium | 5'5" – 5'9" (165–175 cm) | 460 mm |
| Large | 5'9" – 6'1" (175–185 cm) | 480 mm |
| X-Large | 6'0" – 6'4" (183–193 cm) | 500 mm |
| XX-Large | 6'4" – 6'7" (193–200 cm) | 525 mm |

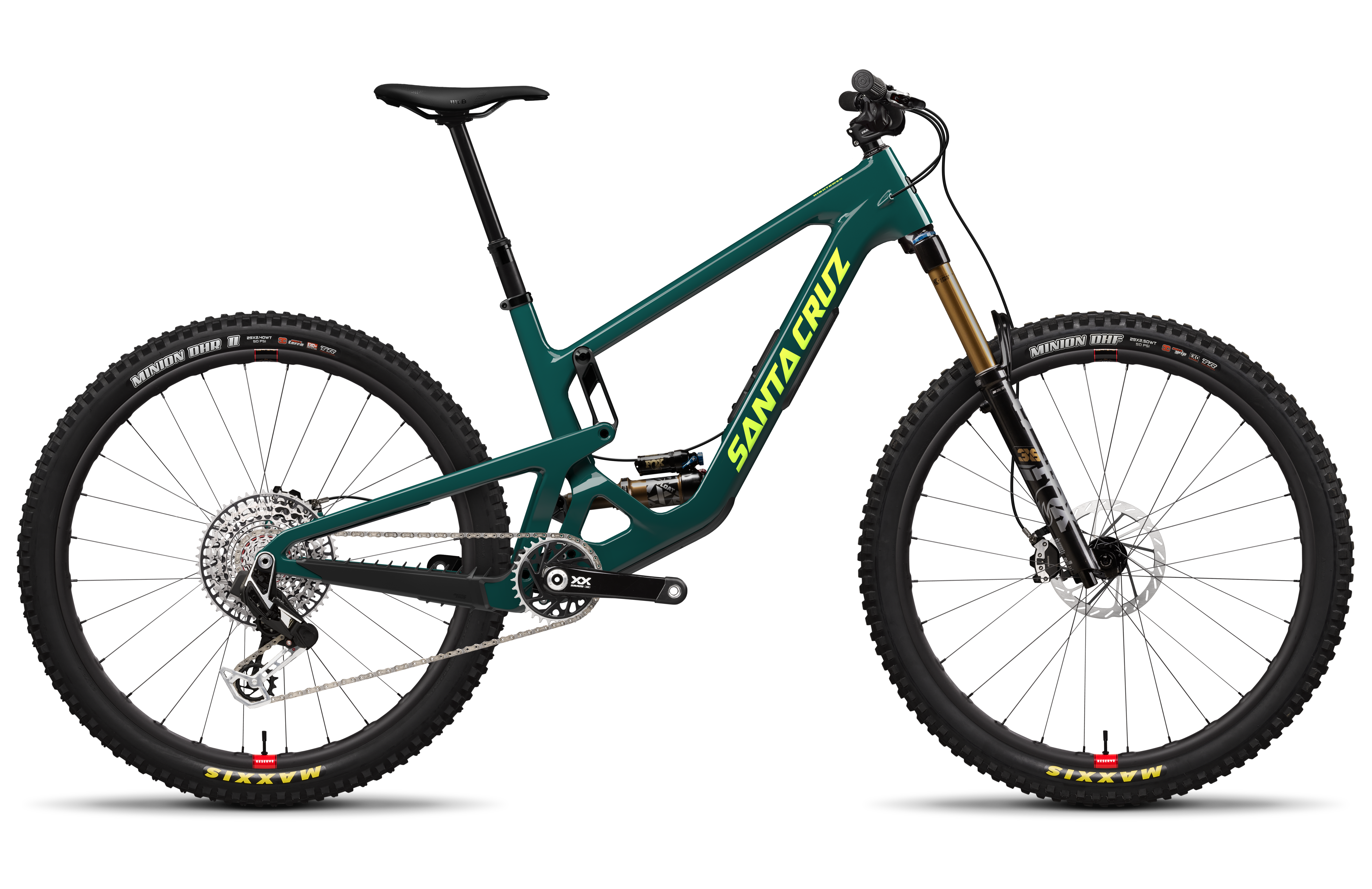

Santa Cruz Hightower XX AXS RSV
