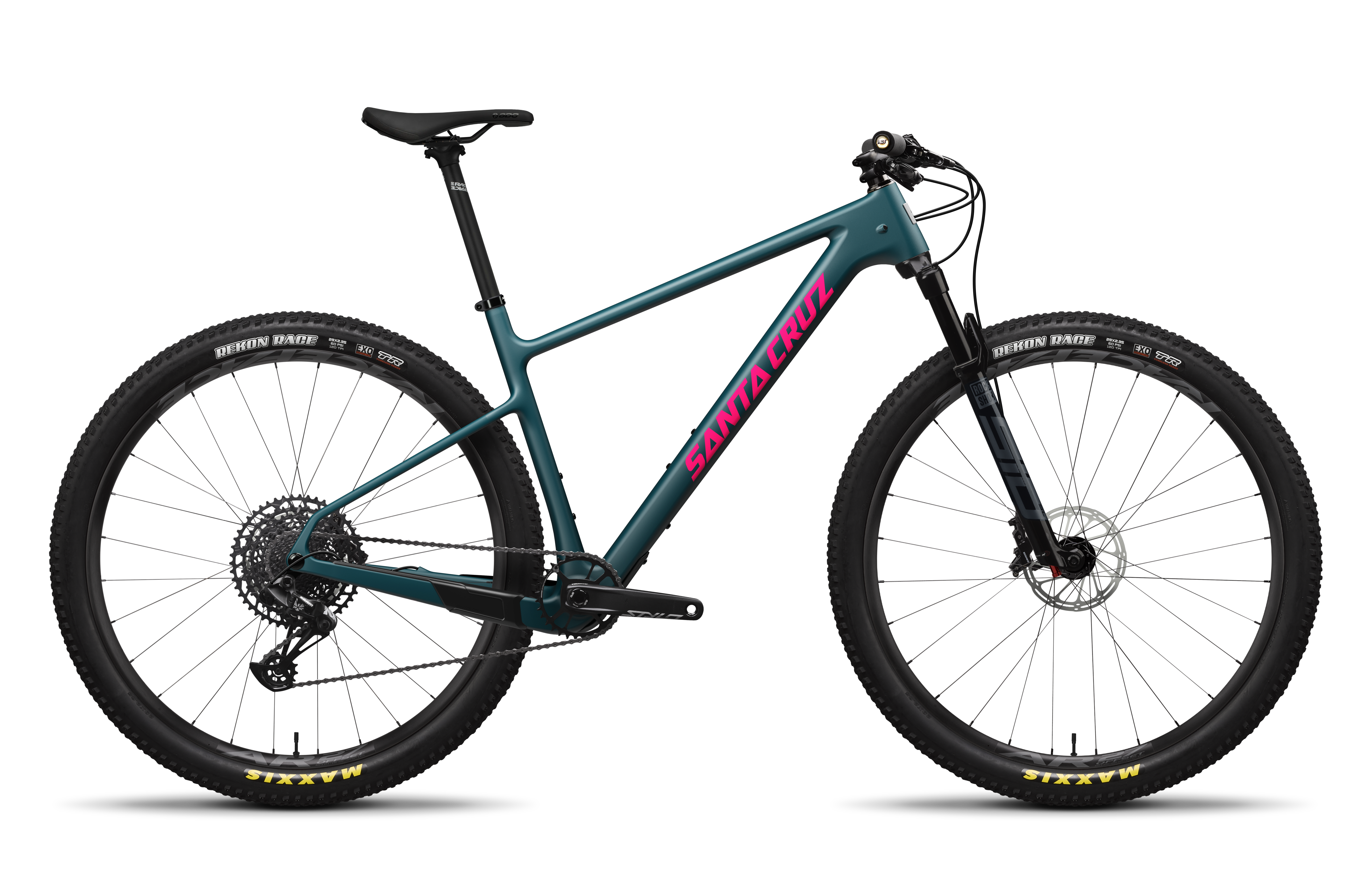

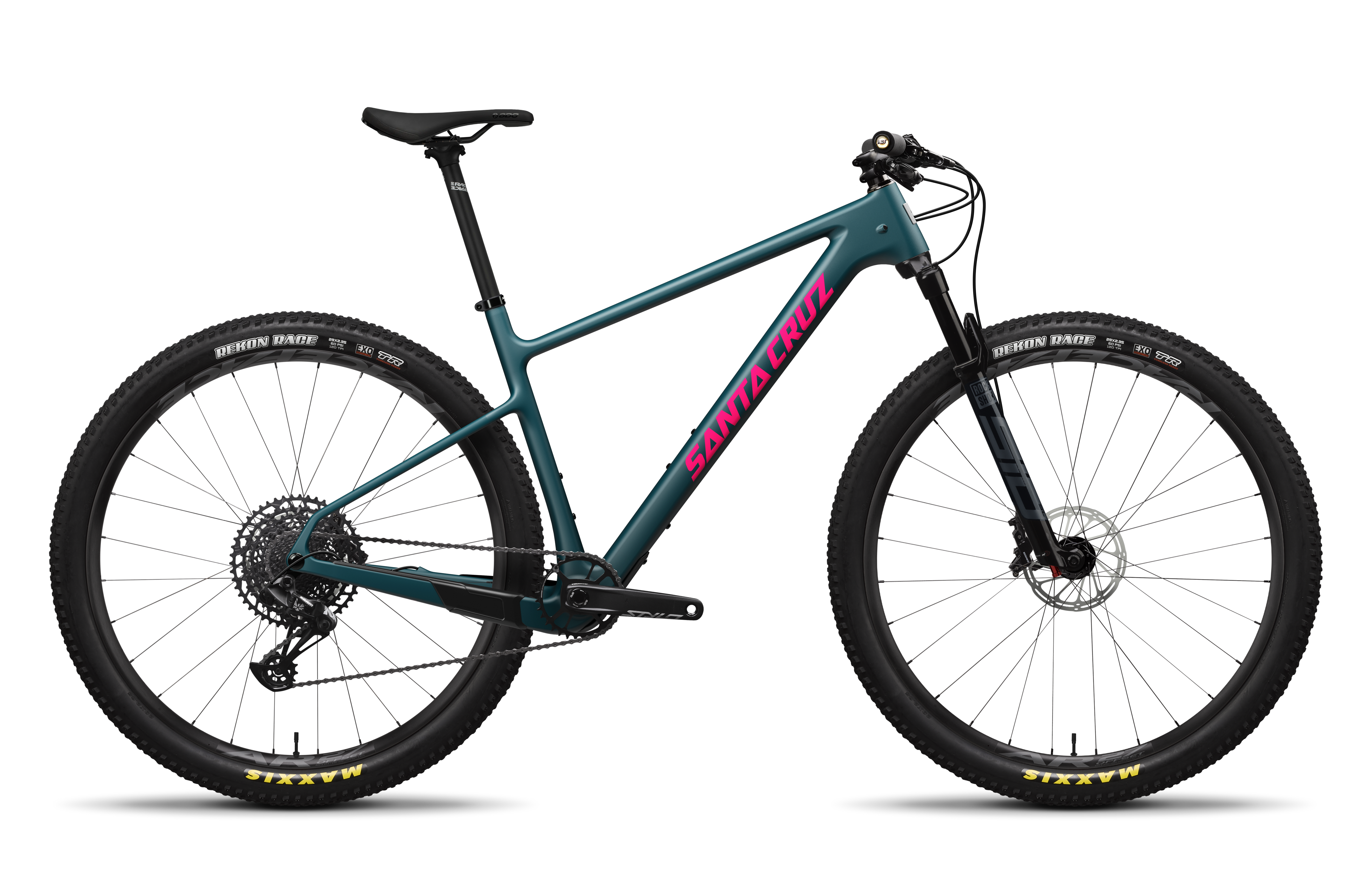

Santa Cruz Highball R

By Santa Cruz
$3,299.00
View details

The Santa Cruz Highball R is a versatile hardtail designed to maximize performance on every trail. Made from Carbon C, it combines a lightweight frame with reliable, efficient components. With the SRAM NX Eagle 12-speed drivetrain, powerful SRAM G2 R brakes, and modern geometry, this bike ensures you’re ready for whatever the trail throws at you. Whether you're racing or just enjoying a long ride, the Highball R delivers a smooth and responsive experience.

Standout Features

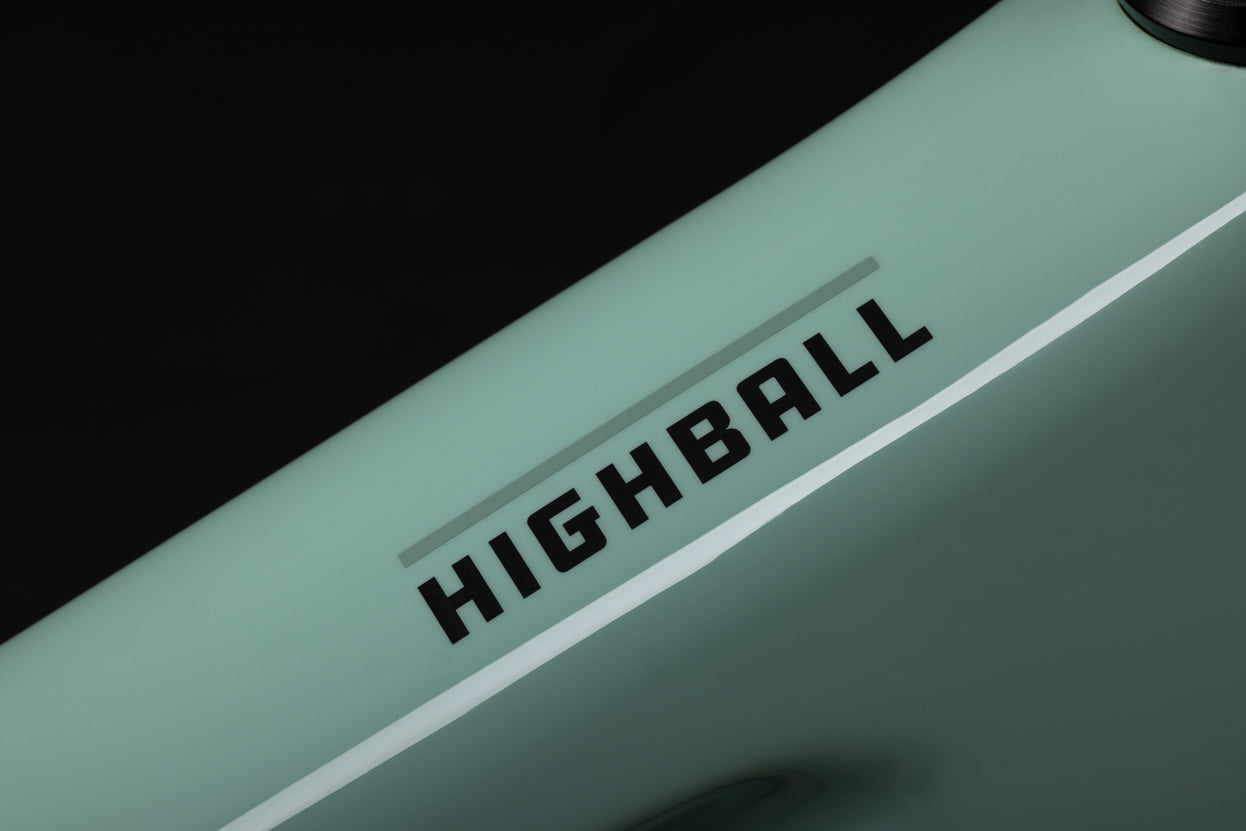

  • C Carbon Frame for strength and lightness

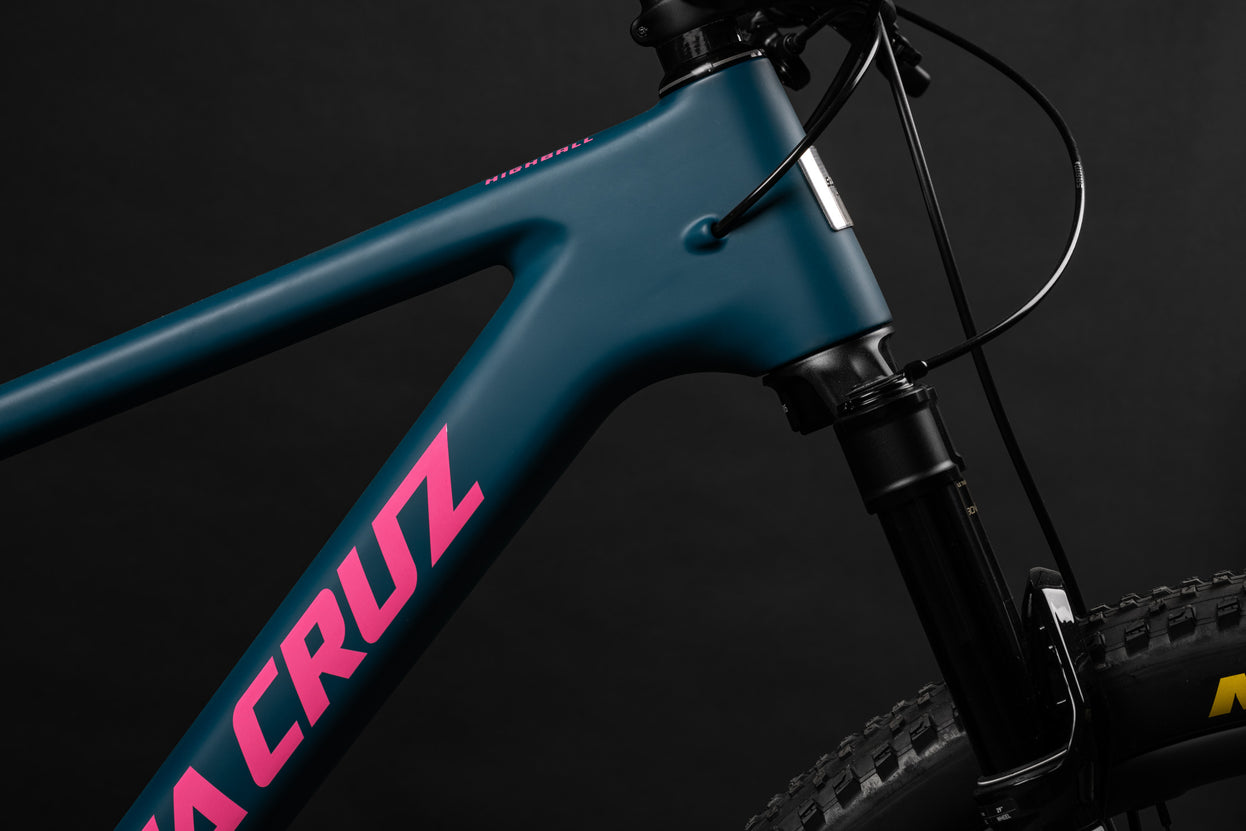

  • Modern Geometry designed for agility and control

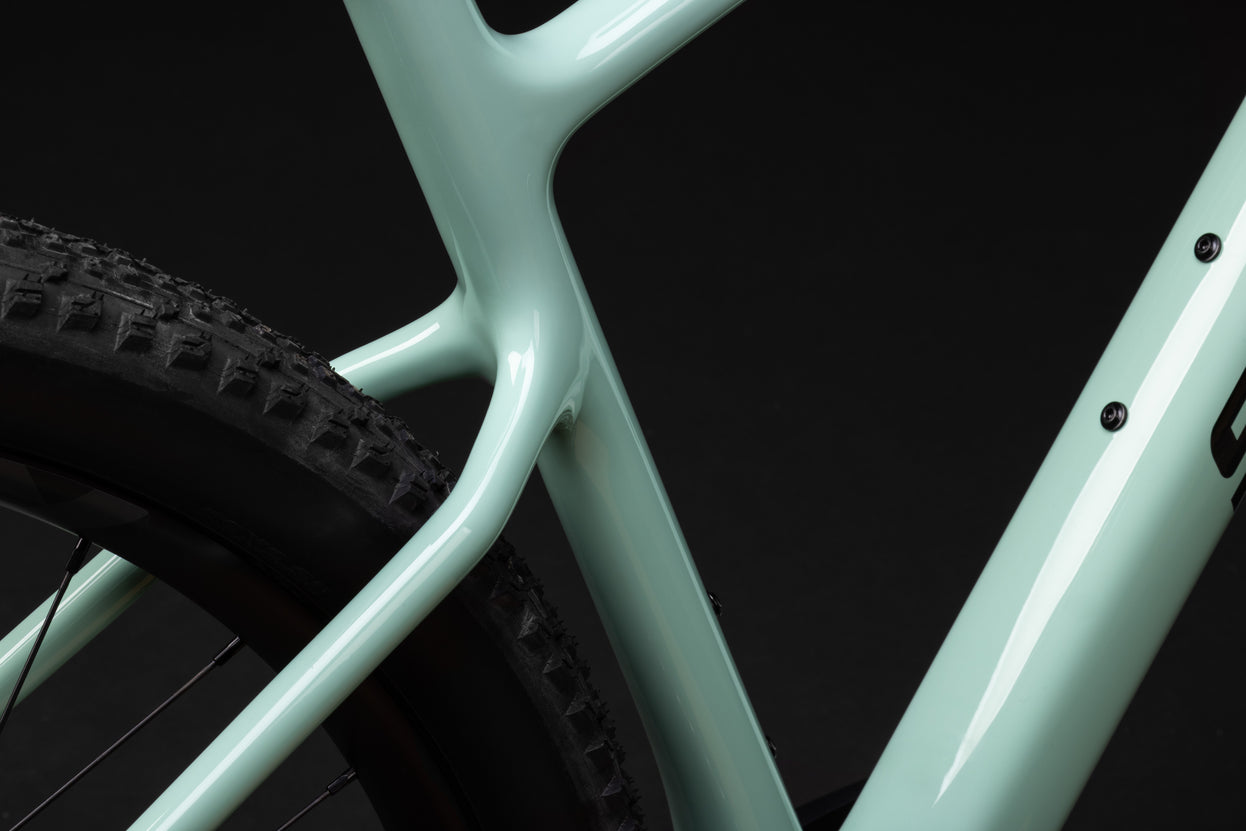

  • Dropped Seat Stays for improved comfort and flexibility
  • SRAM NX Eagle 12spd drivetrain for reliable, precise shifting
  • SRAM G2 R brakes for powerful stopping power

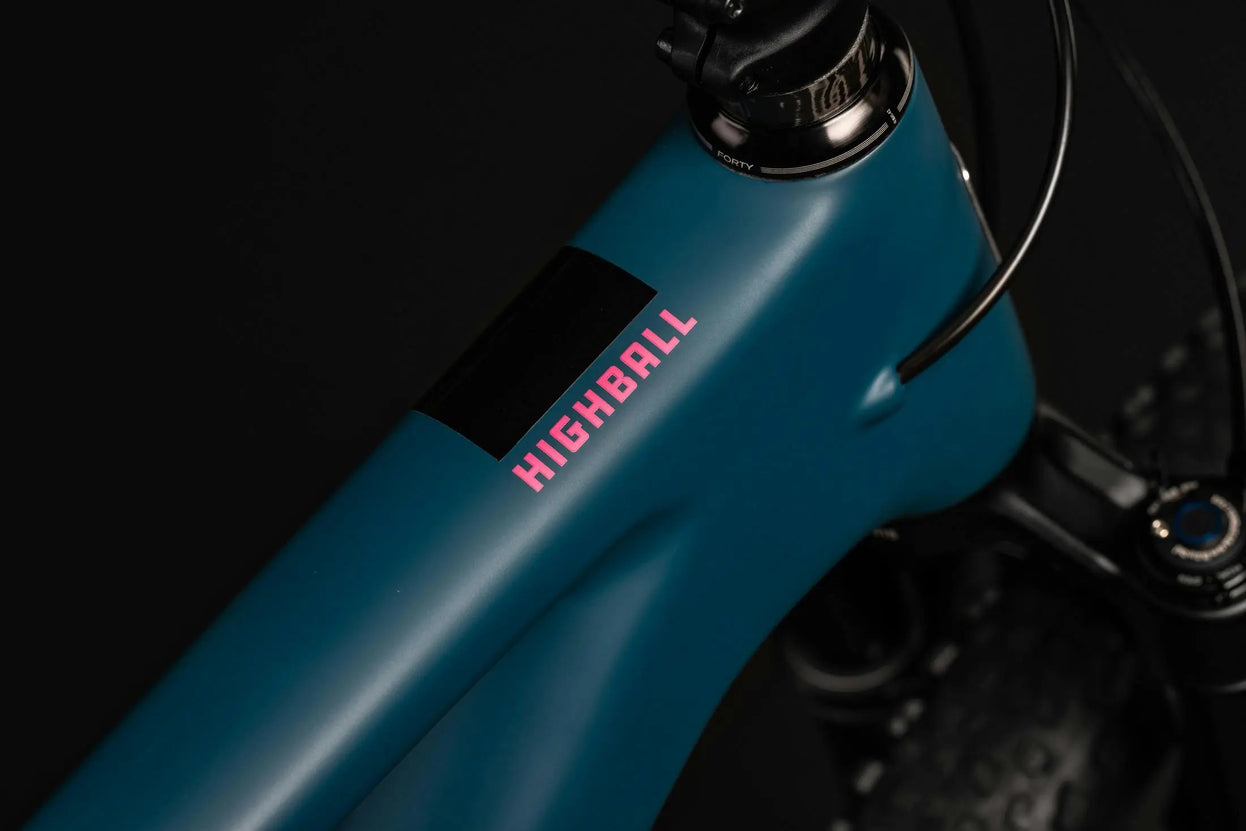

Frame

  • Material: Carbon C
  • Weight: 24.82 lbs / 11.26 kg
  • Wheel Size: 29
  • Travel: 100mm (Front) / 0mm (Rear)

Suspension

  • Fork: RockShox Sid SL Base, 100mm, w/ 2-Position Remote
  • Remote: SRAM OneLoc Remote

Drivetrain

  • Bottom Bracket: SRAM DUB 68/73mm Threaded BB
  • Cassette: SRAM PG1230, 12spd, 11-50t
  • Chain: SRAM NX Eagle, 12spd
  • Crankset: SRAM Stylo 148 DUB 34t
  • Rear Derailleur: SRAM NX Eagle, 12spd
  • Right Shifter: SRAM NX Eagle, 12spd

Brakes

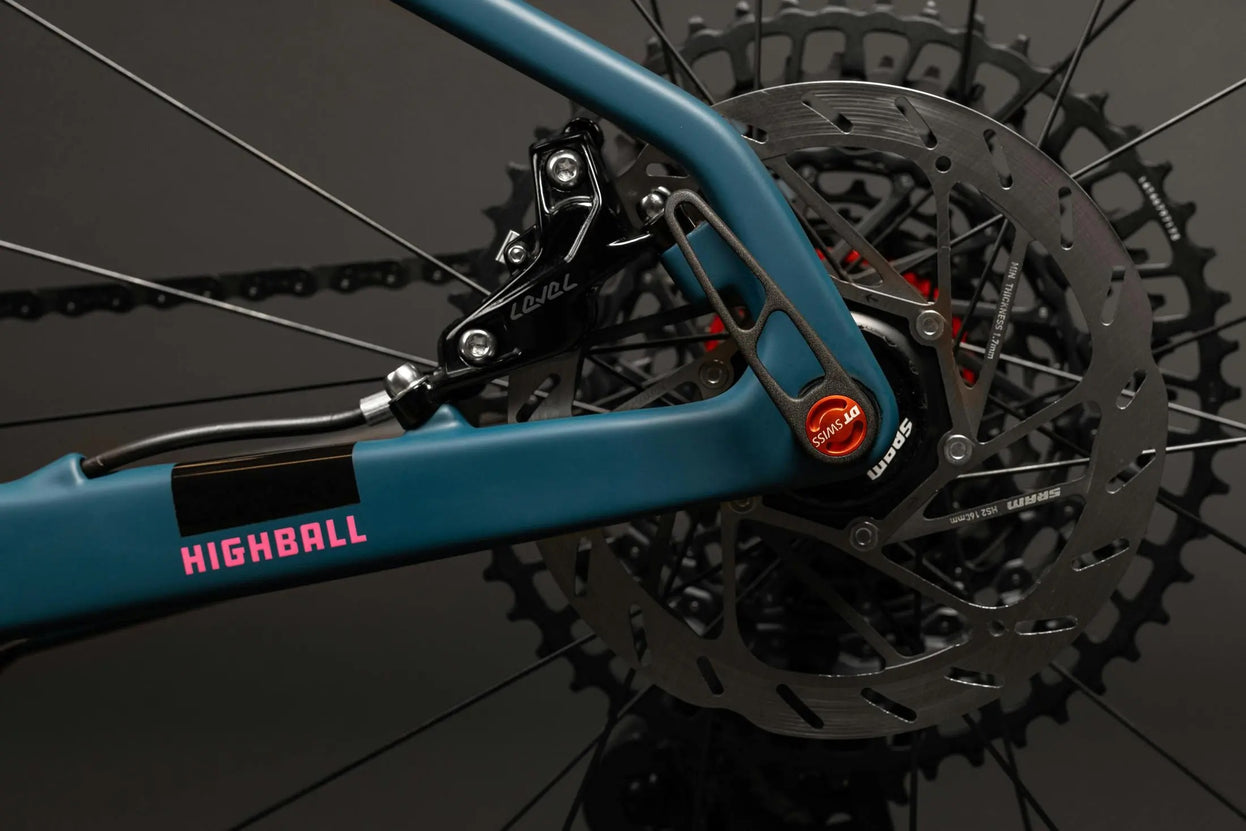

  • Brakes: SRAM G2 R
  • Front Rotor: Avid Centerline, 160mm
  • Rear Rotor: Avid Centerline, 160mm

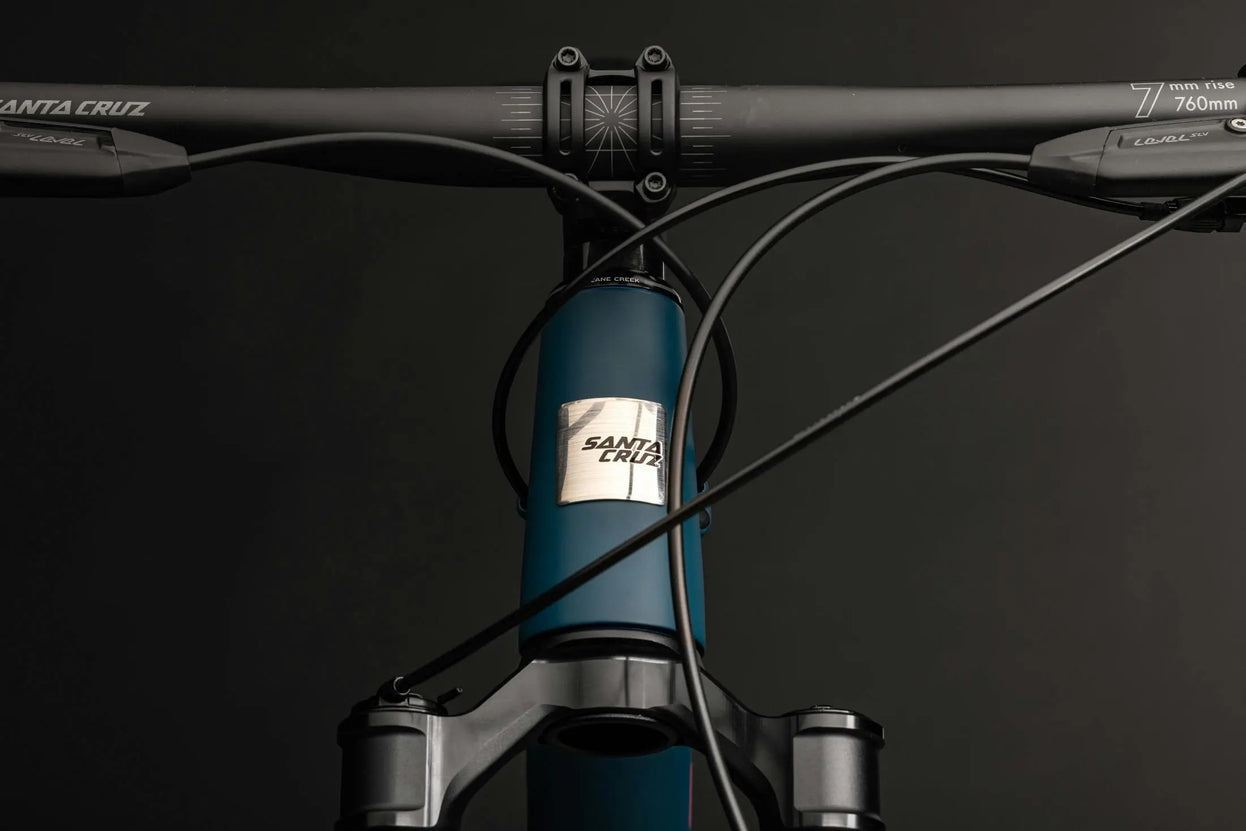

Cockpit

  • Grips / Bar Tape: ESI Chunky Grips
  • Handlebars: RaceFace Ride
  • Headset: FSA IS-2/47/42 ACB
  • Saddle: Fizik Monte or SDG Bel-Air V3, Steel
  • Seatpost: RaceFace Ride, 27.2mm
  • Stem: RaceFace Ride, 60mm

Wheels & Tires

  • Front Rim: RaceFace AR Offset 27 29"
  • Front Hub: SRAM MTH 716, 15x110, 6-Bolt, 32h
  • Front Tire: Maxxis Rekon Race 29"x2.35", EXO
  • Rear Rim: RaceFace AR Offset 27 29"
  • Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
  • Rear Tire: Maxxis Rekon Race 29"x2.35", EXO

Specifications

Component Specification
Bottom Bracket Shell 73mm Threaded
Rear Brake Mount 160 PM
Fork Compatibility 100–120mm
Front Derailleur Mount No compatibility
Headset Integrated (IS41/52)
Max Chainring Size 38t
Max Tire Clearance 2.4"
Seat Clamp Diameter 31.8mm
Seat Post Diameter 27.2mm
Water Bottle Mounts 3

Size Guide

Size Rider Height Reach
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
