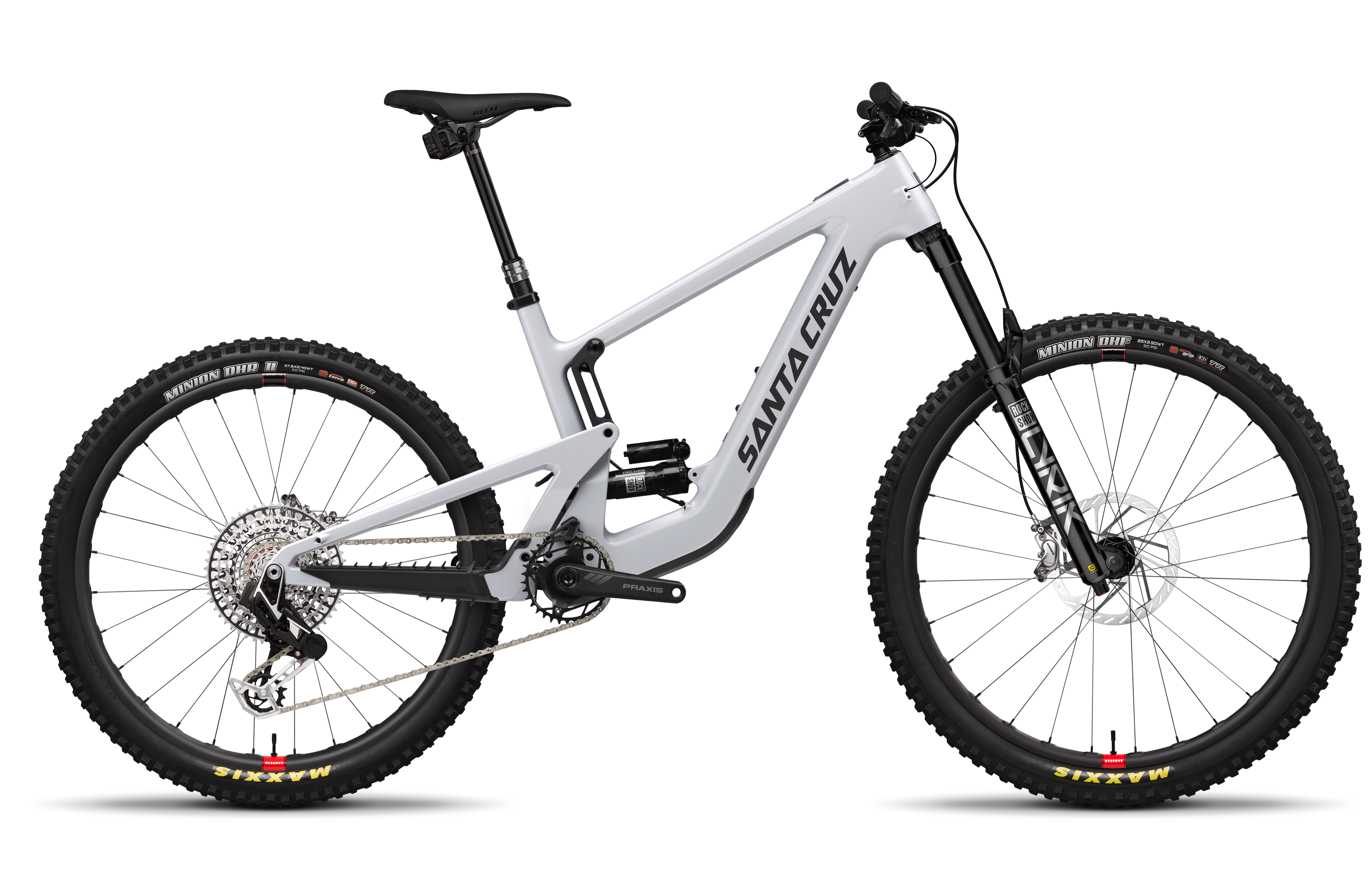

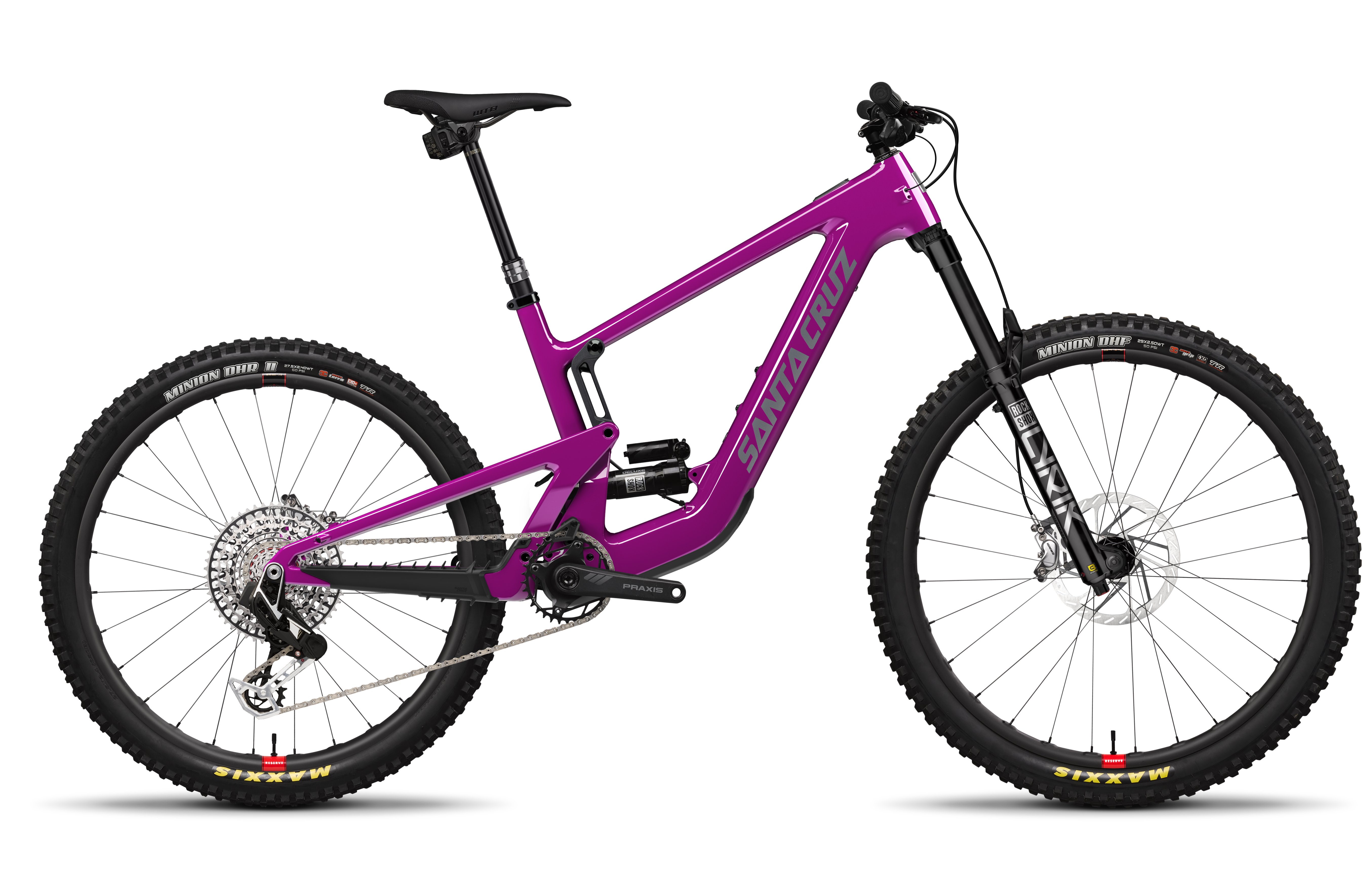

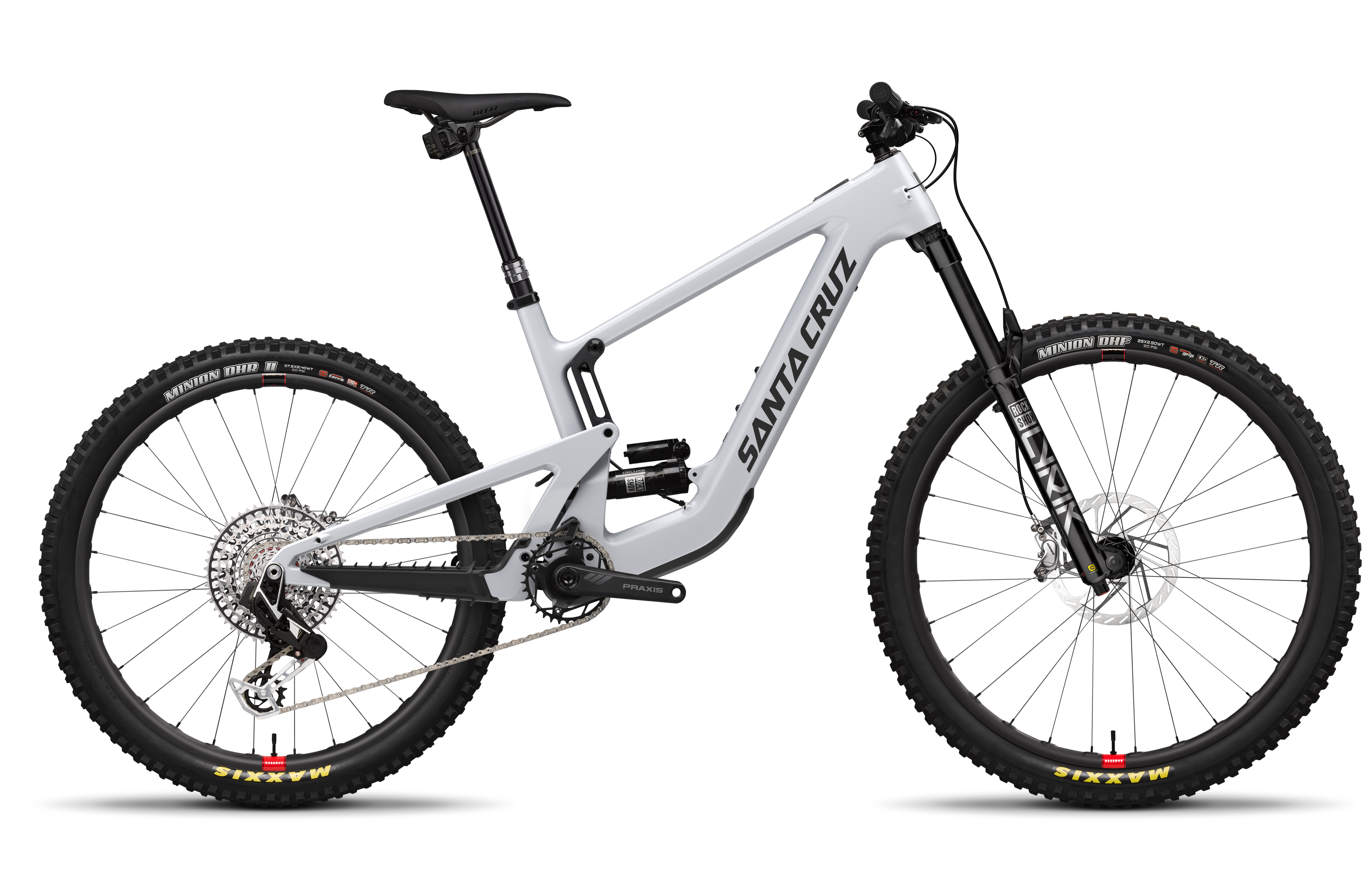

Santa Cruz Heckler SL XX AXS RSV 2024

By Santa Cruz
$10,399.00 $12,999.00
View details

The Santa Cruz Heckler SL XX AXS RSV is a lightweight, stealthy e-MTB designed for riders who crave natural trail feel with the bonus of electric assistance. Built around the FAZUA RIDE 60 drive unit and a sleek 430Wh integrated battery, this bike combines 150mm of legendary VPP™ suspension, progressive geometry, and mixed wheels for ultimate handling. At just 41.74 lbs (18.93 kg), it's nimble, responsive, and packed with premium components — including wireless SRAM XX Eagle AXS shifting and Reserve carbon wheels.

Standout Features

  • Carbon CC Frame — Lightweight, premium-grade carbon
  • FAZUA RIDE 60 System — Smooth, natural power delivery
  • RockShox Lyrik Ultimate Fork — Plush 160mm travel
  • SRAM XX Eagle AXS T-Type Drivetrain — Wireless precision shifting
  • Reserve 30|HD Carbon Wheels — Lightweight, tough, and fast
  • RockShox Reverb AXS Dropper Post — Clean, wireless seatpost control
  • Maxxis Minion Tires — Confidence-boosting grip on any trail

Frame

  • Material: Carbon CC
  • Rear Travel: 150mm
  • Wheel Size: MX (29” front / 27.5” rear)
  • Weight: 41.74 lbs / 18.93 kg

Suspension

  • Fork: RockShox Lyrik Ultimate, 160mm

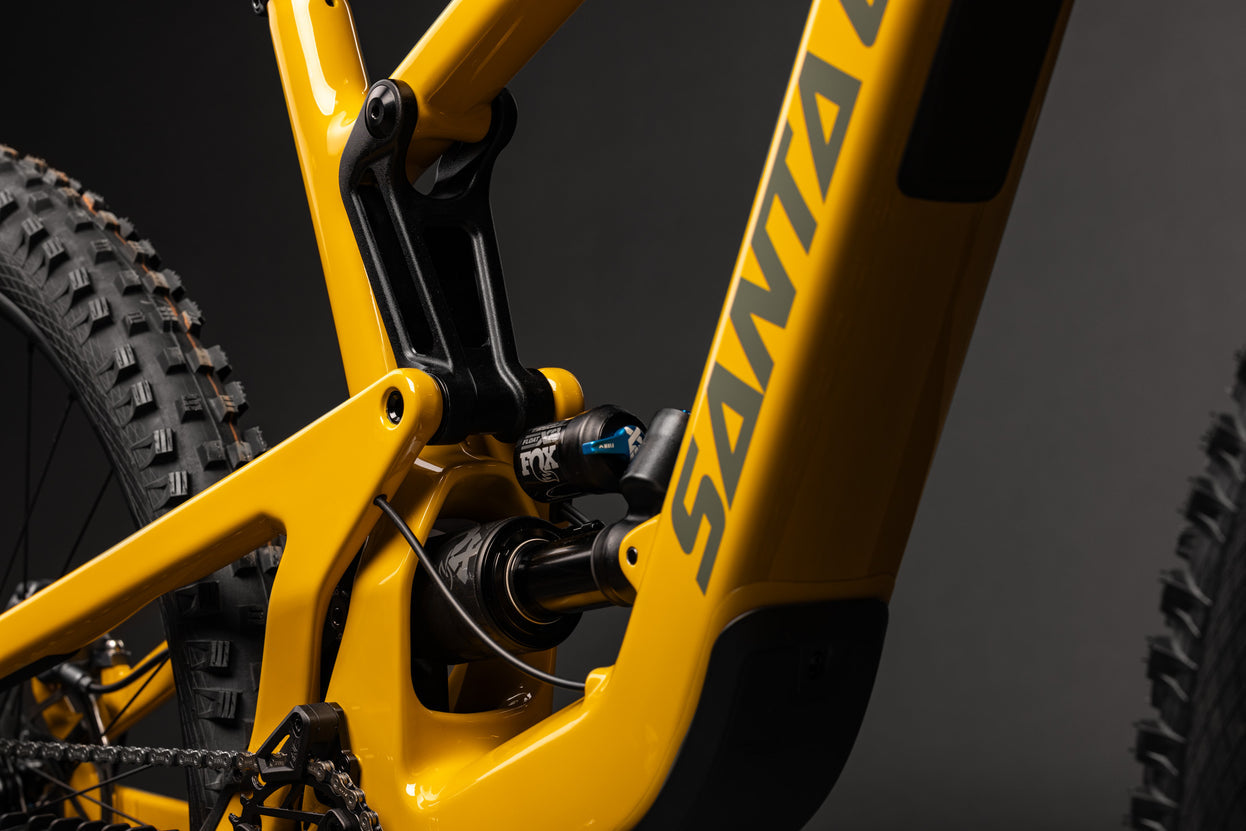

  • Shock: RockShox Super Deluxe Ultimate, 210x55mm

Drivetrain

  • Crankset: Praxis eTor AL, 165mm, 104BCD
  • Cassette: SRAM XX Eagle T-Type, 10-52t
  • Chain: SRAM XX Eagle T-Type, Flattop, 12-speed
  • Rear Derailleur: SRAM XX Eagle AXS T-Type, 12-speed
  • Shifter: SRAM AXS Pod Ultimate Bridge
  • Chainguide: OneUp Chainguide

Brakes

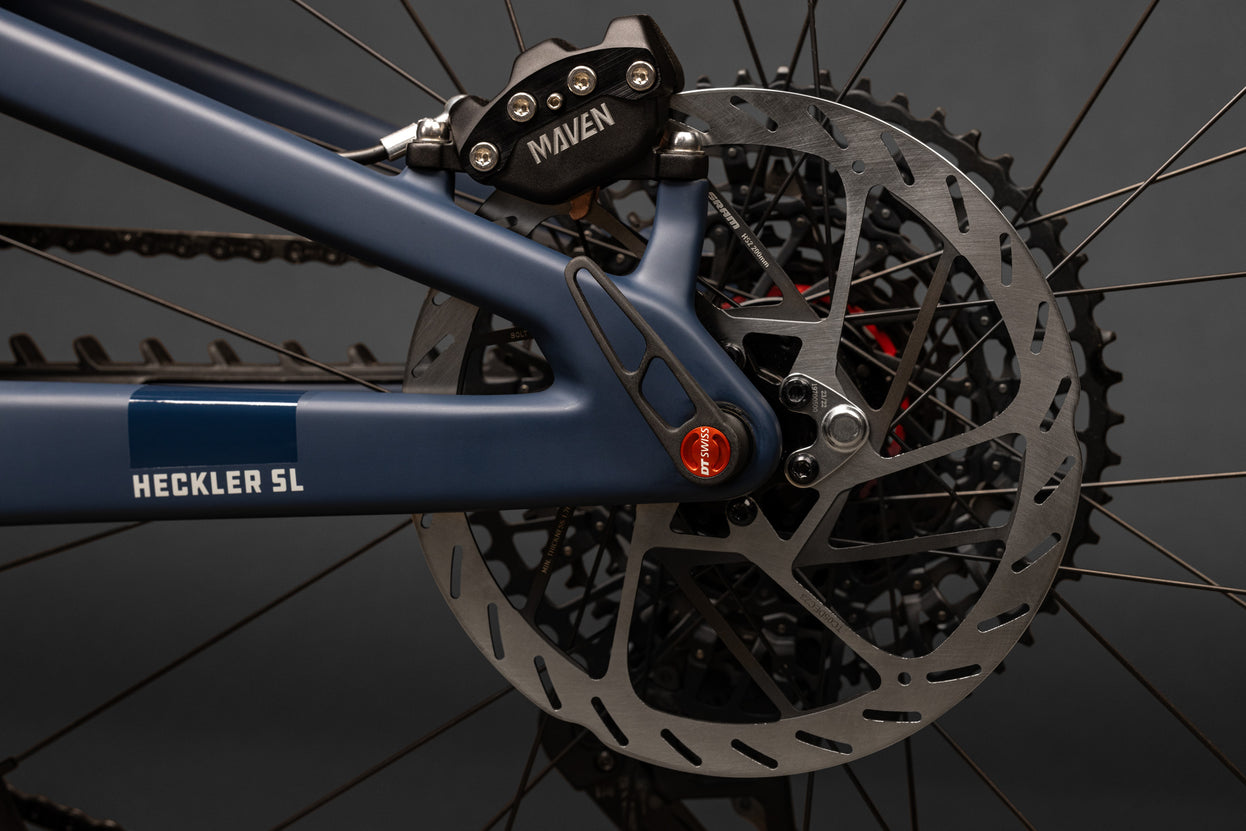

  • Brakes: SRAM Code Ultimate Stealth
  • Front Rotor: SRAM HS2 200mm
  • Rear Rotor: SRAM HS2 200mm

Cockpit

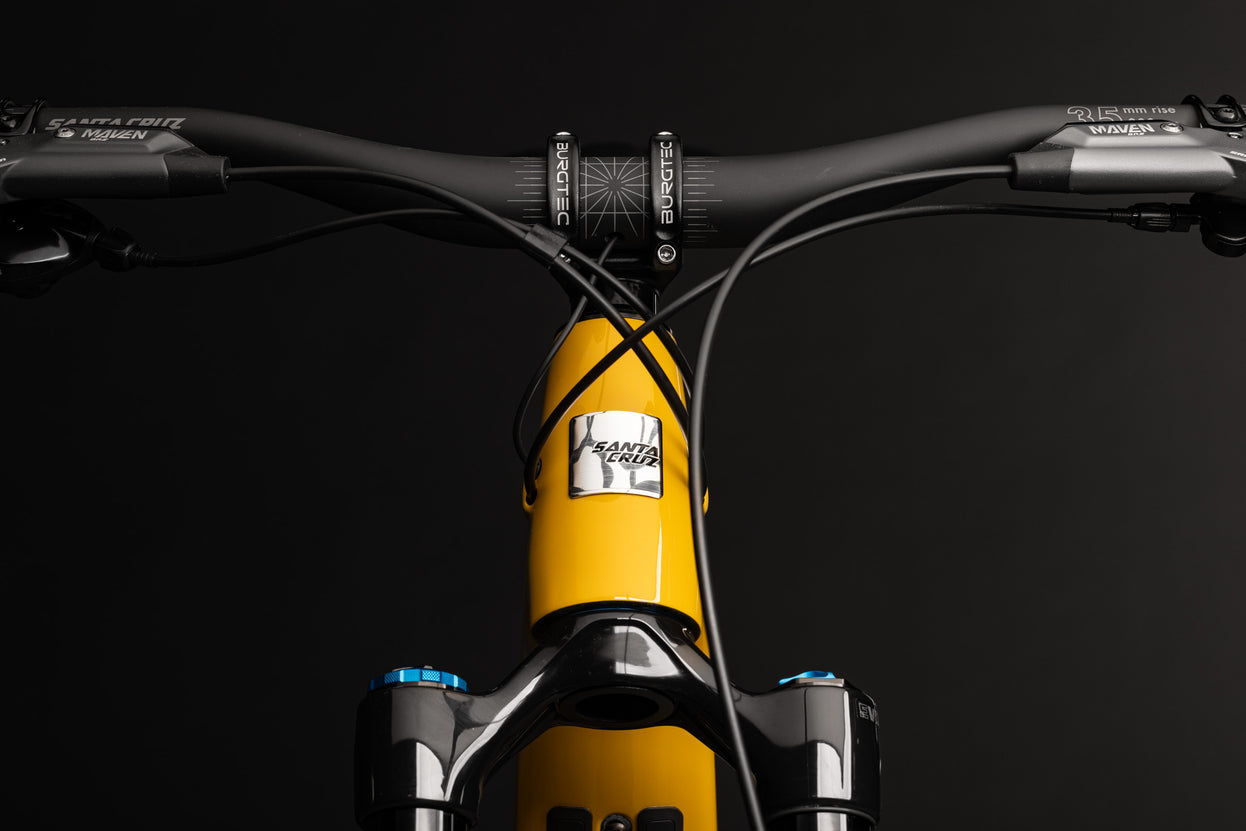

  • Handlebars: Santa Cruz e35 Carbon Bar, 800mm
  • Stem: Burgtec Enduro MK3 Machined, 42mm
  • Grips: Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
  • Headset: Chris King DropSet 3 Integrated
  • Saddle: WTB Silverado Medium, Titanium
  • Seatpost: RockShox Reverb AXS, 31.6mm

Wheels & Tires

  • Front Rim: Reserve 30|HD 29”
  • Rear Rim: Reserve 30|HD 27.5”
  • Front Hub: Industry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h
  • Rear Hub: Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h
  • Front Tire: Maxxis Minion DHF 29”x2.5” WT, 3C MaxxGrip, EXO
  • Rear Tire: Maxxis Minion DHR II 27.5”x2.4”, 3C MaxxTerra, EXO+

E-Bike System

  • Drive Unit: FAZUA RIDE 60
  • Battery: FAZUA 430Wh Integrated Battery
  • Charger: FAZUA Charger

Specifications

Spec Detail
Suspension System VPP™
Rear Travel 150mm
Fork Travel 160mm
Fork Axle to Crown 430mm
Fork Offset 45mm
Shock Size 210x55mm
Rear Brake Mount Flatmount 160mm Direct
Max Rotor Size 180mm
Max Chainring Size 46T
Max Tire Clearance 50mm
Rear Spacing 148mm
Headset IS41 / IS52
UDH Compatible Yes

Size Guide

Size Rider Height Bar Width Dropper Length Crank Length
Small 5'1" – 5'5" 800mm 100–125mm (approx) 165mm
Medium 5'5" – 5'9" 800mm 125–150mm (approx) 165mm
Large 5'9" – 6'1" 800mm 150–170mm (approx) 165mm
X-Large 6'0" – 6'4" 800mm 170–200mm (approx) 165mm
XX-Large 6'4" – 6'7" 800mm 170–200mm (approx) 165mm
