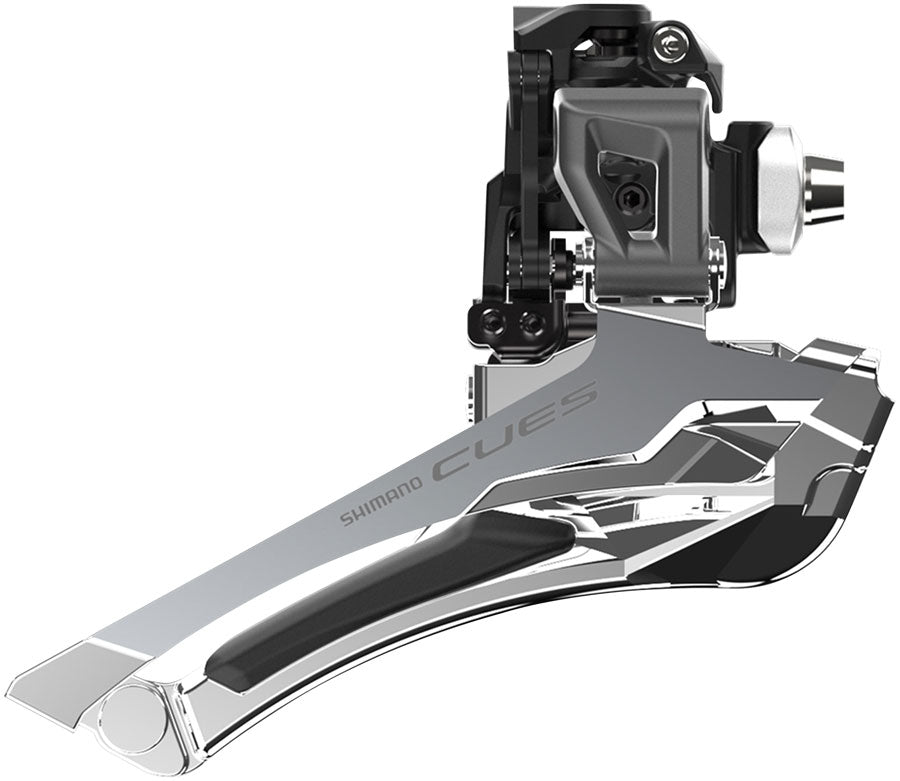

Shimano CUES FD-U6030-F Front Derailleur - 9/10-Speed Double Down-Swing Braze-On 46/50t Max BLK/Silver

By Shimano
$44.00
SKU: FD0065 // Barcode: 192790849294
View details
Shimano CUES FD-U6030-F Front Derailleur - 9/10-Speed Double Down-Swing Braze-On 46/50t Max Black/Silver. One Front Derailleur for all Shimano CUES Drop Handle Bikes. The Shimano CUES FD-U6030 Front Derailleur offers lighter front shifting operation and easier setup thanks to the toggle link construction and integrated cable tensioner. It features a 2.5 mm outboard chain line design to allow wider tire clearance.
  • Toggle link construction delivers lighter front shifting with a smooth natural shift action
  • Chainline is 2.5 mm wider than conventional road front derailleurs allowing for greater tire clearance
  • 62-66 degree chainstay angle
  • ONLY Compatible with LINKGLIDE dropbar shifting system
  • Designed for 47mm chainline
    • TECH SPECS
    Double or Triple DoubleDrivetrain Speeds 9Drivetrain Speeds 10Front Derailleur Clamp Braze-onFront Derailleur Cable Pull Bottom PullFront Der/Shifter Compatibility Shimano RoadMax Ring (teeth) 50Front Derailleur Style TraditionalCrank-FD Type Road DoubleDerailleur Capacity 16
