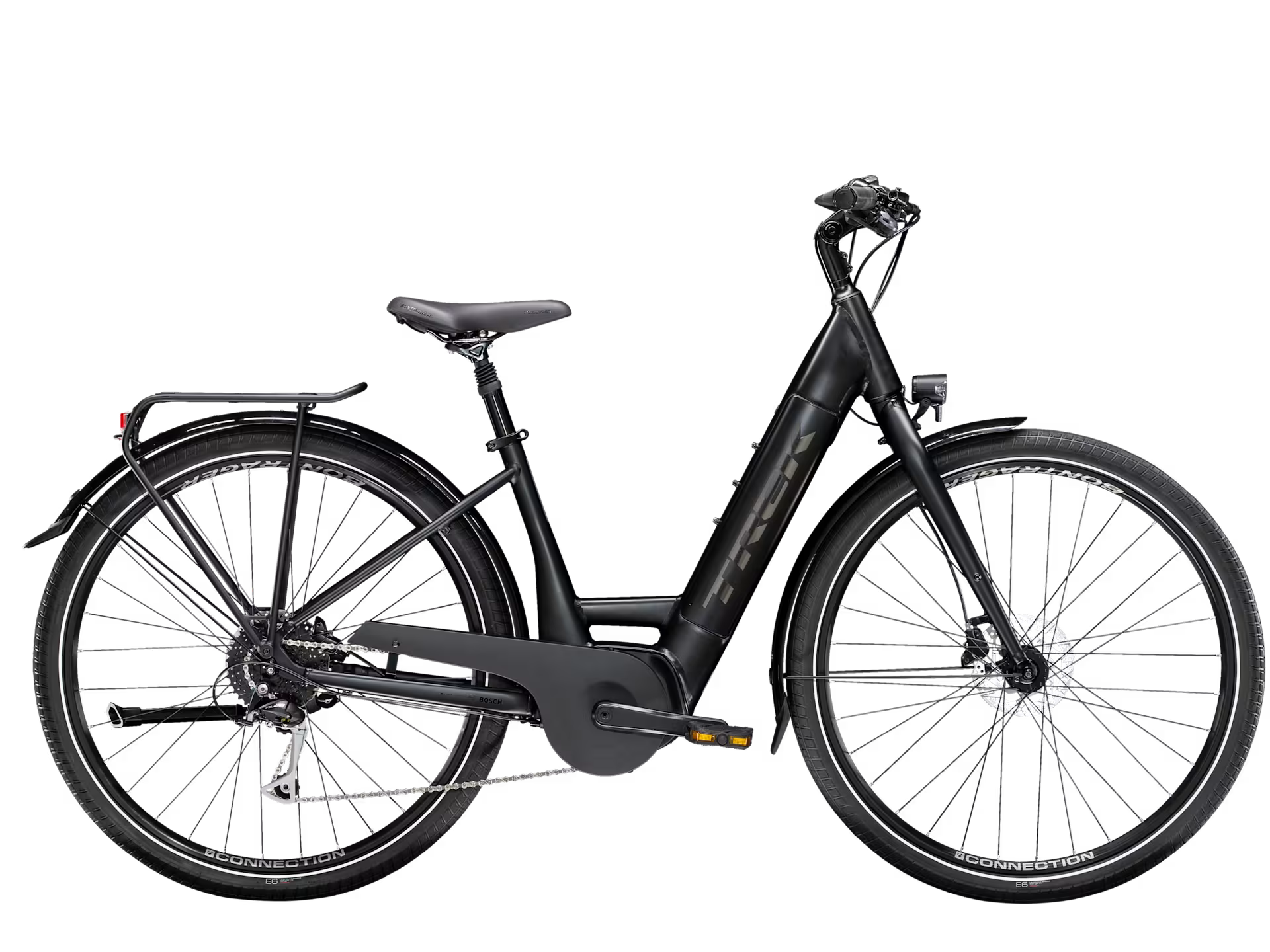

Verve+ 3 Lowstep Gen 2 - Black - Small
Frameset
Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), smooth welds, rack & fender mounts, internal routing, kickstand mount, 135x5mm QR
Fork (XS, S, M, L): Alloy rigid fork, 1-1/8" Threadless steel steerer, 460mm axle-crown (suspension corrected), ThruSkew 5mm QR
Fork (XS, S, M, L): Verve Alloy, threaded steel steerer, rack mounts, post mount disc, 460mm axle-to-crown, ThruSkew 5mm QR
Wheels
Front Hub: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Front Skewer: 132x5mm QR, ThruSkew
Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rear Skewer: 153x5mm bolt-on
Rims: Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Spokes: 14g stainless steel, black
Tires: Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 700x50mm
Max Tire Size: 700x50mm with or without fenders
E-System
Battery: Bosch PowerTube 500Wh
Charger: Bosch compact 2A, 100-240V
Computer: Bosch Purion
Motor: Bosch Active Plus, 250 watt, 50 Nm, 20mph or 32km/h
Drivetrain
Shifter: Shimano Alivio M3100, 9 speed
Rear Derailleur: Shimano Alivio T4000, long cage
Crank: ProWheel alloy, 170mm length
Chainring: ProWheel 38T narrow/wide steel, w/alloy guard
Cassette: Shimano HG200, 11-36, 9 speed
Chain: KMC X9
Pedals: Bontrager City pedals
Components
Saddle: Bontrager Boulevard
Seatpost: Alloy, suspension, 31.6mm, 300mm length
Handlebar (XS, S, M): Bontrager alloy, 31.8mm, comfort sweep, 620mm width
Handlebar (L): Bontrager alloy, 31.8mm, comfort sweep, 660mm width
Grips: Bontrager Satellite Elite, alloy lock-on
Stem (XS, S, M): Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length
Stem (XS, S): Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length
Stem (M, L): Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length
Stem (L): Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length
Headset (XS, S, M, L): Semi-integrated, 1-1/8"
Headset (XS, S, M, L): VP sealed cartridge, 1-1/8", threaded
Brakes: Shimano MT200 hydraulic disc
Brake Rotors: Shimano RT26, 6-bolt, 160mm
Accessories
Lights (XS, S, M, L): Herrmans H-Black MR4-E (headlight), Spanninga SOLO (taillight)
Kickstand: Adjustable length rear mount alloy kickstand
Cargo Rack (XS, S, M, L): MIK-compatible alloy rear rack, max load 25 kg / 55 lbs
Cargo Rack (S, M, L): Alloy rear rack
Fenders (XS, S, M, L): Eurofender Tempo, SKS wide, SKS plastic front
Weight
Bike Weight (M): 24.77 kg / 54.61 lbs
Weight Limit: Max total weight (bike, rider, cargo): 300 lbs / 136 kg
