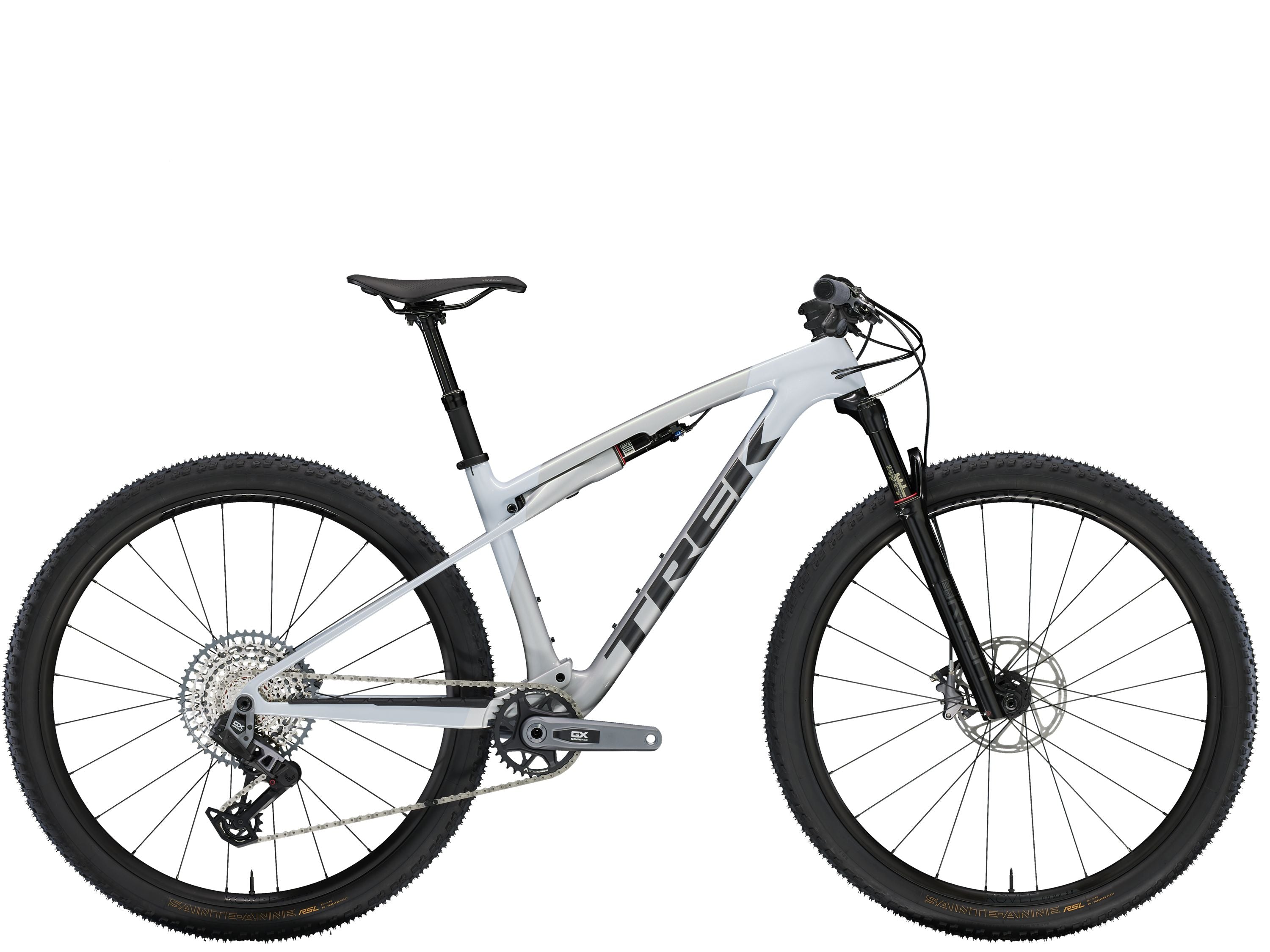

Trek supercaliber sl 9.7 gen 2

Supercaliber SL 9.7 AXS is a carbon XC mountain bike built for rocketing over singletrack and scorching the way to the finish line. Its built with a carbon frame that balances stiffness with compliance for power when you need it most, while IsoStrut rear suspension gives you just enough squish to soften the blow through the rough terrain peppering modern XC courses. It comes ready to rip with a fully wireless 12-speed SRAM GX AXS transmission for precise shifting—even under load.

• You get a 110mm fork and 80mm of IsoStrut rear suspension that partners with slacker, capable geometry for handling the roots and rocks of modern XC courses
• The frames SL OCLV Mountain Carbon gives you the vibration damping and stiff responsiveness of carbon with a smaller price tag
• IsoStrut gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed
• Pivotless seat stays save on weight and actively bend to help soak up trail chatter
• SRAMs wireless electronic GX AXS transmission is built tough and keeps shifting precise, even under load

Nothing else like it

Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

IsoStrut

IsoStrut integrated suspension gives you just enough travel to stay in control. Its fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

SL OCLV Mountain Carbon

Supercaliber SL is a lightweight OCLV Carbon frame. It features a lightweight carbon layup that doesnt compromise stiffness for weight, plus it featuers internal guides that make cable routing a breeze.

You almost forgot your pedals

This bike doesn’t come with pedals because youll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.

Frame	SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Fork	RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 51mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
Shock	Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Wheel Front	Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 /
Wheel Rear	Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29
Tire	Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40
Tire Part	Bontrager TLR sealant, 6oz
Rim Strip	Bontrager TLR
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	SRAM AXS POD
Rear Derailleur	SRAM GX Eagle AXS, T-Type
Crank	SRAM GX Eagle, DUB, T-Type, 34T, 55mm chainline, 170mm length
Bottom Bracket	SRAM DUB, 92mm, PressFit
Cassette	SRAM Eagle XS-1275, T-Type,10-52, 12 speed
Chain	SRAM GX Eagle, T-Type, 12 speed
Brake	SRAM Level Bronze 2-piston hydraulic disc // SRAM Level Bronze 2-piston hydraulic disc
Brake Rotor	SRAM CenterLine, 6-bolt, round edge, 160mm // SRAM CenterLine, 6-bolt, round edge, 180mm
Saddle	Bontrager Verse Elite, austenite rails, 145mm width
Seatpost	Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
Seat Collar	Bolt-on, 36.4mm
Handlebar	Bontrager Kovee Pro, OCLV Carbon, 35mm, 5mm rise, 720mm width
Stem	Bontrager Elite, 35mm, 13-degree, 60mm length
Headset	FSA IS-2, 1-1/8 top, 1.5 bottom
Battery	SRAM eTap battery pack (with charger)

Geometry Chart
