MADONE SLR F/S 50 Rage Red/Dnister Black
New arrival 55% off

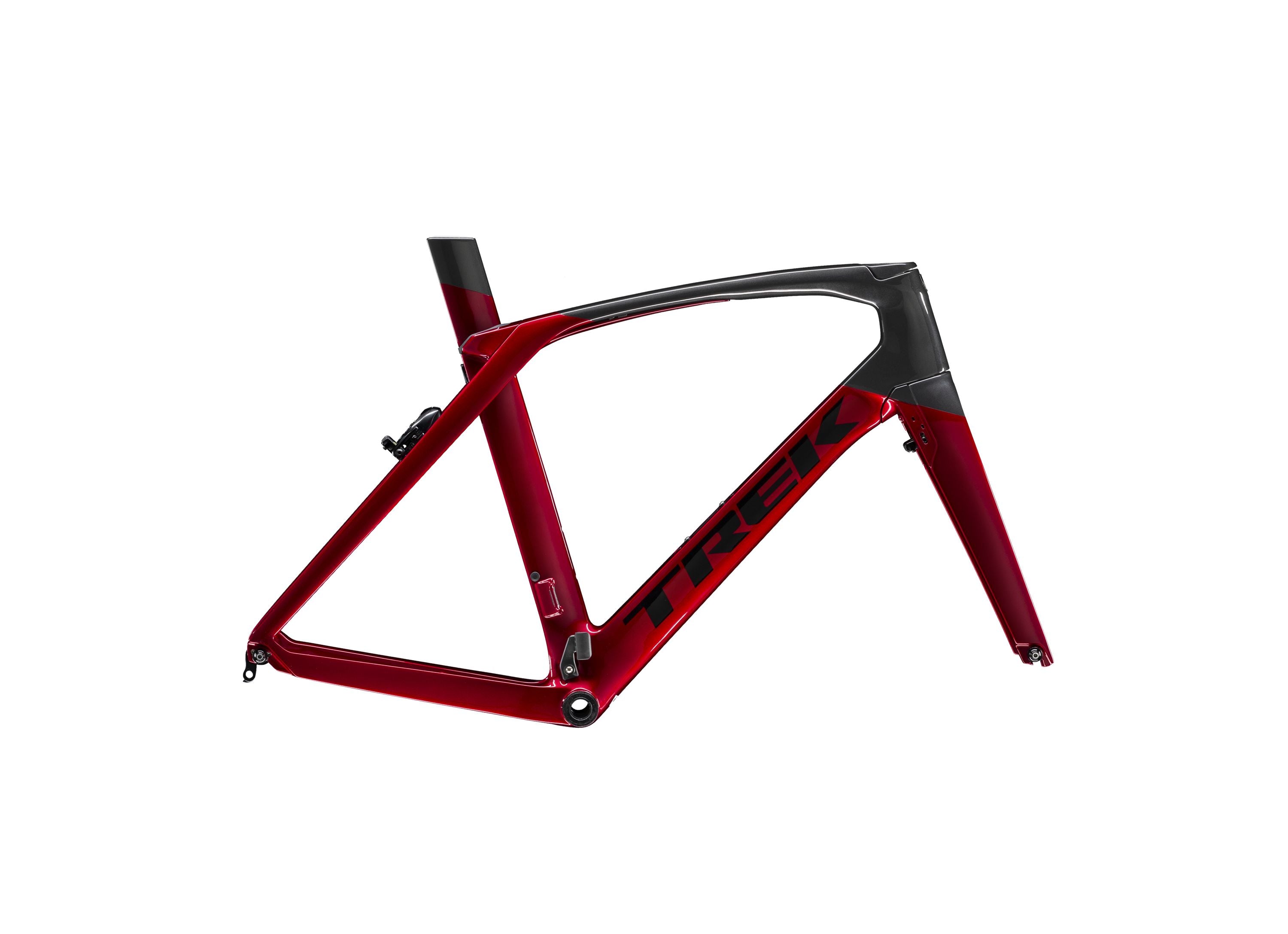

Trek Madone SLR Gen 6 BB90 Rim Frameset

By Trek
$1,899.93 $4,199.99
SKU: 591769 // Barcode: 601842180013
Pickup Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, test ride, pack, and ship your bike to ensure a safe delivery and easy setup. Professional reassembly is encouraged.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

View details
Madone SLR frameset is ready to make your racing dreams come true. This light, aero frame is built from 700 Series OCLV carbon, and features IsoSpeed technology for added comfort Let your imagination run wild with the custom build of your dreams.
  • Madone Gen 6 takes tried-and-true road-smoothing IsoSpeed comfort technology and bundles it into a lightweight, race-ready package for fast rides
  • Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
  • Let's be honest: this bike looks awesome, like it's breaking speed records even when it's parked at the café for a post-ride espresso
  • Madone Project One ICON paint schemes make the ultimate race bike a true piece of artwork


Frame 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, direct mount rim brake, DuoTrap S compatible, 130x5mm QR
Fork Madone KVF full carbon, tapered carbon steerer, invisible cable routing, carbon dropouts, 5x100mm QR
Front Derailleur Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
Bottom Bracket Trek BB90
Brake Madone aero, integrated, SwissStop Flash EVO Black Prince pads
Seatpost Not included

Geometry Chart

B B Drop 7.2
Chainstay Length 41
Eff Top Tube 52.1
Frame Reach 37.8
Frame Size Number 50cm
Frame Stack 52.1
Head Angle 72.1°
Head Tube Length 11.1
Offset 4.5
Saddle Rail Height Max Short 65
Saddle Rail Height Max Tall 68.5
Saddle Rail Height Min Short 58
Saddle Rail Height Min Tall 62.1
Seat Tube 45.3
Seat Tube Angle 74.6°
Standover 72.9
Trail 6.2
Wheelbase 97.4
Wheel Size 700c
Color RAGE RED/DNISTER BLACK
