Trek domane slr 6 axs gen 4
By Trek
$8,399.99
Unit price
/
Unavailable
SKU: 5280971 // Barcode:
CYBER SALE
Get a FREE $200 Cahaba Cycles Gift Card w/ this purchase!

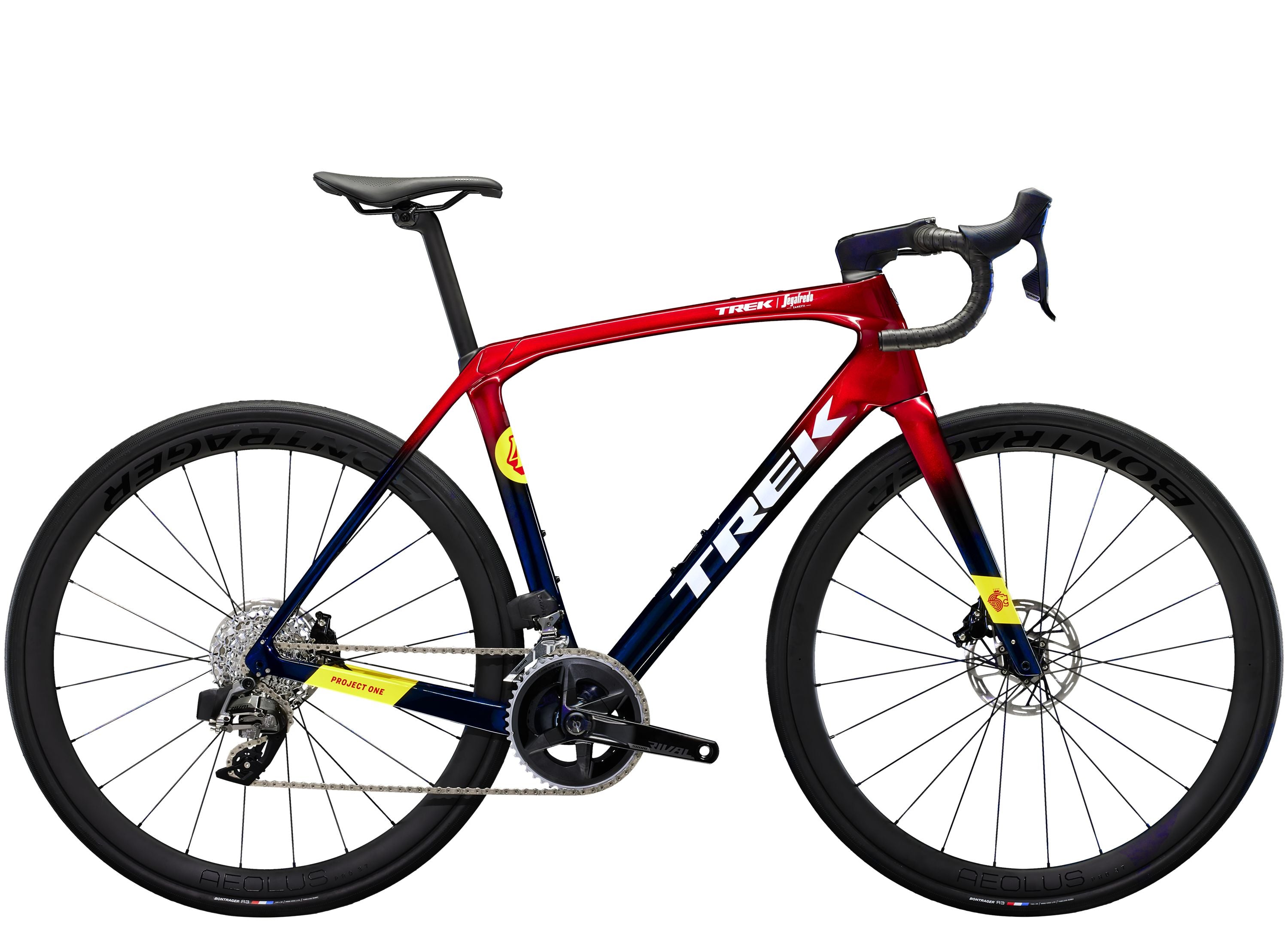

Domane SLR 6 is an ultralight carbon endurance road bike with cherry-picked components made for a fast, high-performance ride. You get our highest level OCLV Carbon frame with rear IsoSpeed, a wireless electronic SRAM Rival drivetrain for precision shifting, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.
![]()
![]()
![]()
![]()
![]()
![]()
- Domane SLR Gen 4’s rear IsoSpeed, integrated cable routing, aero Kammtail tube shapes, and our high performance 800 Series OCLV Carbon come together for an ultra-lightweight, fast, and road-smoothing ride
- Wireless SRAM Rival AXS drivetrain shifts clean and reliably when you need to count on it most
- Road-smoothing IsoSpeed and clearance for up to 38mm tires absorbs fatiguing bumps in the road for a smoother, more comfortable ride
- A convenient internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
- Included power meter crankset allows you to easily monitor power metrics
The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
Podium-topping speed
Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
Lighter than ever
Our best and lightest 800 Series OCLV Carbon and a new gram-saving design make this our lightest Domane SLR disc ever.
Versatile tire clearance
Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.
Internal storage
Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.
Refined integration
Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.
| Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Wheel Front | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle / |
| Wheel Rear | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Skewer Front | Bontrager Switch thru axle, removable lever |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | SRAM Rival eTap AXS, 12 speed // SRAM Rival eTap AXS, 12 speed |
| Front Derailleur | SRAM Rival D1 AXS, braze-on |
| Rear Derailleur | SRAM Rival AXS |
| Crank | SRAM Rival AXS w/ power meter, 46/33, DUB, 165mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1250, 10-36, 12 speed |
| Chain | SRAM Rival, 12 speed |
| Brake | SRAM Rival hydraulic disc, flat mount |
| Brake Rotor | SRAM Paceline, rounded, centerlock, 160mm |
| Saddle | Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width |
| Seatpost | KVF aero carbon seatpost, 20mm offset, 280mm length |
| Handlebar | Bontrager Pro IsoCore VR-SF, 38cm |
| Stem | Trek RCS Pro, -7 degree, 70mm length |
| Battery | SRAM eTap battery pack (with charger) |
Geometry Chart
| B B Drop | 8 |
| Chainstay Length | 42 |
| Eff Top Tube | 50.9 |
| Frame Reach | 36.4 |
| Frame Size Number | 47cm |
| Frame Stack | 52.7 |
| Head Angle | 71.0° |
| Head Tube Length | 11 |
| Offset | 5.3 |
| Saddle Rail Height Max Short | 62 |
| Saddle Rail Height Max Tall | 65 |
| Saddle Rail Height Min Short | 55.5 |
| Saddle Rail Height Min Tall | 58.5 |
| Seat Tube | 42 |
| Seat Tube Angle | 74.6° |
| Standover | 68.6 |
| Trail | 6.1 |
| Wheelbase | 98.6 |
| Wheel Size | 700c |
| B B Drop | 8 |
| Chainstay Length | 42 |
| Eff Top Tube | 51.9 |
| Frame Reach | 36.8 |
| Frame Size Number | 50cm |
| Frame Stack | 54.6 |
| Head Angle | 71.1° |
| Head Tube Length | 13 |
| Offset | 5.3 |
| Saddle Rail Height Max Short | 65 |
| Saddle Rail Height Max Tall | 68 |
| Saddle Rail Height Min Short | 58.5 |
| Saddle Rail Height Min Tall | 61.5 |
| Seat Tube | 45 |
| Seat Tube Angle | 74.6° |
| Standover | 71.6 |
| Trail | 6 |
| Wheelbase | 99.6 |
| Wheel Size | 700c |
| B B Drop | 8 |
| Chainstay Length | 42 |
| Eff Top Tube | 53 |
| Frame Reach | 37.1 |
| Frame Size Number | 52cm |
| Frame Stack | 56.1 |
| Head Angle | 71.3° |
| Head Tube Length | 14.5 |
| Offset | 5.3 |
| Saddle Rail Height Max Short | 68 |
| Saddle Rail Height Max Tall | 71 |
| Saddle Rail Height Min Short | 61.5 |
| Saddle Rail Height Min Tall | 64.5 |
| Seat Tube | 47.5 |
| Seat Tube Angle | 74.2° |
| Standover | 73.5 |
| Trail | 5.9 |
| Wheelbase | 100.3 |
| Wheel Size | 700c |
| B B Drop | 8 |
| Chainstay Length | 42 |
| Eff Top Tube | 54.2 |
| Frame Reach | 37.4 |
| Frame Size Number | 54cm |
| Frame Stack | 57.5 |
| Head Angle | 71.3° |
| Head Tube Length | 16 |
| Offset | 5.3 |
| Saddle Rail Height Max Short | 70.5 |
| Saddle Rail Height Max Tall | 73.5 |
| Saddle Rail Height Min Short | 64 |
| Saddle Rail Height Min Tall | 67 |
| Seat Tube | 50 |
| Seat Tube Angle | 73.7° |
| Standover | 75.4 |
| Trail | 5.9 |
| Wheelbase | 101 |
| Wheel Size | 700c |
| B B Drop | 7.8 |
| Chainstay Length | 42 |
| Eff Top Tube | 55.4 |
| Frame Reach | 37.7 |
| Frame Size Number | 56cm |
| Frame Stack | 59.1 |
| Head Angle | 71.9° |
| Head Tube Length | 17.5 |
| Offset | 4.8 |
| Saddle Rail Height Max Short | 73.5 |
| Saddle Rail Height Max Tall | 76.5 |
| Saddle Rail Height Min Short | 67 |
| Saddle Rail Height Min Tall | 70 |
| Seat Tube | 52.5 |
| Seat Tube Angle | 73.3° |
| Standover | 77.6 |
| Trail | 6.1 |
| Wheelbase | 100.8 |
| Wheel Size | 700c |
| B B Drop | 7.8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 56.7 |
| Frame Reach | 38 |
| Frame Size Number | 58cm |
| Frame Stack | 61.1 |
| Head Angle | 72.0° |
| Head Tube Length | 19.5 |
| Offset | 4.8 |
| Saddle Rail Height Max Short | 75.5 |
| Saddle Rail Height Max Tall | 78.5 |
| Saddle Rail Height Min Short | 69 |
| Saddle Rail Height Min Tall | 72 |
| Seat Tube | 54.8 |
| Seat Tube Angle | 73.0° |
| Standover | 79.6 |
| Trail | 6 |
| Wheelbase | 102.2 |
| Wheel Size | 700c |
| B B Drop | 7.5 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 57.9 |
| Frame Reach | 38.3 |
| Frame Size Number | 60cm |
| Frame Stack | 63.2 |
| Head Angle | 72.1° |
| Head Tube Length | 22 |
| Offset | 4.8 |
| Saddle Rail Height Max Short | 77.5 |
| Saddle Rail Height Max Tall | 80.5 |
| Saddle Rail Height Min Short | 71 |
| Saddle Rail Height Min Tall | 74 |
| Seat Tube | 56.7 |
| Seat Tube Angle | 72.8° |
| Standover | 81.7 |
| Trail | 5.9 |
| Wheelbase | 103.2 |
| Wheel Size | 700c |
| B B Drop | 7.5 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 59.3 |
| Frame Reach | 38.6 |
| Frame Size Number | 62cm |
| Frame Stack | 65.6 |
| Head Angle | 72.1° |
| Head Tube Length | 24.5 |
| Offset | 4.8 |
| Saddle Rail Height Max Short | 79.5 |
| Saddle Rail Height Max Tall | 82.5 |
| Saddle Rail Height Min Short | 73 |
| Saddle Rail Height Min Tall | 76 |
| Seat Tube | 58.6 |
| Seat Tube Angle | 72.5° |
| Standover | 83.5 |
| Trail | 5.9 |
| Wheelbase | 104.2 |
| Wheel Size | 700c |
