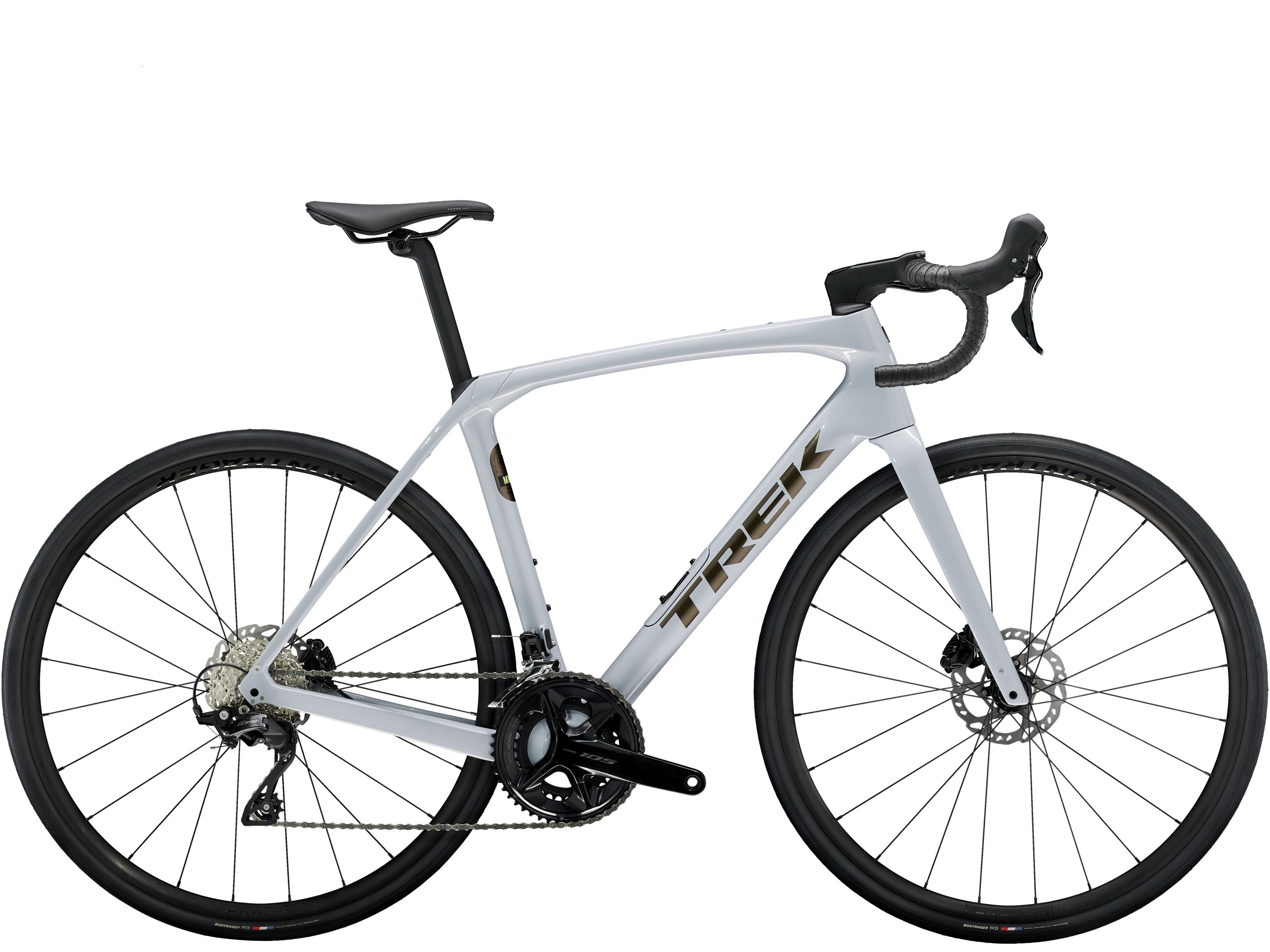

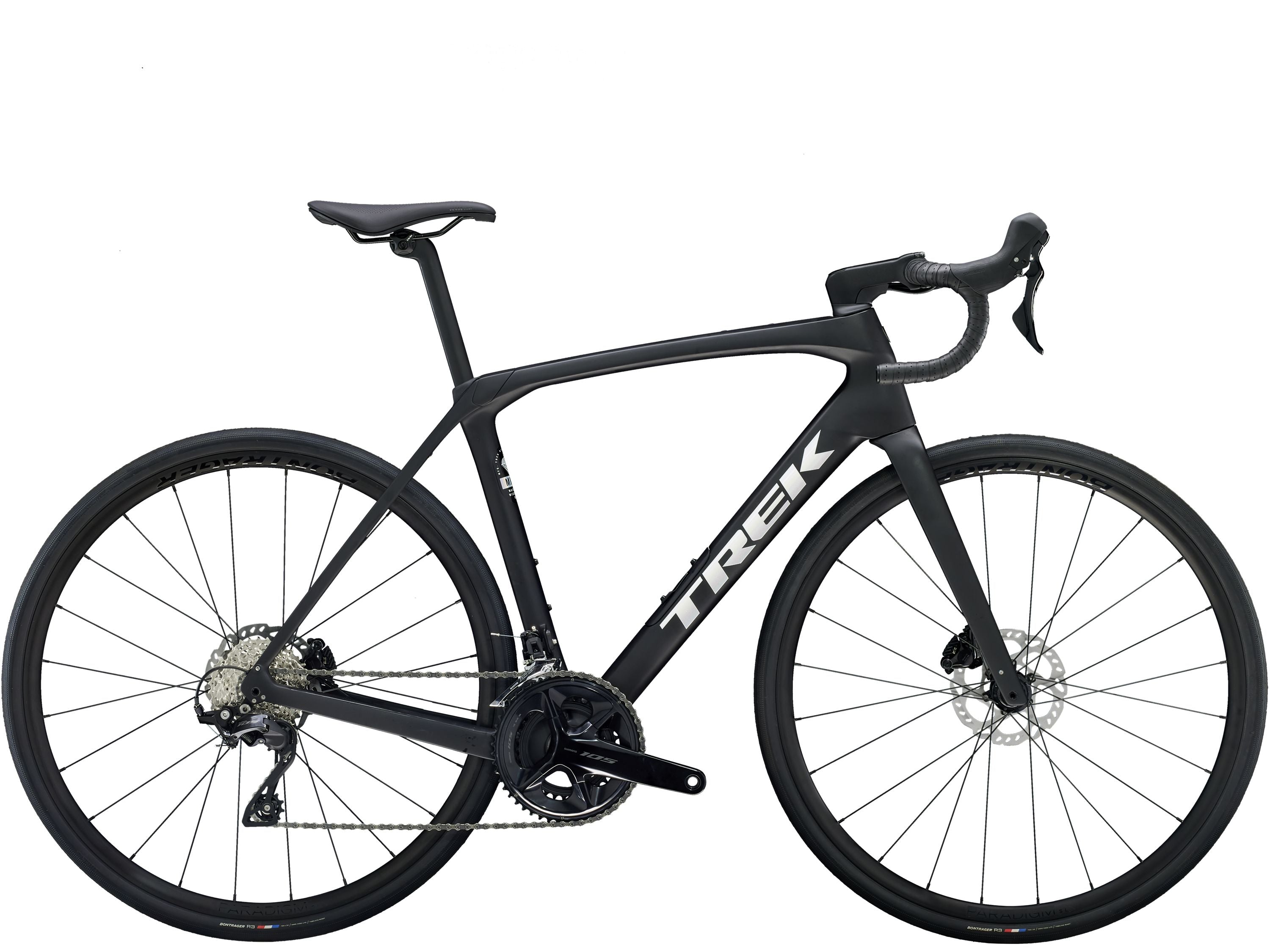

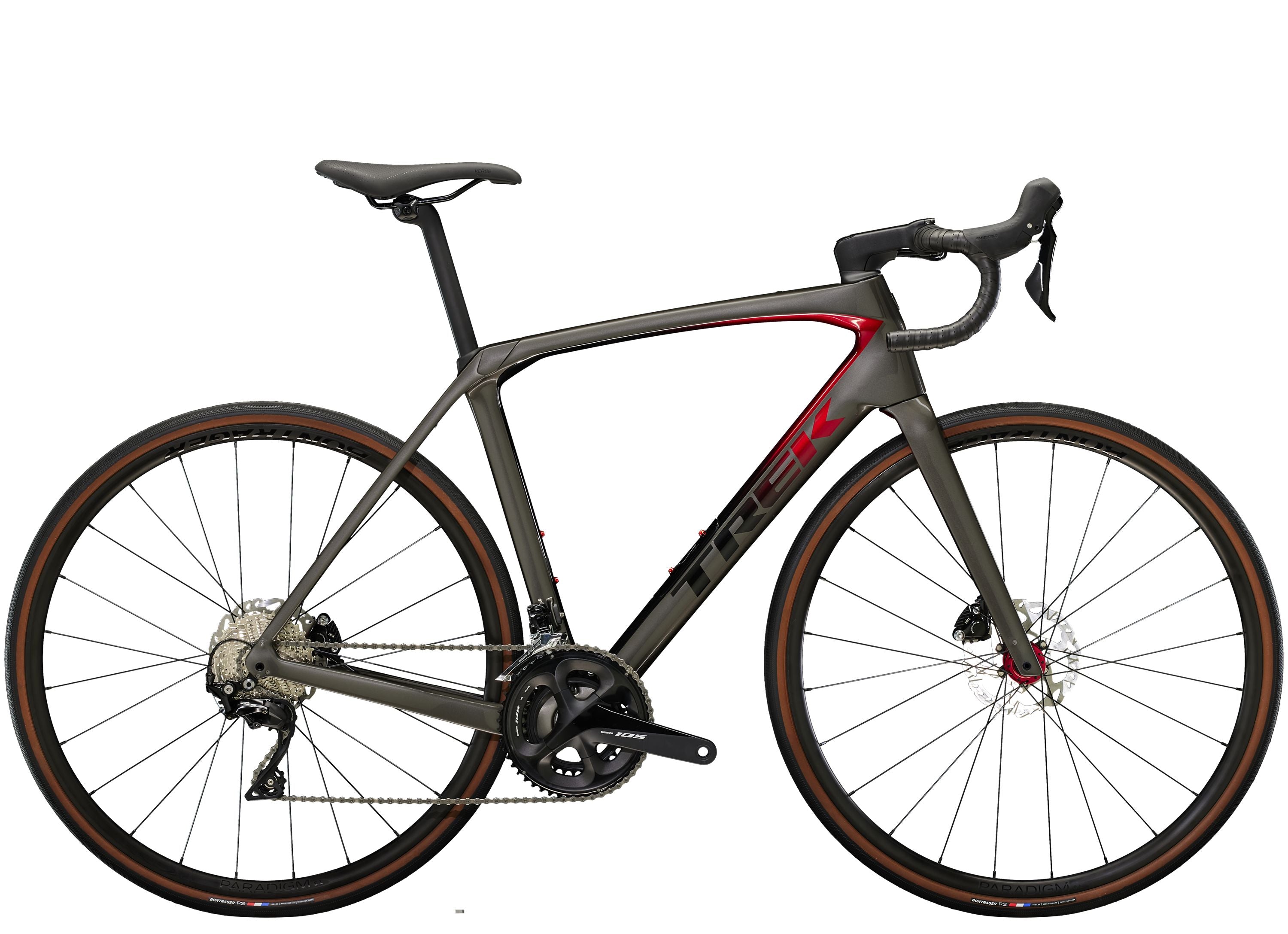

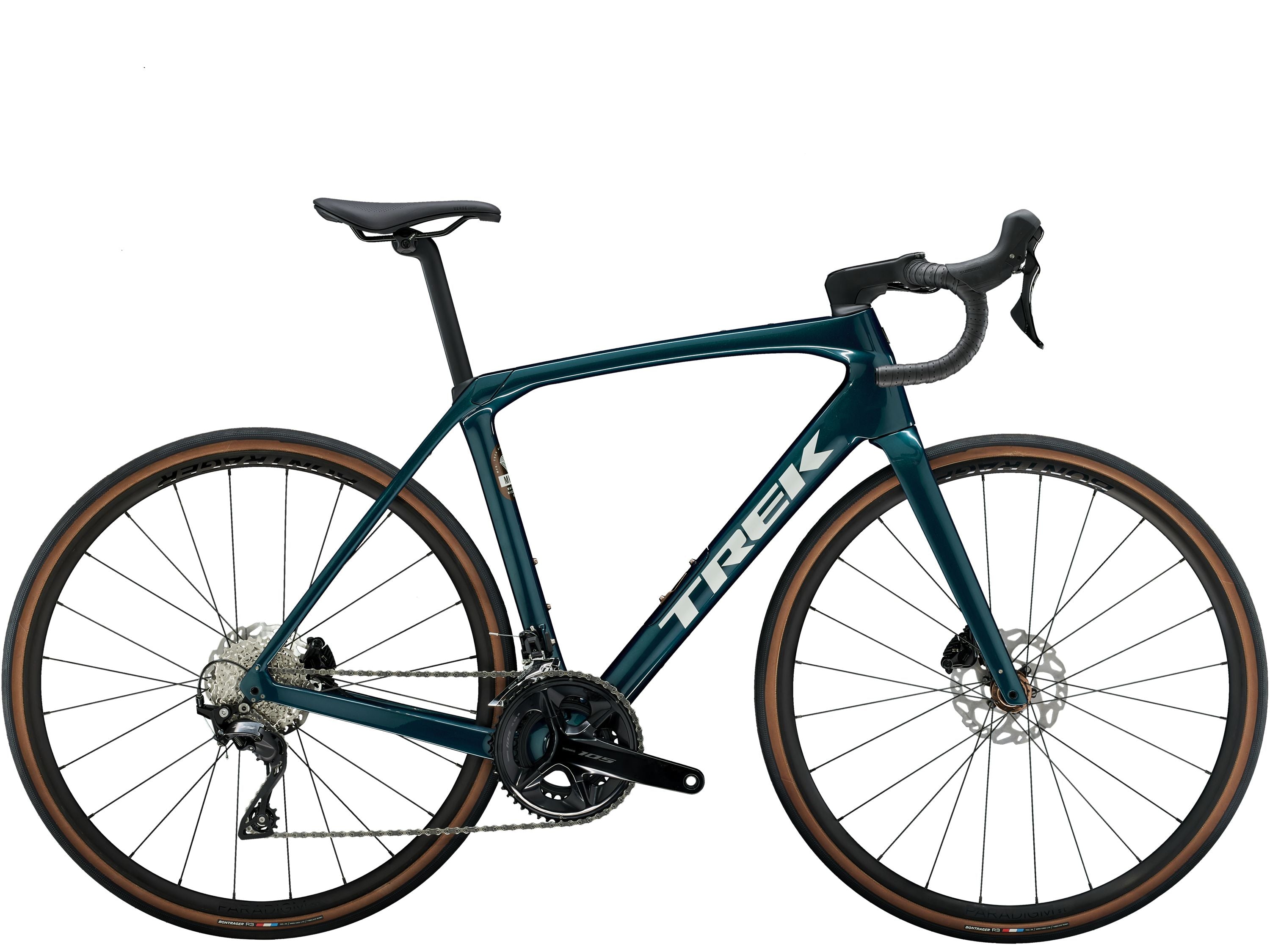

Trek Domane SL 5 Gen 4

Domane SL 5 is ready to take on rough roads and long miles with a ride thats smooth, sleek, and aerodynamic. The lightweight 500-series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a setup that looks as good as it feels. It features a reliable Shimano 105 drivetrain, disc brakes for all-weather stopping power, and an easy-access internal storage compartment for stowing ride essentials. Plus, tire clearance for lofty 38c hoops lets you take on almost any road, from tarmac to light gravel.

• The sleek all-new frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
• This bike is super versatile, super smooth, and equally suited to all-day adventures on the open road, club rides, and racing
• Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road for a smoother, more comfortable ride
• A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Lighter than ever

Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.

Versatile tire clearance

Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

Internal storage

Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

Refined integration

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.

Frame	500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork	Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front	Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples /
Wheel Rear	Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Tire	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire Part	Bontrager TLR sealant, 6oz
Hub Front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Rim Strip	Bontrager TLR
Skewer Front	Bontrager Switch thru axle, removable lever
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano 105 R7025, short-reach lever, 11 speed // Shimano 105 R7025, short-reach lever, 11 speed
Front Derailleur	Shimano 105 R7000, braze-on
Rear Derailleur	Shimano 105 R7000, long cage, 34T max cog
Crank	Shimano 105 R7000, 50/34 (compact), 165mm length
Bottom Bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 HG700-11, 11-34, 11 speed
Chain	Shimano 105 HG601, 11 speed
Brake	Shimano 105 hydraulic disc, flat mount
Brake Rotor	Shimano RT70, centerlock, 160mm
Saddle	Bontrager Verse Short Comp, steel rails, 155mm width
Seatpost	KVF aero carbon seatpost, 20mm offset, 280mm length
Handlebar	Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width
Stem	Trek RCS Pro, -7 degree, 60mm length

Geometry Chart
