Trek domane+ al 5

By Trek
$3,499.99
SKU: 5270354 // Barcode: 601842749661
CYBER SALE
Get a FREE $200 Cahaba Cycles Gift Card w/ this purchase!
View details

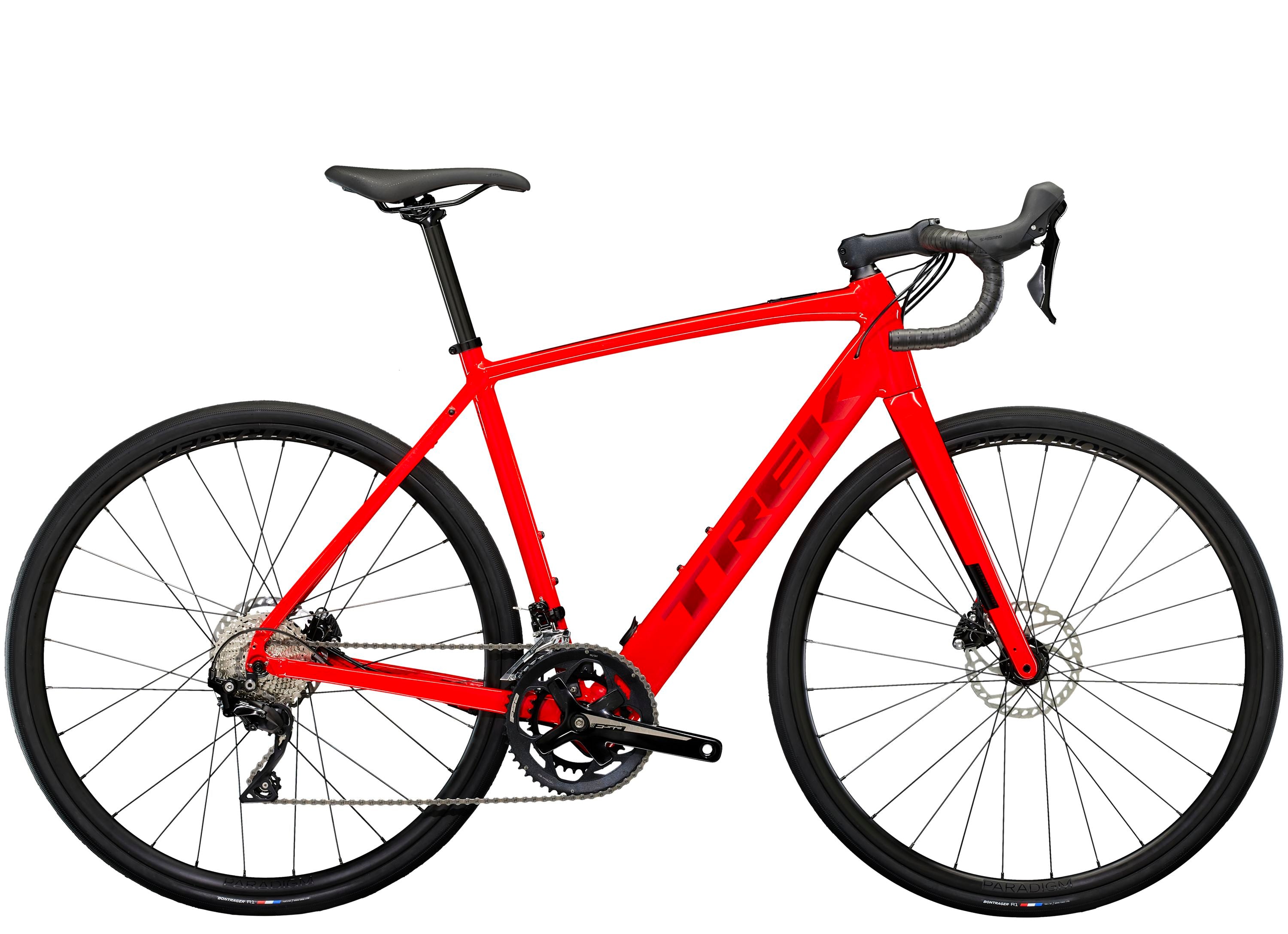

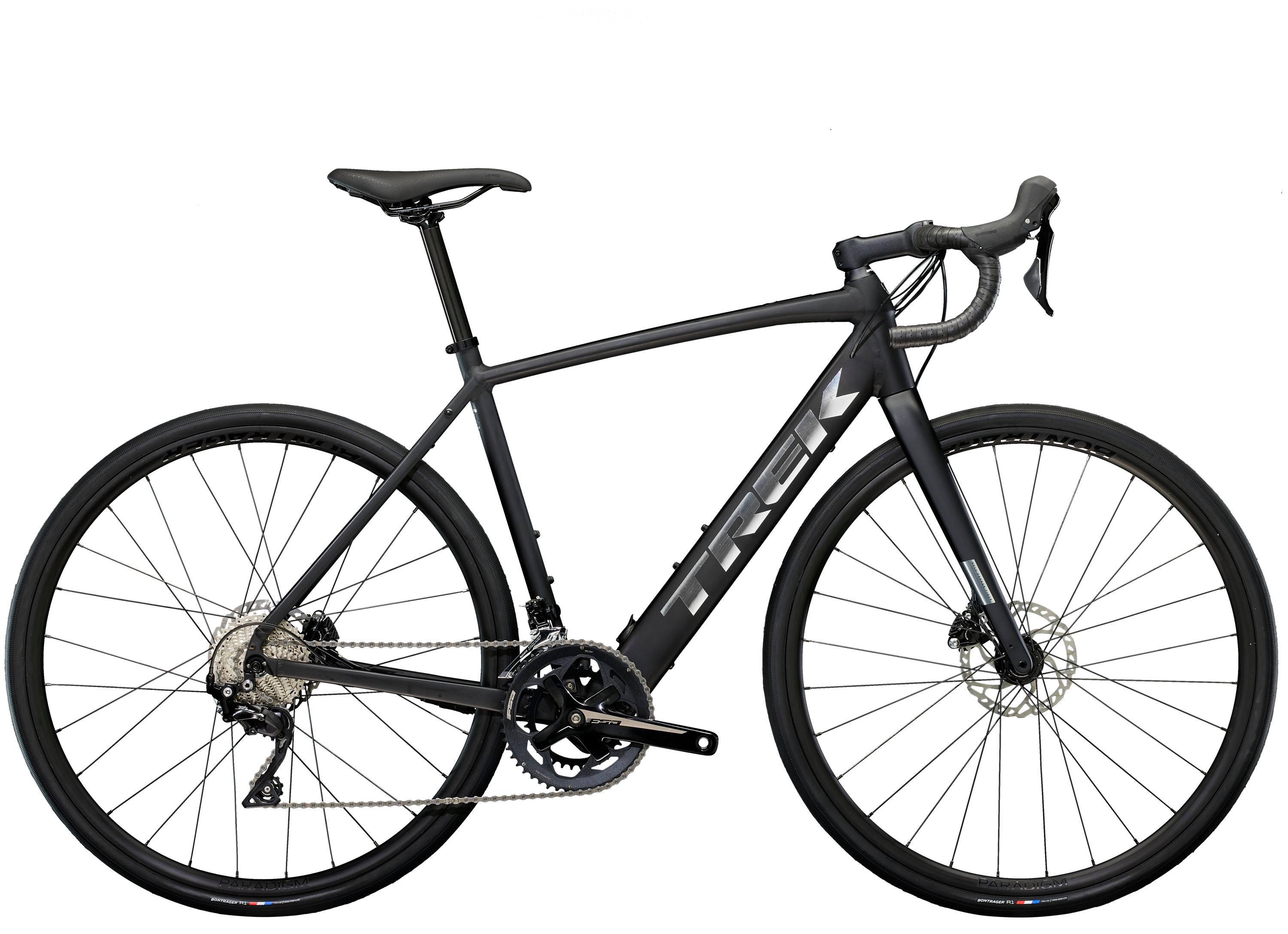

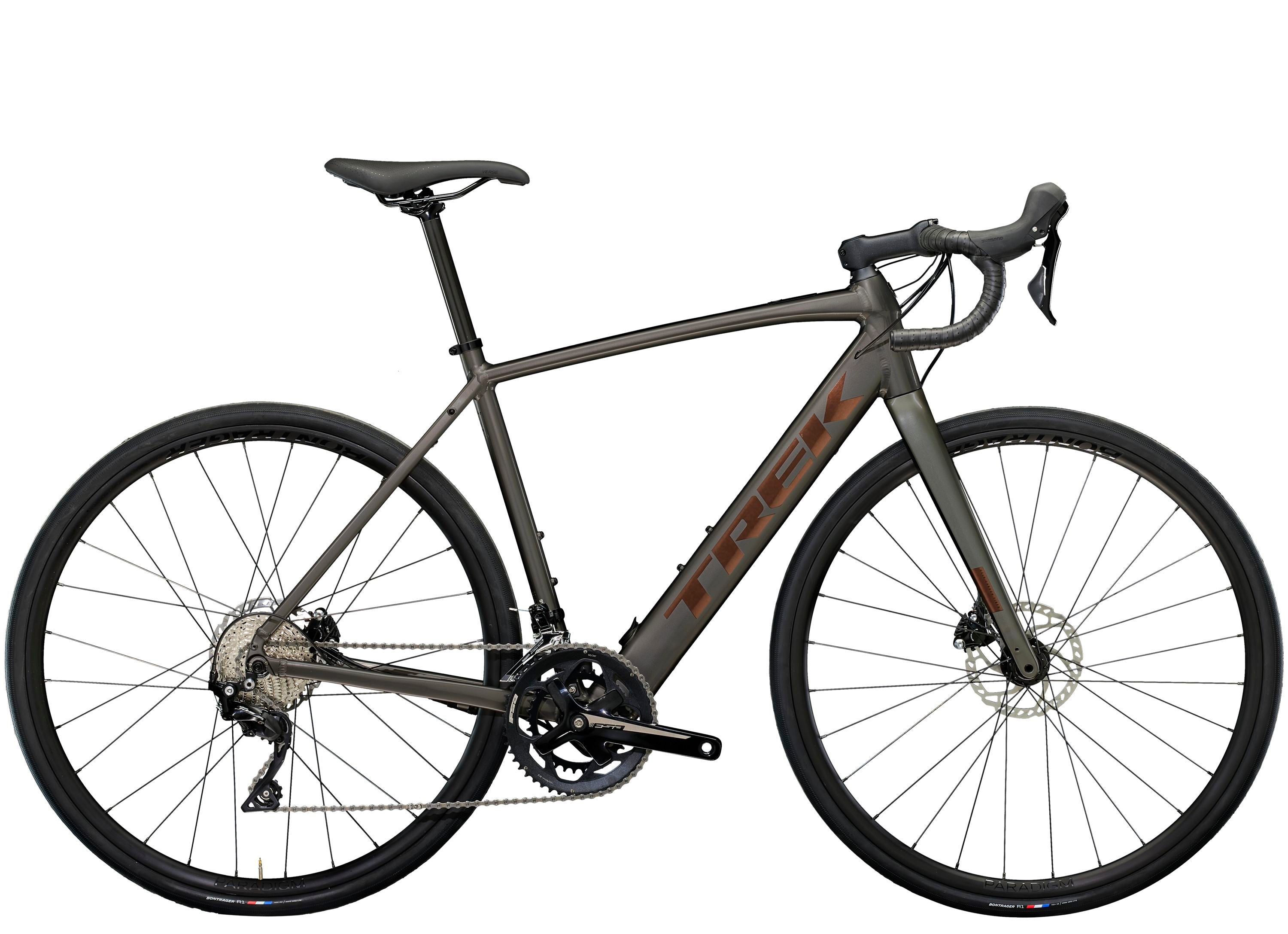

Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.
  • This e-road bike looks, rides, and feels more like a traditional road bike
  • The HyDrive pedal assist system has a hub motor for a more natural ride feel
  • Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display
  • The stable Endurance Geometry delivers comfort and confidence
  • An optional 250Wh Range Extender battery with a tool-free quick-mount system lets you easily swap your seat tube bottle cage for double the battery life.

Light, powerful, electric

An integrated 250Wh battery is hidden in the downtube and a powerful yet lightweight rear hub motor gives you that extra boost on the road.

Big tires, big comfort

Clearance for 38mm tires boosts traction for better handling and makes for a comfortable ride on everything from smooth pavement to light gravel.

Extend your ride

Double your range with an optional 250Wh Range Extender that can expand your ride to an average of 110mi/177km in Eco mode.

Control in the palm of your hand

Easily toggle between Domane+ AL’s three assist modes without taking your hands off the bars using the intuitive hood-mounted controls.

Shimano 105

With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether youre commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that wont hold you back as you grow in the sport.

Don’t forget your pedals

This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend flats for versatility or clipless pedals for control and efficiency.


Frame 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
Fork Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front /
Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Hub Front Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
Hub Rear Hyena hub drive motor, 40Nm, 250W
Rim Bontrager Paradigm, Tubeless Ready, 28-hole, 21mm width, Presta valve
Skewer Front Bontrager Switch thru axle, removable lever
Shifter Shimano 105 R7025, short-reach lever, 11 speed // Shimano 105 R7025, short-reach lever, 11 speed
Front Derailleur Shimano 105 R7000, 31.8mm clamp
Rear Derailleur Shimano 105 R7000, long cage, 34T max cog
Crank FSA Vero Pro, 50/34, 165mm
Bottom Bracket Torque sensor, threaded, 110mm spindle
Cassette Shimano 105 HG700-11, 11-34, 11 speed
Chain Shimano HG601, 11 speed
Brake Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Brake Rotor Shimano RT66, 6-bolt, 160mm
Saddle Bontrager Verse Short Comp, steel rails, 155mm width
Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Handlebar Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Headset FSA Integrated, sealed cartridge bearing, 1-1/8 top, 1.5 bottom
Battery 250Wh, integrated in down tube
Charger 2A, 42V output, 100V-240V AC input

Geometry Chart

495254565861
B B Drop 8
Chainstay Length 43
Eff Top Tube 51.7
Frame Reach 36.8
Frame Size Number 49 cm
Frame Stack 54
Head Angle 70.8°
Head Tube Length 11
Offset 5.3
Seat Tube 44
Seat Tube Angle 74.6°
Standover 72.7
Trail 6.7
Wheelbase 100.7
Wheel Size 700c
B B Drop 8
Chainstay Length 43
Eff Top Tube 53
Frame Reach 37.1
Frame Size Number 52 cm
Frame Stack 56.1
Head Angle 71.3°
Head Tube Length 13
Offset 5.3
Seat Tube 47.5
Seat Tube Angle 74.2°
Standover 75.3
Trail 6.4
Wheelbase 101.3
Wheel Size 700c
B B Drop 8
Chainstay Length 43
Eff Top Tube 54.2
Frame Reach 37.4
Frame Size Number 54 cm
Frame Stack 57.5
Head Angle 71.3°
Head Tube Length 14.5
Offset 5.3
Seat Tube 50
Seat Tube Angle 73.7°
Standover 77.2
Trail 6.4
Wheelbase 102.1
Wheel Size 700c
B B Drop 7.8
Chainstay Length 43
Eff Top Tube 55.4
Frame Reach 37.7
Frame Size Number 56 cm
Frame Stack 59.1
Head Angle 71.9°
Head Tube Length 16
Offset 4.8
Seat Tube 52.5
Seat Tube Angle 73.3°
Standover 79.4
Trail 6.5
Wheelbase 101.8
Wheel Size 700c
B B Drop 7.8
Chainstay Length 43
Eff Top Tube 56.7
Frame Reach 38
Frame Size Number 58 cm
Frame Stack 61.1
Head Angle 72.0°
Head Tube Length 18
Offset 4.8
Seat Tube 54.8
Seat Tube Angle 73.0°
Standover 80.9
Trail 6.5
Wheelbase 102.7
Wheel Size 700c
B B Drop 7.8
Chainstay Length 43
Eff Top Tube 58.6
Frame Reach 38.5
Frame Size Number 61 cm
Frame Stack 64.6
Head Angle 72.1°
Head Tube Length 22
Offset 4.8
Seat Tube 56.7
Seat Tube Angle 72.7°
Standover 82.5
Trail 6.4
Wheelbase 104.3
Wheel Size 700c
