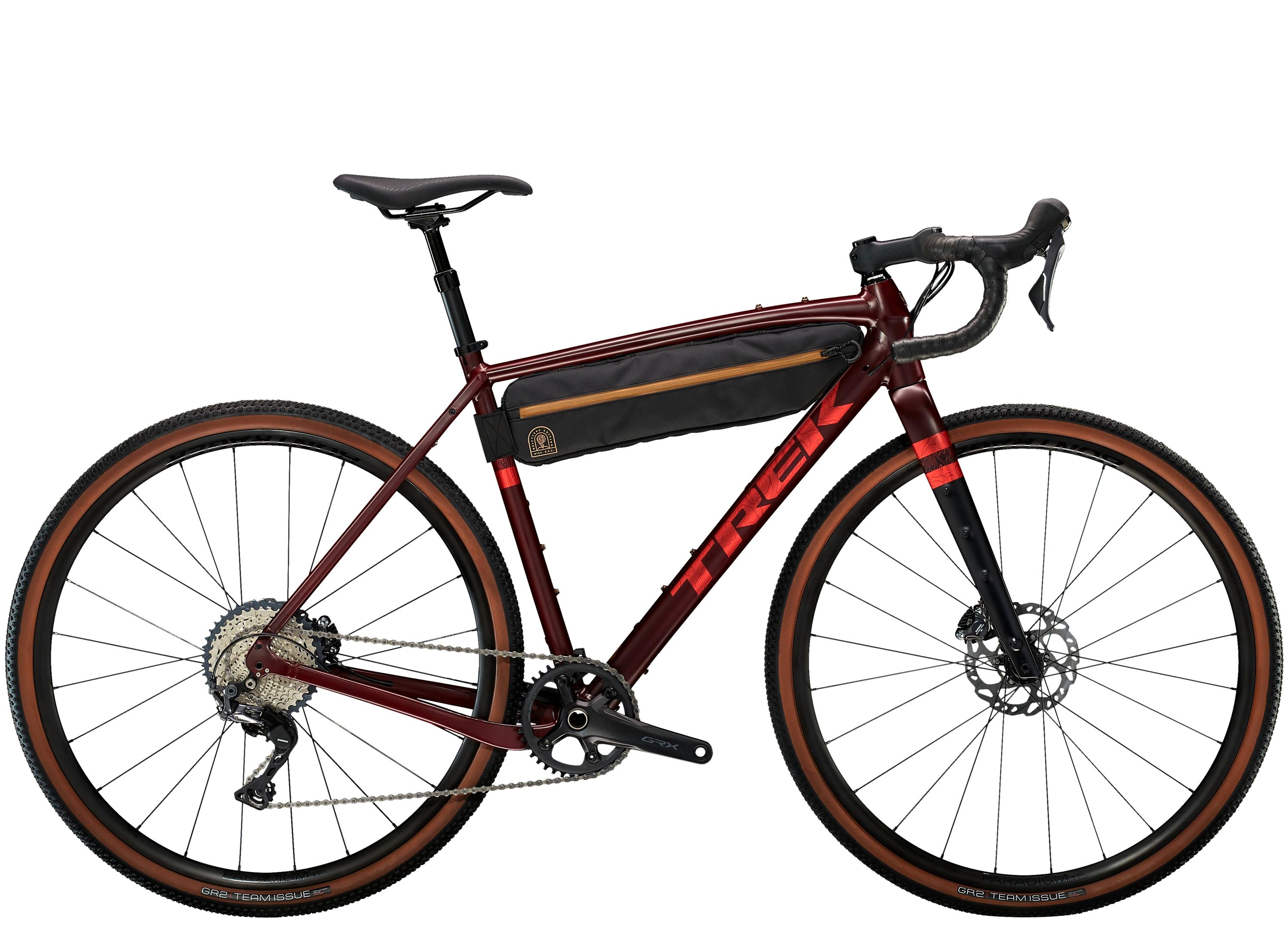

Trek Checkpoint ALR 5 Driftless

By Trek
$2,899.99
SKU: 5268082 // Barcode: 601842670378
CYBER SALE
Get a FREE $200 Cahaba Cycles Gift Card w/ this purchase!
View details
Checkpoint ALR 5 Driftless is a custom-painted, high-quality gravel bike that will hold up for long, rugged miles on pavement, dirt, and even the most treacherous gravel roads. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customize for your kind of adventure.
  • All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
  • The gorgeous paint scheme and topo map pattern evoke the rugged, hilly escape of Wisconsin’s driftless region—an area untouched by terrain-flattening glaciers
  • Comes kitted out with a custom Bontrager frame bag that features the same topo map design as your Checkpoint!
  • This bike is exceedingly versatile and suited to a wide variety of ride styles, including gravel rides, bikepacking, and daily commutes
  • Integrated frame bag mounts and rack and fender mounts make it easy to carry gear and water

More than a region. A state of mind.

The limited-edition Driftless design features topographic maps giving a nod to its namesake region, but more than that, its a tribute to endless miles of adventures that wait for you beyond the next climb.

Drop it like its hot

Dropper equipped for total versatility. Checkpoint Driftless is ready for you to get low on steep descents, drop a foot in dusty corners, and stay comfortable through long miles.

Carry it all

Load up for the long and dusty road with an included bolt-on frame bag with plenty of room for gear and snacks. Leaving no stone unturned, even the interior features unique topographic maps to inspire you to explore.

Shimano GRX

Shimano GRX was designed from the ground up for gravel adventure. With its gravel-specific ergonomics, optimized gearing options, rugged reliability, and quiet, stable drivetrain, GRX sets itself apart from the rest of the component world.

Don’t forget your pedals

This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.


Frame 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples /
Wheel Rear Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Tire Bontrager GR2 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire Part Bontrager TLR sealant, 6oz
Hub Front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Hub Rear Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rim Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve // Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Rim Strip Bontrager TLR
Spokes 14g stainless steel, black
Skewer Front Bontrager Switch thru axle, removable lever
Skewer Rear Bontrager Switch thru axle, removable lever
Shifter Shimano GRX RX810, 11 speed // Shimano GRX RX810 hydraulic disc
Rear Derailleur Shimano GRX RX812, long cage, 42T max cog
Crank Shimano GRX RX600, 40T, 165mm length
Bottom Bracket Praxis, T47 threaded, internal bearing
Cassette Shimano SLX M7000, 11-42, 11 speed
Chain Shimano HG601, 11 speed
Brake Shimano RX810 hydraulic disc, flat mount
Brake Rotor Shimano RT70, centerlock, 160mm
Saddle Bontrager Verse Comp, steel rails, 155mm width
Seatpost Easton EA70 AX, 27.2mm, 0mm offset, 50mm travel
Handlebar Bontrager Elite Gravel, 38cm width
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Geometry Chart

495254565861
B B Drop 7.8
Chainstay Length 43.5
Eff Top Tube 54.1
Frame Reach 39.3
Frame Size Number 49 cm
Frame Stack 53.8
Head Angle 71.2°
Head Tube Length 9
Offset 4.5
Seat Tube 49
Seat Tube Angle 74.1°
Standover 73.5
Trail 7.4
Wheelbase 102.5
Wheel Size 700c
B B Drop 7.8
Chainstay Length 43.5
Eff Top Tube 55.5
Frame Reach 39.9
Frame Size Number 52 cm
Frame Stack 55.3
Head Angle 71.6°
Head Tube Length 10.5
Offset 4.5
Seat Tube 52
Seat Tube Angle 73.7°
Standover 76.5
Trail 7.1
Wheelbase 103.3
Wheel Size 700c
B B Drop 7.6
Chainstay Length 43.5
Eff Top Tube 57
Frame Reach 40.3
Frame Size Number 54 cm
Frame Stack 57.1
Head Angle 71.8°
Head Tube Length 12.5
Offset 4.5
Seat Tube 54
Seat Tube Angle 73.2°
Standover 78.9
Trail 7
Wheelbase 104.1
Wheel Size 700c
B B Drop 7.6
Chainstay Length 43.5
Eff Top Tube 58.4
Frame Reach 40.7
Frame Size Number 56 cm
Frame Stack 59.2
Head Angle 72.2°
Head Tube Length 14.5
Offset 4.5
Seat Tube 56
Seat Tube Angle 72.8°
Standover 80.9
Trail 6.7
Wheelbase 104.8
Wheel Size 700c
B B Drop 7.4
Chainstay Length 43.5
Eff Top Tube 59.7
Frame Reach 41.1
Frame Size Number 58 cm
Frame Stack 60.9
Head Angle 72.3°
Head Tube Length 16.5
Offset 4.5
Seat Tube 58
Seat Tube Angle 72.5°
Standover 82.9
Trail 6.6
Wheelbase 105.8
Wheel Size 700c
B B Drop 7.4
Chainstay Length 43.5
Eff Top Tube 61.7
Frame Reach 41.7
Frame Size Number 61 cm
Frame Stack 63.9
Head Angle 72.6°
Head Tube Length 19.5
Offset 4.5
Seat Tube 61
Seat Tube Angle 72.1°
Standover 85.9
Trail 6.5
Wheelbase 107
Wheel Size 700c
