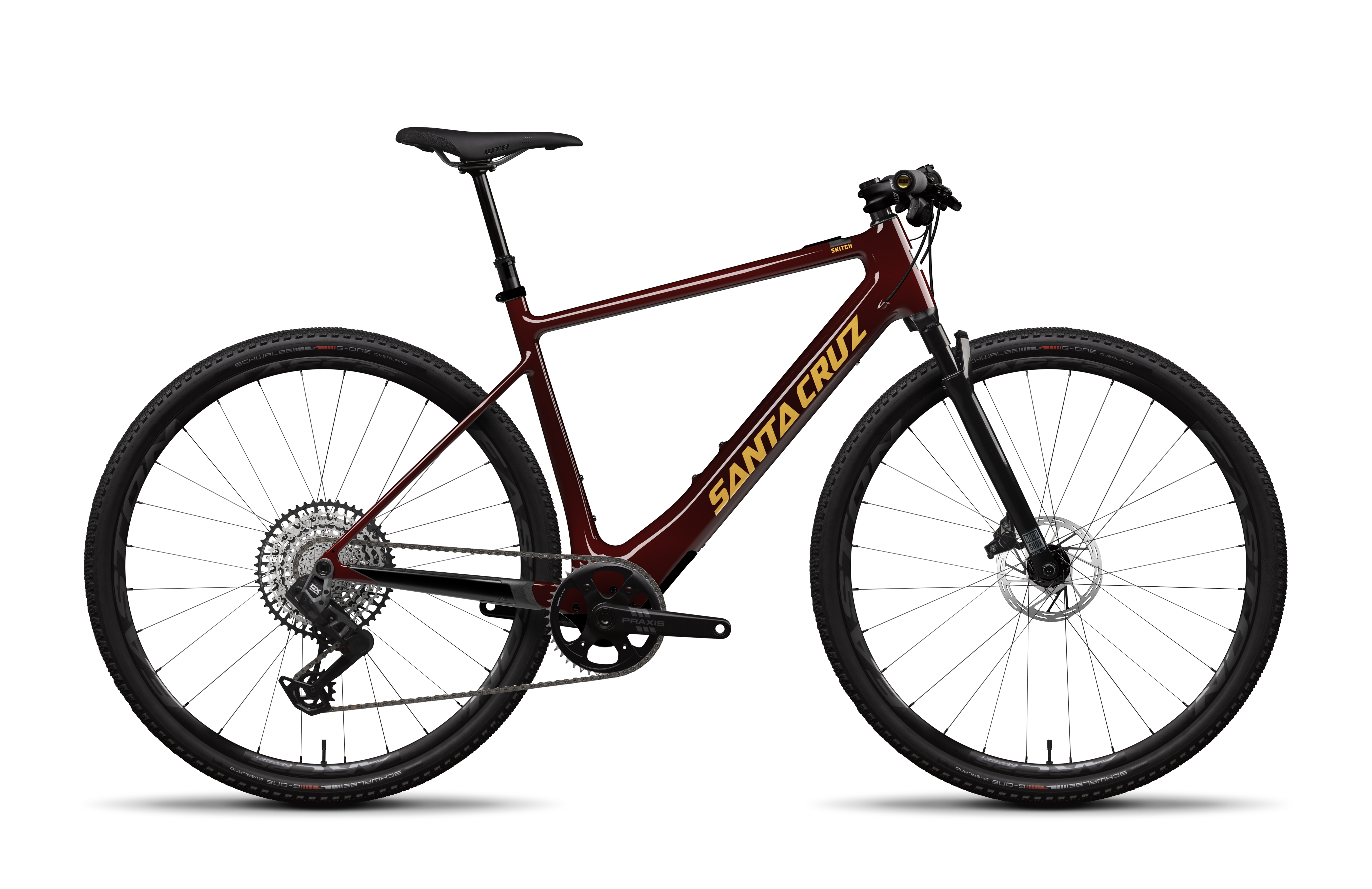

Santa Cruz Skitch GX AXS Flat Bar 2025

By Santa Cruz
$7,849.00
View details

The Santa Cruz Skitch GX AXS Flat Bar E-Bike is the perfect blend of agility, speed, and style for city commuters and urban adventurers. With a lightweight Carbon CC frame and powerful FAZUA Ride 60 drive unit, this bike makes short work of traffic and turns your everyday commute into an exciting ride. Featuring a 430Wh integrated battery, SRAM GX Eagle AXS T-Type drivetrain, and high-performance Schwalbe G-One tires, the Skitch is built for riders who want both speed and versatility. Whether you're dodging traffic or breezing through city streets, the Skitch is your ideal companion for smooth, efficient rides.

Standout Features

  • Carbon CC Frame — Light, strong, and responsive
  • Fazua Ride 60 Drive Unit — Seamless power assistance for city riding
  • 430 Wh Integrated Battery — Long-lasting range for city commutes
  • SRAM GX Eagle AXS T-Type Drivetrain — Smooth, precise shifting for effortless riding
  • Schwalbe G-One Overland Evo Tires — Versatile tires for both pavement and light trails
  • Dropper Post — Quick saddle adjustments for a more comfortable ride

Frame

  • Material: Carbon CC
  • Weight: 33.05 lbs / 14.99 kg
  • Wheel Size: 700C

Suspension

  • Fork: RockShox Rudy Base XPLR, 40mm travel

Drivetrain

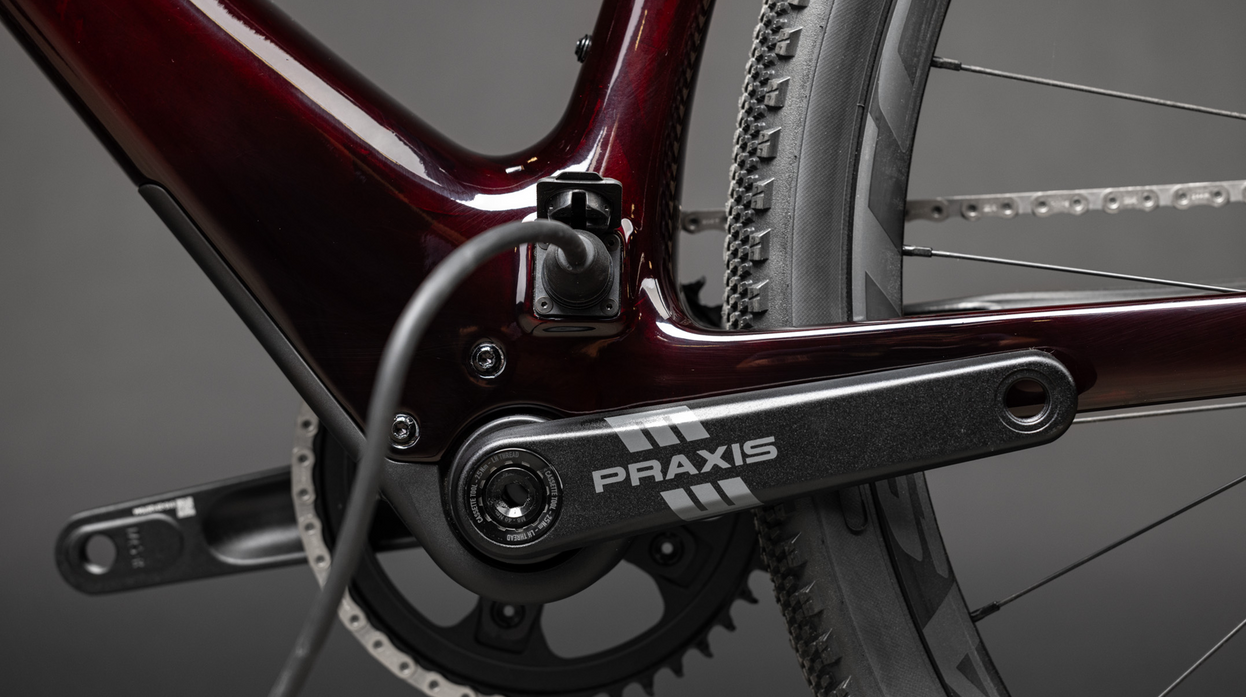

  • Crankset: Praxis eTor AL, 107BCD
  • Cassette: SRAM GX Eagle T-Type, 10-52t
  • Chain: SRAM GX Eagle T-Type, Flattop, 12-speed
  • Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-speed
  • Shifter: SRAM AXS Pod Bridge

Brakes

  • Brakes: SRAM Level Silver Stealth 2-Piston
  • Front Rotor: SRAM Paceline 160mm, Centerlock

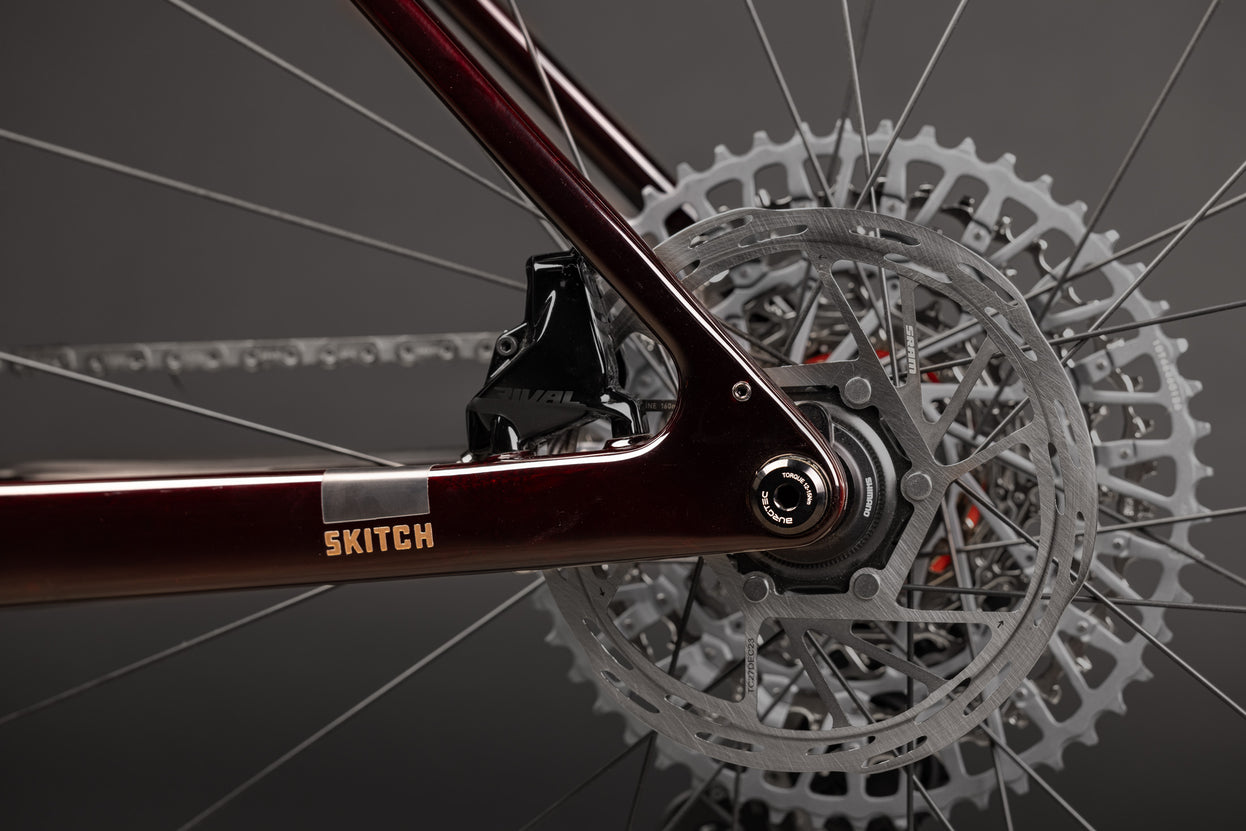

  • Rear Rotor: SRAM Paceline 160mm, Centerlock

Cockpit

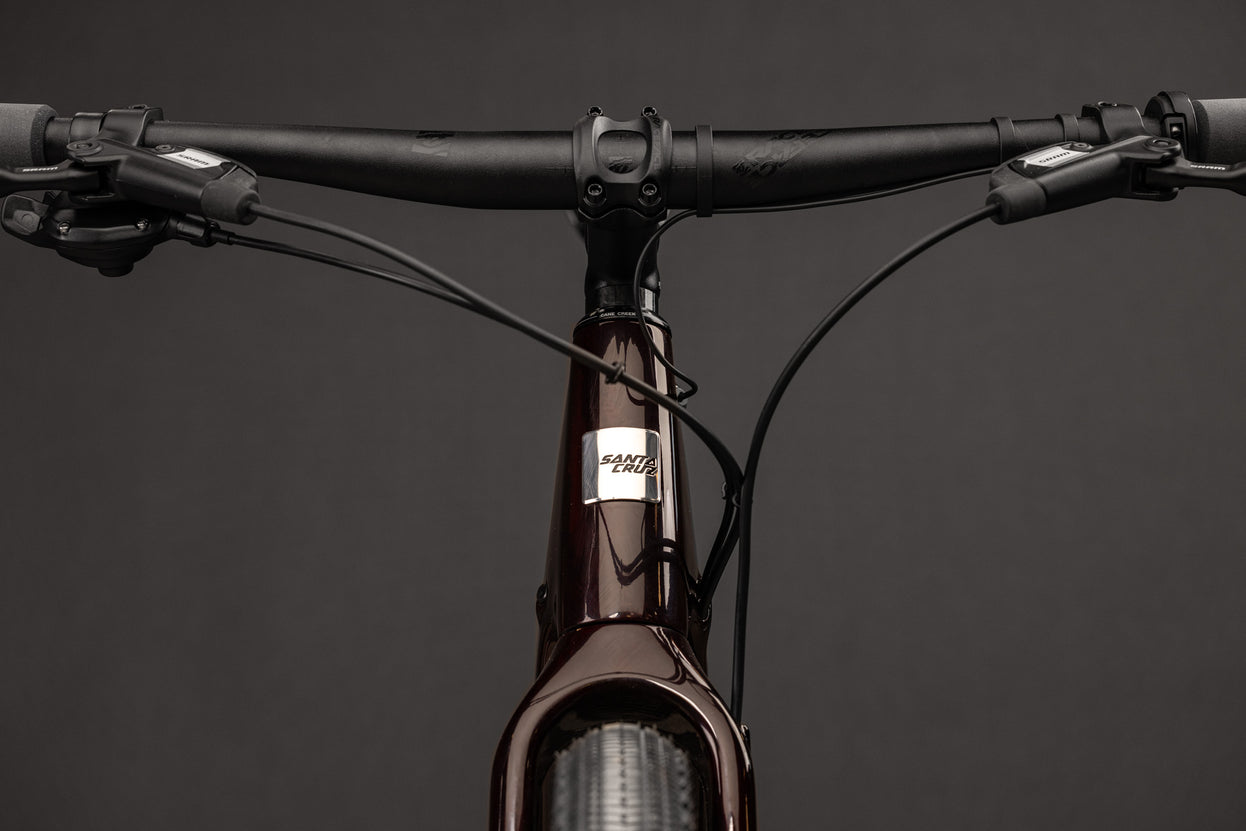

  • Handlebars: SRAM Atmos Flat Bar, 31.8x760mm
  • Stem: SRAM Atmos Stem, 80mm
  • Grips: ESI Chunky Grips
  • Headset: FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated Headset
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: OneUp Dropper Post, 27.2mm

Wheels & Tires

  • Front Rim: Easton ARC Offset 25 700c
  • Front Hub: DT Swiss 370, 12x100, Centerlock, 28h
  • Front Tire: Schwalbe G-One Overland Evo, 700x50c, ADDIX SpeedGrip
  • Rear Rim: Easton ARC Offset 25 700c
  • Rear Hub: DT Swiss 370, 12x148, XD, Centerlock, 28h
  • Rear Tire: Schwalbe G-One Overland Evo, 700x50c, ADDIX SpeedGrip

E-Bike System

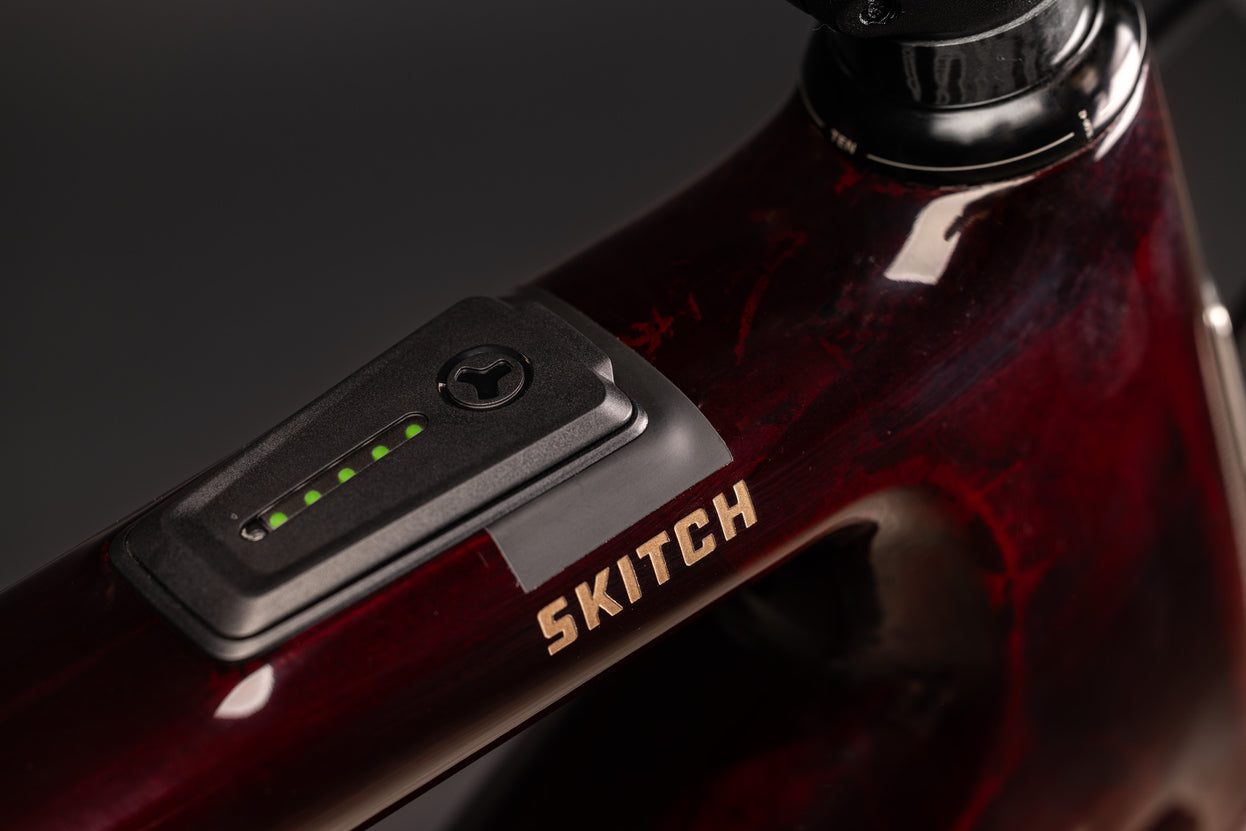

  • Battery: Fazua 430 Wh Integrated Battery

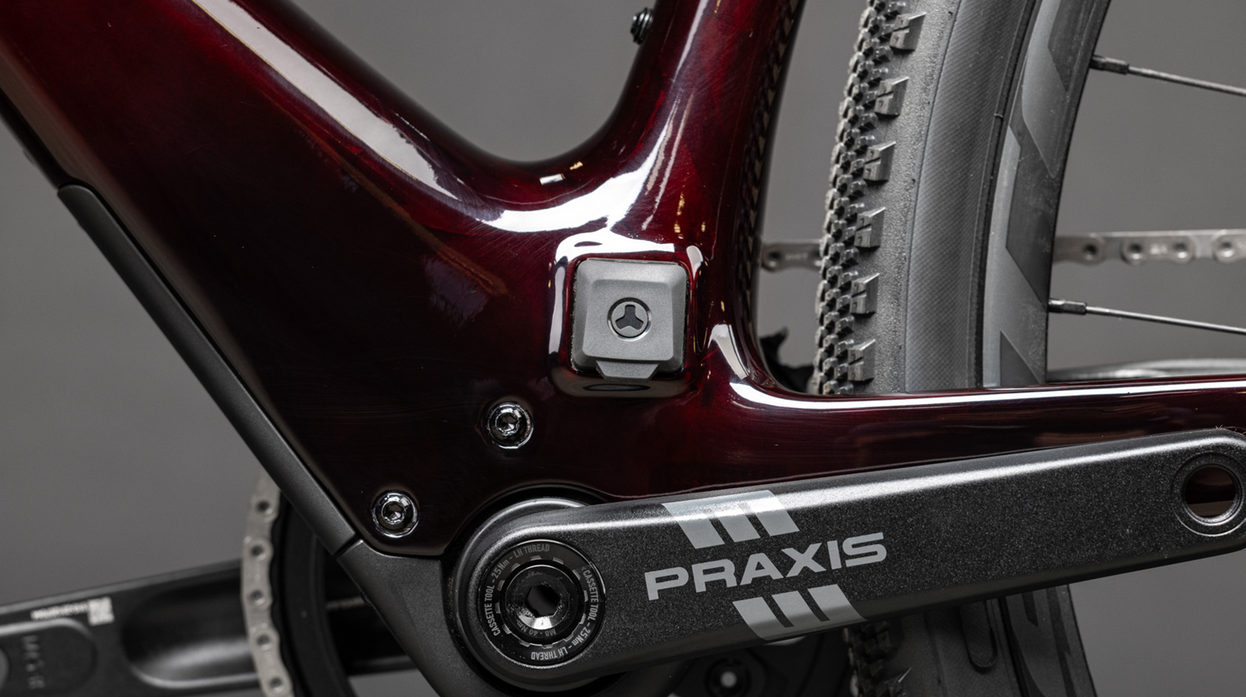

  • Drive Unit: Fazua Ride 60
  • Battery Charger: Fazua Charger

Specifications

Spec Detail
Frame Material Carbon CC
Weight 33.05 lbs / 14.99 kg
Wheel Size 700C
Fork Travel 40mm
Fork Axle to Crown 430mm
Fork Offset 45mm
Max Chainring Size 46t
Max Rotor Size 180mm
Max Tire Clearance 50mm
Rear Spacing 148mm (Boost)
Rear Brake Mount Flatmount 160mm Direct
UDH Compatible Yes
Headset Compatibility IS41 / IS52

Size Guide

Size Rider Height Reach
Small 5'1" – 5'5" 435mm
Medium 5'5" – 5'9" 460mm
Large 5'9" – 6'1" 485mm
