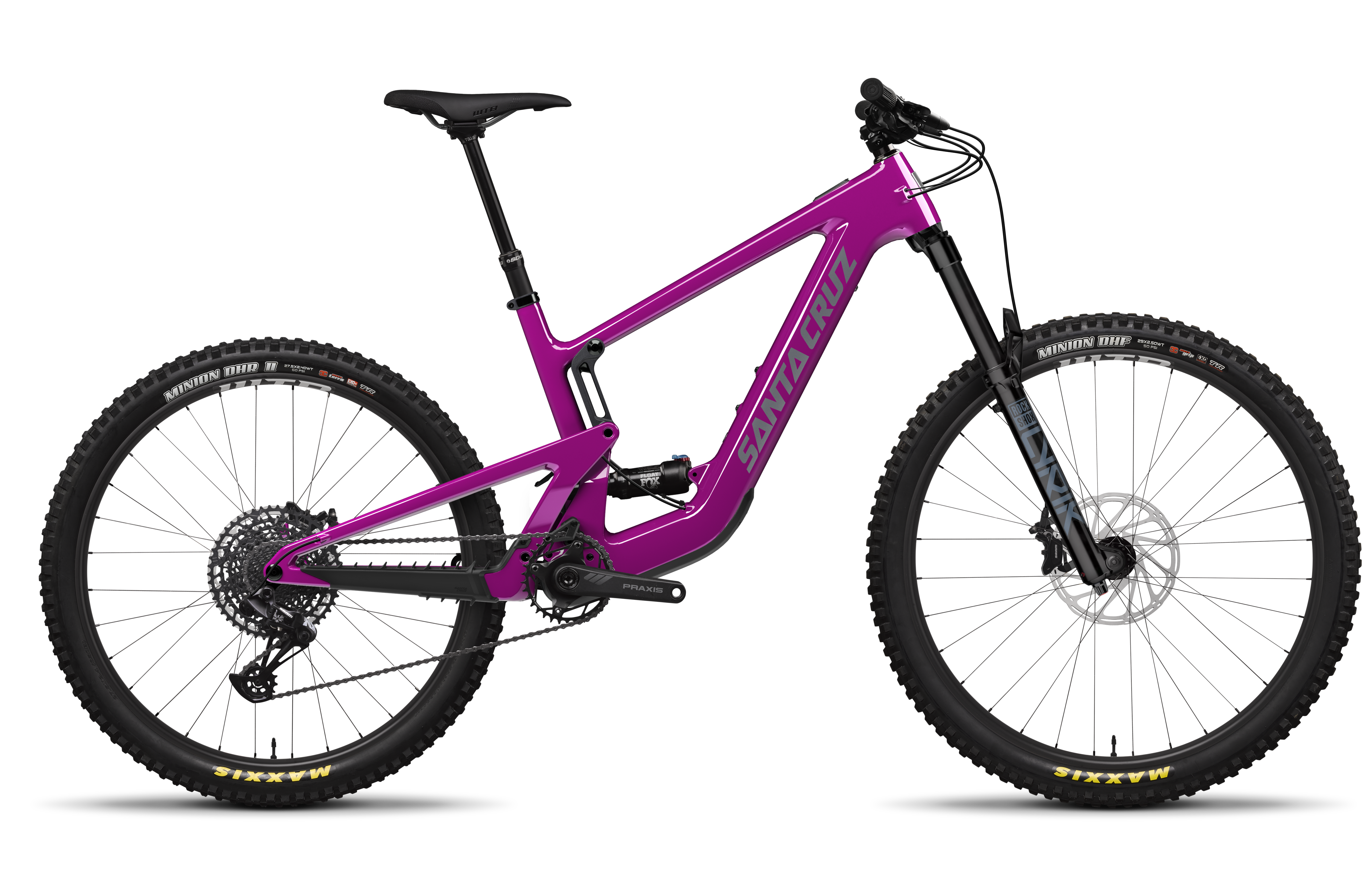

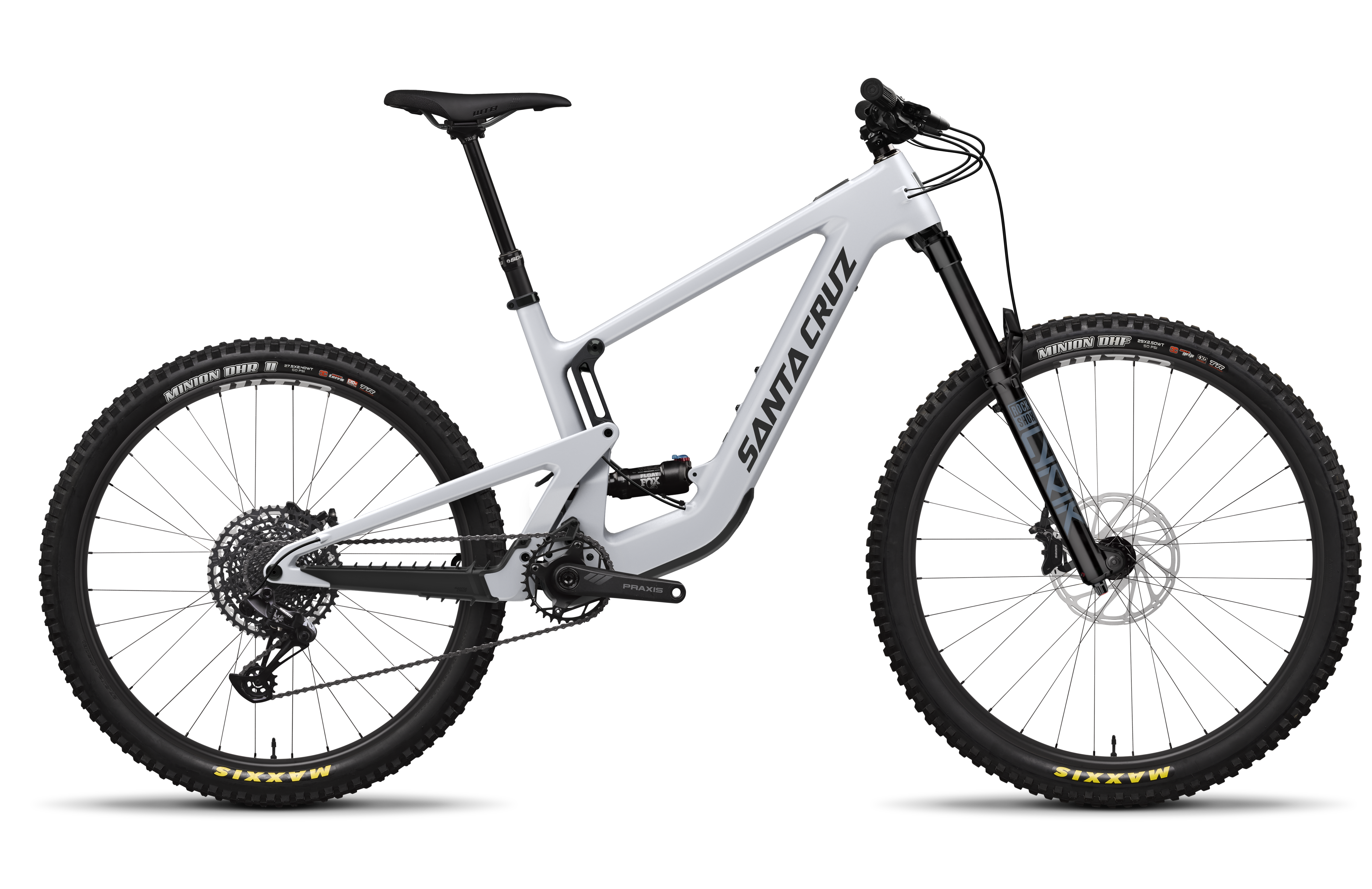

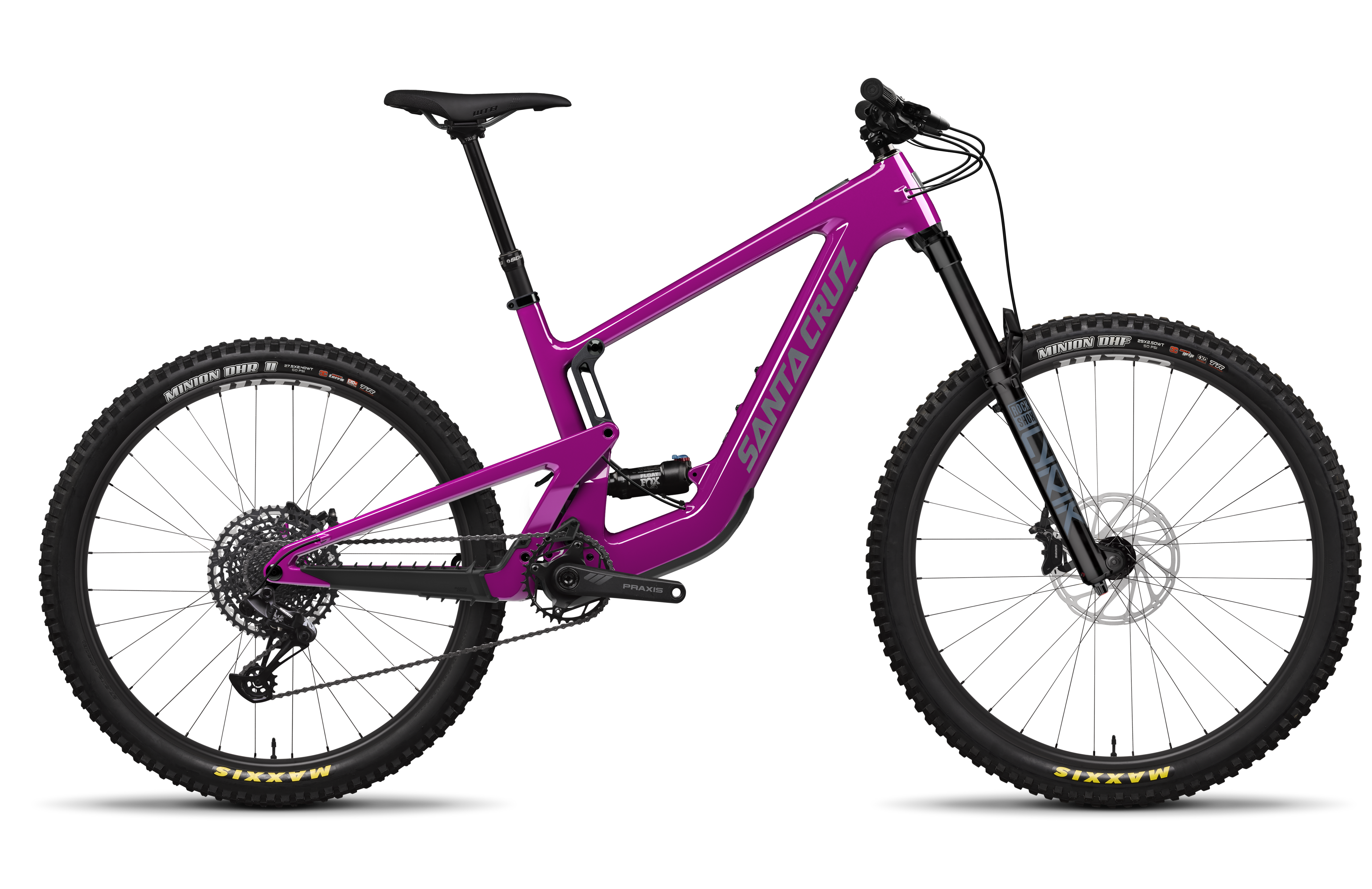

The Santa Cruz Heckler SL R is an impressive combination of lightweight agility and electric assistance. With its Carbon C frame, 150mm VPP™ suspension, and FAZUA RIDE 60 drive unit, this e-bike excels on technical trails and demanding terrains. The 430Wh integrated battery provides plenty of power, and with components like the RockShox Lyrik Base fork and Maxxis Minion tires, you can enjoy an unbeatable ride. Designed to perform and built for adventure, the Heckler SL R makes every trail feel more exciting with its progressive geometry and precise handling.
Standout Features
- Carbon C Frame — Lightweight and strong for optimal performance
- VPP™ Suspension — 150mm rear suspension for maximum control
- FAZUA RIDE 60 Drive Unit — Efficient power for smooth rides
- 430Wh Integrated Battery — Extended range for longer adventures
- Mixed Wheel Size — 29” front and 27.5” rear for the perfect balance of agility and stability
- Shock Choices — FOX Float Performance or RockShox Super Deluxe Select+
Frame
- Material: Carbon C
- Rear Travel: 150mm (VPP™)
- Wheel Size: MX (29” front / 27.5” rear)
- Weight: 42.56 lbs / 19.3 kg
Suspension
- Fork: RockShox Lyrik Base, 160mm

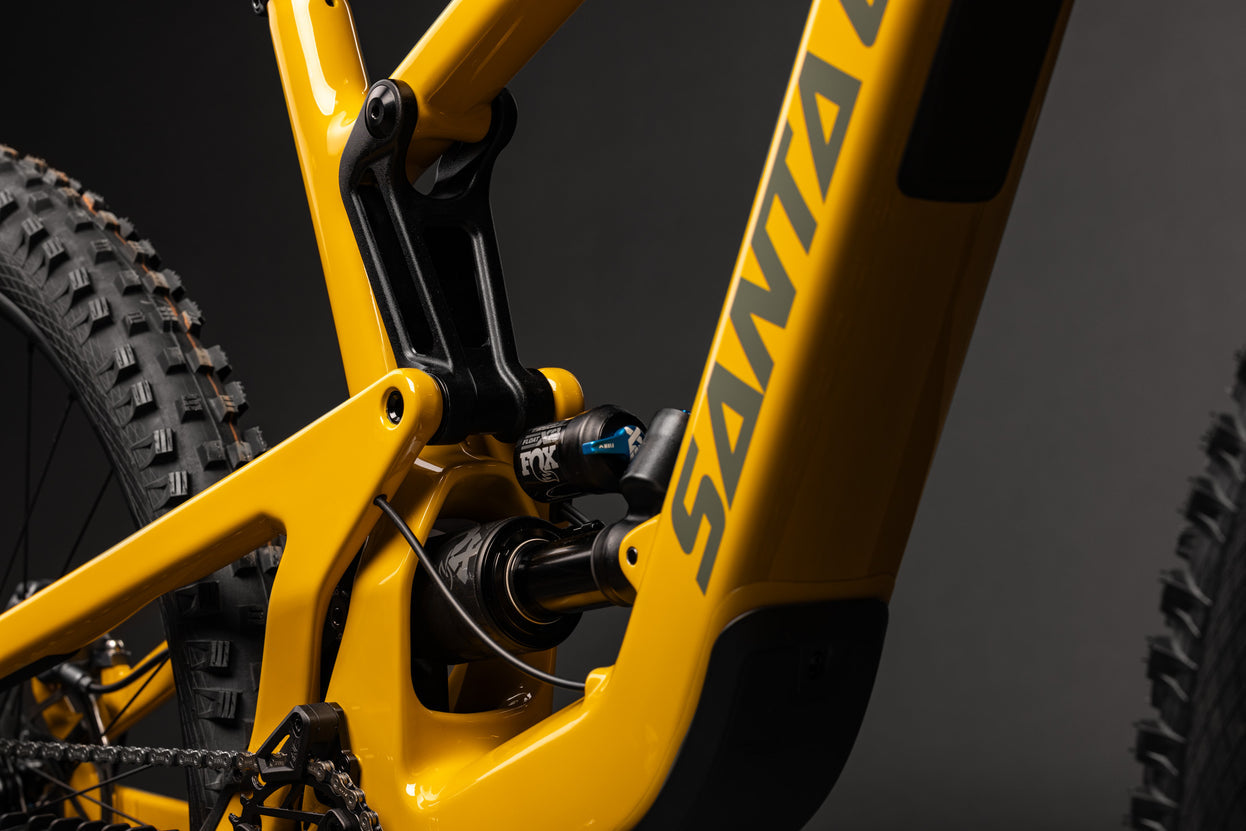

- Shock: FOX Float Performance, 210x55 or Fox Float DPS Performance, 210x55
Drivetrain
- Cassette: SRAM PG1230, 12-speed, 11-50t
- Chain: SRAM NX Eagle, 12-speed
- Crankset: Praxis eTor AL, 104BCD, 165mm
- Rear Derailleur: SRAM NX Eagle, 12-speed
- Shifter: SRAM NX
- Chainguide: OneUp Chainguide

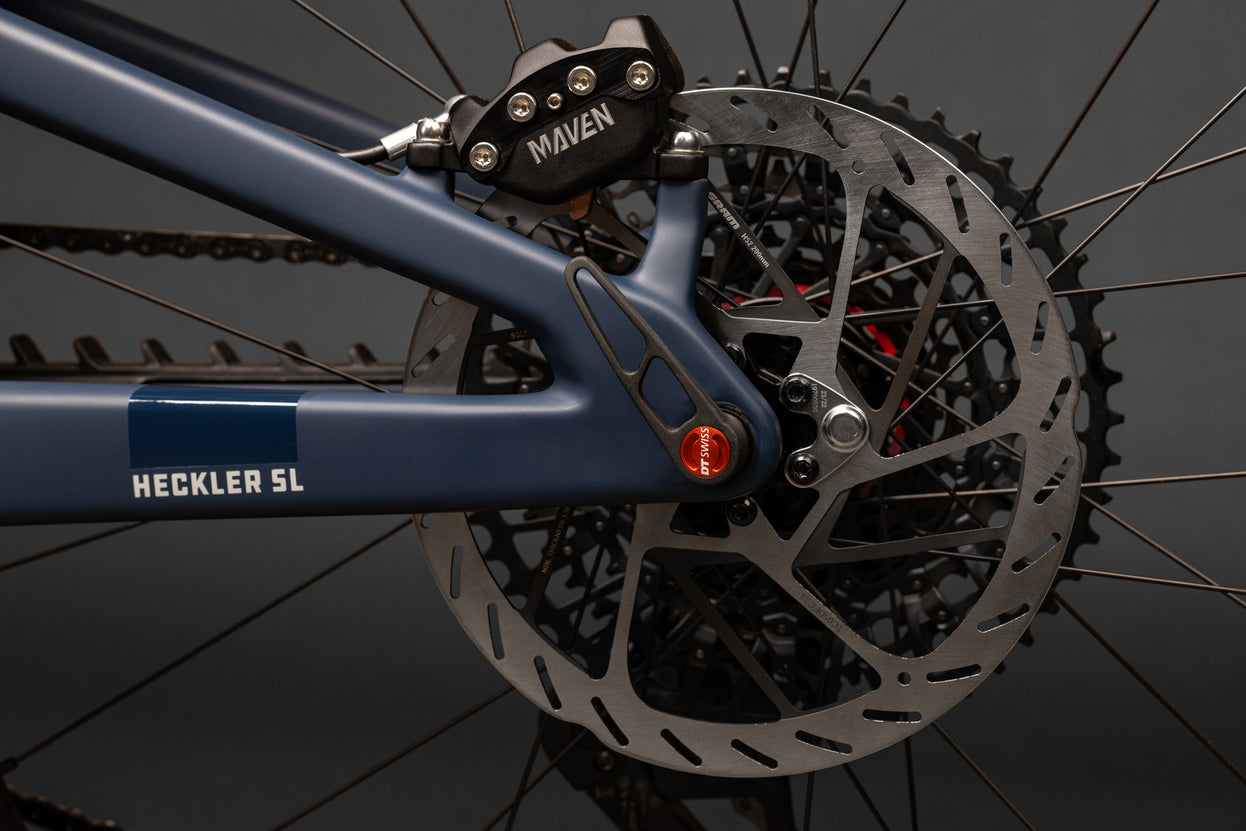

Brakes
- Brakes: SRAM DB8
- Front Rotor: Avid Centerline, 200mm
- Rear Rotor: Avid Centerline, 200mm

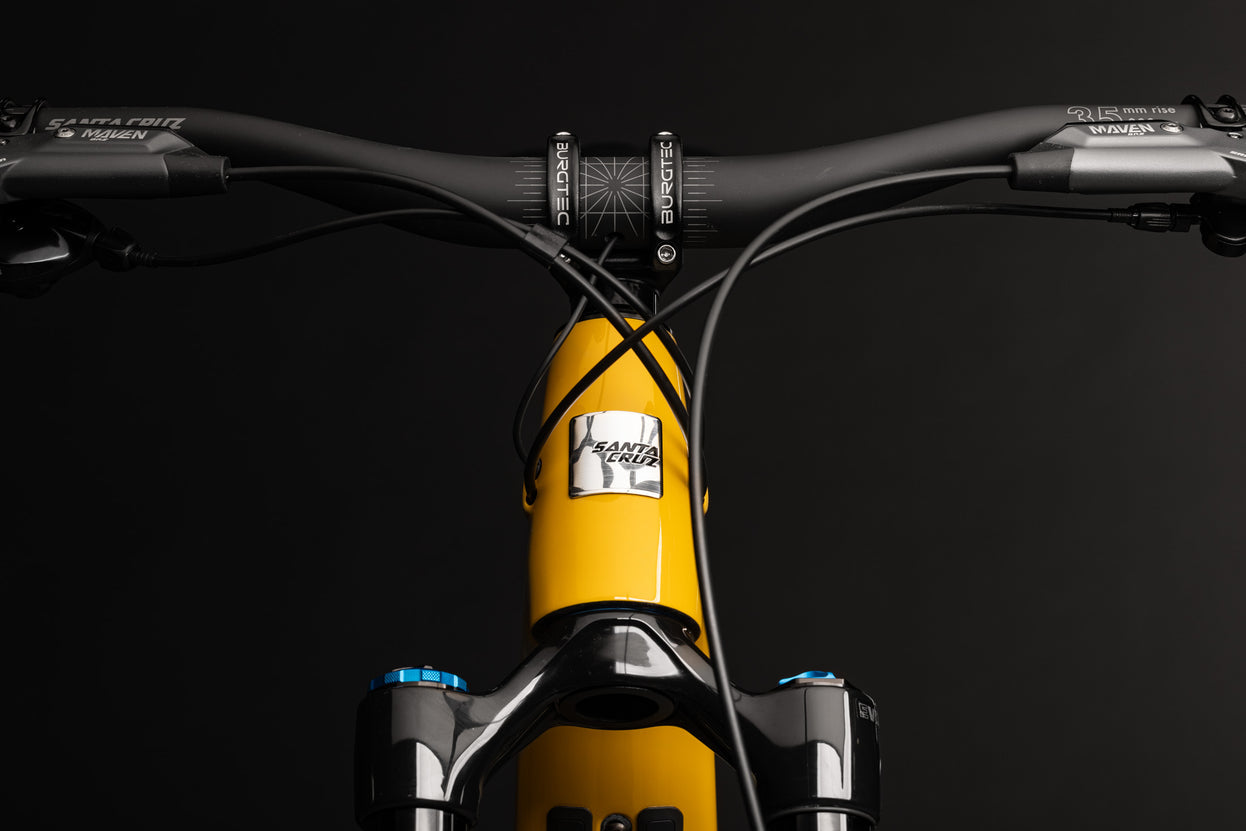

Cockpit
- Grips: Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnar
- Handlebars: e13 TRS Base
- Stem: e13 Base
- Headset: FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
- Seatpost: SDG Tellis Dropper, 31.6
- Saddle: WTB Silverado Medium, CroMo
Wheels & Tires
- Front Rim: WTB ST i30 TCS 2.0 29”
- Front Hub: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt, 32h
- Front Tire: Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO
- Rear Rim: WTB ST i30 TCS 2.0 27.5”
- Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
- Rear Tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
E-Bike System
- Drive Unit: FAZUA RIDE 60
- Battery: FAZUA 430Wh Integrated
- Charger: FAZUA Charger
Specifications
| Spec | Detail |
|---|---|
| Rear Travel | 150mm |
| Fork Travel | 160mm |
| Fork Offset | 44mm |
| Shock Size | 210x55mm |
| Bottom Bracket | Fazua DU with E-TOR spindle |
| Rear Brake Mount | PM 200mm |
| Max Rotor Size | 220mm |
| Max Tire Clearance | 2.6” |
| Rear Spacing | 148mm |
| Rear Shock Bushing Size | 30x8 (front & rear) |
| Shock Stroke | 55mm |
| UDH Compatible | Yes |
| Headset | IS41 / IS52 |
| Max Chainring Size | 36t |
| Fork Axle to Crown | 571mm |
| Front Derailleur Mount | No |
Size Guide
| Size | Rider Height | Bar Width | Dropper Length | Crank Length |
|---|---|---|---|---|
| Small | 5'1" – 5'5" | 760–800mm | 100–125mm (approx) | 165mm |
| Medium | 5'5" – 5'9" | 760–800mm | 125–150mm (approx) | 165mm |
| Large | 5'9" – 6'1" | 760–800mm | 150–170mm (approx) | 165mm |
| X-Large | 6'0" – 6'4" | 760–800mm | 170–200mm (approx) | 165mm |
| XX-Large | 6'4" – 6'7" | 760–800mm | 170–200mm (approx) | 165mm |
Santa Cruz Heckler SL R 2024
