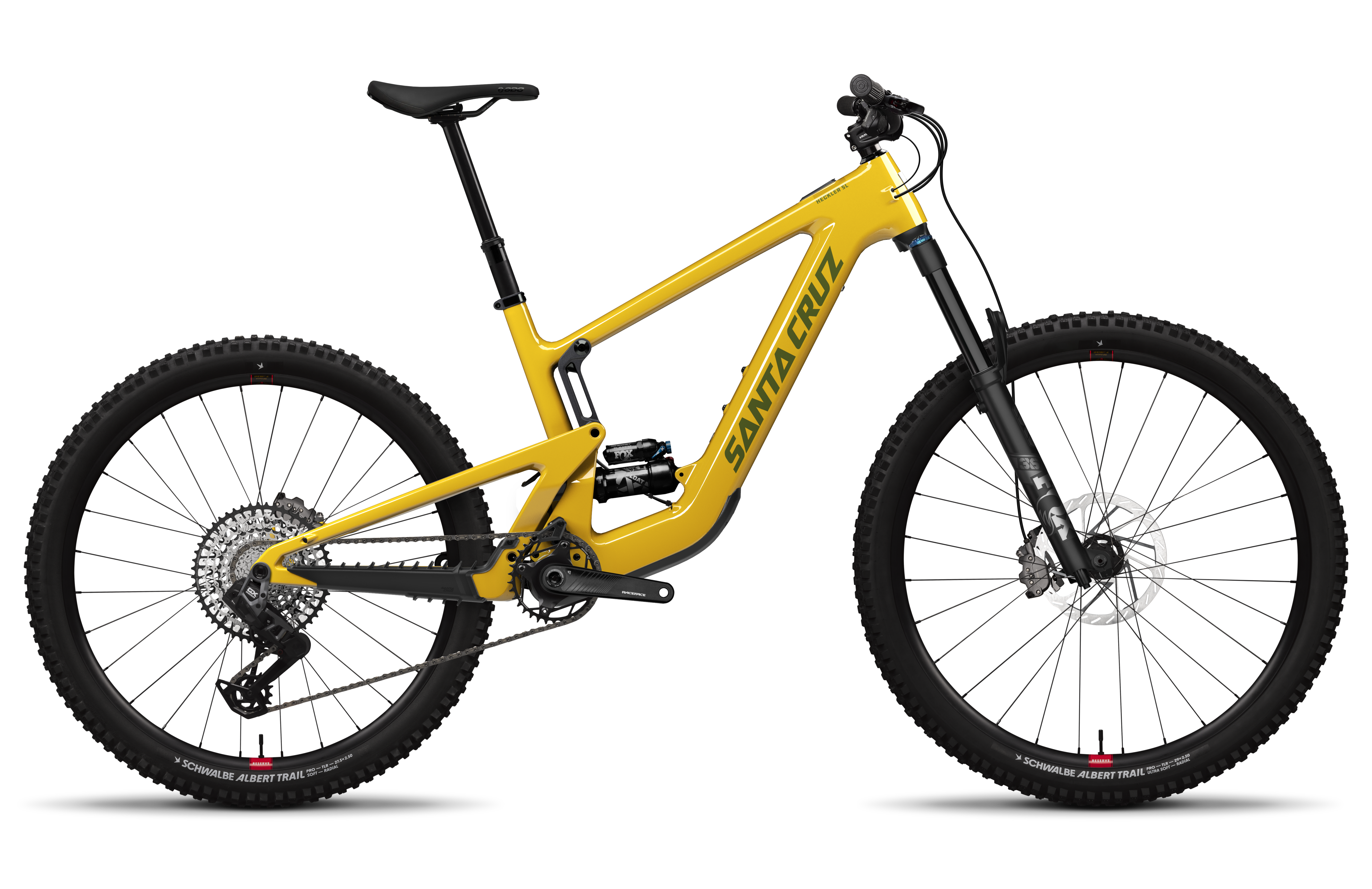

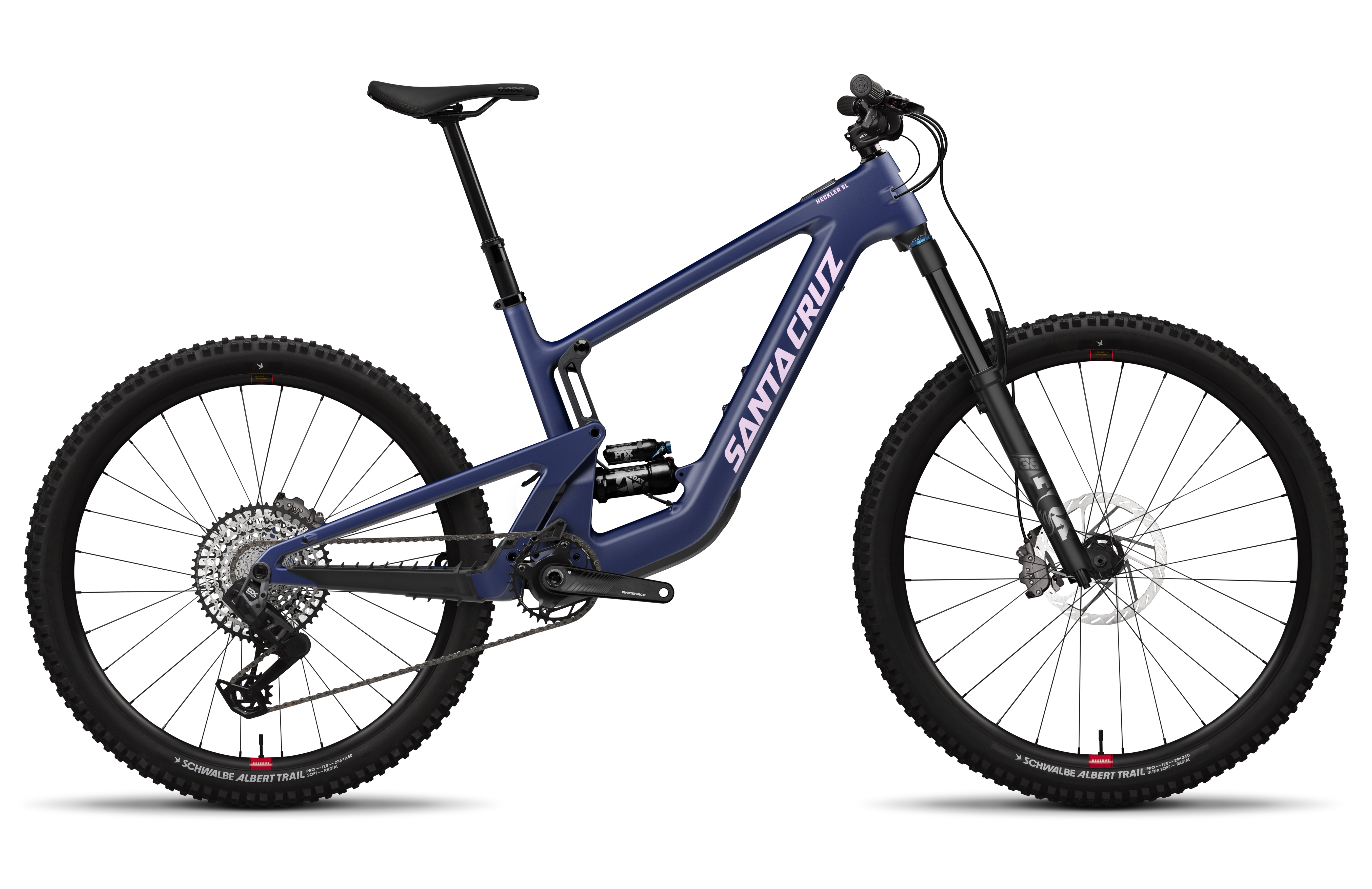

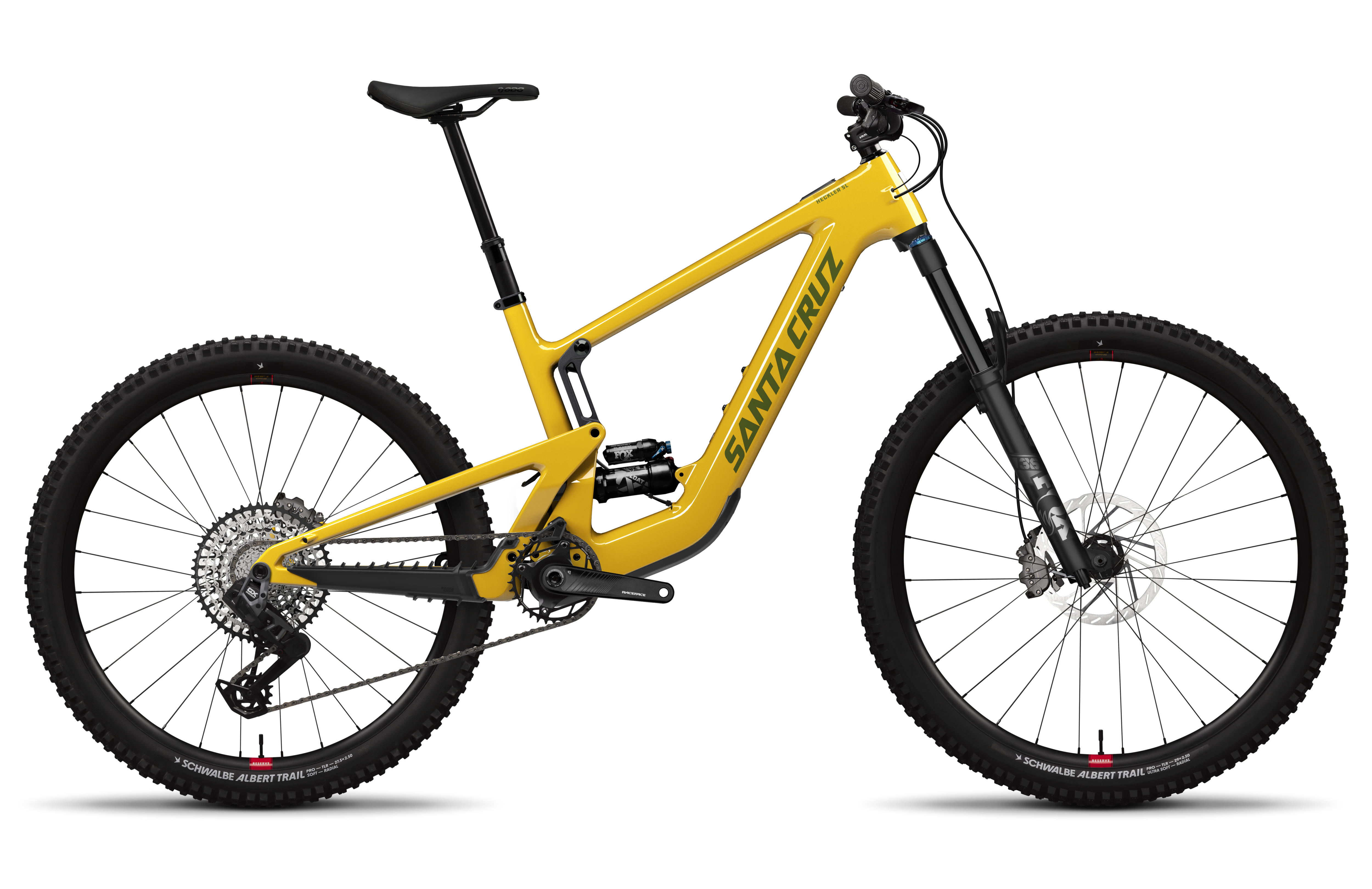

The Santa Cruz Heckler SL GX AXS is a capable, trail-crushing e-MTB packed with modern tech and all-day rideability. Equipped with a lightweight Carbon C frame, FAZUA RIDE 60 drive unit, and a 430Wh integrated battery, it balances natural handling with responsive electric support. With 150mm of VPP™ rear travel, Fox Performance Elite suspension, and a robust SRAM GX Eagle AXS T-Type drivetrain, this mixed-wheel shredder is made for serious adventures with minimal compromises.
Standout Features
- Carbon C Frame — Lightweight, durable and beautifully engineered
- Mixed Wheel (MX) Setup — 29” front / 27.5” rear for ultimate trail versatility
- Fox Performance Elite Suspension Package — Tuned for balance, sensitivity and control

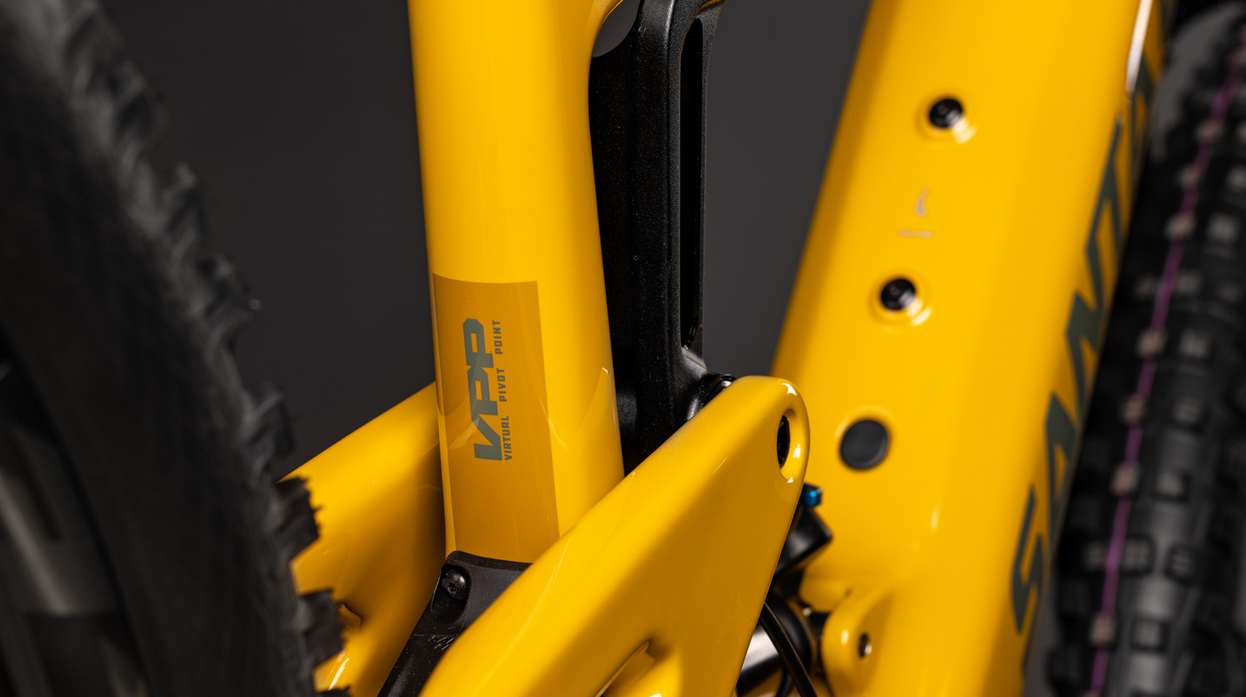

- VPP™ Suspension System — Smooth, efficient and proven

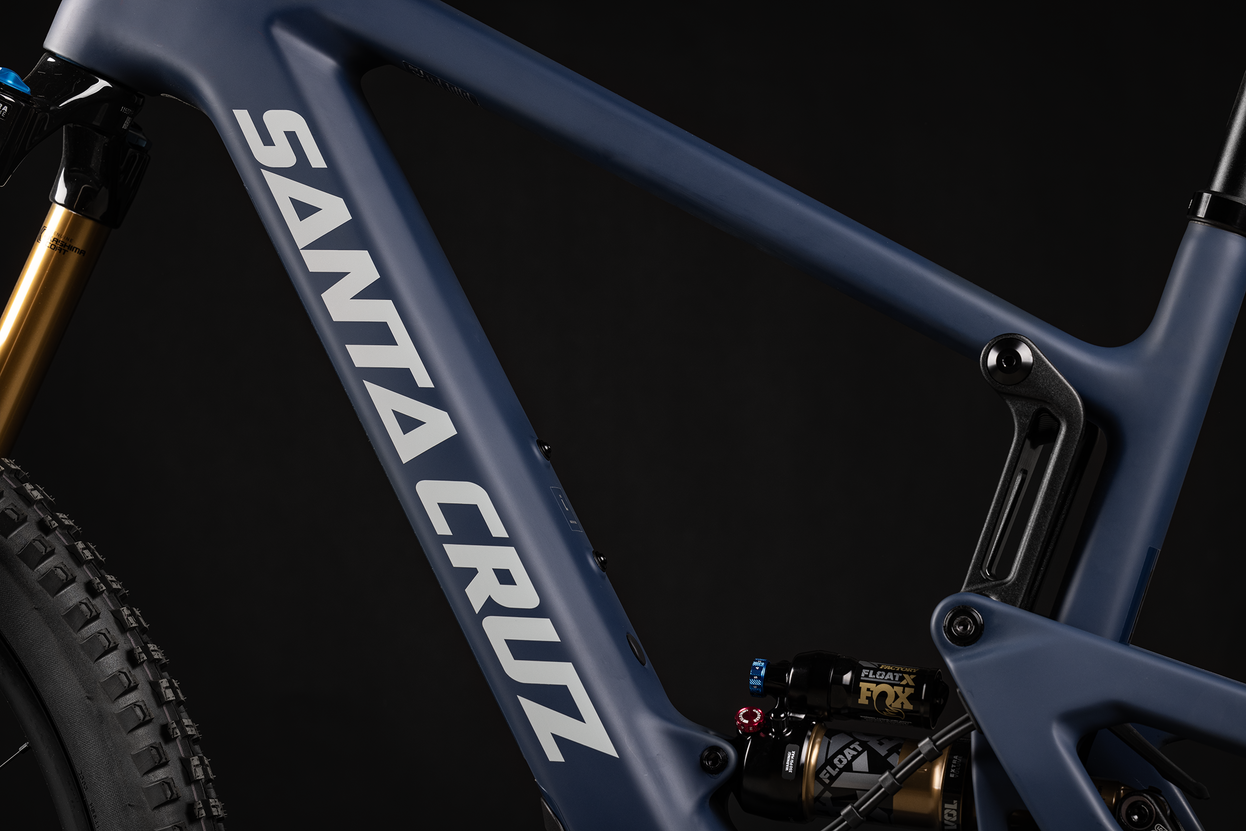

- 430Wh Integrated Battery — Powerful, lightweight energy source

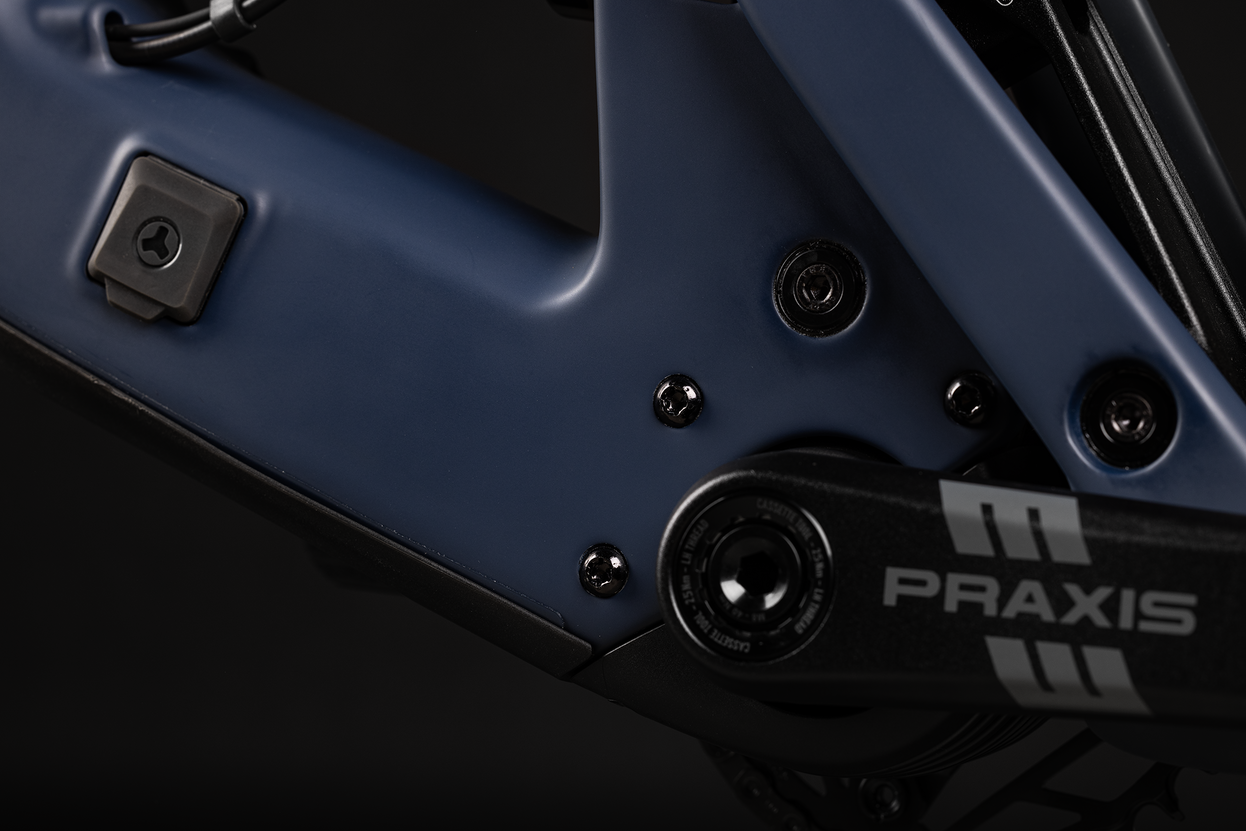

- FAZUA RIDE 60 Drive Unit — Lightweight, natural-feel e-assist
Frame
- Material: Carbon C
- Rear Travel: 150mm
- Wheel Size: MX (29” front / 27.5” rear)
- Weight: 43.23 lbs / 19.61 kg

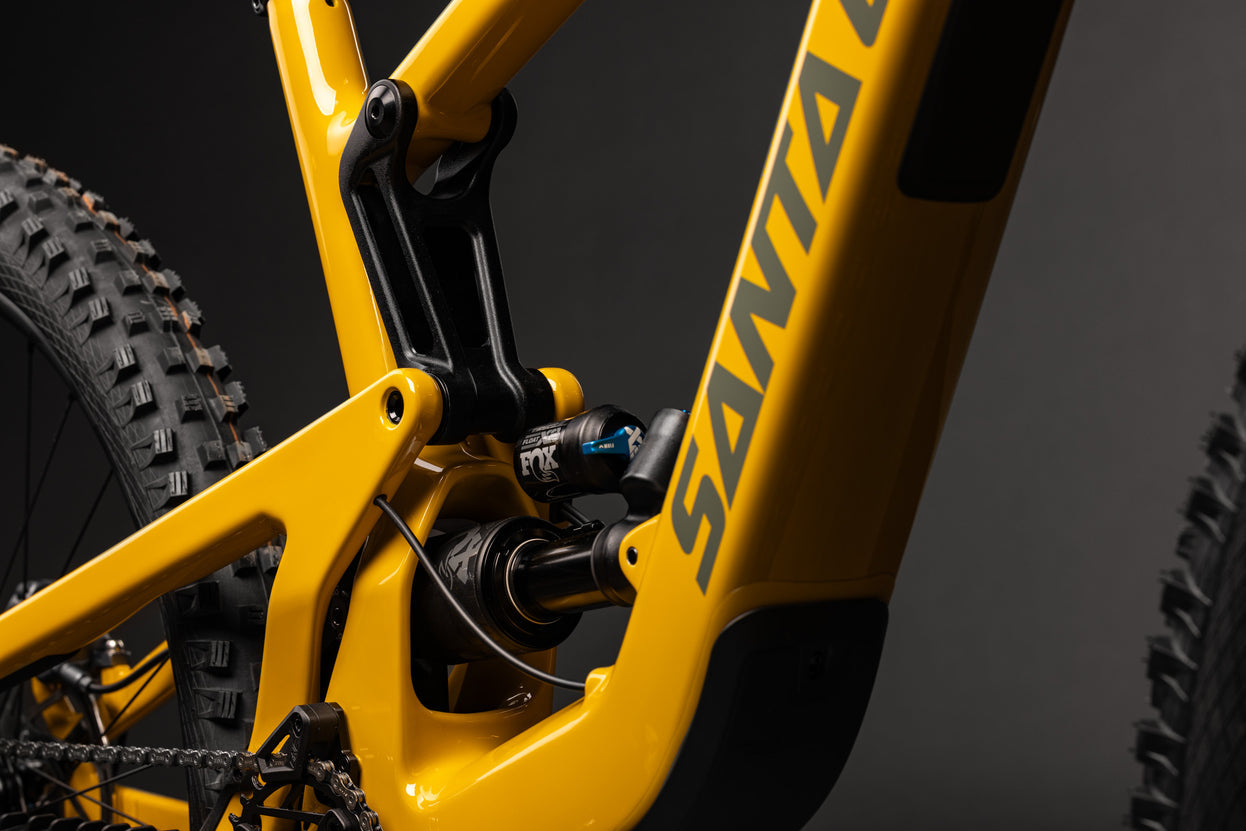

Suspension
- Fork: Fox 36 Float Performance Elite, Grip X2, 160mm

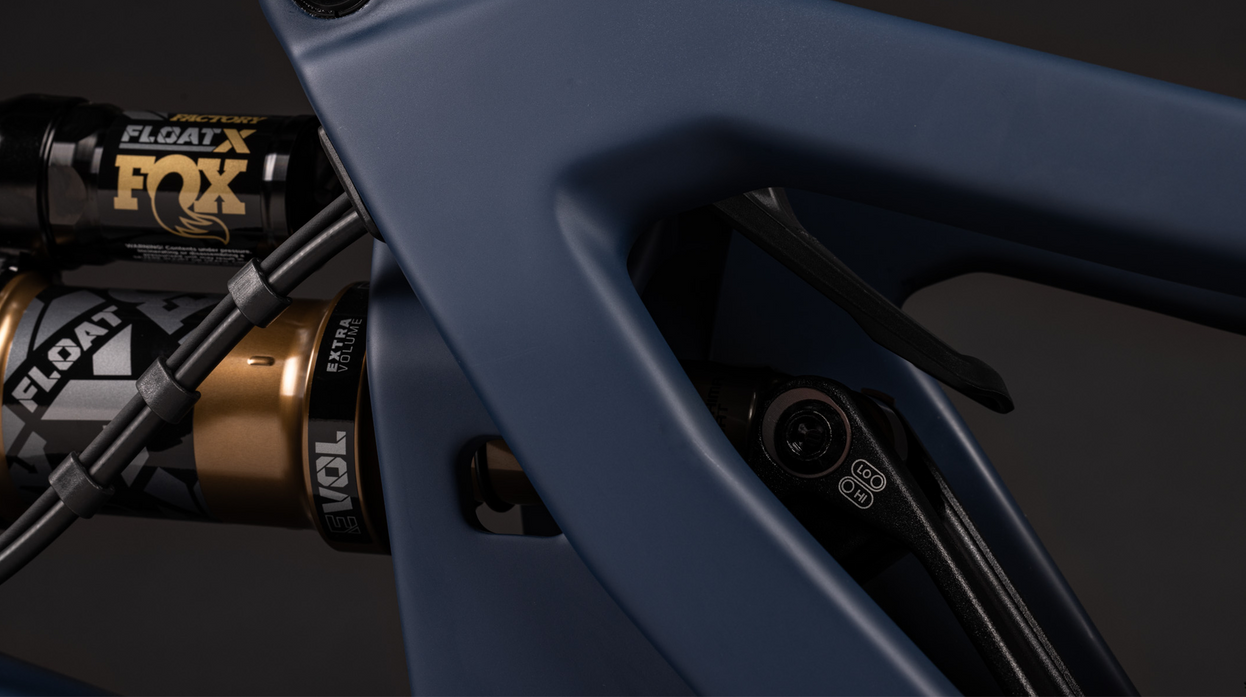

- Shock: Fox Float X Performance Elite, 210x55mm
Drivetrain
- Cassette: SRAM GX Eagle T-Type, 10-52t
- Chain: SRAM GX Eagle T-Type, Flattop, 12-speed
- Crankset: Race Face Aeffect R, 165mm or Praxis eTor AL, 165mm
- Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-speed
- Shifter: SRAM AXS Pod Bridge
Brakes

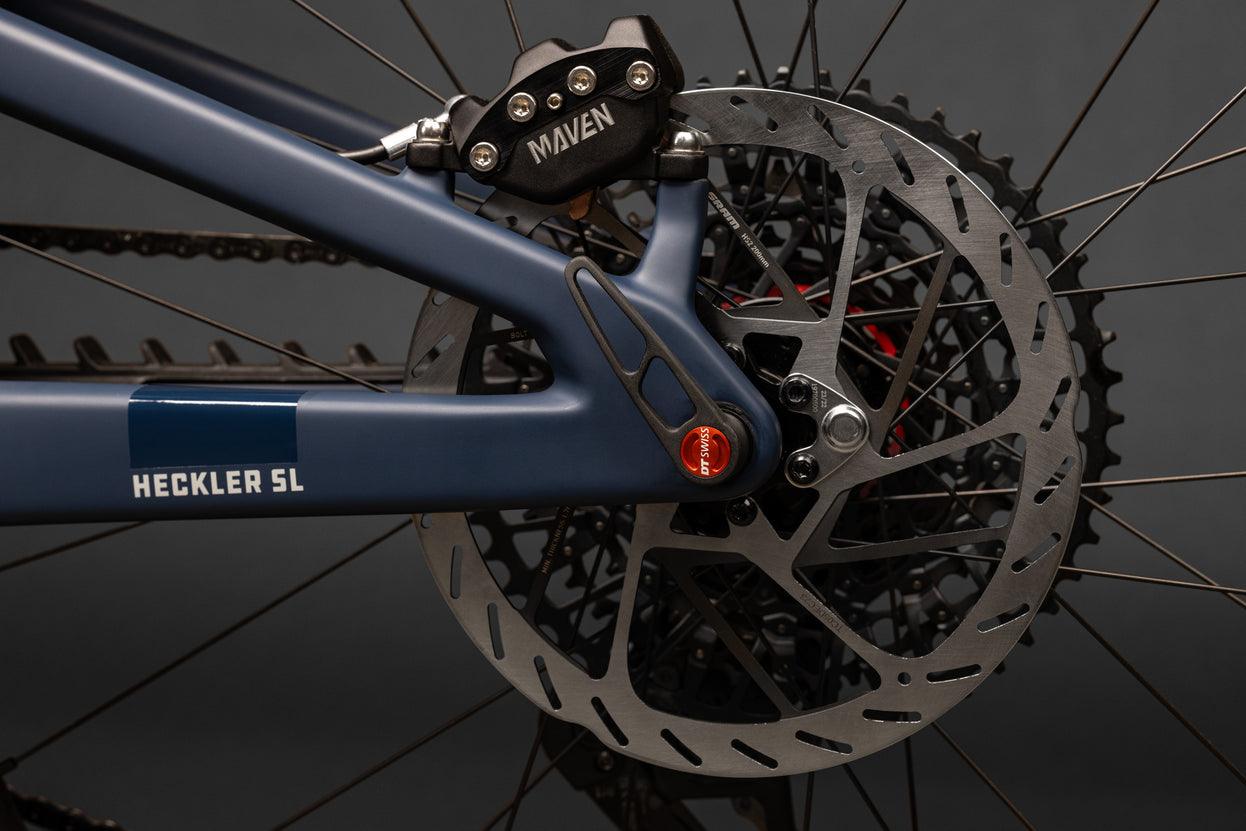

- Front Brake: SRAM Maven Bronze Stealth
- Rear Brake: SRAM Maven Bronze Stealth
- Front Rotor: SRAM HS2 200mm
- Rear Rotor: SRAM HS2 200mm

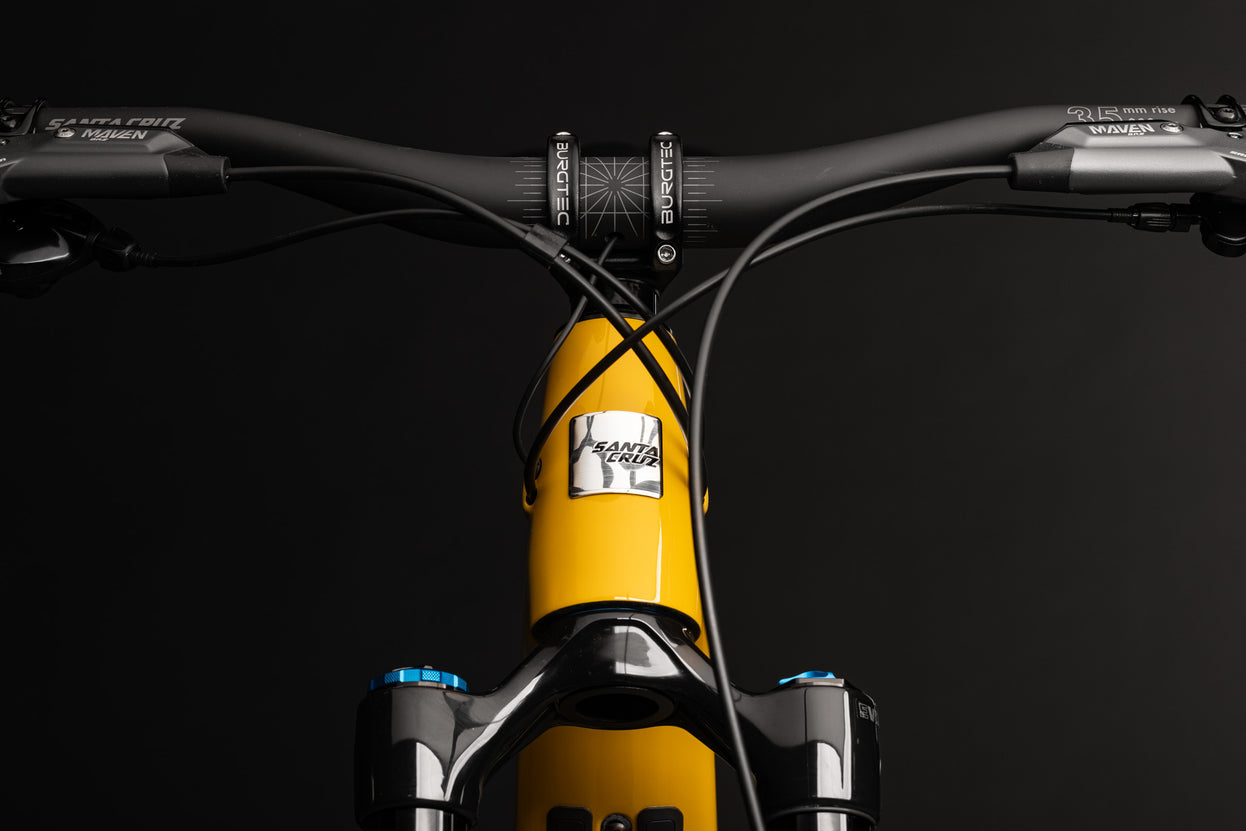

Cockpit
- Grips: Santa Cruz Bicycles House Grips
- Handlebars: Santa Cruz e35 Carbon Bar, 800mm
- Stem: Burgtec Enduro MK3, 42mm
- Headset: Cane Creek 50 IS Integrated Headset
- Seatpost: OneUp Dropper Post, 31.6
- Saddle: SDG Bel-Air V3, Max Lux-Alloy Atmos
Wheels & Tires
- Front Rim: Reserve 30|SL AL 6069 or Race Face ARC 30
- Front Hub: DT Swiss 370, 15x110, 6-Bolt, 28h
- Front Tire: Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
- Rear Rim: Reserve 30|SL AL 6069 or Race Face ARC 30
- Rear Hub: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
- Rear Tire: Schwalbe Albert, 27.5x2.5, Trail Radial Soft

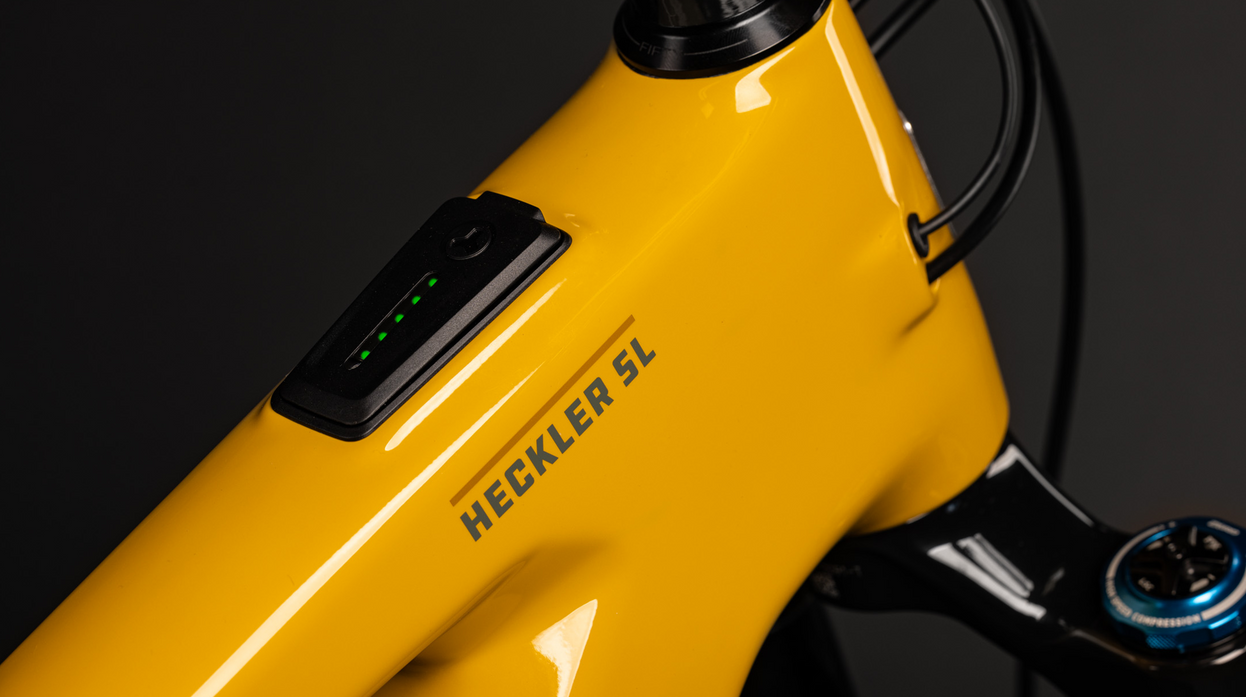

E-Bike System
- Drive Unit: Fazua Ride 60
- Battery: Fazua 430Wh Integrated Battery
Specifications
| Spec | Detail |
|---|---|
| Rear Travel | 150mm |
| Fork Travel | 160mm |
| Fork Offset | 44mm |
| Shock Size | 210x55mm |
| Bottom Bracket | Fazua DU with E-TOR spindle |
| Rear Brake Mount | PM 200mm |
| Max Rotor Size | 220mm |
| Max Tire Clearance | 2.6” |
| Rear Spacing | 148mm |
| Rear Shock Bushing Size | 30x8 (front & rear) |
| Shock Stroke | 55mm |
| UDH Compatible | Yes |
| Headset | IS41 / IS52 |
| Max Chainring Size | 36t |
| Fork Axle to Crown | 571mm |
| Front Derailleur Mount | No |
Size Guide
| Size | Rider Height | Bar Width | Dropper Length | Crank Length |
|---|---|---|---|---|
| Small | 5'1" – 5'5" | 800mm | 100–125mm (approx) | 165mm |
| Medium | 5'5" – 5'9" | 800mm | 125–150mm (approx) | 165mm |
| Large | 5'9" – 6'1" | 800mm | 150–170mm (approx) | 165mm |
| X-Large | 6'0" – 6'4" | 800mm | 170–200mm (approx) | 165mm |
| XX-Large | 6'4" – 6'7" | 800mm | 170–200mm (approx) | 165mm |
Santa Cruz Heckler SL GX AXS 2025
