We tapped into everything we’ve learned from years of making the highest quality carbon full-suspension bikes and added the super-efficient Superlight™ suspension to make a World Cup-winning XC race bike. The Blur isn’t guaranteed to make you a race winner, but being the lightest, full-suspension carbon XC bike we’ve ever made, it might be the difference between claiming first place...or just crossing the line.
Standout Features

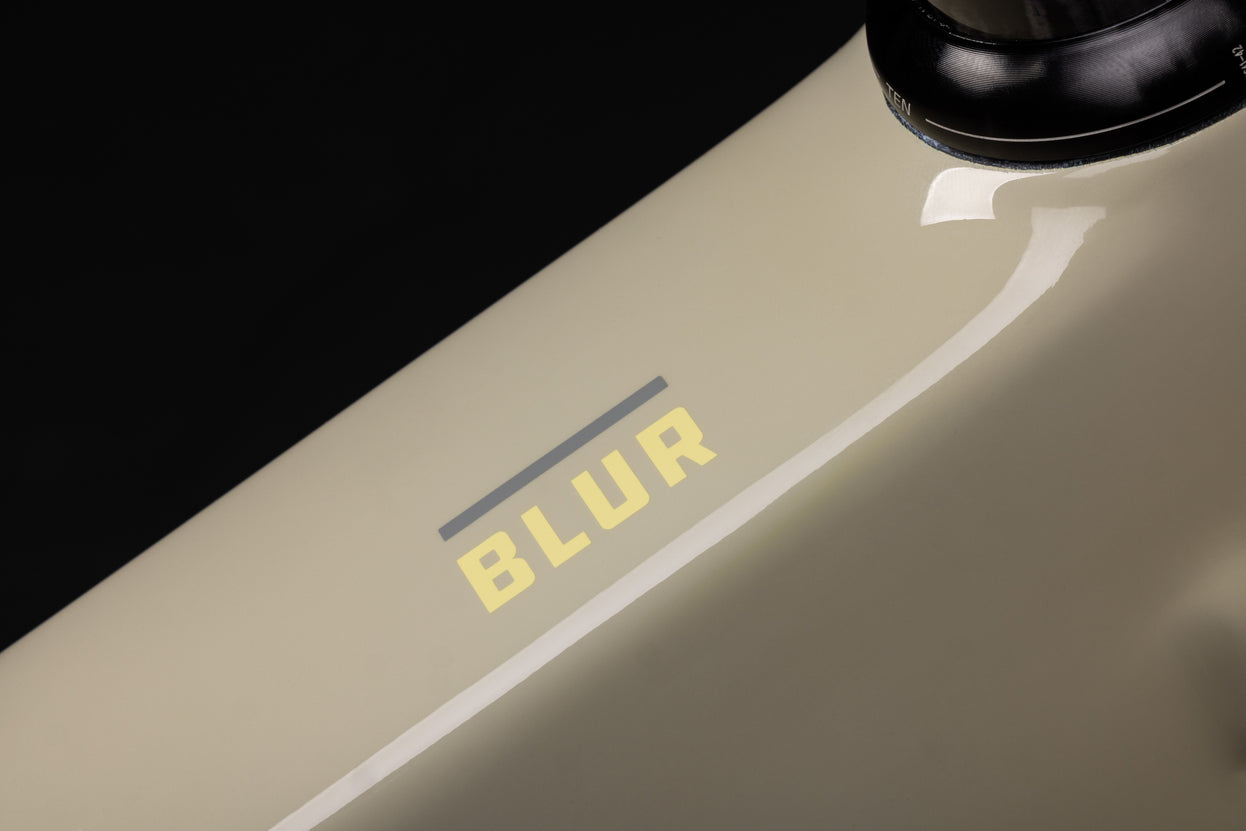

- CC Carbon Frame

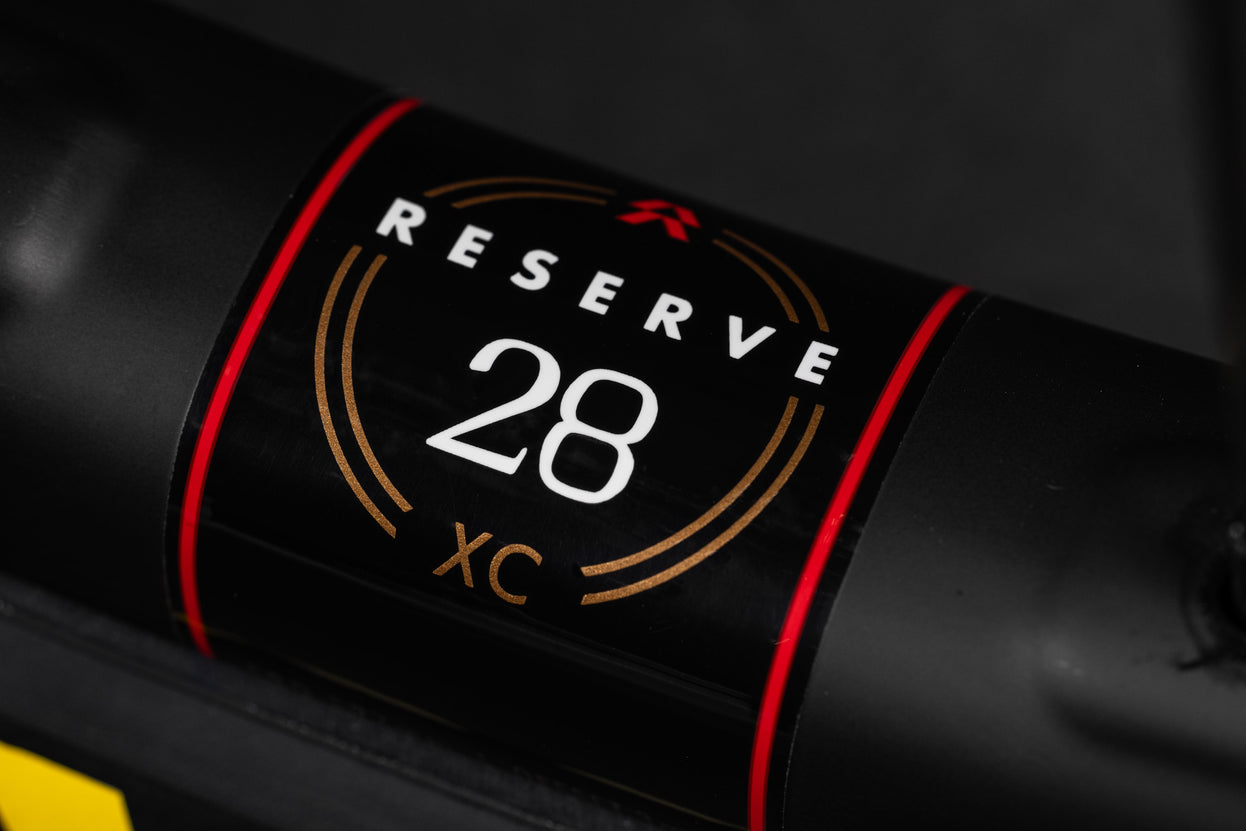

- Reserve 28|XC Carbon Wheels

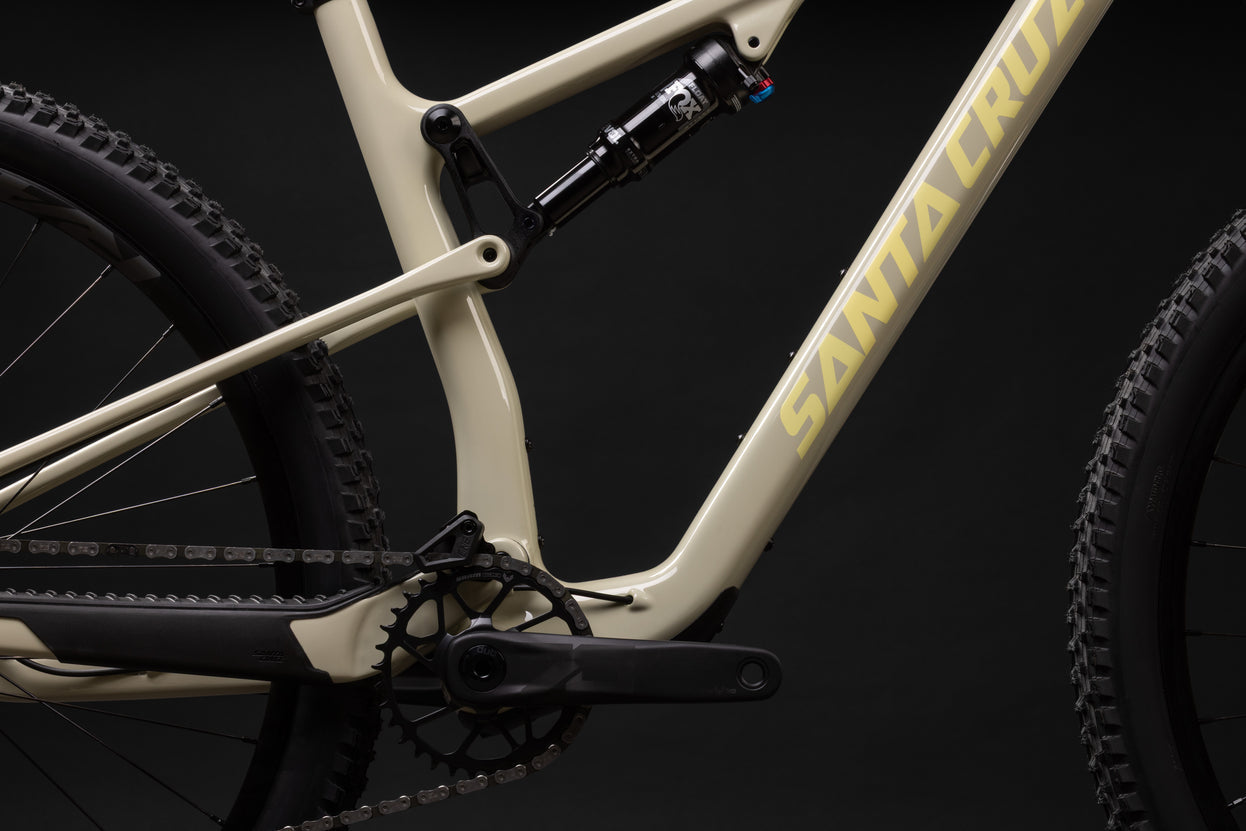

- Superlight™ Suspension
Frame
- Carbon CC
- Rear Travel: 115mm
Suspension
- Fork: RockShox SID Ultimate Flight Attendant, 120mm

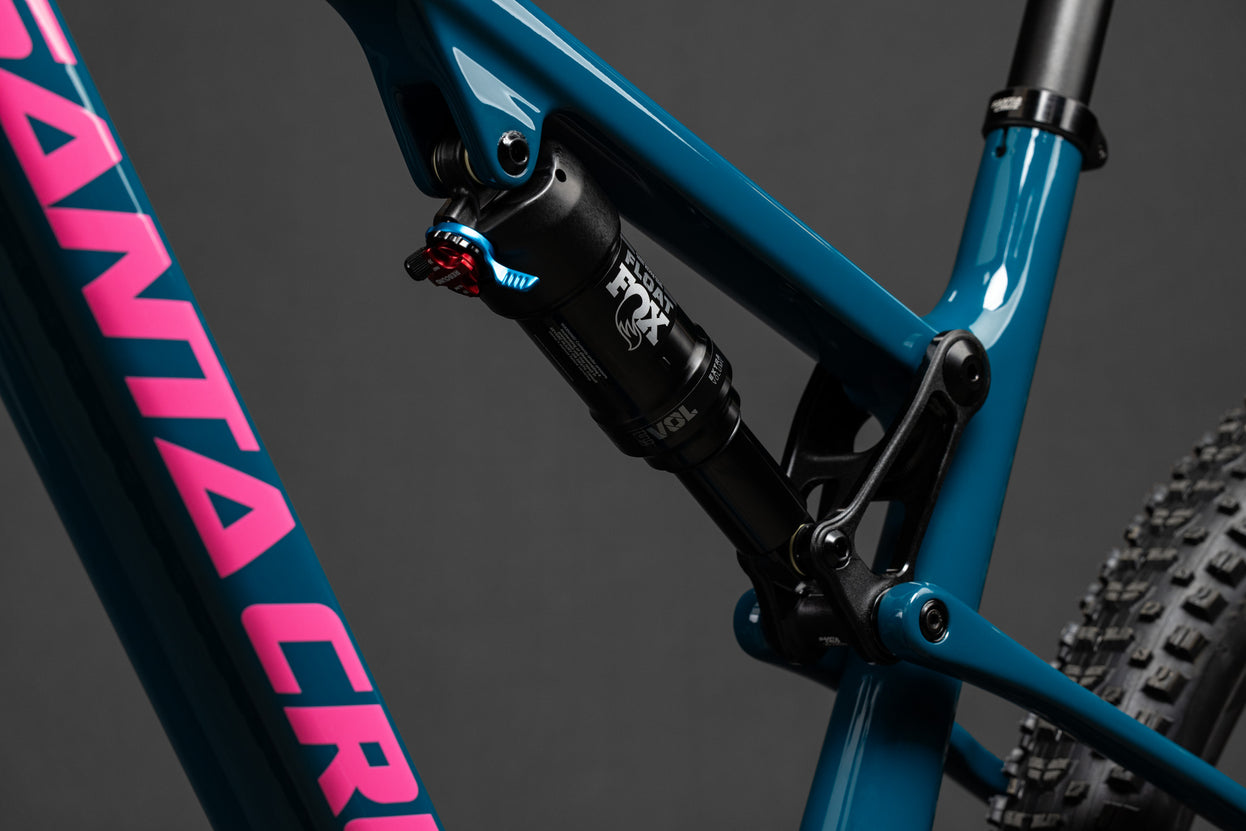

- Shock: RockShox SIDLuxe Ultimate Flight Attendant, 190x45
Drivetrain
- Bottom Bracket: SRAM DUB 68/73mm Threaded
- Crankset: SRAM XX Eagle AXS T-Type Power Meter, 34t
- Cassette: SRAM XX SL Eagle T-Type, 10-52t
- Chain: SRAM XX SL Eagle T-Type, Flattop, 12spd
- Rear Derailleur: SRAM XX SL Eagle AXS T-Type, 12spd
- Shifter: SRAM AXS Pod Controller Rocker Paddle
- Chainguide: OneUp

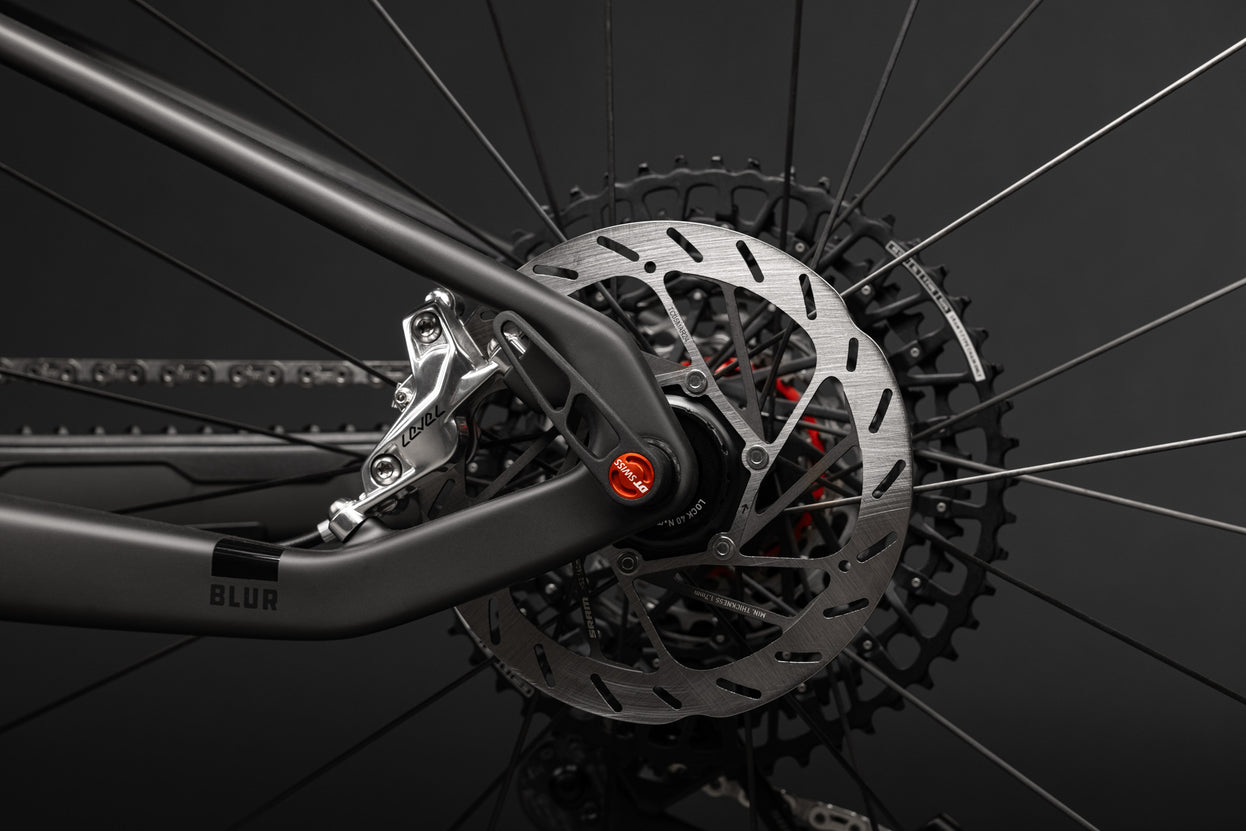

Brakes
- Brakes: SRAM Level Ultimate Stealth 4-Piston
- Front Rotor: SRAM HS2 Centerlock 180mm
- Rear Rotor: SRAM HS2 Centerlock 160mm

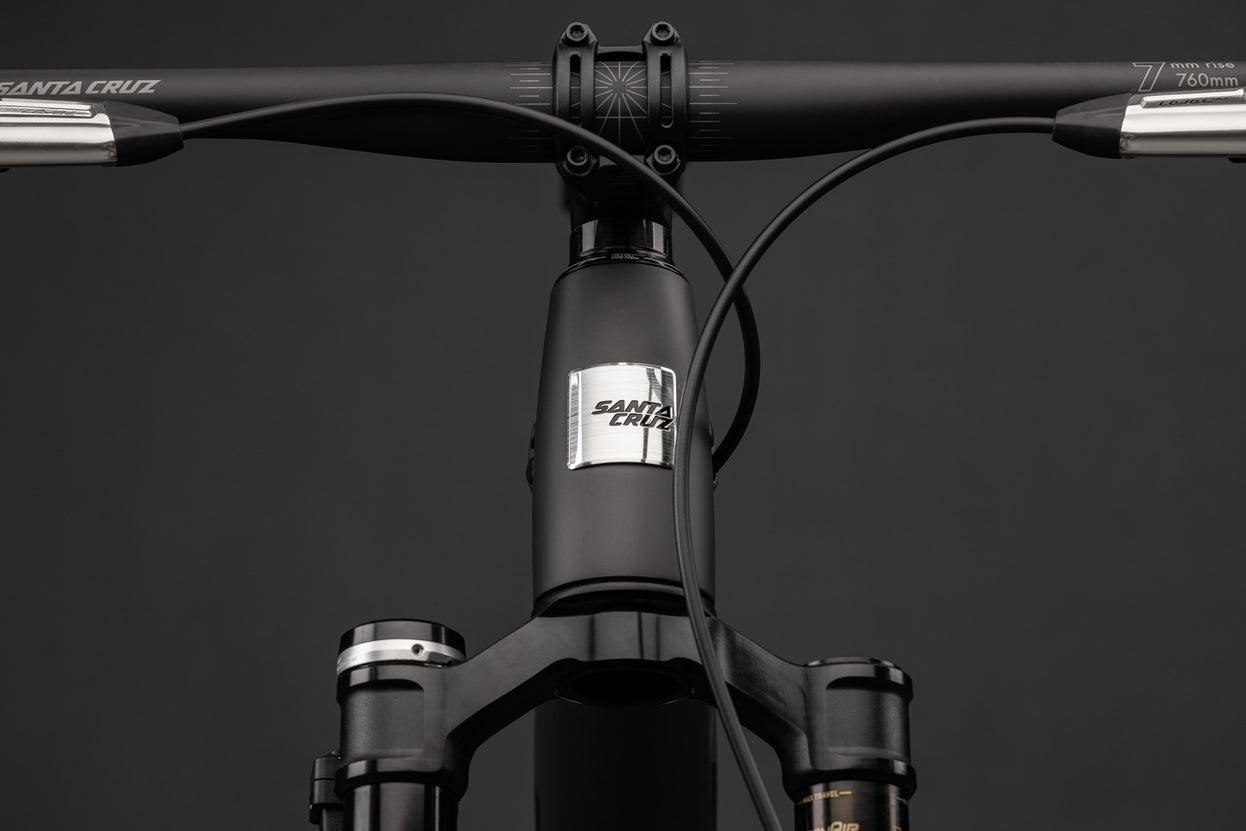

Cockpit
- Handlebars: Santa Cruz Carbon Flat Bar, 31.8x760mm, 7mm Rise
- Grips: ESI Chunky Grips
- Stem: SRAM Atmos 7k, 60mm
- Headset: Cane Creek AER IS Tapered
- Seatpost: RockShox Reverb AXS, 31.6mm
- Saddle: WTB Silverado Medium Fusion, Stainless
Wheels & Tires
- Rims: Reserve 28|XC Carbon
- Front Hub: DT Swiss 180 EXP, 15x110, Centerlock, 24h
- Rear Hub: DT Swiss 180 EXP, 12x148, XD, Centerlock, 36t, 24h
- Front Tire: Maxxis Rekon Race 29"x2.4", 3C MaxxSpeed, EXO
- Rear Tire: Maxxis Rekon Race 29"x2.4", 3C MaxxSpeed, EXO
Sizing Guide
| Size | Rider Height | Reach | Stack | Standover |
|---|---|---|---|---|
| S | 5'1" – 5'5" | 425mm | 578.3 | 737mm |
| M | 5'5" – 5'9" | 450mm | 587.6 | 740mm |
| L | 5'9" – 6'1" | 470mm | 596.9 | 739mm |
| XL | 6'1" – 6'5" | 495mm | 610.8 | 745mm |
Geometry (Blur XC Configuration)
| Size | HT Angle | ST Angle | TT Length | ST Length | Front Center | Wheelbase | Rear Center | BB Height | BB Drop | HT Length |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 68.3° | 76.5° | 563.9mm | 405mm | 685.8mm | 1115.8mm | 430mm | 330.5mm | 42mm | 90mm |
| M | 68.3° | 76.3° | 592.8mm | 430mm | 714.5mm | 1147mm | 432.5mm | 330.5mm | 42mm | 100mm |
| L | 68.3° | 75.8° | 616.9mm | 470mm | 738.2mm | 1173.2mm | 435mm | 330.5mm | 42mm | 110mm |
| XL | 68.3° | 75.7° | 647.2mm | 520mm | 768.7mm | 1206.2mm | 437.5mm | 330.5mm | 42mm | 125mm |
Santa Cruz Blur XX AXS FA RSV
