Santa Cruz Blur GX AXS Trail

By Santa Cruz
$6,949.00
Expected Ship Date: Mon Dec 01
1 in stock
View details

We tapped into everything we’ve learned from years of making the highest quality carbon full-suspension bikes and added the super-efficient Superlight™ suspension to create a World Cup-winning XC race machine. The Blur GX AXS Trail isn’t guaranteed to make you a race winner — but being the lightest, full-suspension carbon XC bike we’ve ever made, it might just be the difference between claiming first place… or simply crossing the line.

Standout Features

  • C Carbon Frame for a stiff, light, and responsive ride
  • Superlight™ Suspension delivering 115mm rear and 120mm front travel
  • Two Water Bottle Mounts for extended trail days
  • SRAM GX AXS T-Type Drivetrain — wireless precision shifting
  • FOX 34SC Float Performance Elite Fork with 120mm travel
  • SRAM Level Bronze Stealth 4-Piston Brakes for controlled stopping power
  • Maxxis Rekon 29"x2.4"WT Tires for confident grip on any surface

Frame

  • Material: Carbon C
  • Travel: 115mm (Rear) / 120mm (Front)

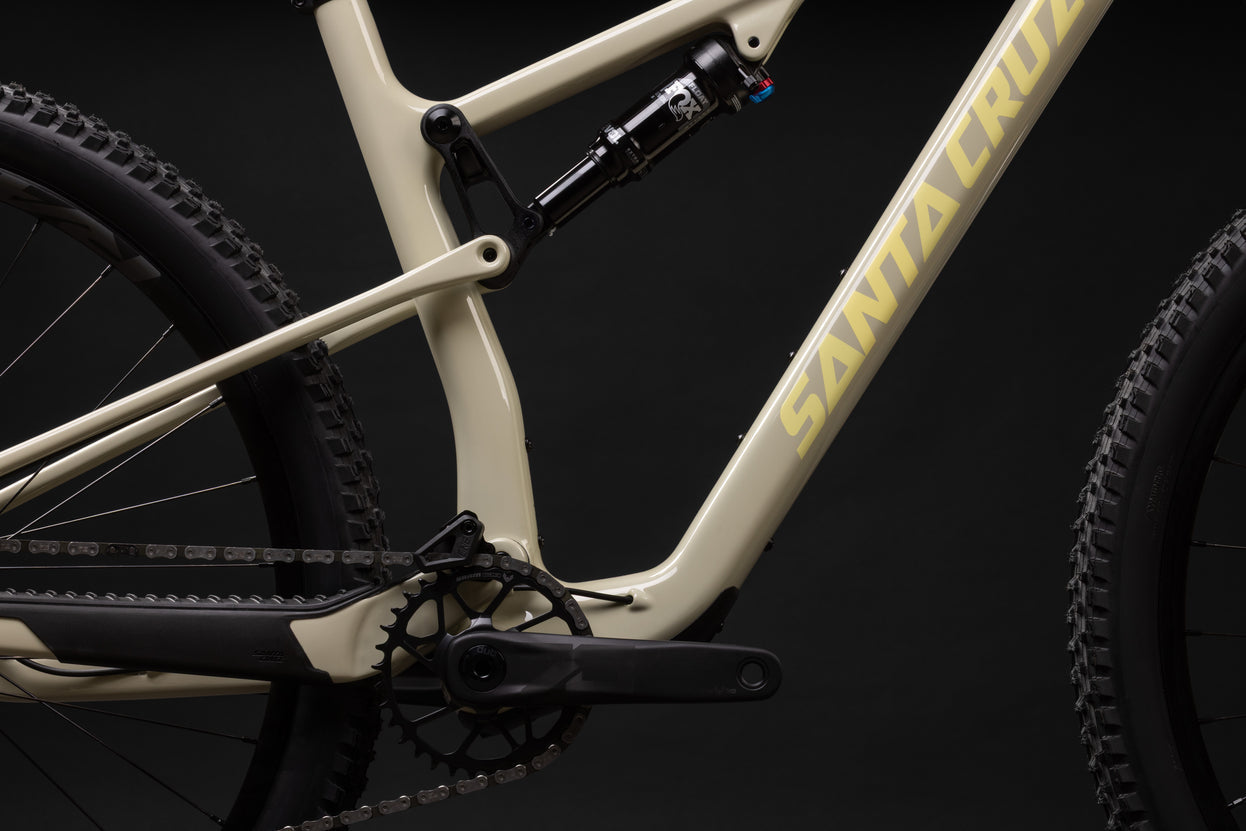

  • Suspension System: Superlight™
  • Wheel Size: 29
  • Weight: 26.85 lbs / 12.18 kg

Suspension

  • Fork: FOX 34SC Float Performance Elite, Grip SL, 120mm

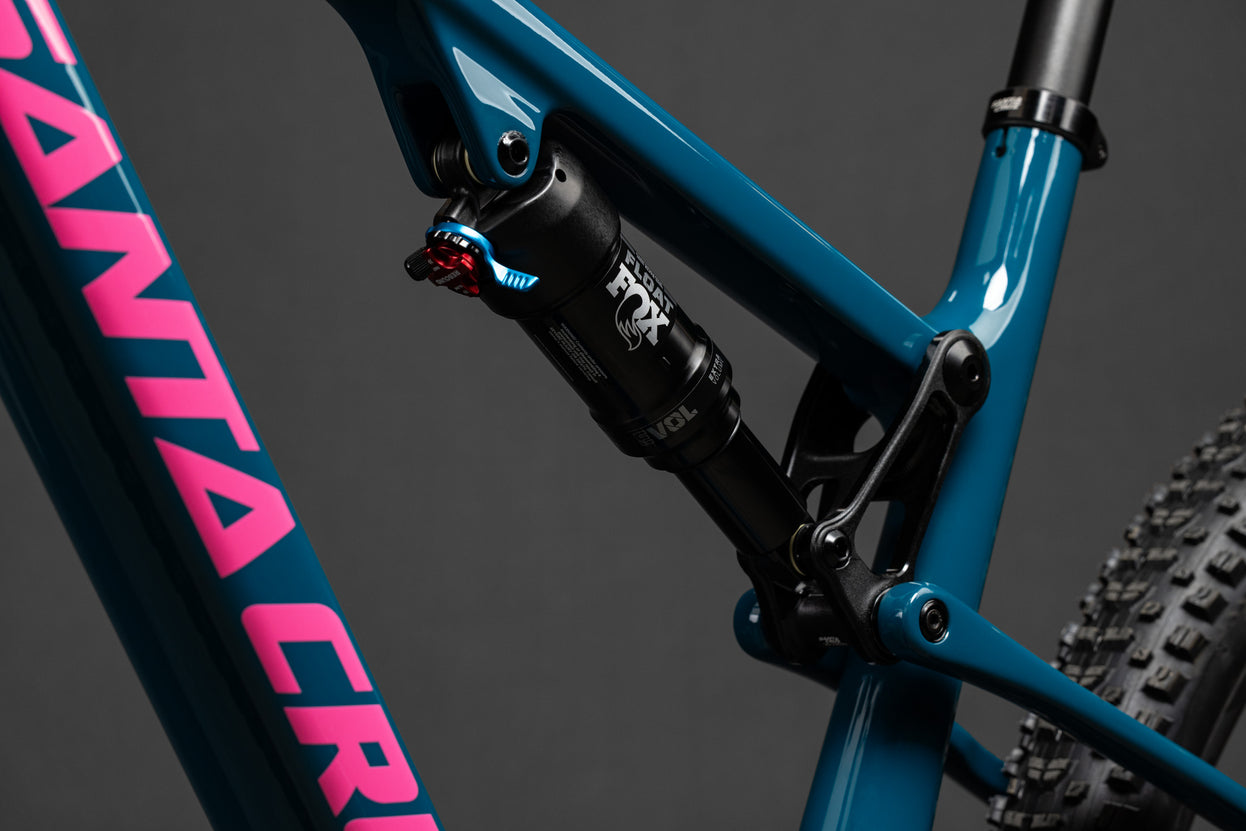

  • Shock: FOX Float Performance Elite, 190x45

Drivetrain

  • Bottom Bracket: SRAM DUB 73mm MTB Wide BB
  • Cassette: SRAM GX Eagle T-Type, 10-52t
  • Chain: SRAM GX Eagle T-Type, Flattop, 12spd
  • Chainguide: OneUp Chainguide
  • Crankset: SRAM GX Eagle DUB T-Type, 34t
  • Rear Derailleur: SRAM GX Eagle AXS T-Type, 12spd
  • Right Shifter: SRAM AXS Pod Bridge

Brakes

  • Brakes: SRAM Level Bronze Stealth 4-Piston
  • Front Rotor: SRAM HS2 180mm

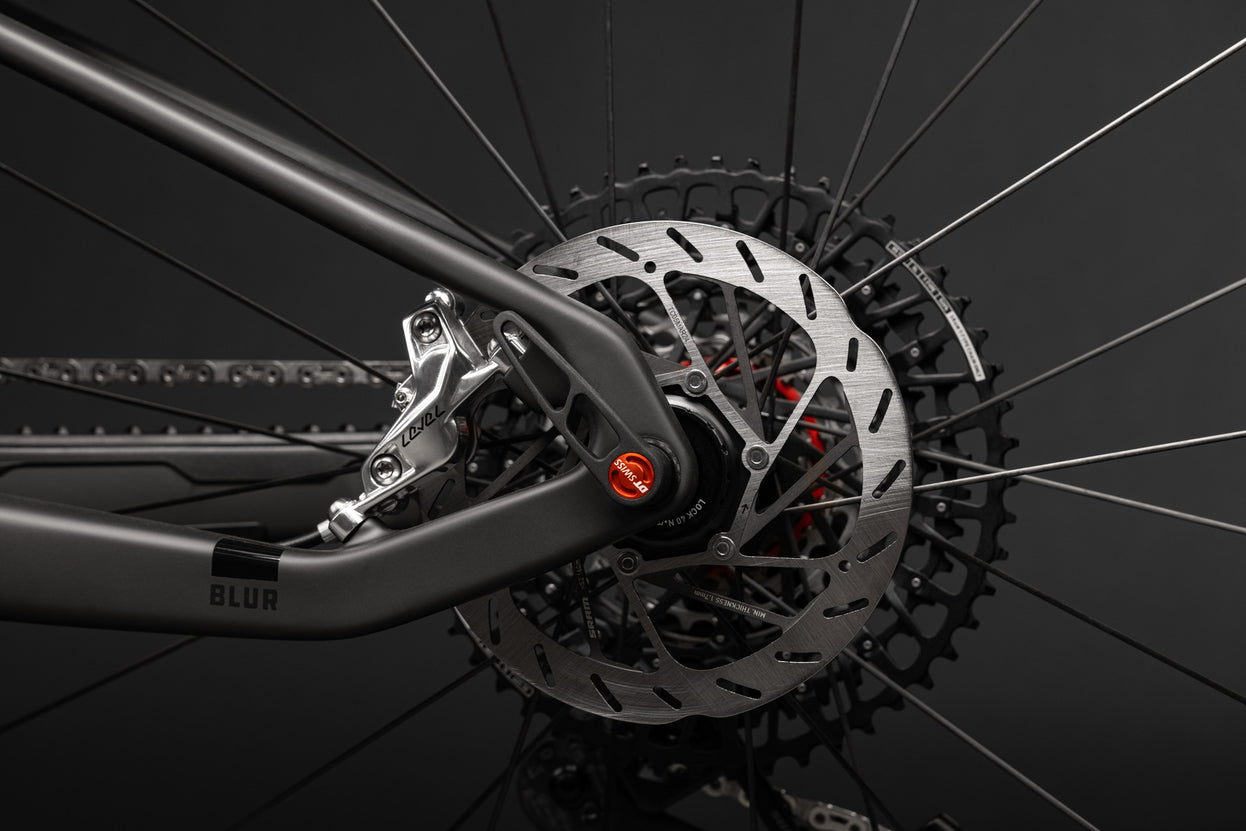

  • Rear Rotor: SRAM HS2 180mm

Cockpit

  • Grips / Bar Tape: ESI Chunky Grips

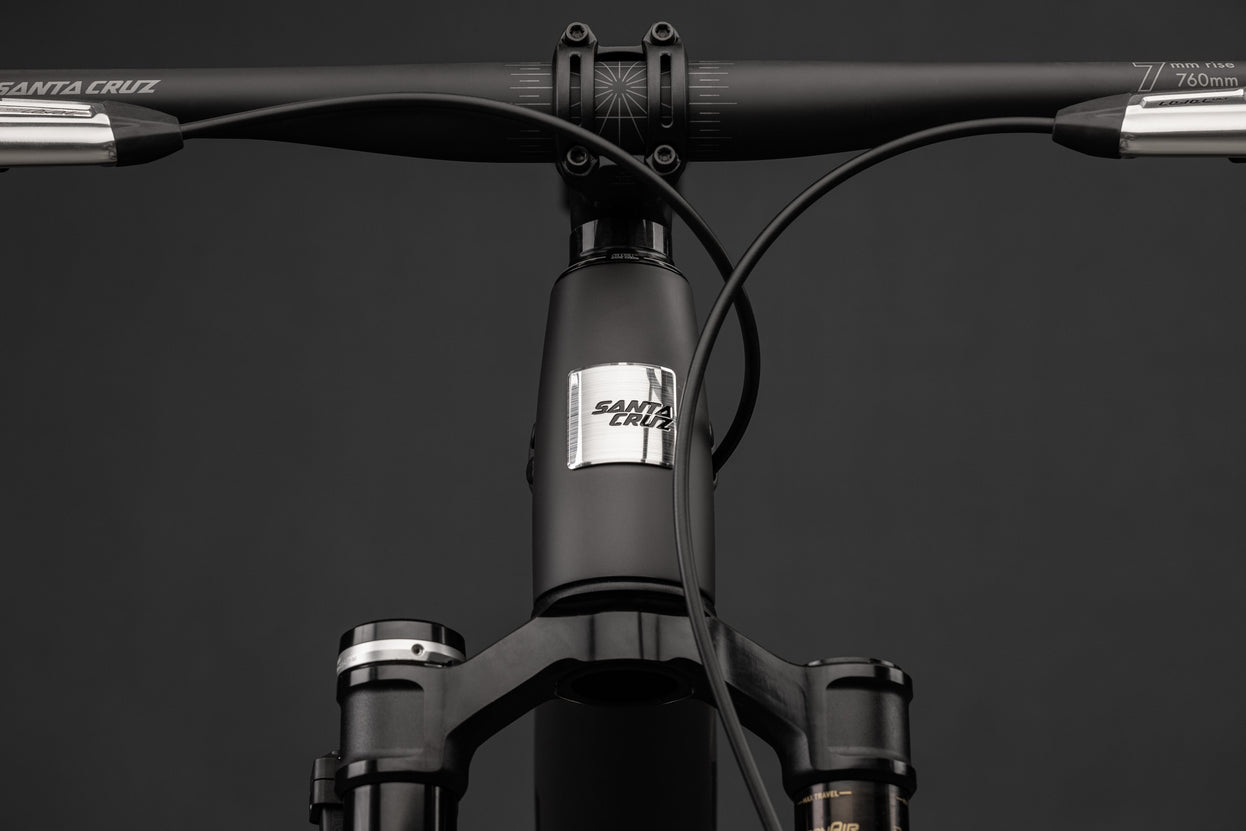

  • Handlebars: Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
  • Headset: Cane Creek 40 IS Integrated
  • Saddle: SDG Bel-Air V3, Lux-Alloy Atmos
  • Seatpost: OneUp Dropper Post, 31.6
  • Stem: SRAM Atmos, 60mm

Wheels & Tires

  • Front Rim: RaceFace ARC Offset 27 29"
  • Front Hub: DT Swiss 370, 15x110, 6-Bolt, 28h
  • Front Tire: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
  • Rear Rim: RaceFace ARC Offset 27 29"
  • Rear Hub: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
  • Rear Tire: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO

Specifications

Component Specification
Bottom Bracket Shell 73mm Threaded
Rear Brake Mount 160 PM
Shock Length 190mm
Fork Compatibility 100–120mm
Fork Offset 44mm
Front Derailleur Mount No compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Tire Clearance 2.4"
Seat Clamp Diameter 36.4mm
Seat Post Diameter 31.6mm
Shock Bushing Size (Front) 20x8
Shock Bushing Size (Rear) 20x8
Shock Stroke 42.5mm (XC) / 45mm (TR)
Water Bottle Mounts 2 inside main triangle / 1 under downtube

Size Guide

Size Rider Height Reach
Small 5'1" – 5'5" (155–165 cm) 435 mm
Medium 5'5" – 5'9" (165–175 cm) 460 mm
Large 5'9" – 6'1" (175–185 cm) 480 mm
X-Large 6'0" – 6'4" (183–193 cm) 500 mm
