FX SPORT AL 3 SO M Keswick
New arrival

FX SPORT AL 3 SO M Keswick

By Trek
$1,199.99
SKU: 5339886 // Barcode: 197216246367
Pickup Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, test ride, pack, and ship your bike to ensure a safe delivery and easy setup. Professional reassembly is encouraged.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

View details

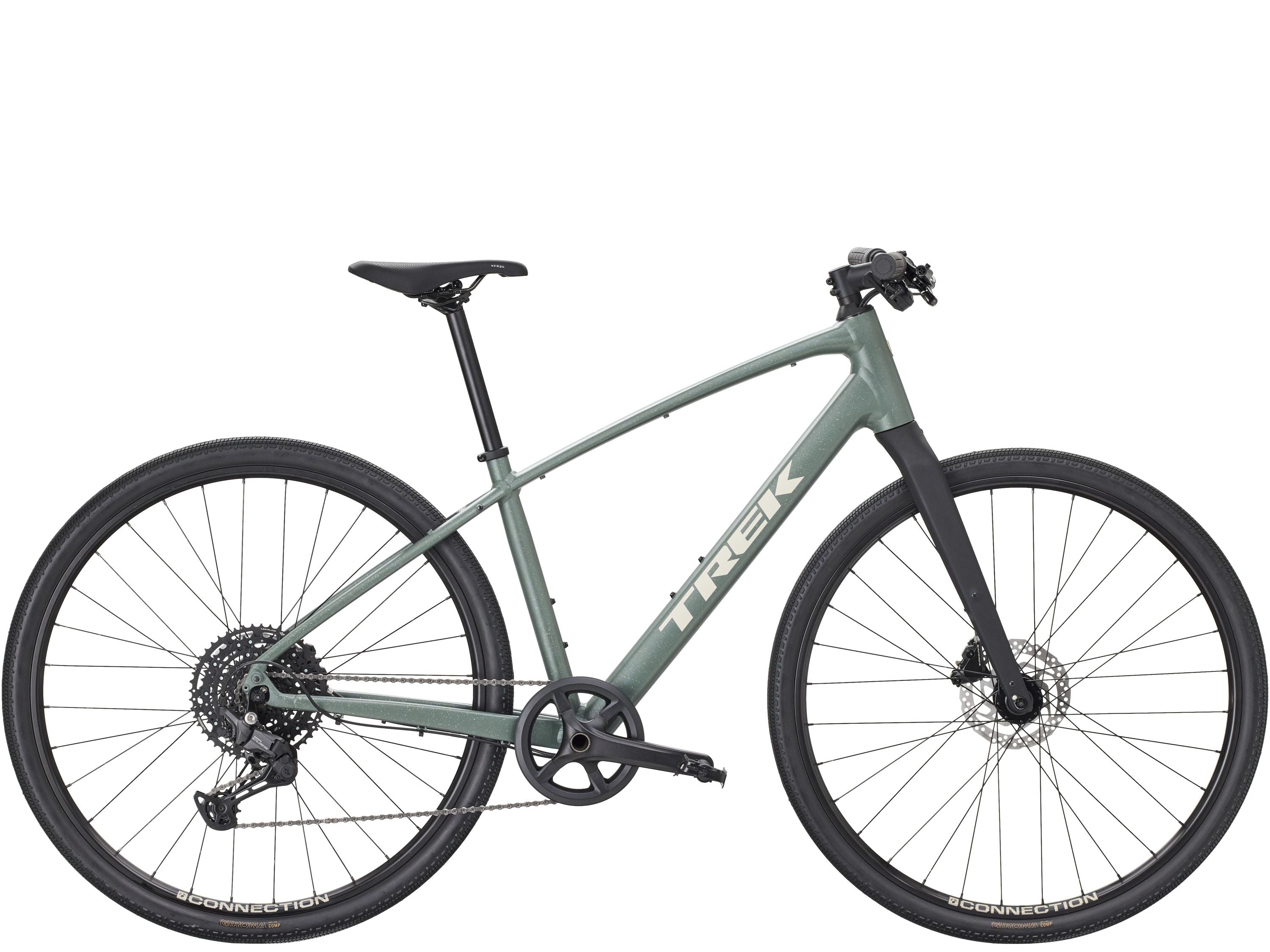

FX Sport AL 3 is a lightweight, versatile aluminum bike, perfect for exploring the path less traveled. It comes ready for anything, with a reliable and light Alpha Gold Aluminum frame, 10-speed Shimano CUES shifting, go-anywhere Bontrager Girona gravel tires, and hydraulic disc brakes.

Fast and comfortable

Our Active geometry puts you in a slightly more forward position to give you more pedalling efficiency while staying comfortable on long rides.

All-Road capable

Wide 42c Girona tires offer traction and control on paved or unpaved paths.

Reliable and durable

The Shimano CUES drivetrain offers a hassle-free, low-maintenance performance riders can rely on for the long haul. CUES features Shimano’s new LINKGLIDE drivetrain technology for less wear and tear on chains, cassettes, and chainrings.

A better way to produce aluminum

Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.


Frame Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Tire Bontrager Girona Comp, wire bead, 60 tpi, 700x42mm
Hub Front Formula DC-20, alloy, 6-bolt, 100x5mm
Hub Rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Rim Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Skewer Front 139x5mm bolt-on
Skewer Rear 152x5mm QR
Shifter Shimano CUES U6000 w/optical gear display, 10 speed
Rear Derailleur Shimano CUES U6000 GS
Crank Prowheel alloy, 40T narrow-wide ring, 170mm length
Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain Shimano LG500, 9/10/11 speed
Brake Shimano hydraulic disc, MT201 lever, UR300 caliper // Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake Rotor Shimano RT26, 6-bolt, 160mm
Pedal Wellgo nylon body, alloy cage
Saddle Verse Short, chromoly rails, 145mm width
Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Grips Trek Line Comp, nylon lock-on

Geometry Chart

B B Drop 6.5
B B Height 28.5
Chainstay Length 44.7
Eff Top Tube 56.3
Frame Reach 39.3
Frame Size Letter M
Frame Size Number 50
Frame Stack 59.4
Head Angle 71.0°
Head Tube Length 16.5
Offset 5
Seat Tube 42
Seat Tube Angle 74.0°
Standover 75.4
Trail 6.8
Wheelbase 107
Wheel Size 700c
Color KESWICK
Size M
