New arrival

Farley C F/S XL Carbon Blue Smoke

By Trek
$2,799.99
SKU: 5251810 // Barcode: 601842474273
CYBER SALE
Get a FREE $200 Cahaba Cycles Gift Card w/ this purchase!
Pickup Icon

Enjoy Cahaba Ready To Ride delivery on this bike. Our professional mechanics build, tune, setup, test ride, pack, and ship your bike to ensure a safe delivery and easy setup. Professional reassembly is encouraged.

Most bikes ship in 2–3 business days if in stock, or 5–7 days if from our warehouse.

View details

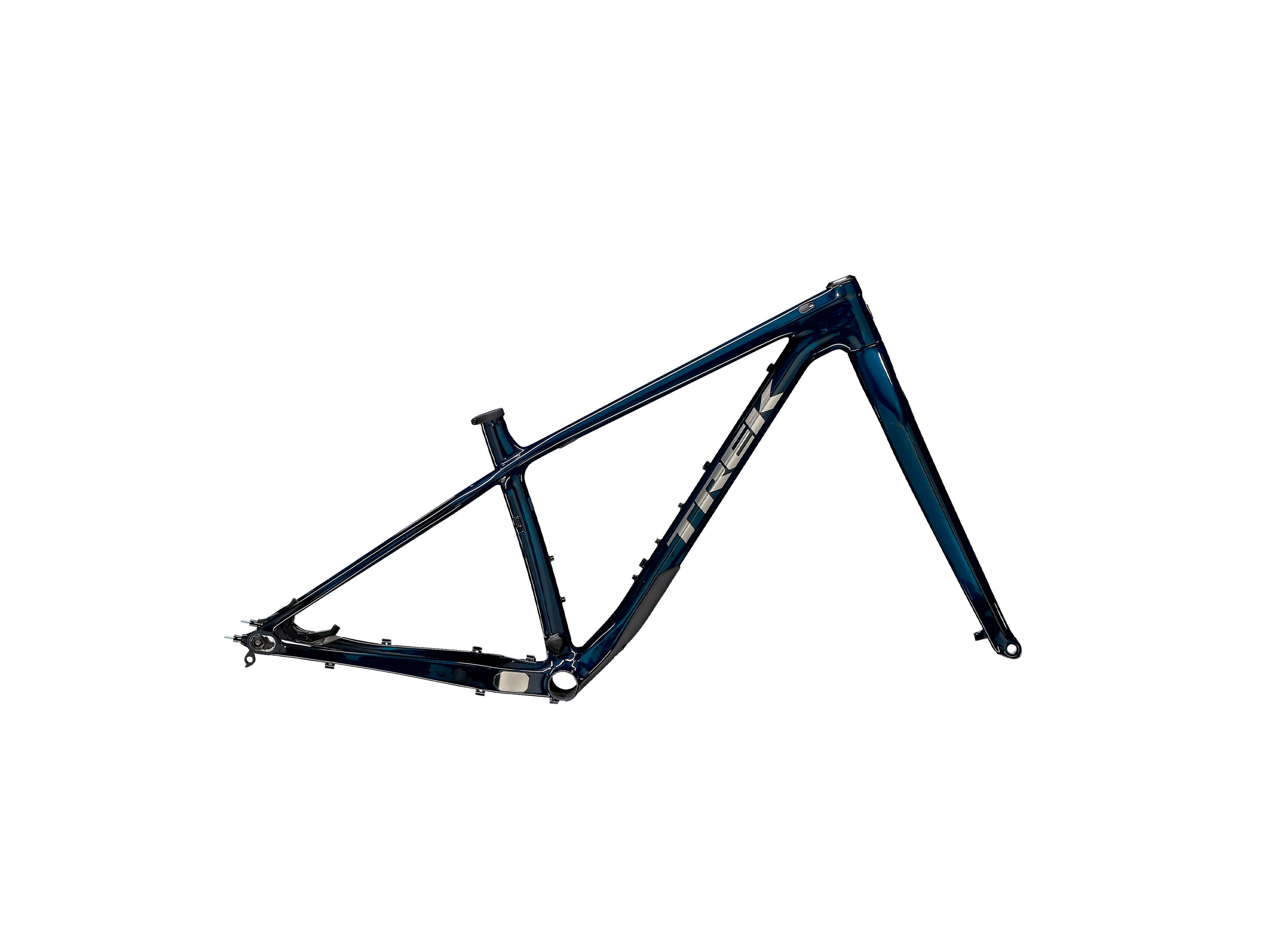

Farley C is an OCLV Mountain Carbon fat bike frameset for four-season shredders who know fat bikes can be fast, high-performance machines — despite their oversized appearance. This insanely light fat bike frameset includes a Bontrager Haru carbon fork and is built to accommodate 26x5" or 27.5x4" wheels.
  • The faster you ride a fat bike, the more fun it gets — and this bike is a lot of fun.
  • Its a four-season freedom machine that lets you ride outside all year long.
  • You can run your choice of wheels with 26x5" or 27.5x4" tires
  • The lightweight carbon frame keeps the setup remarkably light and nimble for a fat bike

OCLV Mountain Carbon

Treks mountain-specific carbon fiber is tougher carbon, with unique materials and layup procedures, Treks advanced engineering, and a higher standard of testing.

27.5˝ fat tires

More efficient 27.5" fat tires keep you rolling faster, especially on groomed or packed snow.


Frame OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts
Fork Farley full carbon, tapered carbon steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle
Skewer Front Bontrager 150x15mm thru axle, 198mm length // Bontrager Switch thru axle
Skewer Rear Bontrager Switch thru axle, removable lever
Seat Collar Bolt-on, 36.4mm
Headset FSA IS-2, 1-1/8 top, 1.5 bottom

Geometry Chart

B B Drop 6.7
B B Height 32.1
Chainstay Length 45.5
Eff Seat Tube Angle 73.0°
Eff Top Tube 64.4
Frame Reach 45.4
Frame Size Letter XL
Frame Size Number 21.5"
Frame Stack 61.9
Head Angle 69.0°
Head Tube Length 12
Offset 5.1
Seat Tube 52.1
Seat Tube Angle 71.5°
Standover 77.4
Trail 9.4
Wheelbase 117.1
Wheel Size 27.5"
