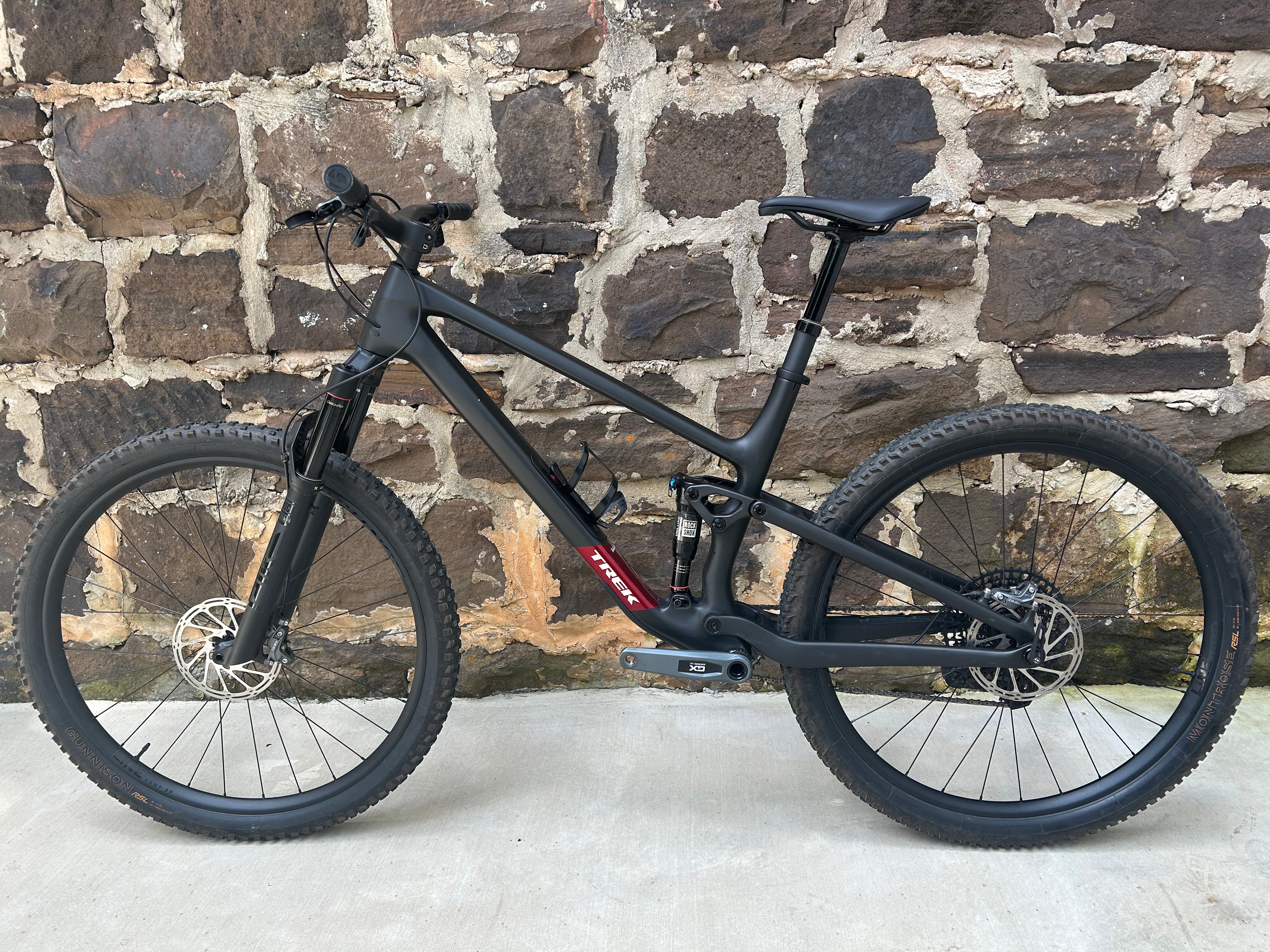

DEMO 2025 Trek Top Fuel 9.8 GX AXS Gen 4 XL - *only 150 Miles, almost new*
Couldn't load pickup availability
This Demo bike has very little mileage - less than 150 miles. It is in excellent shape, with very minimal wear and tear.
You gotta get up to get down — make it a party no matter which way you point it on Top Fuel. This spry 29er is ready to make light work of long climbs and cut loose on rowdy descents. Whether you’re heading out for midweek hot laps or weekend long adventures packed with lung-crushing climbs and surreal descents, Top Fuel brings something to the party for everyone.

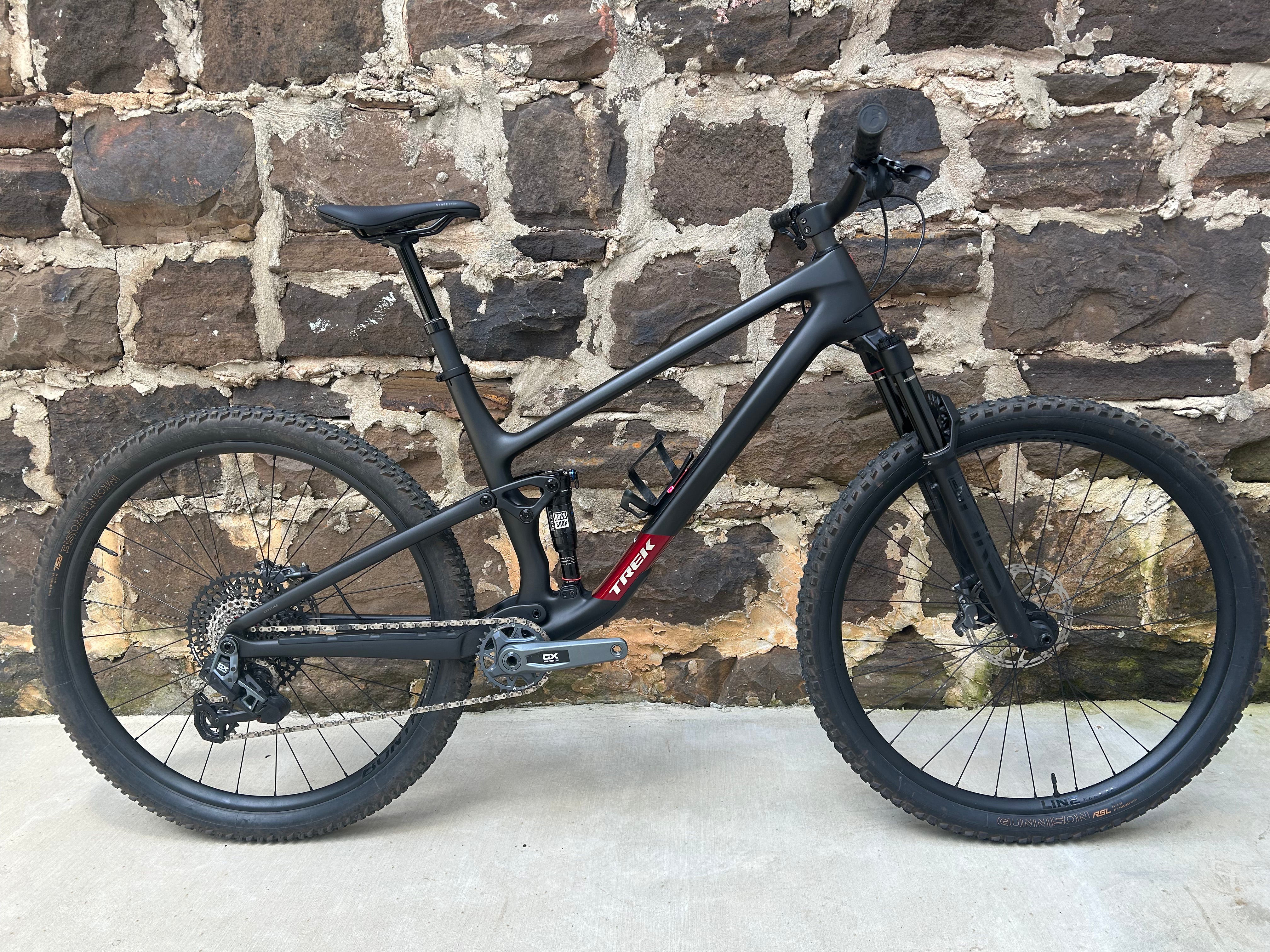

Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120mm/130mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.
4-way Mino Link
Easily adjust the suspension and geometry four different ways for where and how you ride. With the flip of a chip, you can ride with more or less progressive suspension, and tweak your geometry for a slacker head tube and lower BB or steeper head tube and higher BB.
New internal storage with new BITS bags
New internal frame storage bags make it easy to ditch the pack and still carry your ride essentials.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most
| *Mainframe |
Size: XL, L, S , M, ML

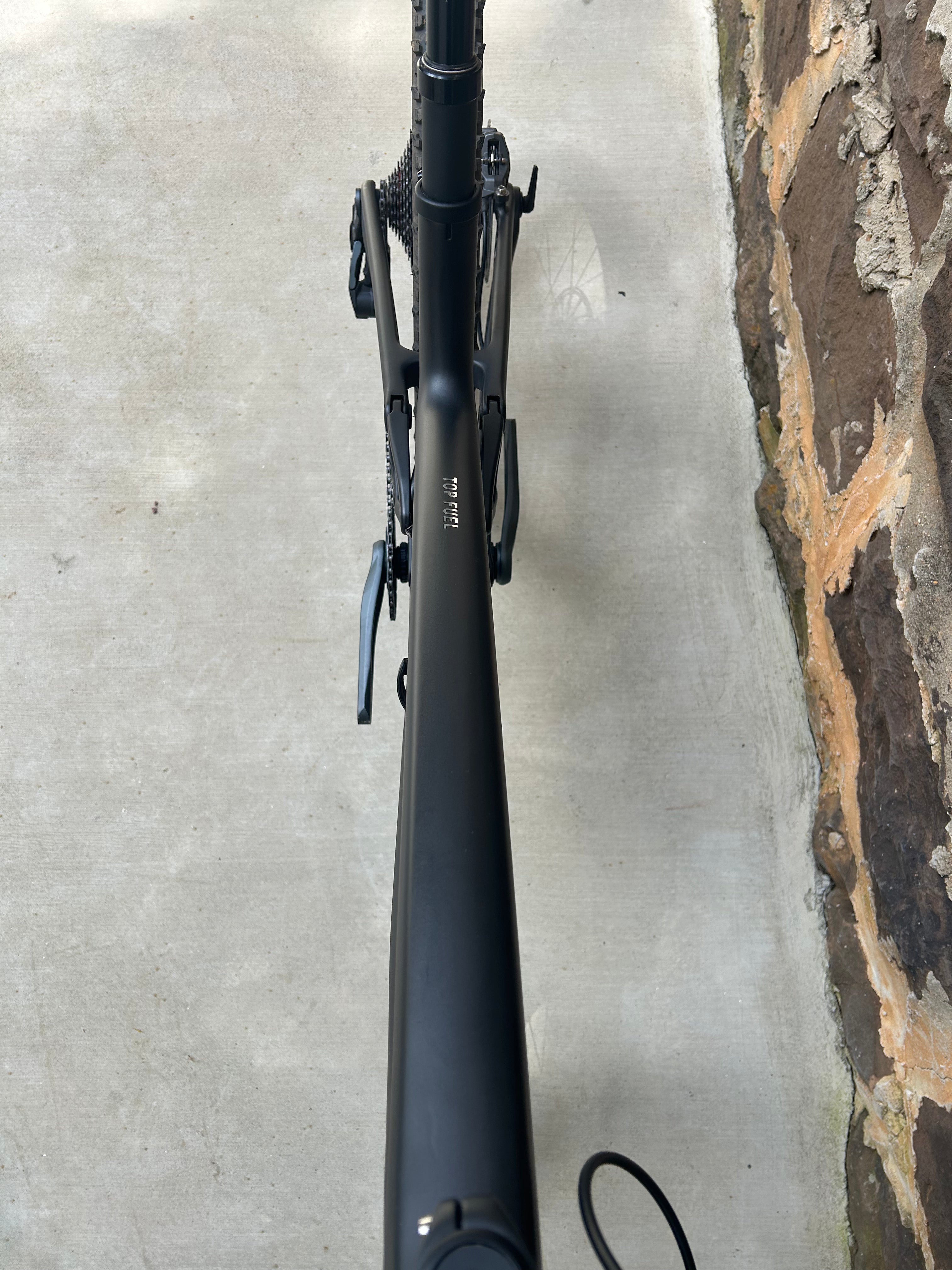

OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel
|
|---|---|
| *Fork |
Size: XL, L, S , M, ML

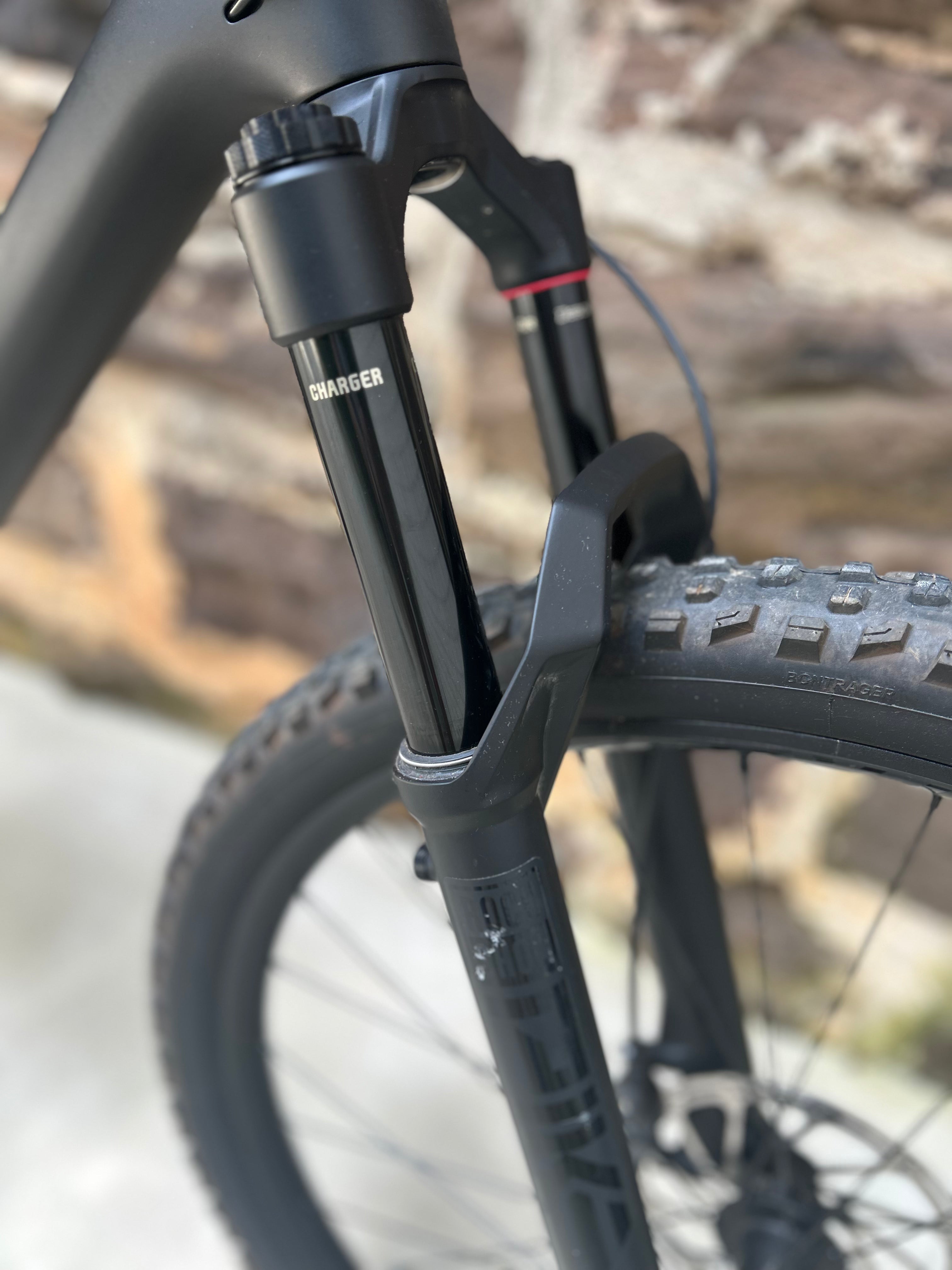

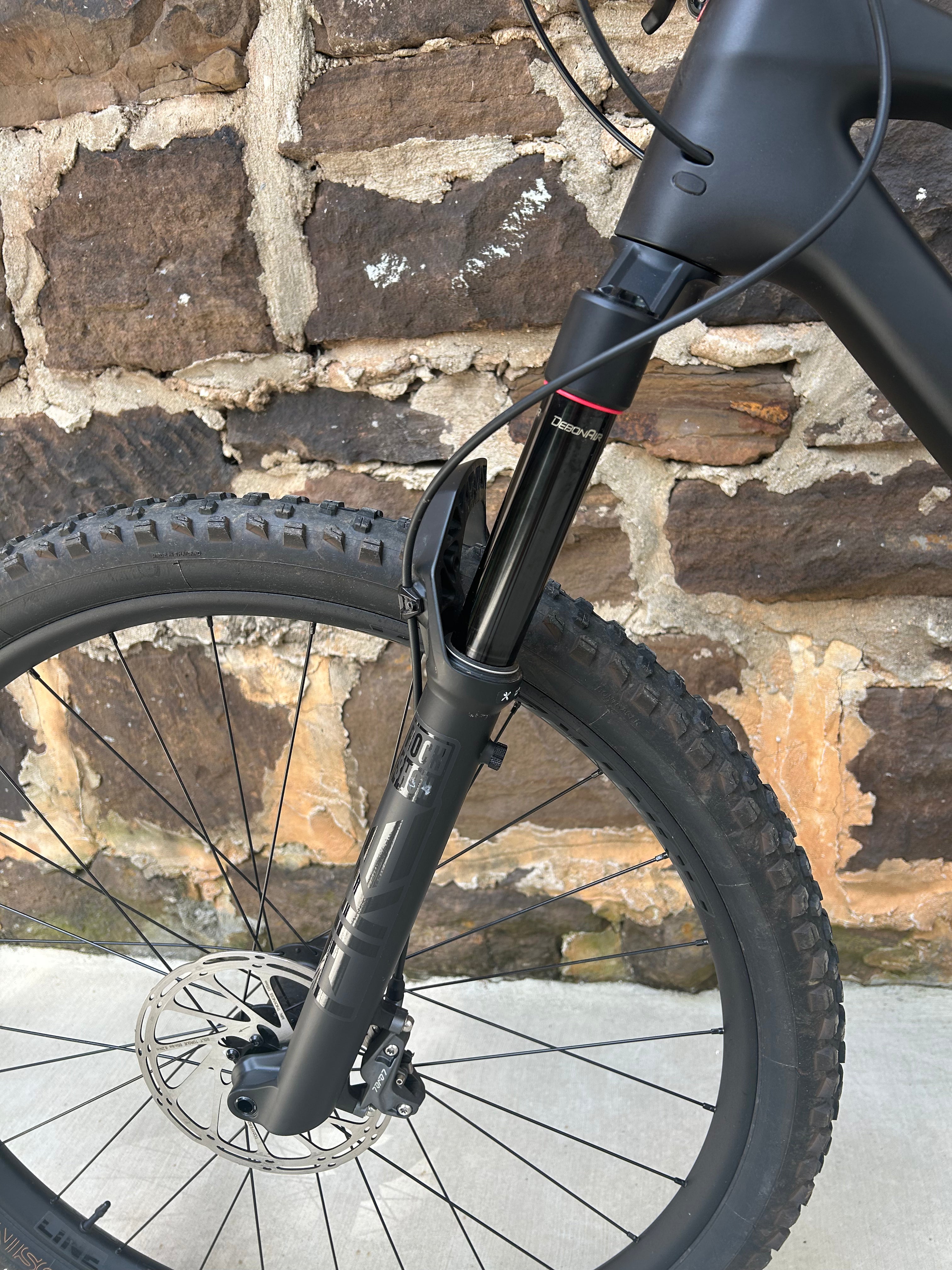

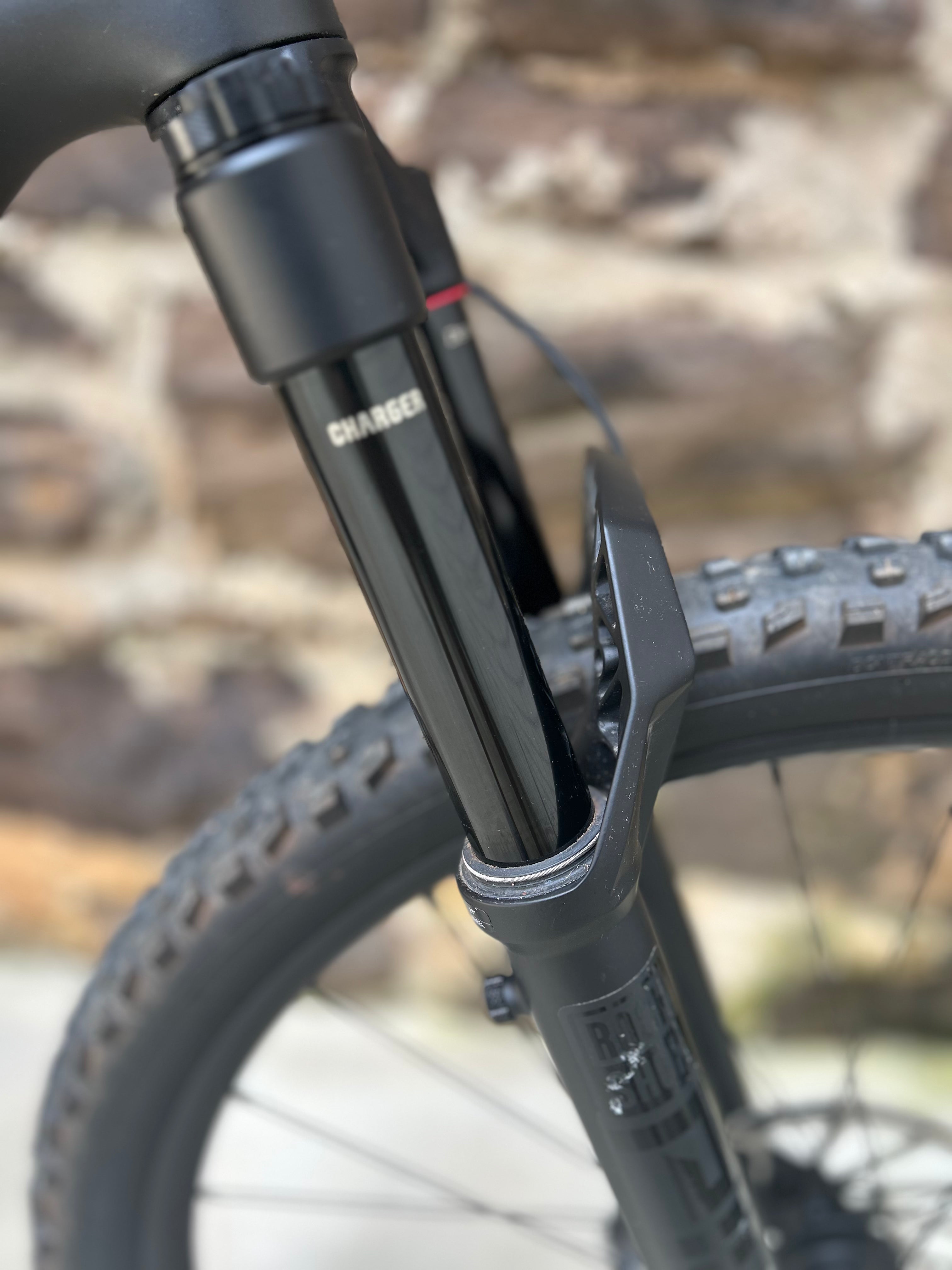

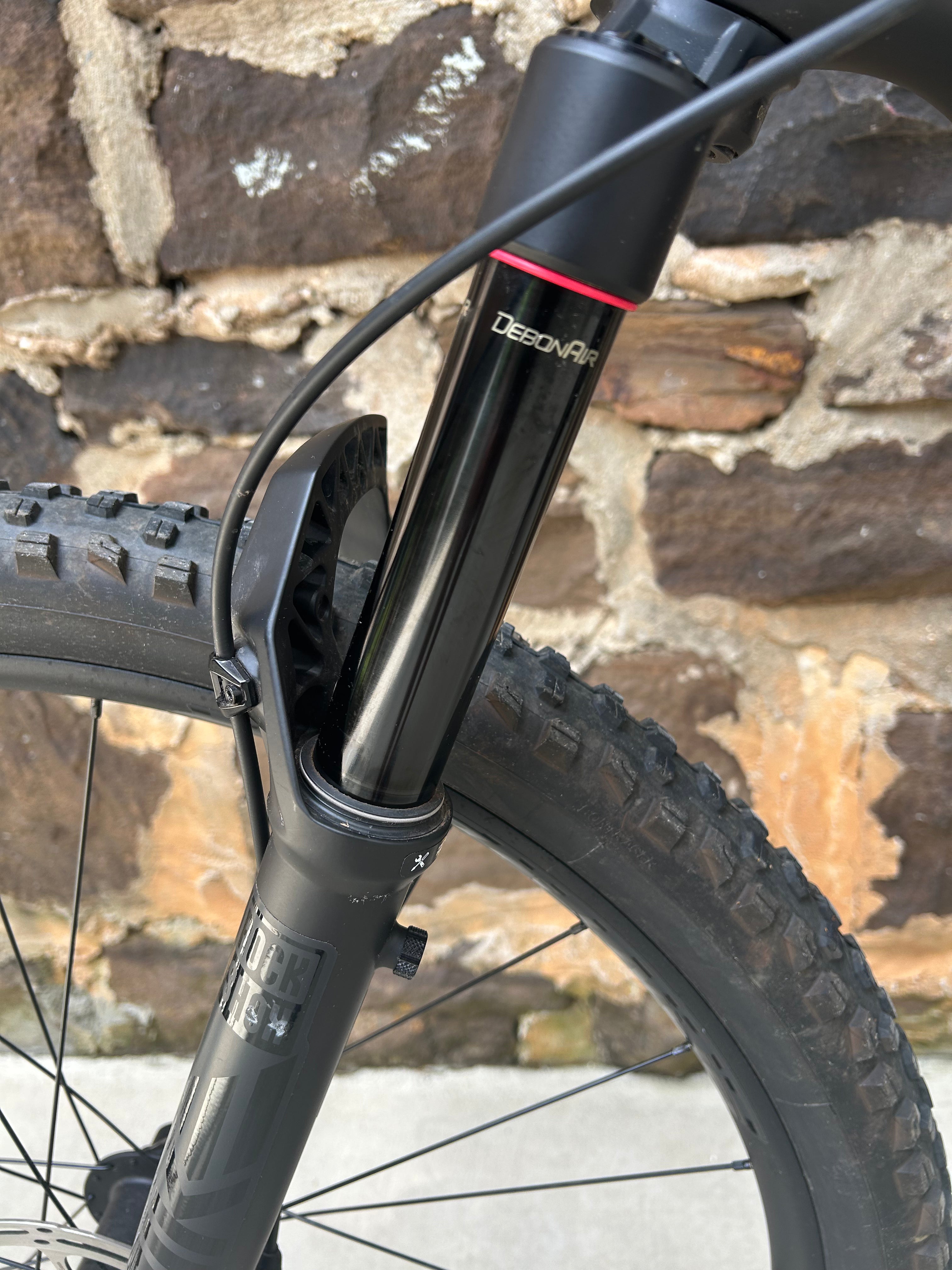

RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
|
| *Shock |
Size: XL, L, S , M, ML

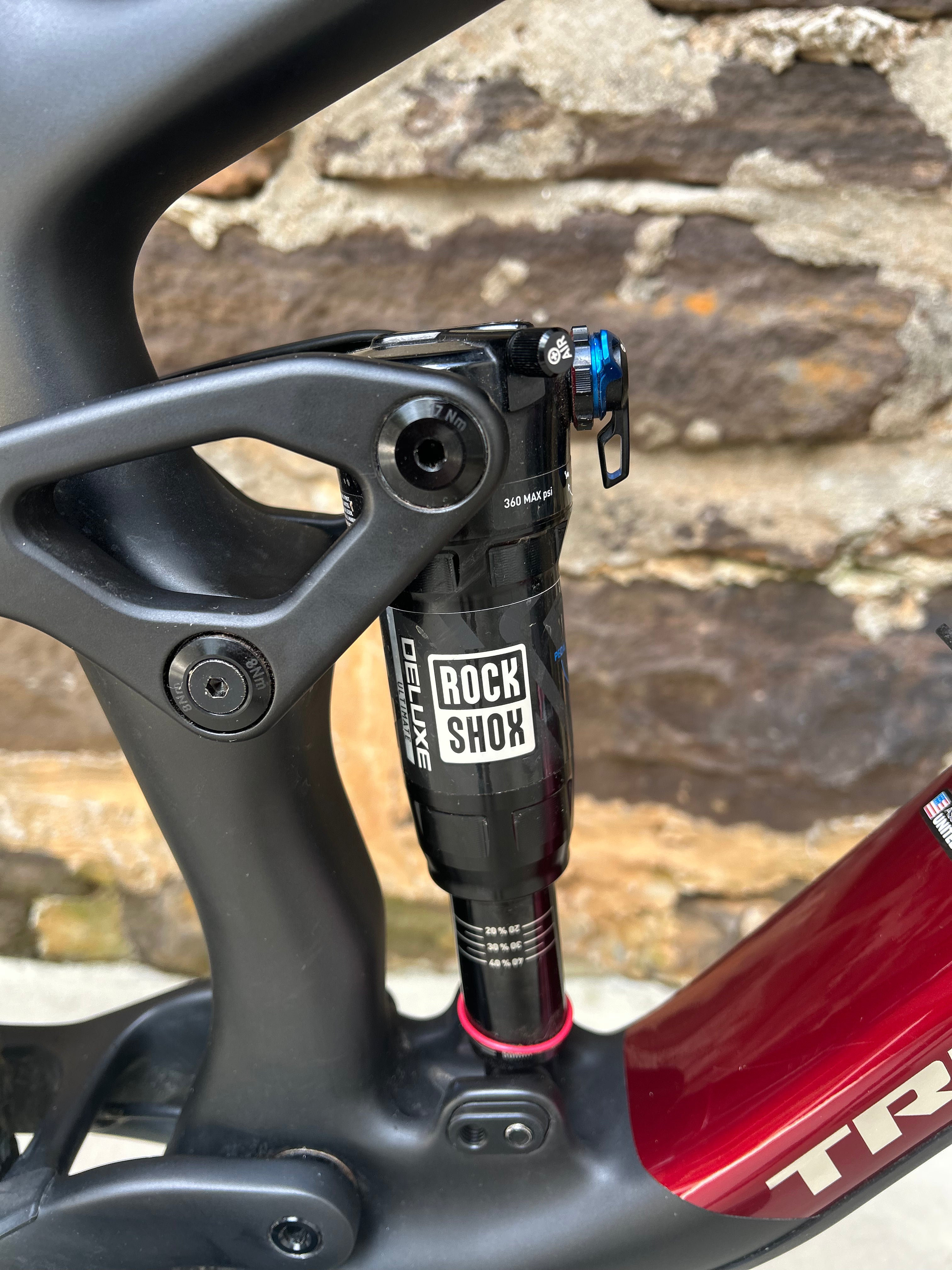

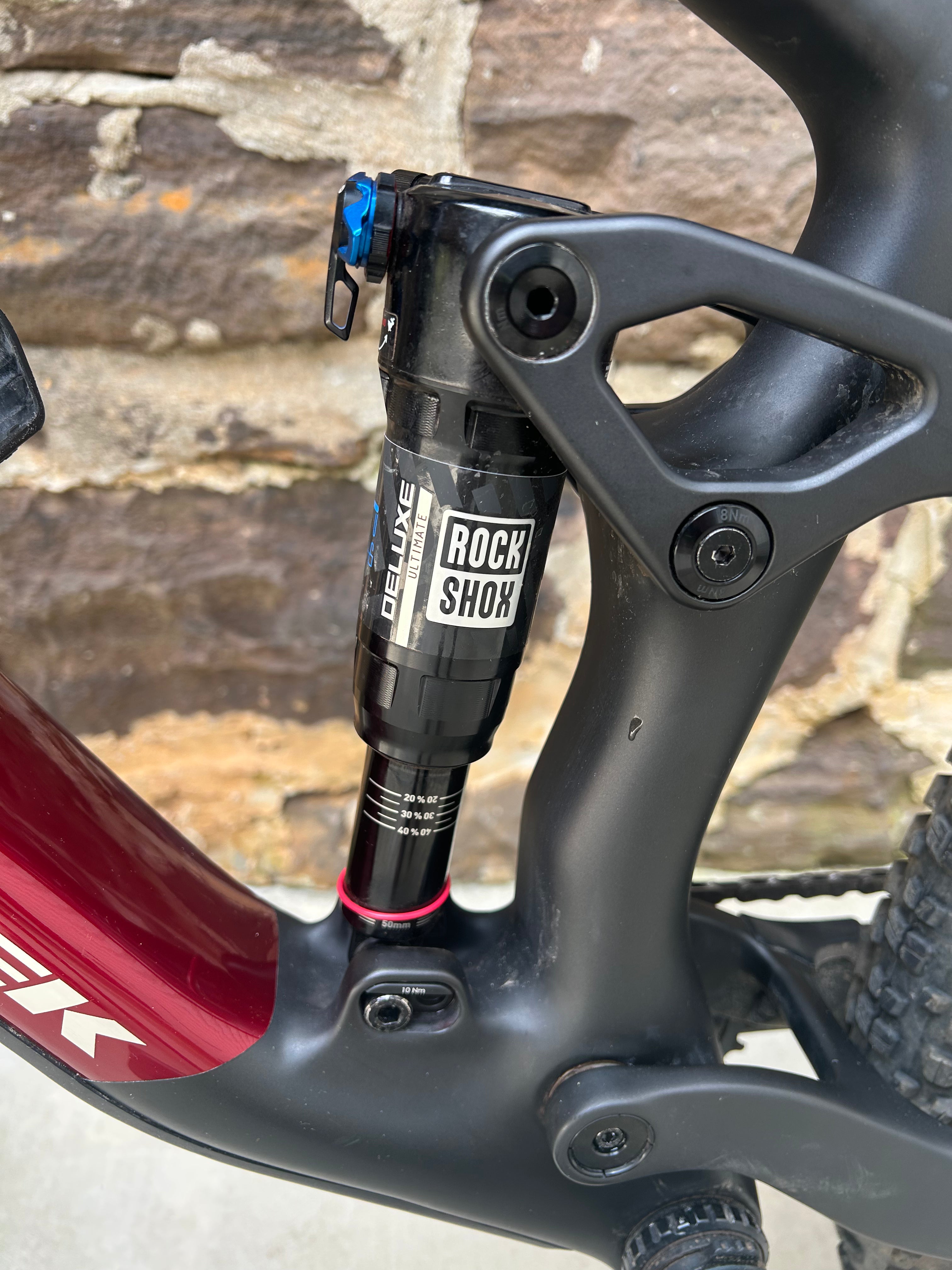

RockShox Deluxe Ultimate RCT, 185mm x 50mm
|
| *Battery | Size: XL, L, S , M, ML SRAM AXS battery pack (with charger) |
|---|
| *Shifter |
Size: XL, L, S , M, ML

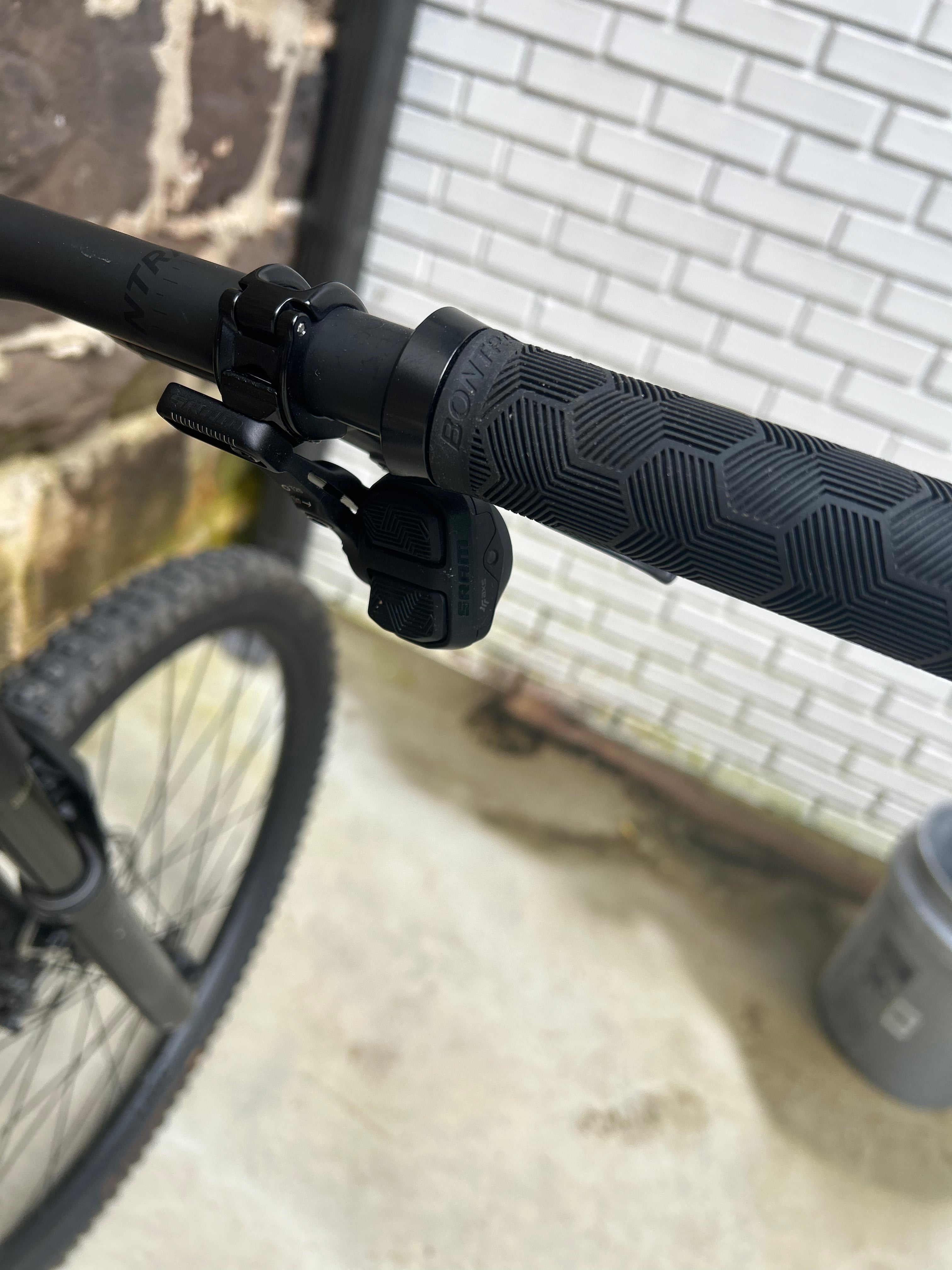

SRAM AXS POD
|
|---|---|
| *Rear Derailleur |
Size: XL, L, S , M, ML

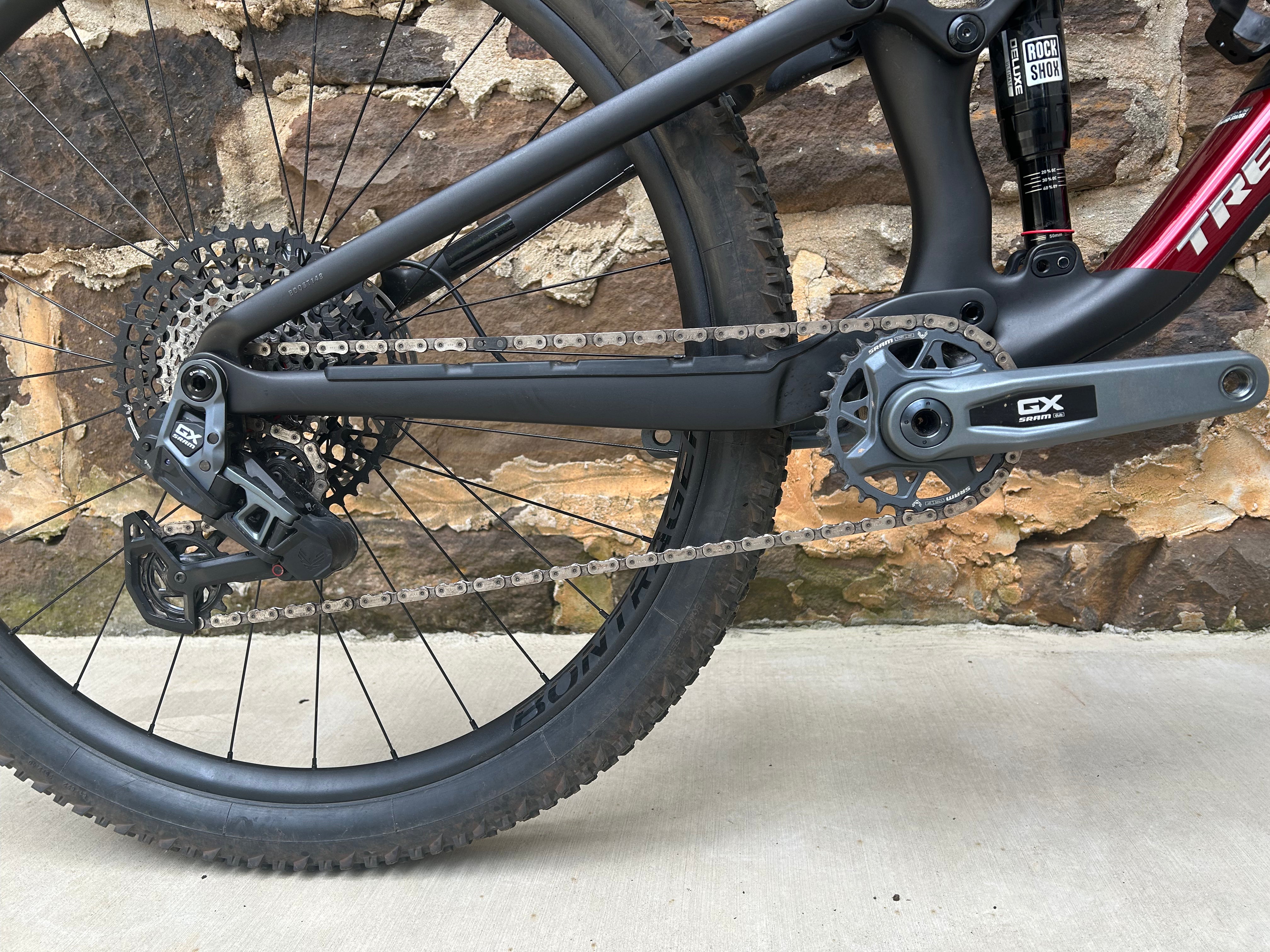

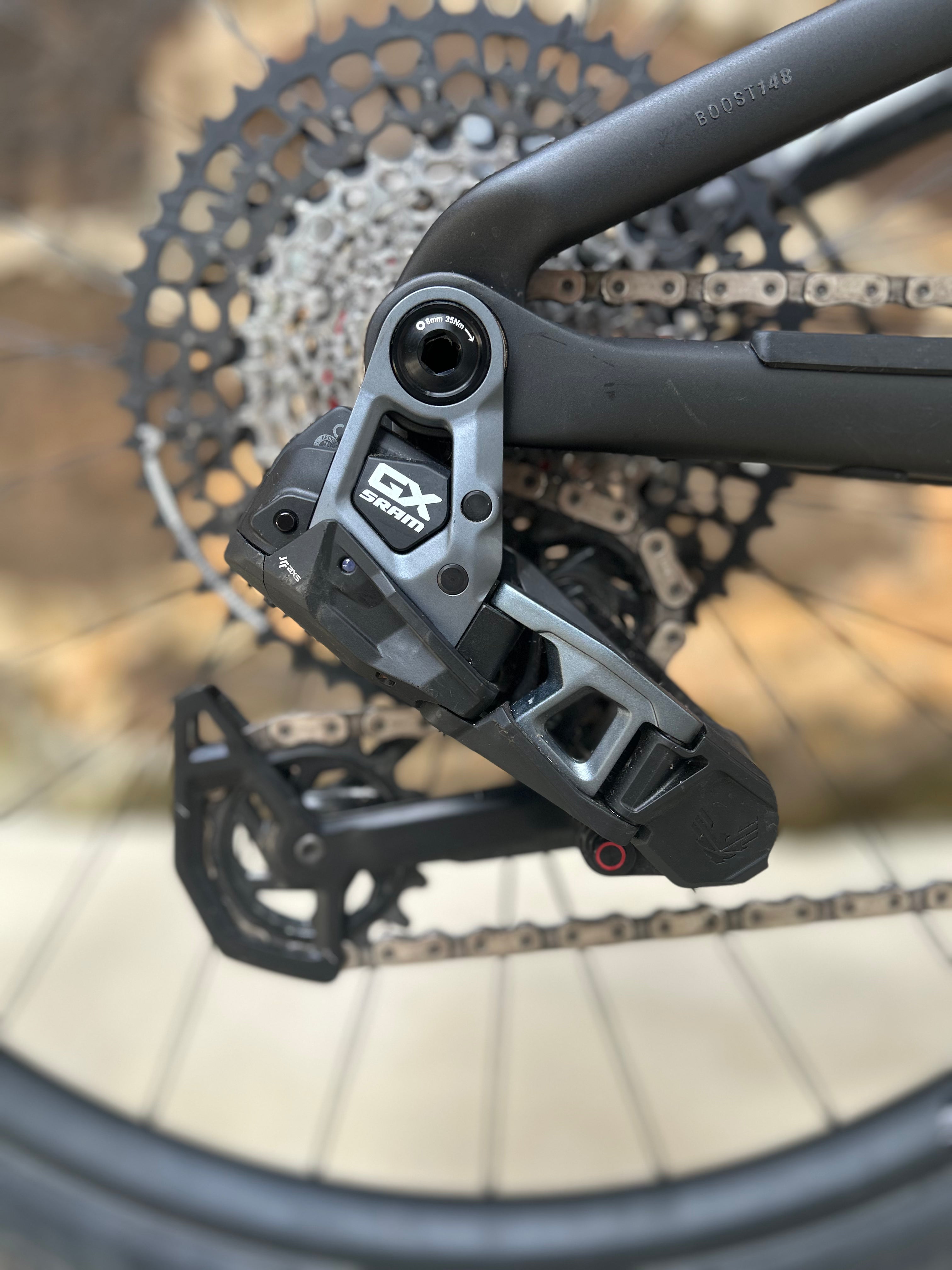

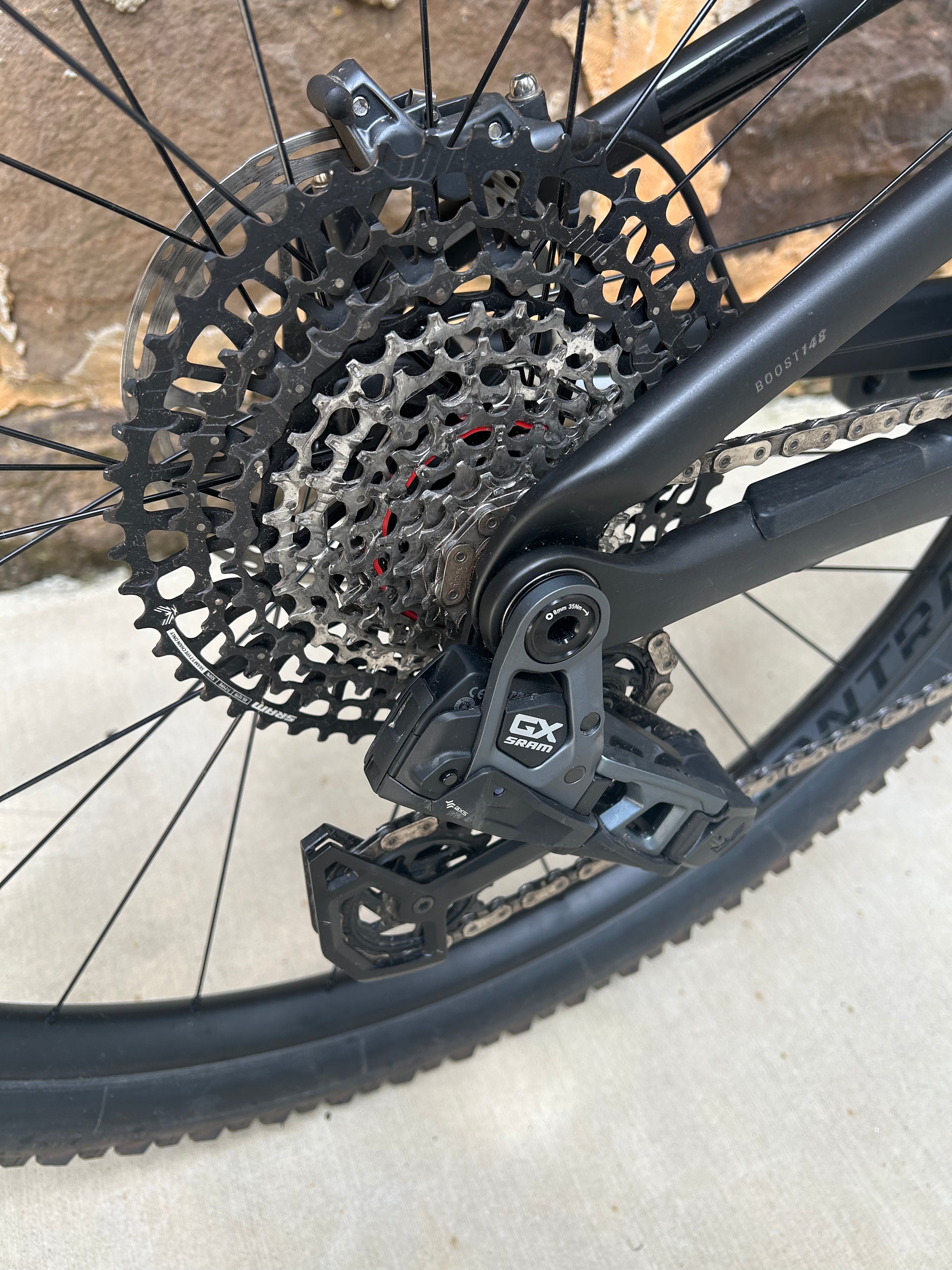

SRAM GX Eagle AXS, T-Type
|
| *Crank |
Size: XL, L, S , M, ML
SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
|
| *Bottom Bracket |
Size: XL, L, S , M, ML
SRAM DUB MTB Wide, 73mm, BSA threaded
|
| *Cassette |
Size: XL, L, S , M, ML
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
|
| *Chain |
Size: XL, L, S , M, ML
SRAM GX Eagle, T-Type, 12 speed
|
| Max chainring size | 1x: 34T, min 30T |

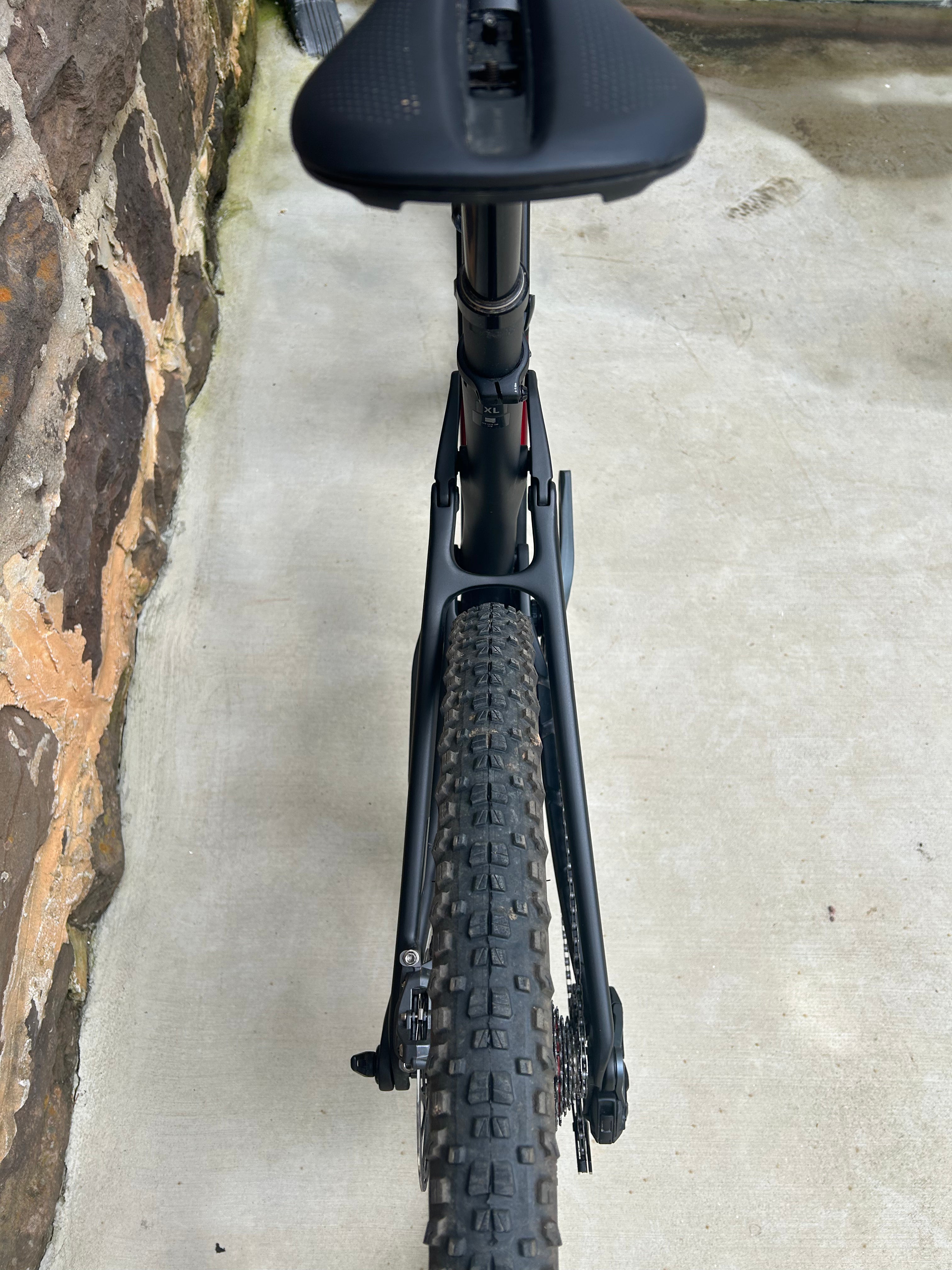

| *Saddle | Size: XL, L, S , M, ML Verse Short Comp, steel rails, 145mm width |
|---|---|
| *Seatpost | Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length |
| Size: XL, L, M, ML Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length | |

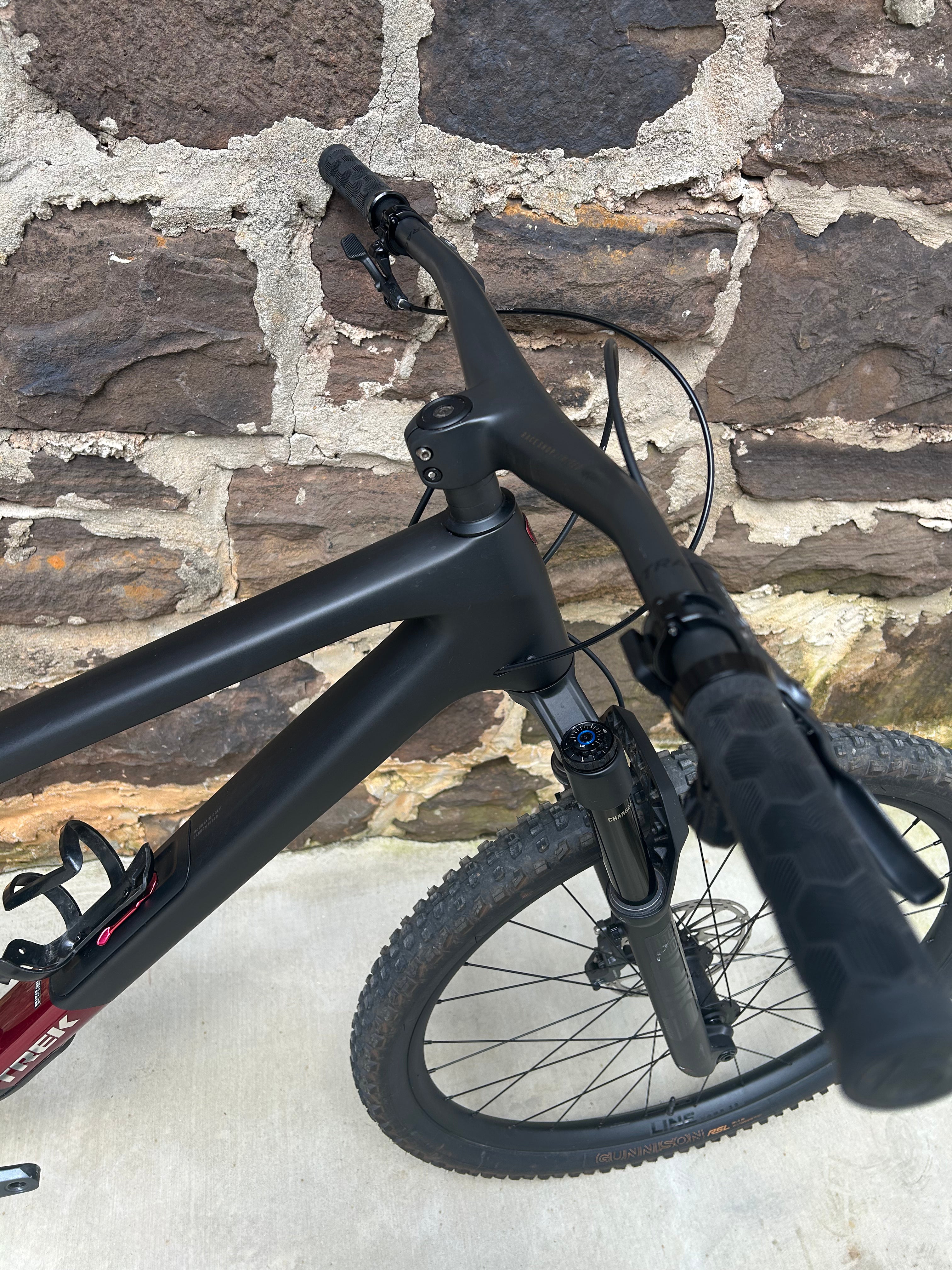

| *Integrated Bar Stem | Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length |
| Size: XL, L, M, ML Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length | |
| *Grips |
Size: XL, L, S , M, ML
Bontrager XR Trail Elite, nylon lock-on
|
| *Brake |
Size: XL, L, S , M, ML

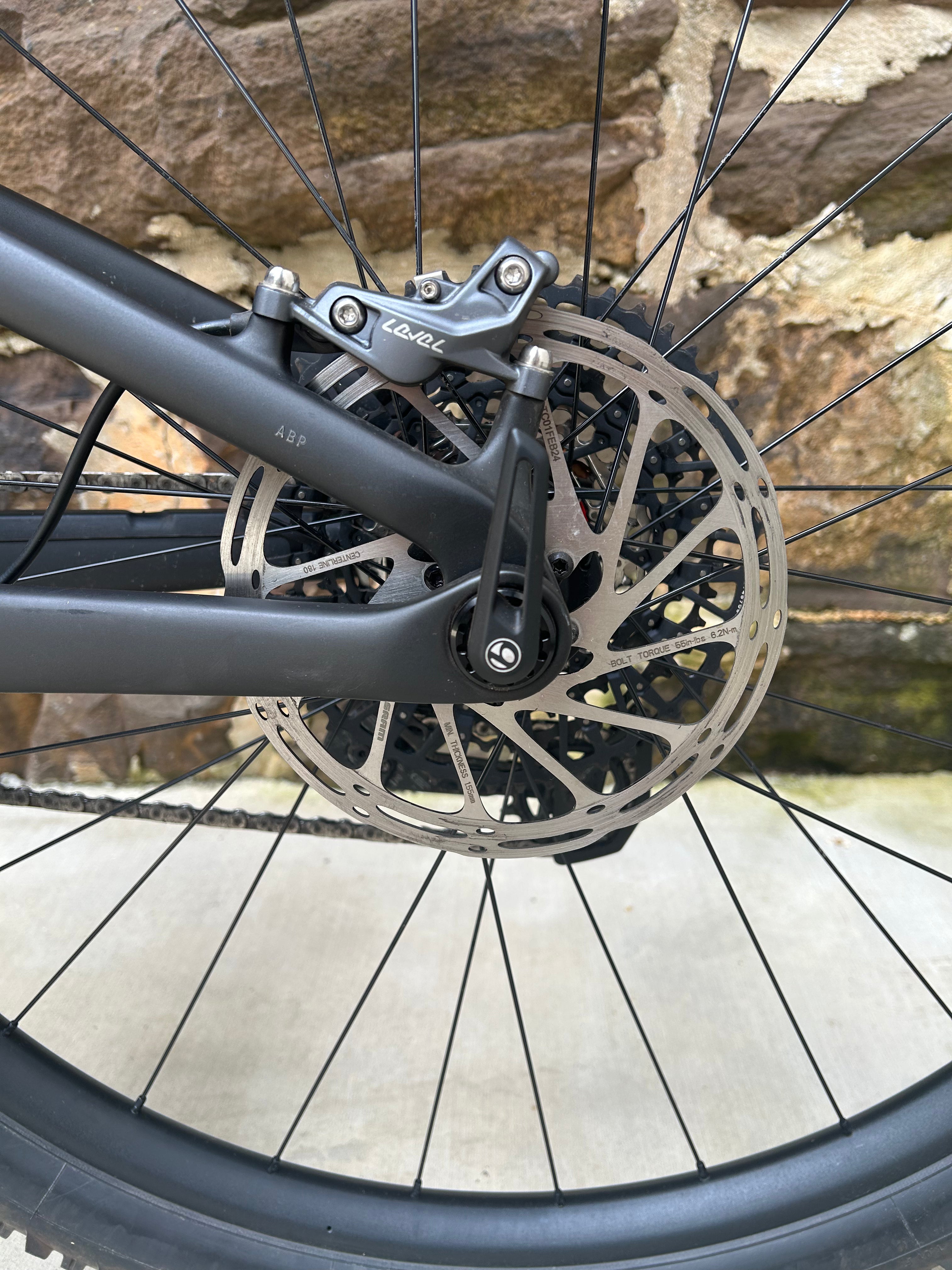

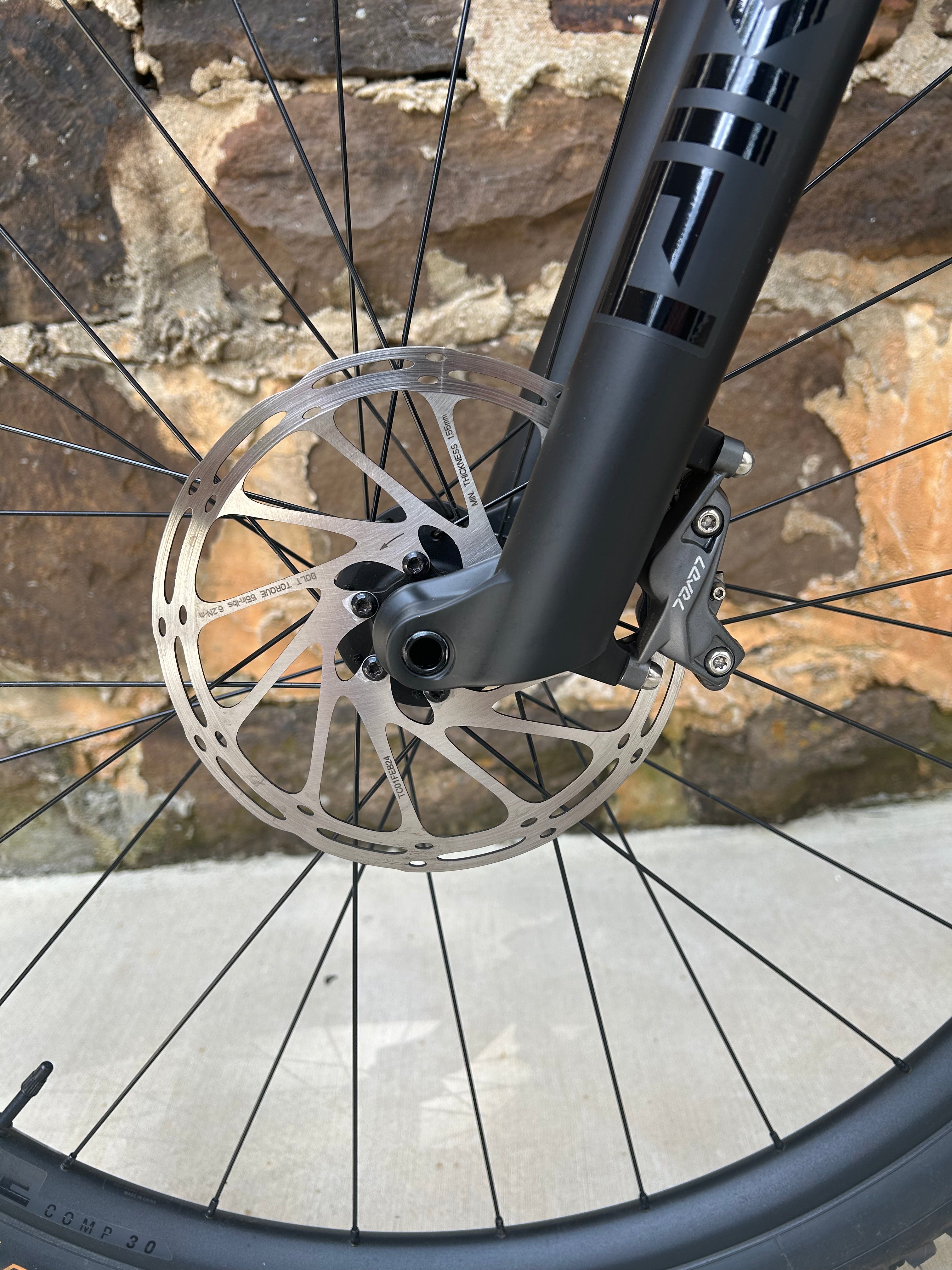

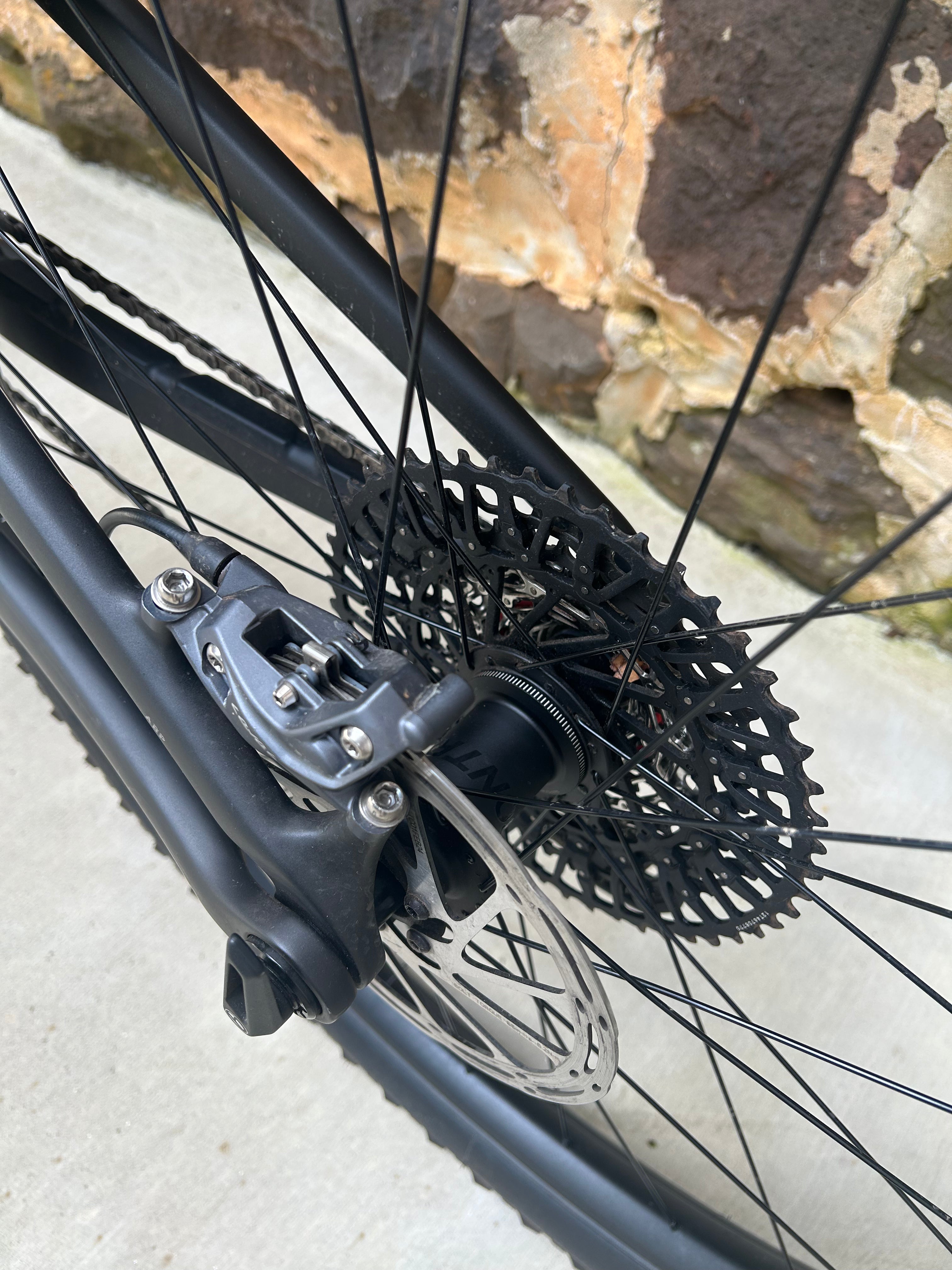

SRAM Level Bronze 4-piston hydraulic disc
|
| *Brake Rotor |
Size: XL, L, S , M, ML

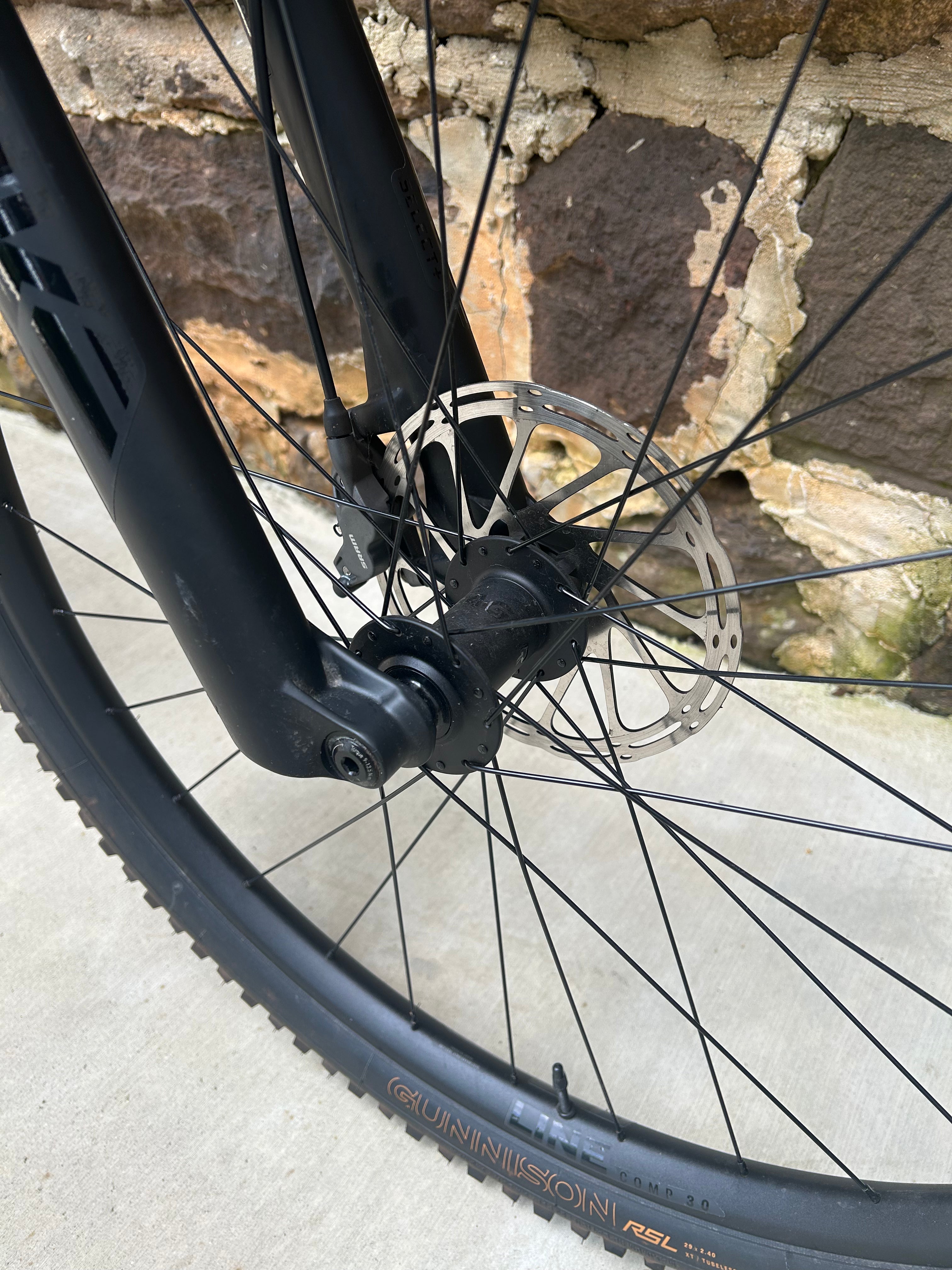

SRAM CenterLine, 6-bolt, round edge, 180mm
|
| Rotor size | Max brake rotor sizes - Frame: 200mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 13.20 kg / 29.11 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
